FJ40 Upgrade: Offset Teraflex High Pinion D60, 14 Bolt Hybrid Rear Axle (1 Viewer)

[Nad Aitch]

Those carry a lifetime warranty and are naturally 2x the price

But the peace of mind you'll sleep with tonight knowing that's the last drive flange you'll ever buy - priceless



[Rock40]

But the piece of mind you'll sleep with tonight knowing that's the last drive flange you'll ever buy - priceless

That’s exactly right. I may even go 4340, I’m only building this once



[peesalot]

The 1410 seems to be the dealio.



[Rock40]

The 1410 seems to be the dealio.

Should be. Other things will grenade now before the driveshaft



[Rock40]

A little warp control…

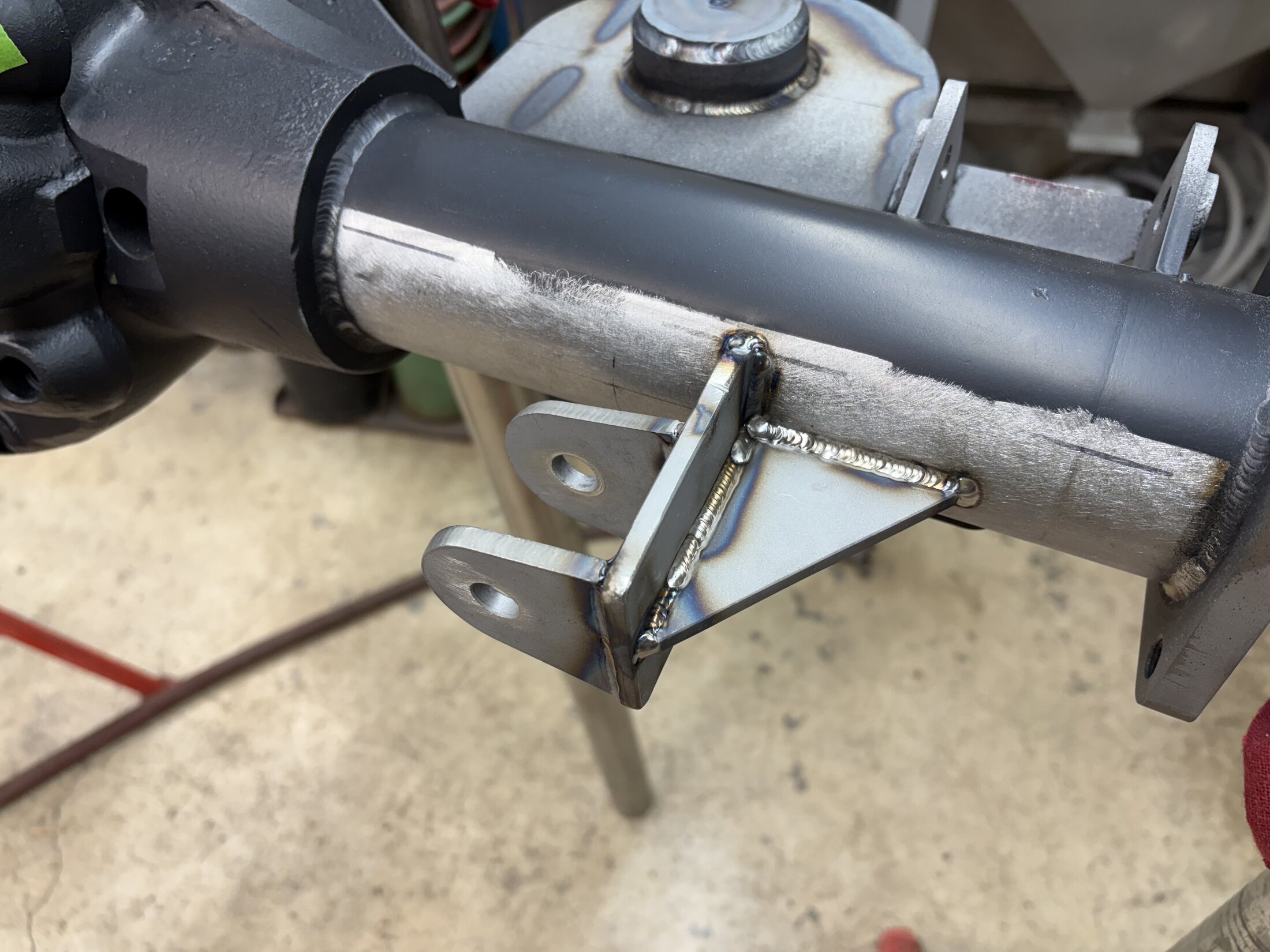

Banged out the final brackets for the Teraflex today. Folks sometimes ask how long this stuff takes. Today was 7 hours starting from scratch on the shock brackets to when the welder was put away



[archie73]

Banged out the final brackets for the Teraflex today. Folks sometimes ask how long this stuff takes. Today was 7 hours starting from scratch on the shock brackets to when the welder was put away

This makes feel better about my fumbling thru my build. EVERYTHING takes longer than I think it should.



[Rock40]

Truss became permanent today. Now it needs some paint and final assembly



[Rock40]

Well, paint is done. May do assembly tomorrow



[ferg]

... I’m only building this once...

Riiight!



[Rock40]

Riiight!

Well…. Ridiculously strong is generally enough. The ProRock 60 front? Have only changed the oil in the 14 years I’ve run it… and it’s been run pretty hard



[Rock40]

It’s assembled and I’ve got my measurements done for the Dutchman shafts.

Drive flanges OD will need to be machined down a bit so the wheel can pass over it

Getting there tho



[clrussell]

It’s assembled and I’ve got my measurements done for the Dutchman shafts.

Drive flanges OD will need to be machined down a bit so the wheel can pass over it

Getting there tho

View attachment 3867194

View attachment 3867195

That is incredibly beautiful



[Rock40]

Thx. Started as sort of crummy junk, transitioned to this

Just ordered inner double splined shafts from Dutchman in their Hy-Tuf material. From what I read on their site, it’s “off-road” rated and strength wise better than 4340 but not quite as strong as 300M. Lifetime warranty so what the heck $685 (pre-shipping) for both shafts and that’s with having them fully torsion turned for a bit more strength



[Rock40]

Well… how hard is a Branik Racing 14 Bolt drive flange? Ridiculously stinkin’ hard



[Rock40]



[Rock40]

Branik drive flanges are on, still waiting on axle shafts. Filled it with oil, added tires, rolled the axle 360° several times to oil the tubes.

Now it’s out in the other shop, waiting on install



[matzell]

If you pull a tire off again, will you get me a measurement on the hub surface to end of hub? It looks almost the same as a C&C hub but not sure. I am trying see what wms would be on a standard 14b.

Thanks



[Mike Shull]

If you pull a tire off again, will you get me a measurement on the hub surface to end of hub? It looks almost the same as a C&C hub but not sure. I am trying see what wms would be on a standard 14b.

Thanks

My C14 C&C WMS measures just shy of 63” if that helps.

Great progress on this project!!



[Rock40]

My C14 C&C WMS measures just shy of 63” if that helps.

Great progress on this project!!

Thanks all. I’ll get that measurement when I pull the tires to get the coils back in



[Rock40]

Dutchman shafts arrived, they look pretty darn good

New shaft compared to a Bobby Long 30 spline

Moment of truth, got the measurements right tho

LITTLE bit of an issue here at full bump passenger
