FJ40 2F AIR CONDITIONING COMPRESSOR BRACKET location

[Aijaz]

Hi All,

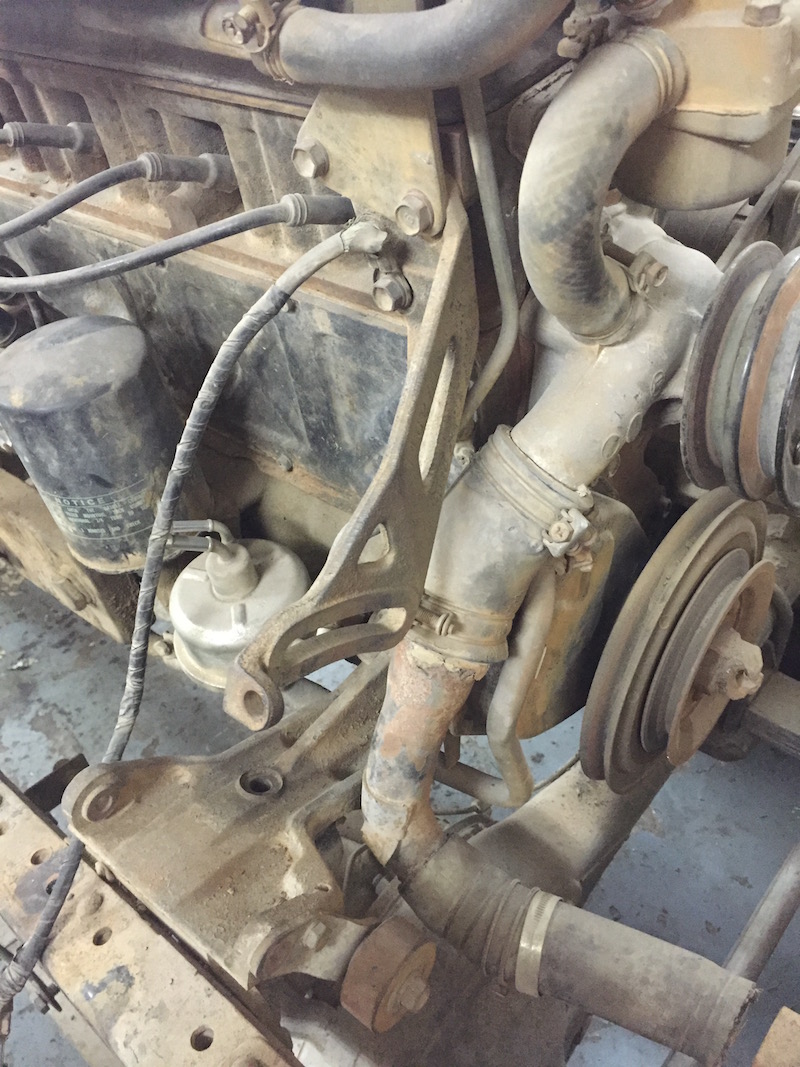

FJ40R-KC, right hand drive, 2F engine, stock power steering. Picture below is of stock
AIR CONDITIONING COMPRESSOR BRACKET. At what location is this bracket installed ?
Would there be any pictures ?

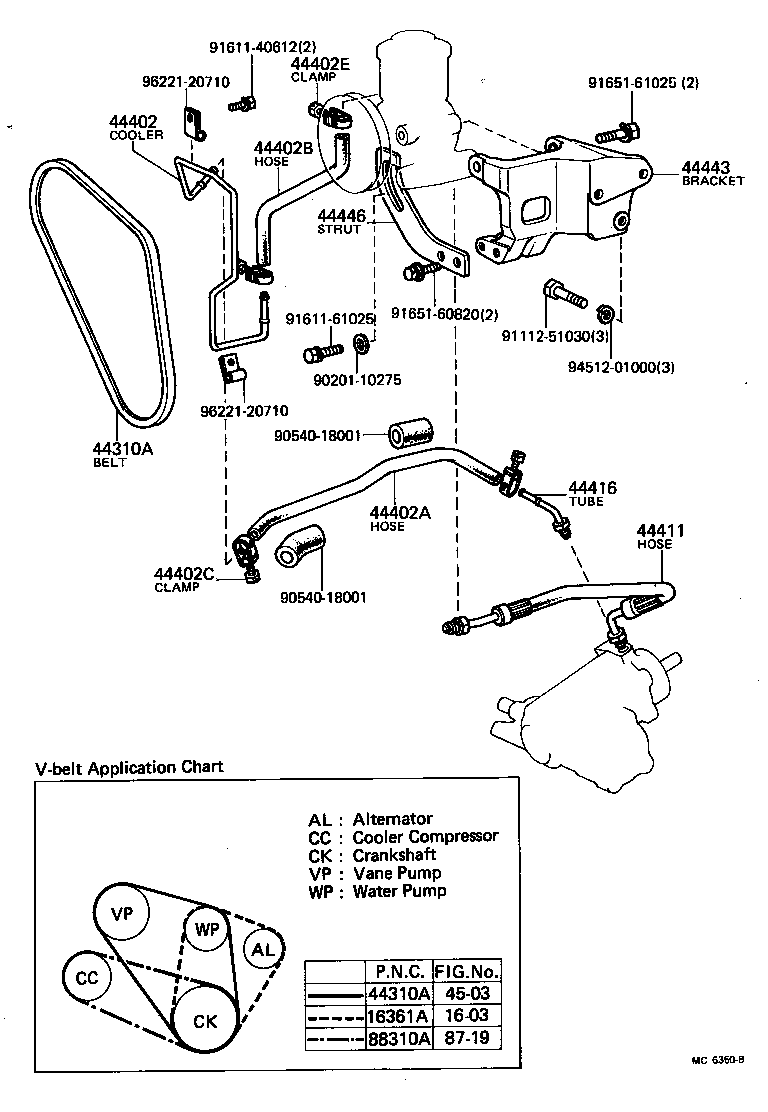

Second picture below shows stock pressure pump bracket already installed



[gcrump01]

1st pic - the bracket is the front passenger side motor mount. At least on left hand drive vehicles which is what I think you have a picture of. Installed pics in my build thread - page 2



[Aijaz]

Refer pic on your build thread - page 2 (given below)
On my FJ40 power steering pump is installed via stock bracket at the location of your alternator.
Is the stock AC compressor bracket installed on the motor mount only ? Thanks very much.



[gcrump01]

my power steering is on the opposite side on a stock bracket. I would assume everything would be reversed for your right hand drive vehicle.

in my setup, the adjuster to tension the AC compressor belt is attached to the bottom of the alternator bracket.



[Aijaz]

Would there be any diagram or picture showing the STOCK airconditioner bracket installed on any motor mount without the AC compressor ? Description of how to install stock AC compressor bracket on motor mount would be appreciated. Thanks very much.



[gcrump01]

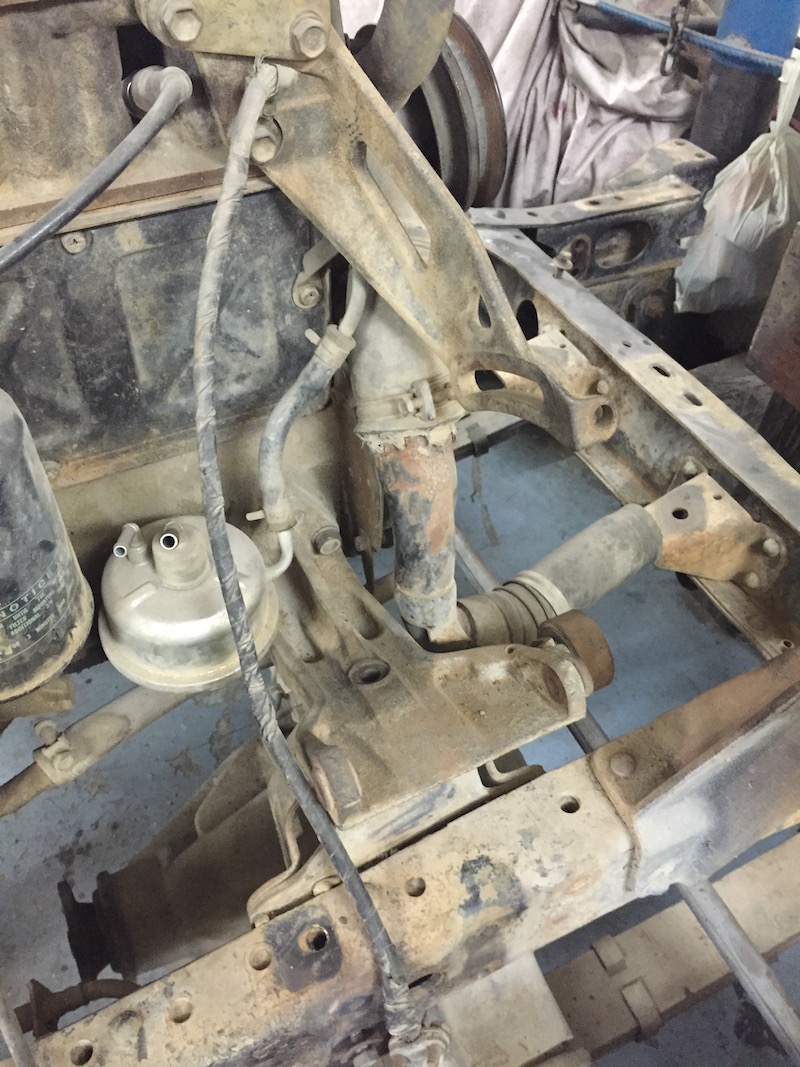

Here is the best pic I have of the bracket w/o the compressor installed.



[Aijaz]

Thanks very much for the very nice picture. I would appreciate if the following procedure is verified.
(1) First remove the stock motor mount bracket installed on the 2F engine
(2) Then install the stock AC compressor bracket at the location of the stock motor mount bracket
Thanks



[gcrump01]

You got it.



[Aijaz]

Thanks very much for the cooperation. Where can I buy all stock parts shown in the diagram below. And would there be any diagram or picture showing how these parts fit together.



[gcrump01]

I bought the brackets, pulley, tension bracket, etc from an FJ60. check the classifieds for an FJ60 part out.



[Aijaz]

Thanks very much



[Honger]

Would there be any diagram or picture showing the STOCK airconditioner bracket installed on any motor mount without the AC compressor ? Description of how to install stock AC compressor bracket on motor mount would be appreciated. Thanks very much.

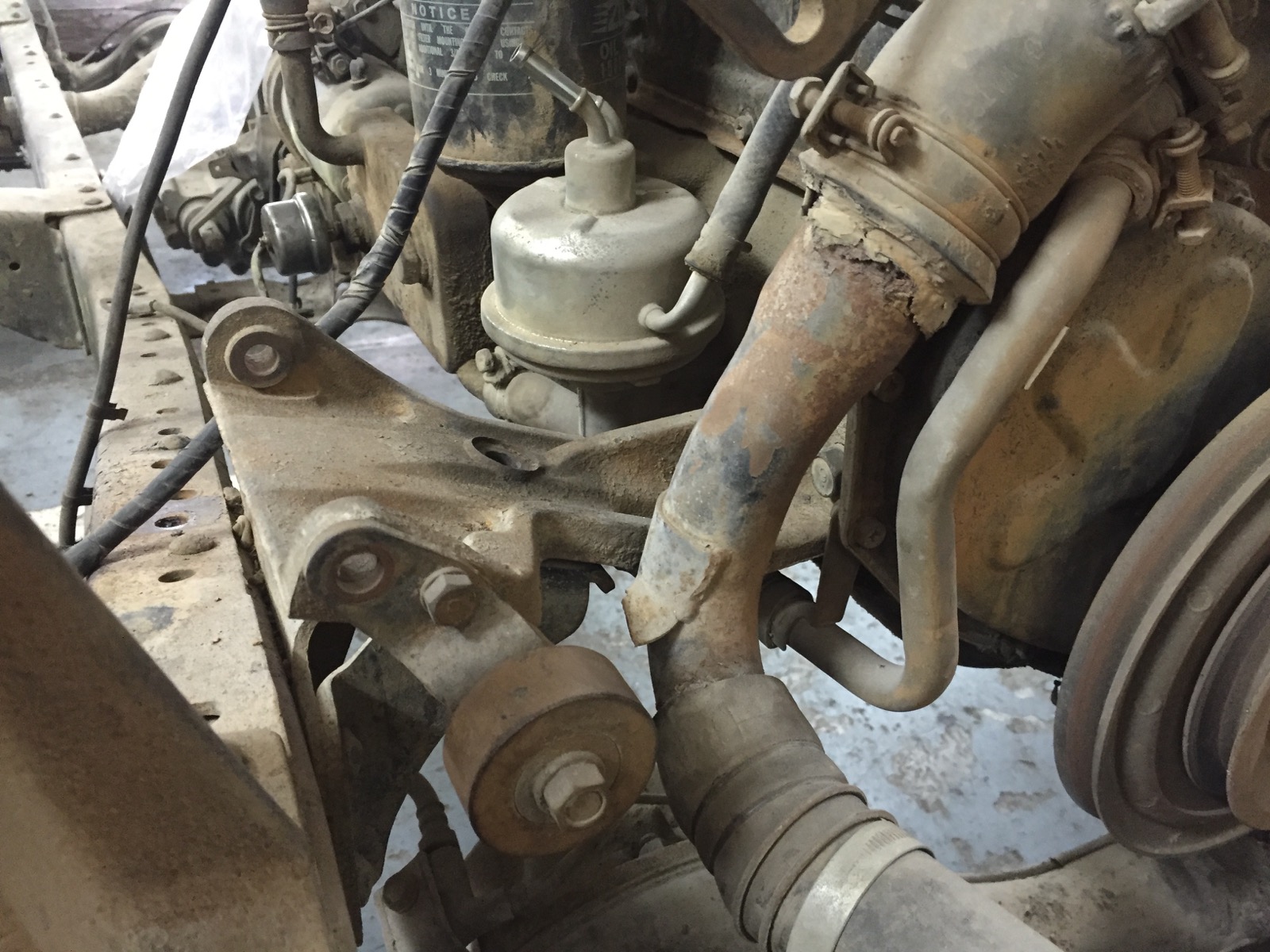

Some additional photos of the factor AC compressor bracket. This one on an FJ43.



[Aijaz]

Thanks very much for the very nice pictures.
