Where does the dust shield belong.
montanacruiser Joined Sep 28, 2012 Messages 247 Location Missoula MT Jul 2, 2016 #1 Where does the dust shield belong.
GW Nugget Do the best you can with what you have... Joined Jul 25, 2014 Messages 3,300 Location Coalinga, CA Jul 2, 2016 #2 Front Axle Rebuild - For FAQ

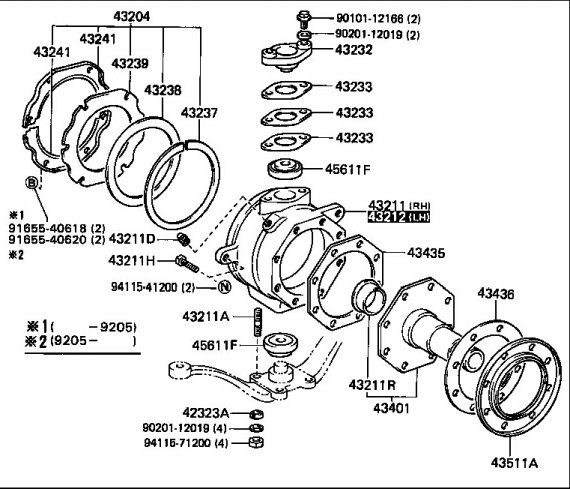

pilotuku Joined Oct 15, 2012 Messages 1,172 Location Mountain House, Ca Jul 2, 2016 #3 montanacruiser said: Where does the dust shield belong. View attachment 1284505 Click to expand... It's all the four parts on the left starting with the #43241. The felt goes with it as well. I call it the wiper.
montanacruiser said: Where does the dust shield belong. View attachment 1284505 Click to expand... It's all the four parts on the left starting with the #43241. The felt goes with it as well. I call it the wiper.

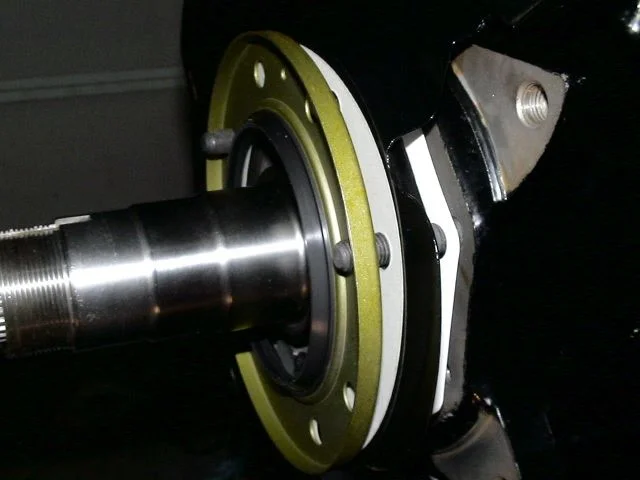

K Kernal Joined Dec 10, 2007 Messages 7,507 Jul 3, 2016 #4 Here's a photo, hard to make out the brake dust shield and edge of the spindle but they are there:
Cruzerman Joined Apr 23, 2005 Messages 3,284 Location Oregon Jul 3, 2016 #5 Dust shield goes on top of the spindle.
