Thanks to @benc for fabbing up his wicked design for the 200, entrusting me with a self-install, and for answering a ton of my silly questions.

Mad props to @1world1love for sending me countless reference pictures and measurements!

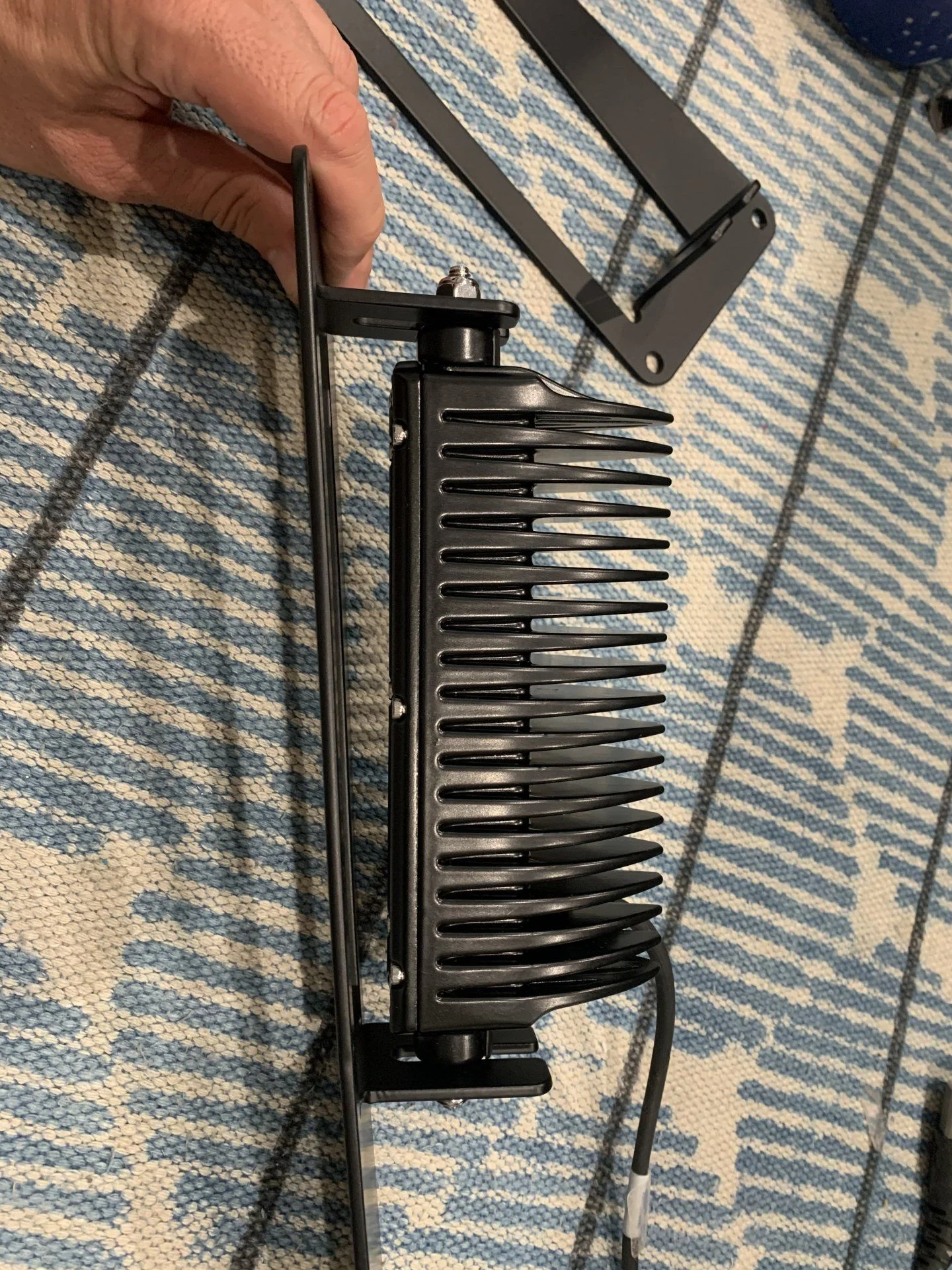

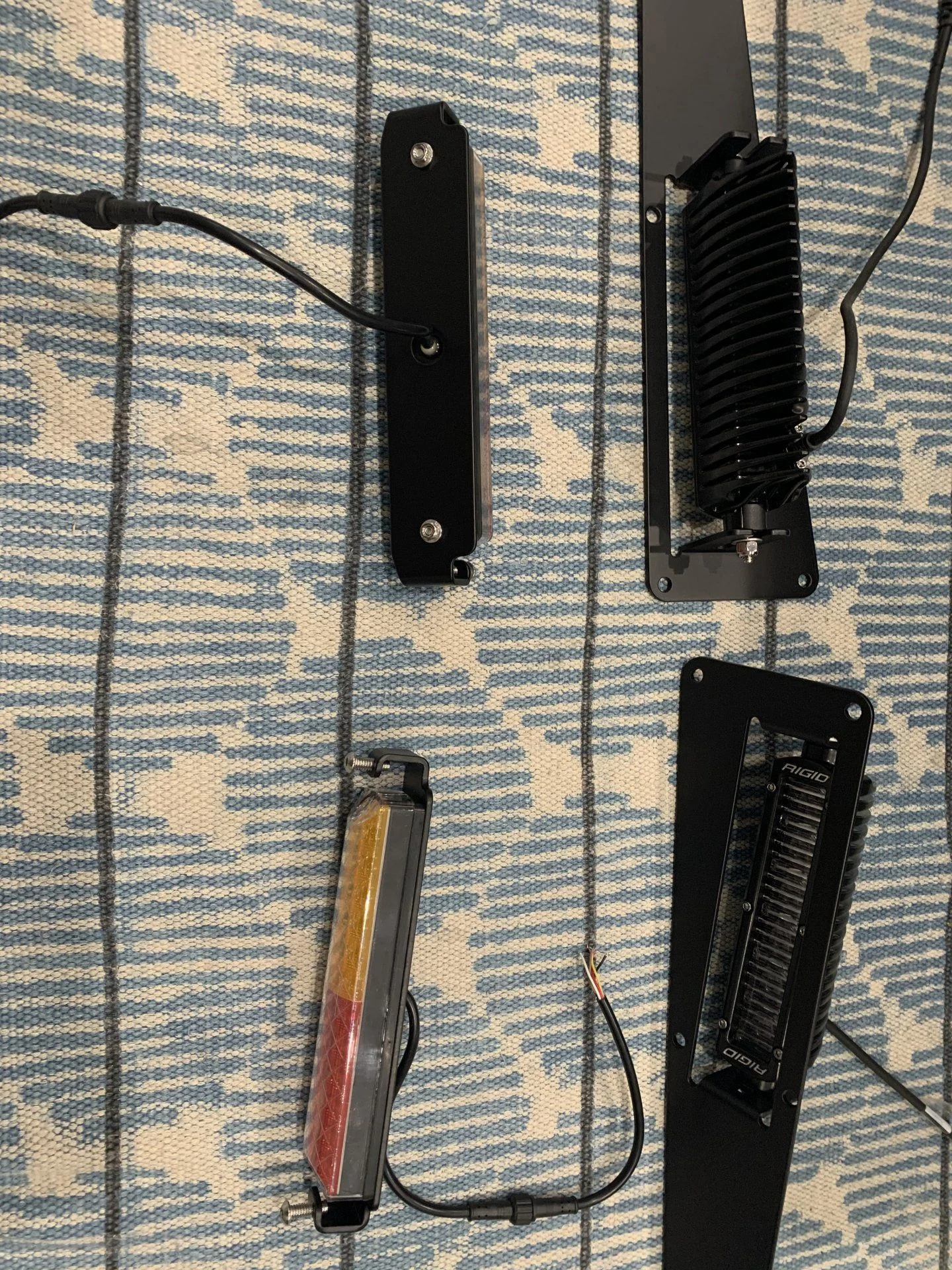

I'll be back to add a ton more details, but for now, I'm going to blow through and get these puppies mounted.


Attachments

Last edited:
Joined
May 28, 2019
Messages
490
Location
Houston
Front:

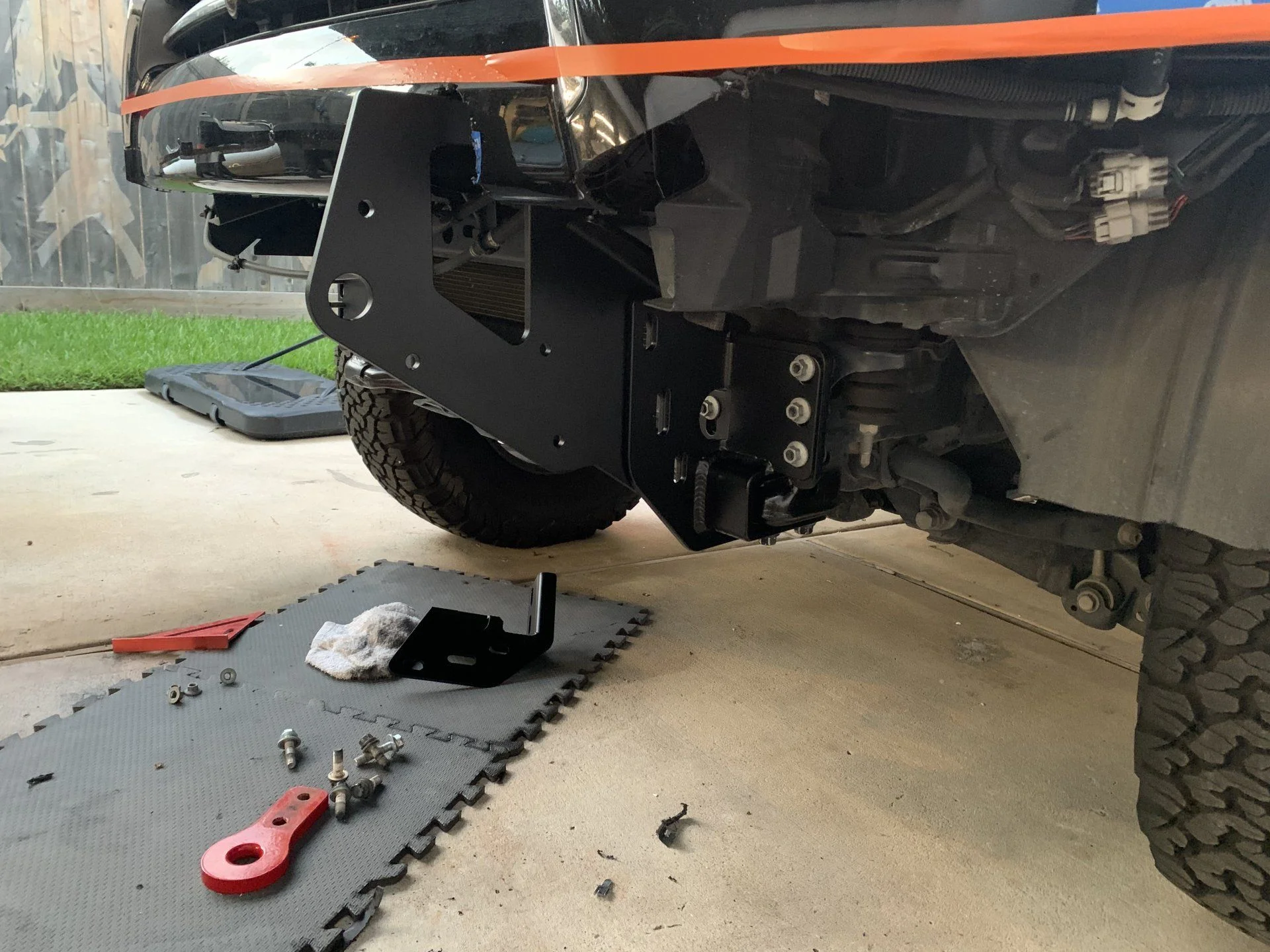

1) remove tow hooks and skids
2) Unclip the headlight washer hose and Parking Sensor harness from the lower radiator grill.

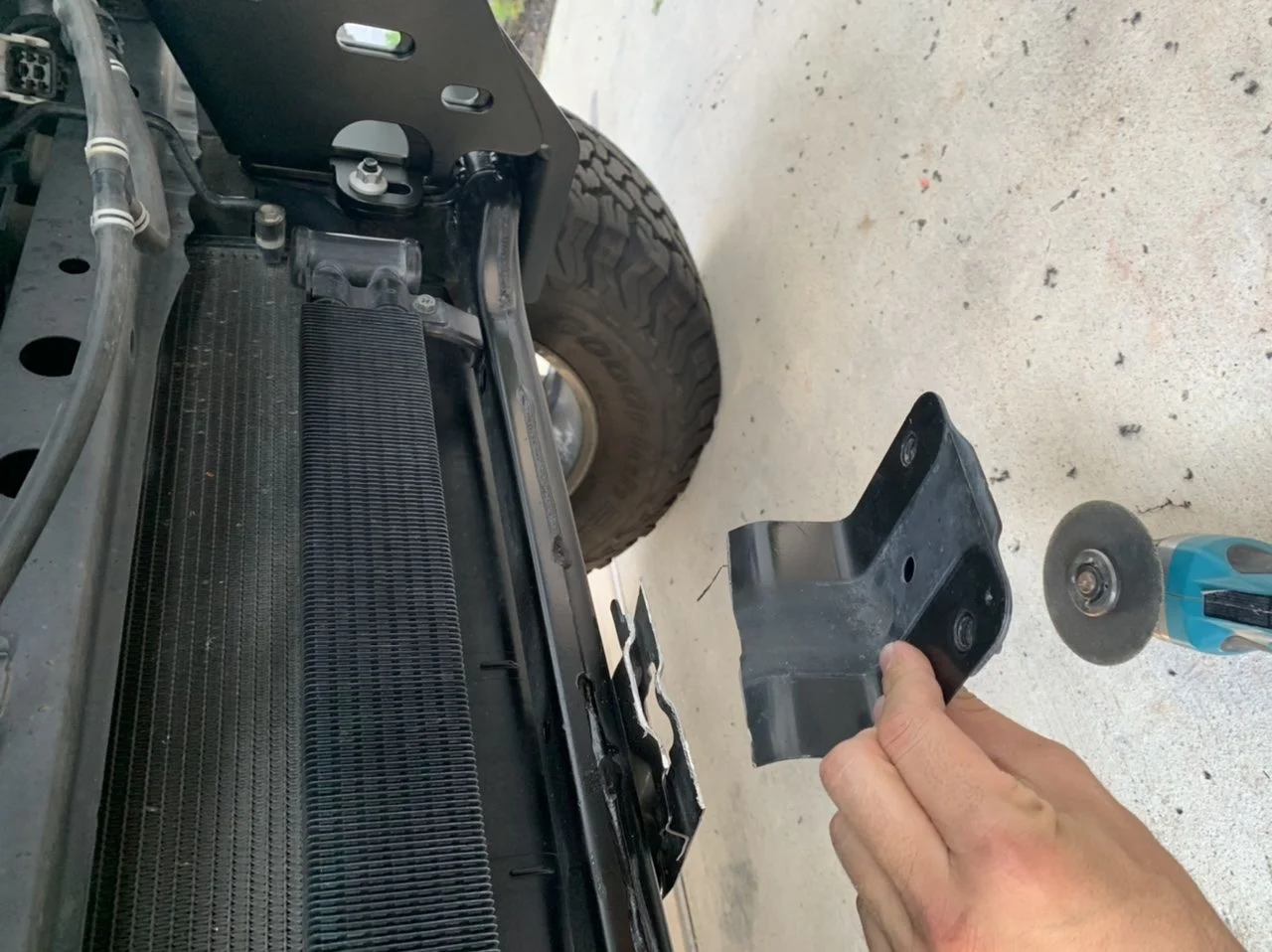

3) start chopping plastic. Use this time to perfect your cutting skillz.

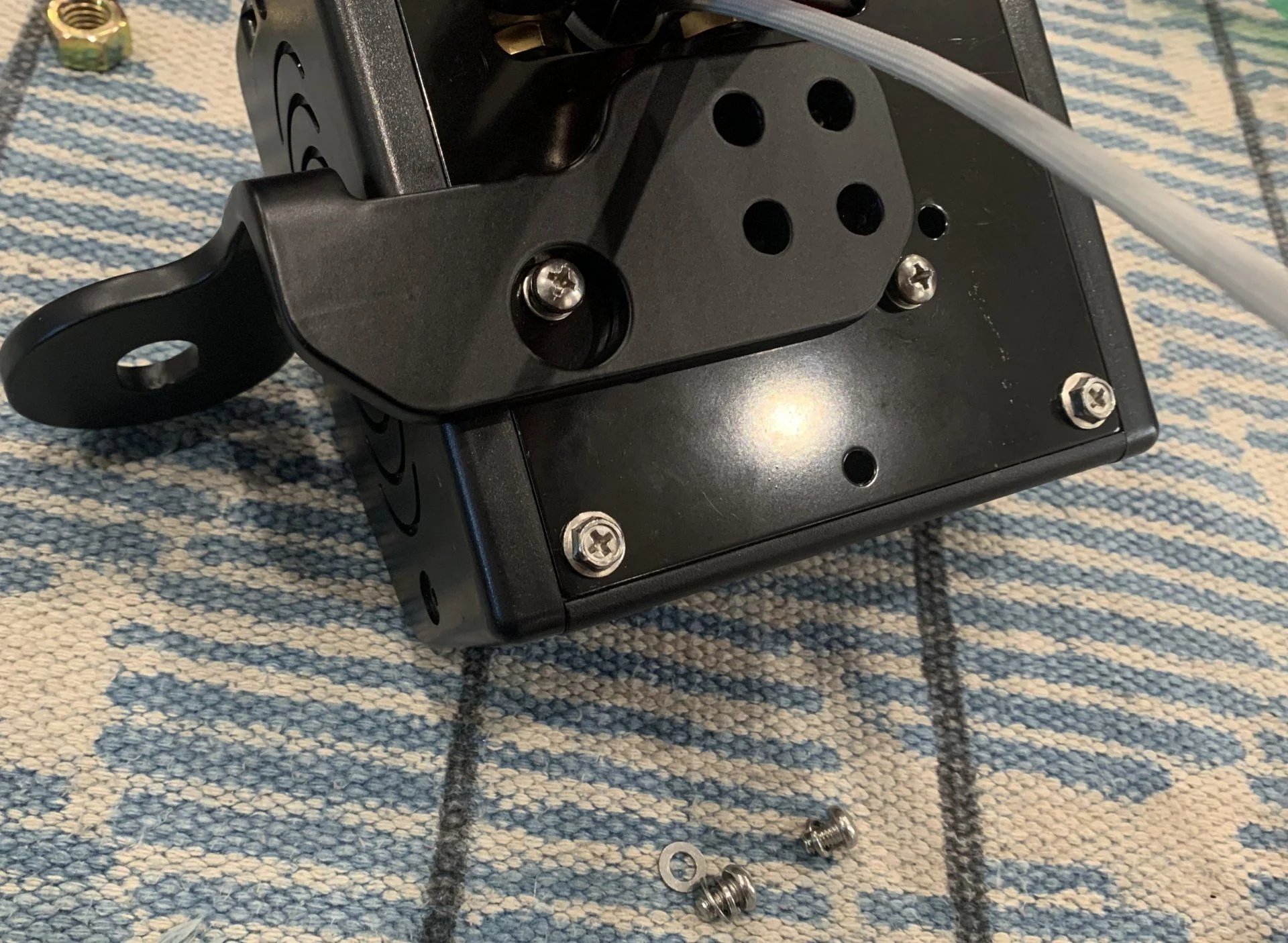

4) disconnect the fog lights and 2 parking sensors.

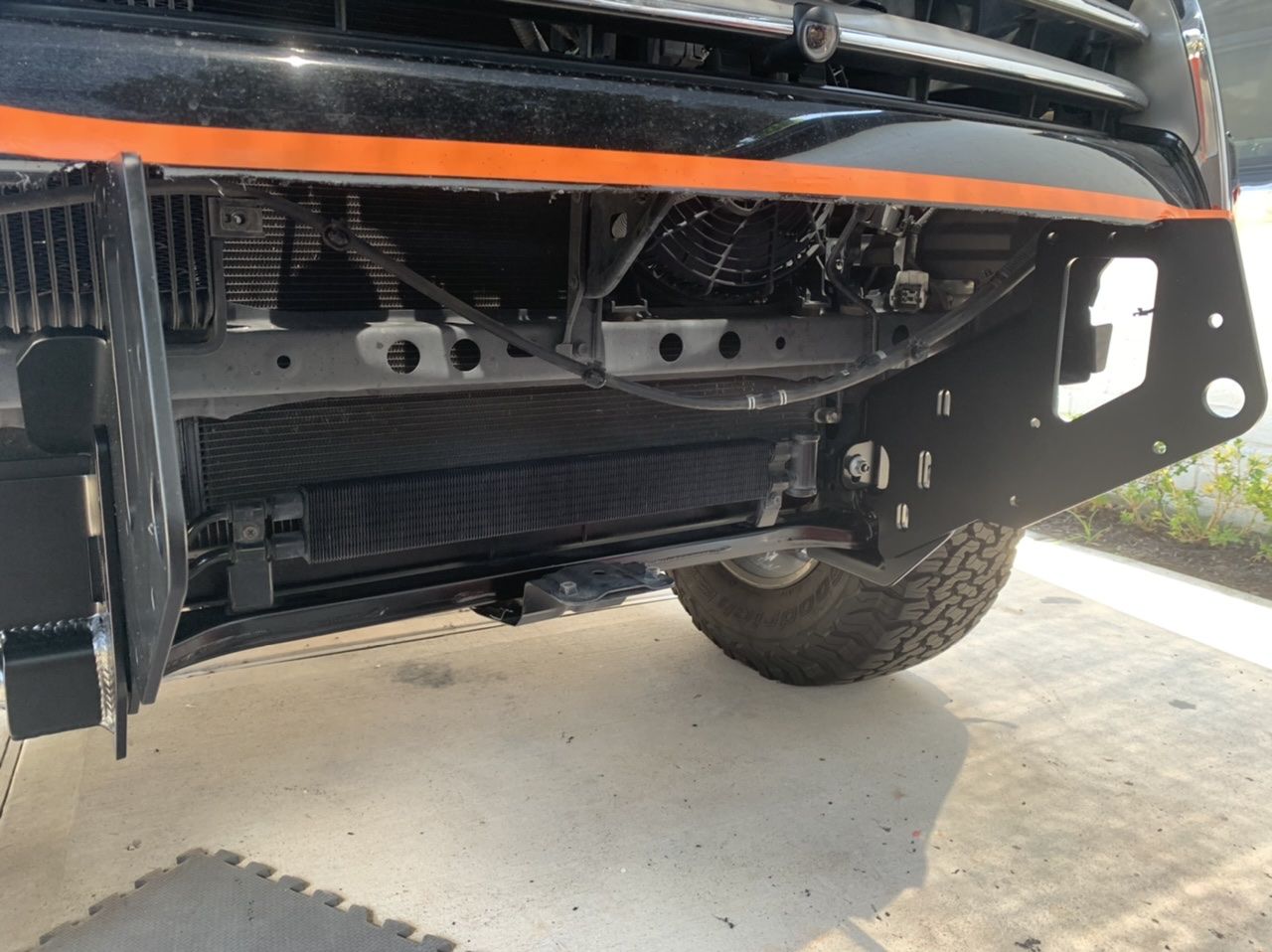

5) Cut along the fender line right above the fog lights. Stay below the second fender screw. The goal is to open things up so you can mount the main pieces. Once the center in on, you can take measurements for the final cuts.
6) Remove crash bar and save the 8 nuts

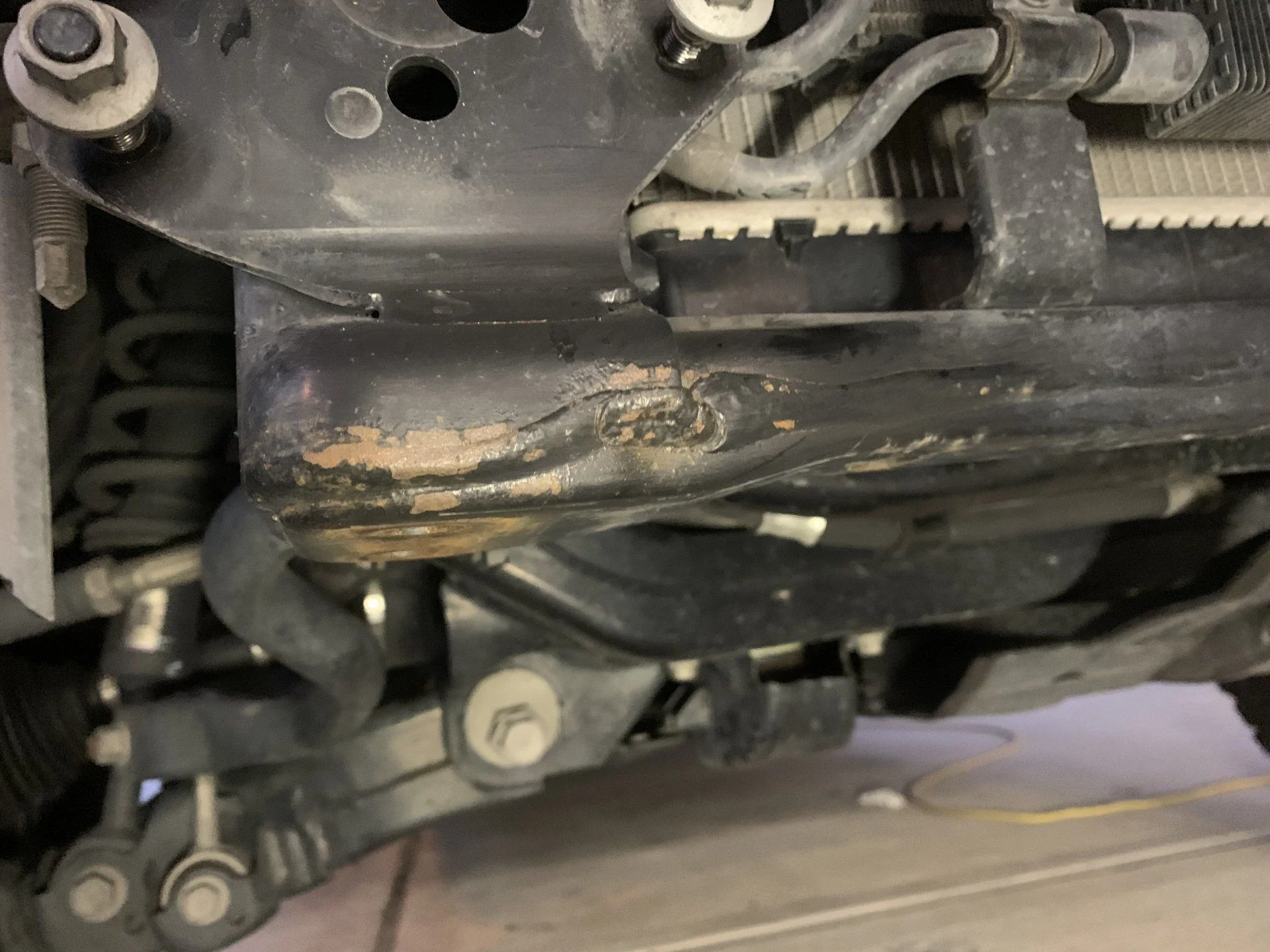

7) Remediate your rust!




Last edited:

Tommy Dwyer

SILVER Star
Joined
Apr 7, 2014
Messages
393
Location
Springfield, MO


TeCKis300

SILVER Star
Joined
Apr 27, 2011
Messages
3,837
Location
San Diego

The metal origami here is just *drool*. Definitely keep the pics coming!

In regards to the lower recovery point - is this necessarily a bad thing? The bumper itself with the forward recovery point is both stronger and easier to use no? With more clearance now at where the stock recovery would be. Only thing I don't see is a lower tie down point? Perhaps the stock L bracket tie down could be used there?

Joined
May 28, 2019
Messages
490
Location
Houston

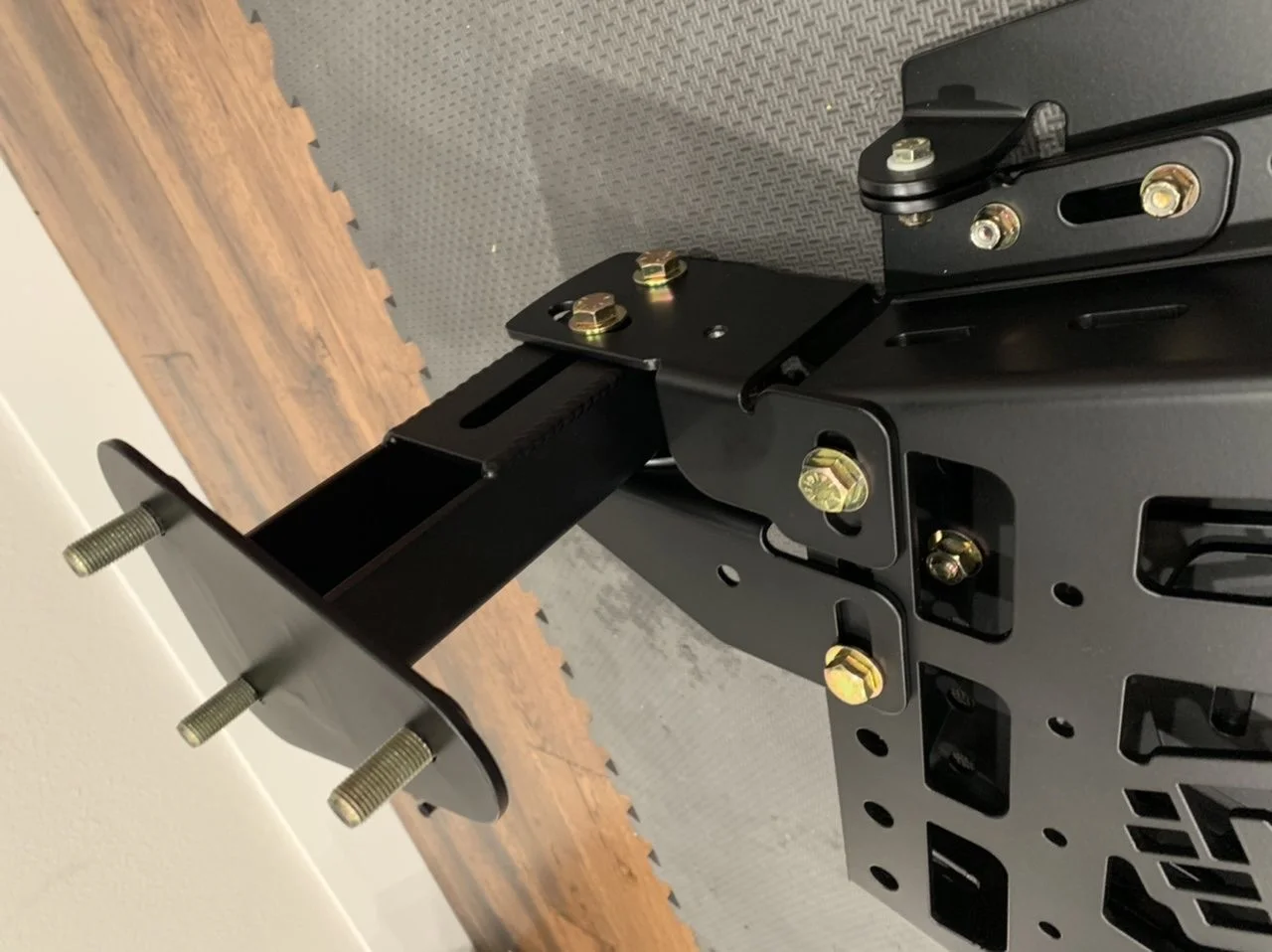

Front Passenger side:

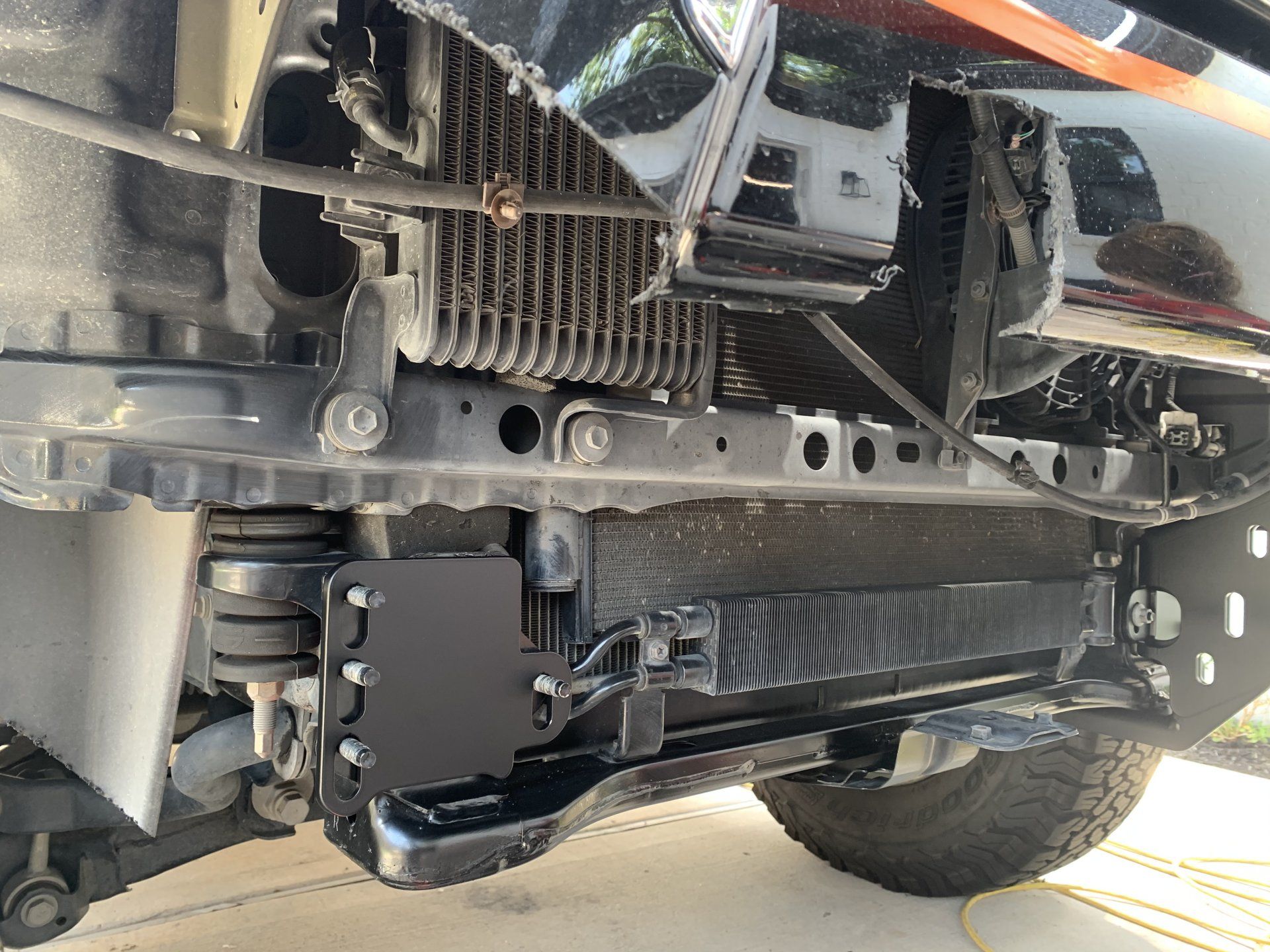

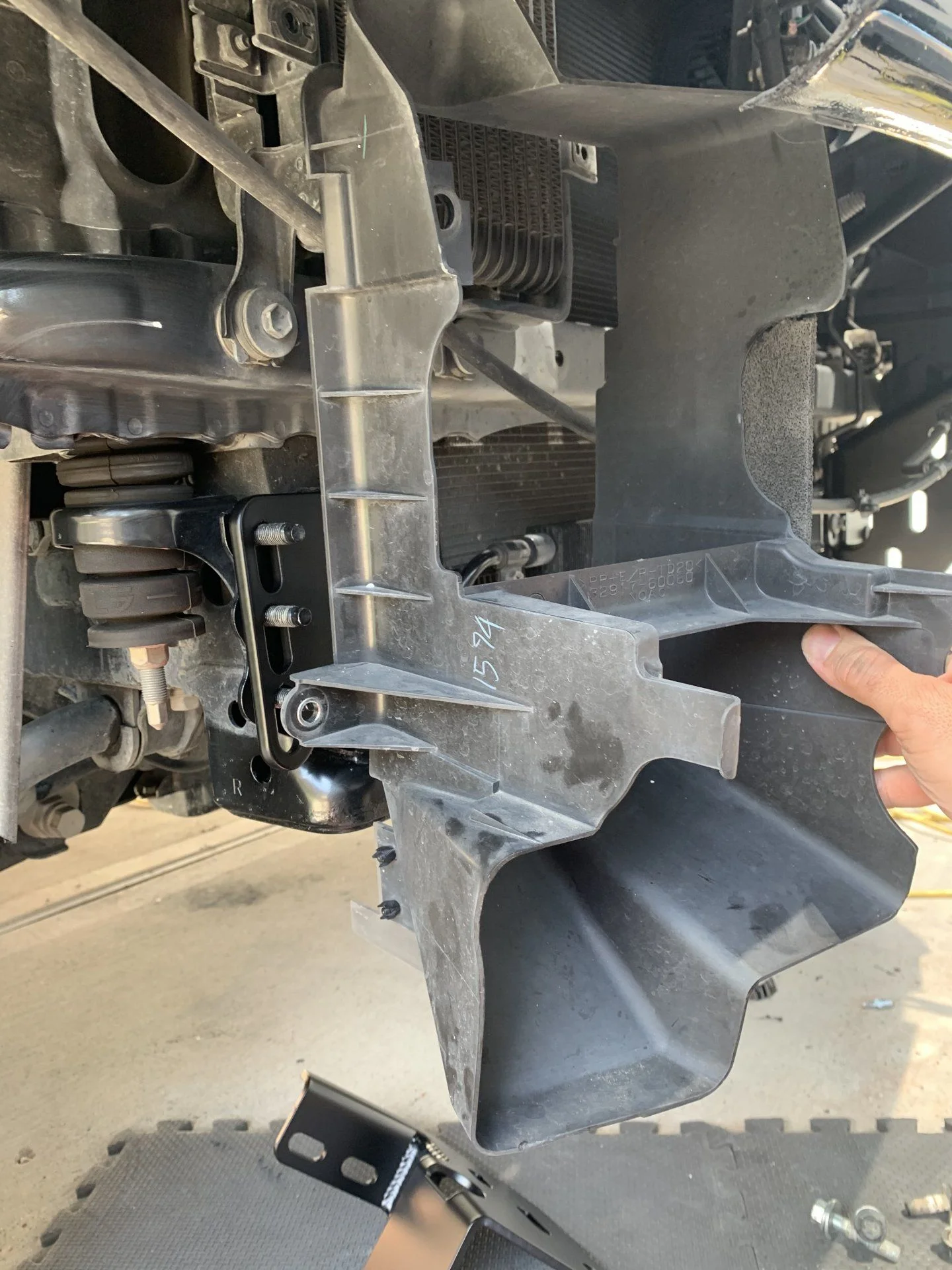

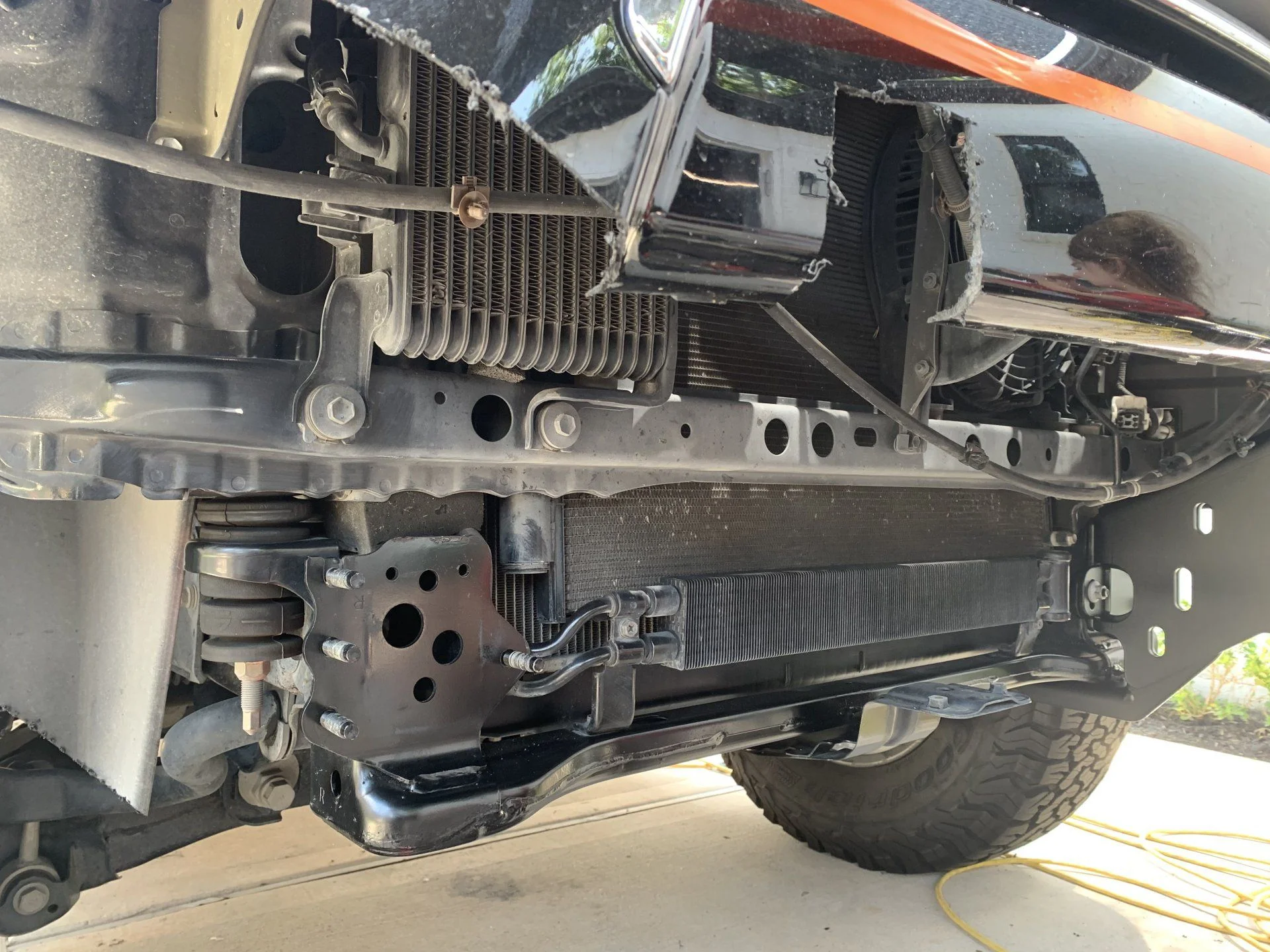

1) remove Trans Cooler schroudt
2) notch center bumper trim to accommodate recovery point.

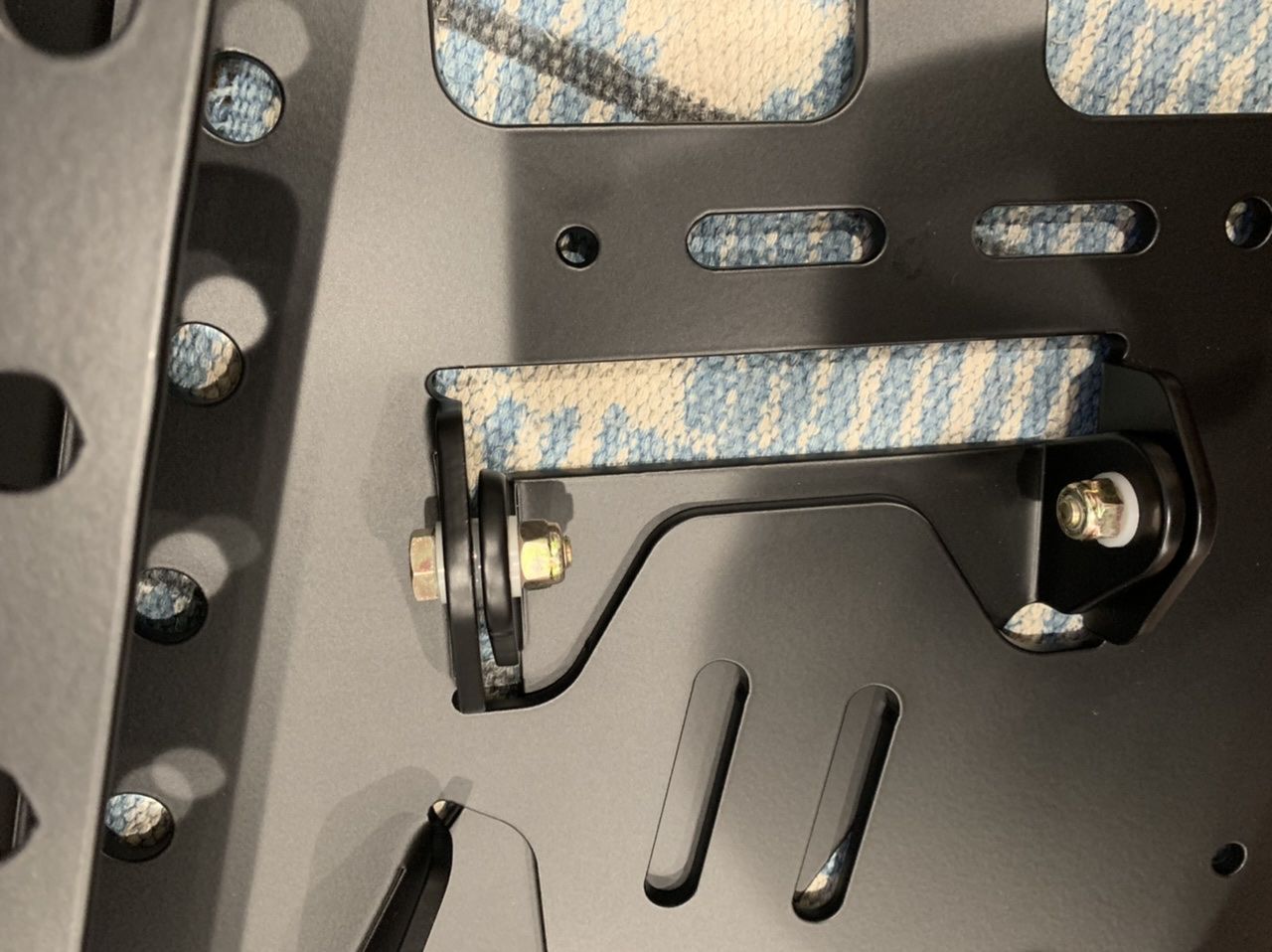

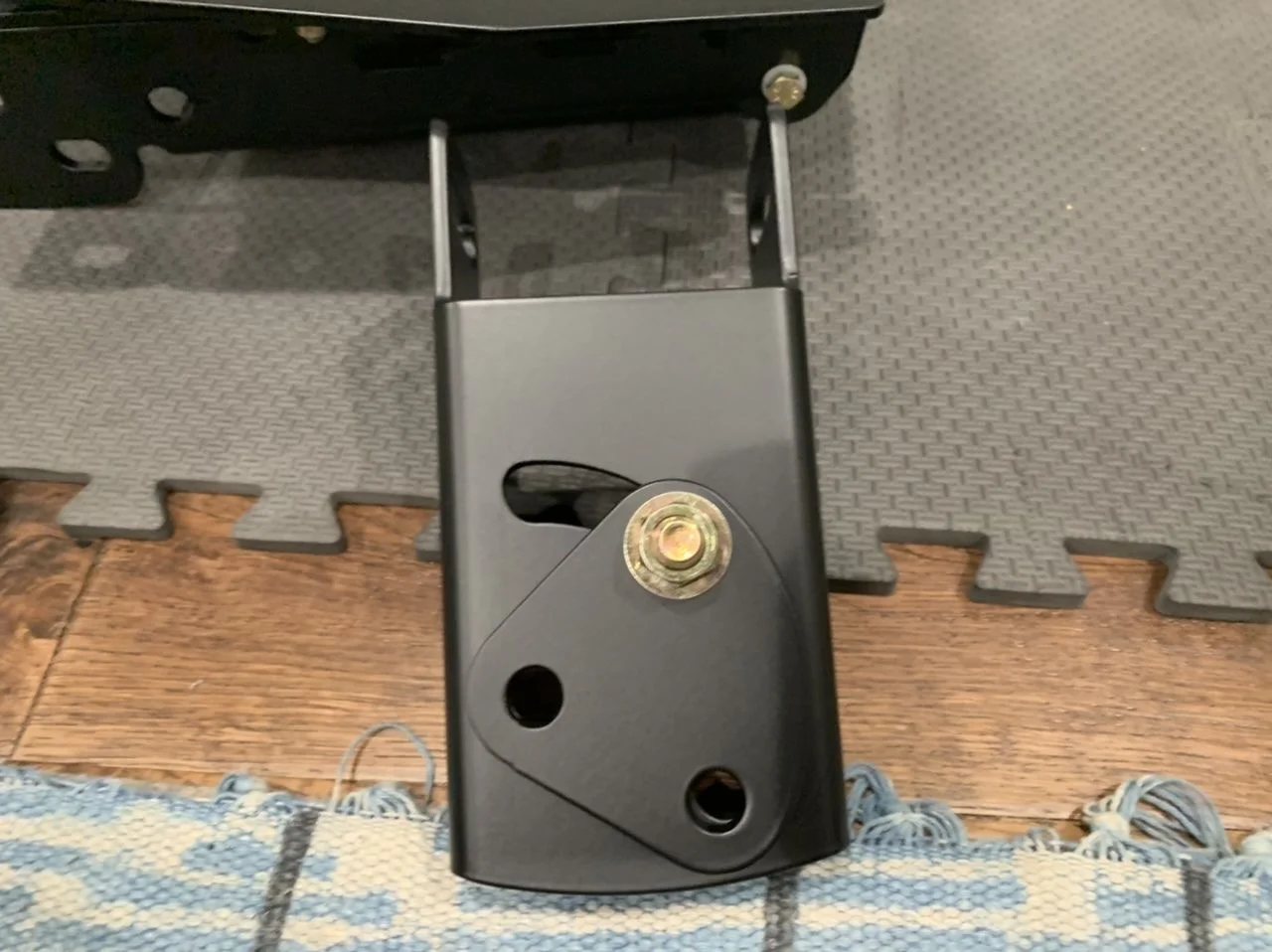

3) Spacer

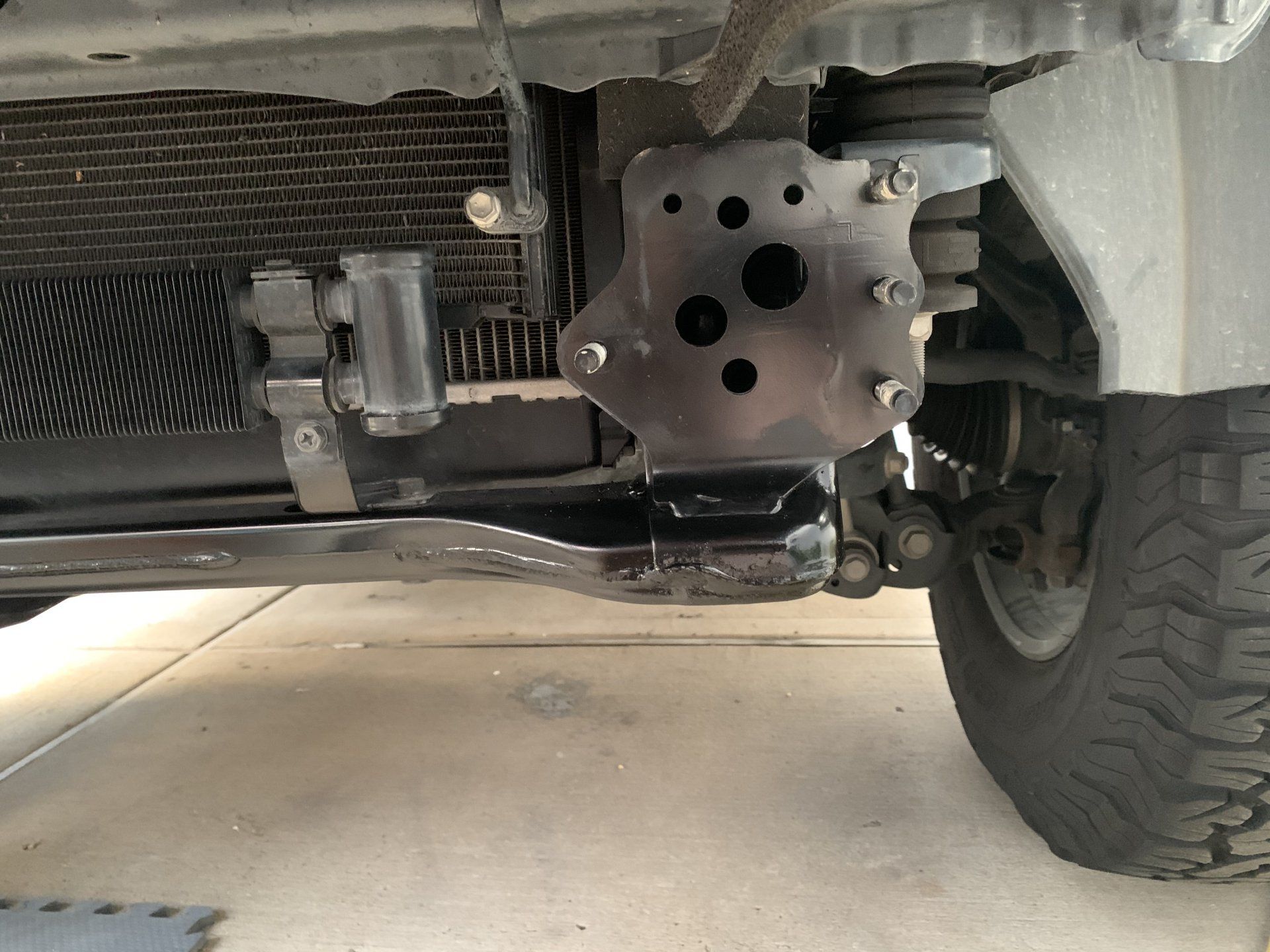

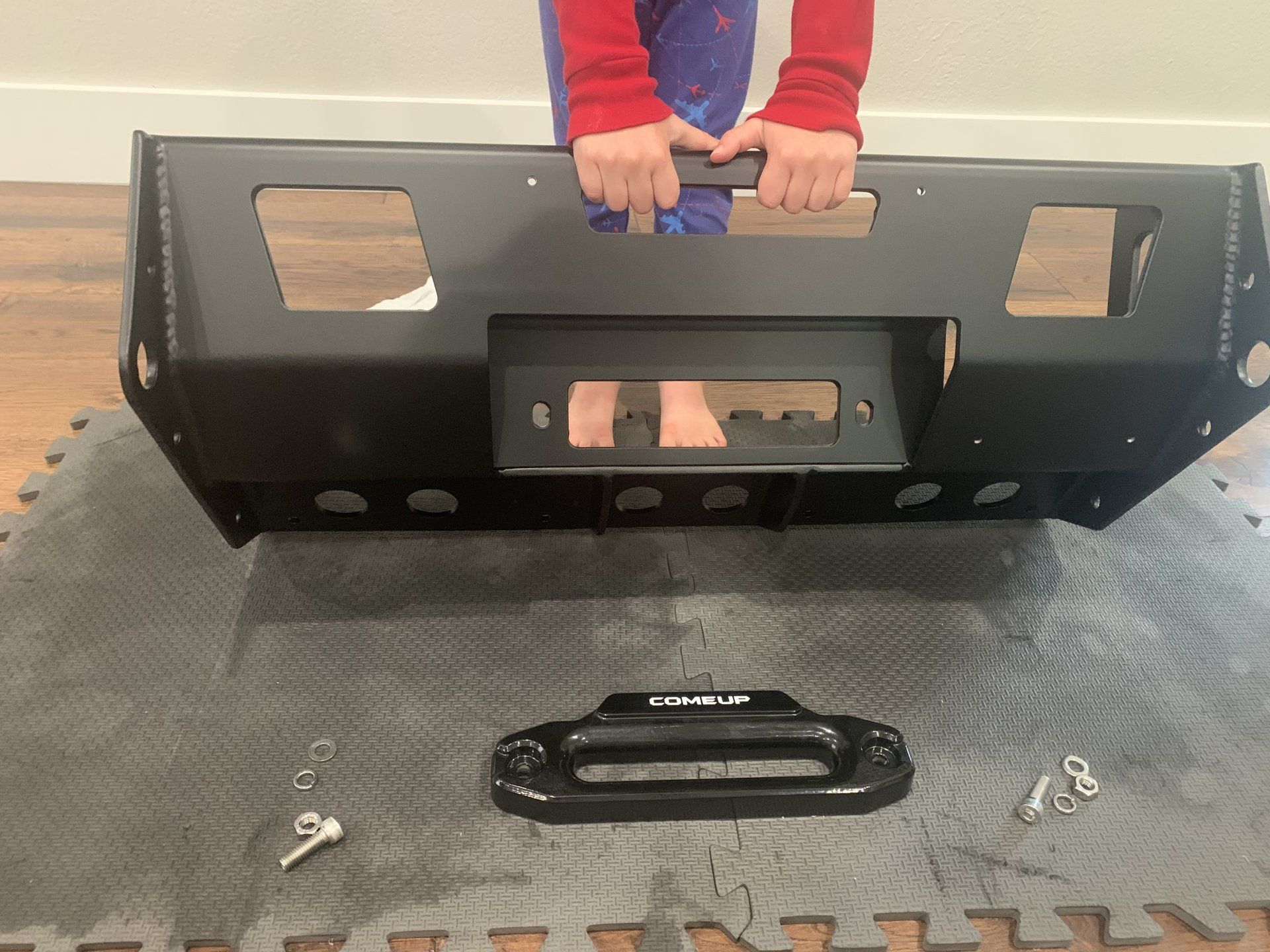

4) Recovery Point

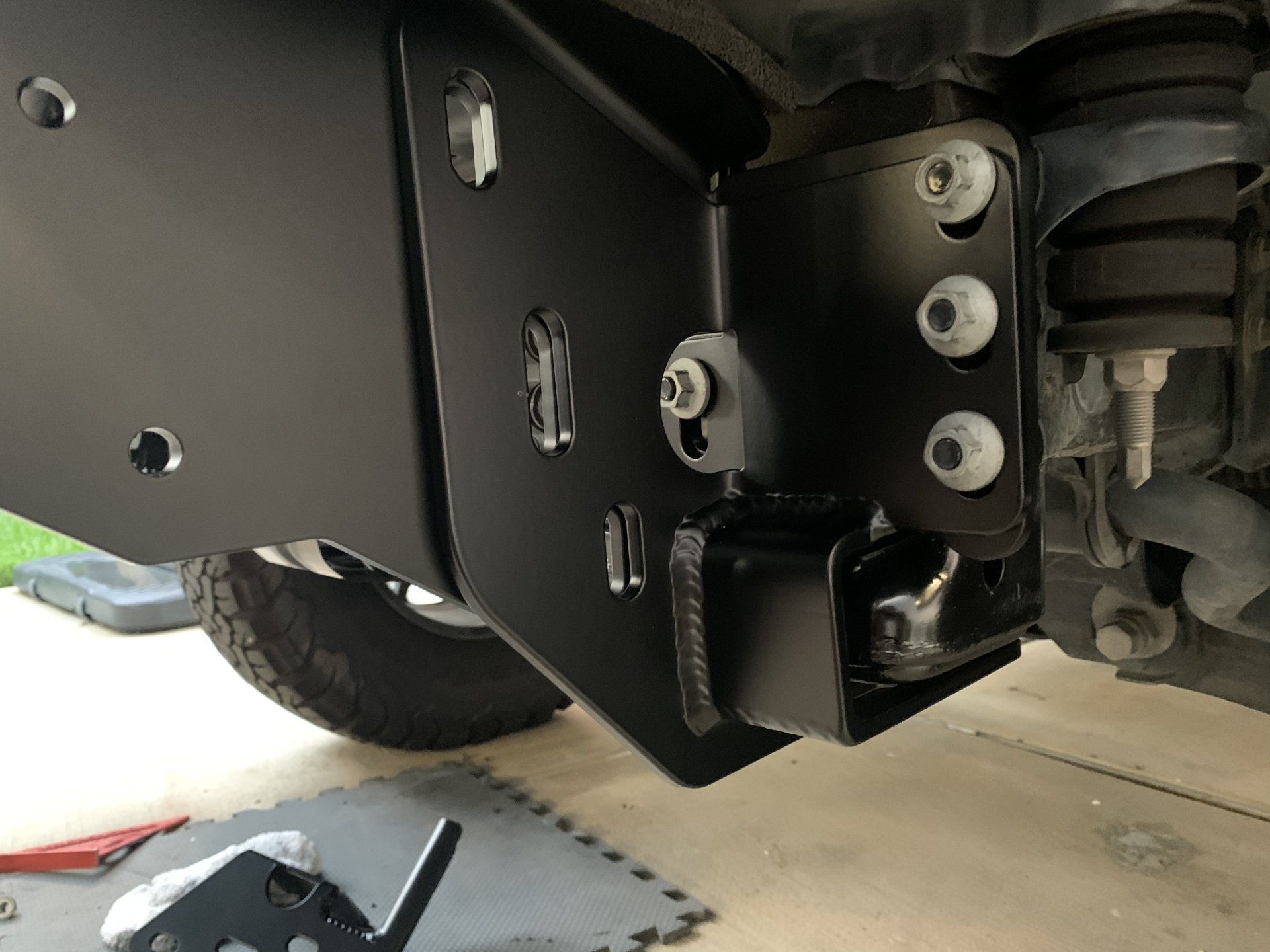

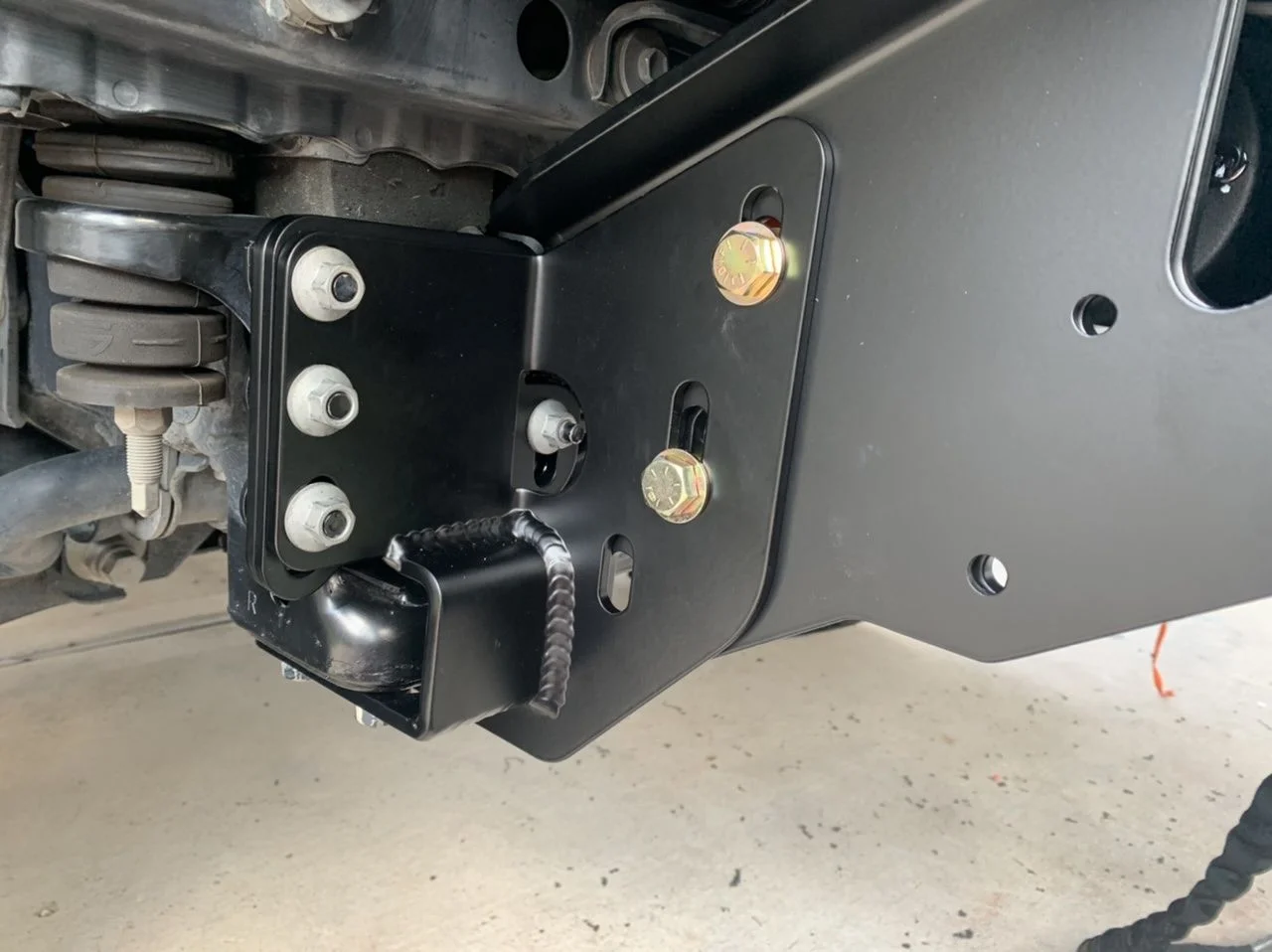

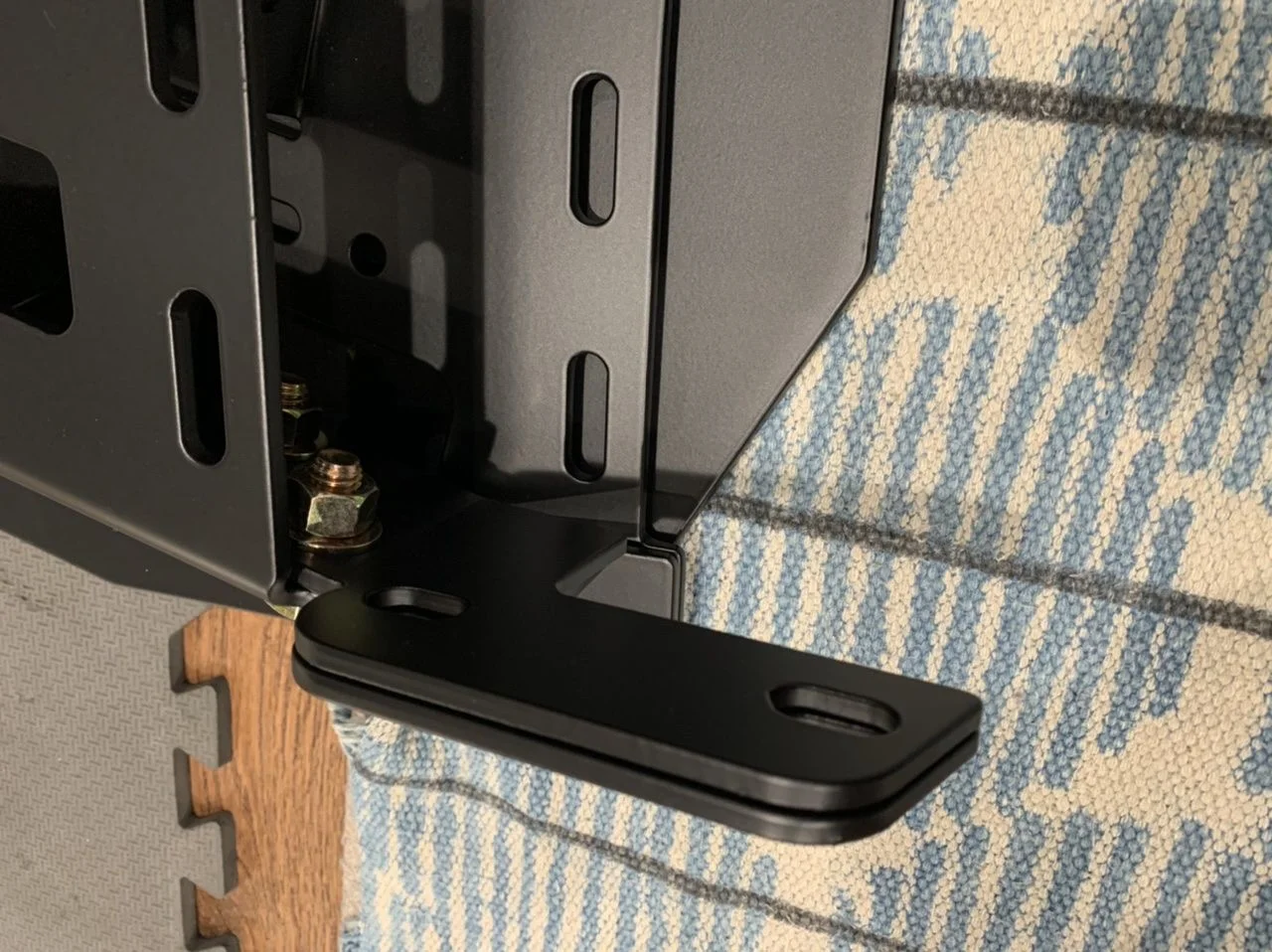

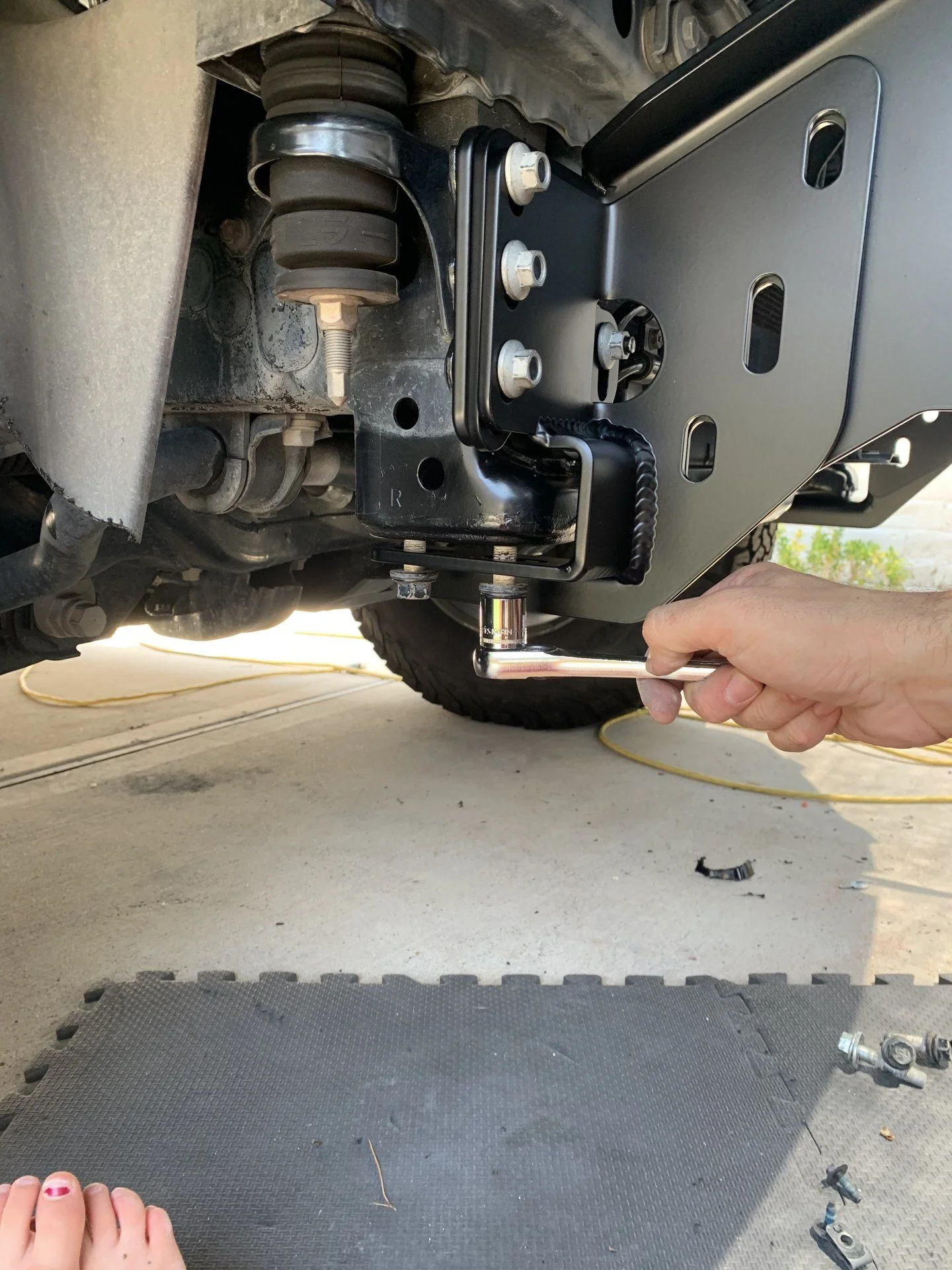

5) lower Bracket

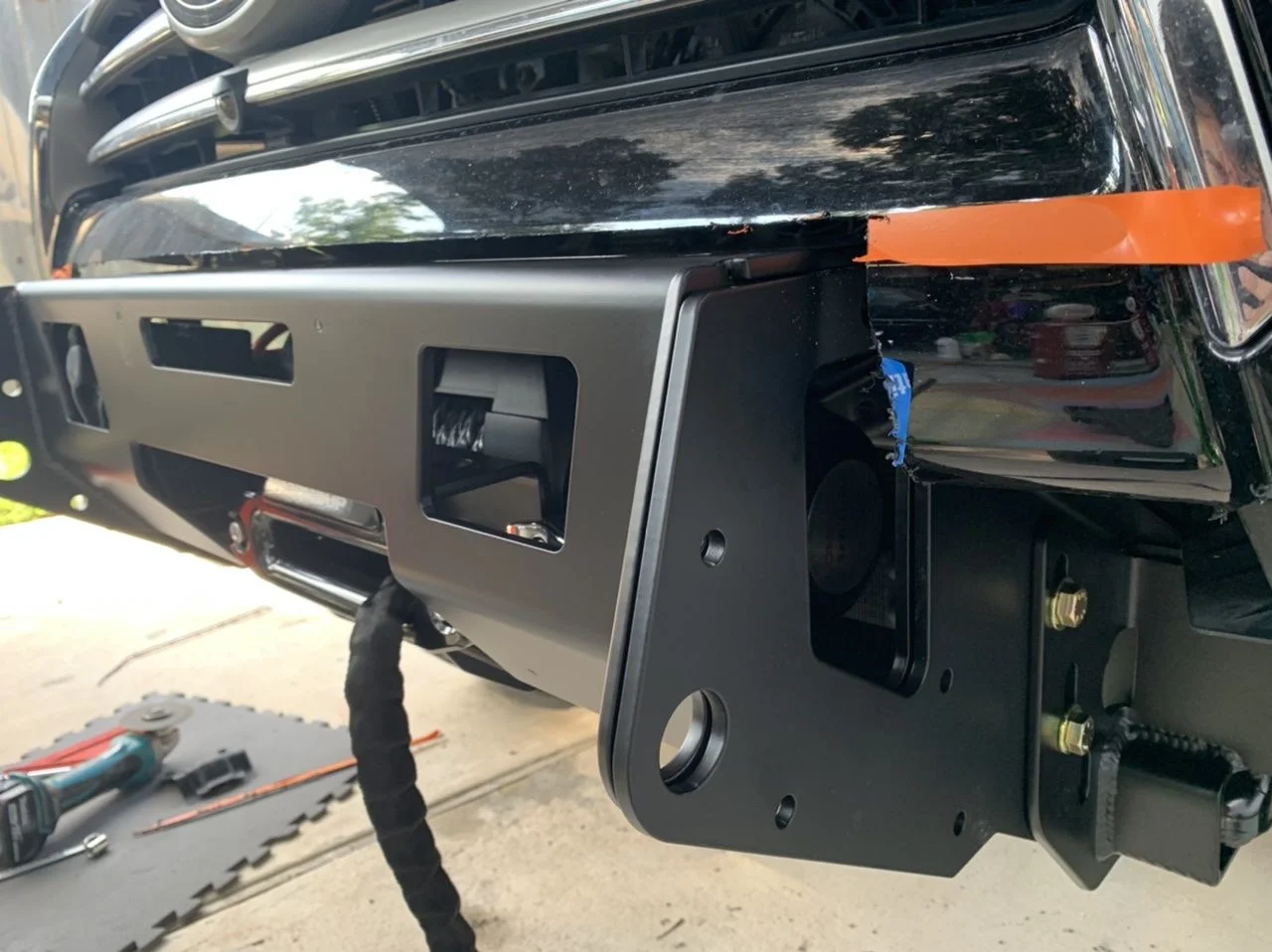

6) raise recovery point so the oval holes are in-line
7) mark a new center reference line from recovery point to recovery point.

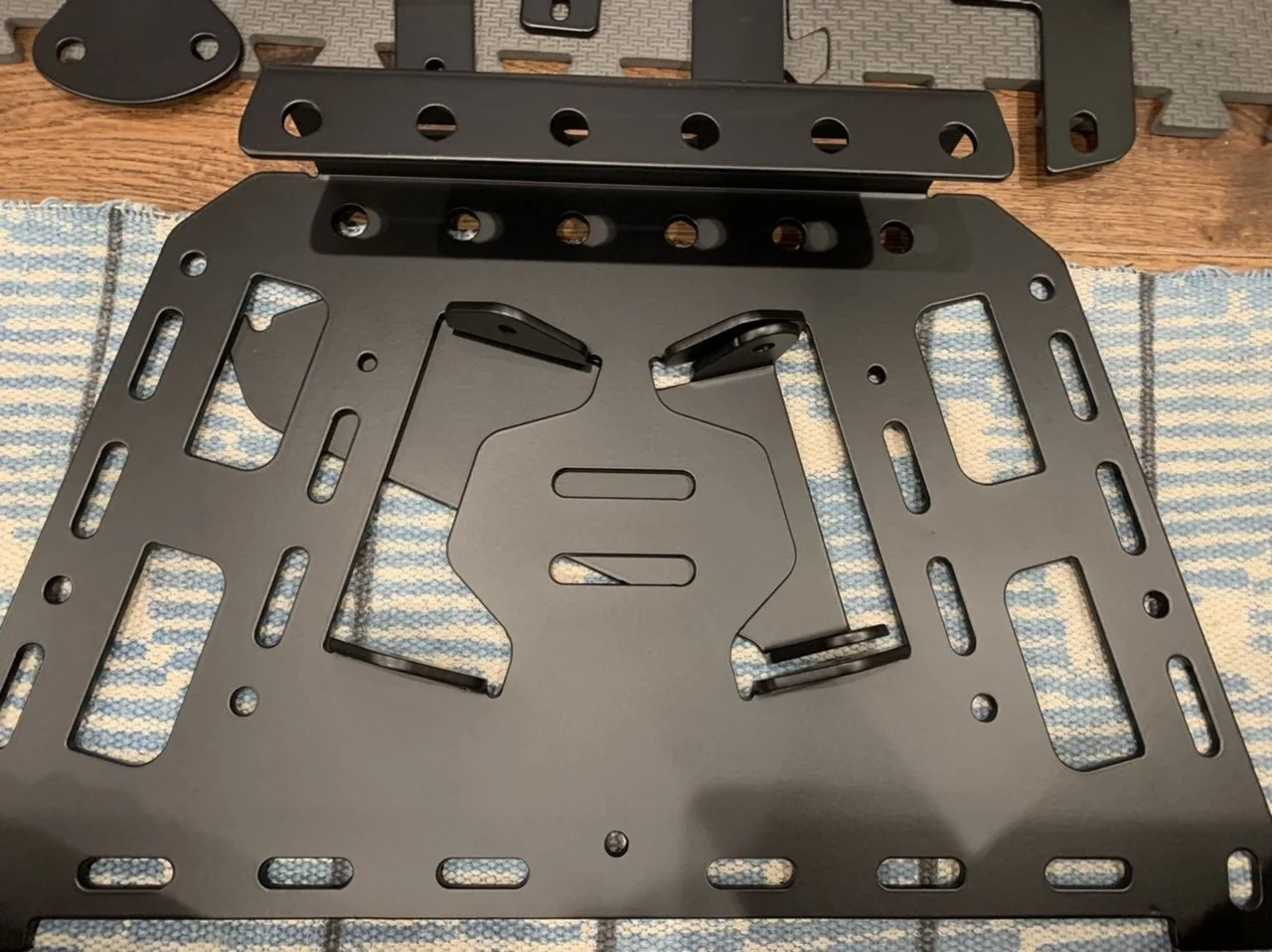

8) cut out center










* just FYI, these are not my toes...
