Definitive LC and LX Approach, Breakover, and More Angles

[TeCKis300]

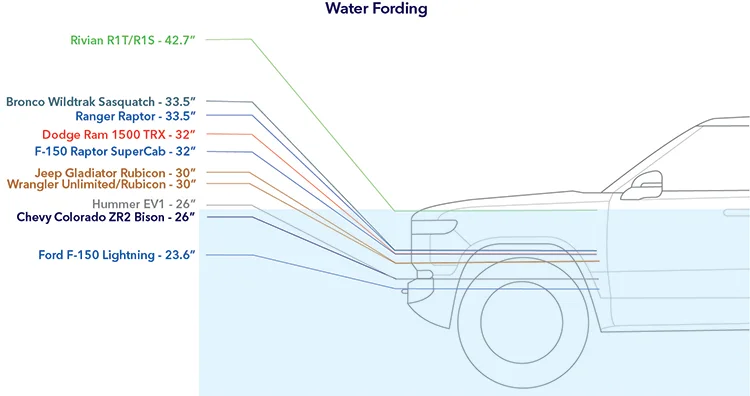

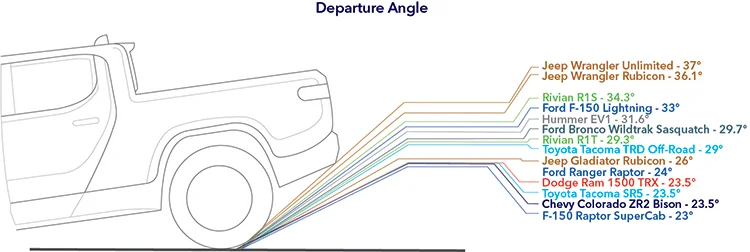

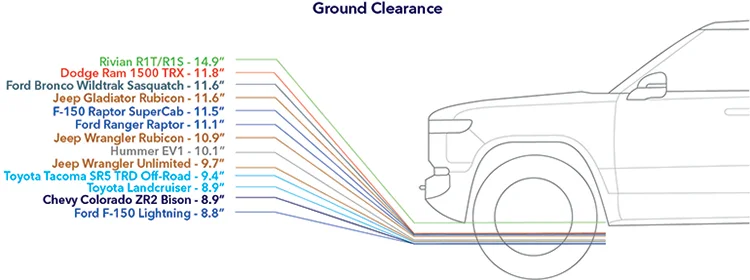

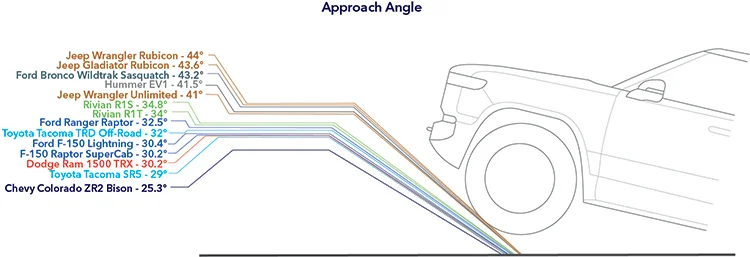

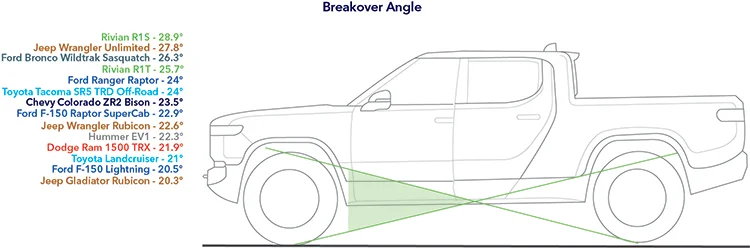

This was an interesting graphic exploring the interwebs. Figure it's a good reference for this thread.

And another thread if you want to measure your own modded rig.

Measuring Approach, Breakover, and Departure Angle s

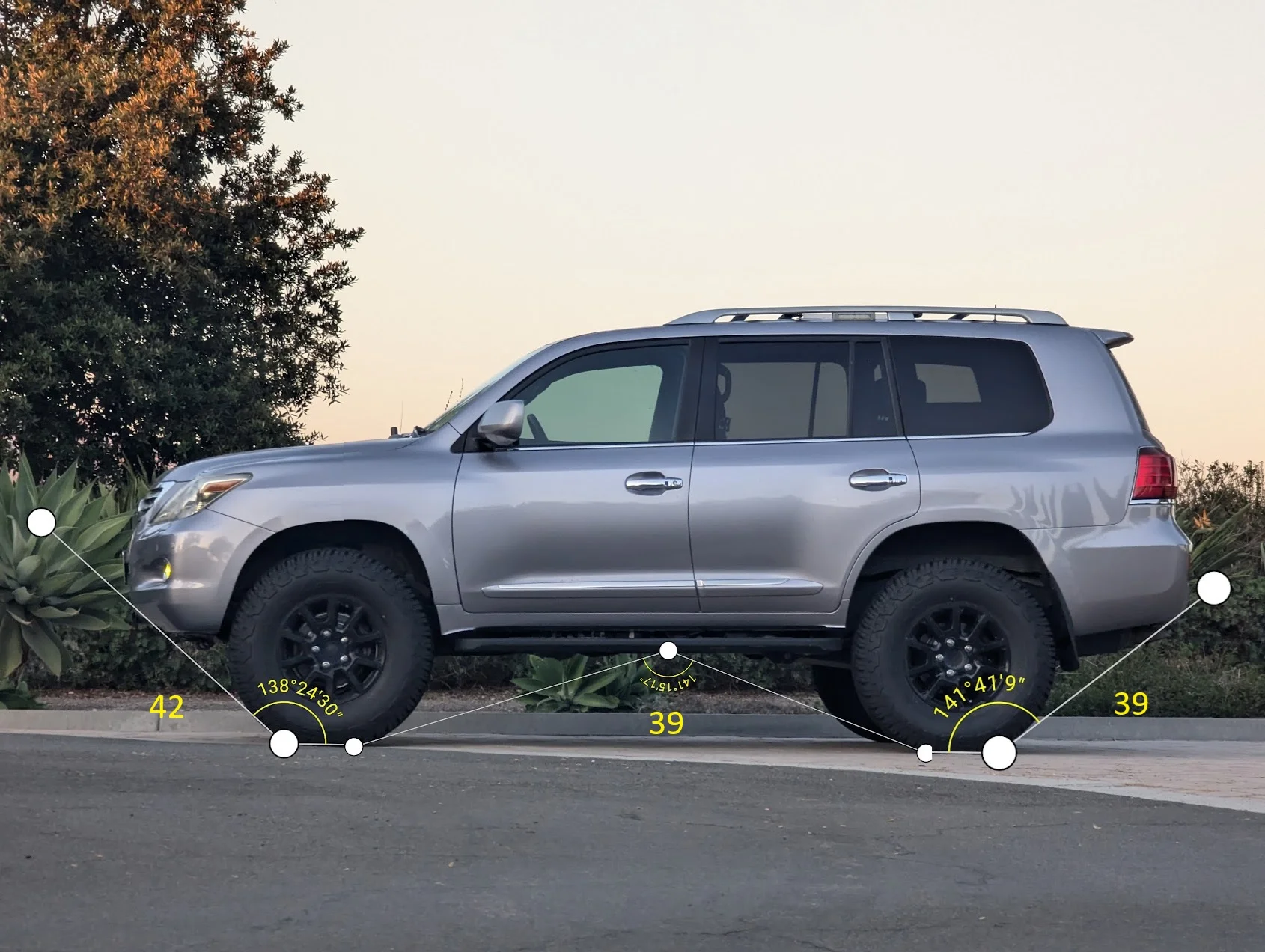

Here's measuring approach, breakover, and departure angles. Not completely scientific, but this method should provide angles within a few degrees of real measurements. A solid profile shot taken from further back (maybe using a 2x zoom) will provide a better perspective for measuring. On...
