Brake Line Question

Joined
Feb 19, 2007
Messages
8
Location
Santa Monica, California
Help... I'm rebuilding a '79 FJ-40 that I didn't take apart. Therefore, I'm looking for a schematic, or detailed pictures of the routing of the brake lines. I've purchased a new set of braided lines as well as the complete hard line set from Cruiser Solutions. I requested pictures from Cruiser Solutions, but they have none. They say they've never heard of someone starting from scratch to install lines, rather than just replacing. I think I have "most" of the front done correctly, but I'm not sure about the routing and mounting of the rear lines, how to mount the rear flex line from the frame down to the rear axle, and the brackets and lines on each rear hub. In fact, it appears I may be missing the 2 rear hard lines that look like semicircles from cylinder to cylinder on each hub, but a picture may answer it for me. Any thoughts? Thanks, Erik.

Joined
May 19, 2004
Messages
435
Location
Midwestern Flatlands
Help... I'm rebuilding a '79 FJ-40 that I didn't take apart. Therefore, I'm looking for a schematic, or detailed pictures of the routing of the brake lines. I've purchased a new set of braided lines as well as the complete hard line set from Cruiser Solutions. I requested pictures from Cruiser Solutions, but they have none. They say they've never heard of someone starting from scratch to install lines, rather than just replacing. I think I have "most" of the front done correctly, but I'm not sure about the routing and mounting of the rear lines, how to mount the rear flex line from the frame down to the rear axle, and the brackets and lines on each rear hub. In fact, it appears I may be missing the 2 rear hard lines that look like semicircles from cylinder to cylinder on each hub, but a picture may answer it for me. Any thoughts? Thanks, Erik.

Try Spector Off Road's on-line catalog sor.com Their diagrams are from factory manuals and are good references.

Pete

Joined
Feb 1, 2002
Messages
3,321
Location
No. Ogden, Utah
Website
www.instagram.com
SOR is a good choice for reference but in the end it really doesn't matter what it looks like as long as it works and you're happy with it.

Just search the forum for pictures of axles and things like that and you'll get a good idea of what's been done.

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
Help... I'm rebuilding a '79 FJ-40 that I didn't take apart. Therefore, I'm looking for ..... detailed pictures of the routing of the brake lines. ............... I have "most" of the front done correctly, but I'm not sure about the routing and mounting of the rear lines, how to mount the rear flex line from the frame down to the rear axle, and the brackets and lines on each rear hub. In fact, it appears I may be missing the 2 rear hard lines that look like semicircles from cylinder to cylinder on each hub, but a picture may answer it for me. ...Thanks, Erik.

Well here's a few pics of a 79 BJ40 from the other side of the world (which I would expect to have been routed the same) Erik:

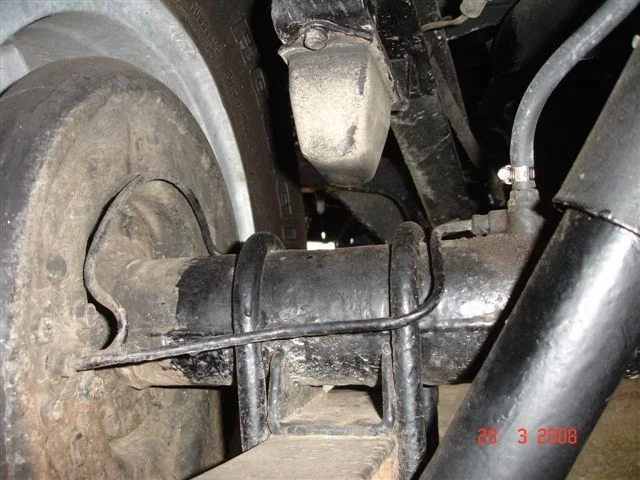

Here's a photo of the rear of the LH wheel:

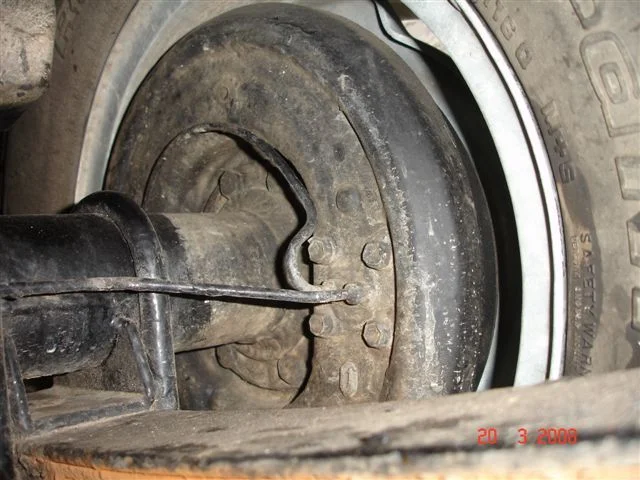

And here's a picture of the front of it:

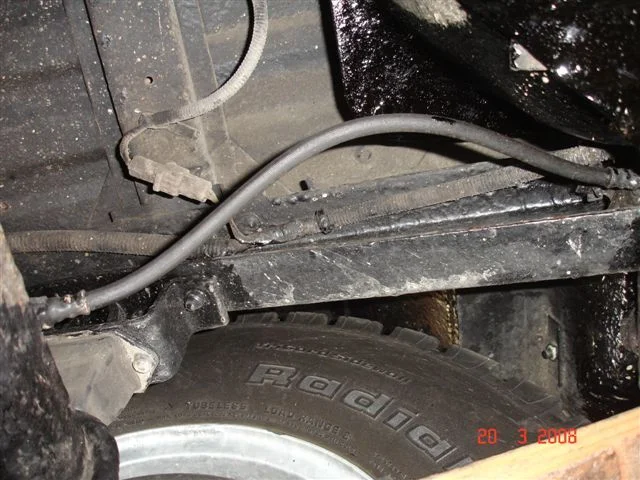

And here's a picture of where the flexible line meets the chassis rail:


Rearbracket chassis3.jpg
Rearbracket chassis3.jpg

Joined
Sep 3, 2007
Messages
8,871
Location
New Zealand
And here's apicture of the whole flexible line:

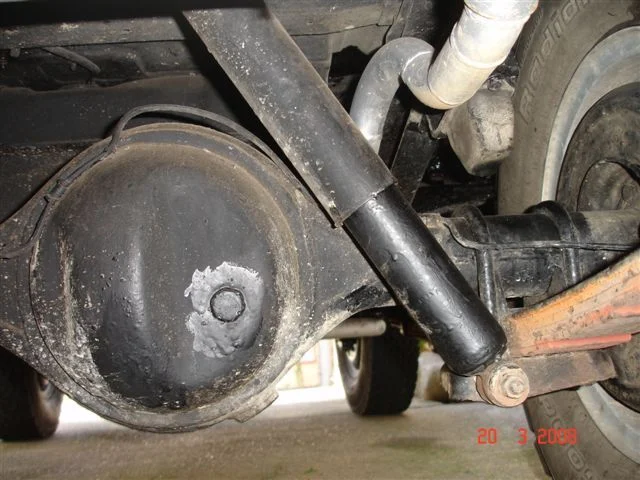

And here's a picture of the pumpkin taken from the rear:


And here's a picture of the RH side which is done the same as the left basically


:cheers:


apeterson

SILVER Star
Joined
Jul 20, 2006
Messages
4,019
Location
Pequot Lakes MN
look on my build site... dont know the page... I ran some had to redo them as they were the wrong size... no pics of the new ones on there but old ones where there...
