Boot on transfer nose cone

Discussion in 'AR- Razorback Land Cruisers' started by Paul78FJ40, Jul 21, 2017.

  1. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas
    Has anyone ever changed the boot on the transfer nose? I was wondering if i can just take the 4 bolts loose to get it off.

  2. YotaJosh

    YotaJosh SILVER Star

    Messages:
    1,328
    Media:
    153
    Albums:
    1
    Likes Received:
    394
    Joined:
    Jun 22, 2008
    Location:
    Little Rock, AR
    I'm unfamiliar with the "boot". You can remove the front driveshaft output without having to go into the case. Remove the bolts and off it comes.

    Is that what you are talking about?

  3. 74HogGuy

    74HogGuy Lifetime Rookie SILVER Star

    Messages:
    1,122
    Likes Received:
    1,177
    Joined:
    Mar 12, 2012
    Location:
    Fayetteville, Arkansas
    Are you talking about the dust seal right behind where the drive shaft bolts to the flange?

    If so you have to remove the front shaft and unbolt the staked nut.


  4. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas

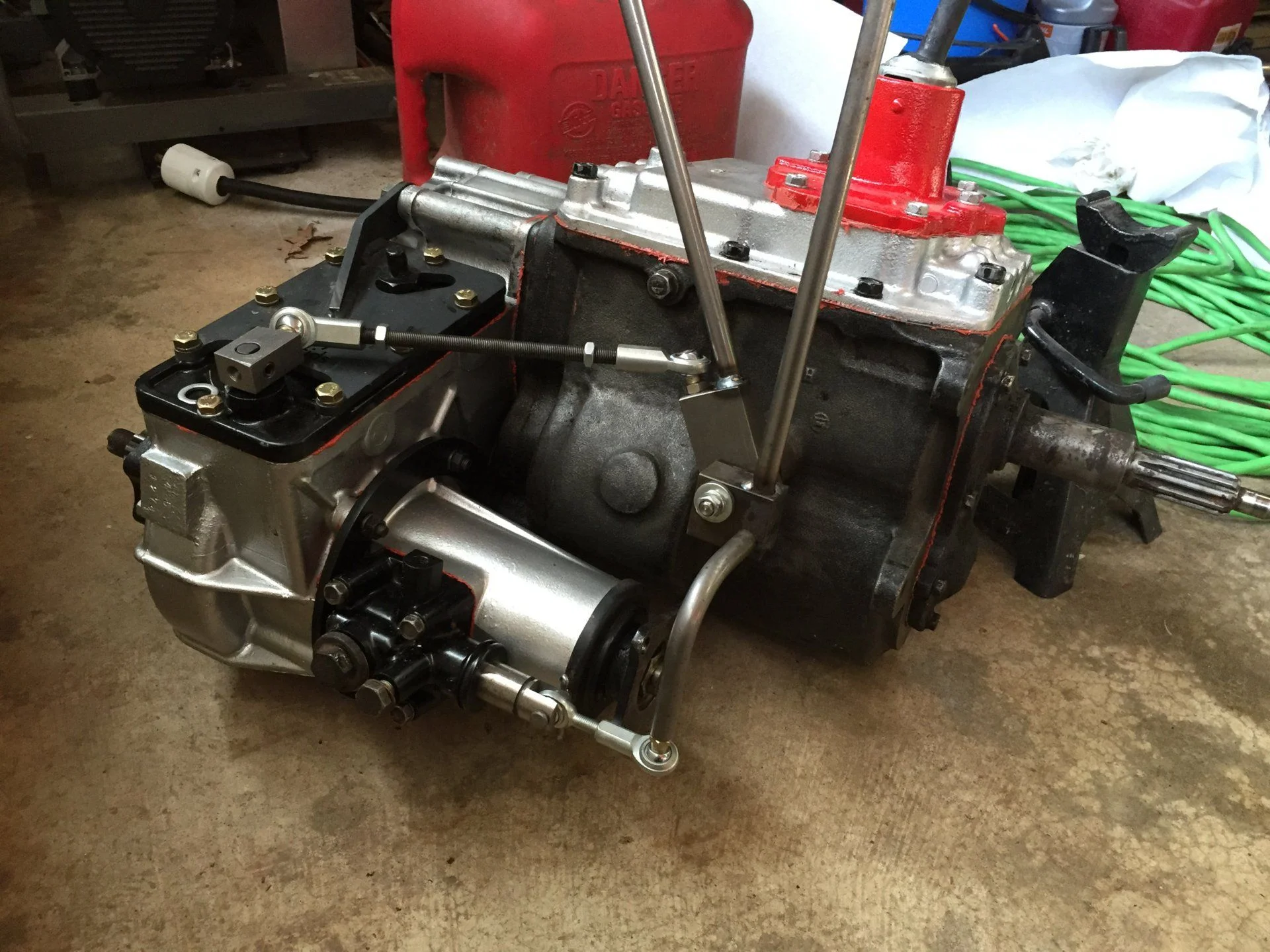

    No, I'm going to change the seal too, but my T-case is different than the one in the picture, and has a boot covering the shift "rod" on the side. In the picture above, it would be the rod coming out of the black piece held on by 4 bolts.

  5. Tireguy87

    Tireguy87 SILVER Star

    Messages:
    1,187
    Likes Received:
    192
    Joined:
    Apr 21, 2011
    Location:
    Little Rock, Arkansas
    The dust boot on the actuator shaft just slips on and fits into a recessed area to hold it on.

    If you decide to remove the whole assembly, it's just the 4 bolts on the side like you mentioned. Your shift fork will come with it. It just rests in the collar inside the nose cone that slides forward and back for front wheel drive.

  6. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas
    Ok, thanks. That is what I was thinking, but I have never had that apart.

  7. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas
    Ok, I got the boot changed, but now I can't get out of 4 wheel drive. I don't know what I have done wrong. Any ideas?

  8. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas
    I think I may have the "clutch sleeve" backwards.....take it apart again, I guess.

  9. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas
  10. YotaJosh

    YotaJosh SILVER Star

    Messages:
    1,328
    Media:
    153
    Albums:
    1
    Likes Received:
    394
    Joined:
    Jun 22, 2008
    Location:
    Little Rock, AR
    Sounds like the shift forks aren't engaged with the shift collar correctly.

    Yep, got to take it apart again.

  11. Tireguy87

    Tireguy87 SILVER Star

    Messages:
    1,187
    Likes Received:
    192
    Joined:
    Apr 21, 2011
    Location:
    Little Rock, Arkansas
    I agree with Josh. Not much else that could really go wrong here. Can you post some pics when you get back into it?

  12. Paul78FJ40

    Paul78FJ40

    Messages:
    59
    Likes Received:
    21
    Joined:
    Feb 23, 2017
    Location:
    Batesville, Arkansas
    Well, I figured it out. At one point I had to take the T-case "nose" off, (that's another story), and the "clutch sleeve", as the book calls it, fell out. Well, I did put it in backwards, and now I have everything corrected. The part the shift fork fits into is what they call the clutch sleeve.
    I thought I might not have the fork in the right spot, but I checked that several times, but I finally got to the correct solution.
    Thanks for your input.
