Basic Dual Battery Diagram (2 Viewers)

Delta VS

Supporting Vendor
Joined
Mar 12, 2018
Messages
1,431
Location
Boise, ID

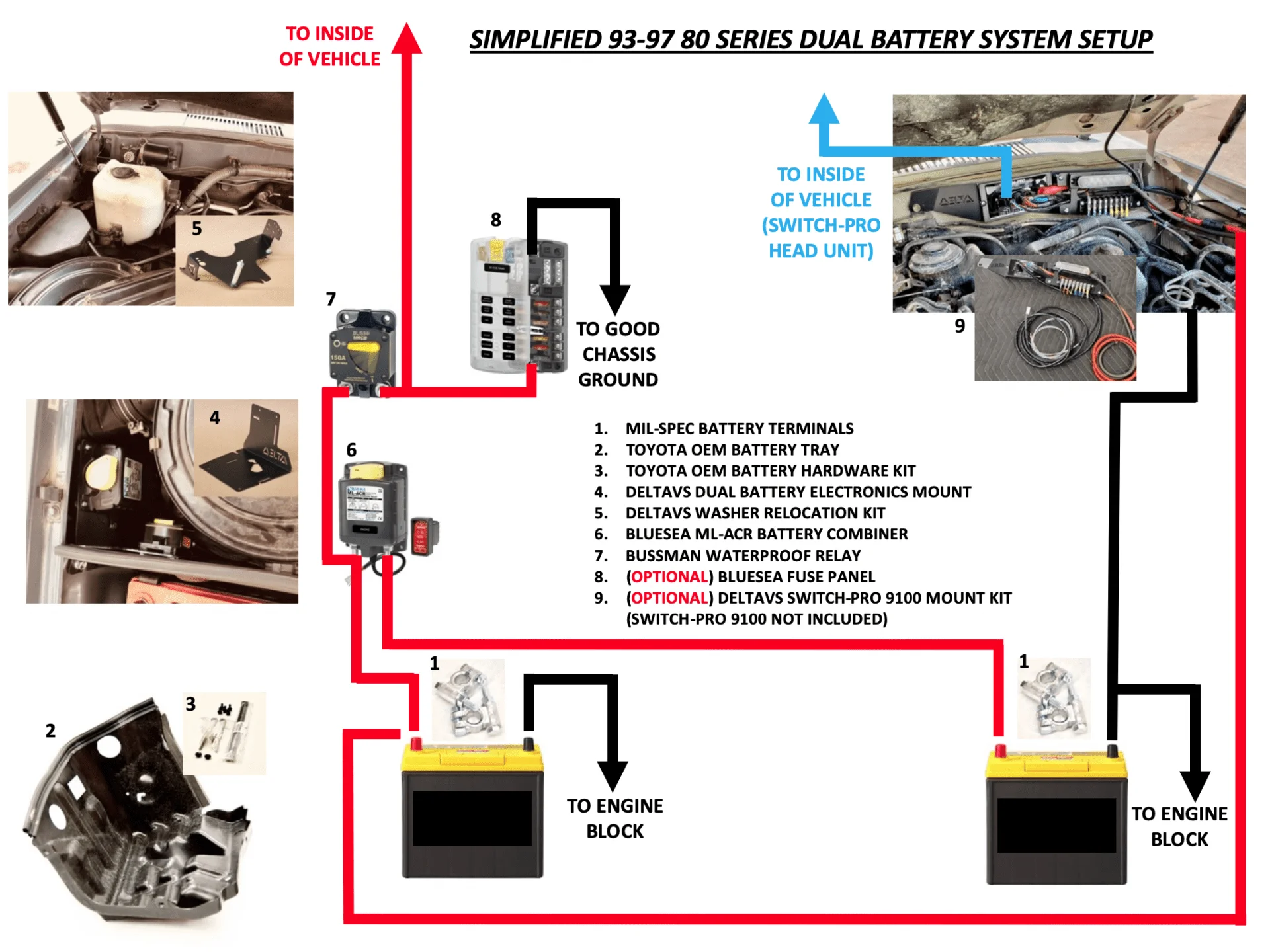

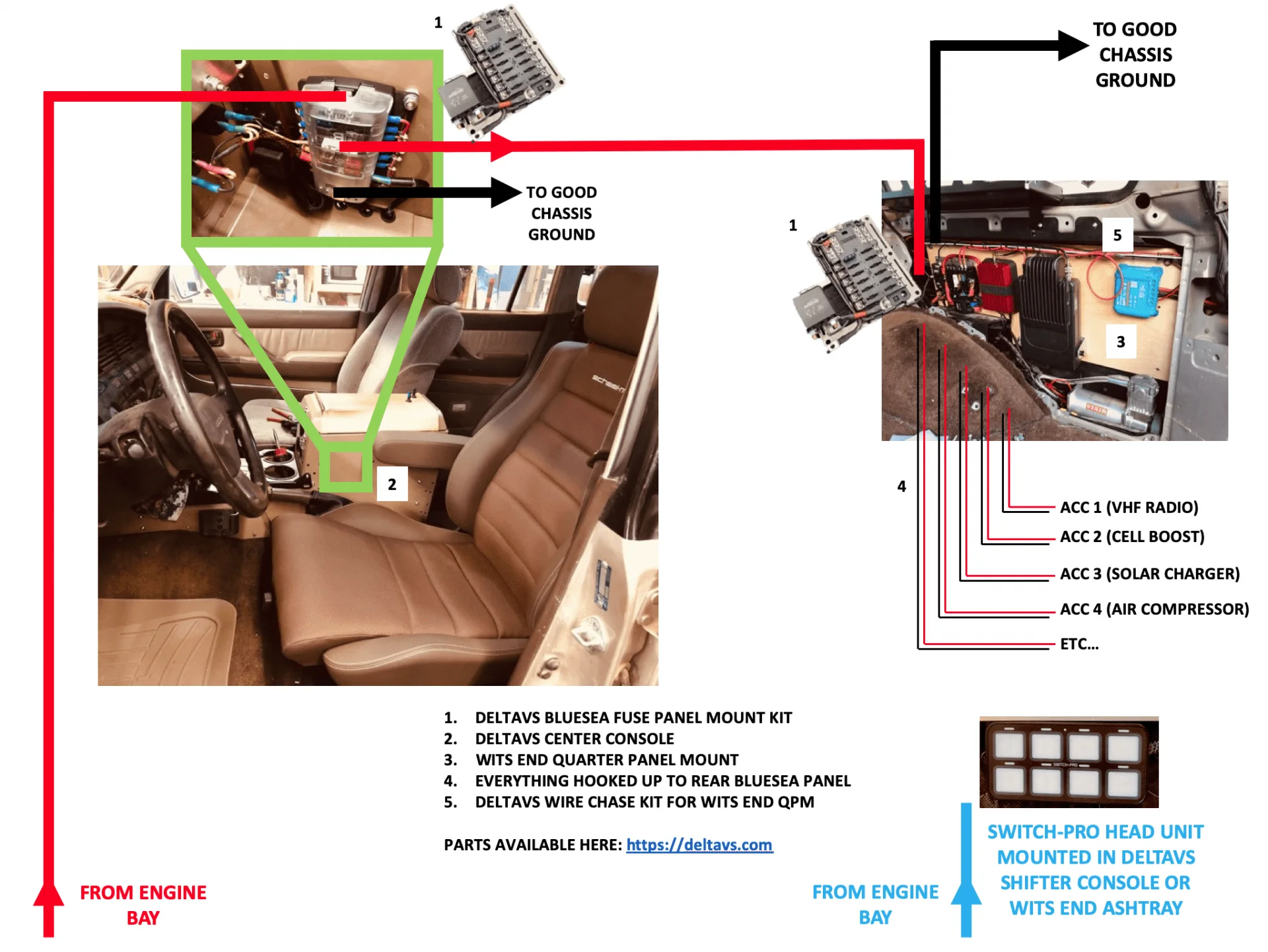

Howdy all. Since putting some of the new dual battery parts up on the site, have been receiving A LOT of questions about how they work/mount/etc. Put this together for them and decided it might be helpful for some here as well. This is intended as a very basic diagram of what a dual battery system can look like, not a 'be all, end all' setup. Happy to hear about what's missing, etc. Should be adding a @LC4LIFE wiring kit to this diagram shortly.

Here are some screenshots, the PDF is downloadable on our site (https://bit.ly/3kpE2nh link shortener to PDF file hosted on our site)

Screen Shot 2020-11-12 at 7.55.28 PM.png
Screen Shot 2020-11-12 at 7.55.40 PM.png
