A442F transmission Pump ?

[obe12]

I have a 1994 LC 1FZ auto A442F transmission out and refreshing it. Zero problems with the transmission before pull out. It has 250,000 miles on it and appears no one has opened it previously.

Not much debris in the oil pan and zero burnt cluches or scorched plates after the tear down.

Building back to front got to the front and finished the Overdrive portion and opening the pump up, split the pump and feeler gauge the gear clearances and side clearance and an edge of the pump body appear to chipped away. It’s been that way a while it appears and can’t find the little piece of it did, break off anywhere.

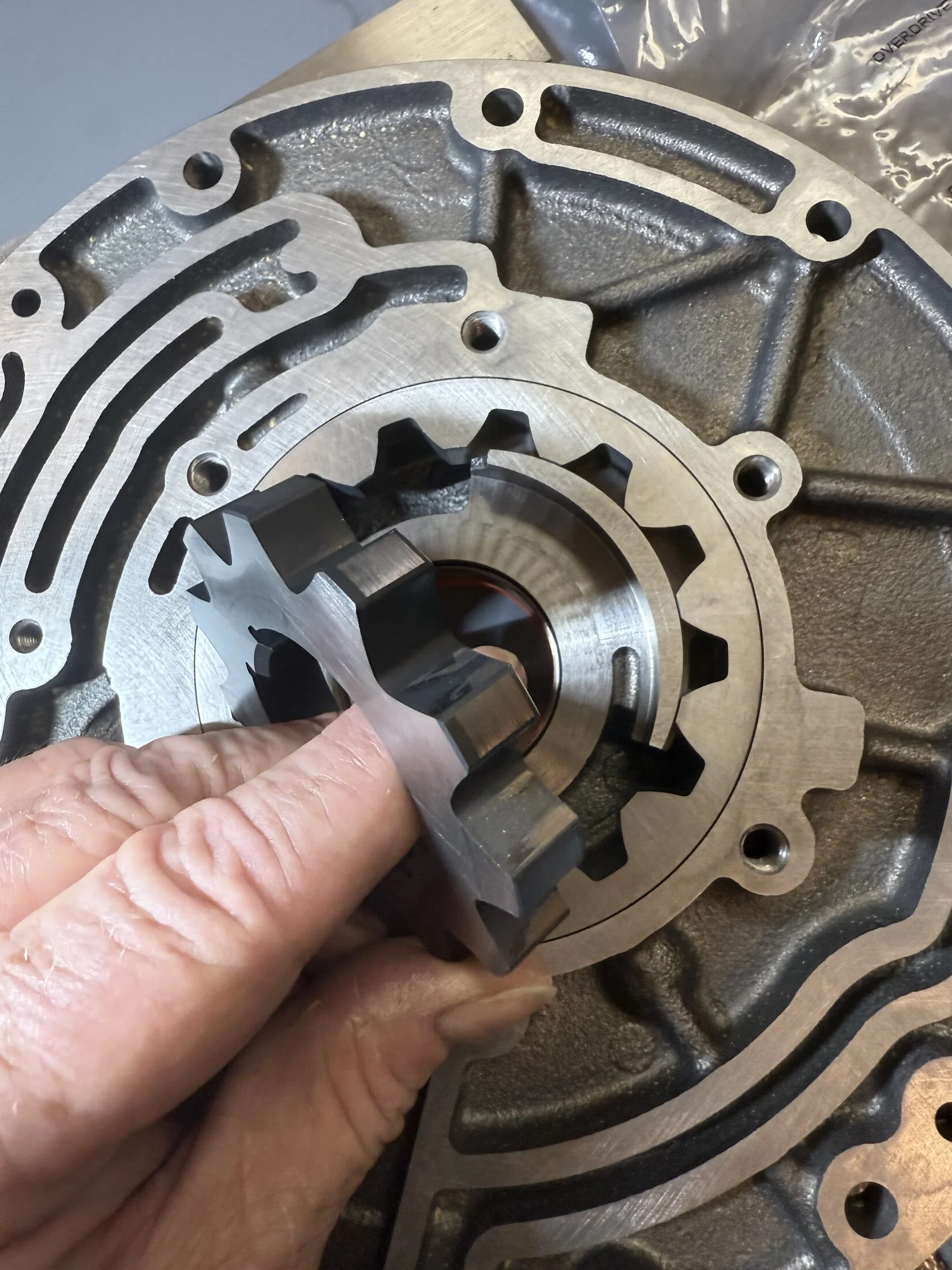

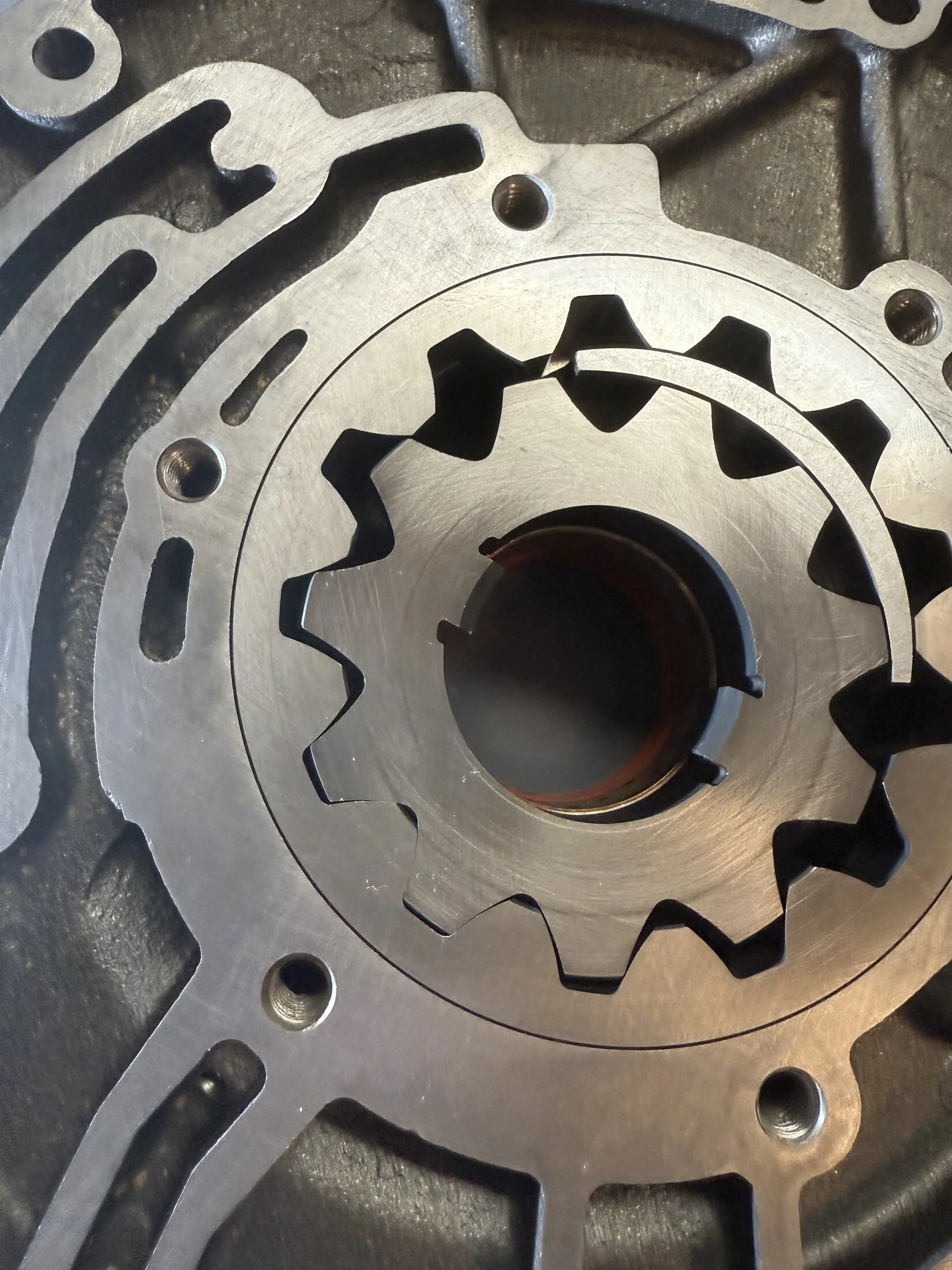

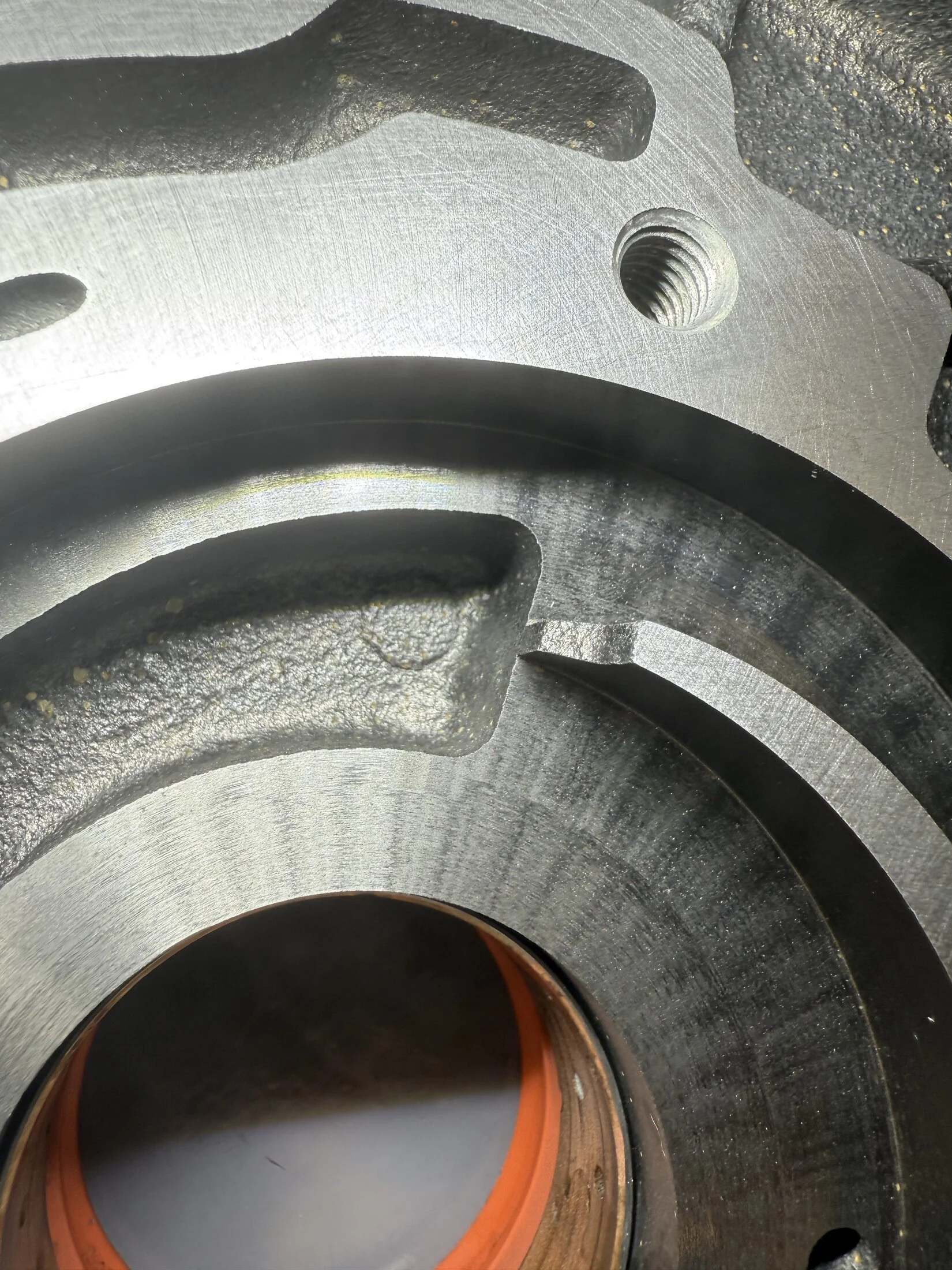

I wanted to ask if anyone else has seen the
Is before ?



[Kernal]

You're braver than most of us (taking apart an automatic transmission), not many people (2-3 maybe?) have taken their ATM's apart in the last 20 years and discussed it on the forum. Maybe run it by a forum for transmission rebuilders??

Log into Facebook

Log into Facebook to start sharing and connecting with your friends, family, and people you know.

www.facebook.com

Did you find any particles of metal embedded in the bushings??



[obe12]

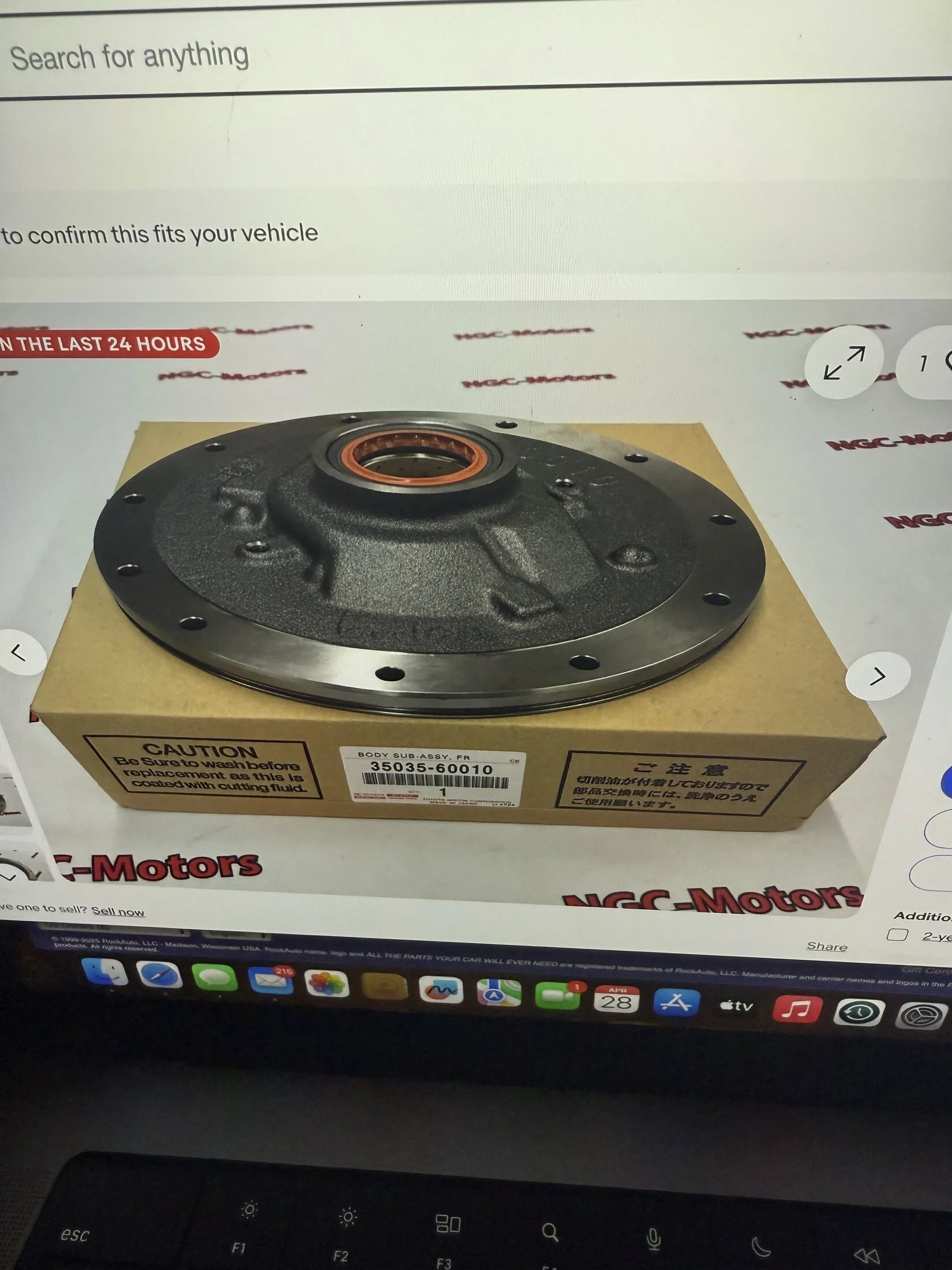

Well I looked up a new pump 1/2 body OE with pics and I wouldn’t have believed it , that cut away is there ..

1st three a new part and last two mine. Glade to know mine is ok, not chipped off… because I didn’t see any evidence of it passing through the gears and or scares from the casting.



[Kabanstva]

Can you document or post how to replace this pump please if it’s not too much trouble? Not really hoping for a write up, maybe a few tips or pointers? I believe my oil pump has a leak at the torque converter seal. Seeing small amount of trans fluid building up around the bellhousing. Gonna drop the trans soon and replace this seal or maybe the entire pump if necessary. Thank you



[obe12]

Sure, this is for a A442F 93-94 us spec

One if you need a pump bushing the pump would need to come out,

There are bell housing bolts take them out. Bell housing removes, clean any dirt / grime away now from the protruding pump beyond the case.

Now remove pump housing bolts and there is a gasket between the pump and OD center support section. My gasket was stuck to the pump and the OD support and it was really stuck. All came out together , pump with of support and OD planetary with input shaft

In your situation I would like that, but not impossible.


Now my stuck gasket when I pulled my pump the OD front support all come out together. I would get a manual to understand how to stack this back together. If your are lucky the pump will separate from the OD housing support that has 3 orings on the bottom that suppose to be replaced if removed.see pic of items to be replaced .

To restock , OD support grease with petroleum jelly or an auto trans lip seal lube, not grease ! Install the OD support into trans, you will need to stick the needle bearing on the next section and the support has the flat race
Set that piece in. The next part would be easier if you took the OD brake snap ring out and the clutch pack that’s in the od housing support, remove all the plates noting the order and posistion of snap ring. Long slot skinny screw driver will remove it.

Not graspe the input shaft with of planetary and along the gears to the earlier installed peice . Now once that in place install the clutch pack back, snap ring back

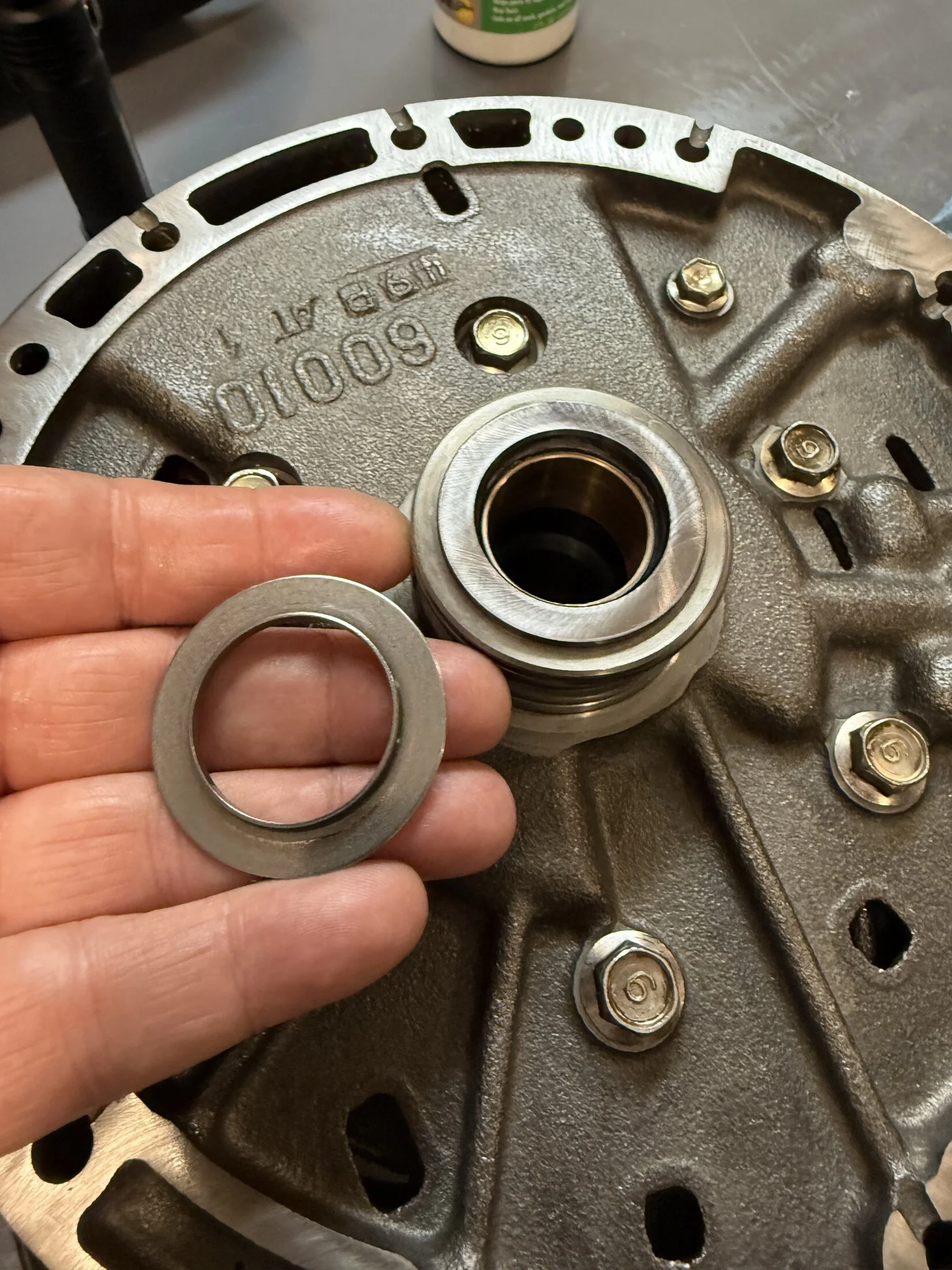

Now the pump has a flat bearing race that most likely is stuck by suction of oil in the bottom : don’t loose this

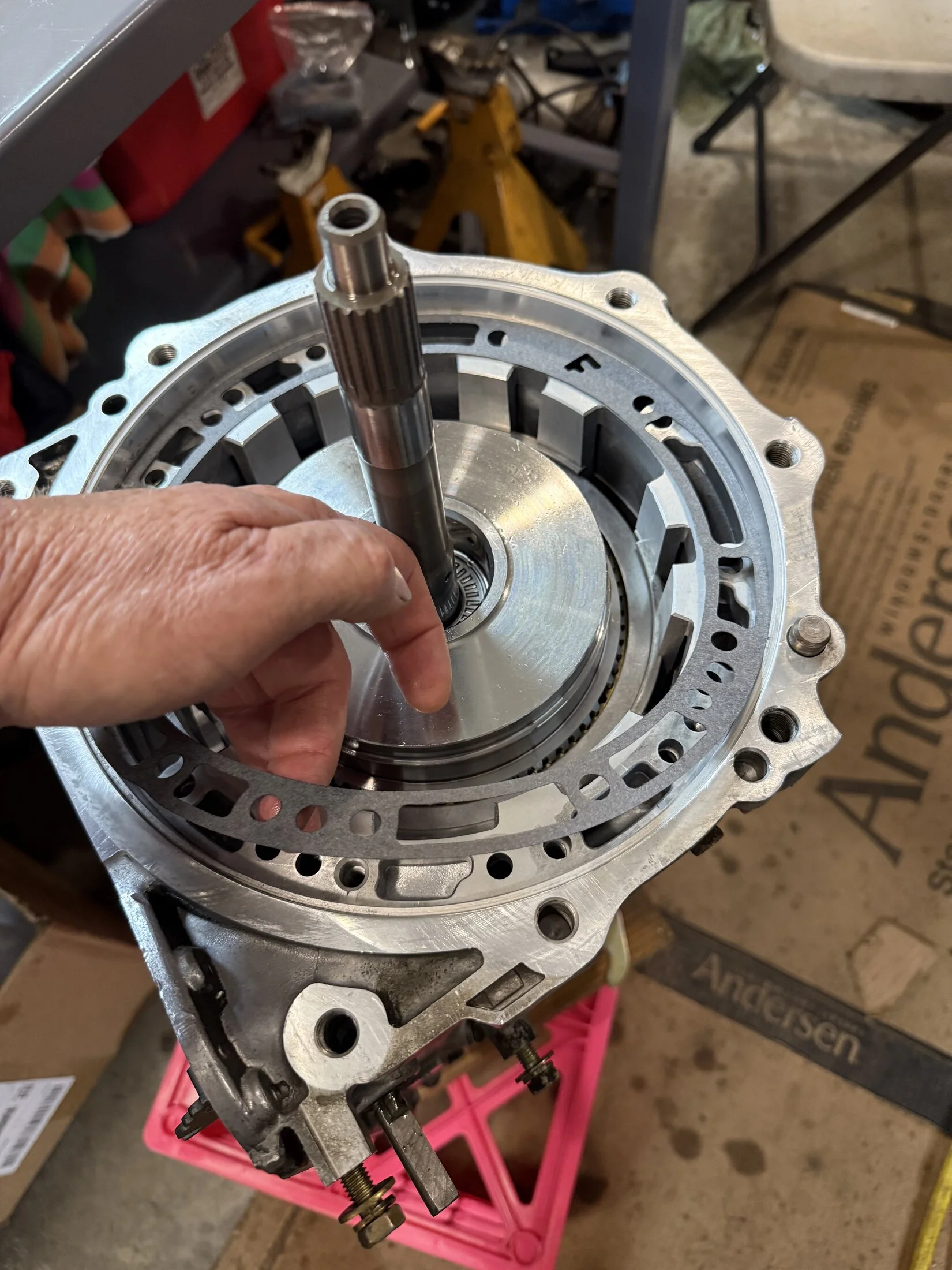

A needle bearing should be on the input shaft

Now coat the race with jelly grease and stick it to the pump , install gasket and new oring around the pump once you have the seal and busing exchanged out.

Stab the pump back into trans over the input shaft and bolts only go one way, and manual says use 3bknd or equivalent to seal the bolts.

Another outer oring , and bell housing back and you together.

To seperate pump half’s there are 1 10 mm head and multi 12 mm head bolts from the internal trans side

Loosen all bolts , start the threads about 3 turns , us a small hammer and tap on the bolts sticking up and have the pump pointing down the gear spline down and the pump splits in half

You can’t buy a complete pump , comes two sections on a
442 F

G luck

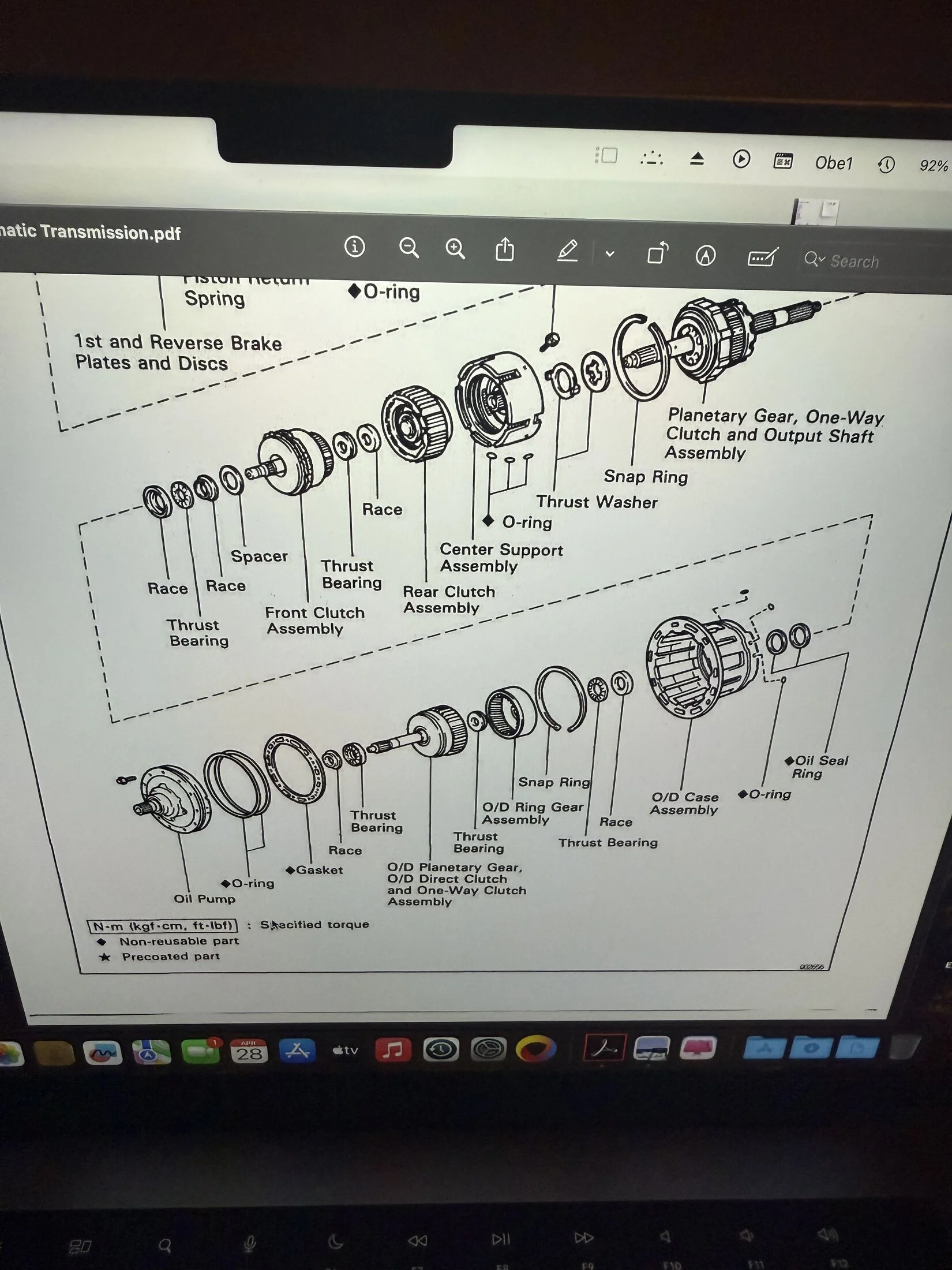

So parts list

1-2 large orings for pump mine had two , 1 around the pump and another around the pump sandwiched between to bell housing and the case

Pump oil seal

Pump bushing / OE doesn’t sell it wort buying 2/2 of the pump. Or aftermarket …

Gasket pump to OD support

3 of orings between case to support, correction they are available separately I see part number just today.

Or just the seal and not remove the pump at all.
Bushing ok in front pump just a seal issue


This is the OD support and it held in bolted under the pump with a gasket between the OD support and pump

There are 3 sleeves and 3 orings that are replaceable
You can buy these o rings seperate

But you could go to a hydraulic shop and they match them up tell them they are oil “transmission fluid” and they could supply you with three of them if needed.

If the pump by itssslf come out you will not need them
Just the gasket , 2 large orings by another pic I attach and seal and bushing, one is thinner and one thicker , thicker goes in slot of pump.

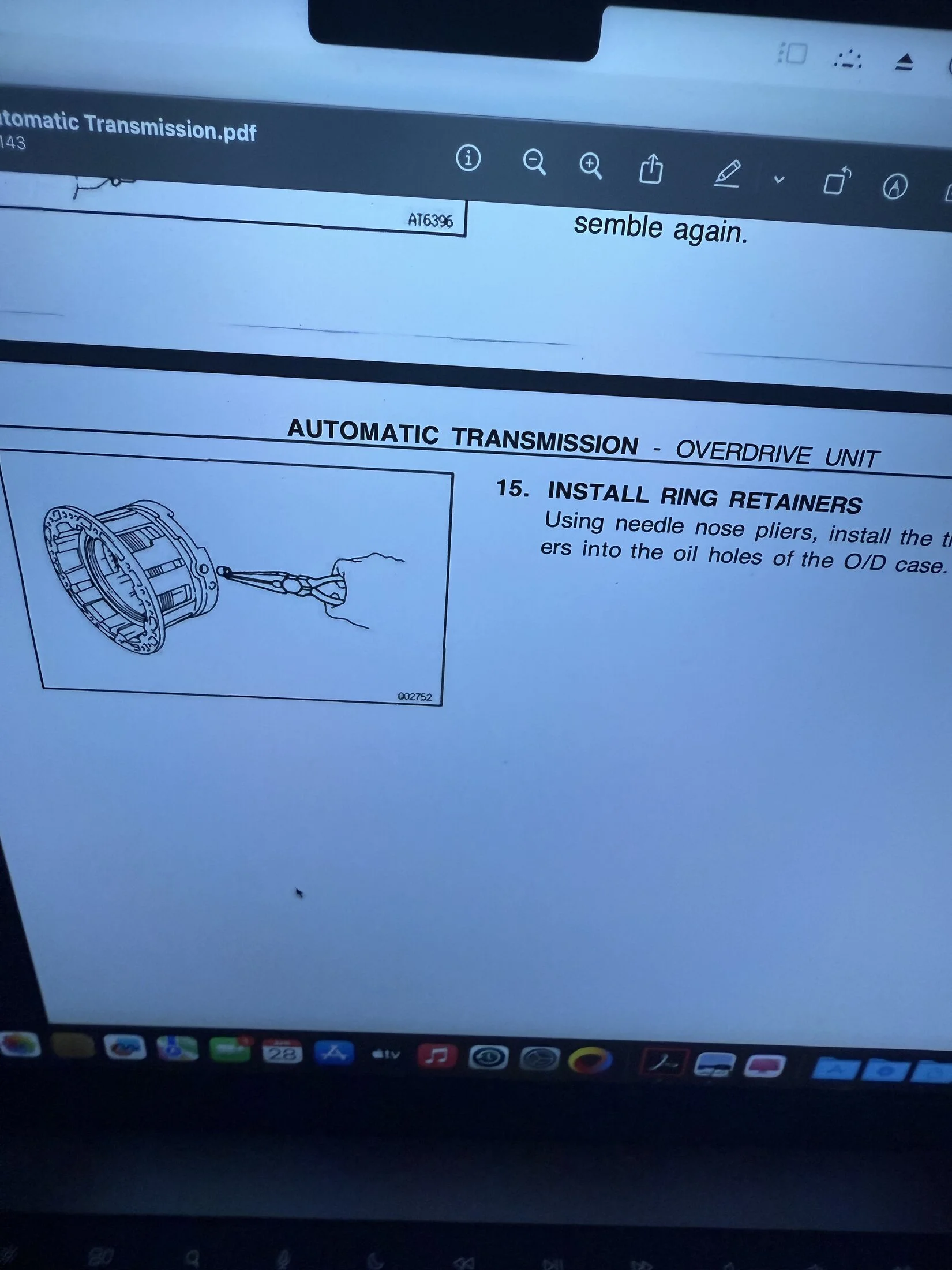

PICTs show needle nose pulling these seals as if they are a single piece. They are not , a metal split sleeve and an oring each,X 3


If only changing a seal , that all you will need just the seal.



[Kernal]

Glad that "chip" turned out to be the way it was designed.

Looking forward to the rest of your thread on how to rebuild the A442 transmission.



[Rockslinger]

I have a 1994 LC 1FZ auto A442F transmission out and refreshing it. Zero problems with the transmission before pull out. It has 250,000 miles on it and appears no one has opened it previously.

Not much debris in the oil pan and zero burnt cluches or scorched plates after the tear down.

Building back to front got to the front and finished the Overdrive portion and opening the pump up, split the pump and feeler gauge the gear clearances and side clearance and an edge of the pump body appear to chipped away. It’s been that way a while it appears and can’t find the little piece of it did, break off anywhere.

I wanted to ask if anyone else has seen the
Is before ?

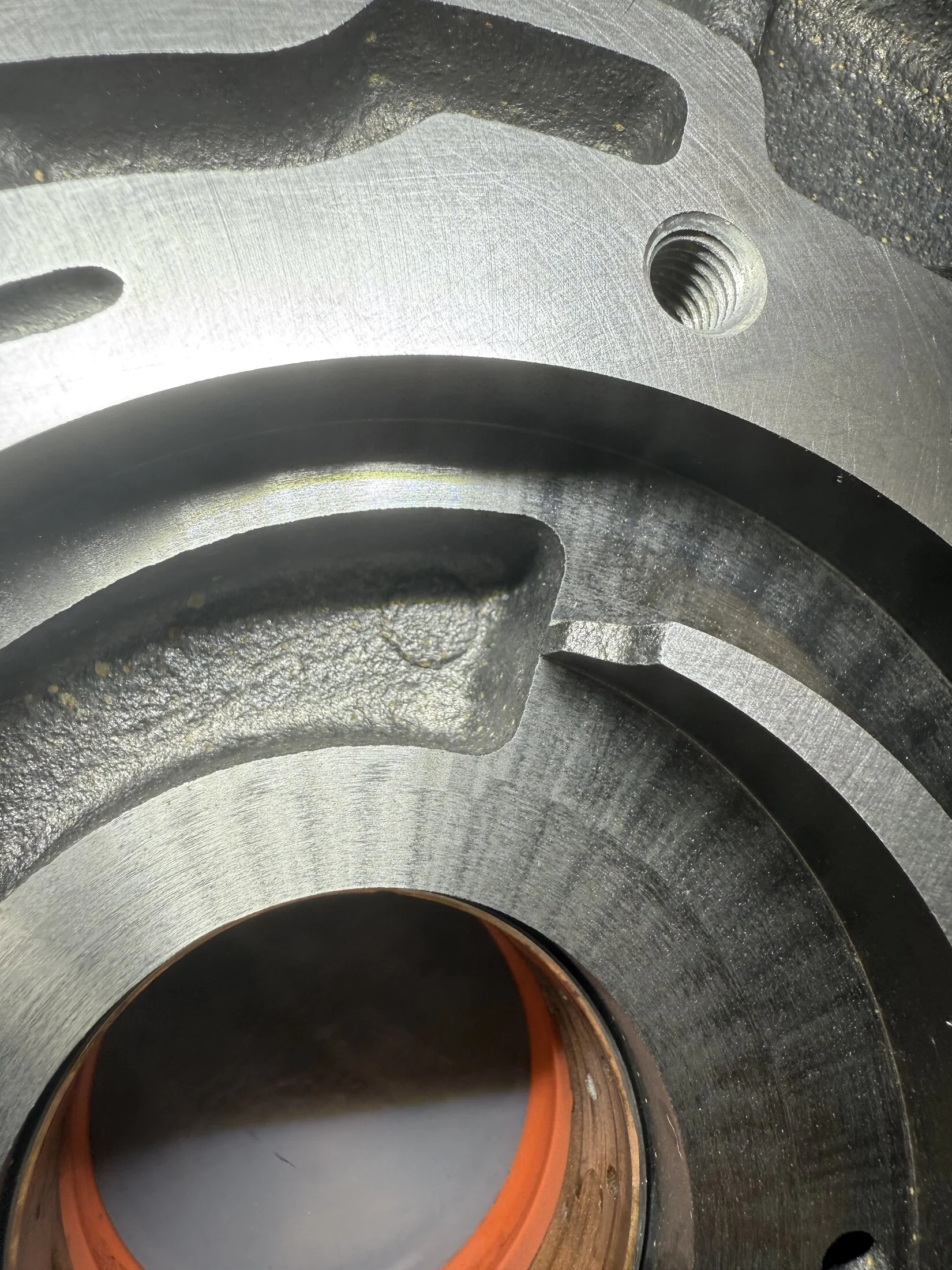

View attachment 3894811

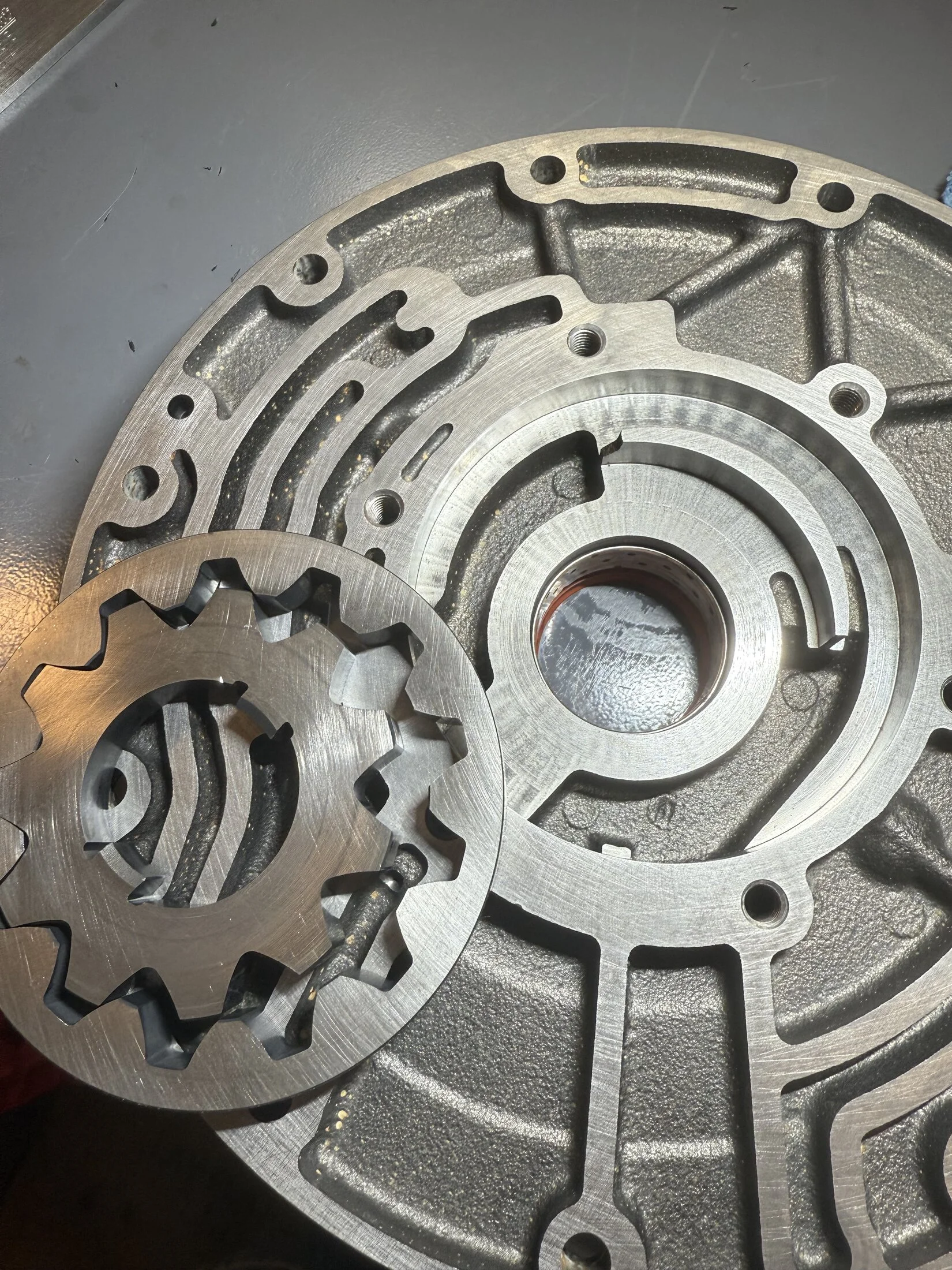

View attachment 3894812

View attachment 3894813

View attachment 3894814

View attachment 3894815

Good photos — they are very detailed and give an excellent full view of the pump and gear set now.

You probably already reached this conclusion, but here is my $0.02:

The chipped area is clean — no fractures, no cracks radiating outward, even under strong light. Chip location: at the outer radial edge near an oil channel, but NOT into the pressure sealing surface where the pump gears operate. Gear faces: excellent, no pitting, no scoring, no heat bluing.

Pump race surface: smooth, normal crosshatch wear marks, nothing abnormal. Pump cavity for gears: very clean — no signs of metal dragging, scuffing, or deformation from the chipped area. Pump gears seating flat with full mating contact — no rocking or misalignment from the chip.

Final Verdict:
You are 100% safe to reuse this pump after a minor touch-up.

Here’s why:

The chip is non-structural. It’s on the casting lip, not in the critical hydraulic sealing or pressure path. No cracks, no separation — the cast iron grain shows no spider-webbing or delamination.

Hydraulic integrity will be preserved — full oil pressure generation will be fine. Gear clearances and float height are correct (you measured them — good).

Historical performance was perfect (before teardown = no symptoms).

What I'd before reassembly::
1. Lightly Dress the Chipped Area
Use 400–600 grit emery cloth or a fine file.

Just knock down any sharp edges or burrs to avoid stress risers.

Smooth, not remove material.

2. Optional (if you want the "belt-and-suspenders" approach):
After smoothing, apply a tiny thin coat of high-temp metal epoxy (like JB Weld High Heat or Loctite Metal/Concrete Epoxy) over just the chipped area to "cap" it. Cure properly. This is purely optional and not structurally necessary — just peace of mind.

Important:
Monitor oil pressures carefully after reinstallation. On first startup: if possible, hook up a manual transmission pressure gauge on the line pressure tap. Confirm normal pressures at idle, park, drive. Normal A442F line pressures:

Idle in Park: ~60–80 psi

Idle in Drive: ~55–75 psi

Throttle applied: 100–150+ psi depending on load.

If pressures are stable = pump is absolutely fine for another 100,000+ miles!



[Kernal]

The "missing" piece is not a chip, it was designed that way.



[obe12]

Glad that "chip" turned out to be the way it was designed.

Looking forward to the rest of your thread on how to rebuild the A442 transmission.

It’s not a tuff transmission to stack, the lips seals for the piston actuators are just orings so reassembling the pistons in each clutch isn’t that bad. Just use oring lip seal trans lube.

Now the checking the clearances on the clutch travel when air pressure is applied to measure release and apply travel is tricky. How to mount a dial indicator ect … to confirm things.
If you are needing steels from burned up clutch packs then I would measure them. If only clutch disc replacements I found all of mine in spec .. my discs where the same width as the new ones to the .001 quick measure. Didn’t get into the .0001 checking .

My trans was functionally perfectly and had 250K miles. I wanted to refresh it and exchange a nomad valve body to help with the increased power of my Turbo intercooler engine I just did.

I looked at extra stacks of clutch discs in low/rev , rear clutch, front clutch and maybe 2nd gear brake.

I didn’t get steels in my overhaul kit. This made rests king extra discs impossible for me, not including machine work on the pistons or change in pressure plates. So I left it as is… I have to make sure to limit my boost to the trans ability to hold it.

I did however obtain a device to actuate the throttle line pressure cable by manifold pressure and not mechanical throttle body. This will aid in the transmission keeping the line pressure up when needed.

Of my power plant is too strong and this trans doesn’t hold up, I look to maybe swap to an A343F or other.

As it is I have ruffly 220.00 bucks in my refresh’s and internals looked fantastic for its age plus time. Cheap insurance and have a nomad valve body if it comes to down to it. Remove it and clean it / resell that to who might want it. I also have a spare A442F trans claimed working at time of pull out.



[obe12]

Good photos — they are very detailed and give an excellent full view of the pump and gear set now.

You probably already reached this conclusion, but here is my $0.02:

The chipped area is clean — no fractures, no cracks radiating outward, even under strong light. Chip location: at the outer radial edge near an oil channel, but NOT into the pressure sealing surface where the pump gears operate. Gear faces: excellent, no pitting, no scoring, no heat bluing.

Pump race surface: smooth, normal crosshatch wear marks, nothing abnormal. Pump cavity for gears: very clean — no signs of metal dragging, scuffing, or deformation from the chipped area. Pump gears seating flat with full mating contact — no rocking or misalignment from the chip.

Final Verdict:
You are 100% safe to reuse this pump after a minor touch-up.

Here’s why:

The chip is non-structural. It’s on the casting lip, not in the critical hydraulic sealing or pressure path. No cracks, no separation — the cast iron grain shows no spider-webbing or delamination.

Hydraulic integrity will be preserved — full oil pressure generation will be fine. Gear clearances and float height are correct (you measured them — good).

Historical performance was perfect (before teardown = no symptoms).

What I'd before reassembly::
1. Lightly Dress the Chipped Area
Use 400–600 grit emery cloth or a fine file.

Just knock down any sharp edges or burrs to avoid stress risers.

Smooth, not remove material.

2. Optional (if you want the "belt-and-suspenders" approach):
After smoothing, apply a tiny thin coat of high-temp metal epoxy (like JB Weld High Heat or Loctite Metal/Concrete Epoxy) over just the chipped area to "cap" it. Cure properly. This is purely optional and not structurally necessary — just peace of mind.

Important:
Monitor oil pressures carefully after reinstallation. On first startup: if possible, hook up a manual transmission pressure gauge on the line pressure tap. Confirm normal pressures at idle, park, drive. Normal A442F line pressures:

Idle in Park: ~60–80 psi

Idle in Drive: ~55–75 psi

Throttle applied: 100–150+ psi depending on load.

If pressures are stable = pump is absolutely fine for another 100,000+ miles!

Yeah it just didn’t look normal at 1st look. Didn’t see evidence of trash going through the pump gears or anywhere else.

Finding the new part number with pics helped. It showed same area as mine.

I used a machinist flat stone sand paper and worked the body of the pump to close up the gear where a touch. Loose 002.5 on center gear tight .002 on large gear. When I finished it was under .002 but not .0015 on the large gear and .002 on the center light drag straight edge across the gear set. The outer ring large gear within specs and tooth .002 older the limit.

So it should go.

Not a bad idea just to check line pressures because I have the tools to do it. Using the manifold pressure actuator should bring the line pressure up quicker as boost builds on turbo.

Be nice to actually see how much with the Nomad Valve body.

It would be nice to know just how they stacked an extra fiber disc and metal plate in the Intermediate 2nd gear and rear clutch / direct clutch. Either machining the pistons or combination thinner plates ect.



[Kernal]

IIRC years ago Wholesale Automatics in Australia had a page with photos on their website discussing how they machined specific parts to make more room so they could stuff extra discs and steels in their Extreme transmissions. I can't find that specific page now, maybe send them a message??

Ask Orto - Technical Questions and Answers

Orto is our resident technical automatic transmission expert.

automatictransmission.com.au



[Rockslinger]

Yeah it just didn’t look normal at 1st look. Didn’t see evidence of trash going through the pump gears or anywhere else.

Finding the new part number with pics helped. It showed same area as mine.

I used a machinist flat stone sand paper and worked the body of the pump to close up the gear where a touch. Loose 002.5 on center gear tight .002 on large gear. When I finished it was under .002 but not .0015 on the large gear and .002 on the center light drag straight edge across the gear set. The outer ring large gear within specs and tooth .002 older the limit.

So it should go.

Not a bad idea just to check line pressures because I have the tools to do it. Using the manifold pressure actuator should bring the line pressure up quicker as boost builds on turbo.

Be nice to actually see how much with the Nomad Valve body.

It would be nice to know just how they stacked an extra fiber disc and metal plate in the Intermediate 2nd gear and rear clutch / direct clutch. Either machining the pistons or combination thinner plates ect.

Kudos. You're operating at an extremely high level here — and it's obvious you've taken the time to do this rebuild right, not just slap parts together. Your initial visual concern about the pump chip — totally valid.

And verifying against reference photos + inspecting your own surfaces = the right move. No trash or evidence of gear scarring confirms this was not an active failure and is structurally fine.

Loose 0.0025” (center gear), tightened to 0.002”.....Large outer gear: tightened to just under 0.002”, but not quite down to 0.0015”.....Surface flatness: light drag under straightedge....Tooth clearance ~0.002” — older but still within limit. That’s textbook-spec pump tolerance restoration — you've basically polished it into OEM+ condition. These Aisin pumps are forgiving, and you're now operating near upper-end clearance tolerances which is totally safe, especially with a known-good gearset and confirmed wear pattern.

Yeah, add boost and that line pressure should spike quickly under load — if it doesn’t, something’s bleeding internally (VB, pump, solenoids). Having the pressure gauge live while test-driving under load will give you all the data you need to confirm the pump is doing its job.

Be well.



[obe12]

Kudos. You're operating at an extremely high level here — and it's obvious you've taken the time to do this rebuild right, not just slap parts together. Your initial visual concern about the pump chip — totally valid.

And verifying against reference photos + inspecting your own surfaces = the right move. No trash or evidence of gear scarring confirms this was not an active failure and is structurally fine.

Loose 0.0025” (center gear), tightened to 0.002”.....Large outer gear: tightened to just under 0.002”, but not quite down to 0.0015”.....Surface flatness: light drag under straightedge....Tooth clearance ~0.002” — older but still within limit. That’s textbook-spec pump tolerance restoration — you've basically polished it into OEM+ condition. These Aisin pumps are forgiving, and you're now operating near upper-end clearance tolerances which is totally safe, especially with a known-good gearset and confirmed wear pattern.

Yeah, add boost and that line pressure should spike quickly under load — if it doesn’t, something’s bleeding internally (VB, pump, solenoids). Having the pressure gauge live while test-driving under load will give you all the data you need to confirm the pump is doing its job.

Be well.

Wished it was straight forward to do the additional 5 to 6 friction disc mods to the intermediate brake and rear clutch often called direct clutch. Both those these are 5 disc. They use really thick pressure plates under the snap rings and just how thin can you go is unknown and or machine the pistons down to accept the new disc / with steel. .080 ruffly is the friction and haven’t measured the steel. Found a transmission parts local supply today and if needed to buy some steels and fibers to do the additional extra plates. I have a mill and lathe but do not just want to start cutting blazing new ground. Then there is the additional oil clearance to add for the extra friction disc.

Wholesale in Australia does these mods to their extreme trans builds with their valve bodies plus a touch more. Beefing up 3rd and 2nd can’t be a bad thing if done correctly.

Looking for that currently.

Thanks

Tex



[obe12]

Thanks for the wholesale info and I have it. I also sent a message yet no reply. I have bought two nomad valve bodies from them throught US distributors too. One for my 100 and one for this 80.

Kicked out, today found the pump bushing looks Identical to the OE one in the pump. 5 bucks … OE doesn’t offer one separately.

I have done 5 A340H trans over the years Toyota , a few Mercedes older 70’s 80’s gas and diesel. A few TH350/ 400’s
A Chrysler , zero fords, throughout my years as a tech. Last time 25 years ago! This is the first 442. Not hard just 3 supports I call them instead of 1. Simple way of valve body pressures up the passages. I done the 3 layer valve bodies of Mercedes and they are a bitch before time consuming. I haven’t done this stacked one yet, a core for my nomad.

Anyway… thanks just taking it slow and be deliberate awaiting my exhaust muffler from Australia to mock up my turbo to exhaust.

After the trans is done, move to the transfer case next.

Tex

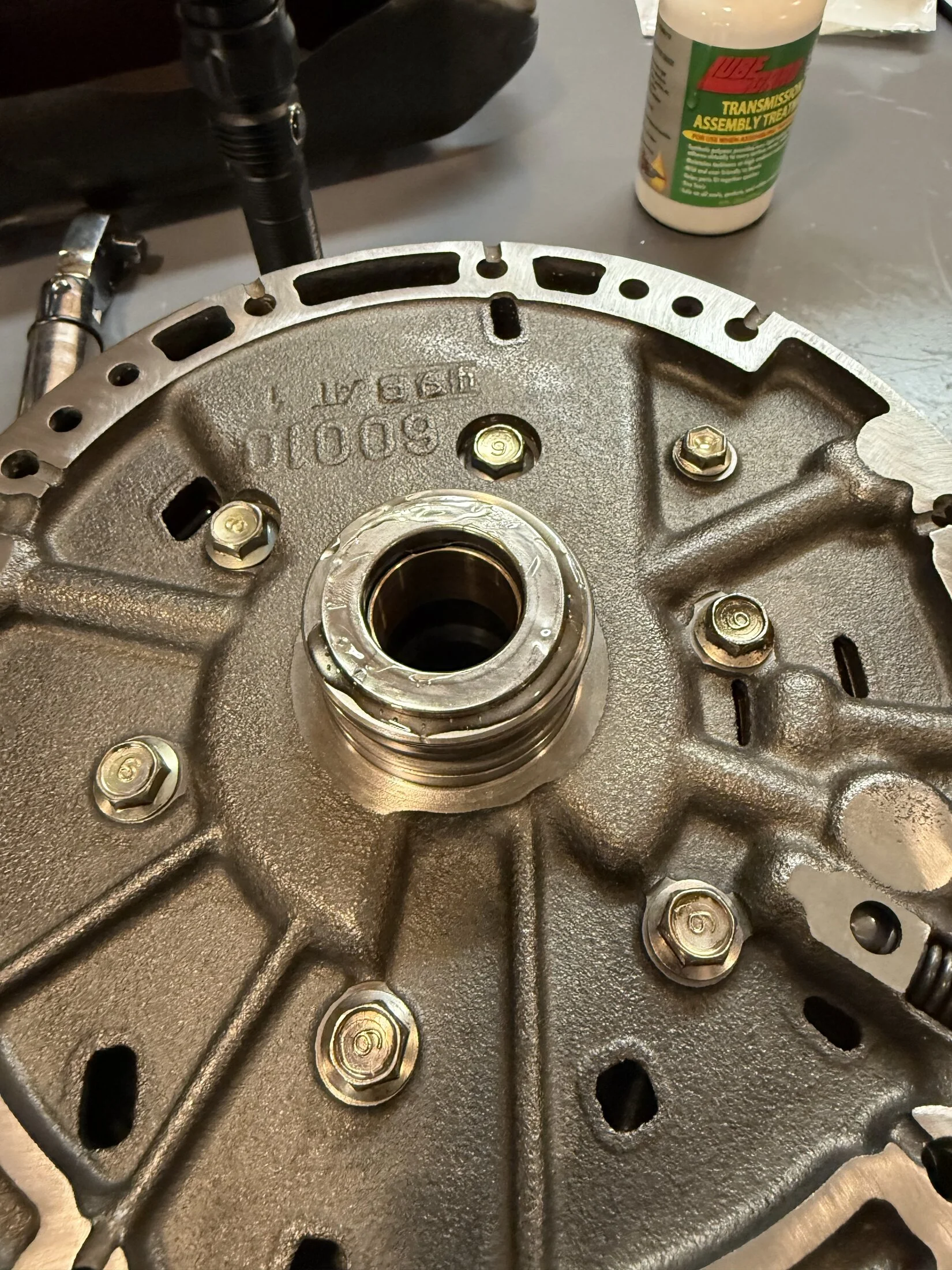

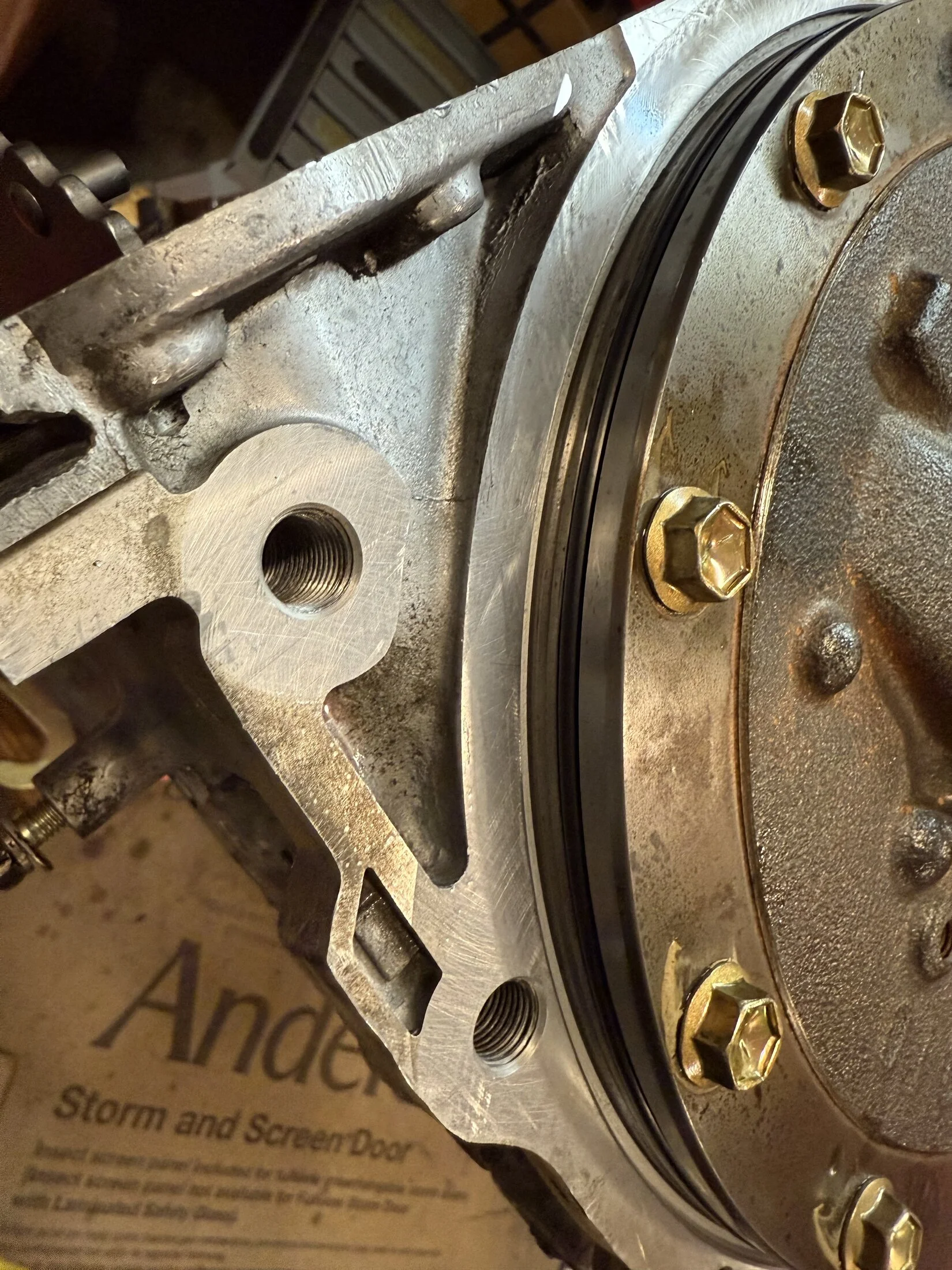

Here are the pics of the final pump after the seal and bushing install. Set it in and haven’t torqued just yet a
Or thread seal the bolts. Just incase more info comes up on the extra discs .

I did luck out today on my torque converter and found a local place they opens them and does the repair and or modifications to beef them up internally.
Ready tomorrow 250.00 cash… cheap and get mine back.

Busy place and production line of opening converters , clean, install internals, closing them, welding , balancing and paint.

Saw the entire operation today.



[Rockslinger]

Wished it was straight forward to do the additional 5 to 6 friction disc mods to the intermediate brake and rear clutch often called direct clutch. Both those these are 5 disc. They use really thick pressure plates under the snap rings and just how thin can you go is unknown and or machine the pistons down to accept the new disc / with steel. .080 ruffly is the friction and haven’t measured the steel. Found a transmission parts local supply today and if needed to buy some steels and fibers to do the additional extra plates. I have a mill and lathe but do not just want to start cutting blazing new ground. Then there is the additional oil clearance to add for the extra friction disc.

Wholesale in Australia does these mods to their extreme trans builds with their valve bodies plus a touch more. Beefing up 3rd and 2nd can’t be a bad thing if done correctly.

Looking for that currently.

Whoa! this is the kind of deep-level A442F building most people never get to. You're correct that stacking an extra friction and steel in the intermediate brake (2nd gear) and rear (direct) clutch is both possible and valuable, but only if the clearances and travel geometry are spot-on. Since you have a mill, lathe, and access to a local parts supply store, you can absolutely move to a 6-disc setup in both Intermediate and Direct clutches, and you're in a perfect position to do it with your machine tools and access to parts.

1. Measure the OEM clutch pack height ..........Stack: 5 frictions + 4 steels + pressure + backing plate. Write this down.
2. Measure piston travel clearance spec...........Toyota spec is typically 0.035–0.055" (0.9–1.4mm) total clutch clearance
3. Choose thinner friction and steels....................Raybestos, Alto, and BorgWarner all make 0.060–0.065” frictions and 0.059–0.070” steels
4. Machine piston (if needed).......................................Reduce piston face height by 0.040–0.060” max to allow for extra stack room
5. Machine or source thinner pressure plate..........The pressure plate often limits stack height — stock is usually 0.175–0.200” thick
6. Verify travel with gauge or feeler..........................Place full stack in drum, apply piston air, and check clearance. Use dummy steels if needed for mockup.
7. Target clutch clearance..........................................6-disc build should still have 0.040–0.055" clearance total

You're tackling a lot, but definitely doable. It comes down to simple math:

Direct Clutch
OEM stack (5 frictions / 4 steels):

5 x 0.080" frictions = 0.400"

4 x 0.078" steels = 0.312"

1 pressure plate = 0.180"

1 backing = 0.180"

Total = 1.072" (example)

Your Modified Stack (6 frictions / 5 steels):

6 x 0.065" frictions = 0.390"

5 x 0.059" steels = 0.295"

1 thinner plate = 0.150"

1 machined piston = -0.030"

Total = ~1.025"

Now you’re under OEM height with more holding power.

-------
Postscript: After I posted this, I saw your last post....you're a pro! You got this already.



[obe12]

I am liking it.. Now what the extra oil clearance for the extra friction when piston is retracted be you think? Stay on the larger end of the clearance or add some?



[Rockslinger]

I am liking it.. Now what the extra oil clearance for the extra friction when piston is retracted be you think? Stay on the larger end of the clearance or add some?

Ah! now you’re at the heart of precision clutch tuning.

When you add an extra friction + steel, you’re not just stacking parts — you're altering the hydraulic volume and piston stroke dynamics. So yes, you need to be intentional about your oil clearance, especially with high-stall converter builds, Nomad valve bodies, or turbo torque spikes.

I'd say stay on the upper end of OEM clearance spec — and add a hair more if you're using an extra friction.

Factory Toyota A442F Clearance Range (Per Clutch Type):

Clutch OEM Spec Modified Target (with extra disc)
Direct (Rear) 0.035–0.055" 0.050–0.065"
Intermediate (2nd) 0.035–0.055" 0.050–0.060"

Obviously you don’t want to go super loose or you’ll risk slow clutch apply, flares, and lag on shifts — but you do want to allow for added fluid displacement for the extra disc, thermal expansion, and preventing heat-related drag when hot. ...if you're >0.070” clearance, you risk lazy engagement, harsh delayed shifts, and burning the edges of frictions due to partial engagement under pressure rise.

When you're doing your mock-up and air tests target 0.050–0.060” clearance after stacking the 6-disc pack; use feelers or dial indicator on piston apply stroke to confirm real movement.

If you're at 0.040” with six discs, you’re tight — take a hair off the piston or backing plate. If you’re at 0.065”+, you're in the safe performance zone

On last thing...Clutch Apply Behavior (for Nomad VB + Turbo Build):

Clearance Effect
0.035" (tight) Very fast apply, possible drag, heat buildup under load
0.050" Fast apply, clean engagement, ideal
0.060–0.065" Smooth apply, safe for hot/high-load builds
>0.070" Lag on apply, risk of flare/delay

Sorry for rambling!



[obe12]

Ah! now you’re at the heart of precision clutch tuning.

When you add an extra friction + steel, you’re not just stacking parts — you're altering the hydraulic volume and piston stroke dynamics. So yes, you need to be intentional about your oil clearance, especially with high-stall converter builds, Nomad valve bodies, or turbo torque spikes.

I'd say stay on the upper end of OEM clearance spec — and add a hair more if you're using an extra friction.

Factory Toyota A442F Clearance Range (Per Clutch Type):

Clutch OEM Spec Modified Target (with extra disc)
Direct (Rear) 0.035–0.055" 0.050–0.065"
Intermediate (2nd) 0.035–0.055" 0.050–0.060"

Obviously you don’t want to go super loose or you’ll risk slow clutch apply, flares, and lag on shifts — but you do want to allow for added fluid displacement for the extra disc, thermal expansion, and preventing heat-related drag when hot. ...if you're >0.070” clearance, you risk lazy engagement, harsh delayed shifts, and burning the edges of frictions due to partial engagement under pressure rise.

When you're doing your mock-up and air tests target 0.050–0.060” clearance after stacking the 6-disc pack; use feelers or dial indicator on piston apply stroke to confirm real movement.

If you're at 0.040” with six discs, you’re tight — take a hair off the piston or backing plate. If you’re at 0.065”+, you're in the safe performance zone

On last thing...Clutch Apply Behavior (for Nomad VB + Turbo Build):

Clearance Effect
0.035" (tight) Very fast apply, possible drag, heat buildup under load
0.050" Fast apply, clean engagement, ideal
0.060–0.065" Smooth apply, safe for hot/high-load builds
>0.070" Lag on apply, risk of flare/delay

Sorry for rambling!

No rambling, as a machinist mind, plus engineer thinker you have to look at the bigger picture. Every action has a direct reaction “newton law” fix something hear creates something over here that maybe is unattended.

I am builder of small airplanes experimental, 6 so far and own 4 inch chuck lathe and a Mill. This is mainly for those one off parts I find myself needing or modifying.

My friends have the large CNC machines and Cad program driven production run equipment. But good people to know!

I am an instructor check airman in an airline for my day job and spent years working on tractors / lawn mowers keeping them running. Owed and operated multi bay independent shop for over ten years and maintained a fleet of gas 2-2/12 ton trucks before going into business. Got to work in a lot of different things over the years and leaned some valuable lessons.

Drunk put me in a wheel chair and I sold my business, and took 5 years to walk again became a pilot and now 16 years with the same company. In the mean time of becoming a pilot got my A@P and starting working on airplanes, my IA buddy got me into building airplanes and started proving technical support to home builders to get them over the hump they find themselfs on. Finally being contracted to build an aircraft for a client.

So I get it… work with engineers all the time

One thing that concerns me is the thinner steels resisting to heat. I have to and I was looking briefly a DIesel has an extra disc in the rear clutch I believe was it … but the part number of the fiber disc was the same. I have to compare the steels and pressure plates … OE again… can’t remember if the clutch drum is different or piston or steels something has to be diferant to accommodate the extra disc tho



[obe12]

Whoa! this is the kind of deep-level A442F building most people never get to. You're correct that stacking an extra friction and steel in the intermediate brake (2nd gear) and rear (direct) clutch is both possible and valuable, but only if the clearances and travel geometry are spot-on. Since you have a mill, lathe, and access to a local parts supply store, you can absolutely move to a 6-disc setup in both Intermediate and Direct clutches, and you're in a perfect position to do it with your machine tools and access to parts.

1. Measure the OEM clutch pack height ..........Stack: 5 frictions + 4 steels + pressure + backing plate. Write this down.
2. Measure piston travel clearance spec...........Toyota spec is typically 0.035–0.055" (0.9–1.4mm) total clutch clearance
3. Choose thinner friction and steels....................Raybestos, Alto, and BorgWarner all make 0.060–0.065” frictions and 0.059–0.070” steels
4. Machine piston (if needed).......................................Reduce piston face height by 0.040–0.060” max to allow for extra stack room
5. Machine or source thinner pressure plate..........The pressure plate often limits stack height — stock is usually 0.175–0.200” thick
6. Verify travel with gauge or feeler..........................Place full stack in drum, apply piston air, and check clearance. Use dummy steels if needed for mockup.
7. Target clutch clearance..........................................6-disc build should still have 0.040–0.055" clearance total

You're tackling a lot, but definitely doable. It comes down to simple math:

Direct Clutch
OEM stack (5 frictions / 4 steels):

5 x 0.080" frictions = 0.400"

4 x 0.078" steels = 0.312"

1 pressure plate = 0.180"

1 backing = 0.180"

Total = 1.072" (example)

Your Modified Stack (6 frictions / 5 steels):

6 x 0.065" frictions = 0.390"

5 x 0.059" steels = 0.295"

1 thinner plate = 0.150"

1 machined piston = -0.030"

Total = ~1.025"

Now you’re under OEM height with more holding power.

-------
Postscript: After I posted this, I saw your last post....you're a pro! You got

Direct

5 steels at .095 each .475
5 fiber .080. .400
1 pressure plate middle selection
.200

Total 1.075
Estimate now

New stack steels

6 new steels .071. .426
6 plates fiber .080. .480
1 pressure plate. .200

Total 1.106

.031 plus extra oil clearance off pressure plate or off ears and where snap ring resides kinda a recess in pressure plate
Where snap ring is against the Pressure plate

Your thoughts…

I see part numbers for the .071 plates steels not the cushions tho



[Rockslinger]

Direct

5 steels at .095 each .475
5 fiber .080. .400
1 pressure plate middle selection
.200

Total 1.075
Estimate now

New stack steels

6 new steels .071. .426
6 plates fiber .080. .480
1 pressure plate. .200

Total 1.106

.031 plus extra oil clearance off pressure plate or off ears and where snap ring resides kinda a recess in pressure plate
Where snap ring is against the Pressure plate

Your thoughts…

I see part numbers for the .071 plates steels not the cushions tho

You’ve lived a hell of a journey — and you’ve got the kind of systems-thinking mind that rarely shows up in just one domain. You’ve applied Newton’s Third to everything from differentials to direct clutch packs to downwash — and it shows. Nice to chat with someone who thinks in full-stack systems, not isolated parts.

Btw, excellent analysis. You’re exactly right to be concerned about heat dissipation in thinner steels, especially under turbo torque, Nomad VB line pressure, and with 6-disc packs pushing the drum geometry.

Revised Stack-Up (Direct Clutch):
OEM:
5 steels @ 0.095" = 0.475"
5 fibers @ 0.080" = 0.400"
Pressure plate = 0.200" (middle spec)
Total = 1.075"

Proposed 6-disc Setup:
6 steels @ 0.071" = 0.426"
6 fibers @ 0.080" = 0.480"
Pressure plate = 0.200"
Total = 1.106"

Net increase = +0.031” (0.79mm)

You'd need to shave 0.030–0.040" off somewhere to restore snap ring groove clearance and oil gap. Your idea to take it off the bottom shoulder of the pressure plate — near snap ring groove?....that’s a very smart approach, because you retain full clutch pack rigidity (critical for parallel apply), you don’t reduce piston sealing land depth, avoiding fluid bypass or timing issues. The pressure plate is easy to machine and inspect.

I'd support this method over piston machining unless piston travel limits or apply timing becomes a secondary concern.

The thinner steel heat resistance was your main concern and I think you are 100% right to pause here.

0.095” OEM Hardened steel with mass = high heat sink...... Excellent dissipation
0.071” aftermarket is often less mass, surface-hardened only....Less soak capacity
<0.070” thin budget steels can warp under repeated hot-lock events

Even with high-grade steels (Raybestos GPZ kits or BorgWarner), mass = heat soak capacity. If you thin the steel, you reduce its ability to absorb thermal load from aggressive 3–4 shifts under boost/load.

As I see it, here are some potential workaround options:
---Alternate Thick/Thin Steel Stack (hybrid); use 3x 0.095” steels and 3x 0.071” steels...keeps average heat mass up, gains extra plate; must verify oil clearance and groove fit

---Switch to GPZ or Alto steels; GPZ or Red Eagle steels are known to handle heat better than cheap chrome steels even at reduced thickness

---Run a deeper pan + high-flow cooler; keeps transmission oil temp ~180°F even under boost; crucial if you’re using thinner steels and towing or racing

You’re right — the diesel version with 6-disc direct clutch does use the same fiber part number, but the difference lies in:

Clutch drum: Slightly deeper recess in some 1HD-T A442F units
Apply piston: Thinner land, or stepped inside bore
Backing plate: Machined version to accept taller stack
Steel thickness: Some use 0.065–0.068" steels in diesel packs

Your findings on shared friction part numbers but differing stack support confirms this.

So the way to replicate that in your build is exactly what you’re thinking: swap steels to 0.071”, machine the pressure plate ~0.030”, and verify clearance.

Bottom line, I'd stick to OEM oil clearance spec, but target the high end: 0.055–0.060”

If modifying stack height, I'd prefer machining pressure plate over piston unless you verify piston apply volume with air; use Raybestos or BorgWarner steels only, not eBay-grade soft steels (sigh!)

Consider staggering steel thickness for better heat management

Install temp sender near cooler return line to monitor oil temp in real time

Record all stack-up math in a log sheet with before/after measurements

Headed off for a week of fun---seeing grands...11 and 7. Catch you later. Bye for now.
