80 Series OEM Snorkel

Akella

SILVER Star
Joined
Apr 14, 2010
Messages
1,479
Location
London, ON Canada

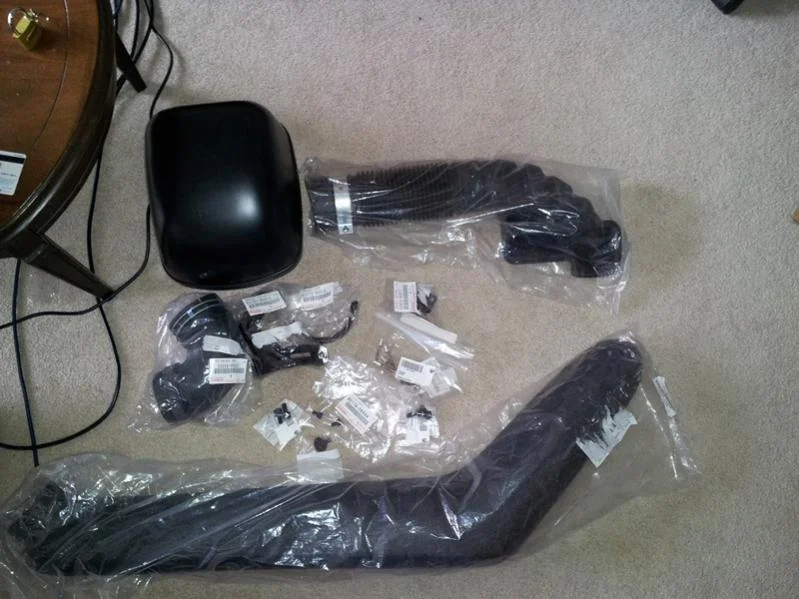

Photo and parts list

This is the parts list i have:
DUCT SUB-ASSY, COOL AIR INTAKE, NO.3 53209-60030 x1
DUCT SUB-ASSY, COOL AIR INTAKE, NO.2 53208-60010 x1
BOLT J192 90119-06594 x2
DUCT SUB-ASSY, COOL AIR INTAKE, CYCLON & W(SNORKEL) 53207-60041 x1
BRACKET, COOL AIR INTAKE DUCT, NO.3 52853-60010 x1
BRACKET, COOL AIR INTAKE DUCT, NO.2 52805-60011 x1
BOLT PRECLEANER FJ8# 90119-06593 x1
BRACKET SUB-ASSY, COOL AIR INTAKE, NO.3 53707-60010 x1
BRACKET, AIR CLEANER MOUNTING 53773-60010 x1
BOLT, W/WASHER 90119-08961 x2
BOLT PRECLEANER FJ8# 90119-08869 x2
RIVET J890 90269-06006 x4
PRECLEANER ASSY, AIR W/HOSE, CYCLON & W(SNORKEL) 17730-17020 x1

Only the thing i don't have is template which can be downloaded from MUD.

Joined
Oct 22, 2010
Messages
71
Location
Southport MB
I just installed one of these yesterday. Pretty straight forward but you'll need to relocate your OEM antenna. Fair deal at $360US I think as I paid a little more for mine.

PM me if you have any questions on install 'cause it's fresh in my mind.

GLWS
:beer:


Aids10

xploraz.net
Joined
Nov 24, 2009
Messages
599
Location
Austin, Texas
Website
gonebush.net

Flank

American by Birth, Texan by the grace of God.
Joined
Mar 20, 2008
Messages
2,267
Location
Flower Mound, TX
Website
www.staltimber.com
Your sig says you still have snorks... what are they running these days?


Flank

American by Birth, Texan by the grace of God.
Joined
Mar 20, 2008
Messages
2,267
Location
Flower Mound, TX
Website
www.staltimber.com
2013 thread....
Yup, I see it's a 2013 thread. I also see that Akella was last on the forum this week and that he still has a snorkel link in his signiture - so, understanding he's current, and that his siginiture might actually be up to date, I'm asking a question on a relevant thread.
