4bd1/2T to nv4500 adaptor

[gerg]

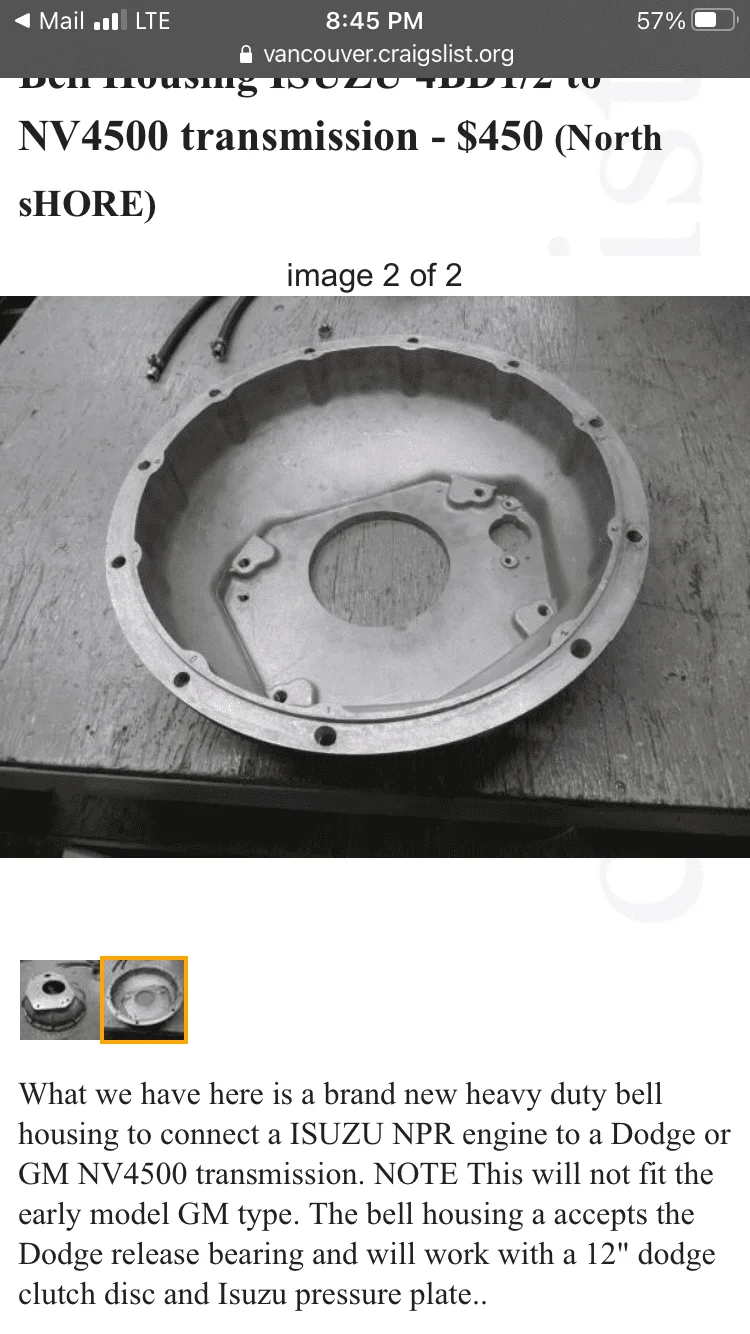

Picked this up from an awesome fella named Ray. He spends most of his time producing an overdrive unit for Land Rover transmission but in his spare time he made this.



[gerg]

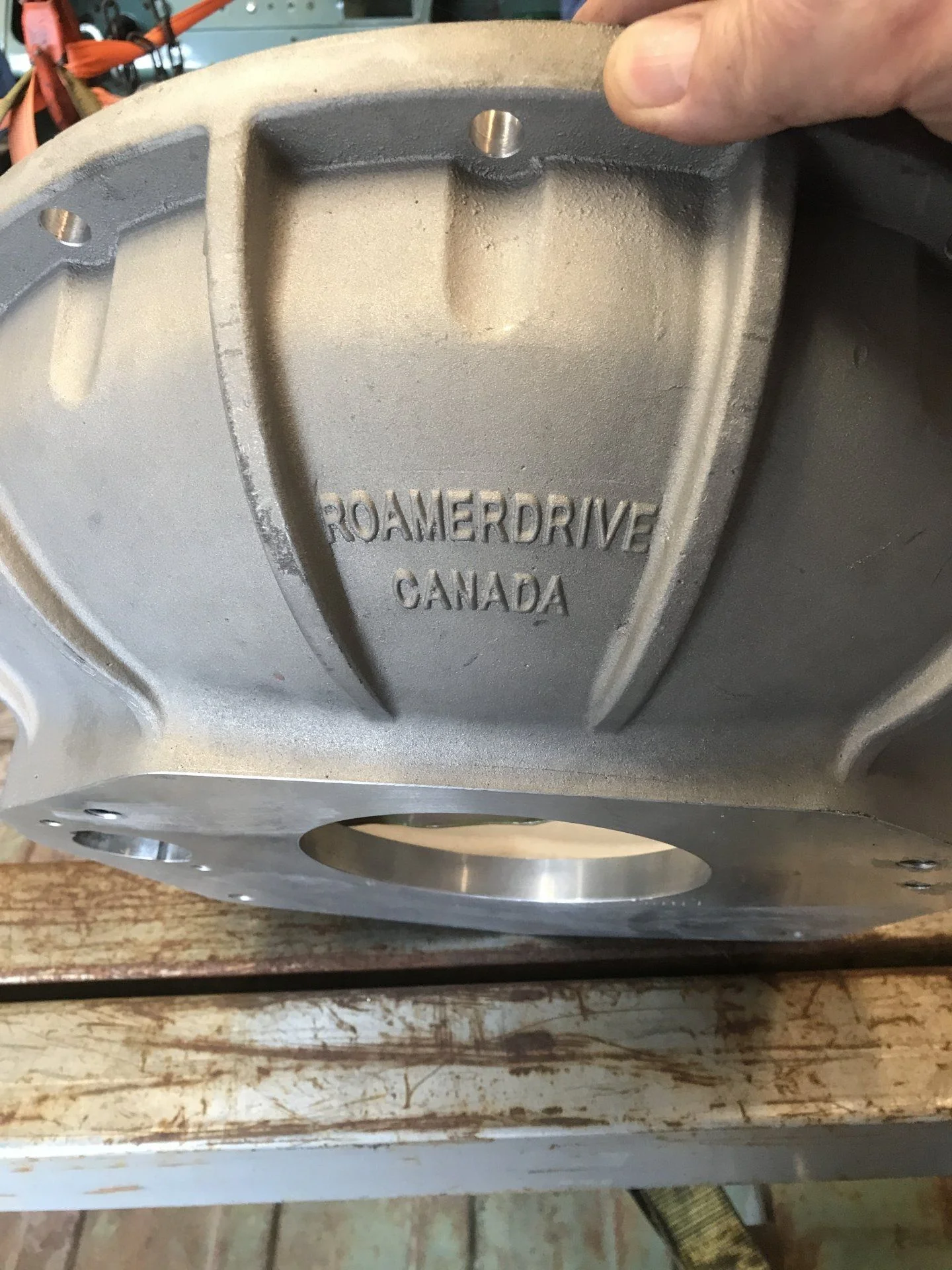

Allows a 4bd1/2T to bolt directly to an nv4500



[gerg]

Guy is a wealth of information but he’s busy and doesn’t have time for tons of questions but can be reached here if you want to order.
ray.wood@roamerdrive.com

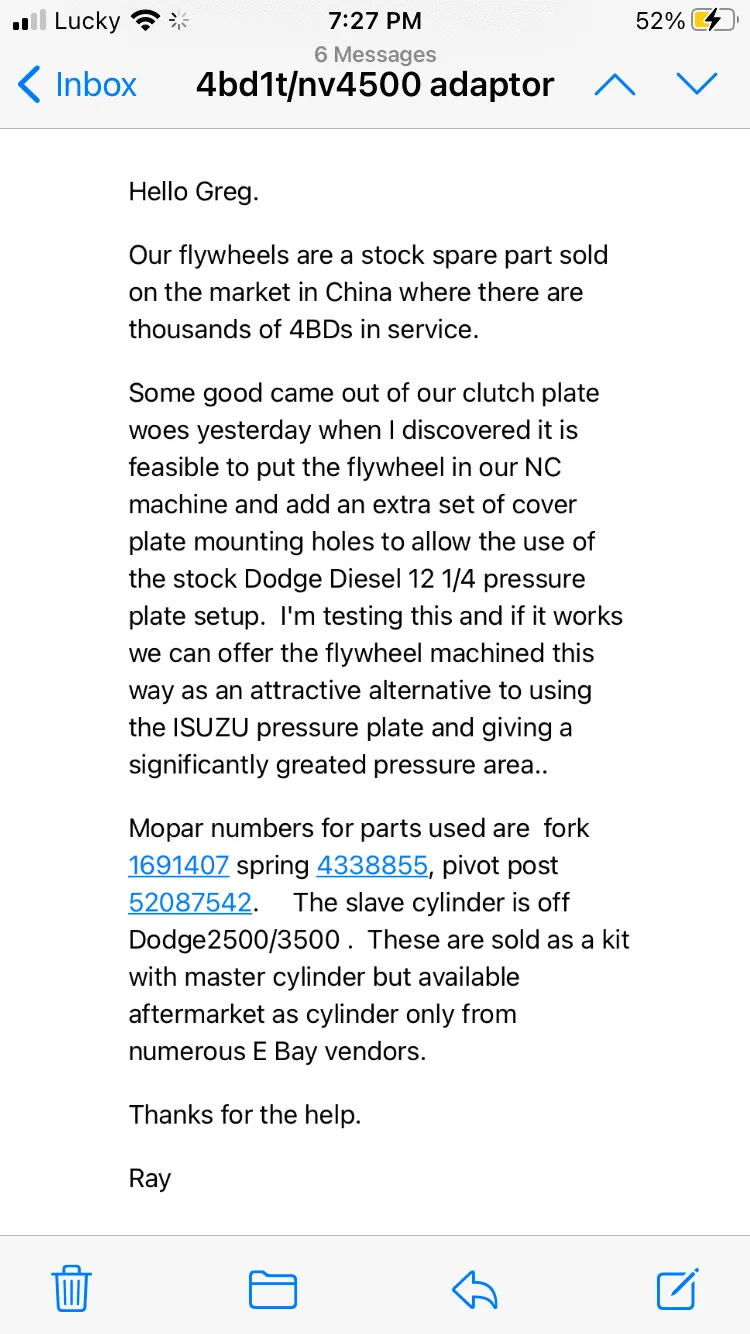

Some part numbers.



[gerg]

I’ve taken a break from fruitlessly trying to log in and post all of this on 4bt swaps but if someone could take this info and post it up there In the Isuzu 4bd1/2t forum I would apreciate it.......Dougal?



[Dougal]

I stumbled across these a few weeks ago but couldn't find any other info. I'll add what I can: RoamerDrive Isuzu NV4500 Landrover LT230 adapters - https://www.4btswaps.com/threads/roamerdrive-isuzu-nv4500-landrover-lt230-adapters.109874/



[mjosoba]

Hey @gerg , could you get me a mounting surface to mounting surface measurement of that bellhousing?
