Wiper Relay Circuitboard Repair

[Sequenszer]

Hi Guys,

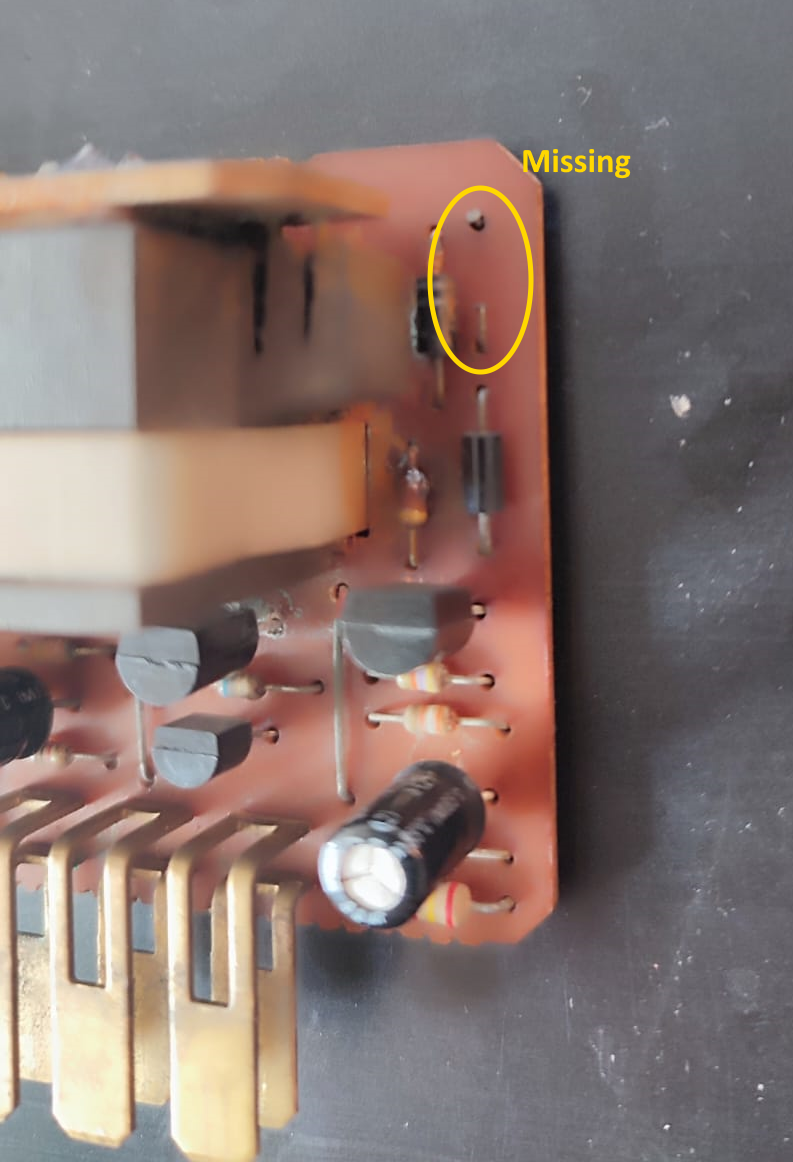

I want to repair my wiper relay circuit board after it got water damage. Does anyone now if there is a scheme or something? On the picture you can see there is a resistor aor diode missing. Any help is welcome.

Maybe someone have a good picture of a good one from the inside?



[jblueridge]

@Engineer8000 on 'MUD is an electronics wizard.



[Engineer8000]

ooh, 24V, very expensive to replace. The 60 series wiper relays I have repaired are different.



[Sequenszer]

ooh, 24V, very expensive to replace. The 60 series wiper relays I have repaired are different.

I know, thats why i want to repair them. its pretty basic circruit board so must be easy. A scheme would help, or atleast a picture from the inside so i know what should be on the position of the broken component.



[jblueridge]

When installed, where is this thing in the truck?



[Sequenszer]

When installed, where is this thing in the truck?

Passenger side behind plastic cap clise to your feet



[diggerdan]

Hey Sequenszer

My relay is on top of the stove drying out after filling with water. It is complete. no missing components.
I have to go out now to pick wife up from station. 4 hour round trip.

will take photos tomorrow morning before I reassemble and refit.

cheers

Dan



[diggerdan]



[diggerdan]

https://uk.rs-online.com/web/p/through-hole-resistors/7078280?cm_mmc=UK-PLA-DS3A-_-google-_-CSS_UK_EN_ePMax_Prio1_RSPro-_--_-7078280&matchtype=&&gad_source=1&gclid=CjwKCAjwjsi4BhB5EiwAFAL0YH224gqTEGHbJ6jBnR6w95D4IayqOMZ_tgAjnMgfPl0mWIw4YqPJ6hoCsp4QAvD_BwE&gclsrc=aw.ds



[Engineer8000]

Did you determine why the original resistor failed?



[Sequenszer]

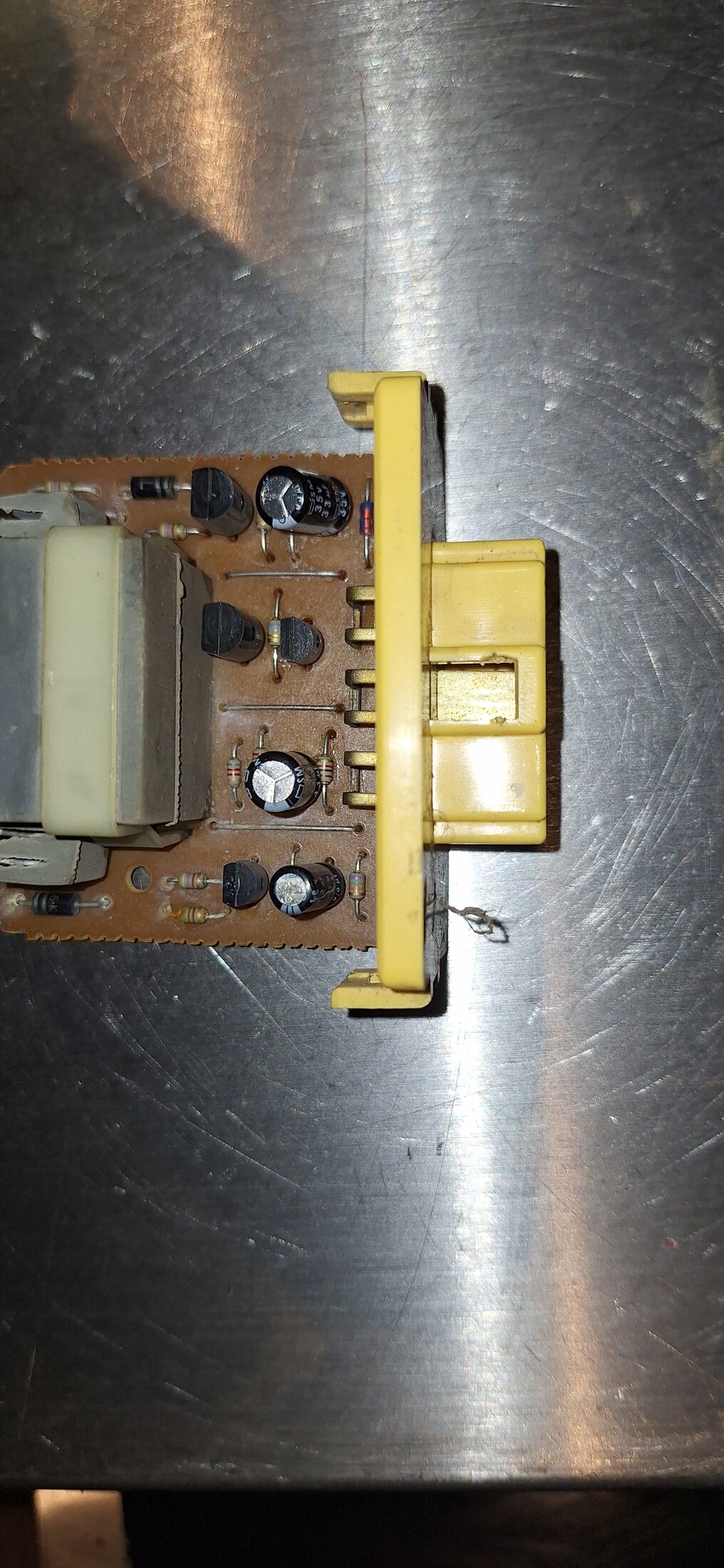

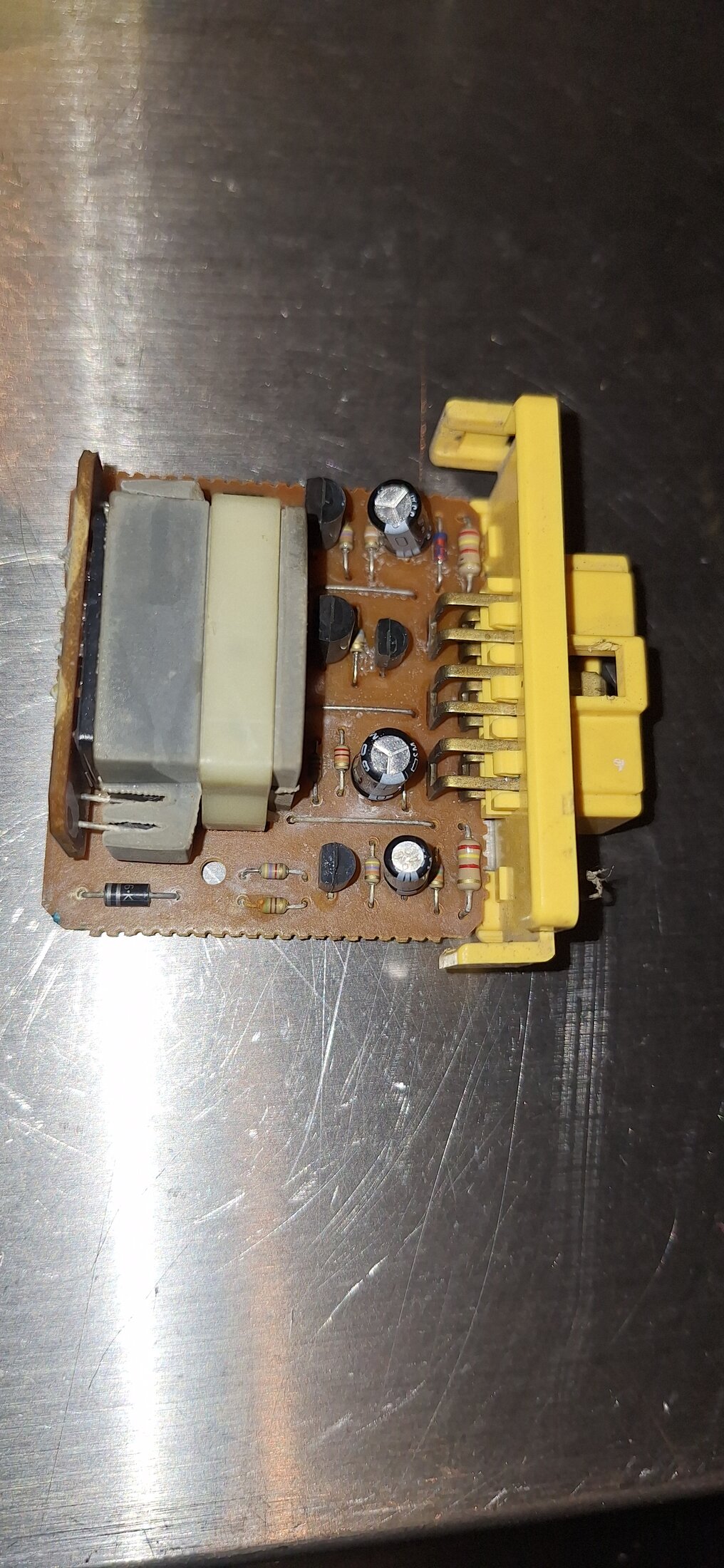

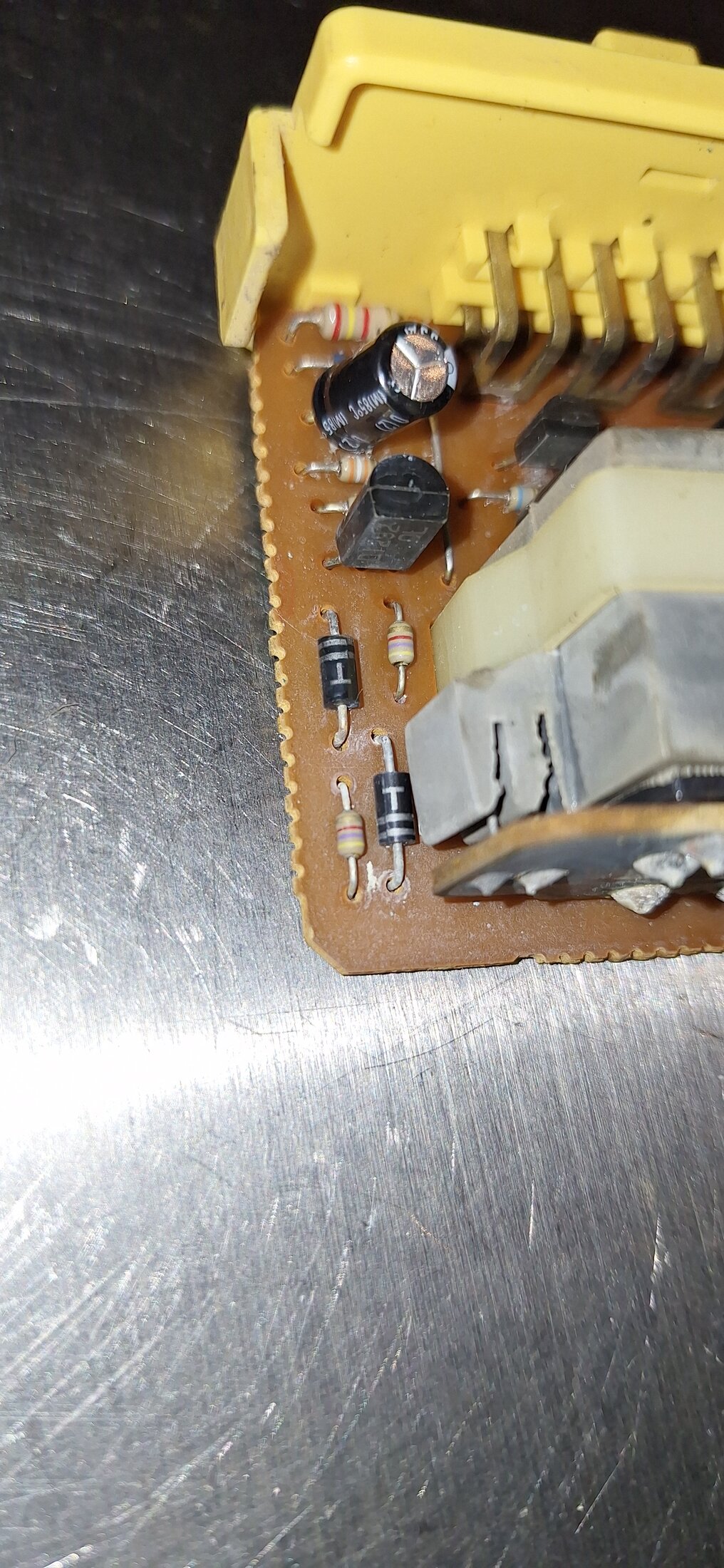

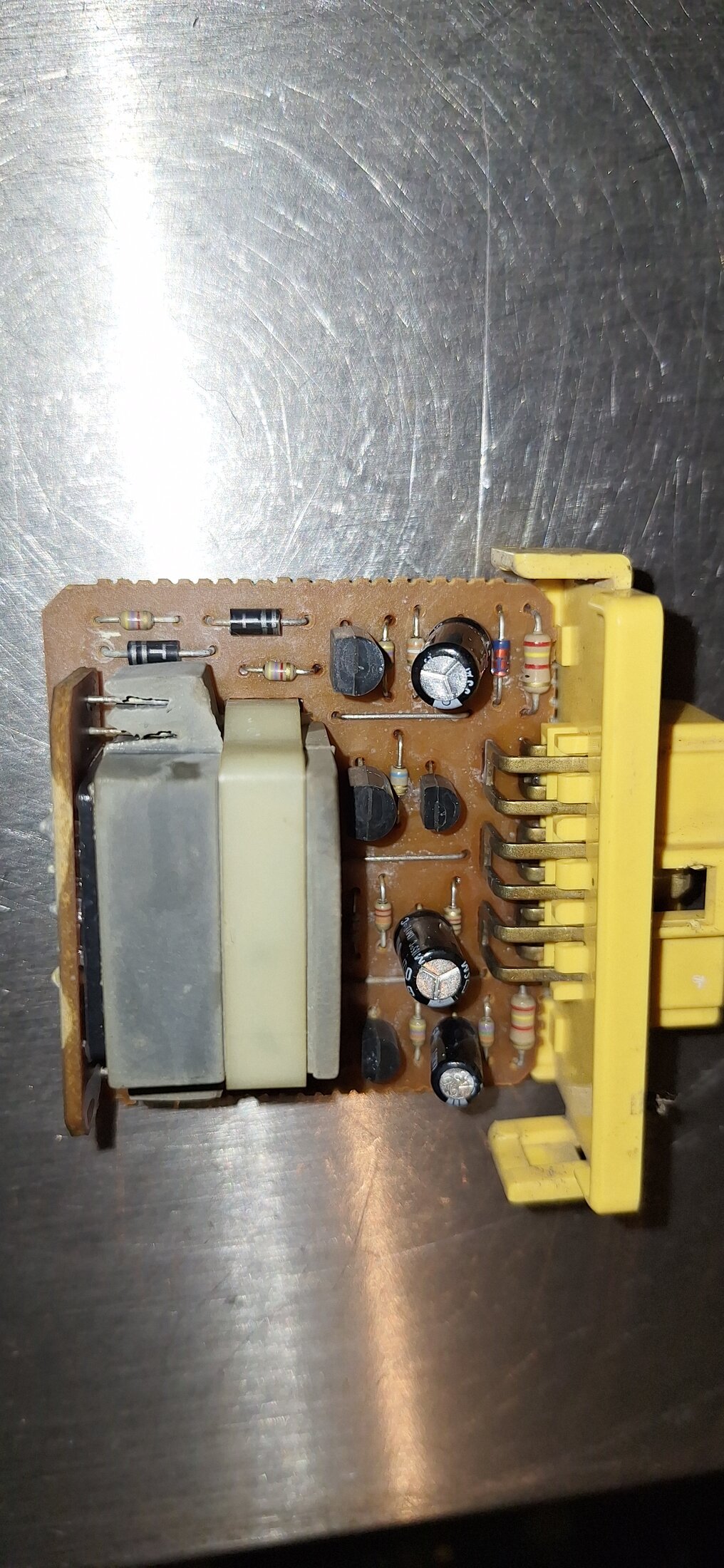

View attachment 3752269View attachment 3752270View attachment 3752271View attachment 3752272View attachment 3752273

Dude thank you very much! This is really helpfull. I let you guys know when i fixed the relay and information i have.



[Sequenszer]

Did you determine why the original resistor failed?

Not yet, but i have had a problem with one wiper axle totally worn out. So maybe the motor used to much Amps.



[joekatana]

Reach out to Raf Schrooten in Belgium he might have one for you .

garage raf schrooten bree - Google Search



[LJRay]

...similar problem, paid a gallon of blood for a used 85940-90K02, looks good on the outside...

...only to find it fails the continuity test in the manual. cracked it open and it looks fine/clean inside too...

...how do I test this baby?



[Engineer8000]

You typically need it attached to a wiper motor to test correctly. I have bench test wiper motors for that purpose. Check the solder connections for the plug.



[LJRay]

…the relay is only part of my problem, PO cut all the wires…
