Window master switch wiring diagram? (1 Viewer)

Joined
May 6, 2013
Messages
104
Location
Dahlonega, GA

Having trouble with my drivers side master window switch. Window is stuck halfway, old switch had corrosion on a couple plugs and the circuit board. I got a new switch from the junk yard, it works great but the same drivers side window won’t work. Cleaned corrosion from tabs with baking soda and drivers side still doesn’t work. I’ve read through a lot of the threads on stuck windows and master switches but I haven’t found a diagram for the connector yet.

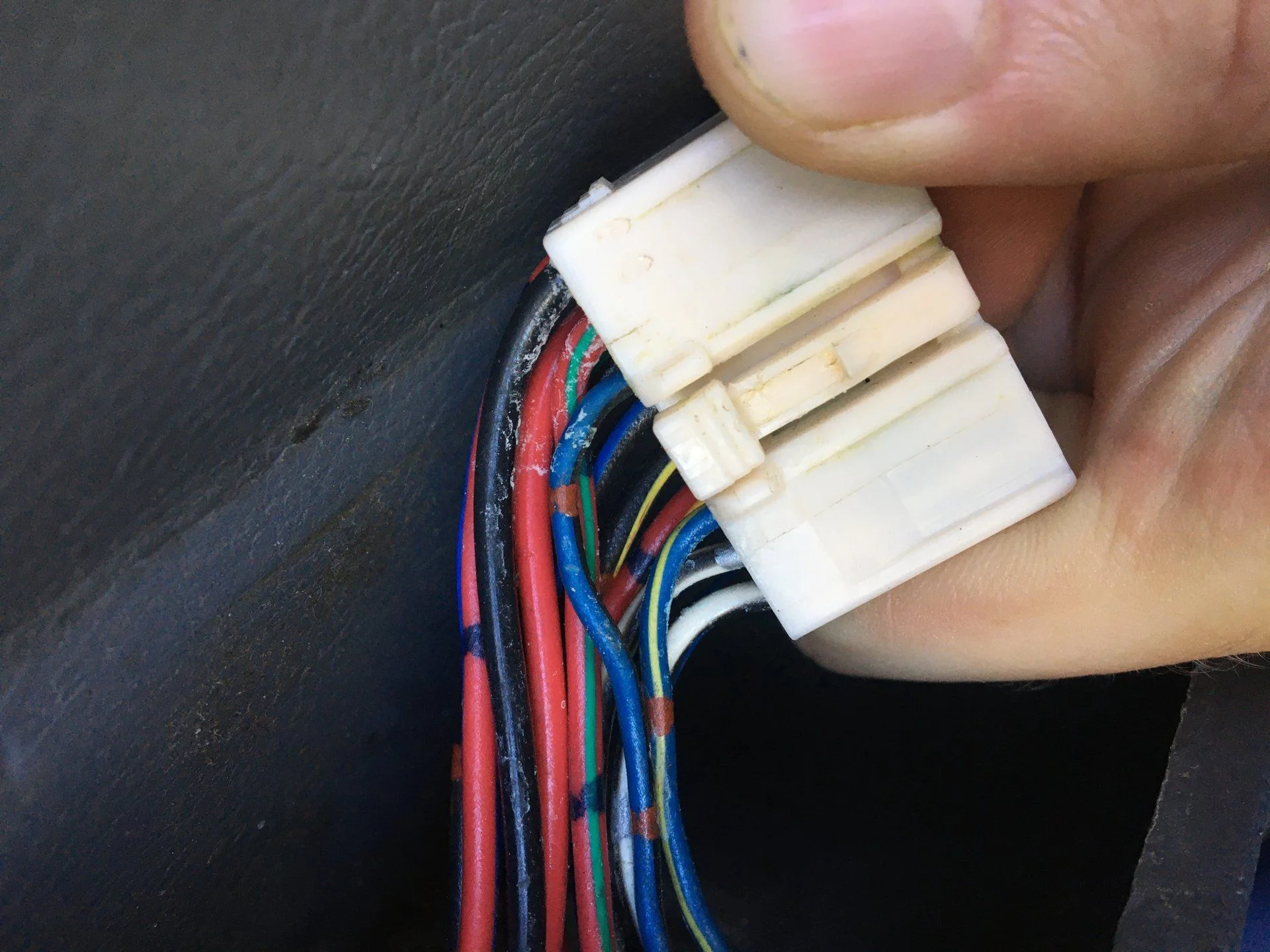

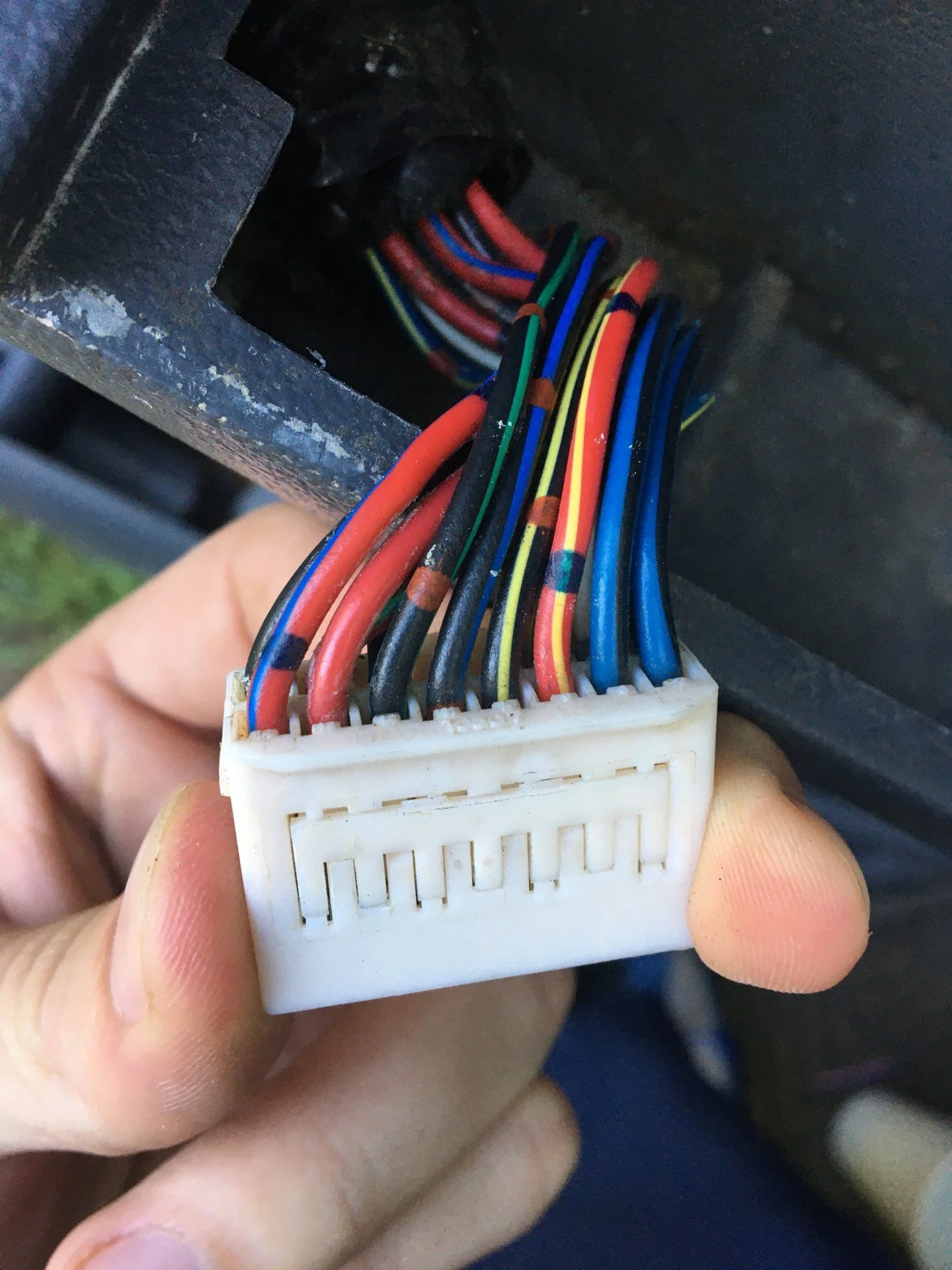

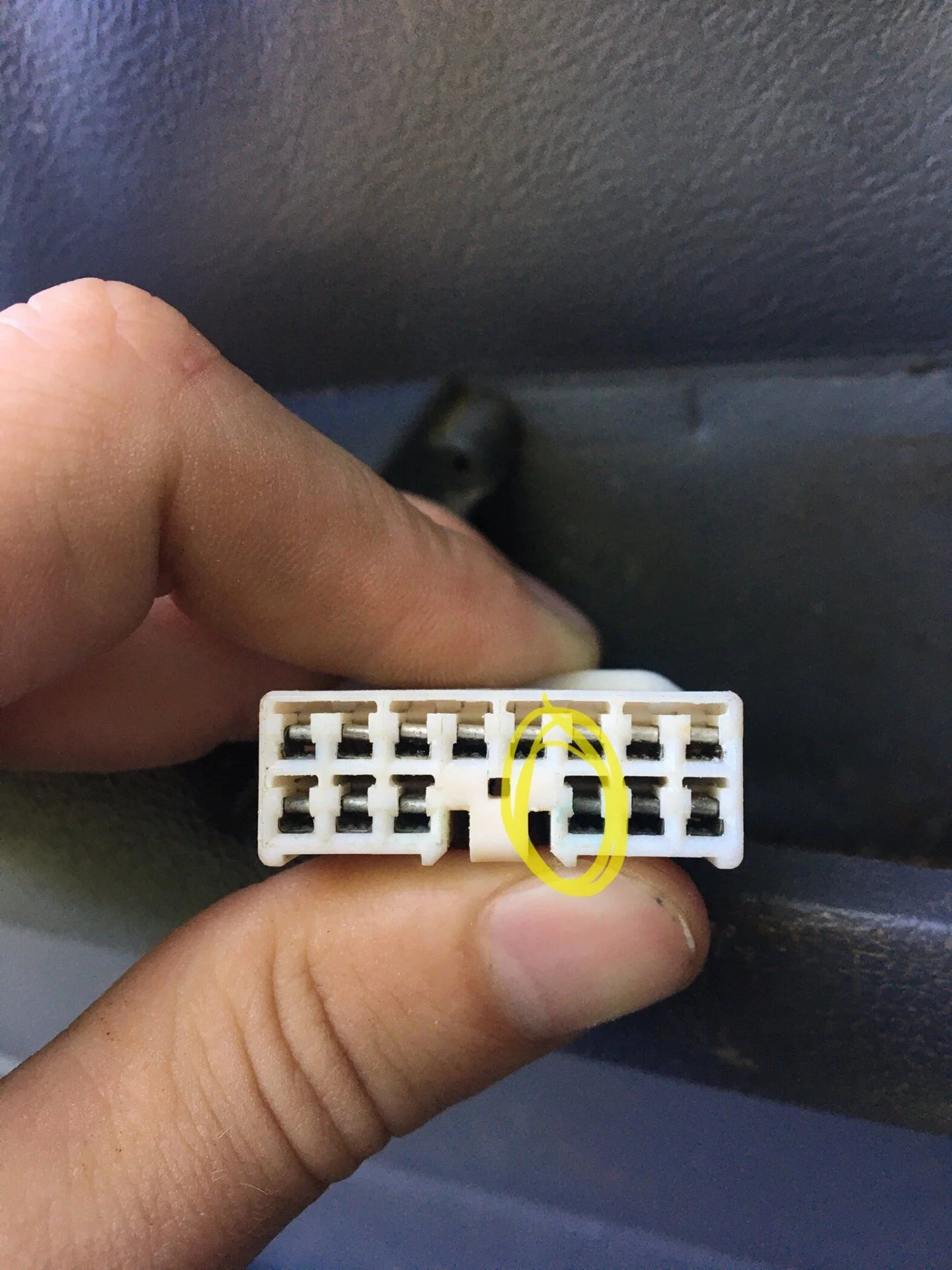

Anyone know which switches correspond to the tabs on the connectors?
