VSC/TRAC/VGRS; Gauges Shutter/Twitch; Doors Don’t Lock!? :( (1 Viewer)

[dbs600]

Hello everyone,


Long time; hope all is well with you and yours.


Kindly review the photo attached.

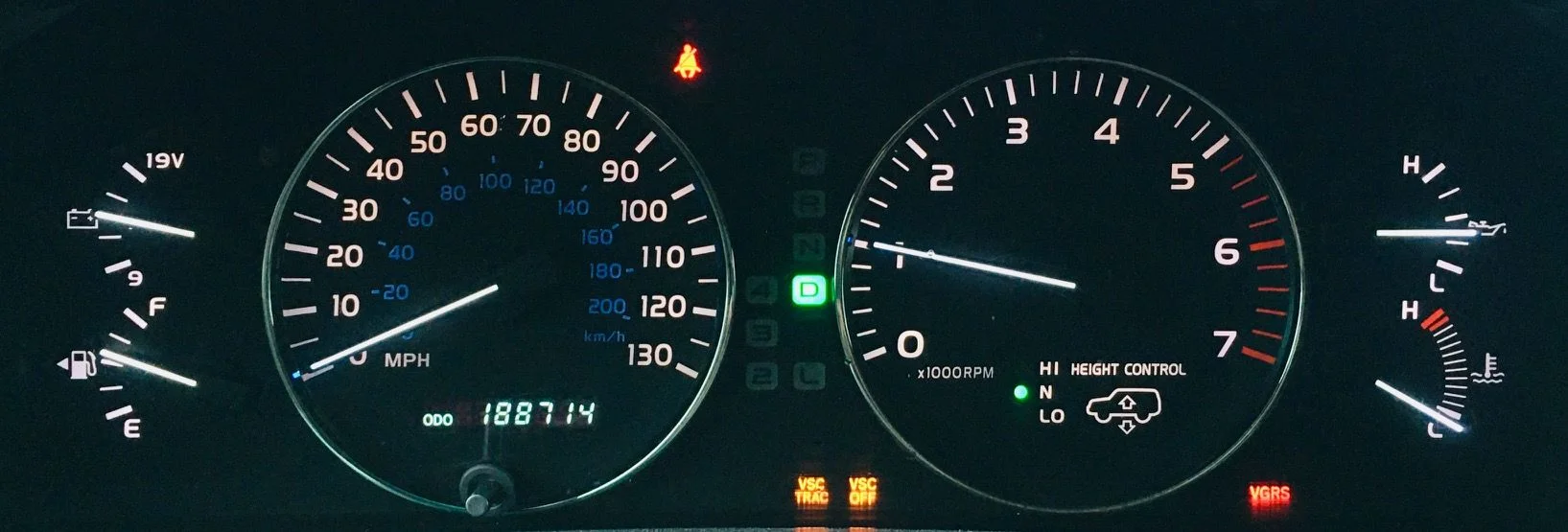

When I started my truck today, the error lights lit.


The instrument cluster gauges also shuttered / twitched a bit, then went steady; never saw this before!


Furthermore, the passenger side view mirror wouldn’t dip down in reverse.


AND… upon coming to a stop, shutting down and looking truck from the outside, all doors wouldn’t lock! I had to lock each door individually (note, however, that the power door lock button works if the truck is turned on!).


Been raining a lot; hopefully not related to the problem?


Can someone please help me figure this out.


Thank you very much.


My best.



[JunkCrzr89]

The instrument cluster gauges also shuttered / twitched a bit, then went steady; never saw this before!

I’d start with checking for loose wires, corrosion on battery terminals, and testing battery and alternator.



[dbs600]

I’d start with checking for loose wires, corrosion on battery terminals, and testing battery and alternator.

Many thanks for your most prompt reply.

Been searching and hear there's a fuse in the box by the passenger side footwell needing replacement?



[JunkCrzr89]

Many thanks for your most prompt reply.

Been searching and hear there's a fuse in the box by the passenger side footwell needing replacement?

Only one way to find out.



[dbs600]

What a pain it was to access the passenger side foot well fuse box!



Was also difficult to pull the fuse as well. Argh.



Nevertheless, the fuse was blown.



I replaced the blown fuse, truck started up properly, but shortly after starting…



Lights on cluster resurface, mirrors stopped while dipping, auto door locks stopped working.



Can someone please advise how I can figure out what the culprit is that’s blowing the fuse?



How am I to trace this back to the source of the problem?



Any / all help would be greatly appreciated.



My best.



[JunkCrzr89]

Wiring diagrams can be found here: https://lc100e.github.io/manual/

Unfortunately, that’s about the most I can help. Electrical stuff ain’t in my wheelhouse.



[dbs600]

I replaced the fuse again and made sure the mirror switch was in the center / neutral position.



The instrument cluster lights cleared and the door locks work again now.



Since these items work after stopping the mirrors from dipping automatically, I think I’ve narrowed it down to the mirror dip as the cause of the fuse blowing.



Can someone please assist from here; what should I do next?



If the mirror motor is the problem, how can I replace same myself? Any good instructions / videos to do so?



Thank you again.



[Rad26rio]

Look for moisture, and or active leaks getting to that fuse panel. I had a wet one on the driver’s side and about a zillion ants moved in and build a mega nest in the fuse box itself.



[dbs600]

No moisture or leaks, thank you though.

Hello again everyone,

Hope all is well.

So I replaced the passenger side-view mirror motor, but the problem remains!

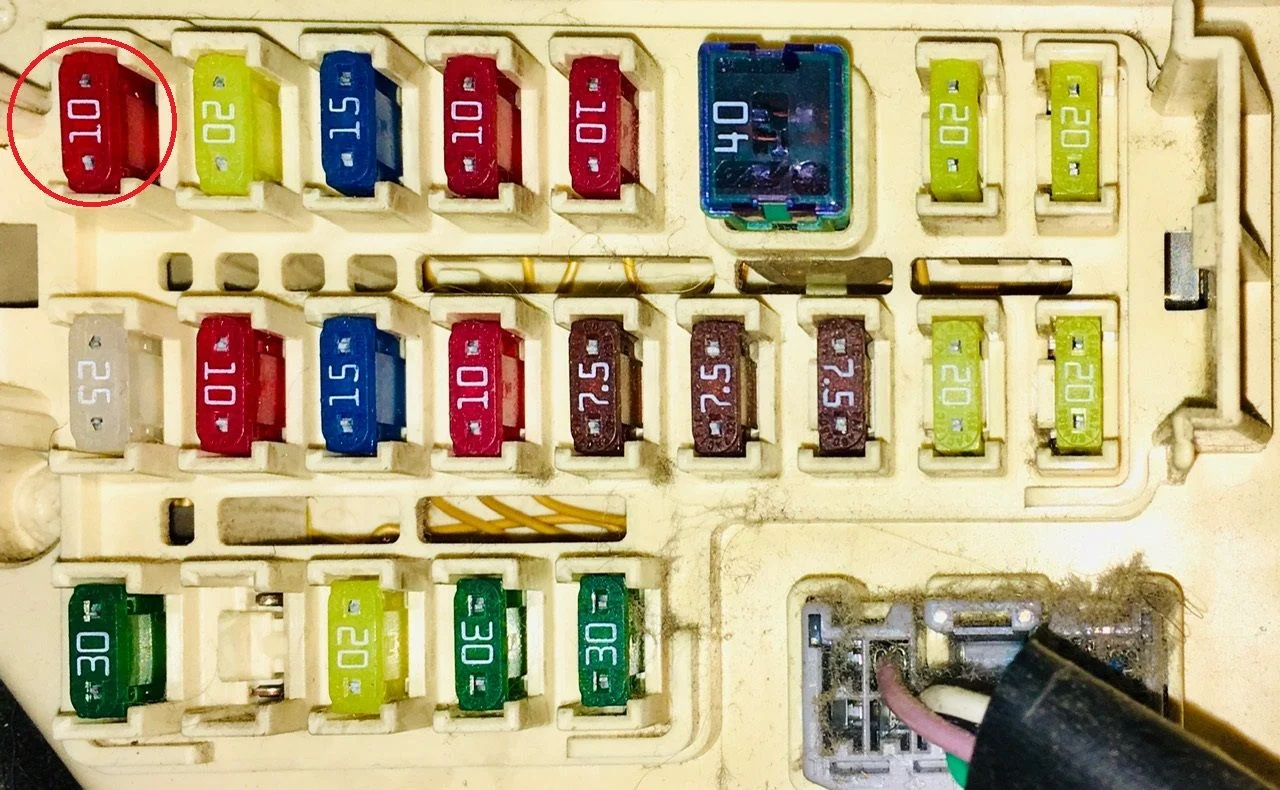

The top row, most forward (to the front of the truck) red fuse “10” blows.

After I replace the motor, I kept the switch in the center / neutral position and did not try to have the mirrors auto-dip while in reverse, but when I went to electrically adjust the front driver’s side-view mirror, the fuse blew and the slew of dashboard warning lights lit.

I thought the problem was emanating from the front passenger mirror, as its auto-dip functionality was not working smoothly in recent time, as it’d skip / hop, shutter on its way down.

Nevertheless, I guess this has been narrowed down to the mirror(s) being the problem.

What am I to do at this time? Can someone please assist and tell me if this means I should replace the driver’s side-view mirror motor now, or can is be something else altogether?

I’d rather not buy the driver’s side-view mirror, only for the problem to remain. Argh.

Please advise at your earliest.

Thank you very much.

My best.



[dbs600]

Just wanted to check in on this. Should anyone be able to assist please do advise. Thank you so very much. My best.
