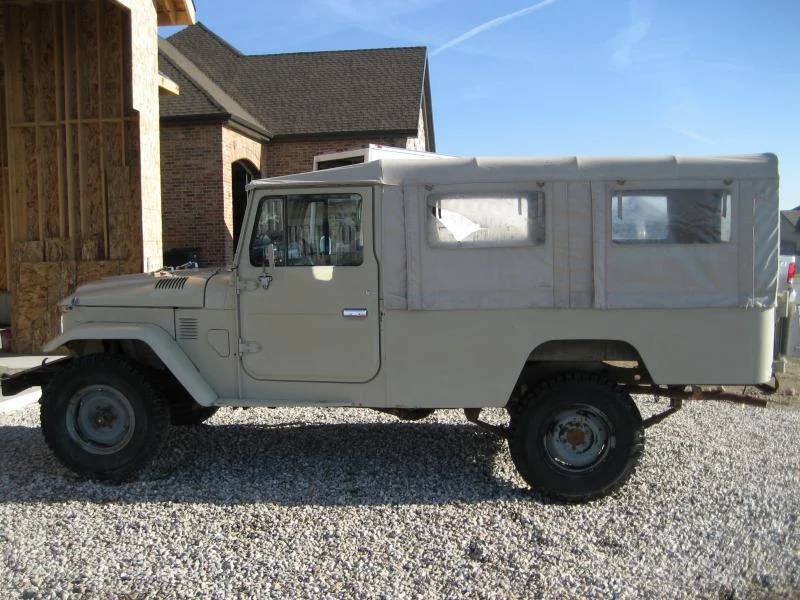

    I should have started this 2 years ago. But here we are! I purchased a reasonably solid Saudi Spec Troopy Soft top . If anyone knows where it originally came from, I would be interested in knowing its history. I bought it from a nice guy in Utah. As I have been swamped with my own business, I have had the guys at GXR4x4 building the truck for me from my computer photo concept. As there is no where to off road, and I wanted a cool island soft top for cruising around here, I opted for some creature comfort and automatic transmission bolted onto some power instead of restoring it to original. So purists please be kind. As the build is near completion, I will post pix of build as it progressed. Hopefully some of you may be inspired or find it useful. Mark
    TroopyST0920.jpg TroopyST0919.jpg TroopyST0953.jpg

  2. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

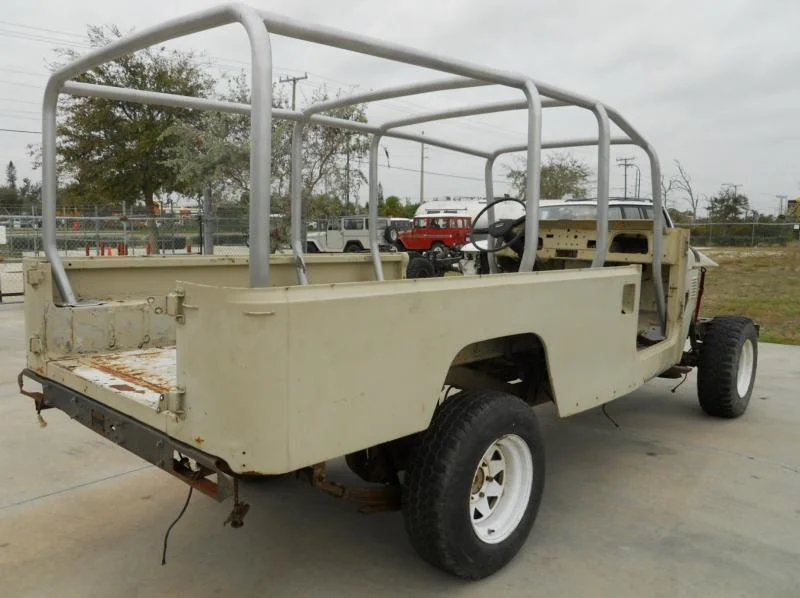

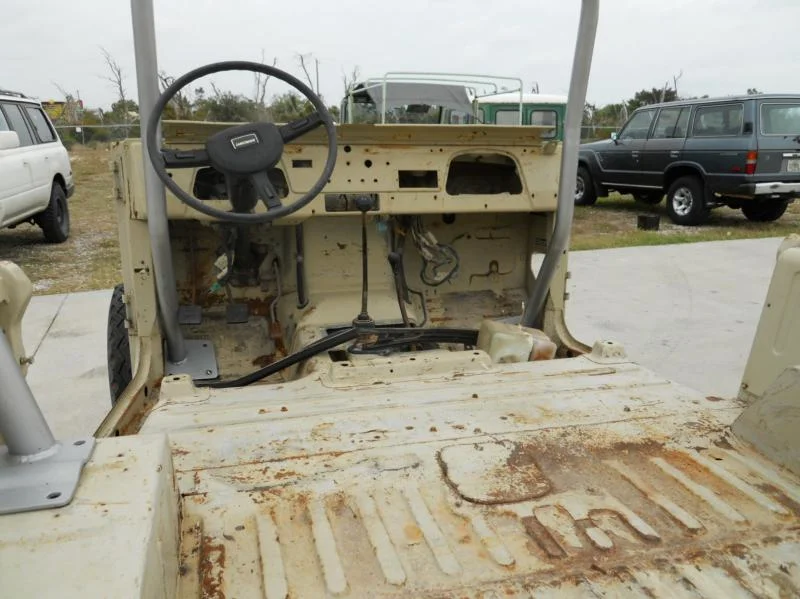

    New roll cage designed to be used with original hoops and set in place for fit. You can see the bed was in pretty decent condition.
    TroopyST0991.jpg TroopyST0993.jpg TroopyST0994.jpg

  3. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

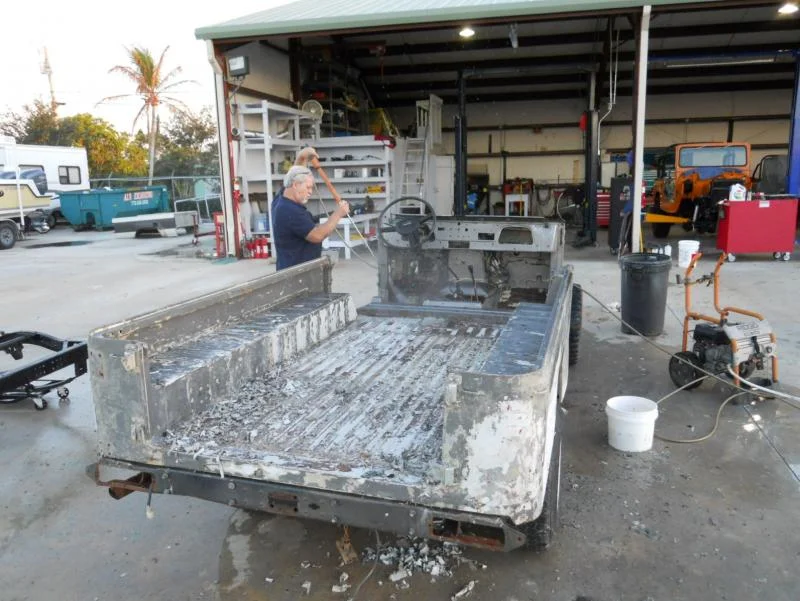

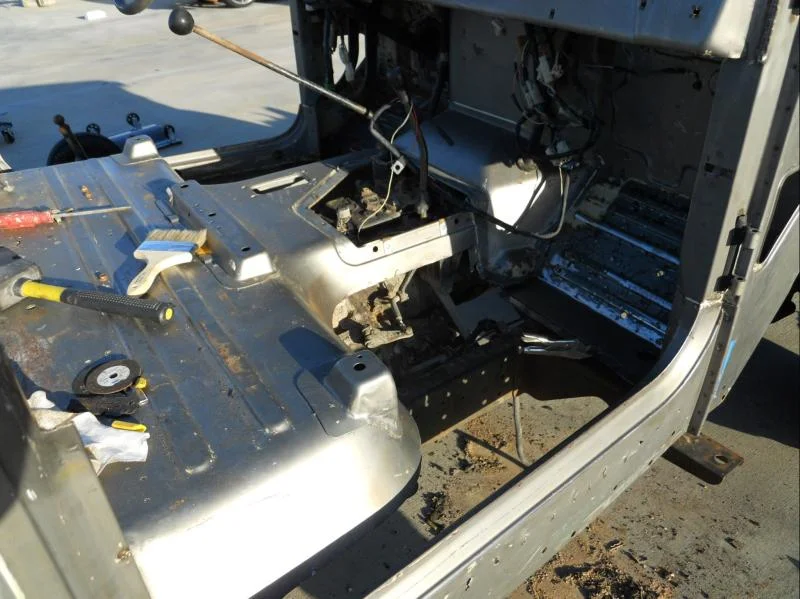

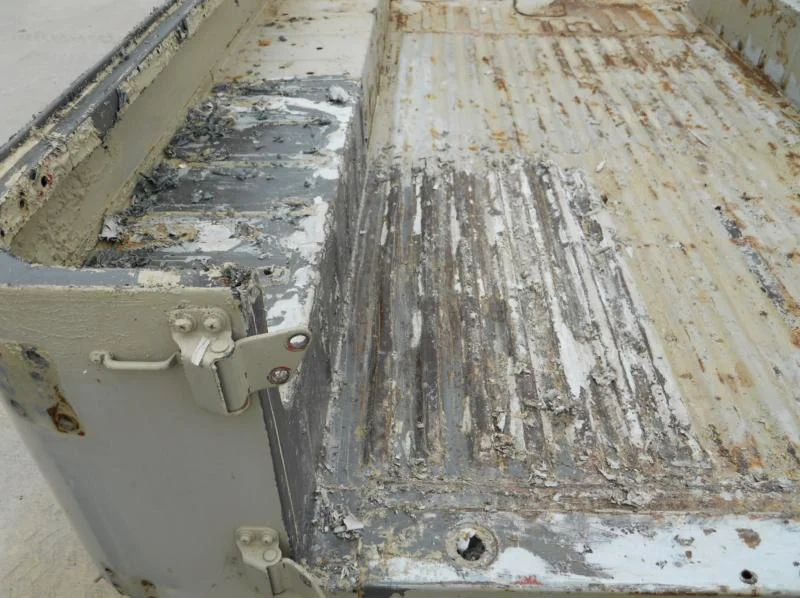

    Paint being stripped and rusted floors removed from cabin
    TroopyST0995.jpg TroopyST0996.jpg TroopyST1000.jpg

  4. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

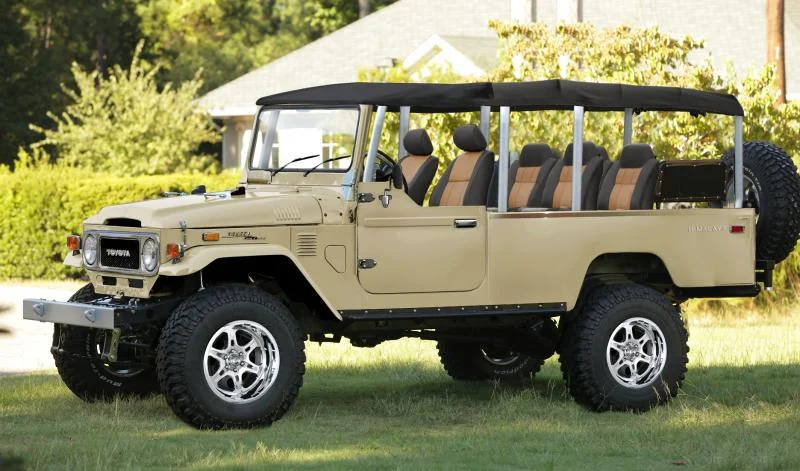

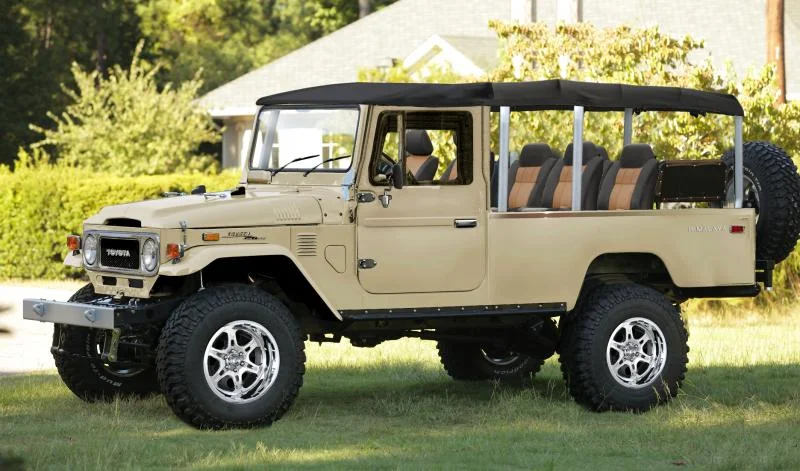

    The concept image. This is my computer rendering of finished Troopy Soft Top.
    LC1264.1.jpg LC1264.jpg

  5. beaufort-fj60

    beaufort-fj60

    Messages:
    4,508
    Media:
    10
    Albums:
    1
    Likes Received:
    7
    Joined:
    Feb 5, 2005
    nice, is that shop local? edit.. nevermind, looks like its in FLA

  6. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

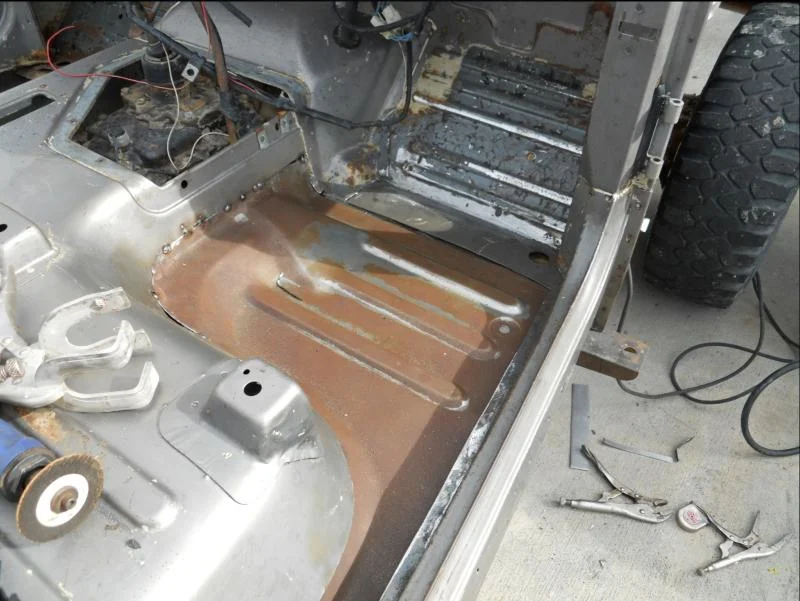

    New floors in place. Body removed from the frame.
    TroopyST0998.jpg TroopyST1017.jpg TroopyST1019.jpg

  7. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA
    Every part has been removed for refinishing or replacement

    Last edited: Feb 19, 2012
  8. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

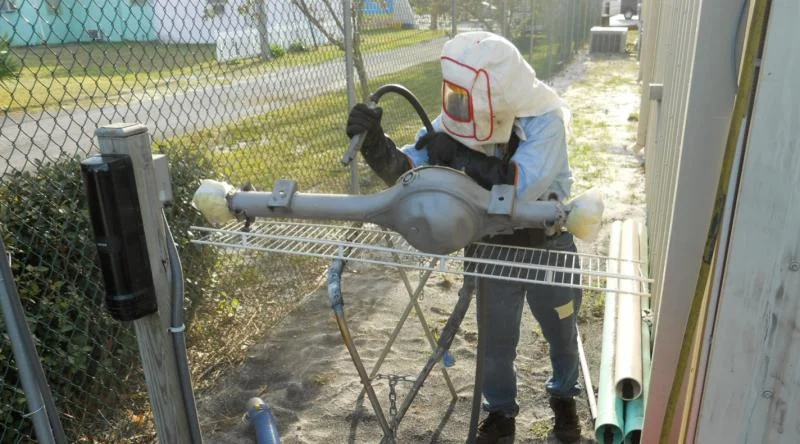

    Axles stripped, blasted and primed ready for new parts.
    TroopyST1012.jpg TroopyST1020.jpg TroopyST1021.jpg

  9. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA
  10. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

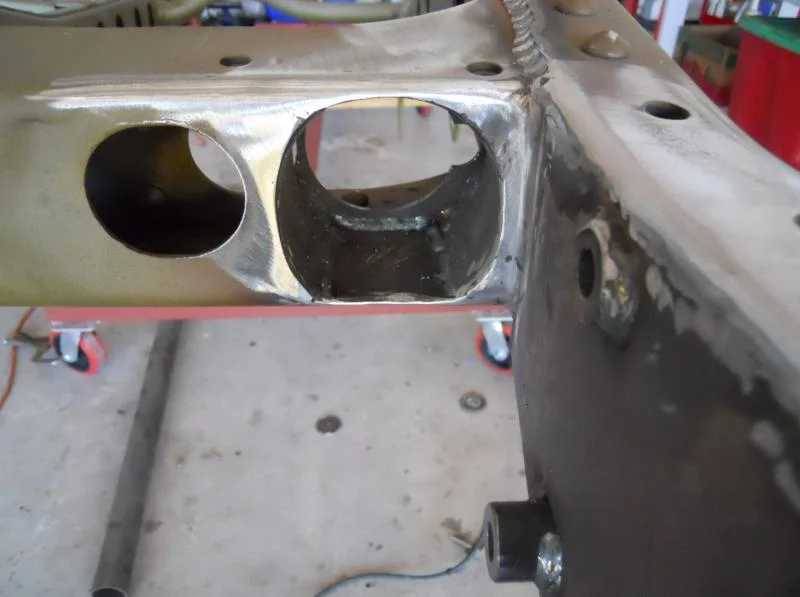

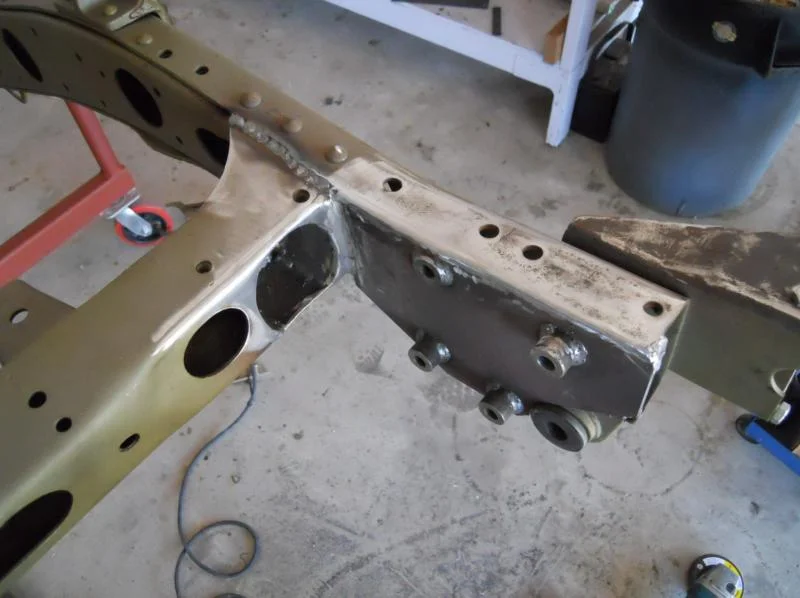

    Power Steering bracket mounted. Hole cut and tunnel welded.
    TroopyST1049.jpg TroopyST1051.jpg

  11. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

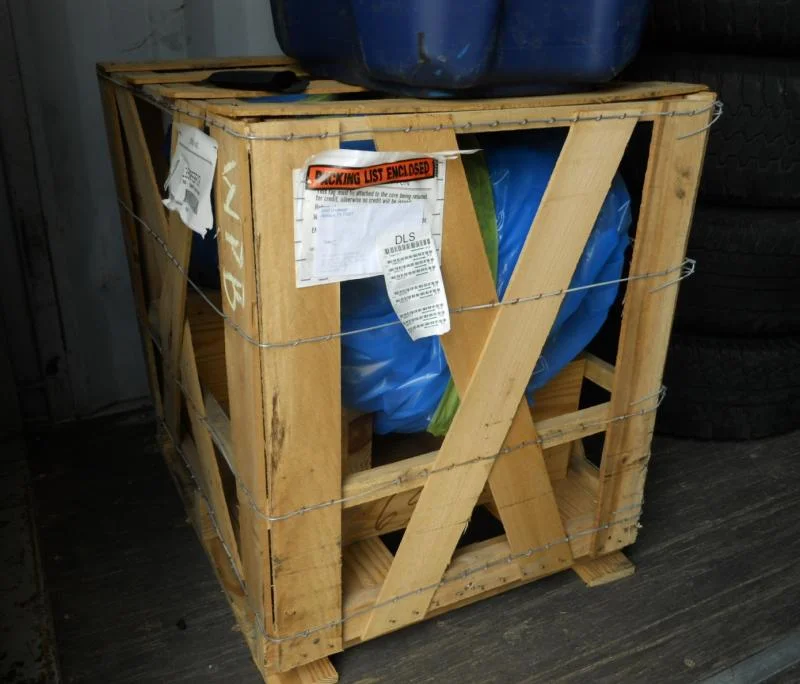

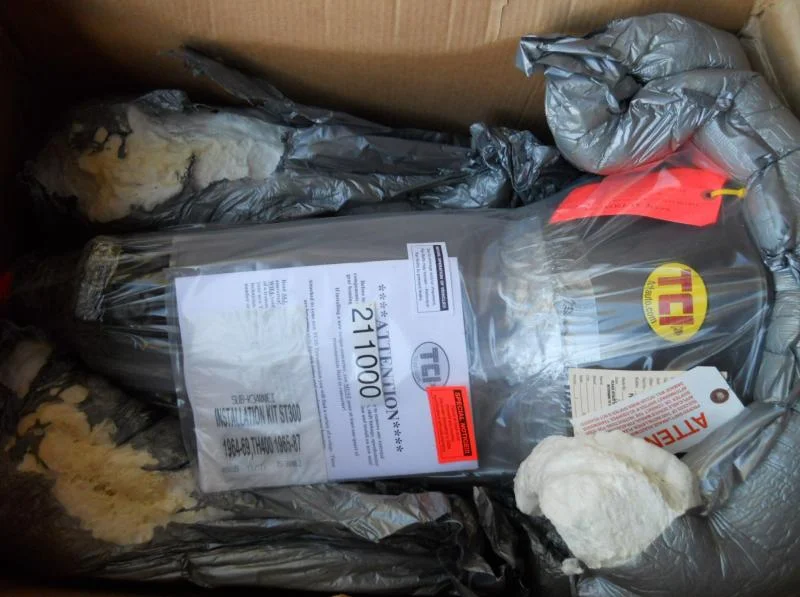

    The new presents arrive. Brand new 350 Vortec and new 700R transmission. All new parts. The list is so long I am not even attempting to remember what was purchased. But we replaced everything mechanical with brand new parts. New gears, bearings, seals, brakes...
    TroopyST1042.jpg TroopyST1043.jpg TroopyST1044.jpg

  12. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

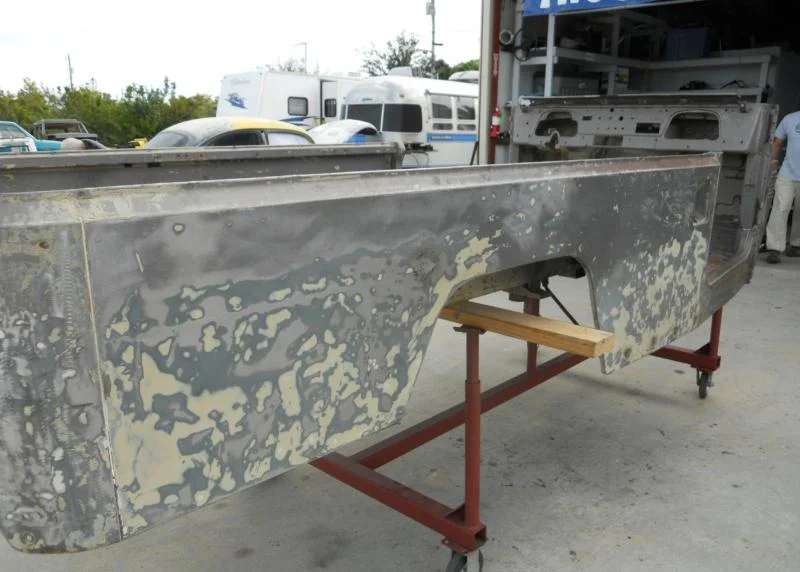

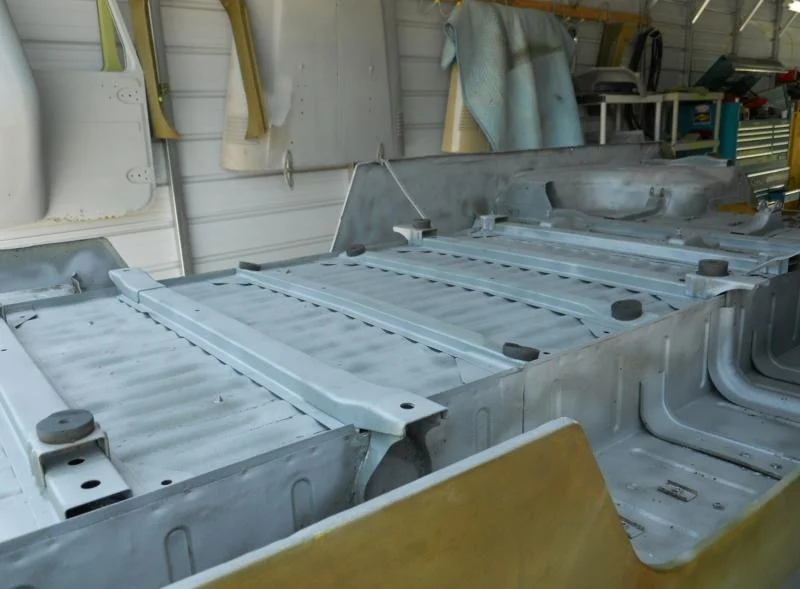

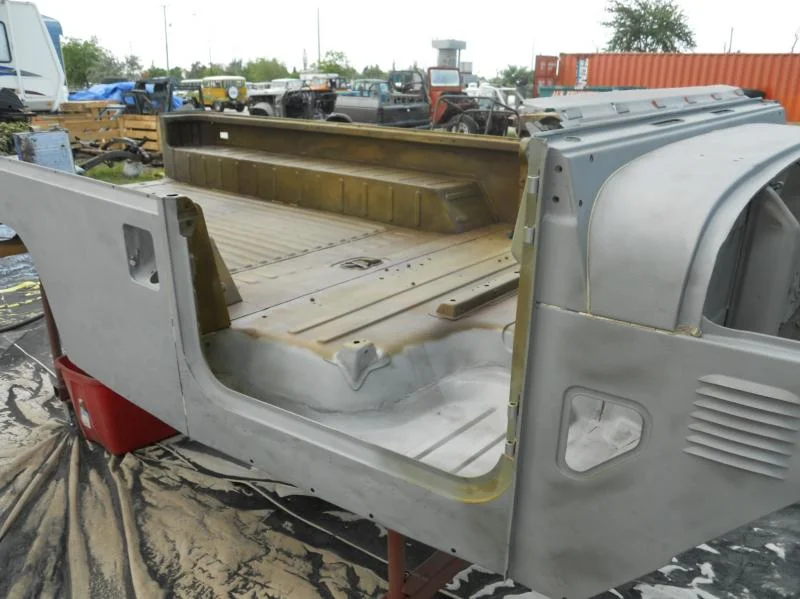

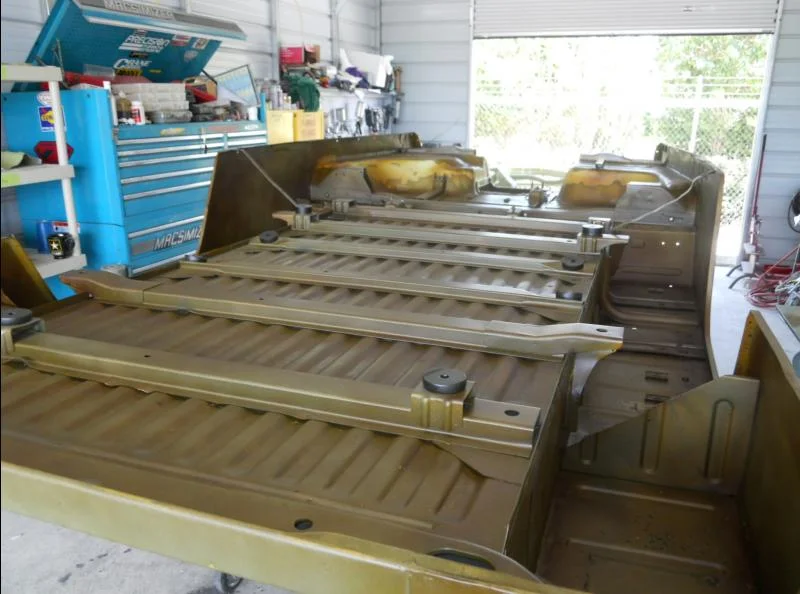

    The body stripped of paint and imperfections. It was pretty straight. The only rust was in the floor pans at front. Floors were cut out and new panels welded in place. The few minor dings and dents in bed were filled and sanded. Primed tub is prepped for underbody bedliner spray for protection from the elements.
    TroopyST1054.jpg TroopyST1066.jpg TroopyST1068.jpg

  13. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

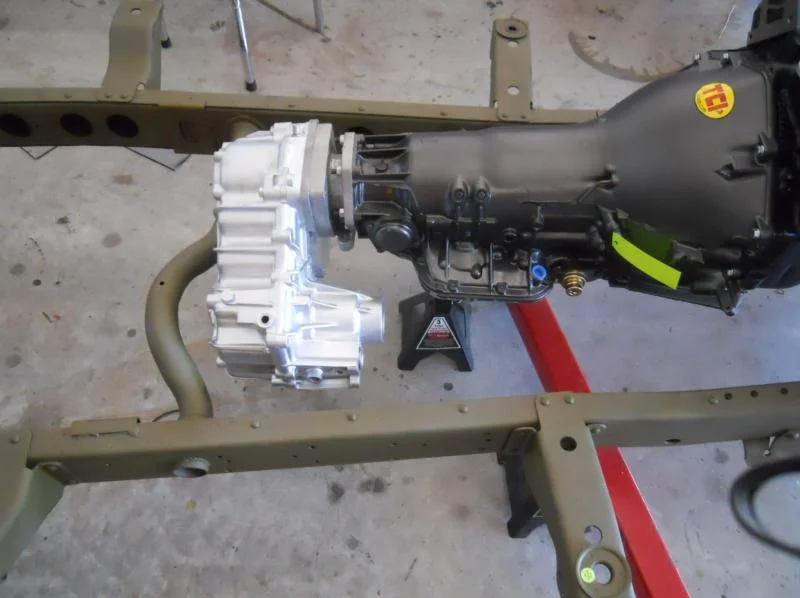

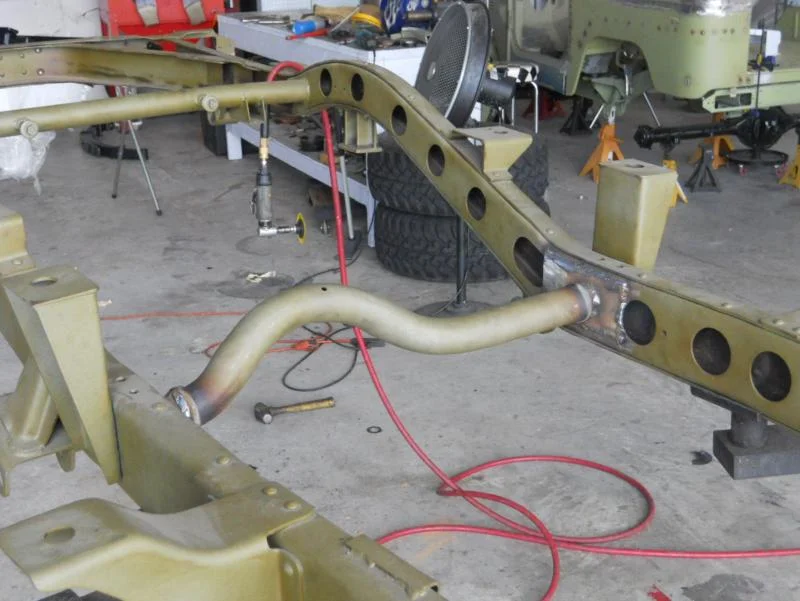

    The New motor, Tranny and new transfer case are postioned. Crossmember is relocated.
    TroopyST1070.jpg TroopyST1071.jpg TroopyST1074.jpg

  14. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

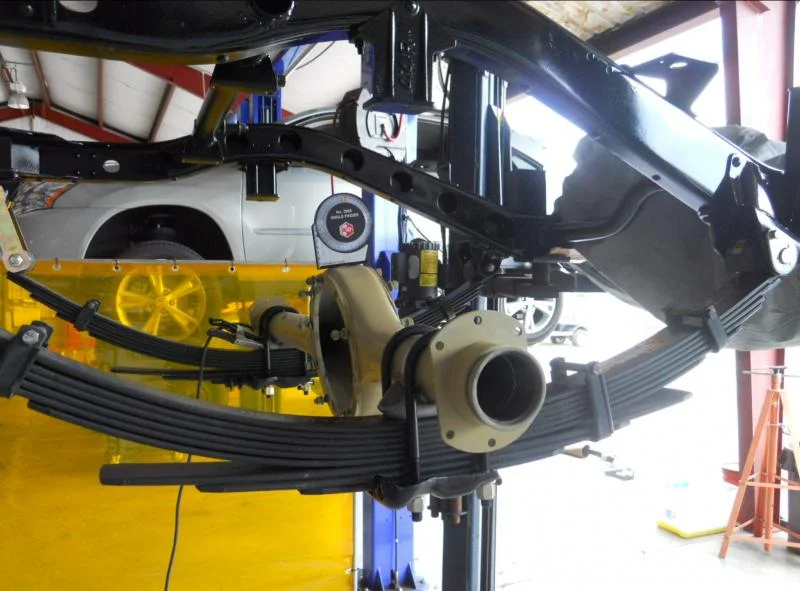

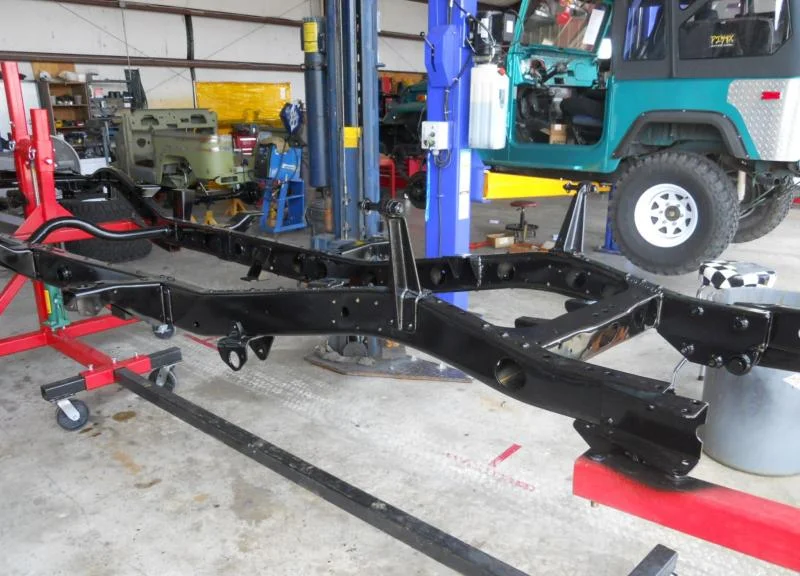

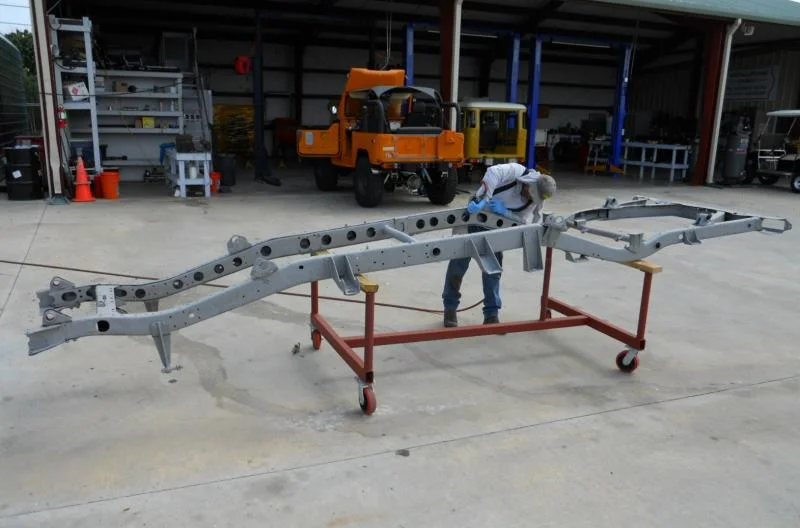

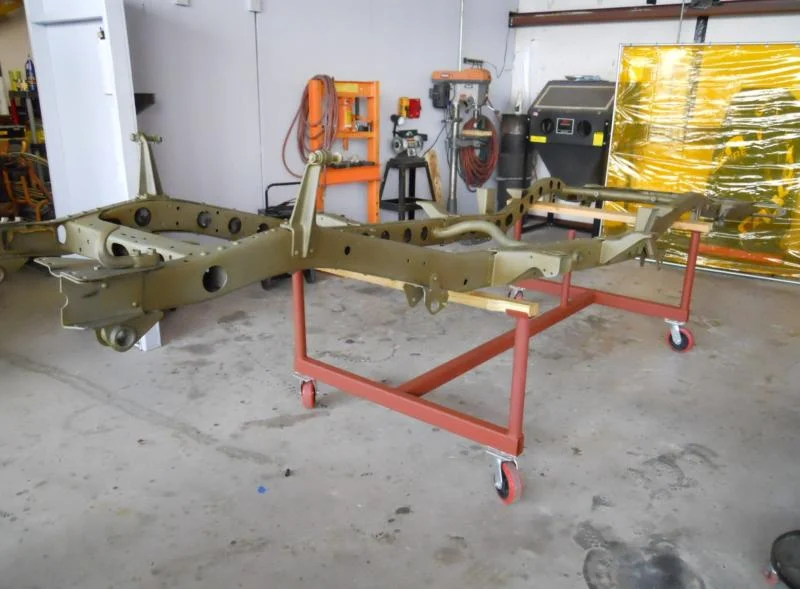

    Frame is back from paint shop and suspension is hung. We have used Mule custom made shackles. Axle housing is temporarily installed.
    TroopyST1078.jpg TroopyST1081.jpg TroopyST1083.jpg

  15. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

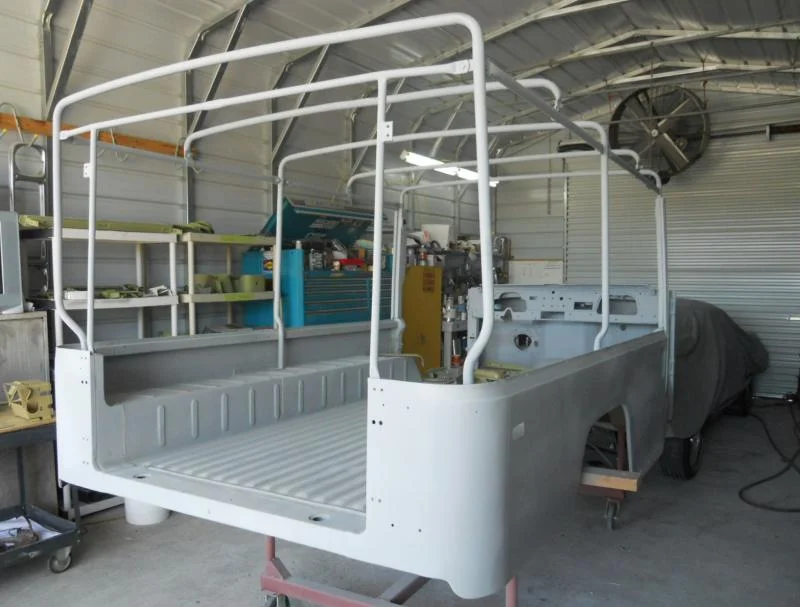

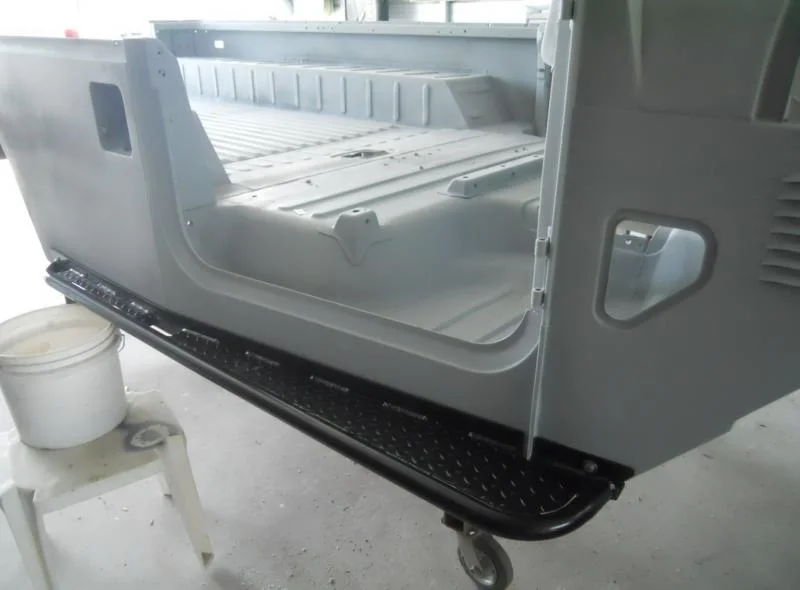

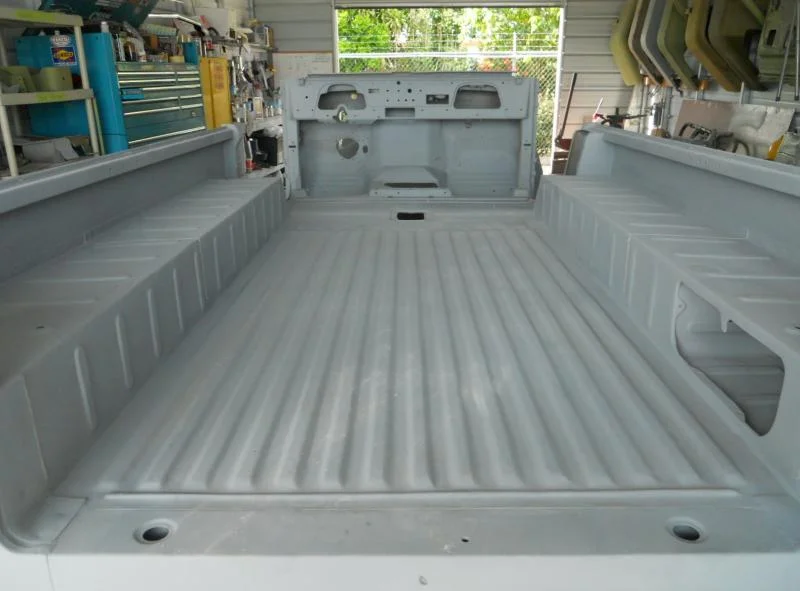

    Meanwhile the body is nearly ready for paint. The hoops are placed back in for position. Custom built side steps are bolted in place temporarily for fit.
    TroopyST1092.jpg TroopyST1093.jpg TroopyST1099.jpg

  16. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

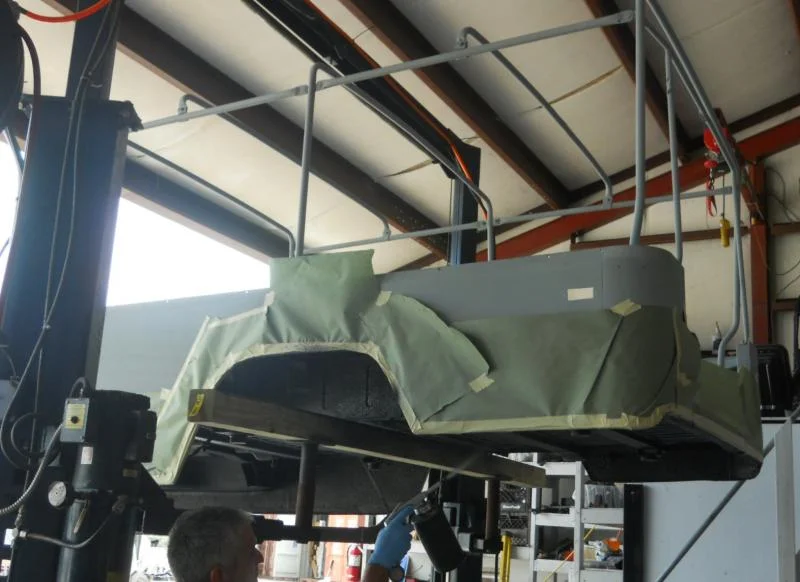

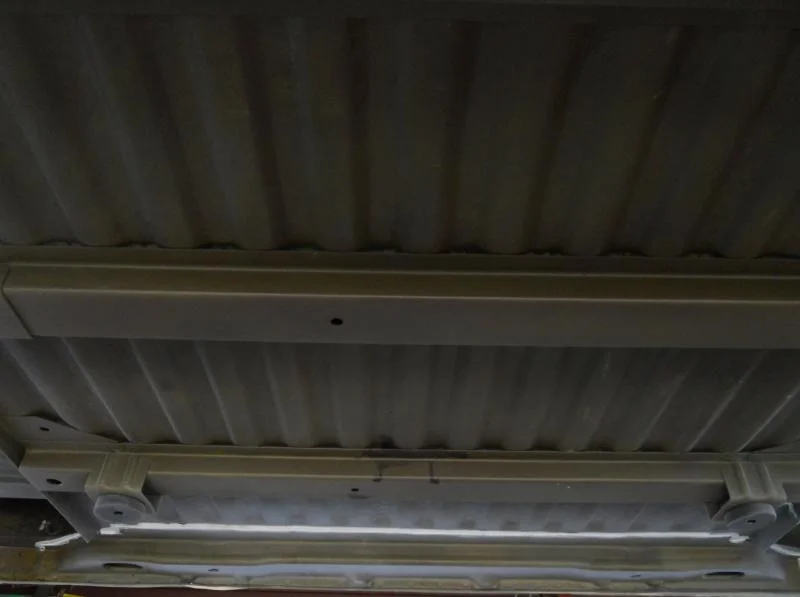

    The underbody is very straight and tidy. Under body coating is applied to protect from the elements.
    TroopyST1103.jpg TroopyST1106.jpg TroopyST1107.jpg

  17. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

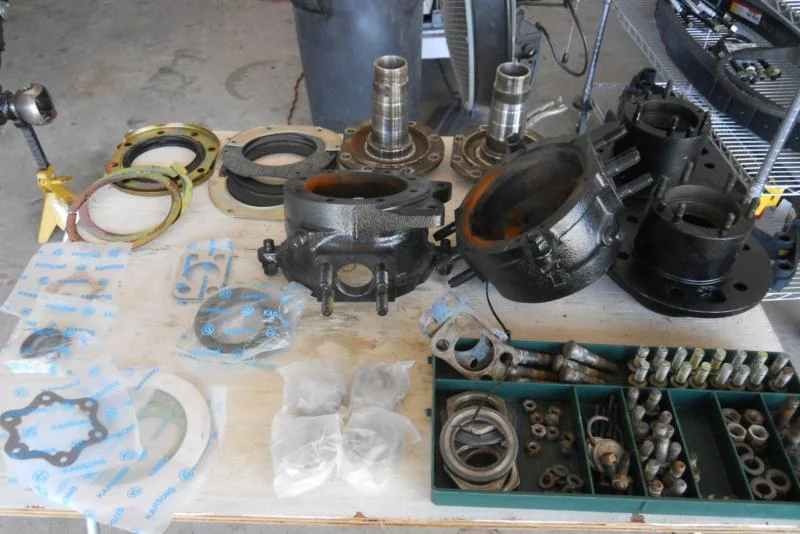

    Knuckles are rebuilt with all new parts. Axles installed on frame.
    TroopyST1118.jpg TroopyST1123.jpg TroopyST1082.jpg

  18. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

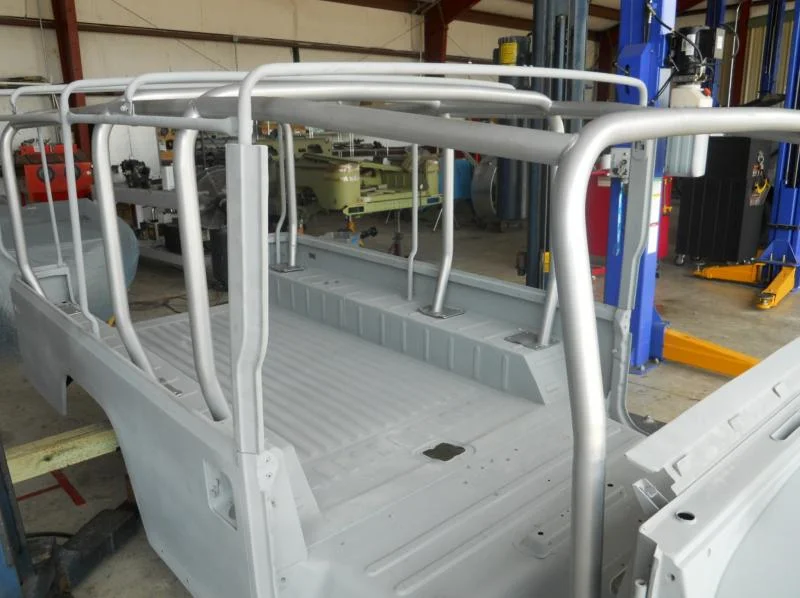

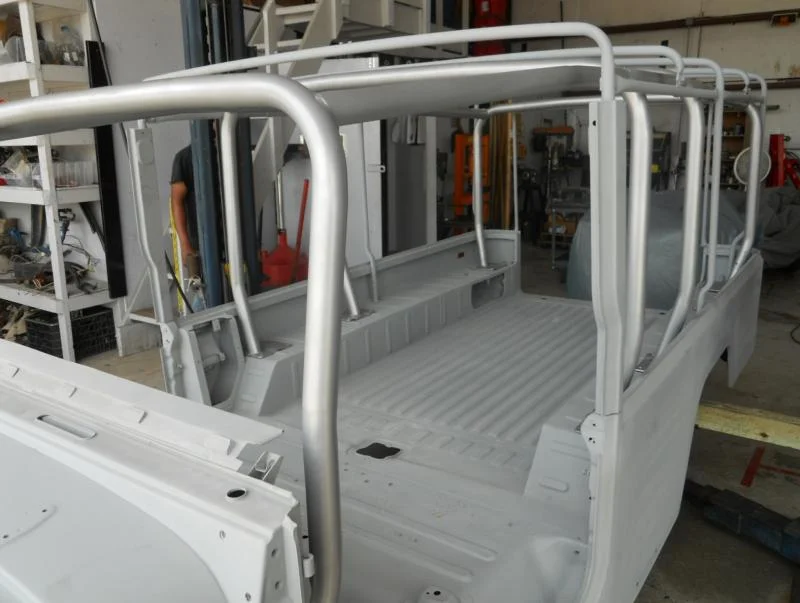

    The roll cage and soft top hoops are positioned. My plan is to have a full top as OEM. The addition of zip of sides for warmer weather. I am also going to have a bikini top made that can be used on top of the roll cage, with the removal of soft top hoops for beach weather. We built the cage to fit snugly inside the hoops, but the aesthetics of the design will look quite nice with the hoops removed. Powder coated in silver.


    Attached Files:

  19. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

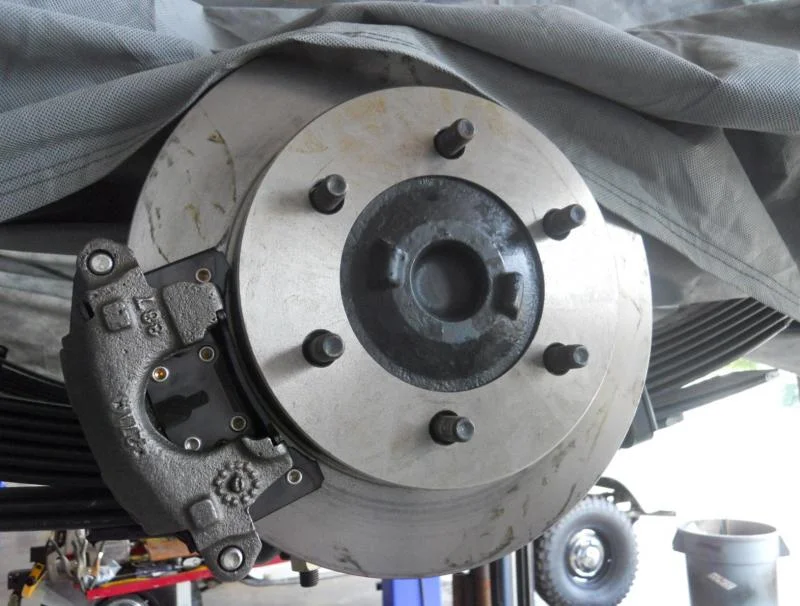

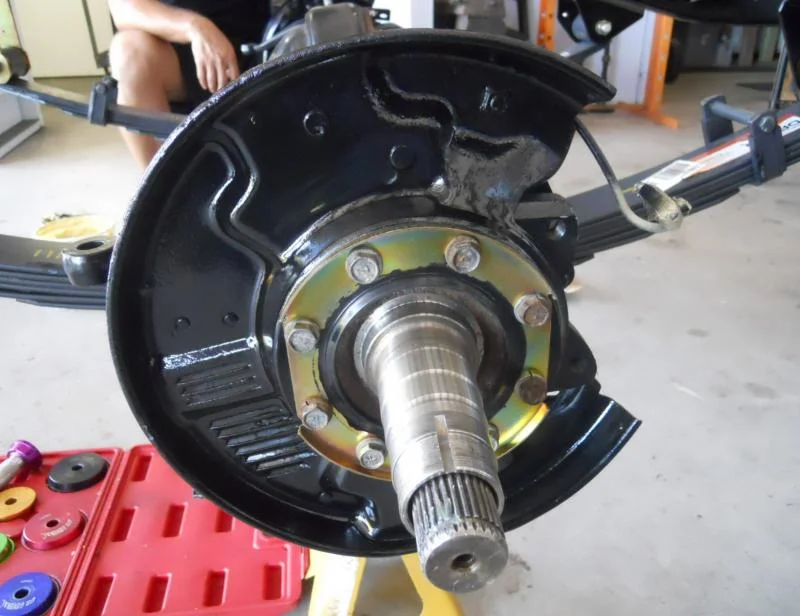

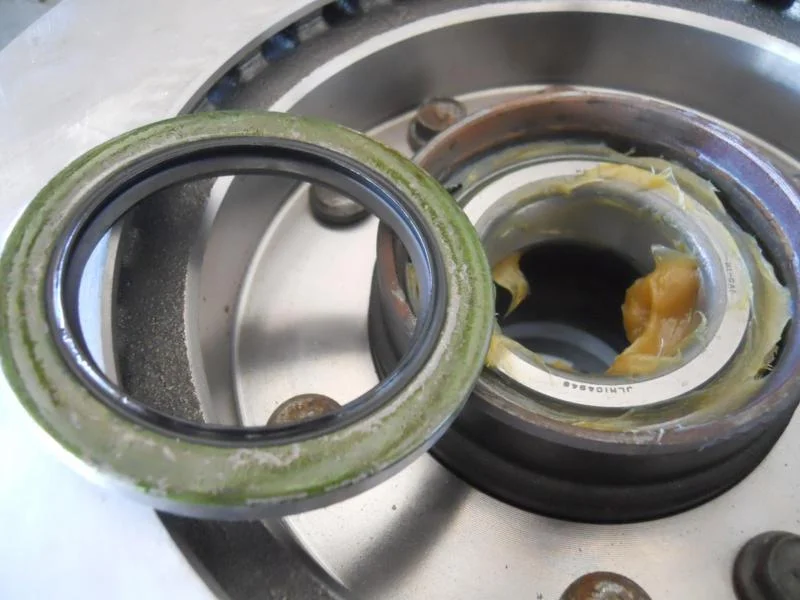

    The new axles are complete and New 4Wheel disc brakes and new brake lines are installed.
    TroopyST1124.jpg TroopyST1129.jpg TroopyST1130.jpg

  20. markieboy1

    markieboy1

    Messages:
    174
    Albums:
    1
    Likes Received:
    2
    Joined:
    Sep 26, 2006
    Location:
    USA

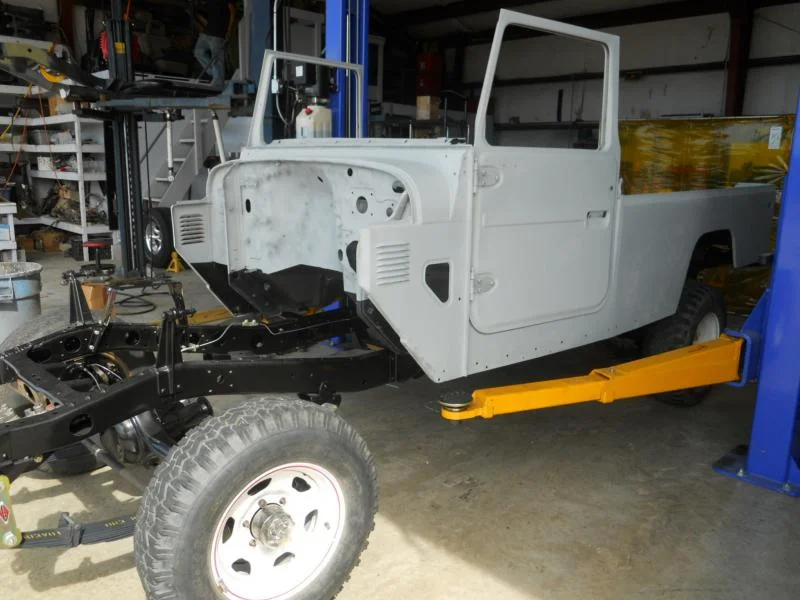

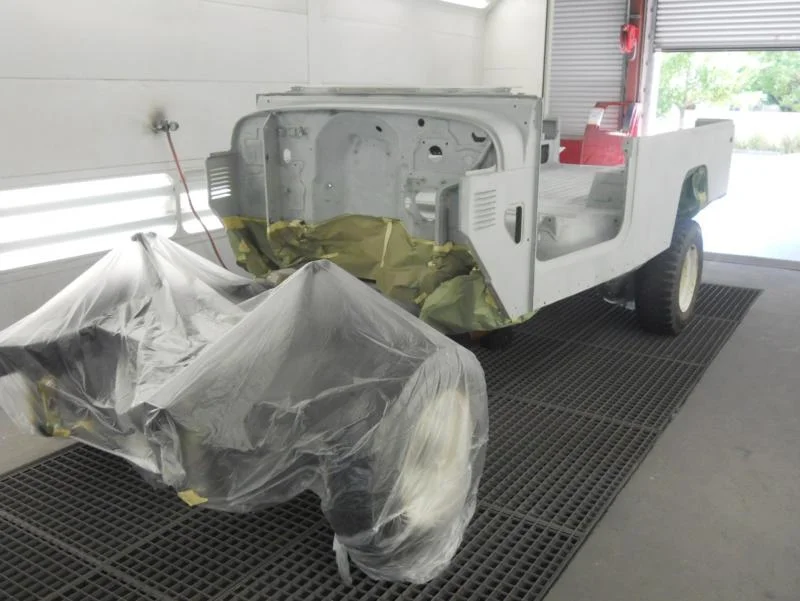

    The roll cage and hoops removed, the tub is mounted on the frame and prepped for paint.
    TroopyST1141.jpg TroopyST1139.jpg TroopyST1145.jpg
