Timesaver mod to fan shroud

Discussion in '60-Series Wagons' started by Wile E Coyote, Dec 19, 2007.

  1. Wile E Coyote

    Wile E Coyote Out in the streets, they call it murder!

    Messages:
    3,208
    Media:
    11
    Albums:
    1
    Likes Received:
    65
    Joined:
    Sep 20, 2005
    Location:
    Western AZ
    This is not new info, but perhaps newly with pics.

    For those of us that wrench on our own junk, (and learn best w/ pics) do yourselves a favor and split your fan shroud after you 1st have to pull it. The next go round will be mucho better, as the rad or fan can then stay in place.

    I split mine 2 yrs ago when I 1st bought the rig, and had to replace the radiator.

    Today, I replaced the belts, and I saved a lot of time by leaving the bottom half of the shroud and the rad in place.

    Personally, I used some 20 ga. sheet metal cut to size, and sheet metal screws to retain some rigidity and airtightness. Followed that with RTV along the inside of the joint to be extra analicious. My pics are after putting it back together today.

    Be particular about placement of the cut line, keeping in mind you'll have to later get to the screws, and to not interfere with the shroud mounting bolts.

    Barely 1/4 :banana: job just cutting, then rejoining shroud.

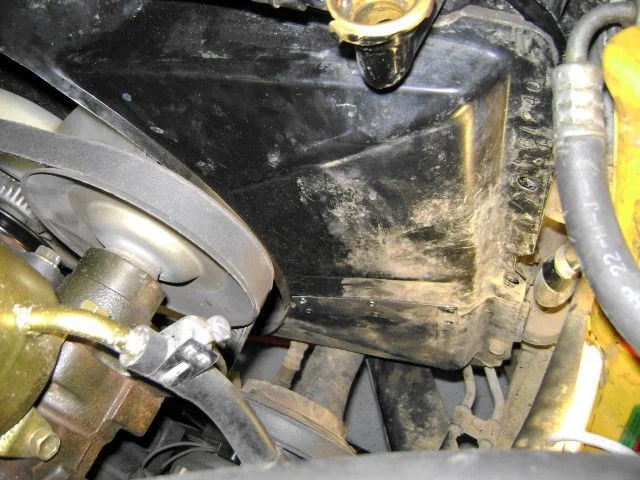

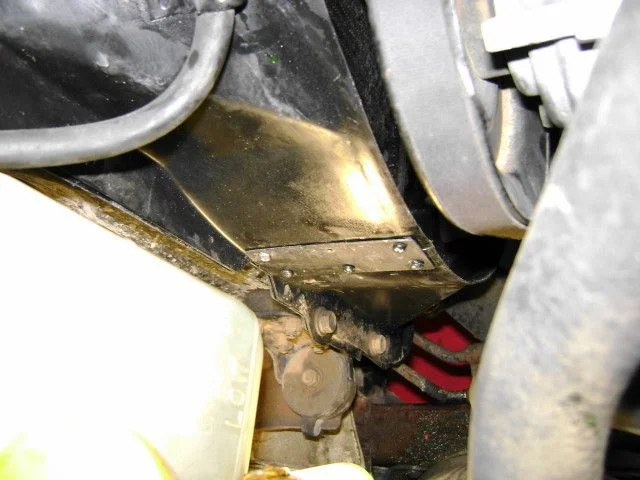

    DSC00417.jpg DSC00419.jpg

    Last edited: Dec 20, 2007
    NeverGiveUpYota likes this.
  2. joel hj60

    joel hj60

    Messages:
    119
    Likes Received:
    1
    Joined:
    Apr 13, 2005
    Location:
    2300, AUSTRALIA
    Cool, so easy but will save a heep of time.

    89BIGBLUE likes this.
  3. bigbertha

    bigbertha

    Messages:
    287
    Likes Received:
    1
    Joined:
    Aug 17, 2005
    shroud

    Great post!

  4. hks3sgte

    hks3sgte

    Messages:
    2,510
    Media:
    1
    Albums:
    1
    Likes Received:
    8
    Joined:
    Apr 1, 2004
    Location:
    Los √Āngeles, CA.
    There are a lot of tips and tricks buried in this forum. Most of them without pictures or detailed instructions. Thanks for the nice addition!

    NeverGiveUpYota likes this.
  5. cruiser88

    cruiser88

    Messages:
    11,874
    Media:
    3
    Albums:
    1
    Likes Received:
    31
    Joined:
    Feb 21, 2006
    Location:
    Medford Oregon
    Great info.....ask Greg too make it a sticky or something.

    I keep saying i need to do this mod but always seem to forget.


    I have to write a couple of mod write ups before I go back too school in January(Just waiting for parts to come in).:cheers:

  6. euclid

    euclid

    Messages:
    5,981
    Media:
    14
    Albums:
    1
    Likes Received:
    344
    Joined:
    May 15, 2002
    Location:
    Jackson, MS
    great time saver. Makes a water pump replacement a lot easier too.

    faq'd

  7. cruiser88

    cruiser88

    Messages:
    11,874
    Media:
    3
    Albums:
    1
    Likes Received:
    31
    Joined:
    Feb 21, 2006
    Location:
    Medford Oregon
    :cool:

  8. 89s rule

    89s rule

    Messages:
    5,071
    Likes Received:
    19
    Joined:
    Mar 18, 2004
    Location:
    Abbeville, SC
    Thanks for posting this. Keep thinking of doing it, just havent. Its on my todo list for the end of this month!

  9. gulp3000

    gulp3000

    Messages:
    569
    Likes Received:
    1
    Joined:
    Jul 21, 2004
    Location:
    Colorado
    Yep, I split mine when I did the body lift.

    Never bothered to fill the gap back in, I just run it with a 1" gap between the top & bottom 1/2. Runs cool so far.

    NeverGiveUpYota likes this.
  10. tehcruiser

    tehcruiser

    Messages:
    153
    Likes Received:
    2
    Joined:
    Oct 7, 2007
    Location:
    nw
  11. RockDoc

    RockDoc

    Messages:
    6,804
    Media:
    3
    Albums:
    2
    Likes Received:
    420
    Joined:
    Jun 3, 2007
    Location:
    SW MB, Ca
    Thanks for posting the pics. I'll be doing this in the next day or two when I swap rads.

  12. cruiser88

    cruiser88

    Messages:
    11,874
    Media:
    3
    Albums:
    1
    Likes Received:
    31
    Joined:
    Feb 21, 2006
    Location:
    Medford Oregon
    I think somebody sold you a junk rad.:flipoff2:

  13. RockDoc

    RockDoc

    Messages:
    6,804
    Media:
    3
    Albums:
    2
    Likes Received:
    420
    Joined:
    Jun 3, 2007
    Location:
    SW MB, Ca
    It didn't look too bad once I flushed out the pepper and cooked egg :rolleyes: much better than what's coming out of it. Might be roadtripping up to Inuvik in a few weeks :steer:, so a good time to get the swap out of the way.

  14. Front Range 4x4

    Front Range 4x4

    Messages:
    2,854
    Media:
    23
    Albums:
    1
    Likes Received:
    4
    Joined:
    Oct 1, 2005
    Location:
    Colorado
    I don't know if anybody's had the same experience that I did but I never re-installed the bottom half and have no overheating issues at all with just the top half of the fan shroud.

  15. JLH911

    JLH911

    Messages:
    2,588
    Media:
    1
    Albums:
    1
    Likes Received:
    39
    Joined:
    Sep 2, 2007
    Location:
    So. Cal
    Hey, you're P.S. pump is on the right hand side!?

  16. Front Range 4x4

    Front Range 4x4

    Messages:
    2,854
    Media:
    23
    Albums:
    1
    Likes Received:
    4
    Joined:
    Oct 1, 2005
    Location:
    Colorado
    FJ62 ;)

  17. cruiser88

    cruiser88

    Messages:
    11,874
    Media:
    3
    Albums:
    1
    Likes Received:
    31
    Joined:
    Feb 21, 2006
    Location:
    Medford Oregon
    ha I did not do that...that was the old rad:flipoff2:

  18. Orionfj60

    Orionfj60

    Messages:
    181
    Likes Received:
    0
    Joined:
    Oct 23, 2010
    Location:
    Prescott, Az
    Great post, nice time saver

  19. FJ62dex

    FJ62dex

    Messages:
    27
    Likes Received:
    1
    Joined:
    Jan 1, 2013
    Location:
    Tasmania
    just did this mod

    cut the shroud in half with a saws all, then bolted it back to the radiator just like normal. SO far a very easy mod.

  20. mrmanos

    mrmanos

    Messages:
    31
    Likes Received:
    0
    Joined:
    Jun 24, 2013
    Location:
    Clark, Colorado
    Great post. I got so wrapped up in my radiator project that I forgot to put the shroud back on! When I saw what I'd done I was worried it might start to run hot, but I was wrong. Maybe its because I live at high altitude and its pretty cool, or downright cold here(northern CO), and winters almost here....but I'm gonna wait till next SPring to cut the shroud in half. And replace all hoses too. The photos are great. I will use them for reference when i do it. Looks pretty easy.
