I got the gears from Gamiviti and am in the process of rebuilding my front power seats, but I've run into a problem. It looks like someone has been in here before, everything was lose and parts were missing. when watching the instructional video on the Gamiviti sight, at one point he quickly says something about rubber washers as he removes the gear covers. I don't have those. does anyone know what size these washers are? or have a detailed parts diagram of the gear box broken down?

also, everything taken apart and greased and re-assembled, it seems to still be binding up. any tips?

Thank you! really eager to get my seat reinstalled.

Joined
Dec 4, 2022
Messages
24
Location
Dallas TX
***Don't know if there is a way to delete or edit the original post, but I worded it a little better here and added some pictures:

Replacing the gears in my power seat. Someone has been in here before and I suspect they didn’t put it back together properly.

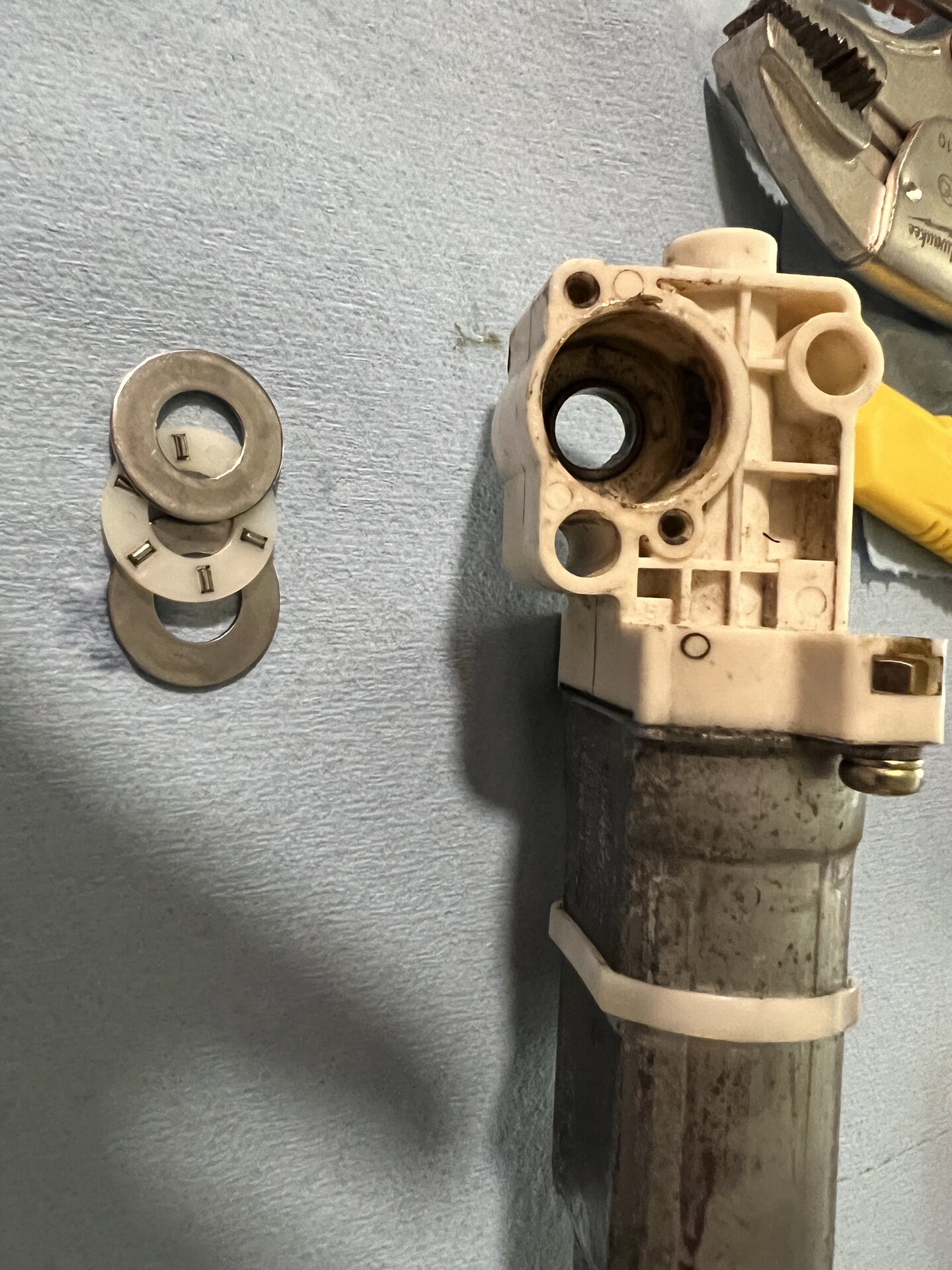

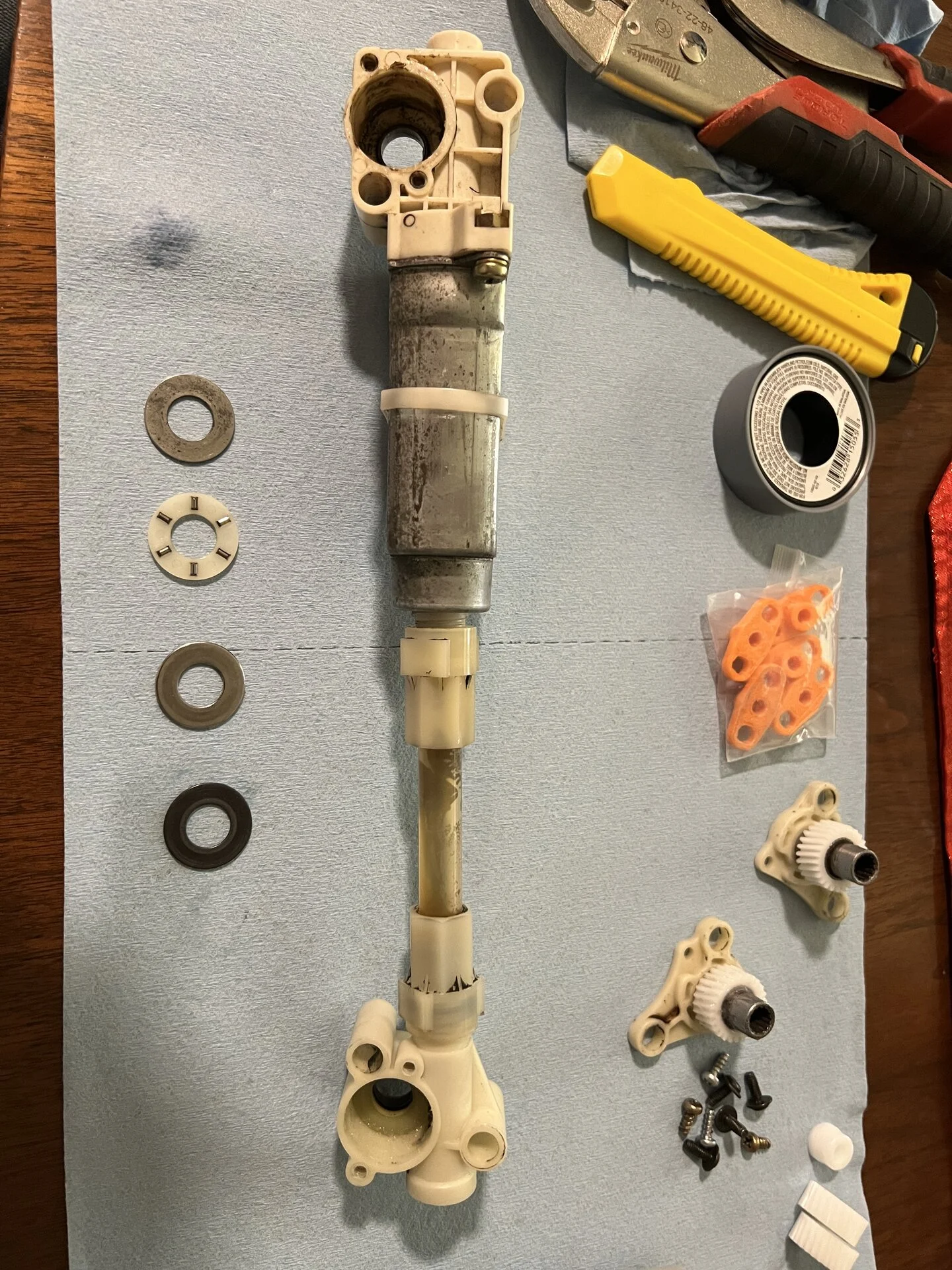

The side with the motor had this bearing washer sandwiched between two flat washers underneath the gear. The other side just had one washer on top of the gear and nothing underneath.

The Gamiviti instructional video mentioned some rubber washers. I don’t have any of those.

Anyone know what kind of washers I need and where?

Thanks!







ppc

M Go Blue
Joined
Aug 18, 2003
Messages
3,923
Location
Nashville, TN
When I pulled the gears on my seats out as I recall there was a slight difference between what has been documented on the forum and what I found. The rubber washer if it existed was just a thick gooey mess mixed with the remaining old hard grease. There was one addition washer per seat in one of the gear housings. I think it was on the motor side.

Not knowing the thickness of that rubber washer I purchased generic 7/16" rubber washers and 7/16" stainless flat washers from Lowes. The flat washers had acceptable OD/ID as compared to the original washers but were slightly thicker. The rubber washers had the correct ID but the OD needed to be cut down. To do this I sandwiched the rubber between the washers and used my Dremel tool to sand the rubber to size.

Each gearbox is assembled in order:

steel washer
plastic thrust bearing
steel washer
gear assembly
steel washer
rubber washer
steel washer - see my note below

Notes:
The first three pieces locate the gear at the proper location to mesh properly with the shaft that drives it so that was good. When assembling the rest without that last steel washer I thought the axle play was too much. Adding one of the original washers eliminated that play with a slight amount of drag. This was all fitting without grease. I decided it best to take one of the purchased washers and reduce its thickness on my sander until that drag was eliminated. Assembled with grease and everything is working properly.

If a thinner rubber washer was was used I'm sure everything would have fit without grinding.
