Need help with a Toyota winch. (1 Viewer)

[Cruzer244]

Good day All.
I am new here. Please tell me if I posted this in the wrong section.
I am from South Africa.
I drive a Suzuki Grand Vitara 3.2 V6 auto.
I bought a 2nd hand Toyota winch. It did not come with a remote. So I would like to build my own remote with the power led and overload/heat led on the remote.
Who will can help me with the correct Wiring diagram for the remote and winch.

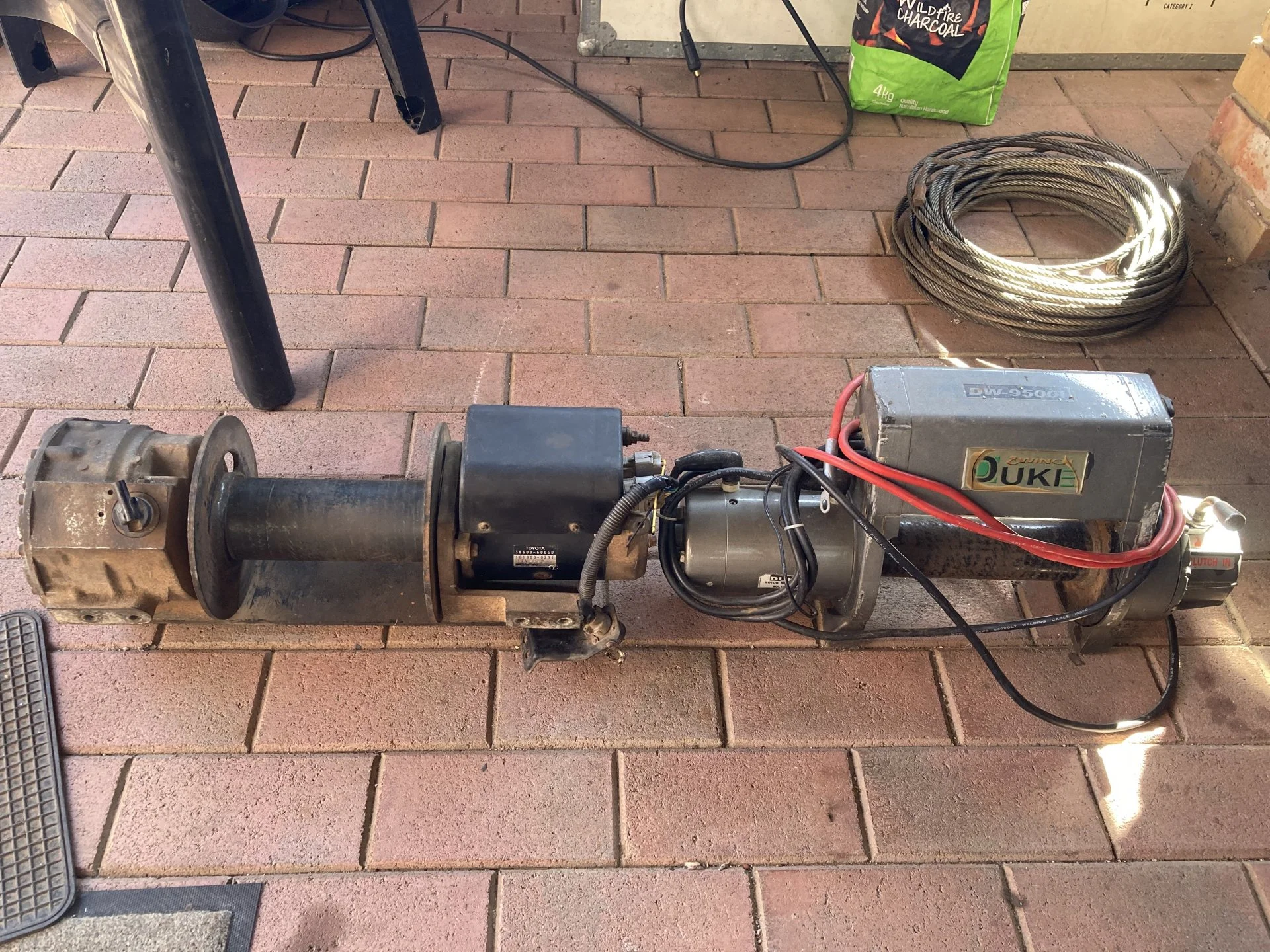

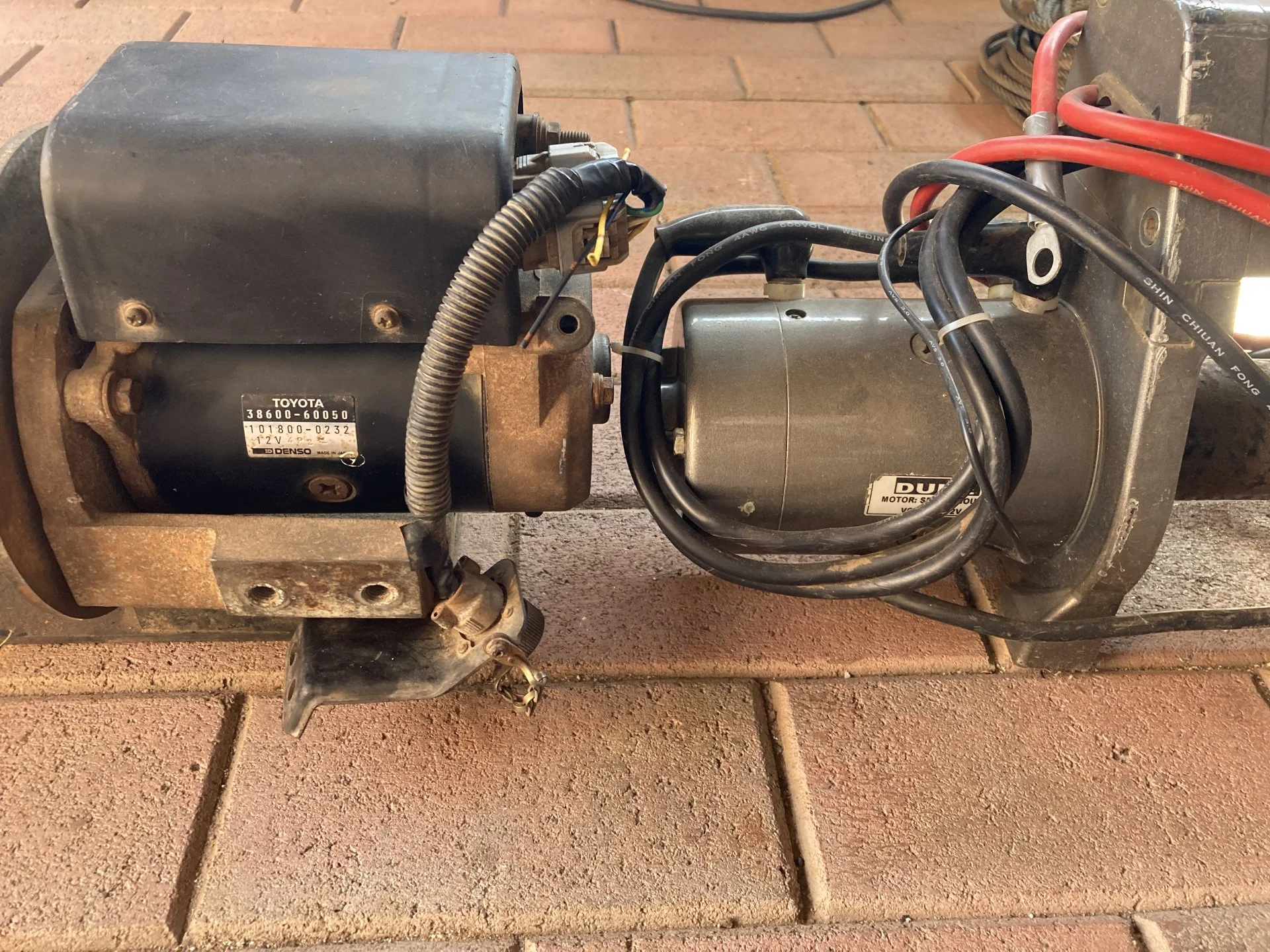

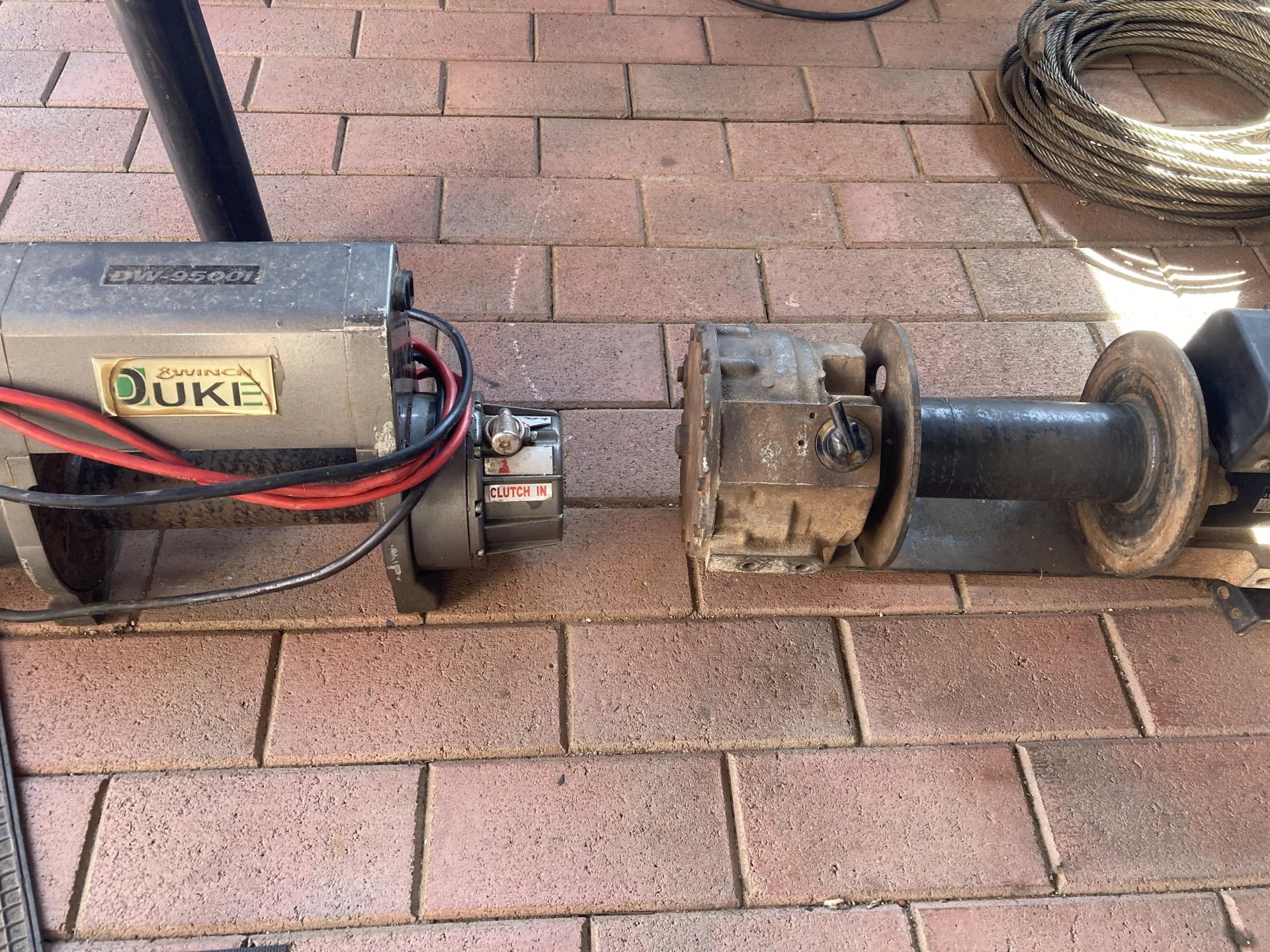

I have another 9500lbs winch. So I don’t know which one to use.

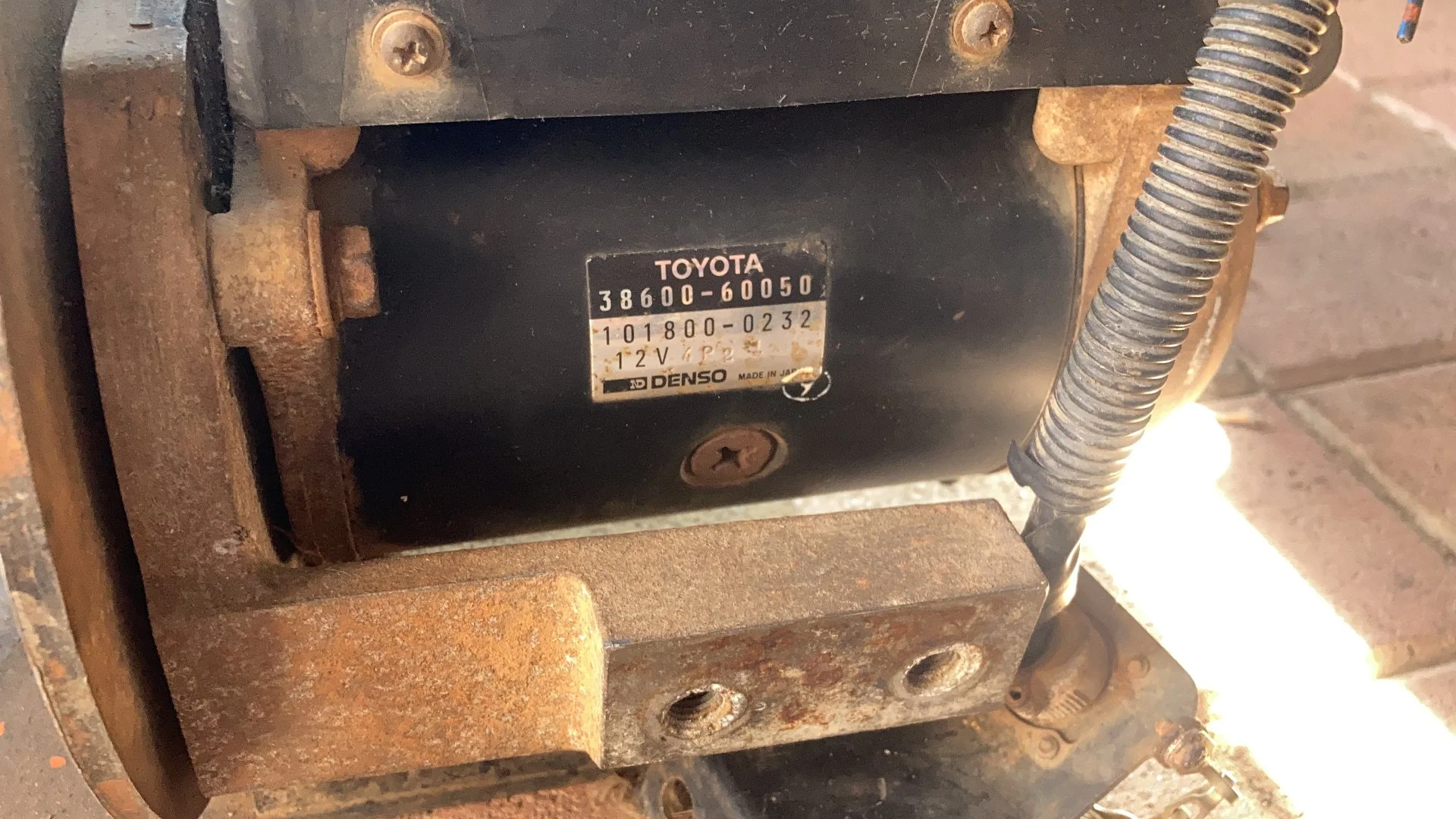

the Toyota winch I see is a 8000lbs.
but if I look at the build quality. I would like to use the Toyota winch.

if you could choose. Which winch will you

Thanks



[birch]

did you get this sorted mate? i have diagrams if you still need help



[Cruzer244]

did you get this sorted mate? i have diagrams if you still need help

Hey Birch.

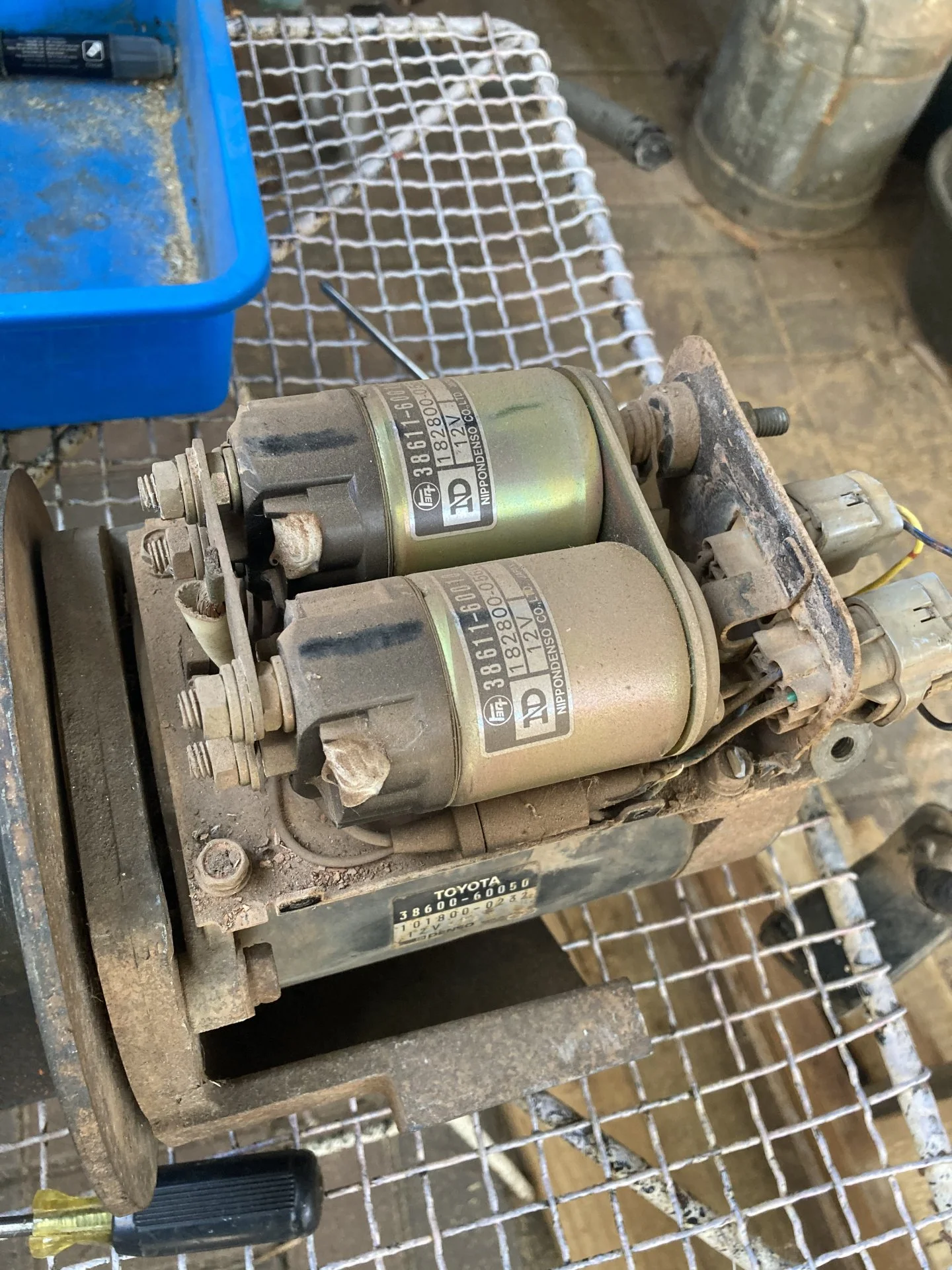

Sorry for the late reply. Got busy with other things. I have not yet installed the winch. As I need a full wiring diagram on how the wiring works. As The guy I bought it from never gave me the other part “solenoid” between the battery and winch.

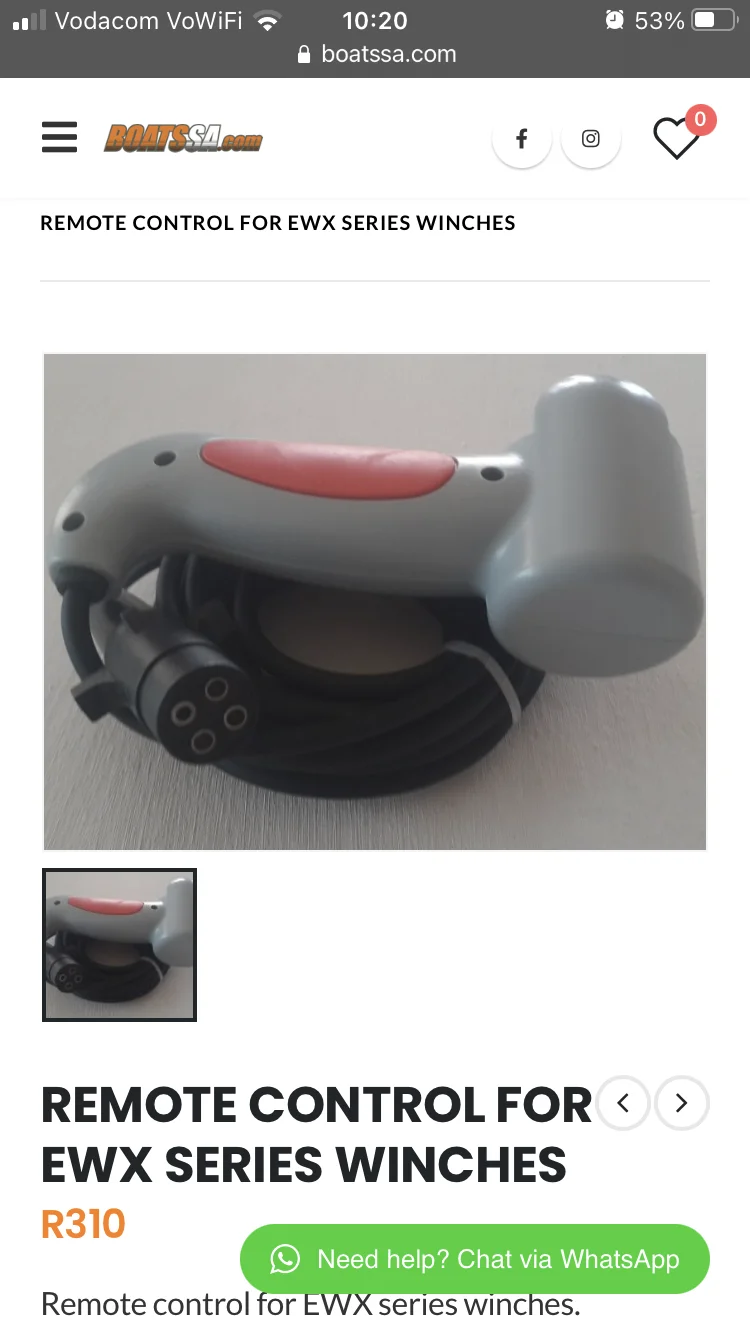

Then with the remote I need to figure out how to make my own remote on it as well.
Thanks



[John Young]

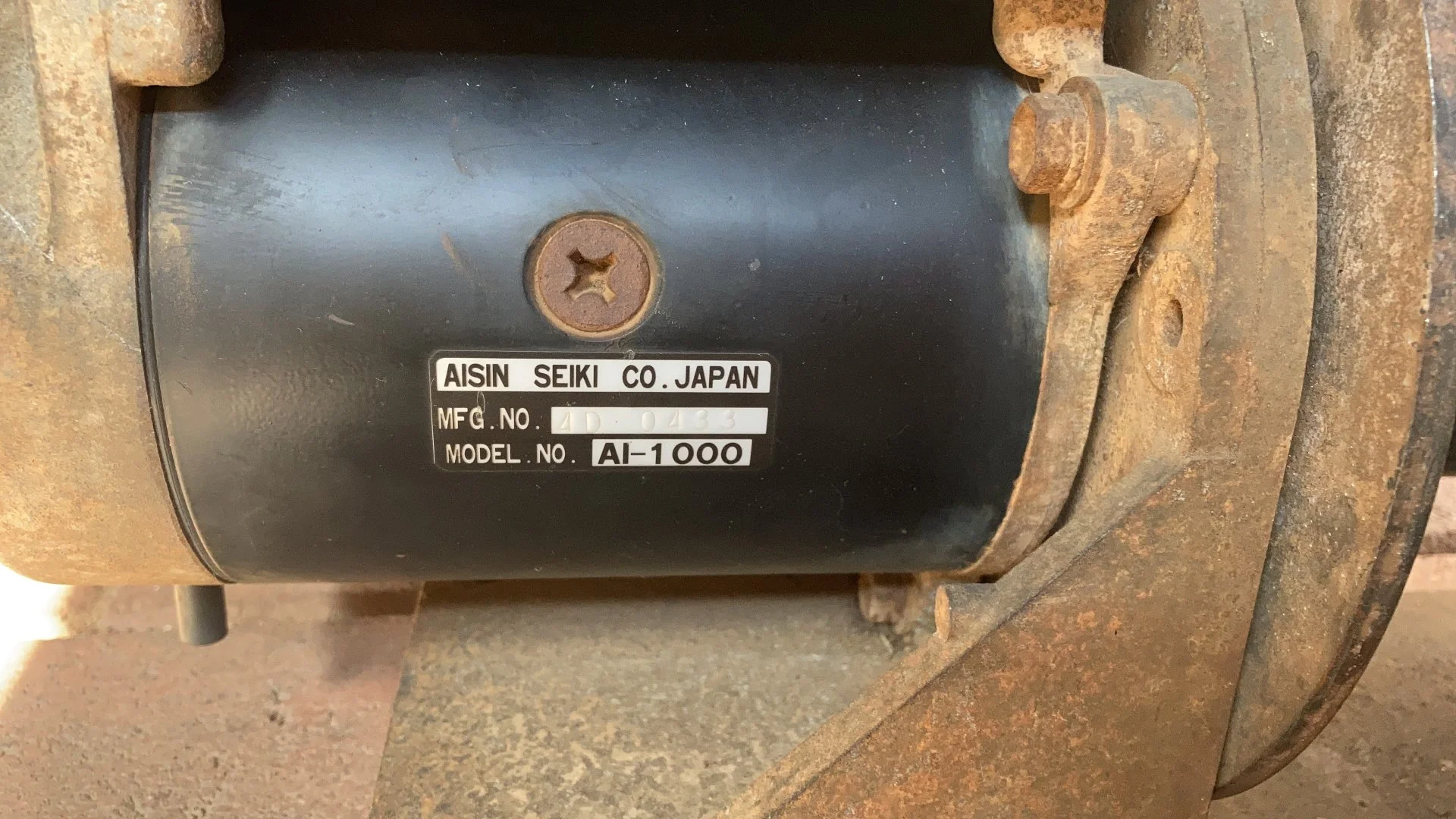

Here is a typical wiring diagram for the Aisin winch

I'm going to start a new thread that will try to go through the entire process of getting an old Aisin winch going agin
