Help identify radio wiring

Joined
Sep 2, 2007
Messages
3,015
Location
So. Cal
First of all, wtf Toyota with all the different wire colors across the years of an FJ60?

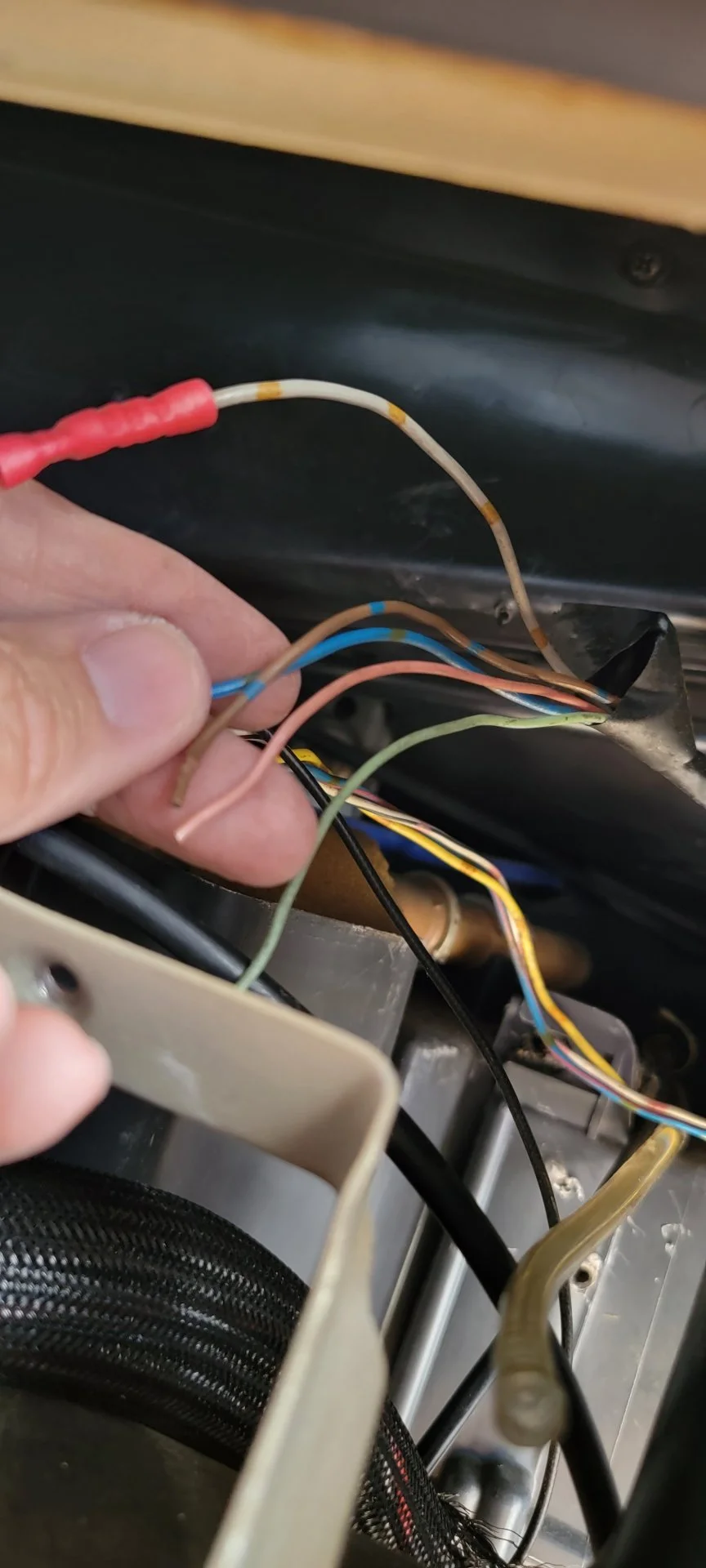

This set of wires are supposed to be for the speakers and radio (power and ground) but none of the two wiring diagrams I've seen show these colored wires shown in the attached picture.

Btw, how many original factory speakers did 1987 FJ60's come equipped with?


🤷


Last edited:

ToyotaMatt

Factory Focus-Point Mind-Set Approach
Supporting Vendor
GOLD Star
Joined
Aug 12, 2007
Messages
23,423
Location
EAST COAST
Website
vintageteqparts.com
First of all, wtf Toyota with all the different wire colors across the years of an FJ60?

This set of wires are supposed to be for the speakers and radio (power and ground) but none of the two wiring diagrams I've seen show these colored wires shown in the attached picture.

Btw, how many original factory speakers did 1987 FJ60's come equipped with?


🤷

View attachment 3154366


did you find your needed OEM Connector Plugs ?

keep in mind there were SEVERAL 60 series audio variations 8/80-9/87 both in the USA and globally

some have ONLY 2 channels some had 4 channels


- do you have a 2 or 4 channel OEM TOYOTA radio ?

- AM ONLY or AM / FM ?


-


let me know if i can be of further assistance :)

matt

Joined
Sep 2, 2007
Messages
3,015
Location
So. Cal
did you find your needed OEM Connector Plugs ?

keep in mind there were SEVERAL 60 series audio variations 8/80-9/87 both in the USA and globally

some have ONLY 2 channels some had 4 channels


- do you have a 2 or 4 channel OEM TOYOTA radio ?

- AM ONLY or AM / FM ?


-


let me know if i can be of further assistance :)

matt
I located the plug I think I needed. My AM/FM radio is a model # 86120-89118 version. Does that help? I'm assuming it's a 4 channel from what I've looked into.
