Nothing too unique, a M416 clone, Started it about a year ago, got put away while we built the shop, finally got back to it this last few months and it's coming out great so far. Building this with a friend, who will keep it when it's done. Then we hopefully will build a 2nd one for me and I'll sell my M416.

Got the fame built last summer, but didn't get back to it until this summer due to building a shop, but finally got the suspension hung and an axle on it. The axle is made with FJ40 dumb brake spindles. We got it with parts FJ40, that a shop had used to make it a roller. The hubes and everything were left on to match the FJ40. I am not really a huge fan of the axle, but it was free so we used it.

hairy_apple · Dec 21, 2018

Had the body panels bent at a shop, the sides and the axle are the only parts I didn't fab.

hairy_apple · Dec 21, 2018

Welded the sides and back onto the body, as well as the rectangle tube around the top to keep the body stiff, and act as a flat spot so the lid will seal up.

The rear will be cut for a tailgate, but for now I left the tube on to keep the body stiff and square until I make the fenders to support it.

hairy_apple · Dec 21, 2018

Rear bumper under construction...

hairy_apple · Dec 21, 2018

hairy_apple · Dec 21, 2018

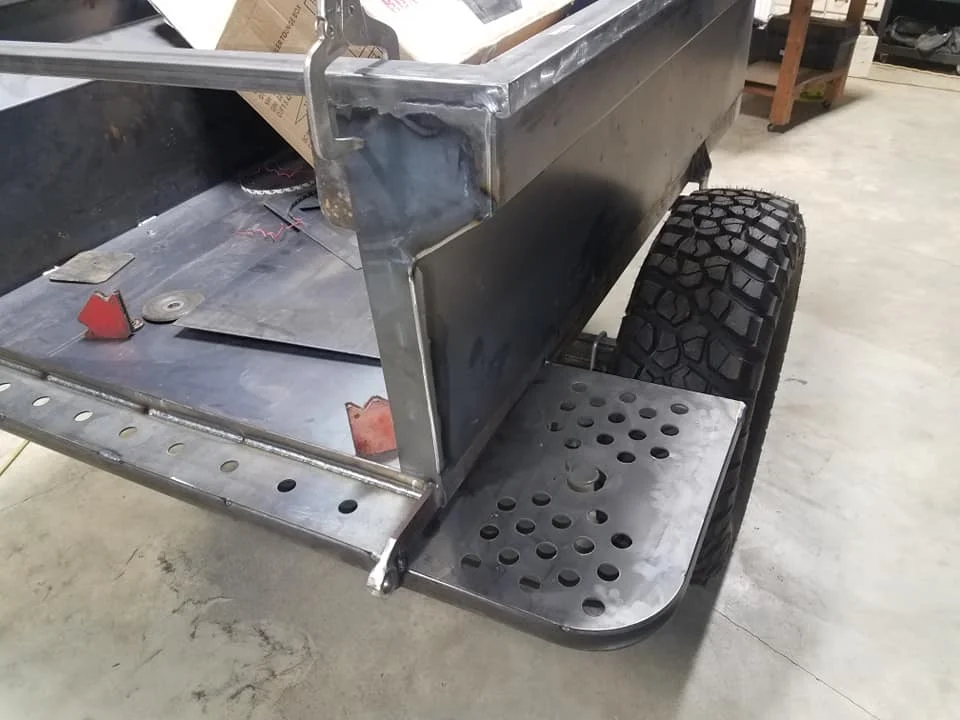

And finally, front steps, and fenders, and this is about where I'm at today. Next week I'm hoping to finish up the fenders, and the tailgate, and can start on the lid. Once those are done, it's off to be painted and we can do the wiring and lights and be ready for camping next summer.

It's going to be painted to match the olive FJ40 in the first post.
