Got a full 5spd swap kit that I was going to put into my HDJ81, but I've decided to focus more on my Troopy and need to free up some cash. See parts list below.
PARTS MISSING FROM LIST: clutch lines, driveshafts and trans cross member, this is 99% of everything you need to swap your auto HDJ81 into a freight train pulling 5 speed manual.
It took me a few months with orders from Amayama, Megazip and Partsouq to get all the parts in. They've been sitting on my shelf for 6 months now, and they need to go. Located in Port Coquitlam, BC. Will put on a pallet or crate and ship, at buyers pre-paid expense. Can also arrange delivery with a small deposit upfront and within a reasonable distance.

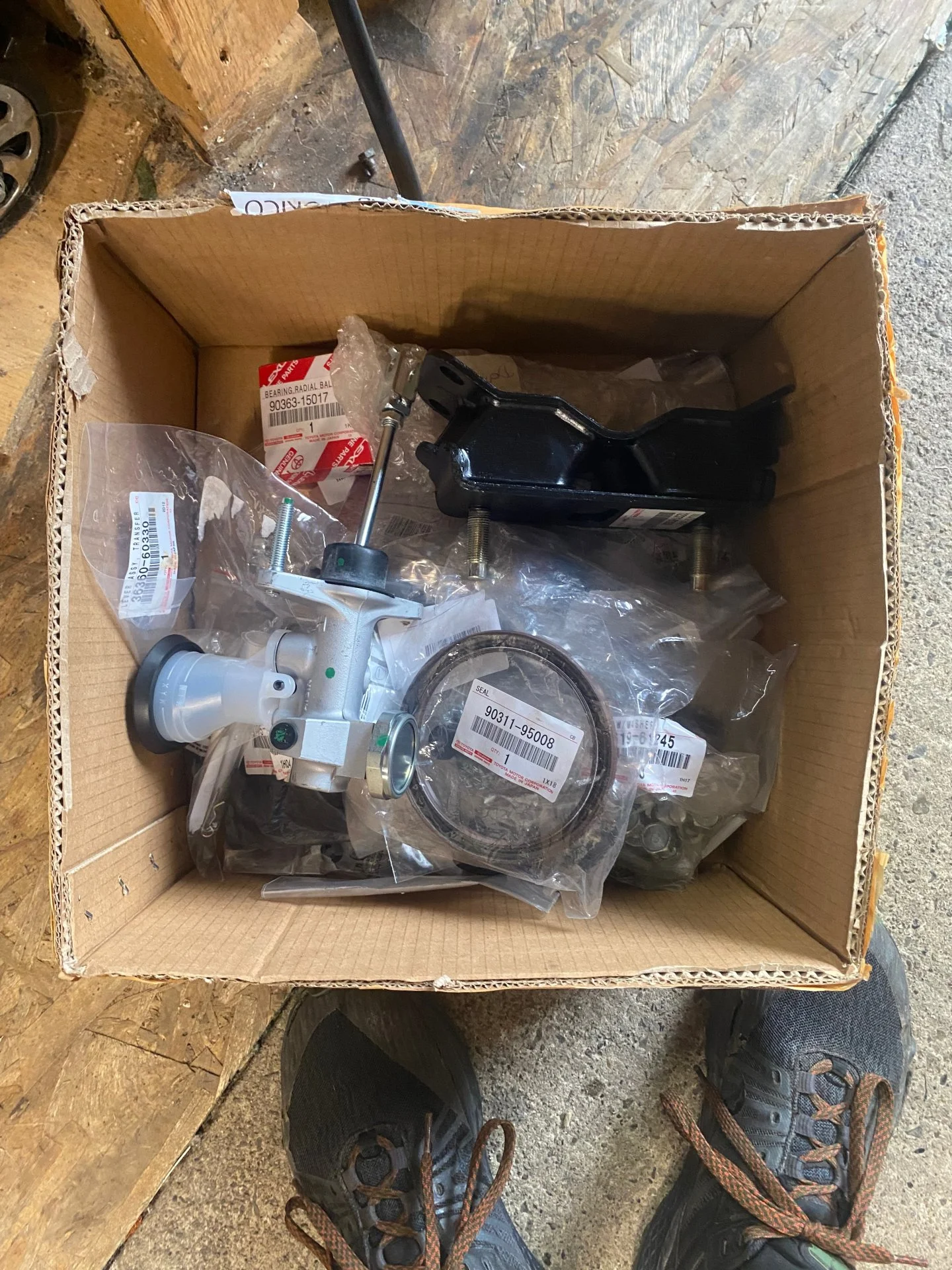

Major Parts:

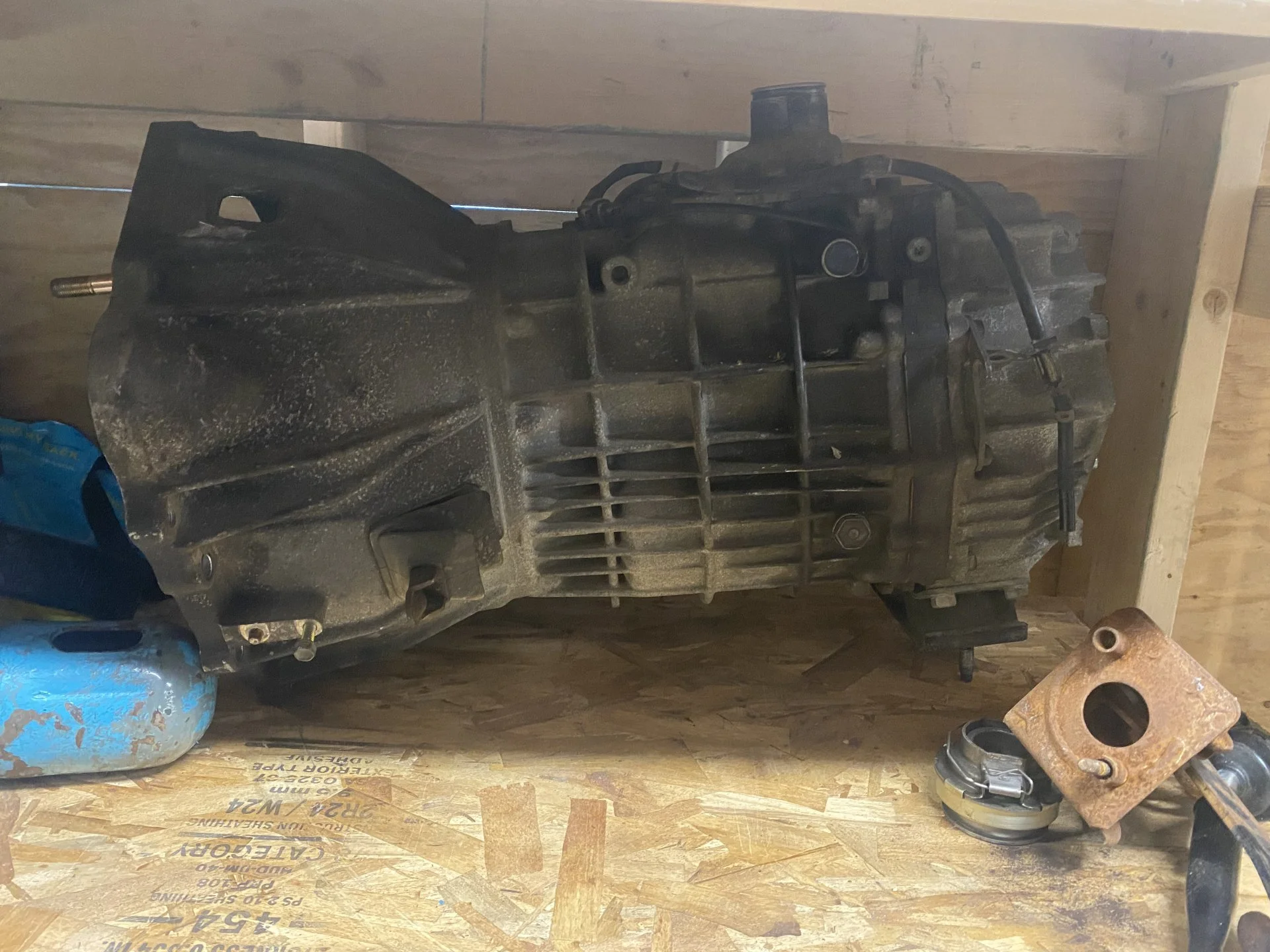

H151F Trans and bell housing

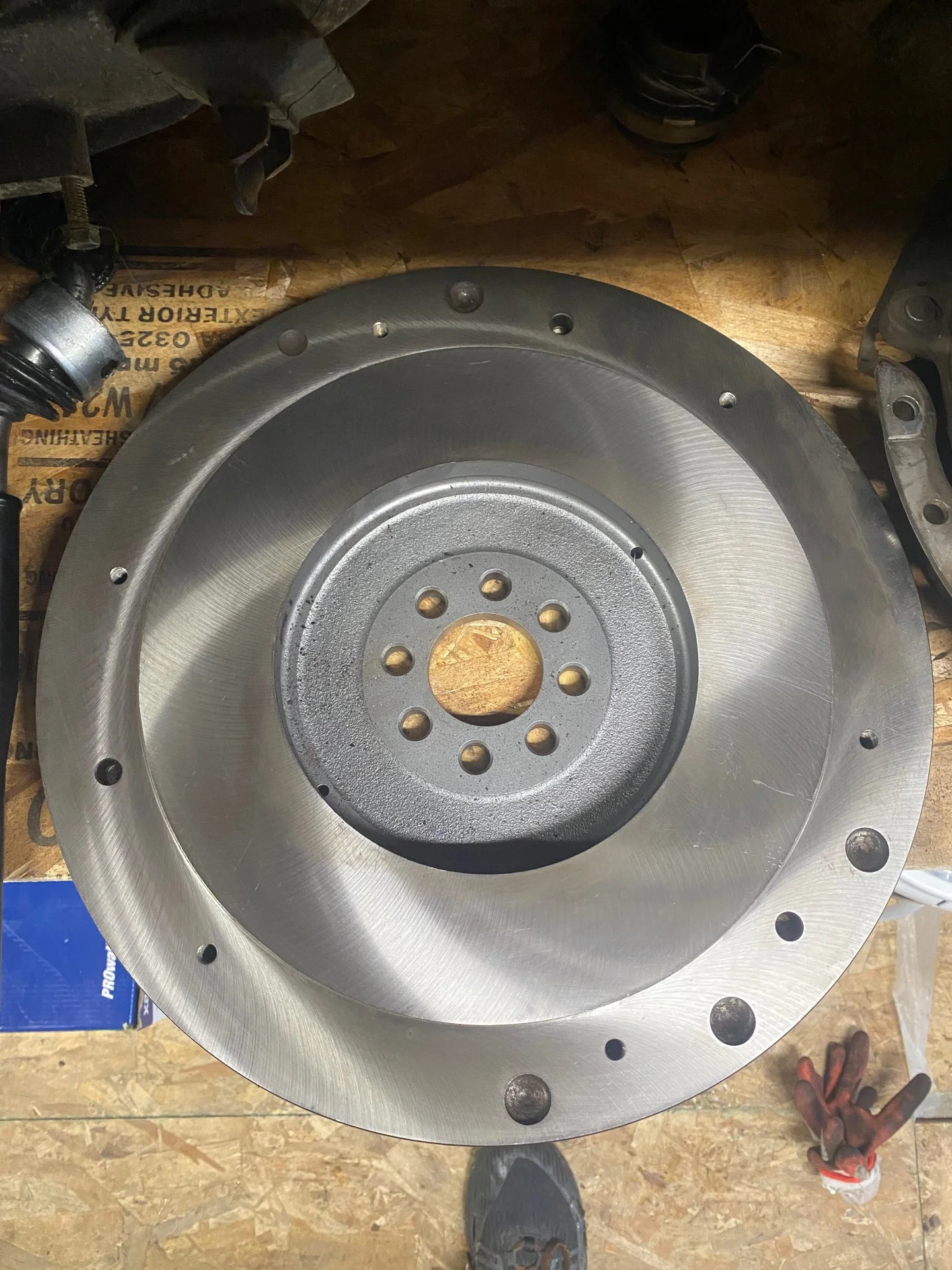

Brand new 275mm flywheel and pressure plate, used clutch.

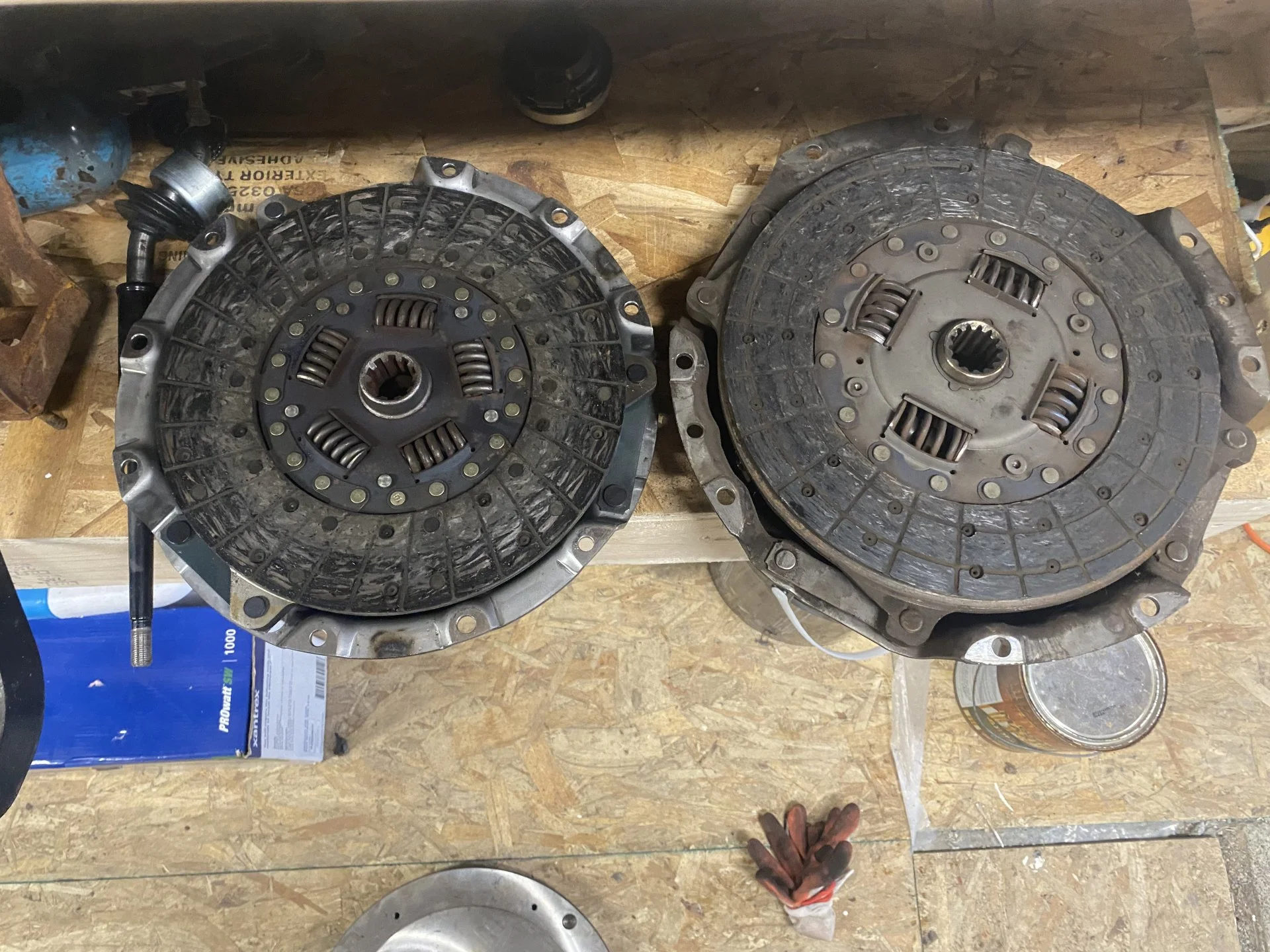

Used 300mm clutch and pressure plate - can have flywheel machined to accept 300mm parts

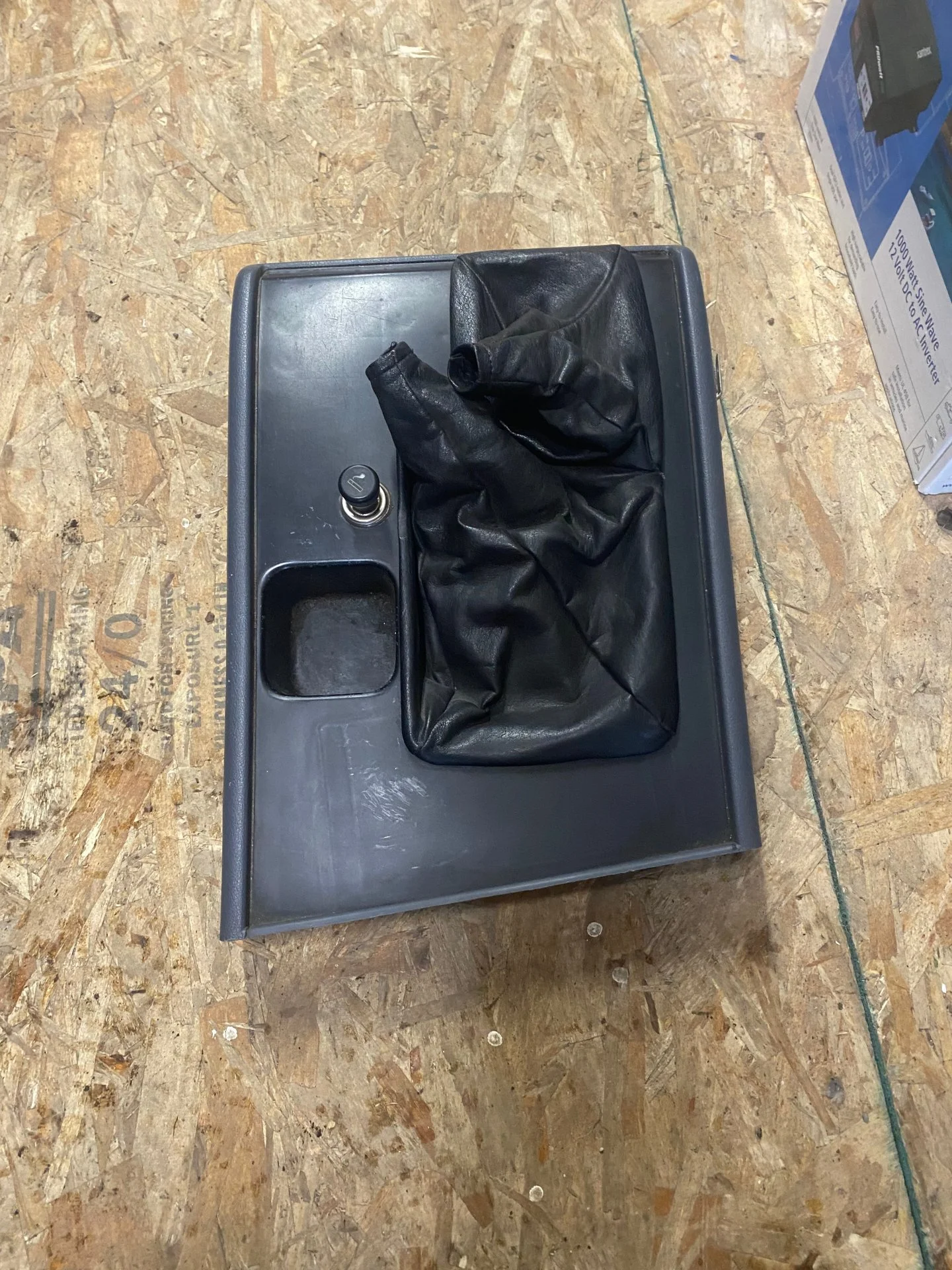

RHD Shifter console with leather boots

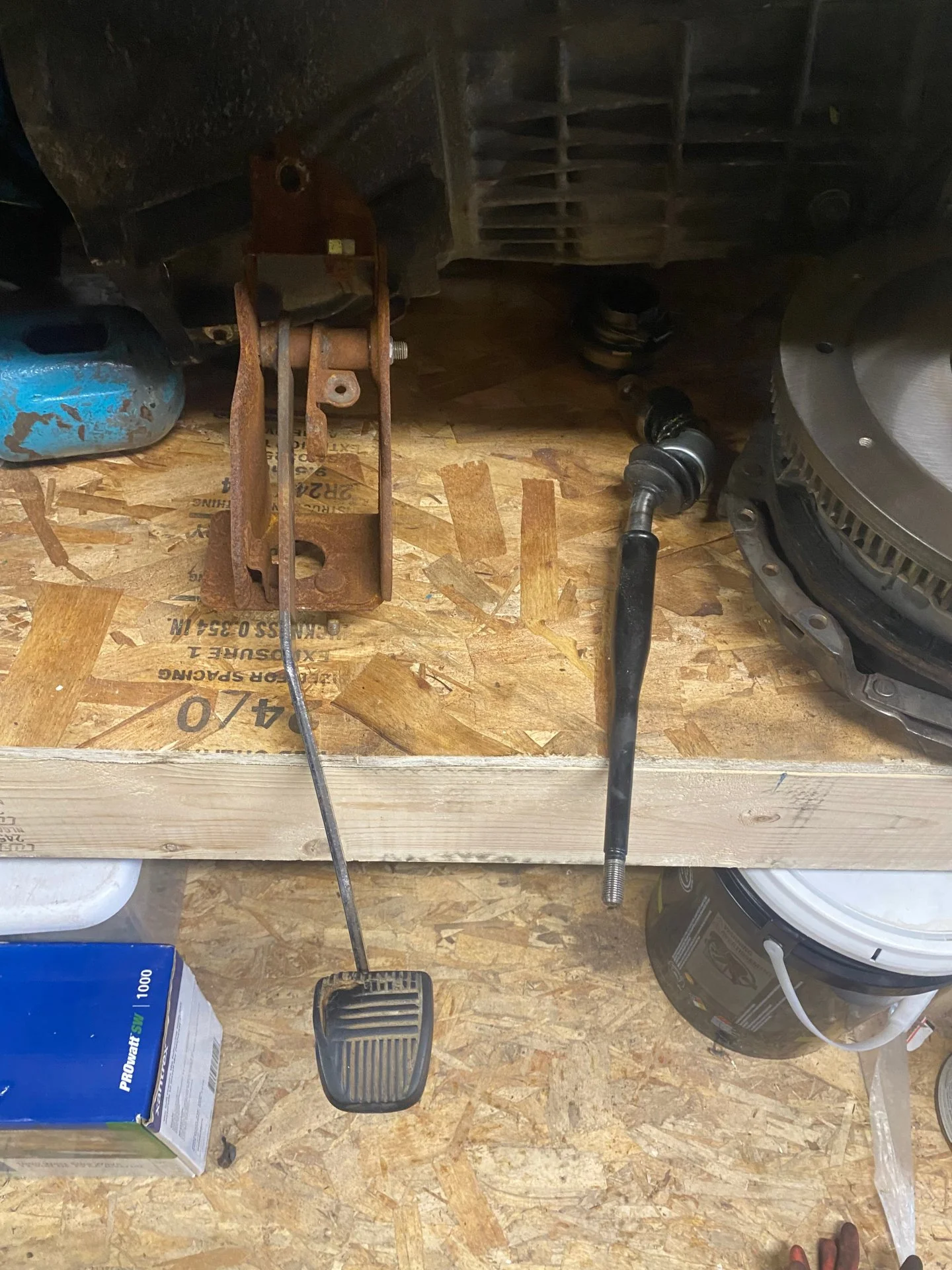

Clutch pedal assembly
Clutch master and slave
Rear main seal
Pilot bearing
Throwout bearing

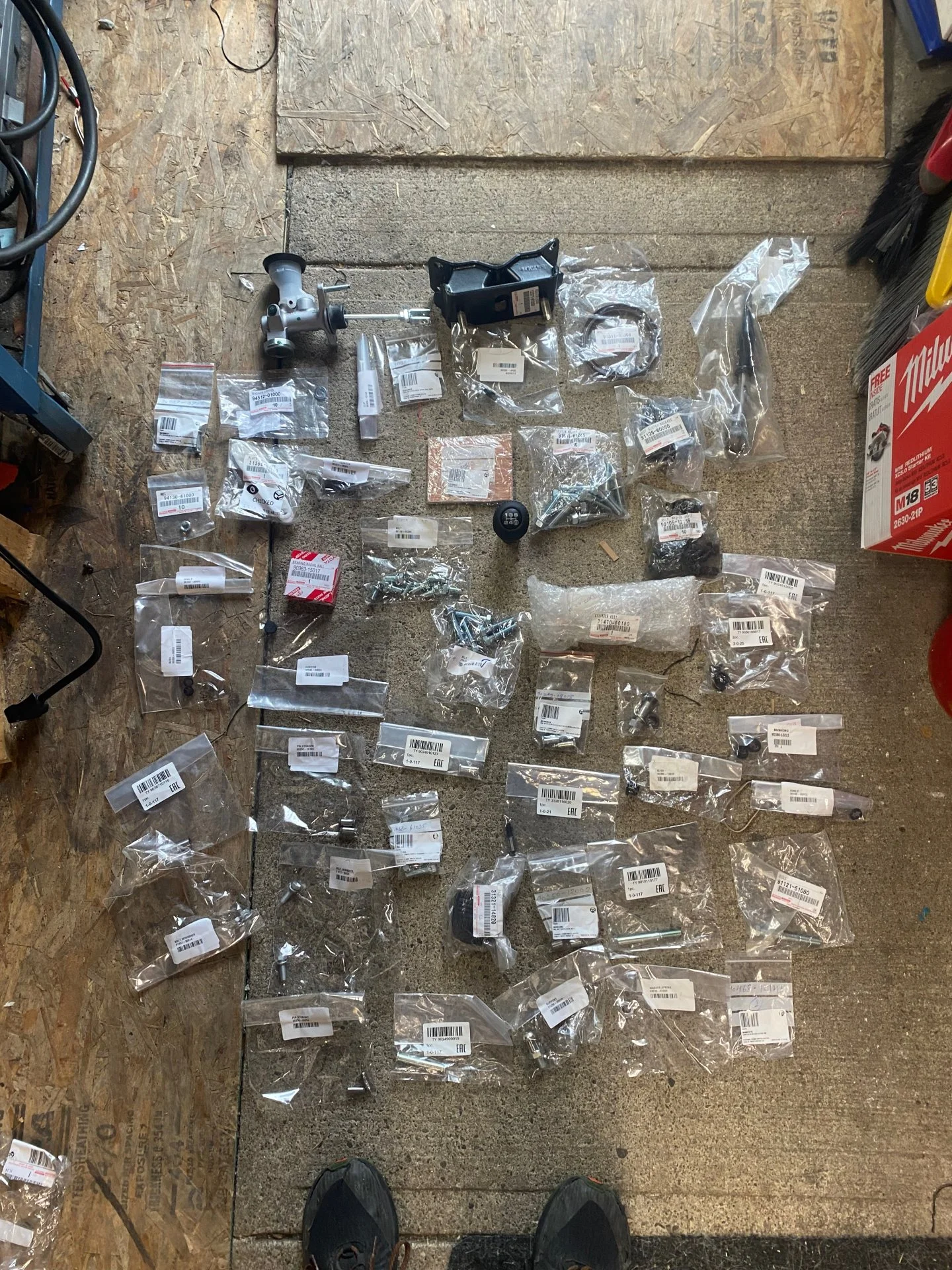

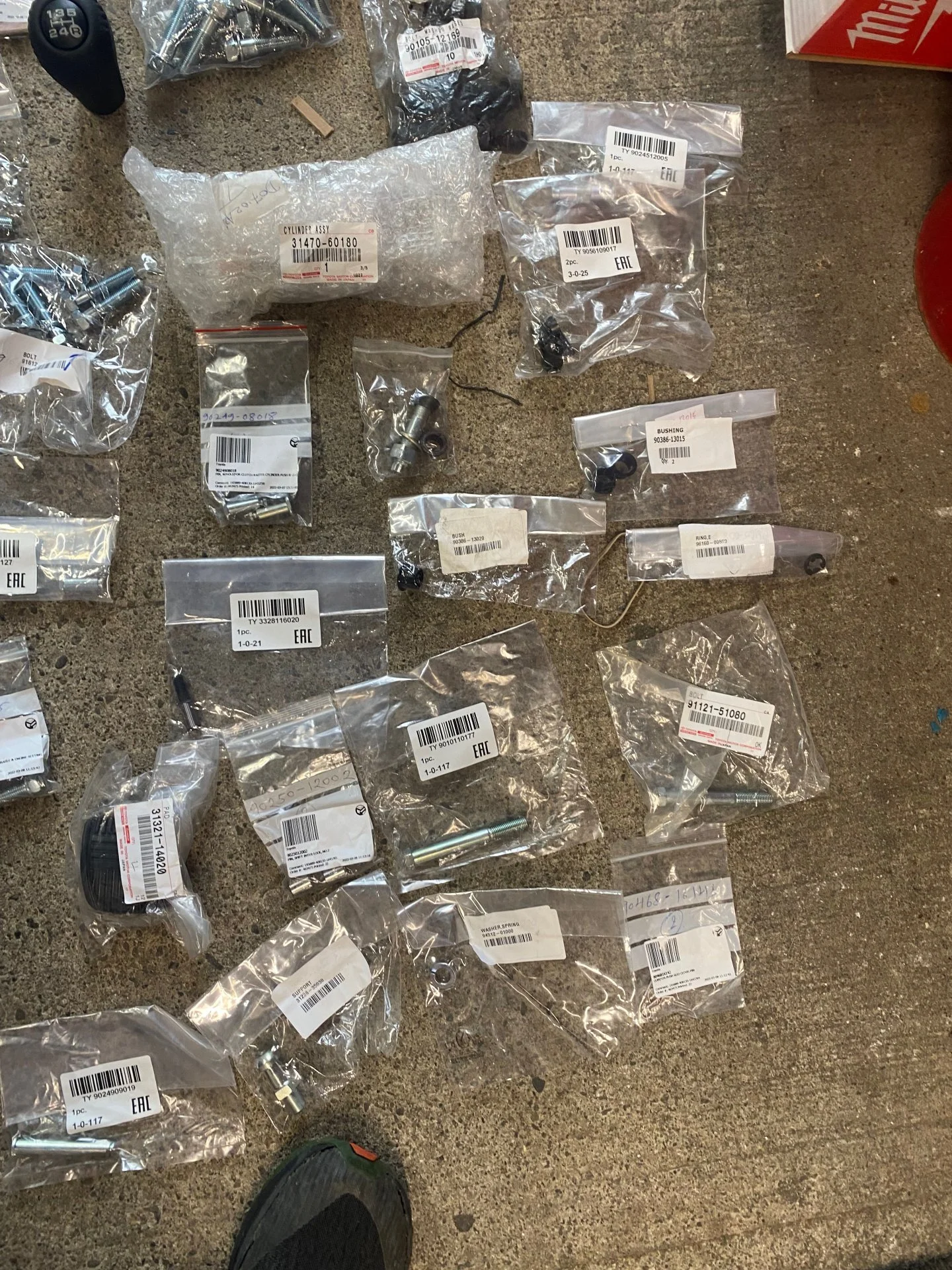

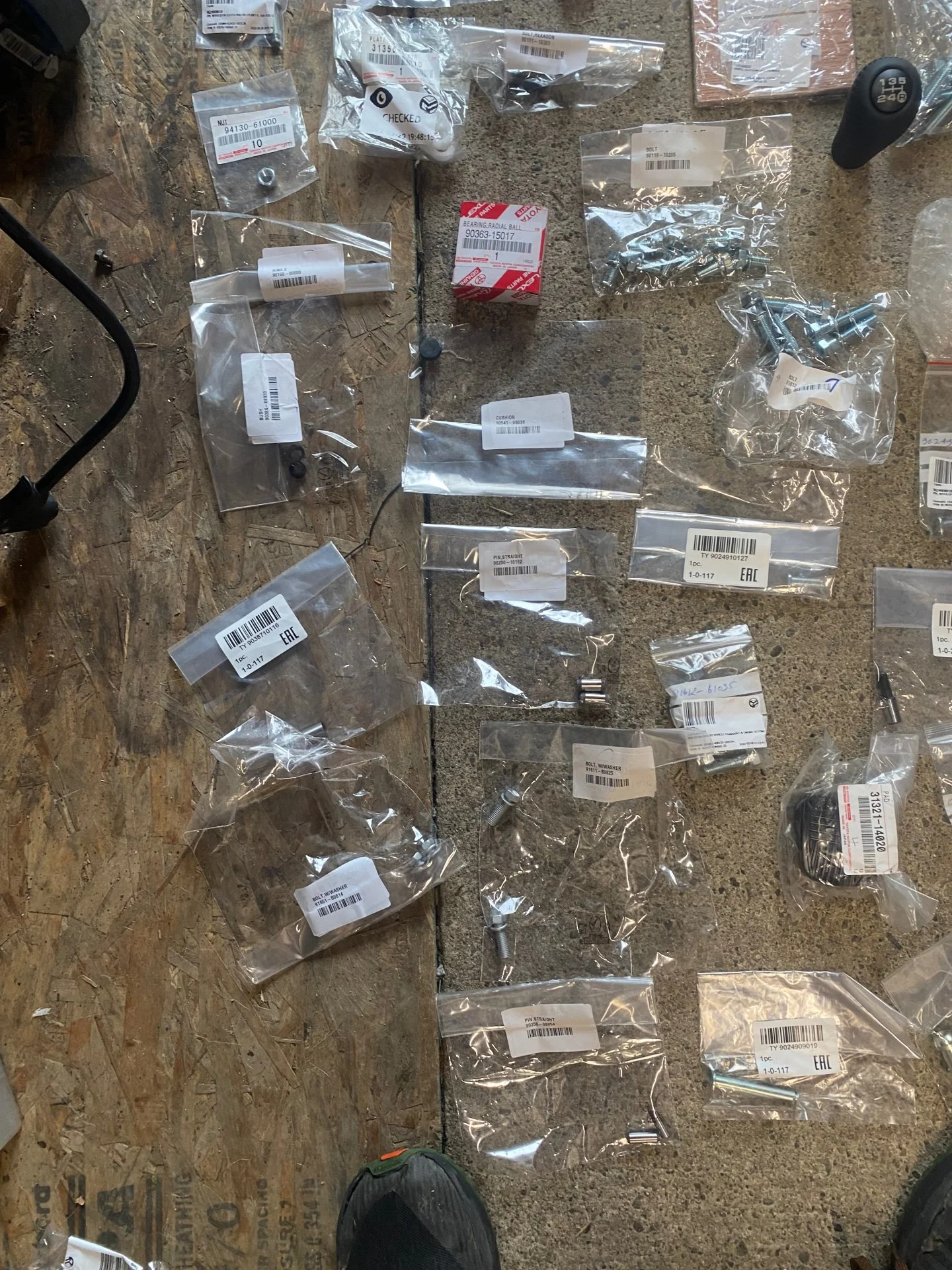

Comes with all parts listed below, other than the ones mentioned above. Parts list taken from @gnarlynick2072 build thread. You may need to pick up some odds and ends, but this is 99 of what you need.
$5500 CDN plus shipping.
PARTS MISSING FROM LIST: clutch lines, driveshafts and trans cross member, this is 99% of everything you need to swap your auto HDJ81 into a freight train pulling 5 speed manual.
It took me a few months with orders from Amayama, Megazip and Partsouq to get all the parts in. They've been sitting on my shelf for 6 months now, and they need to go. Located in Port Coquitlam, BC. Will put on a pallet or crate and ship, at buyers pre-paid expense. Can also arrange delivery with a small deposit upfront and within a reasonable distance.
Major Parts:
H151F Trans and bell housing
Brand new 275mm flywheel and pressure plate, used clutch.
Used 300mm clutch and pressure plate - can have flywheel machined to accept 300mm parts
RHD Shifter console with leather boots
Clutch pedal assembly
Clutch master and slave
Rear main seal
Pilot bearing
Throwout bearing
Comes with all parts listed below, other than the ones mentioned above. Parts list taken from @gnarlynick2072 build thread. You may need to pick up some odds and ends, but this is 99 of what you need.
$5500 CDN plus shipping.

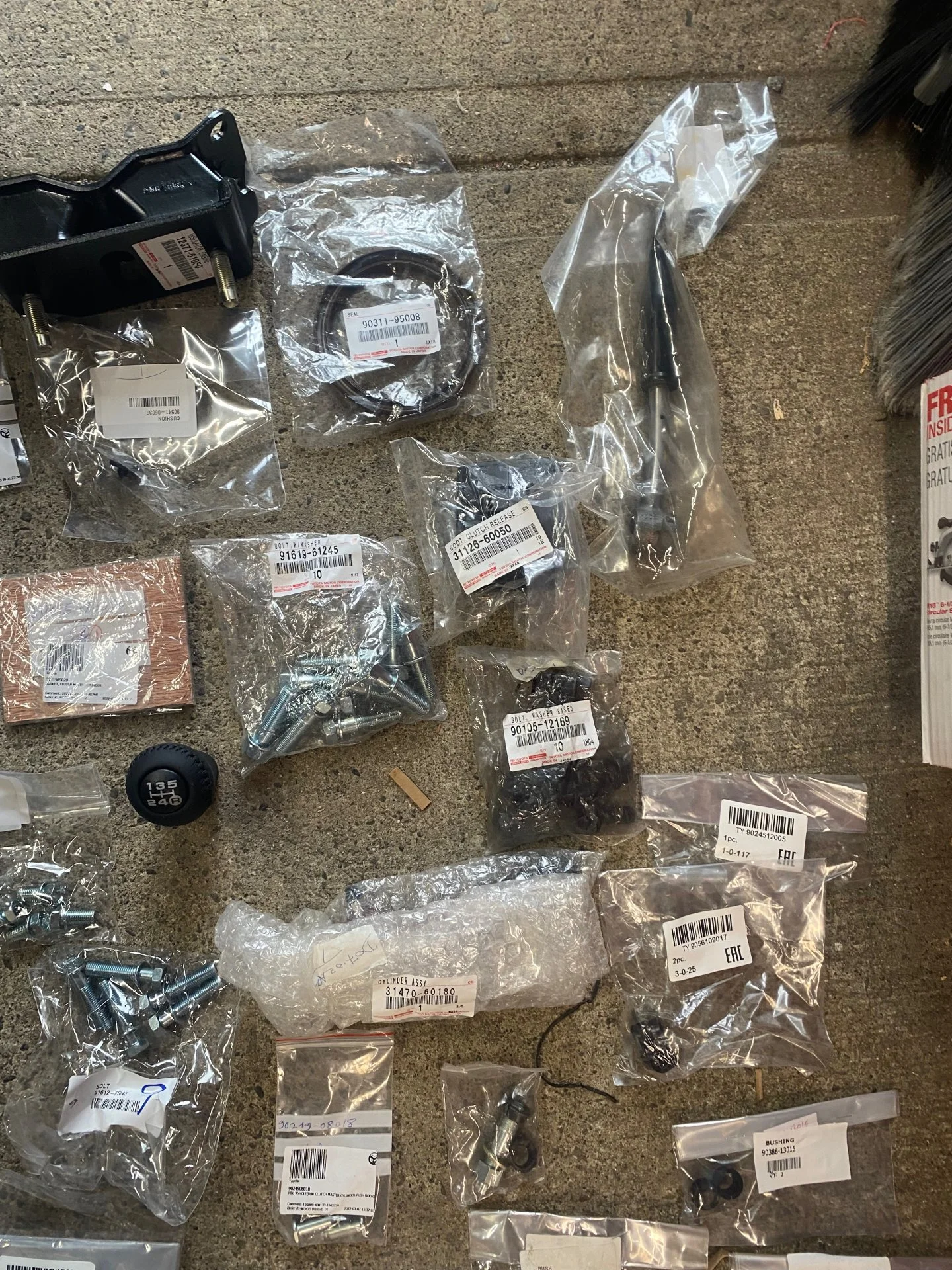

| Quantity Needed | Description | Part Number | Vendor |
2 | block dowels | 90250-08054 | Partsouq |
2 | transfer case dowels | 90250-12002 | partsouq |
9 | bell housing to trans bolts | 91611-61045 | partsouq |
1 | bell housing to trans shorter bolt | 91611-61035 | partsouq |
10 | bell housing to block bolts | 91619-61245 | partsouq |
1 | bell housing cover plate | partsouq | |
1 | main engine seal | 90311-95008 | partsouq |
1 | input bearing | 90363-15017 | partsouq |
1 | flywheel | 13405-17020 | partsouq |
2 | flywheel pins | 90250-10192 | partsouq |
8 | flywheel bolts | 90105-12169 | partsouq |
1 | clutch cover | 31210-60162 | partsouq |
8 | clutch cover bolts | 90119-10205 | partsouq |
1 | clutch disc | 31250-60401 | partsouq |
1 | slave cylinder | 31470-60180 | partsouq |
2 | slave cylinder bolts | 91611-B0825 | partsouq |
1 | fork pivot | 31236-35030 | partsouq |
1 | clutch ford | 31204-36110 | partsouq |
1 | throw out bearing | 31230-60181 | partsouq |
1 | fork boot | 31126-60050 | partsouq |
1 | shifter knob | 33504-20120-C0 | partsouq |
1 | front drive shaft | partsouq | |
1 | rear drive shaft | partsouq | |
1 | manual trans cross member | partsouq | |
1 | manual tran mount | 12371-61050 | partsouq |
1 | clutch pedal pin | 90249-08018 | partsouq |
1 | clutch pedal bushing | 90386-08033 | partsouq |
1 | clutch pedal locking pin | 90468-16142 | partsouq |
2 | pedal pads | 31321-14020 | partsouq |
1 | master cylinder | 31410-60372 | partsouq |
1 | master cylinder gasket | 31415-60020 | partsouq |
2 | master cylinder nuts | 90179-08038 | partsouq |
| Brake pedal | 47101-60210 | ||
| breather tube clamps | 96132-41000 | megazip | |
| tcase tierod | 3636060330 | megazip | |
| SHAFT, CLUTCH PEDAL | part souq | ||
| SHAFT, CLUTCH PEDAL | megazip | ||
| NUT(FOR CLUTCH PEDAL STOPPER) | megazip | ||
| BOLT(FOR CLUTCH PEDAL STOPPER) | megazip | ||
| WASHER SPRING | partsouq | ||
| CLIP | partsouq | ||
| NUT | megazip | ||
| CUSHION, NO.1(FOR CLUTCH PEDAL) | partsouq | ||
| BUSH(FOR CLUTCH PEDAL) | partsouq | ||
| BUSH(FOR CLUTCH PEDAL) | partsouq | ||
| COLLAR, CLUTCH PEDAL SHAFT | megazip | ||
| BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | partsouq | ||
| PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | partsouq | ||
| SPRING(FOR CLUTCH PEDAL) | partsouq | ||
| BOLT W/WASHER | 91651B0814 | partsouq |
