Gauge Connector Wiring Help

sahelzer · Mar 13, 2023

Attempting to Wire FJ60 gauge cluster into my FJ55.
I bought the appropriate connector and color coded wires from @ToyotaMatt but looking for picture of the wire placement in the FJ60 connector.

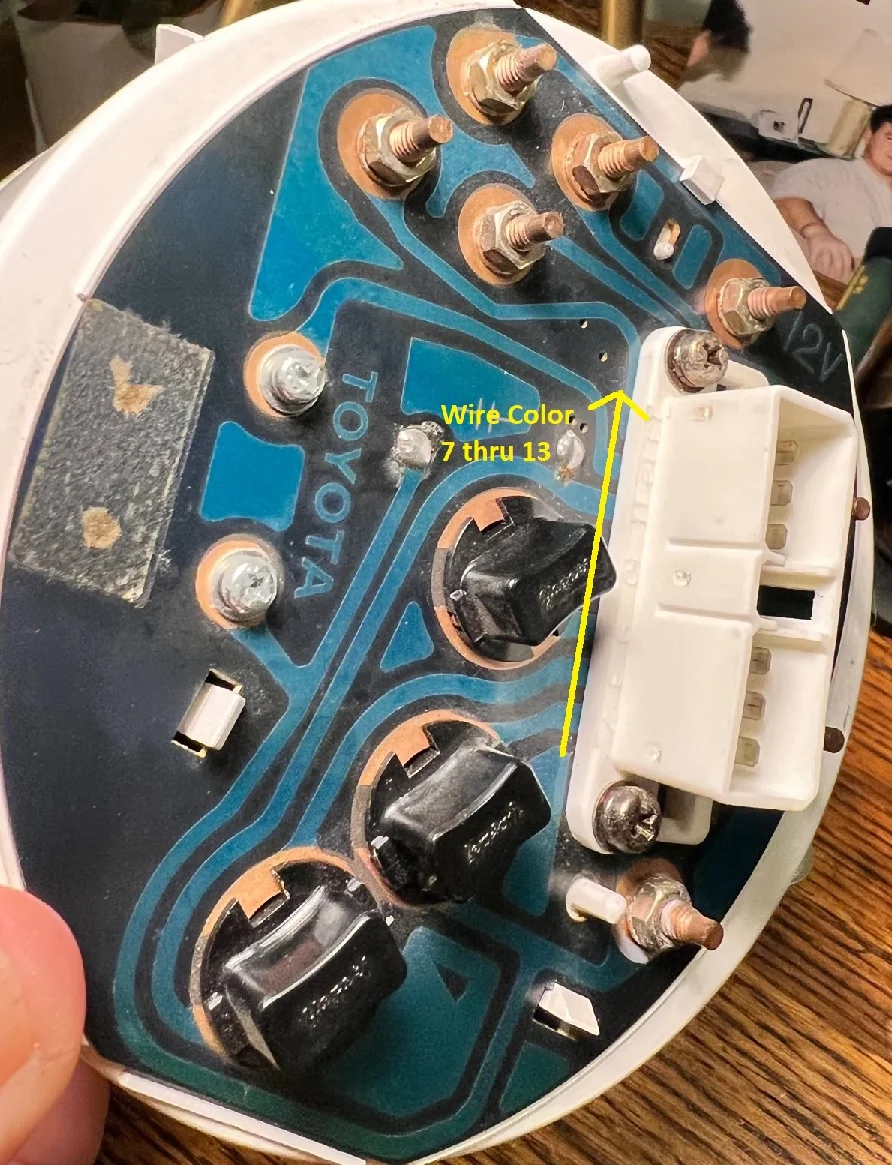

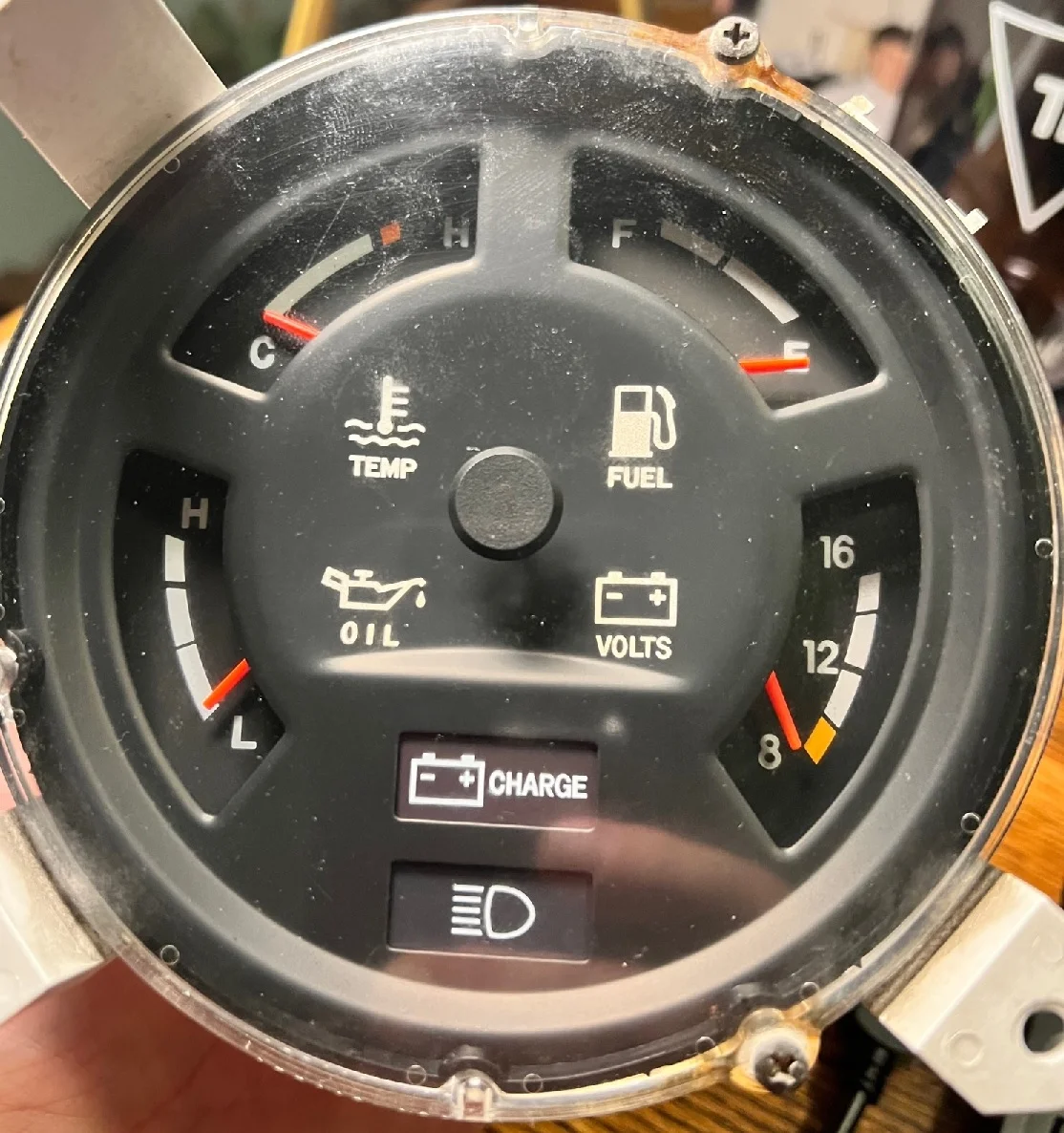

Need wire Color Codes for terminals 1 thru 13 shown below. Here is my gauge front for reference.

sahelzer · Mar 14, 2023

Bump to top.
Can anybody help a brother out with pictures of their connector so I can ID the proper wiring?

Skreddy · Mar 14, 2023

Here’s from my 87.

1: green
2: blank
3: blank
4: yellow
5: yellow/black
6: blank

7: blank
8: red/green
9: white/green
10: green
11: brown
12: brown
13: yellow/red

ToyotaMatt · Mar 14, 2023

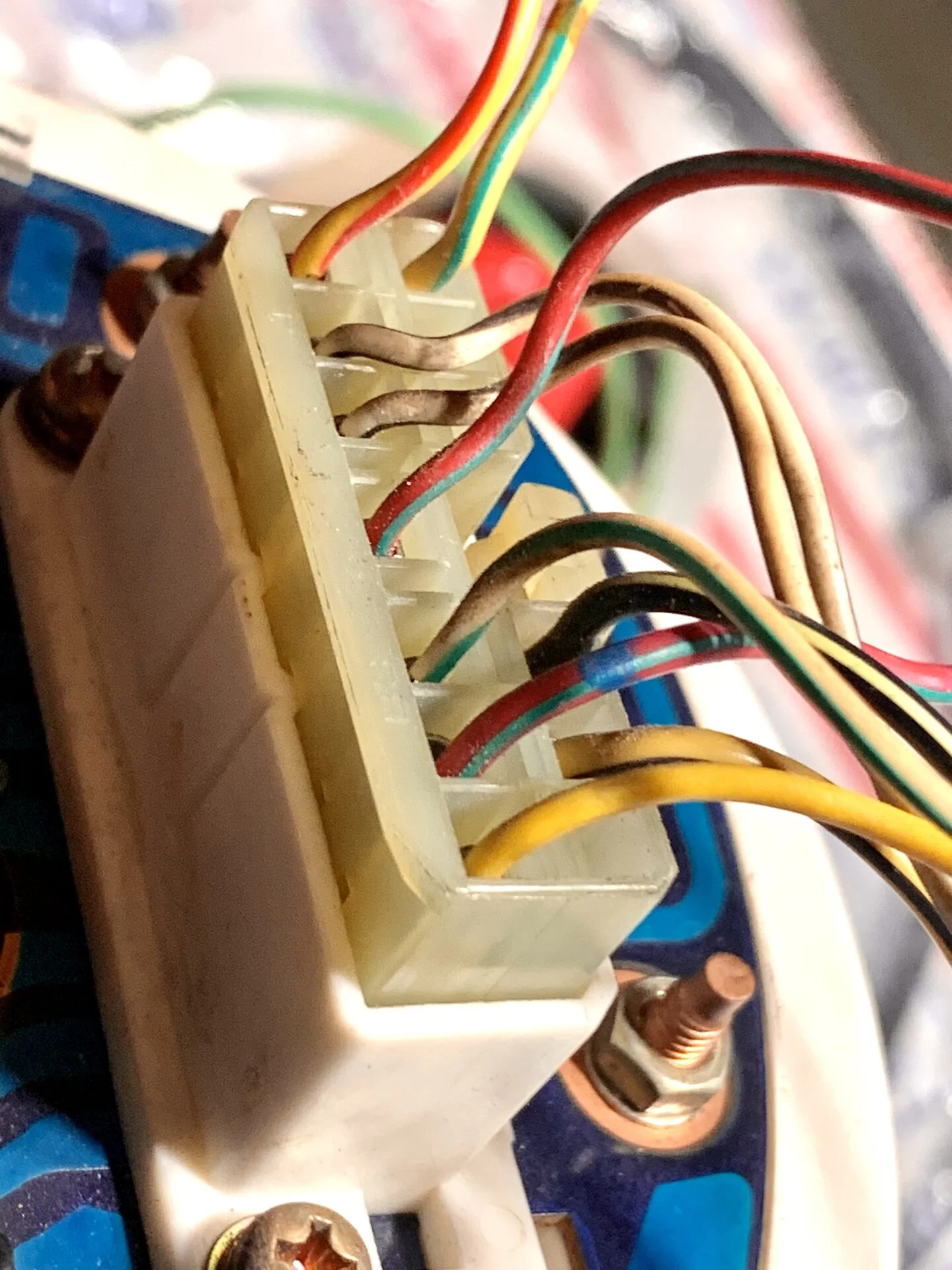

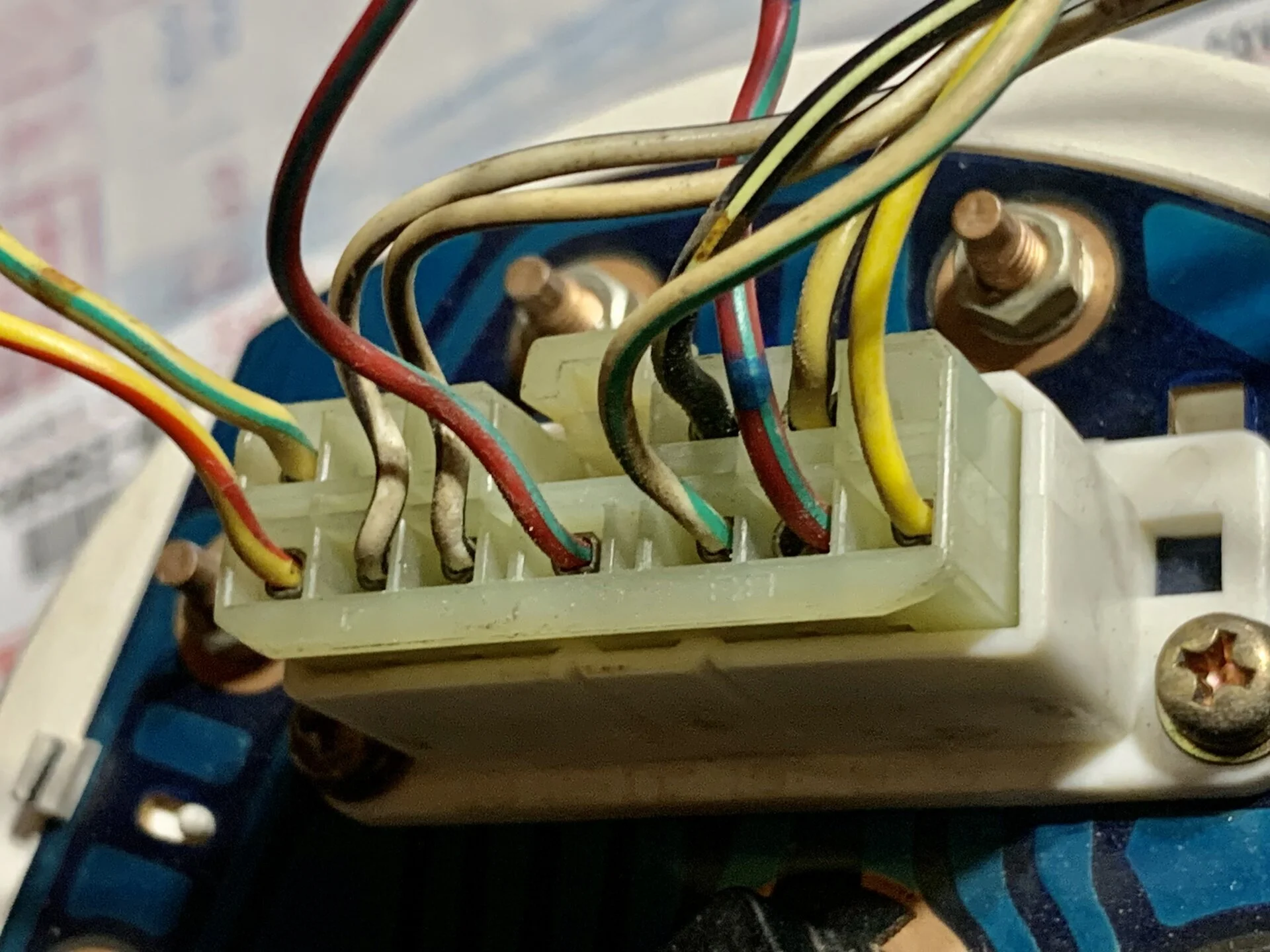

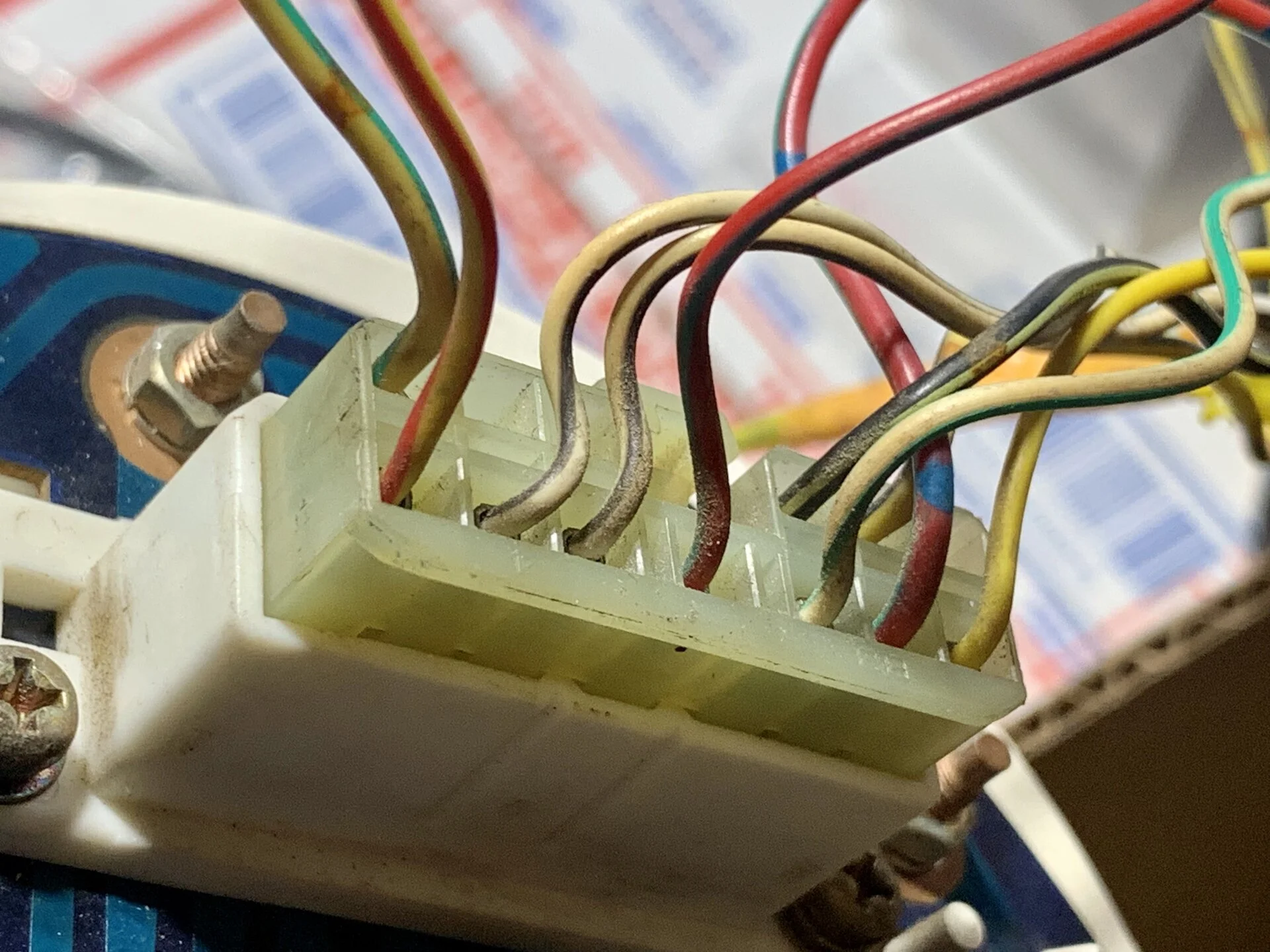

Does this help ?

2mbb · Mar 15, 2023

This might help, too. I'm not sure the FJ55 wire colors will be the same.

sahelzer · Mar 15, 2023

Skreddy said:
Here’s from my 87.

1: green
2: blank
3: blank
4: yellow
5: yellow/black
6: blank

7: blank
8: red/green
9: white/green
10: green
11: brown
12: brown
13: yellow/red

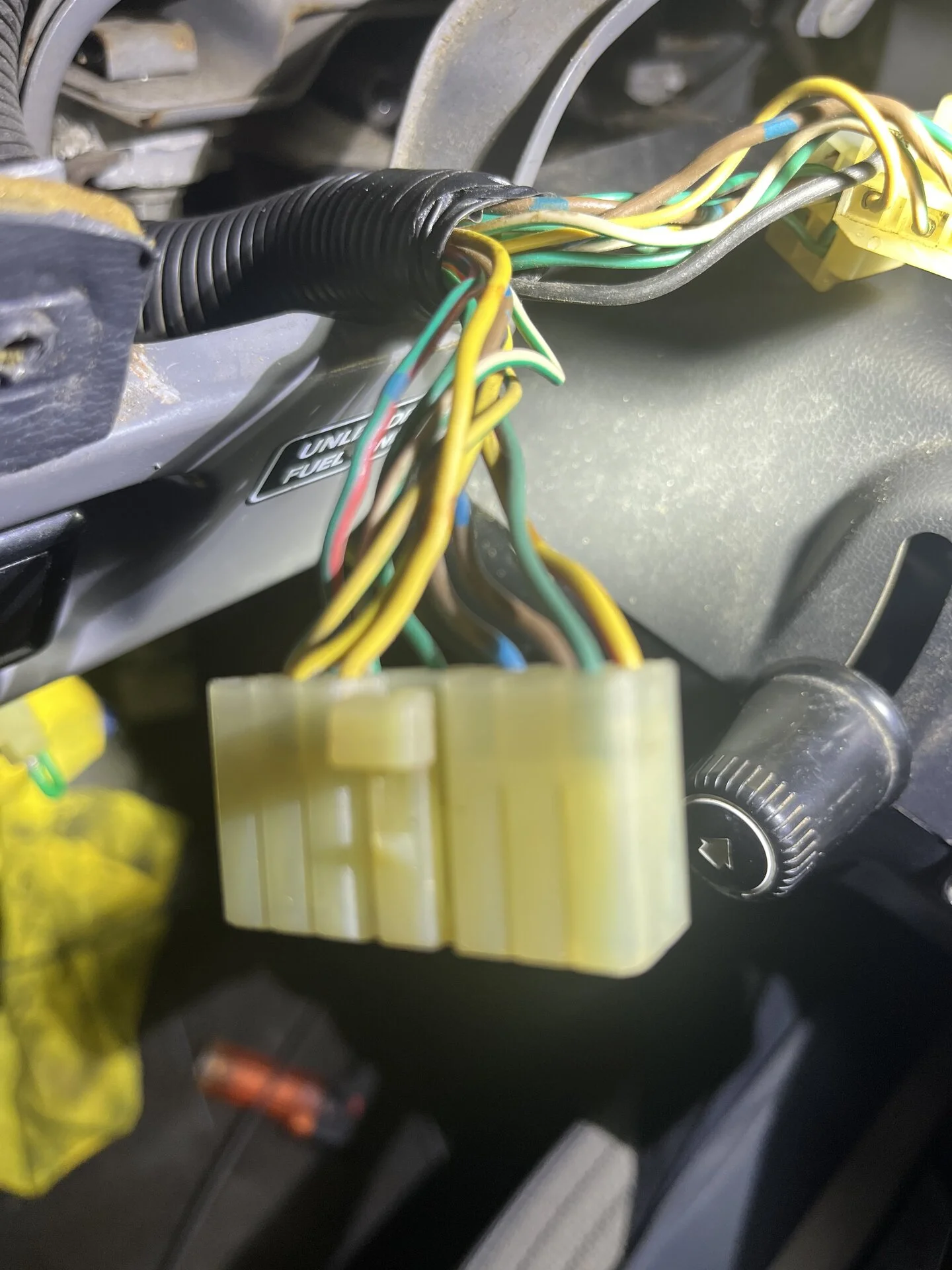

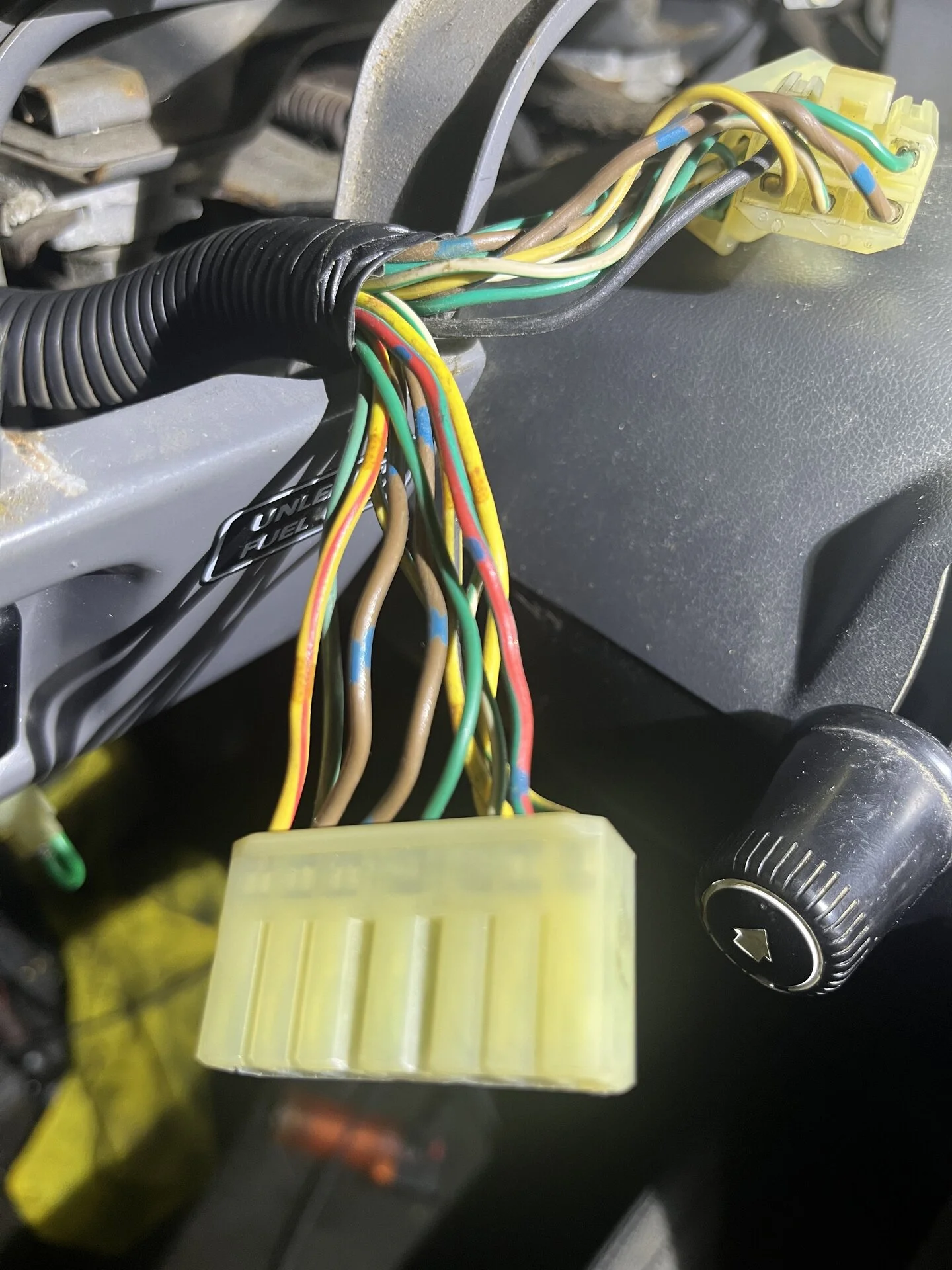

View attachment 3272767 View attachment 3272768

Thanks @Skreddy. Great info. Bought some parts from you recently for my pig.

sahelzer · Mar 15, 2023

ToyotaMatt said:
Does this help ?

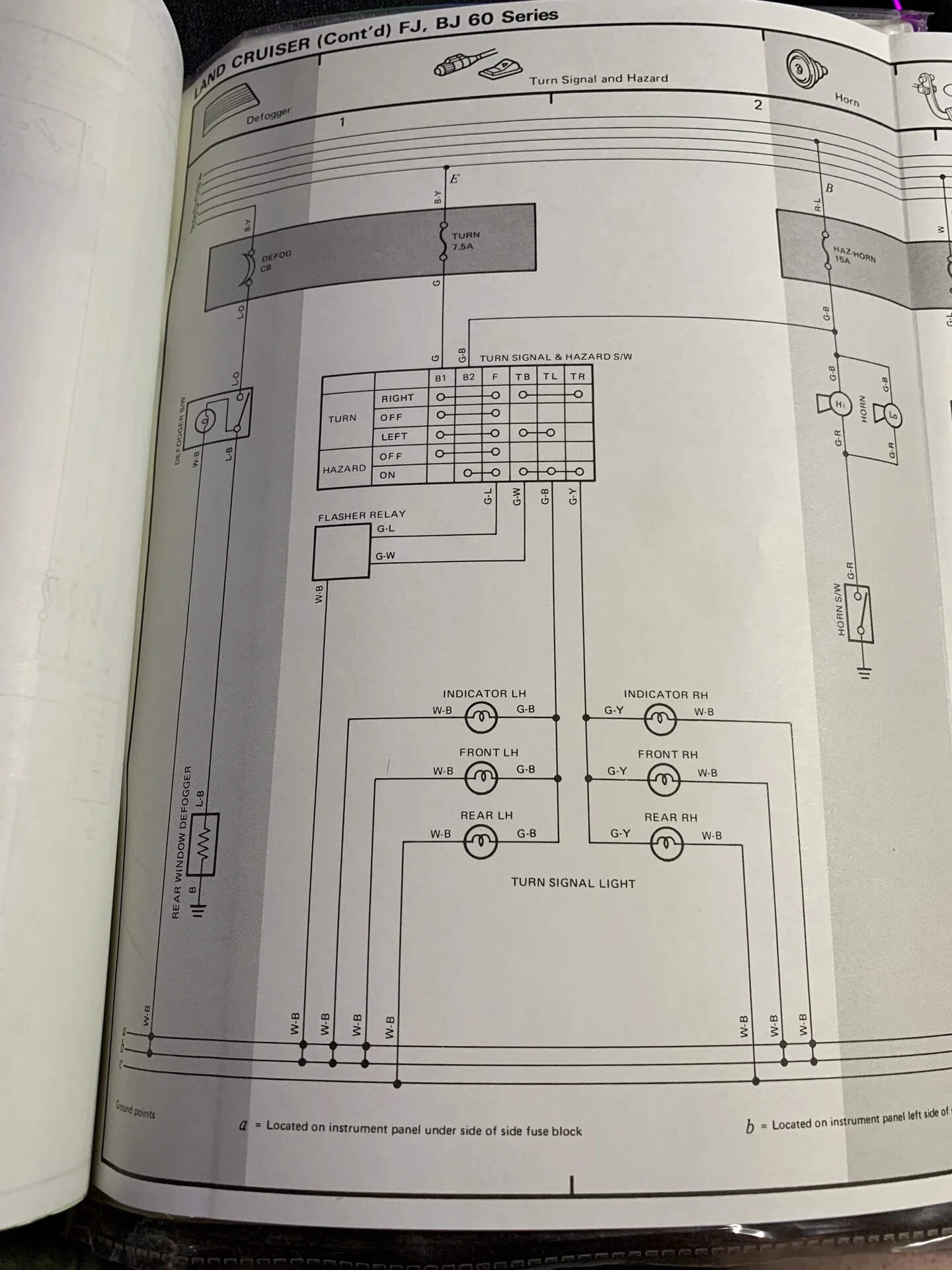

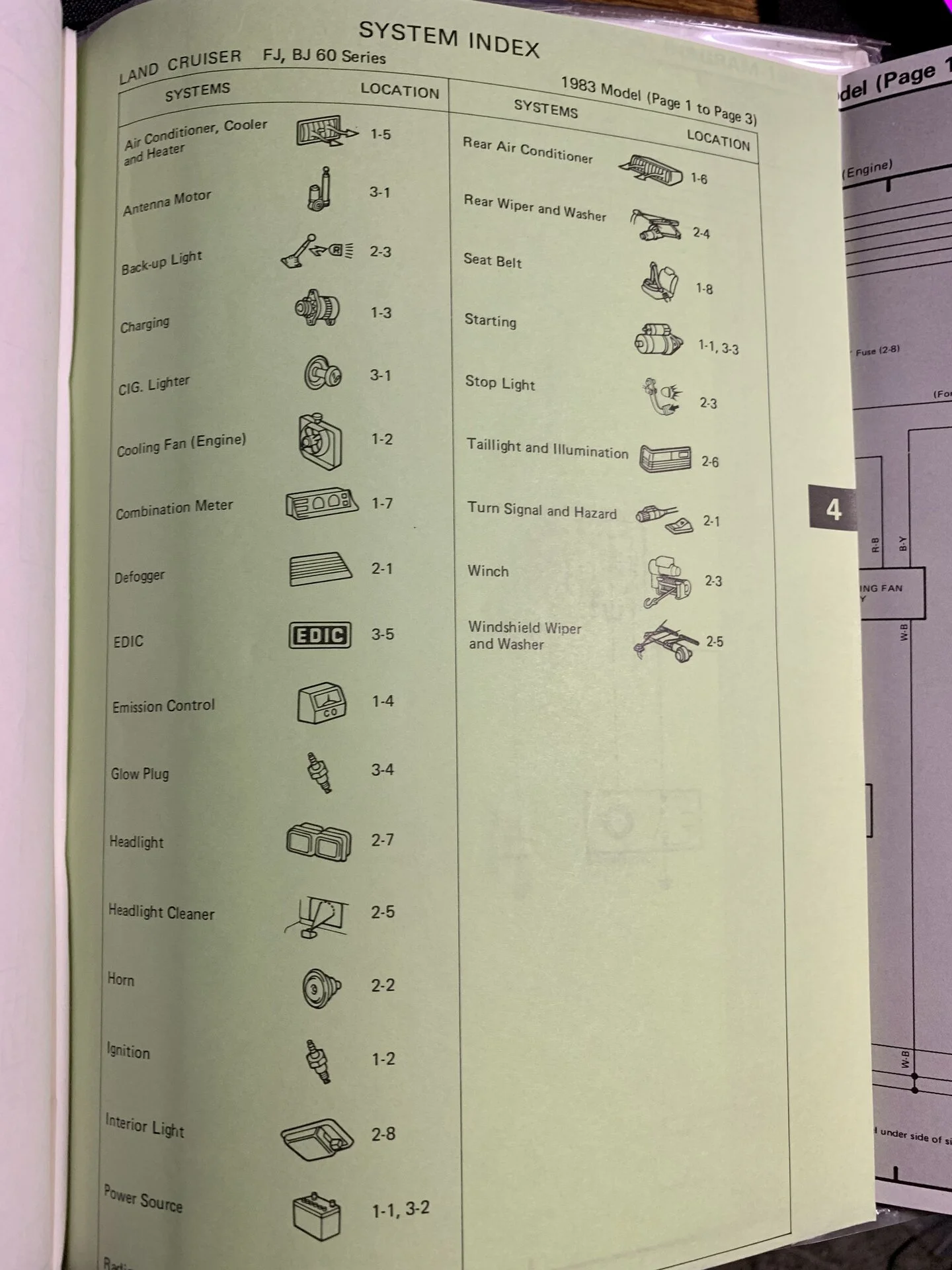

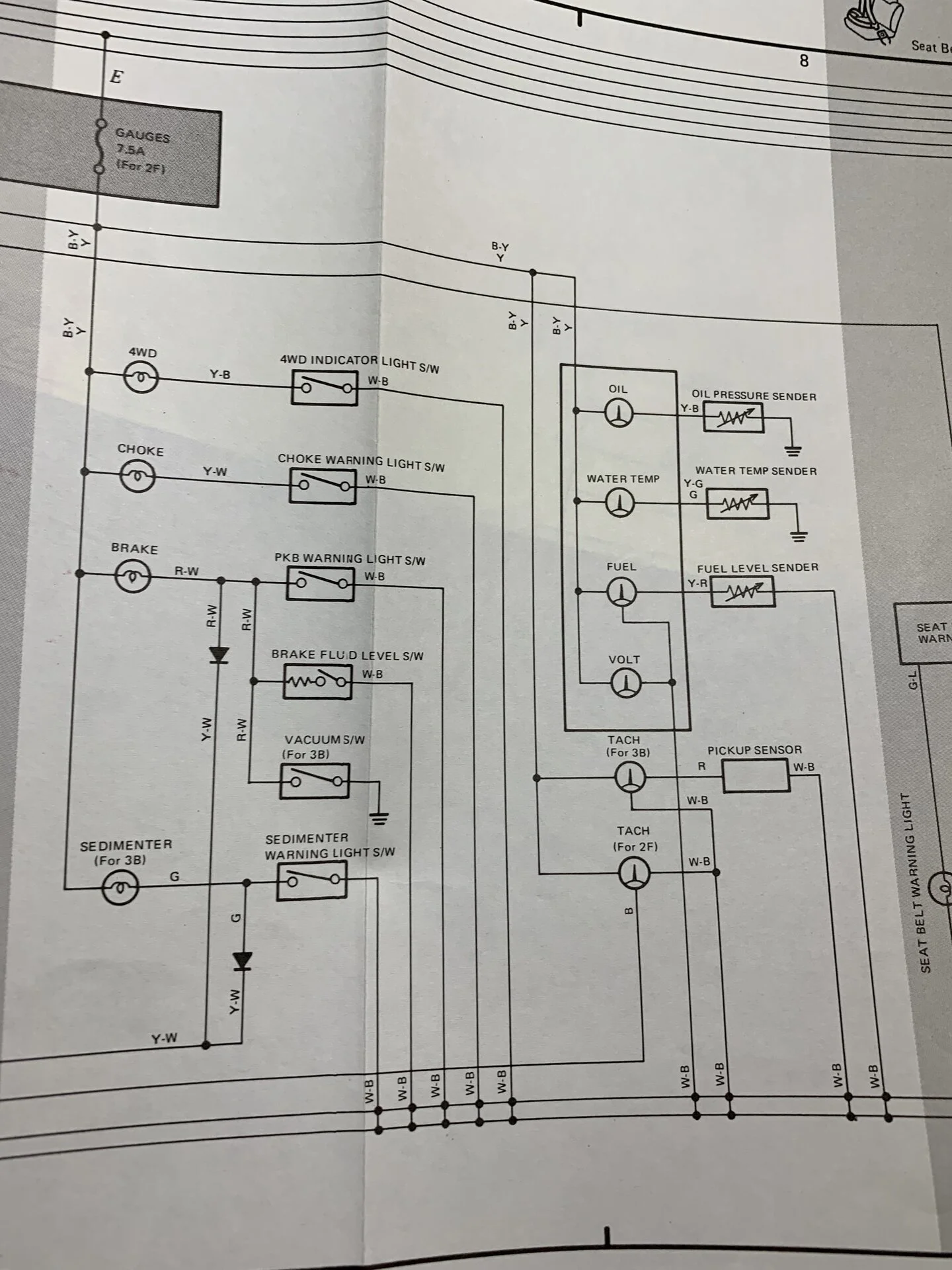

View attachment 3272776 View attachment 3272777 View attachment 3272778

Thank you @ToyotaMatt. Always a gentleman and Toyota scholar.

Skreddy · Mar 15, 2023

sahelzer said:
Thanks @Skreddy. Great info. Bought some parts from you recently for my pig.

Shoot you sure did! Half the time I don’t even pay attention to user names. Hope you get it sorted.

sahelzer · Mar 15, 2023

2mbb said:

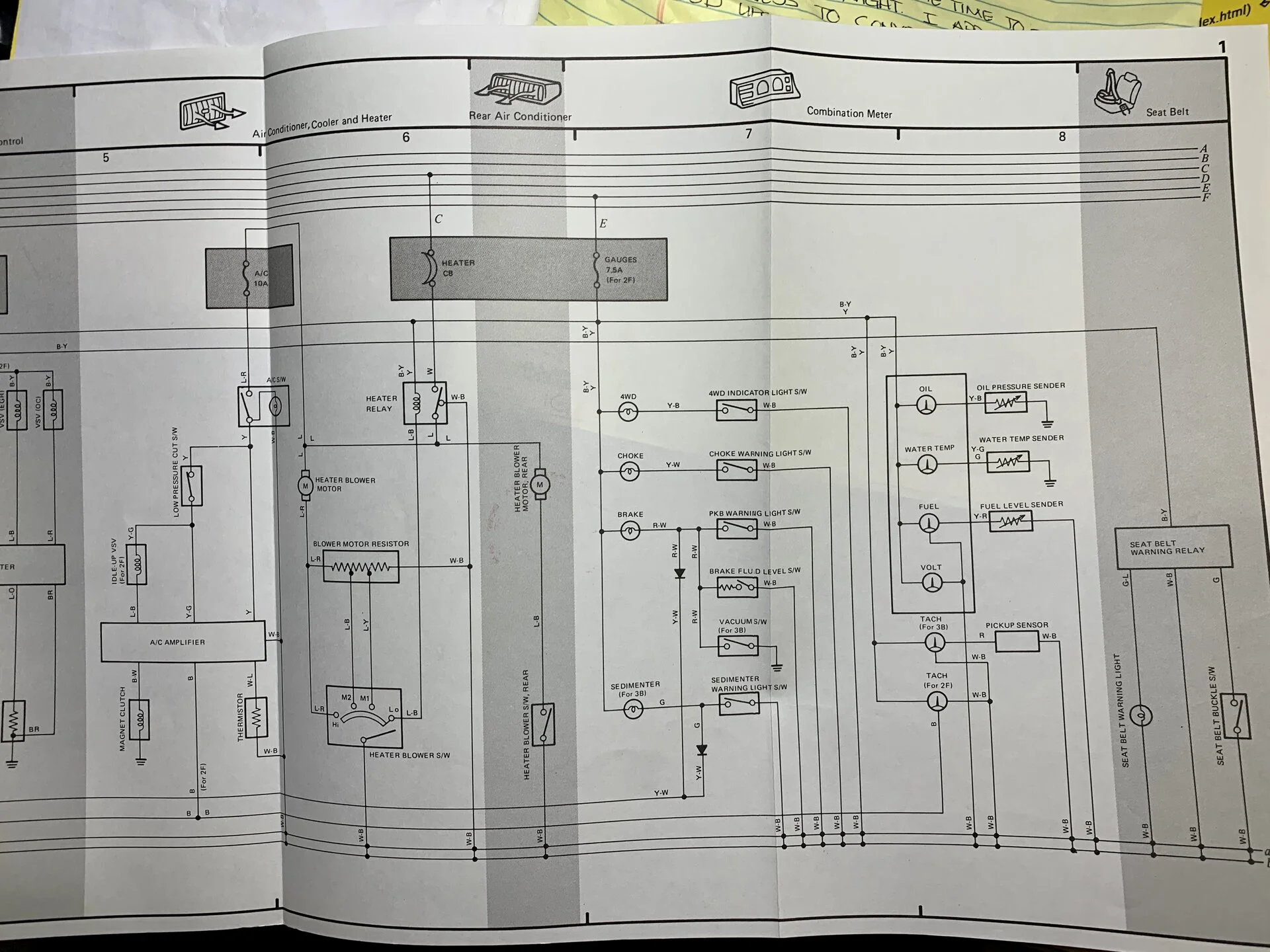

This might help, too. I'm not sure the FJ55 wire colors will be the same.

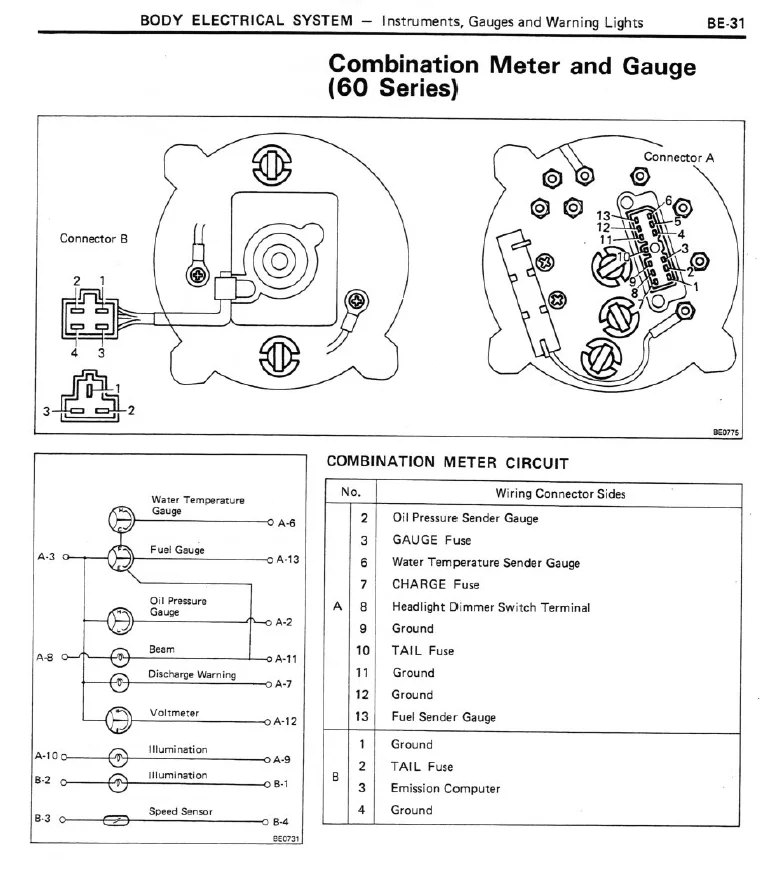

View attachment 3272887

Thank you @2mbb This will come in handy. Happy to see the 60 guys helpful like the pig farmers in the Fj55 forum

ToyotaMatt · Mar 15, 2023

Skreddy said:
Shoot you sure did! Half the time I don’t even pay attention to user names. Hope you get it sorted.

Skreddy said:
Here’s from my 87.

1: green
2: blank
3: blank
4: yellow
5: yellow/black OIL SENDER UNIT
6: blank

7: blank
8: red/green
9: white/green
10: green
11: brown
12: brown
13: yellow/red FUEL SENDER FLOAT in tank
