Fzj80 oxygen sensor (1 Viewer)

Joined
Dec 2, 2018
Messages
7
Location
QLD, AUStralia
Good evening everyone,
I placed my 96 fzj80 on the emissions analysis machine at my mate's shop and i thought i had a beautiful running truck. However she is running rich at 13.8 AFR and blowing emissions like an old school v8. My friend said 'we'll put it up on the hoist and backprobe the o2 sensor' well it turns out the Previous owner put on a set of extractors but also removed the catalytic converter and also removed the o2 sensor. So no wonder it was running rich and spewing hydrocarbons out the wazoo. Anyway so i bought a new bosch style o2 sensor and it has 2 white heater wires, 1 grey wire and 1 black wire. However instead of my truck having a female plug at the harness it's got a 4 plug male and the colours of those wires don't match up at all to anything ive found on here or the net.

The colours are
Green w/ orange stripe
Red
Blue
Black w/ yellow stripe.

I know the green/orange=12v

But my multi meter just shows 0.006v - 0.008v on all the other wires.

Any help or insight would be greatly appreciated as its not a good idea to run without an o2 sensor at least. Thanking you.
Adam







voodu3

SILVER Star
Joined
Oct 13, 2017
Messages
992
Location
Signal Mountain,TN
Not to sound like a jackass but are you sure you have the correct plug on the harness side? I just looked at an old O2 sensor I have and it’s a male end. My cruiser isn’t with me at the moment or I’d check the connections. From your pic it looks like there are multiple plugs there.

Joined
Dec 2, 2018
Messages
7
Location
QLD, AUStralia
Not to sound like a jackass but are you sure you have the correct plug on the harness side? I just looked at an old O2 sensor I have and it’s a male end. My cruiser isn’t with me at the moment or I’d check the connections. From your pic it looks like there are multiple plugs there.
You don't sound like a jackass mate, any information is extremely helpful :)

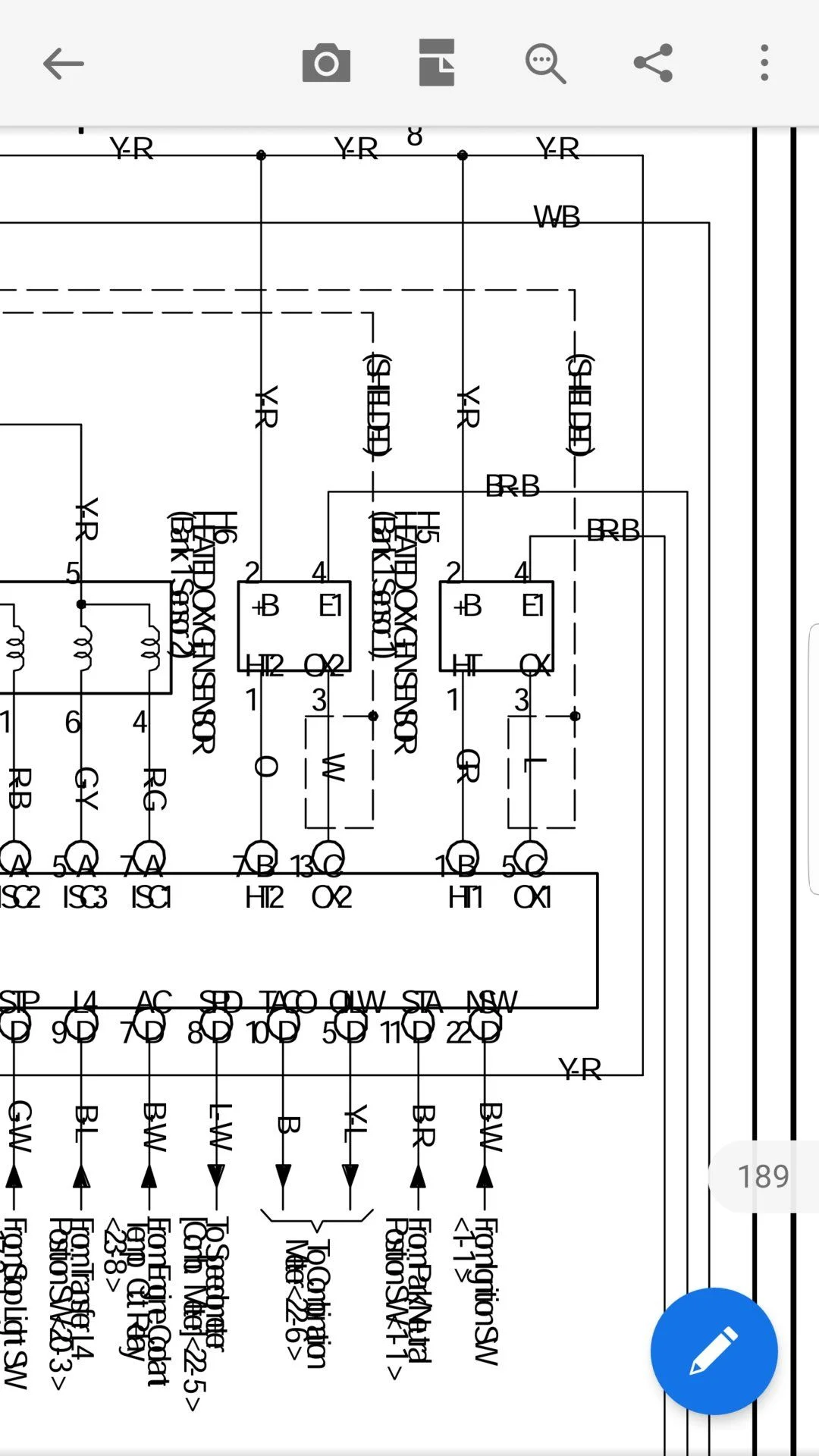

The other plugs in the pictures are a round type plug and a smaller 6 pin square plug. All the other posts ive seen is that there is a female plug on the harness side and a male on the o2 sensor. I'm thinking more and more the Previous owner did something pretty dodgy.

Thankyou kindly for replying.
