FJ60 Choke Cable routing

Joined
Nov 24, 2019
Messages
71
Location
Philadelphia
Good morning mudders. I’m looking for a picture of the choke cable routing from firewall to carburetor, preferably with the air cleaner removed, but anything that shows how the choke cable gets to the choke helps. I have a new cable to install but the old one is just flopping around in the engine bay and I’m sure there are some attachments. Thanks for the help and happy wrenching this weekend.

Joined
Jan 21, 2022
Messages
67
Location
Albany, Oregon
Good morning mudders. I’m looking for a picture of the choke cable routing from firewall to carburetor, preferably with the air cleaner removed, but anything that shows how the choke cable gets to the choke helps. I have a new cable to install but the old one is just flopping around in the engine bay and I’m sure there are some attachments. Thanks for the help and happy wrenching this weekend.

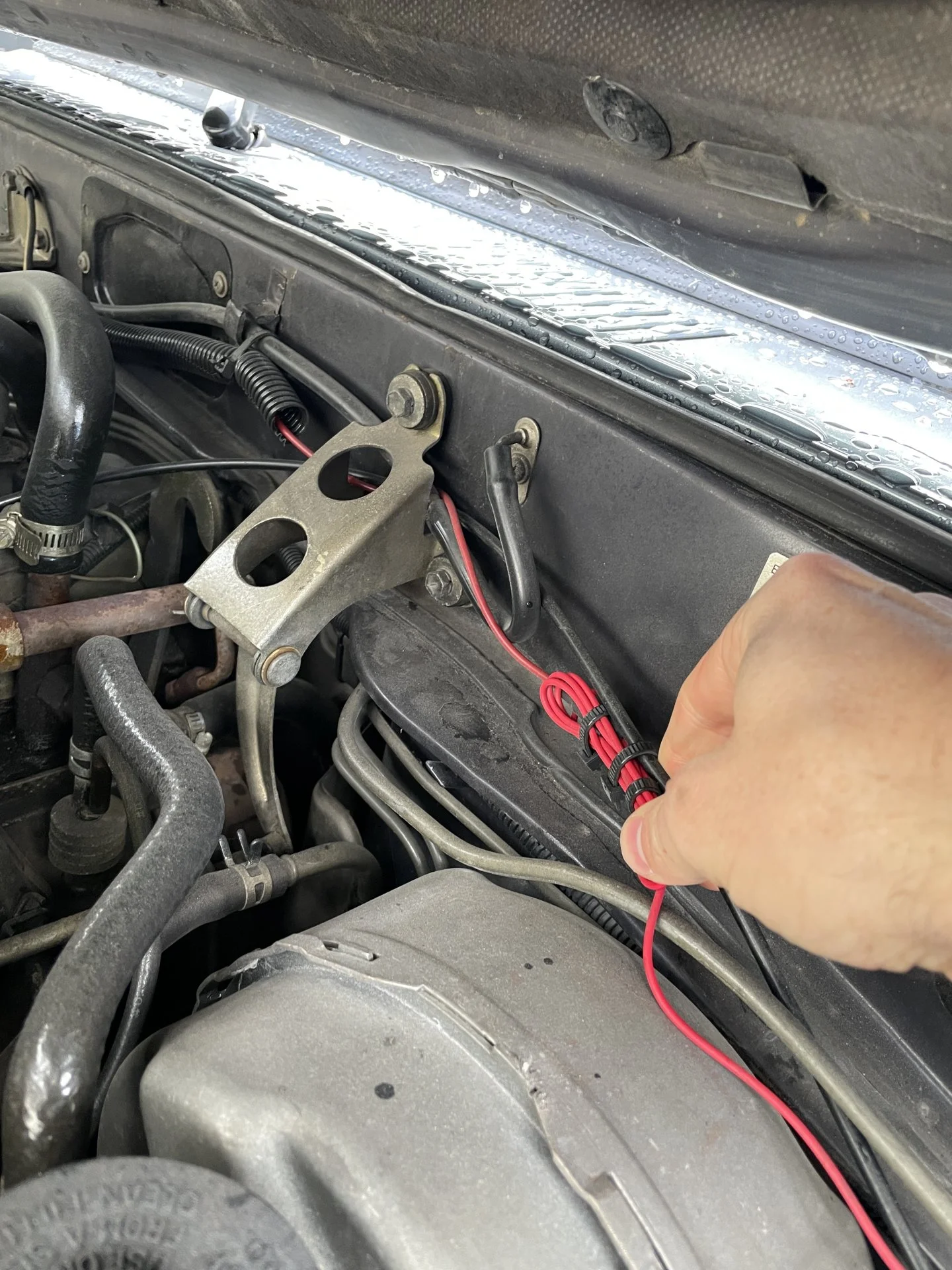

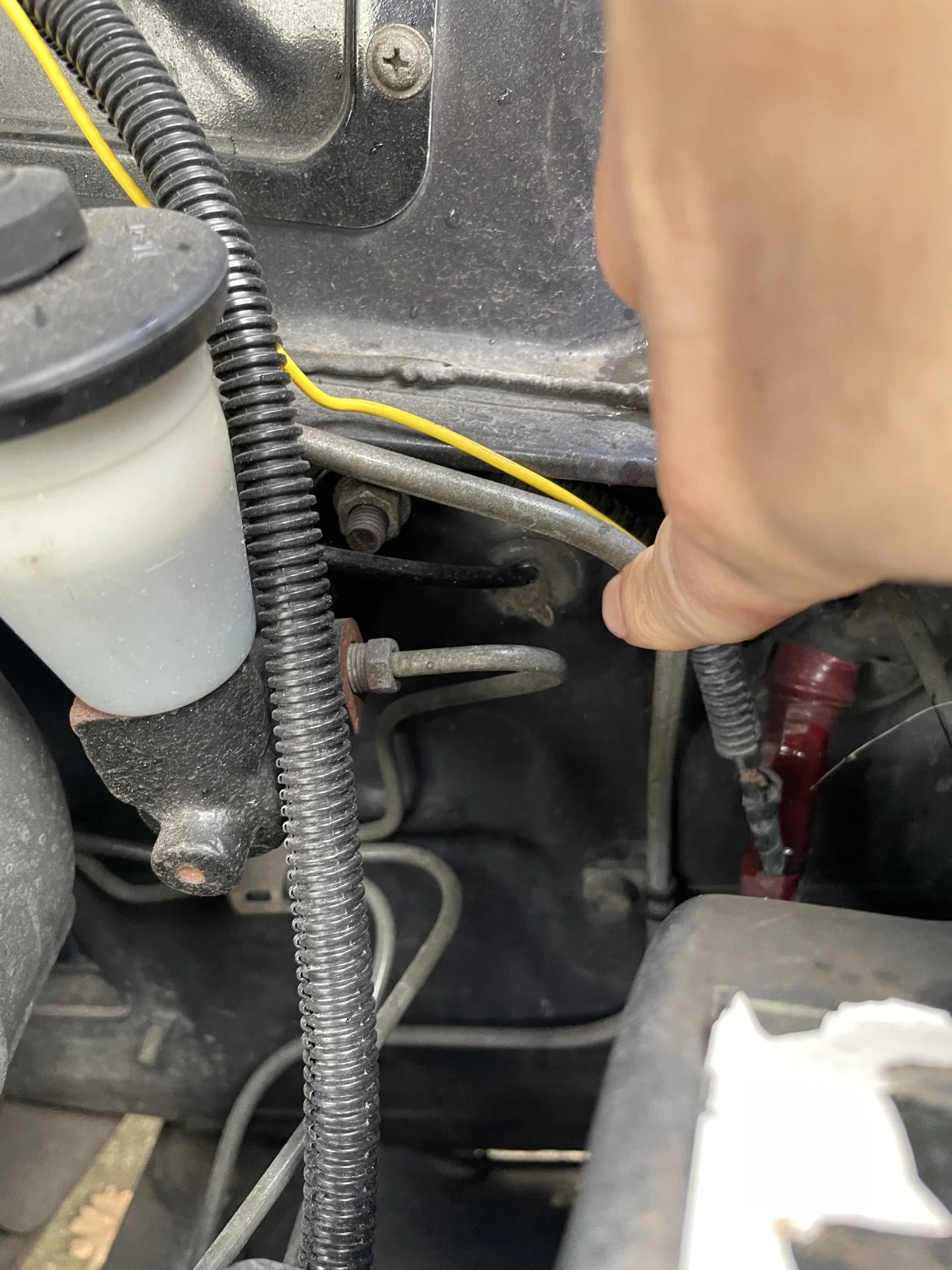

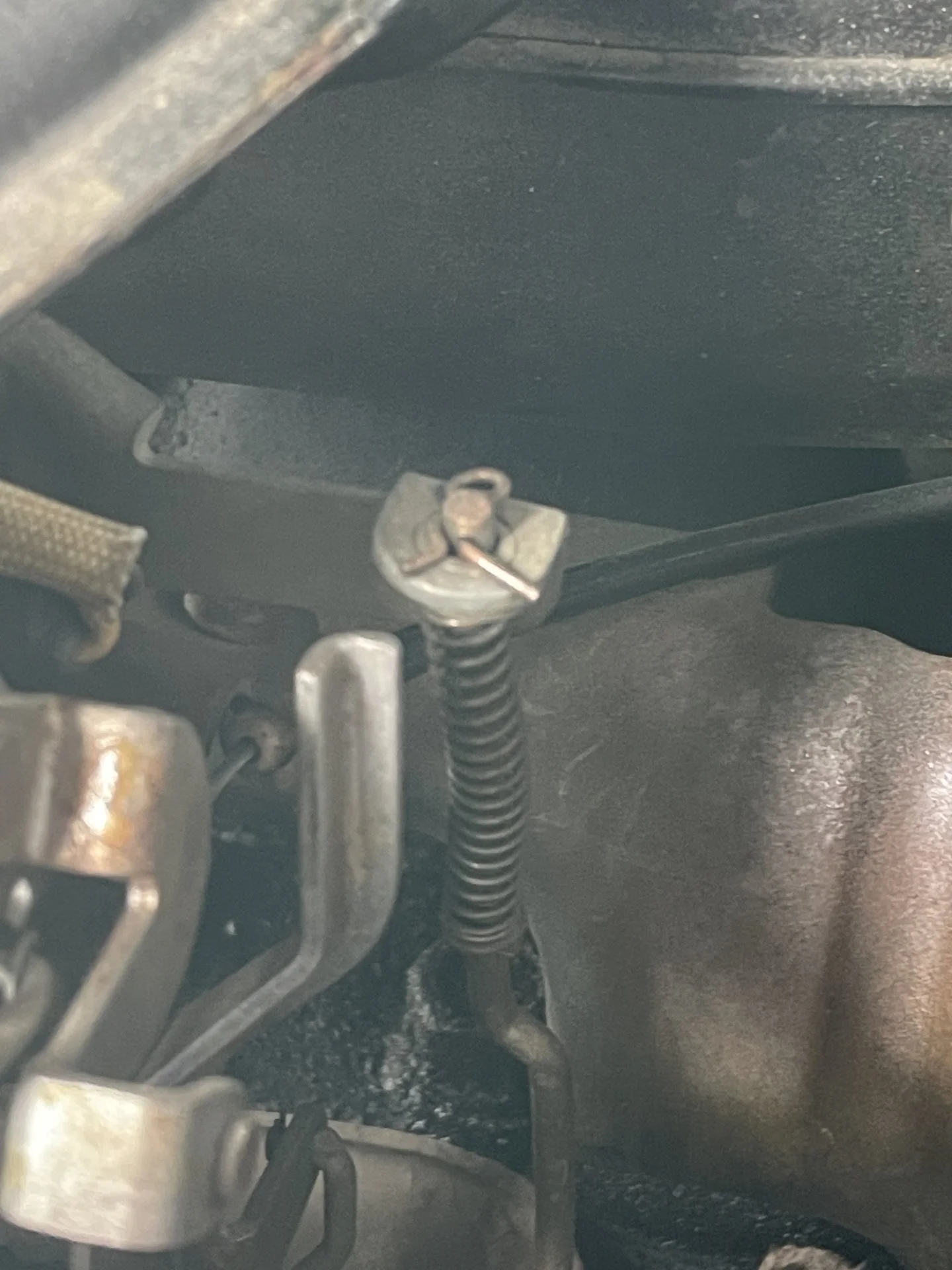

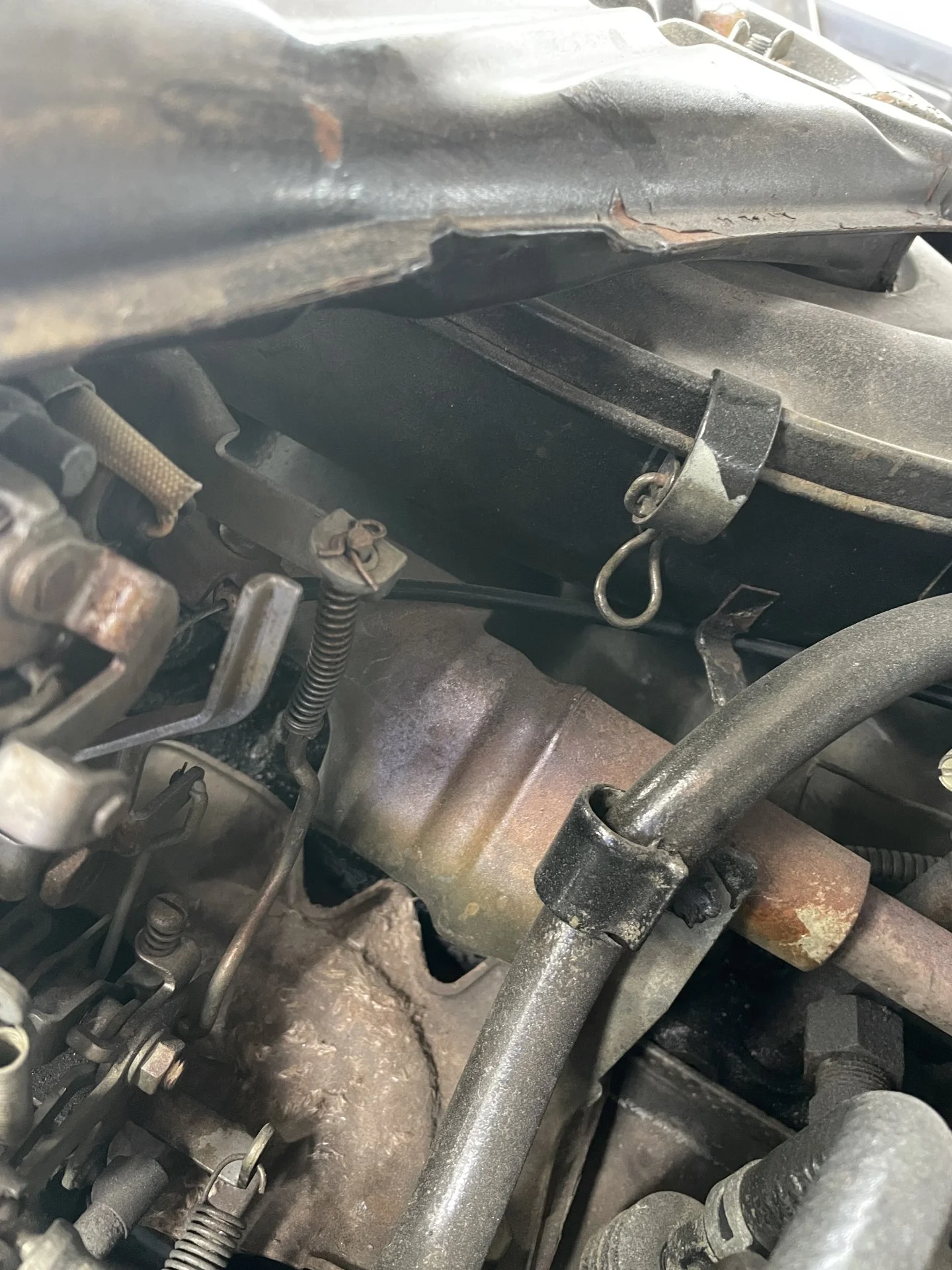

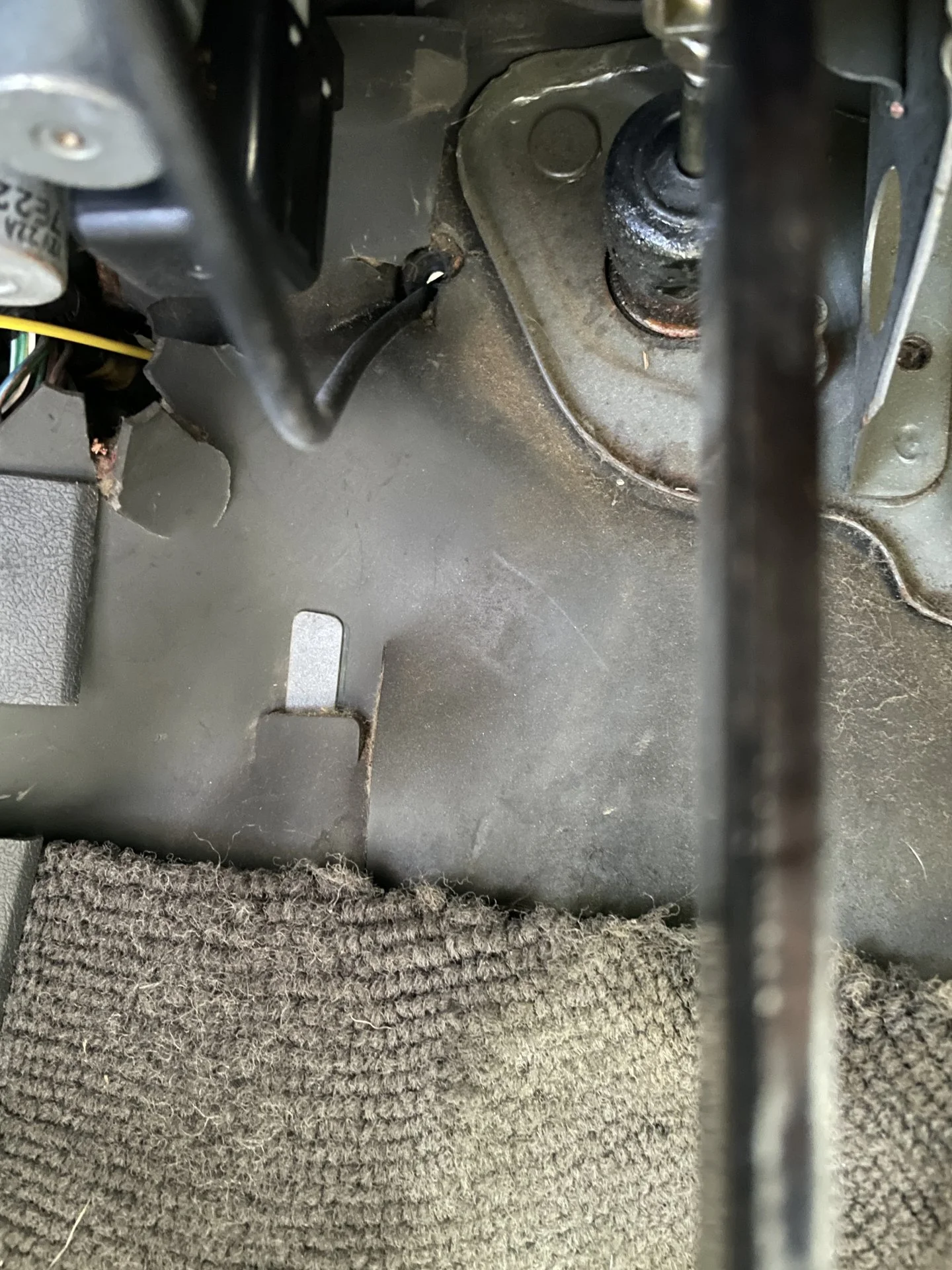

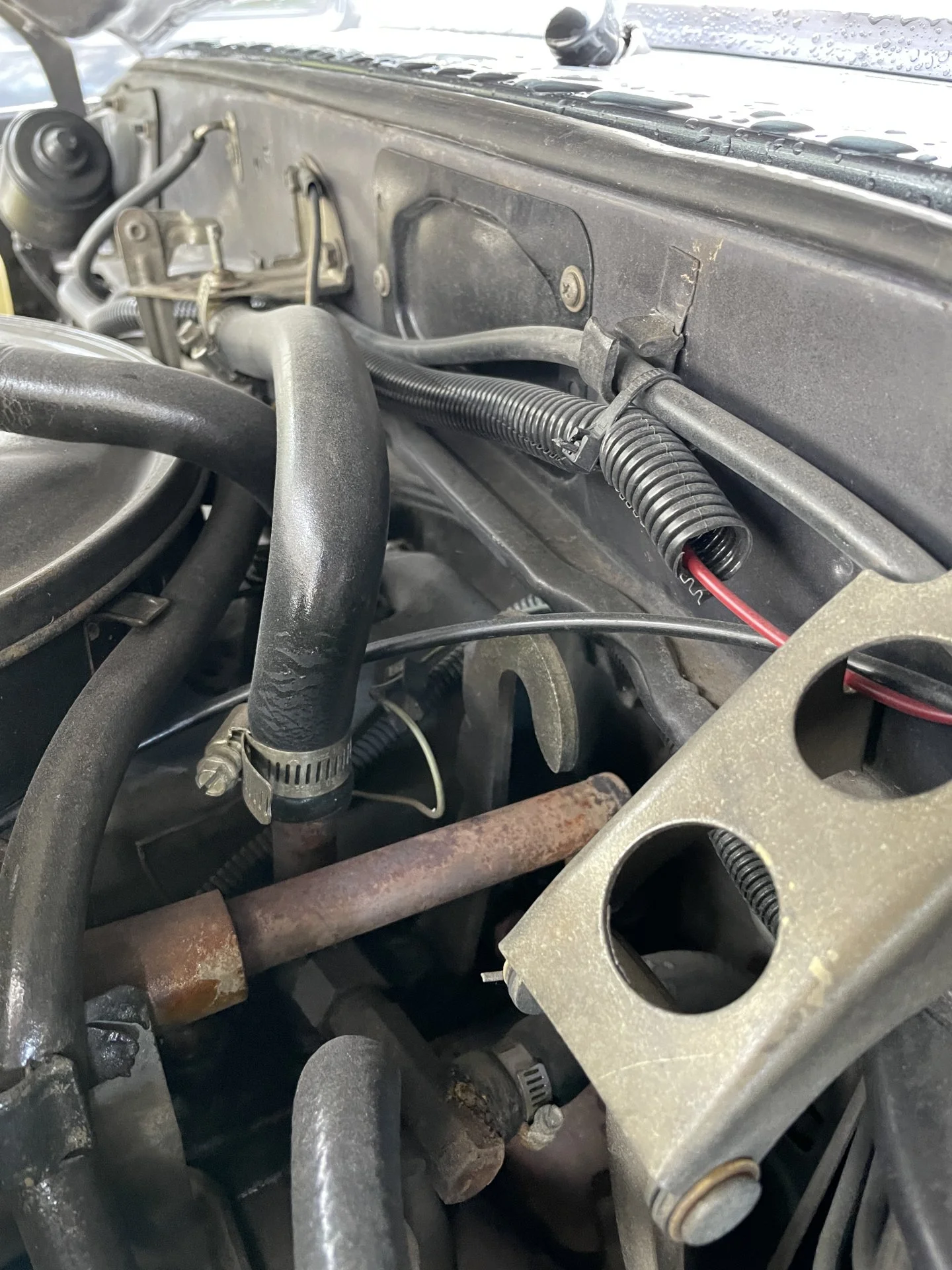

Here is the routing of mine. Not likely the stock way of doing it since mine was also flopping around, but it works for me.











OSS

SILVER Star
Joined
Jun 30, 2017
Messages
4,893
Location
Oblivion
The FJ60 choke cable doesn’t have designated anchor points to guide it all tidy like to the carburetor. Once it enters the engine compartment, you’re pretty much on your own as to how to run it to the carburetor.
Your guiding light is:
Route it as smoothly as possible to the carburetor so there’s no sharp bends. The air cleaner housing has a few thin metal tabs on it that can hold the cable as it wraps around to the other side.
