Thought I'd share my winch mount. The bumper I'm using is an aluminum Rover bumper. I like the looks of it, and the light weight but I didn't want to put all the stress of recover on aluminium.

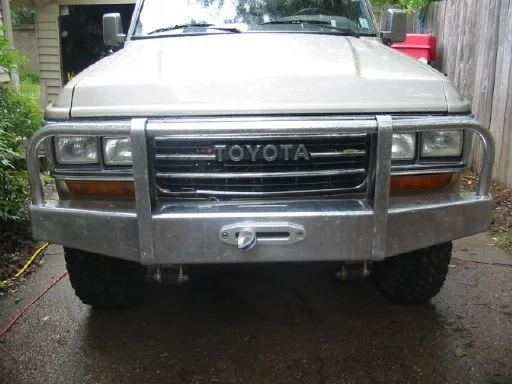

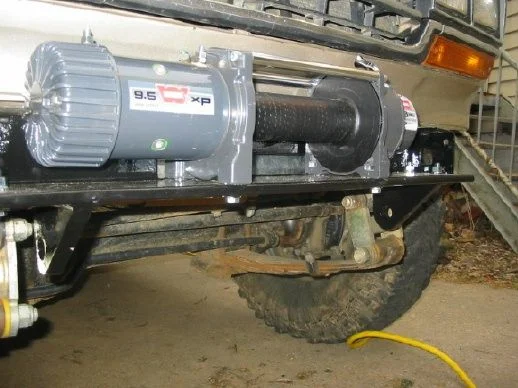

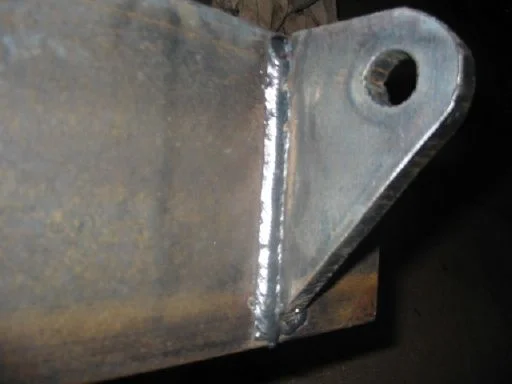

I had a local welding shop make a custom tray to go between the frame rails to hold my winch. It bolts on through the frame bolts, independent of the bumper. I had some recovery points welded underneath. They are cut at an angle, so that they will slide up a rock. They are just inside the shackles, so that the shackles won't flex into them.

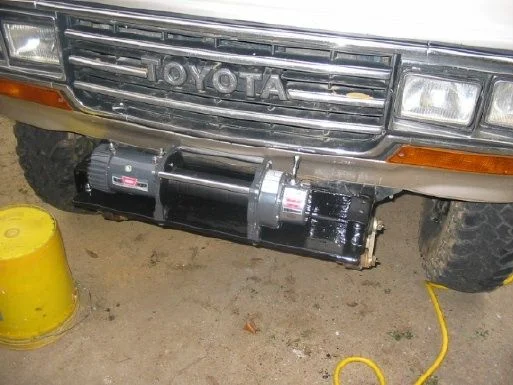

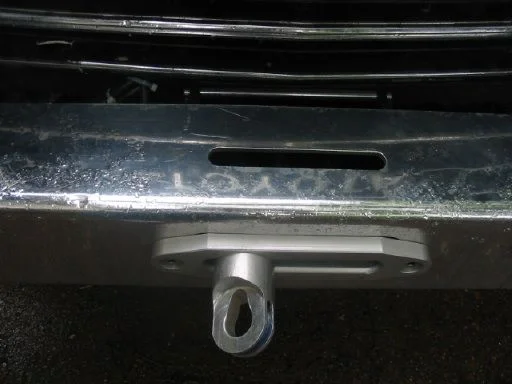

I mounted the winch, and bumper as close to the truck as I could. The control pack is behind the grill.



[theside00]

Looks good lets see the entire bumper and how it goes together



[Clutchee]

Keep it going hippie!



[euclid]

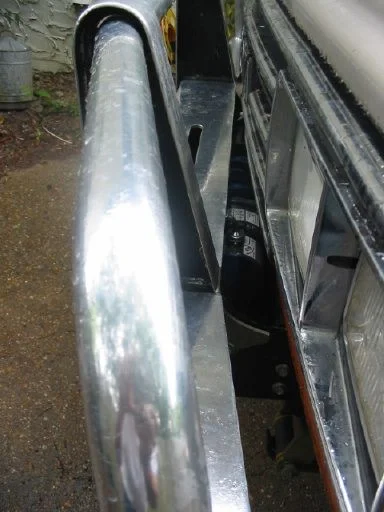

Mounted as high and tight as I could. I can still reach the clutch lever with gloves on... not that I need them (synthetic rope). Ok, safety nazi's I'll wear them.

The grill was already broken when I started this project. I have a spare stowed back, so it didn't hurt my feelings to cut this one up. I had to take a good bit of material off the back of the grill to fit the solonoid pack in there. All I did for the pack was weld the back plate to a piece of 1" steel plate with a captive nut welded to the top and bottom of it. Top bolts in right at the top of the radiator, bottom bolts to the cross member behind the bumper. I didn't even have to make custom wires for the winch, the originals were long enough.
