Waggoner5 said:Make sure that the blue wire, (which is normally going to be the + wire) is going to the bulb pigtail and the black is going to the housing ground.
Waggoner5 said:Make sure that the blue wire, (which is normally going to be the + wire) is going to the bulb pigtail and the black is going to the housing ground.
Waggoner5 said:Make sure that the blue wire, (which is normally going to be the + wire) is going to the bulb pigtail and the black is going to the housing ground.
NorCalSam said:skrew the fog lights we want to see more pictures of that beast.

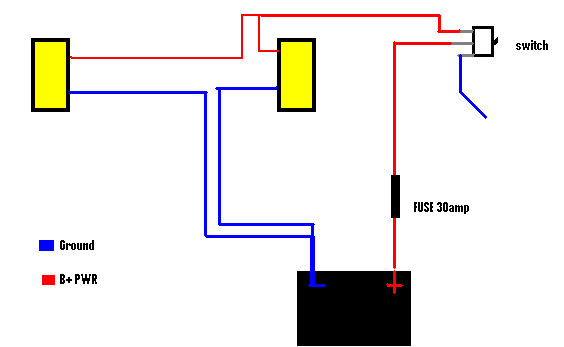

It appears according to his diagram that he has it wired correctly. I was just adding that blacks are normally ground with Hella and blue is normally hot.PKP80 said:??? that is not way it shows on the diag...re wire and make the blue B+?
Waggoner5 said:It appears according to his diagram that he has it wired correctly. I was just adding that blacks are normally ground with Hella and blue is normally hot.
A simple test of realy function would be to be to uplug 30 and unplug 86. Then touch the wire from battery+ to pin 86 to test relay function. If you hear the coils latch your relay is most likely still functioning correctly. You diagram is correct. Make sure you have 12v+ on your switching wire when you activate the headlights.
