Bulbs in center assembly on dash

[dsagona]

Hi,

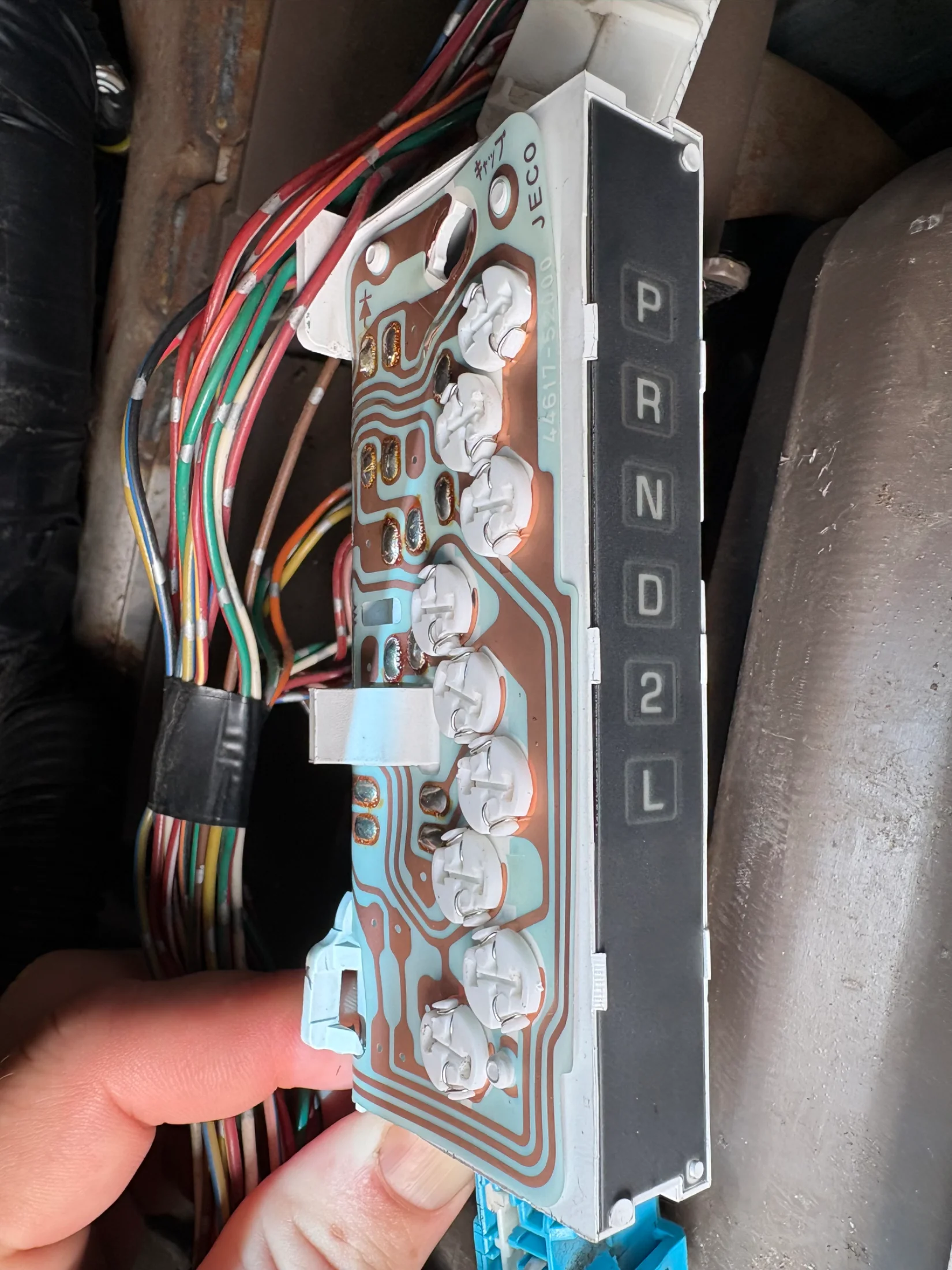

Other than the bulbs that are clearly labeled, and someone tell me what the other indicator bulbs are for? I know one is for overdrive, but I’m not sure what the others are for. I’m replacing the bulbs and need a way to test if they’re working. (I know I’m missing one bulb at the top.)

Thanks!



[NeverFinis]

Take a bulb out and shine a light through each one?

Probably PWR, O/D OFF, and 2nd Start



[dsagona]

Good call on using a light. I tried doing that on the top hole over the weekend but I didn’t see anything, so I gave up on the others. It turns out the top one is blank, but the bottom three are od off, power, and 2nd start.



[Mandrake]

The filament might be too small to see. Ohm out the bulb- if there's continuity, it's good.
