Any idea on this one? (Headlight wiring)

[lowtideride]

The P.O. Redid some of the factory wiring but pulled the relays to them. So I have no headlights , turn signals, flashers. Any body recognize this wiring setup up that I could get new relays for( assuming that's what they connect to)?

Would there be a reason this was done? I could just return it to the factory wiring setup if I can find the wiring schematic. I'm just wondering if something was bad in the old electrical system causing this to be done.

The brake lights and license plate lights work fine.

Thanks again!
-Al



[Delancy]

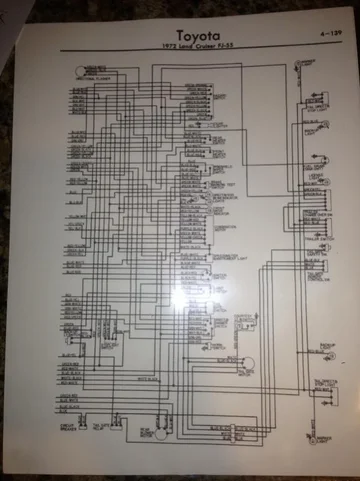

I have the early schematic I could scan and email, or host as a SendNow file, if that helps.

I could be, and probably am, wrong, but the plugs look similar to an HIR kit I saw on eBay.

Edited: for 72. If deemed viable, will scan and send.



[nuclearlemon]

old school weatherpack style relay connector. probably for standard 5 pin pattern, but finding the correct relay to lock in might be the issue. some used to have covers. is the only reason it's not working because you don't have relays? if so, i'd find a normal relay pigtail and cut out the weatherpacks and put in a normal setup...that way you can get relays at any flaps. otherwise, cut out the relay stuff completely and go back to stock.
