Alternator (Bosch AL7537HO) wiring
Hi all

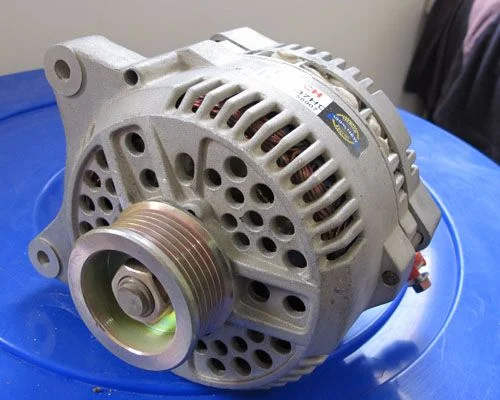

Can someone tell me how to wire the alternator?
Thanks for your help



[nordwind]

P.S.

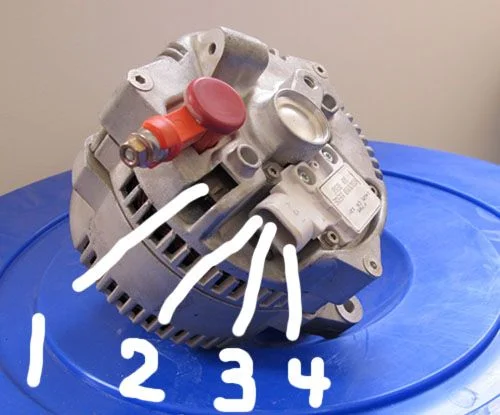

I forgot to mention on the housing, it says:

at number 2 ( A )
at number 3 ( s )
at number 4 ( I )

or ASI



[John Smith]

I forgot to mention on the housing, it says:

at number 2 ( A )
at number 3 ( s )
at number 4 ( I )

or ASI

I am not sure what the A terminal does. Traditionally The S terminal would be the "sense" terminal hooked to the battery or voltage regulator. The I terminal would be connected to 12V + switched ignition source to "turn on" the alt. The L or D terminal would be connected to a dash lamp.



[nordwind]

Alternator

After hours of searching on the net ..........
I found what I was looking for.
Maybe someone comes into the same problem.
Thanks for your help



[bj40green]

Maybe this one helps too,



Rudi
