Accelerator cable and firewall?

R

Rob Faucett

GOLD Star
Joined
Apr 19, 2006
Messages
621
Location
Seattle, WA
Hey Gang - Does any body happen to have their head in the engine bay and able to shot me a picture of the accelerator cable going through the firewall into the cabin?

Thanks in advance.

Rob

--
Seattle, WA
206-619-5569

cps432

cps432

Joined
Mar 4, 2016
Messages
2,210
Location
Boulder, Co

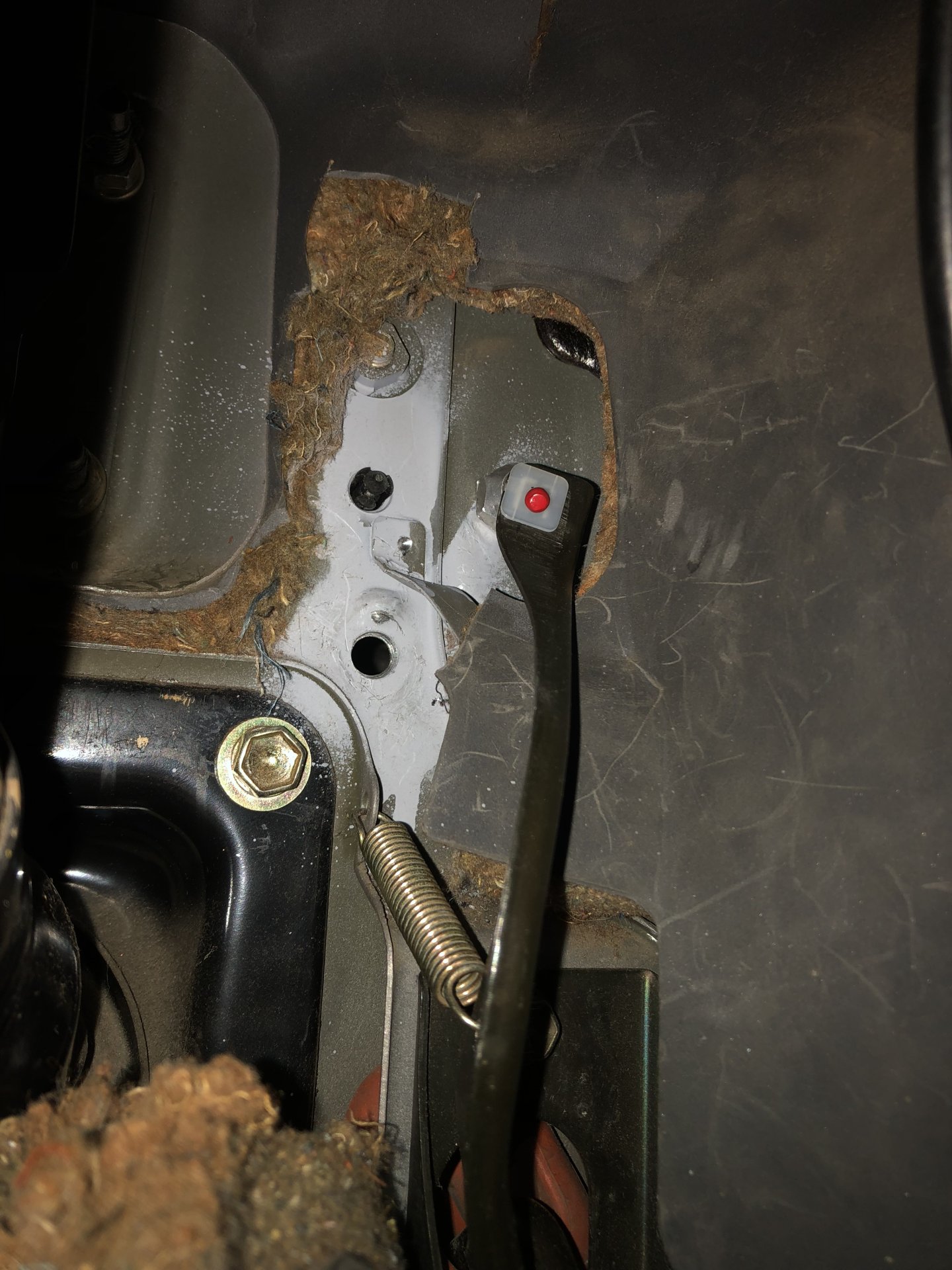

These are the pics I have on hand from installing a lokar cable for a Holley sniper setup. I had to bend the hand throttle provision over to the passenger side an inch or two for it to clear the carb evap line on the firewall. I’m also running a larger brake booster and the two holes you see drilled to the left came out behind the booster. Hence, bending the pedal arm. This is on an 87 FJ60.
CEC5689D 37A1 49D7 ACE6 C431071E26B8
30ACA788 0842 4574 9A9D D500D8B23CC2
8110FE1D 57A5 4D6D B7D9 D73240179B0F
E812D8D8 54BE 4B68 BCDA ADCFAC3EEB96

2mbb

2mbb

SILVER Star
Joined
Sep 1, 2003
Messages
5,308
Location
WC, CA

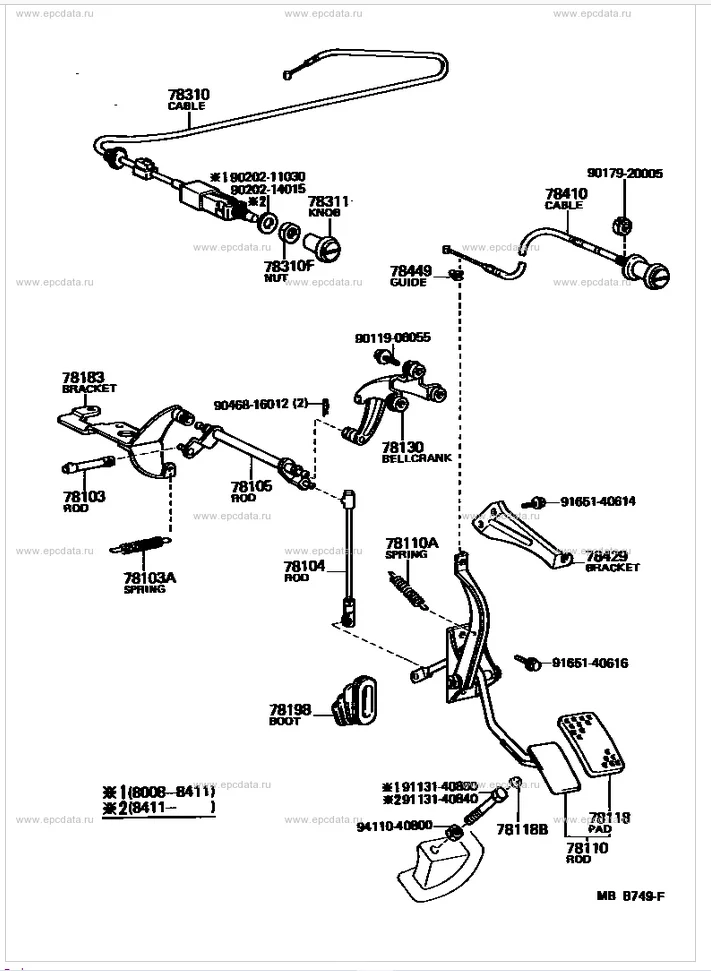

The OEM FJ60 with the Aisin carburetor uses a linkage not a cable. The pedal lever penetrates through the firewall and move rod 78104 up and down, which rotates 78105. Rod 78103 attached to the throttle linkage on the carburetor. The pictures CPS432 is showing above is accommodation for for a hand throttle cable 78410.
