ARCHIVE 90982-08251 / 90982-08252 FJ62 Fusible Link set up live & real LIVES ONCE AGAIN The Puzzle Pieces Have Finally Come Together / ALSO NOW FJ60 Too !

[WoodnotRust]

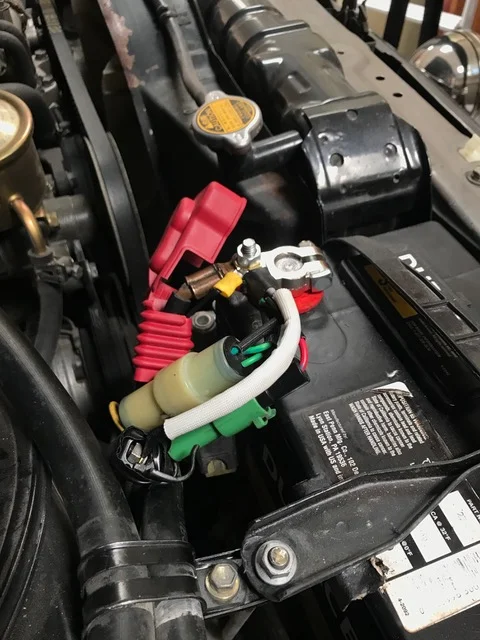

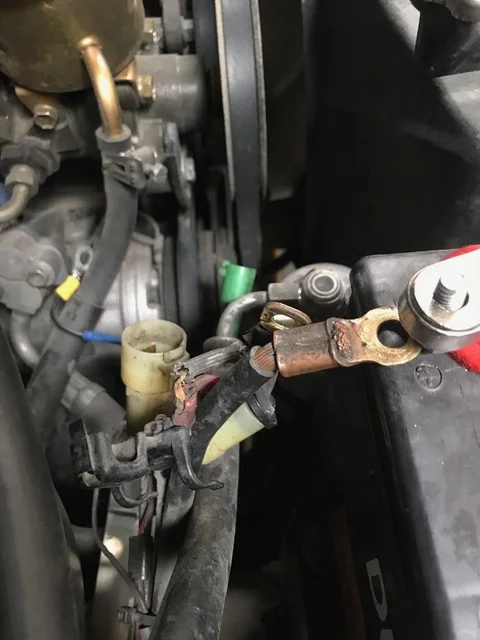

Before and after....



[ToyotaMatt]

Before and after....

View attachment 3025295

View attachment 3025297

thanks for the FEEDBACK and Technical Photos , they will help others for sure


if you don't mind me asking how come you did not use the included Toyota Genuine Parts Serviceable Battery Terminal ?


if anyone has installed Pics's of my hand-made handiwork PLEASE post it here or even a short TECH Video !

thanks matt



[WoodnotRust]

thanks for the FEEDBACK and Technical Photos , they will help others for sure


if you don't mind me asking how come you did not use the included Toyota Genuine Parts Serviceable Battery Terminal ?


if anyone has installed Pics's of my hand-made handiwork PLEASE post it here or even a short TECH Video !

thanks matt

Hi Matt...I thought you'd notice that I substituted my old terminal. I figured the part you had must be OEM "like", but the contact area seemed to be less and the part much lighter weight. I saved your part, but wonder if the Toyota style terminal is really better than the beefy heavy metal job that I bought from the AutoZone?



[ToyotaMatt]

Hi Matt...I thought you'd notice that I substituted my old terminal. I figured the part you had must be OEM "like", but the contact area seemed to be less and the part much lighter weight. I saved your part, but wonder if the Toyota style terminal is really better than the beefy heavy metal job that I bought from the AutoZone?

you bring up a good TECH. TOPIC ..

and of course i noticed , you know me ......

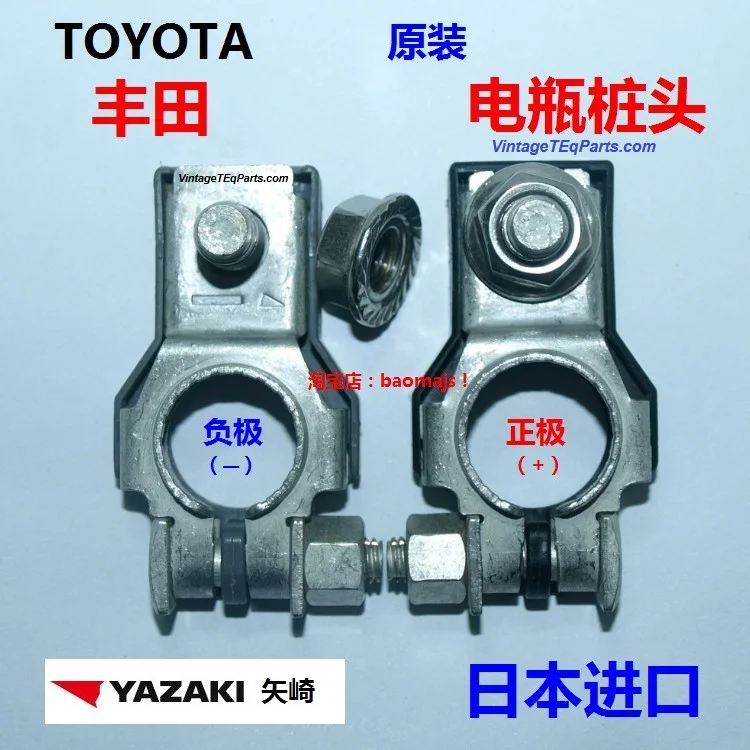

- Here is the OEM TOYOTA 411 of the Terminals i Supply with each 90982-08251 :

- if anyone knows more or can add please chime in ..........


- Tin Plated SOLID COPPER

- you can service the TOYOTA terminals shown below dozens of times you can't a old skool lead type

- TIN Plated Copper conducts better then LEAD

- the Threaded stud is simple steel that will rust in time on the Auto Zone leaded terminals ,

- the TOYOTA threaded stud is Copper also

- Your Copper LUG on your B+ Cable is 12mm so is the TOYOTA OEM Threaded Service terminals one ....

​



[ToyotaMatt]

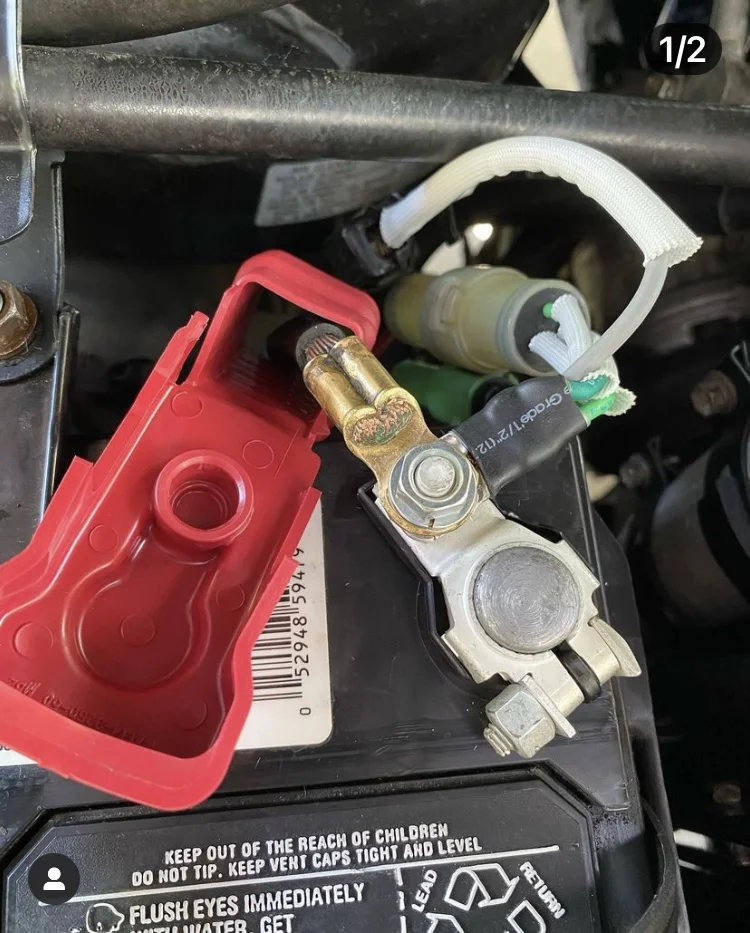

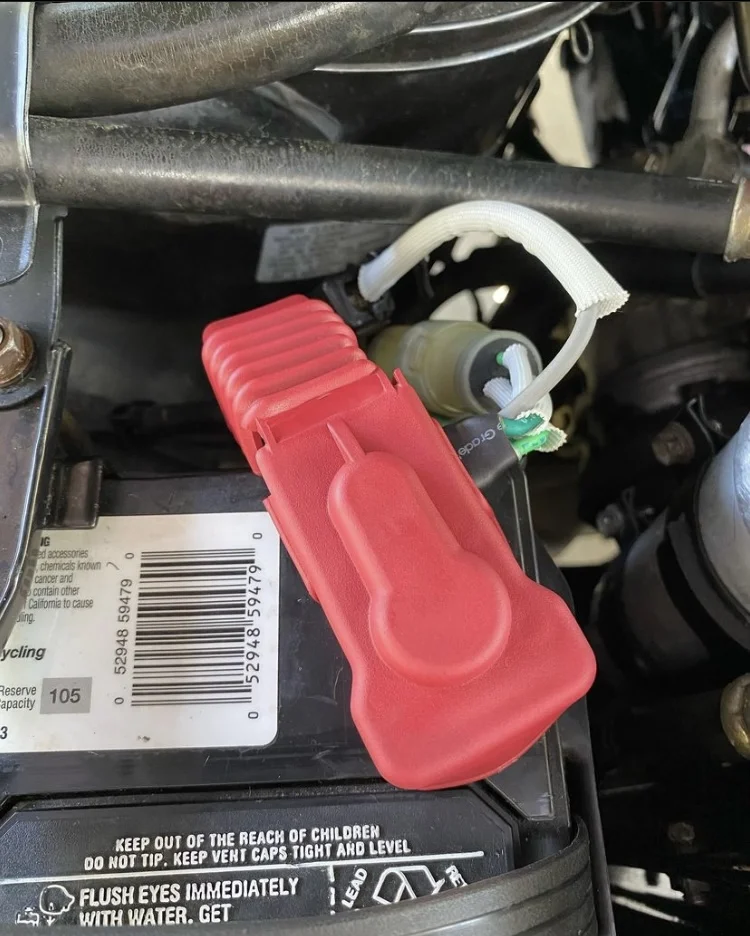

Installed Pics of my FJ62 Fusible Links in action ..

Nothing Less then Factory Fit Form and Function ..



[ToyotaMatt]



[toroz06]

How can I buy a set? My LC is dead on the water with no alternator



[ToyotaMatt]

How can I buy a set? My LC is dead on the water with no alternator

Pm me please

USPS express mail EMS overnight shipping is available for special circumstances …



[toroz06]

Thanks Matt, I really appreciate it, Matt from cruiser Matt helped me out yesterday



[ToyotaMatt]

Thanks Matt, I really appreciate it, Matt from cruiser Matt helped me out yesterday

saw my handy work

thanks !



[ToyotaMatt]

OEM original example TECH image for reference :

FJ62



[LemonLaw]

These coming back anytime soon? I am in need of one. Thanks.



[ToyotaMatt]

These coming back anytime soon? I am in need of one. Thanks.

YES ,


there are i am working on a fresh set now as we speak

stay tuned

matt



[88Retired62]

I’ll run the “Skunk Works” gamut one more time…any update on refreshing my two cold weather keys and the new LOOM-END FUSIBLE LINK. Maybe a phone call would work…please!



[LemonLaw]

YES ,


there are i am working on a fresh set now as we speak

stay tuned

matt

Matt,

Thanks for the reply. Put me down for one when they come back.

Thanks,

Tom



[ToyotaMatt]

Matt,

Thanks for the reply. Put me down for one when they come back.

Thanks,

Tom

copy that thanks !



[ToyotaMatt]

I’ll run the “Skunk Works” gamut one more time…any update on refreshing my two cold weather keys and the new LOOM-END FUSIBLE LINK. Maybe a phone call would work…please!

pm sent



[ToyotaMatt]



[WoodnotRust]

if you don't mind me asking how come you did not use the included Toyota Genuine Parts Serviceable Battery Terminal ?

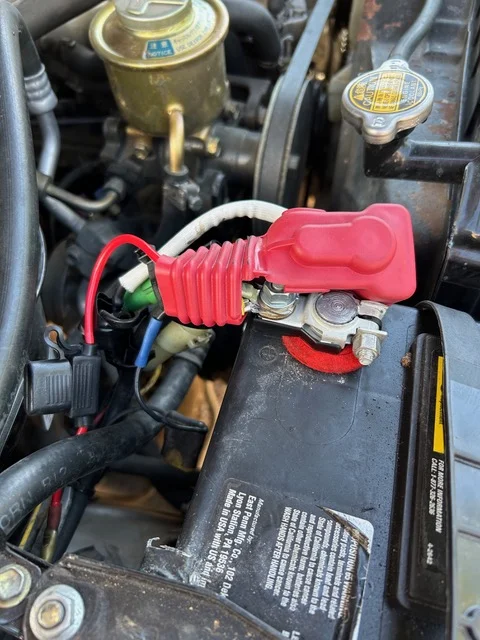

FYI...changed back to the TGPSBT when I added the power window relay. It's got to be better, right?



[ToyotaMatt]

FYI...changed back to the TGPSBT when I added the power window relay. It's got to be better, right?

View attachment 3125722

what's a TGPSBT
