2uz Manual Ecu Pins

[mischa01]

Hi, does anyone have a source or picture of a 1998-2002 land cruiser 2uz-fe manual ecu pinout? I would like to know if it is plug and play with an auto ecu harness of a 1999 land cruiser. I've been trying to find the pinout for a manual ecu online with the right part numbers but have had no luck. If you have a stock manual 2uz-fe in a 1998-2002 land cruiser that was available in other countries than the U.S., that should be the pinout I am looking for. The corresponding part numbers for a manual ecu 2uz-fe are
89661-6A010
89666-60310
89666-60230
89666-60231

So please if you have one of these Ecu's I would like to see the pinouts of the ecu.

Thanks



[leveeguy]

Would this be what you're looking for?

https://forum.ih8mud.com/resources/...-uzj-100-fzj-100-fzj-105-hzj-100-hdj-100.289/



[mischa01]

Unfortunately, no, I have been looking at all the wiring diagrams I can assume that the manual and auto ecu have the same plugs because there is no manual transmission version of the wiring in these diagrams, other than the clutch start cancel switch. I would like to confirm from someone who owns a stock uzj100 with a h151 transmission that wiring harness from an auto lc100 will plug right into a manual ecu. I have seen some other Toyotas of the same era (late 90s early 2000s) that have the same ecu for both the manual and automatic that are interchangeable with the exception of the auto trans plugins so I am hoping that it is the same for an 1999 uzj100 but I am not sure as there is no pictures online of the manual ecu for this lc at all.



[Capsule]

I would say that you are looking for very rare information.
I once managed to find a photo of this ECU, but it was of poor quality.



[mischa01]

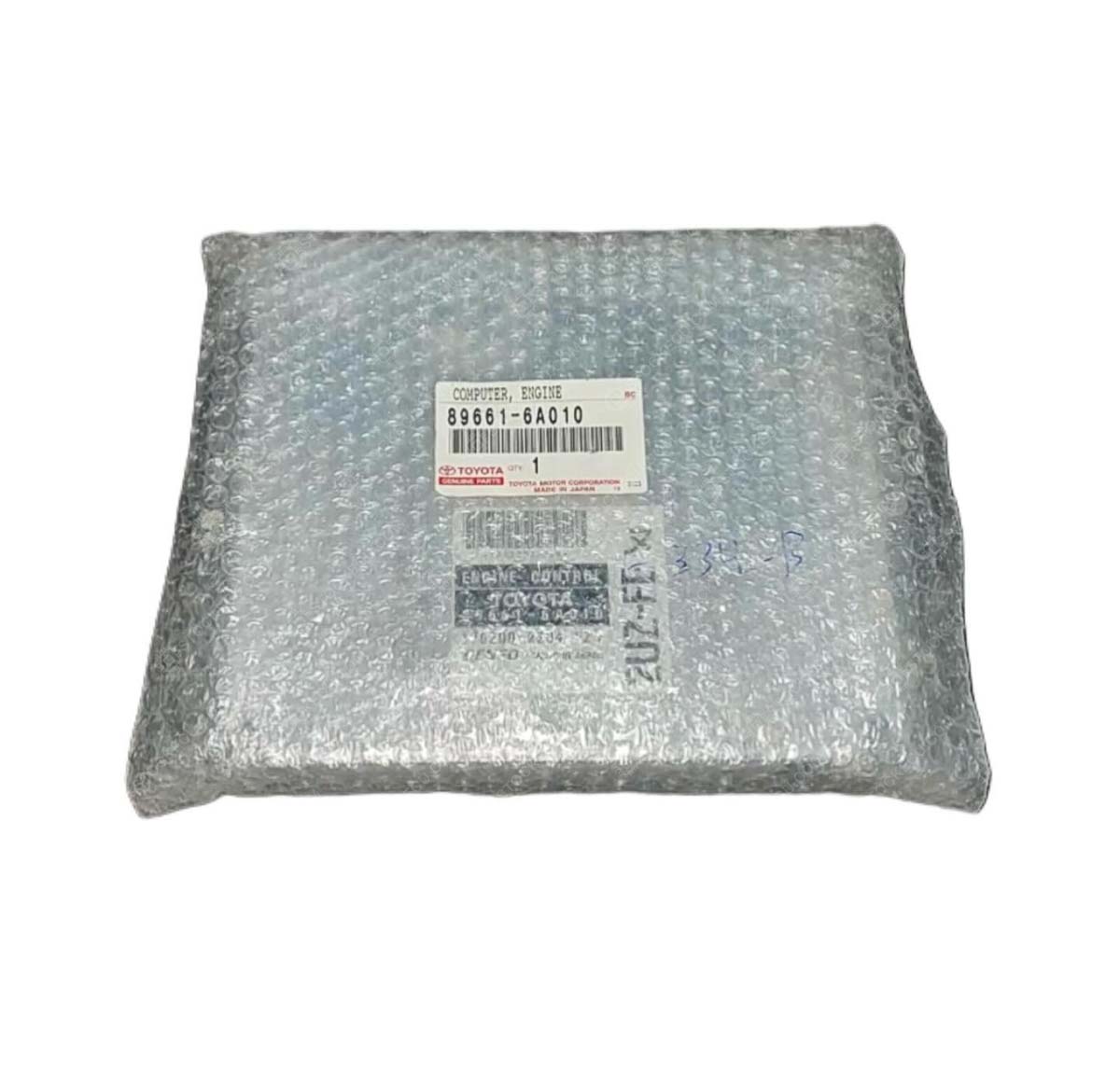

Thanks I am indeed looking for some pretty rare info on a rare land cruiser. I believe they made less manual transmission 2uz 100 series than they did the diesel manual 100 series if I dont find the info I’ll just order the ecu brand new from somewhere that has a return policy and see for myself thanks for the photo.
