2015 T4R TEP Hidden Winch Mount Build

Discussion in '150-Series Toyotas' started by Jetboy, Feb 15, 2015.

  1. Jetboy

    Jetboy

    Messages:
    1,296
    Media:
    3
    Albums:
    1
    Likes Received:
    130
    Joined:
    Sep 16, 2004
    Built a hidden winch for my 4runner with my dad this weekend. Overall it's pretty straight forward on the 5th gens. Lots of room to work with inside the bumper. I left the solenoid pack on the winch but remoted the plug to a box near the drivers side firewall. Inside I set it up with a rocker on/off switch, a relay, and then the remote plug. I also bough a wireless controller, but it was DOA. HF junk. I'll test the components to see if it's fixable at home. Otherwise I've already cut it apart so I can't really return it.

    Anyway here's how I did a hidden winch mount. Pretty similar to most of the aftermarket ones. The tabs on the bottom to fit all the bumper plastics and under bumper cover were a PITA to measure and replicate. The rest was pretty easy.

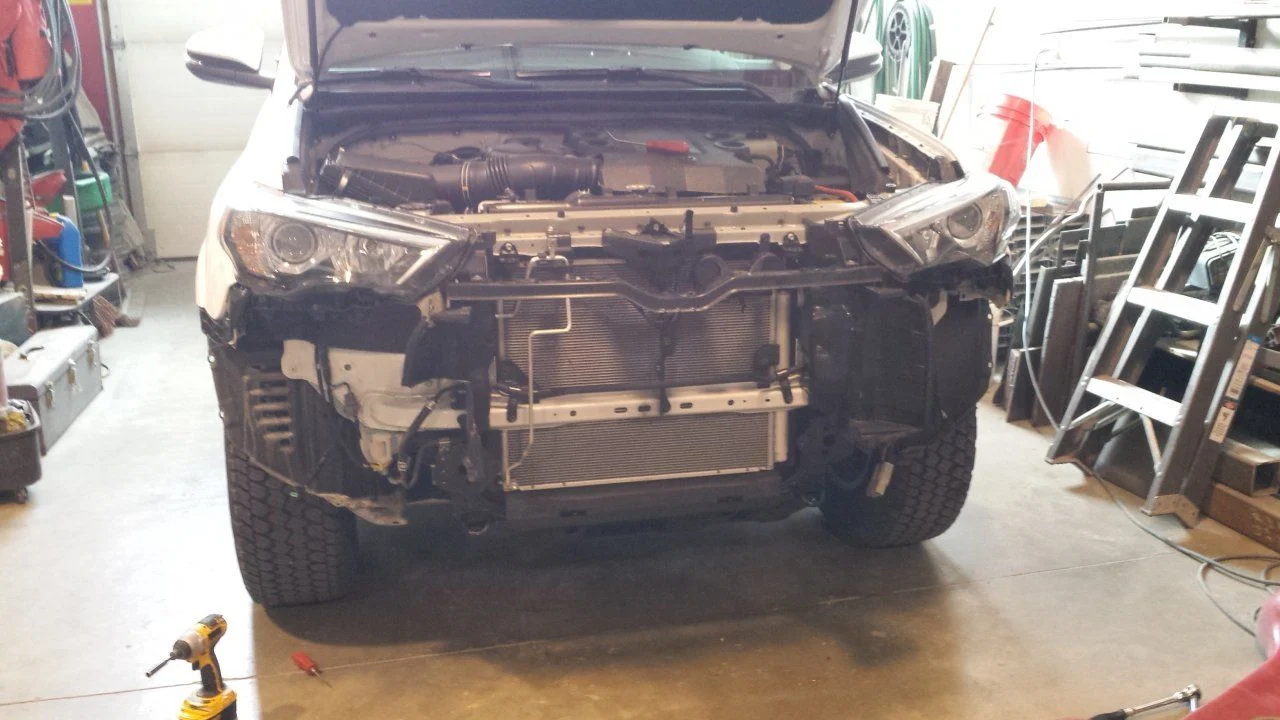

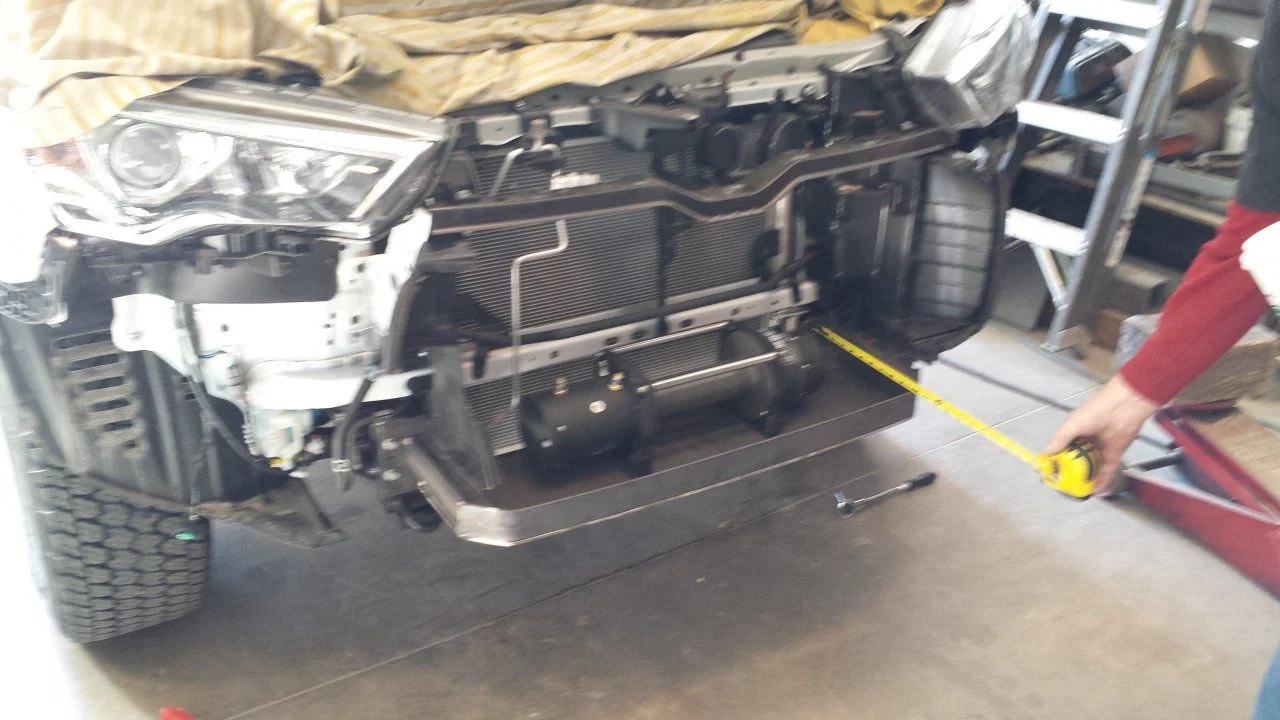

    20150214_111703.jpg 20150214_140723.jpg

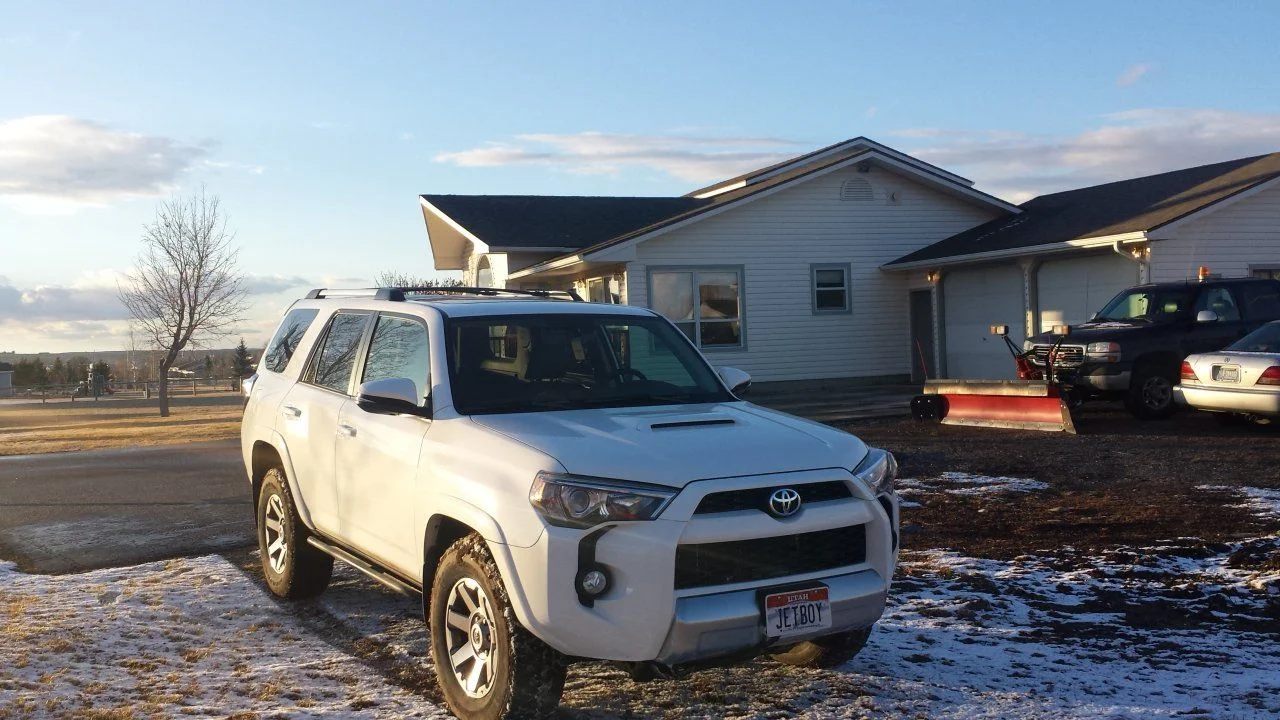

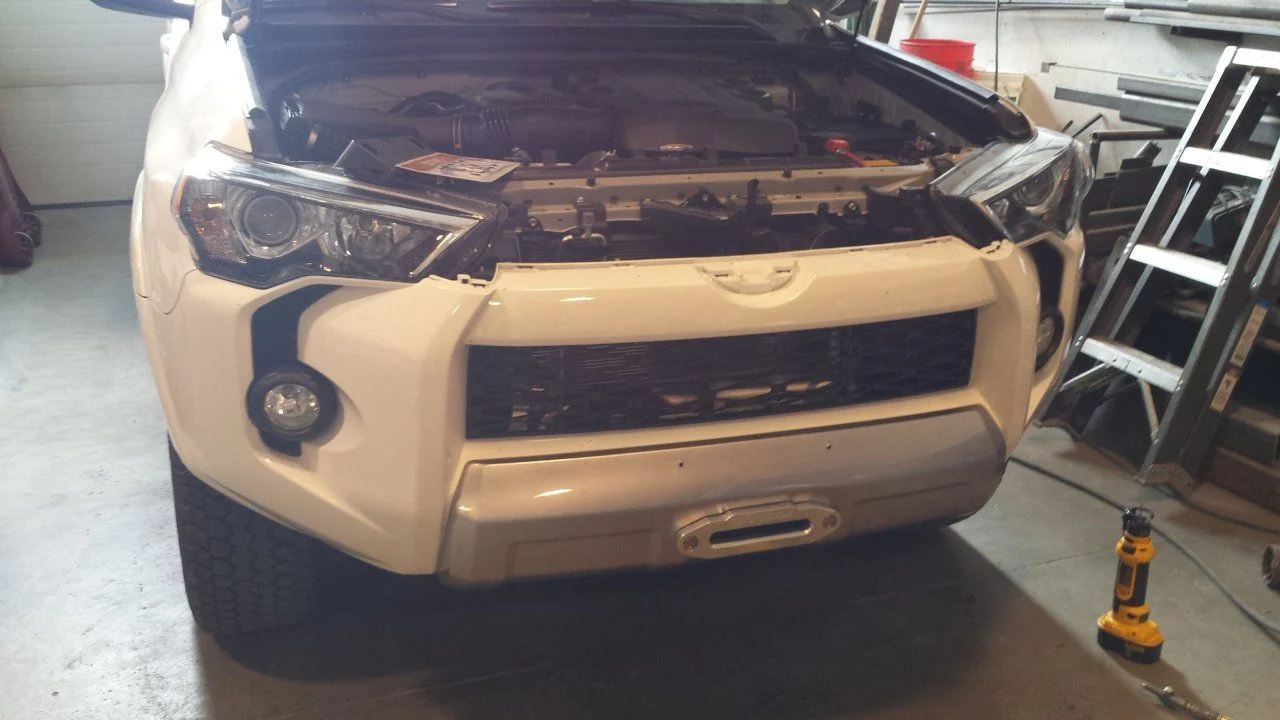

    You can see the rope coming out from under the license plate. Fits Like a glove. I'll put a hinge on the plate I just didn't have one yet. 20150215_171105.jpg

    CreeperSleeper and titanpat57 like this.
  2. titanpat57

    titanpat57 Bigfoot?!...never heard of him... SILVER Star

    Messages:
    2,423
    Media:
    34
    Albums:
    1
    Likes Received:
    894
    Joined:
    Jul 7, 2008
    Location:
    Hudson Valley, NY
    Nice clean job...:beer:

  3. smm3

    smm3 SILVER Star

    Messages:
    1,108
    Likes Received:
    27
    Joined:
    Sep 18, 2009
    Location:
    Jackson, MS
    Looks great.

  4. blakewhisenant

    blakewhisenant

    Messages:
    30
    Likes Received:
    2
    Joined:
    Aug 13, 2015
    Location:
    OKC
    Did you weld directly on the 4Runner? I am nervous about grounding out the welder on the car its self. Do you do the battery or ECM?

  5. Itsky

    Itsky

    Messages:
    125
    Likes Received:
    33
    Joined:
    Mar 20, 2006
    Location:
    El Dorado Hills, CA
    Awesome!

  6. Jacket

    Jacket Moderator

    Messages:
    1,251
    Likes Received:
    188
    Joined:
    May 26, 2007
    Location:
    Boulder, Colorado
    THe picture is not 100% clear, but it looks like he bolted the winch plate to the ends of the frame.

  7. thzpcs

    thzpcs

    Messages:
    172
    Likes Received:
    12
    Joined:
    May 15, 2014
    That's a seriously cool build!

  8. CaptCanuck

    CaptCanuck

    Messages:
    4
    Likes Received:
    0
    Joined:
    Nov 13, 2016
    Location:
    Ottawa, Ontario
    Nice work!

  9. Jetboy

    Jetboy

    Messages:
    1,296
    Media:
    3
    Albums:
    1
    Likes Received:
    130
    Joined:
    Sep 16, 2004
    Sorry for such a delayed response. I'm not on here very often. But if anyone is wanting to build one like this - send me a PM and I can probably find my drawings I did before I built it and send them to you.

    It bolts on. It bolts to the front bumper flanges - there are 8 bolts there. I also attached it to the one of the larger 12mm bolt locations on the side of the frame rail about 6 inches back. I wasn't sure the bumper flange was strong enough alone. It should be easily more than 10k lbs tensile strength, but I added an extra brace just for some extra piece of mind.

    The other available attachment point you could use - but I didn't - is the OEM tow hoops. That's where CURT adds an extra attachment for its front receiver hitches. I use those as part of my snow plow assembly bracket mount because that is based on a CURT front receiver hitch. It fits with the hidden winch mount and uses the winch as the up/down power like an ATV plow does.

  10. CreeperSleeper

    CreeperSleeper SILVER Star

    Messages:
    6,647
    Likes Received:
    530
    Joined:
    May 16, 2005
    Location:
    Forest Grove, OR
    Nice work!

    Jetboy likes this.
