1988 FJ62 factory radio wiring

[grayfj62turd]

Does anyone have a factory wiring schematic for the radio and assorted wiring? Everything I’ve found on the forum shows colors that do not exactly match the wire color and striping of the factory wires.

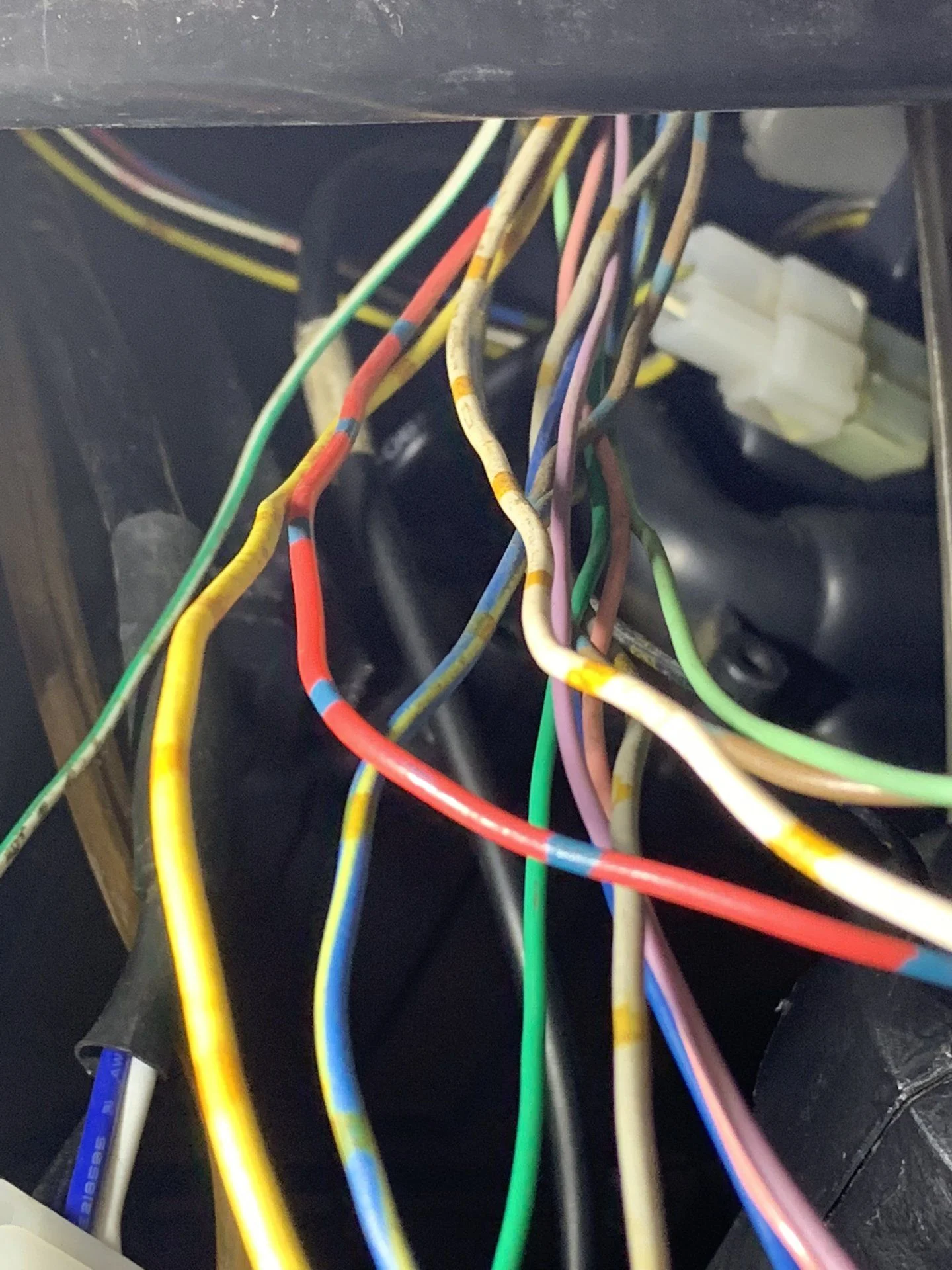

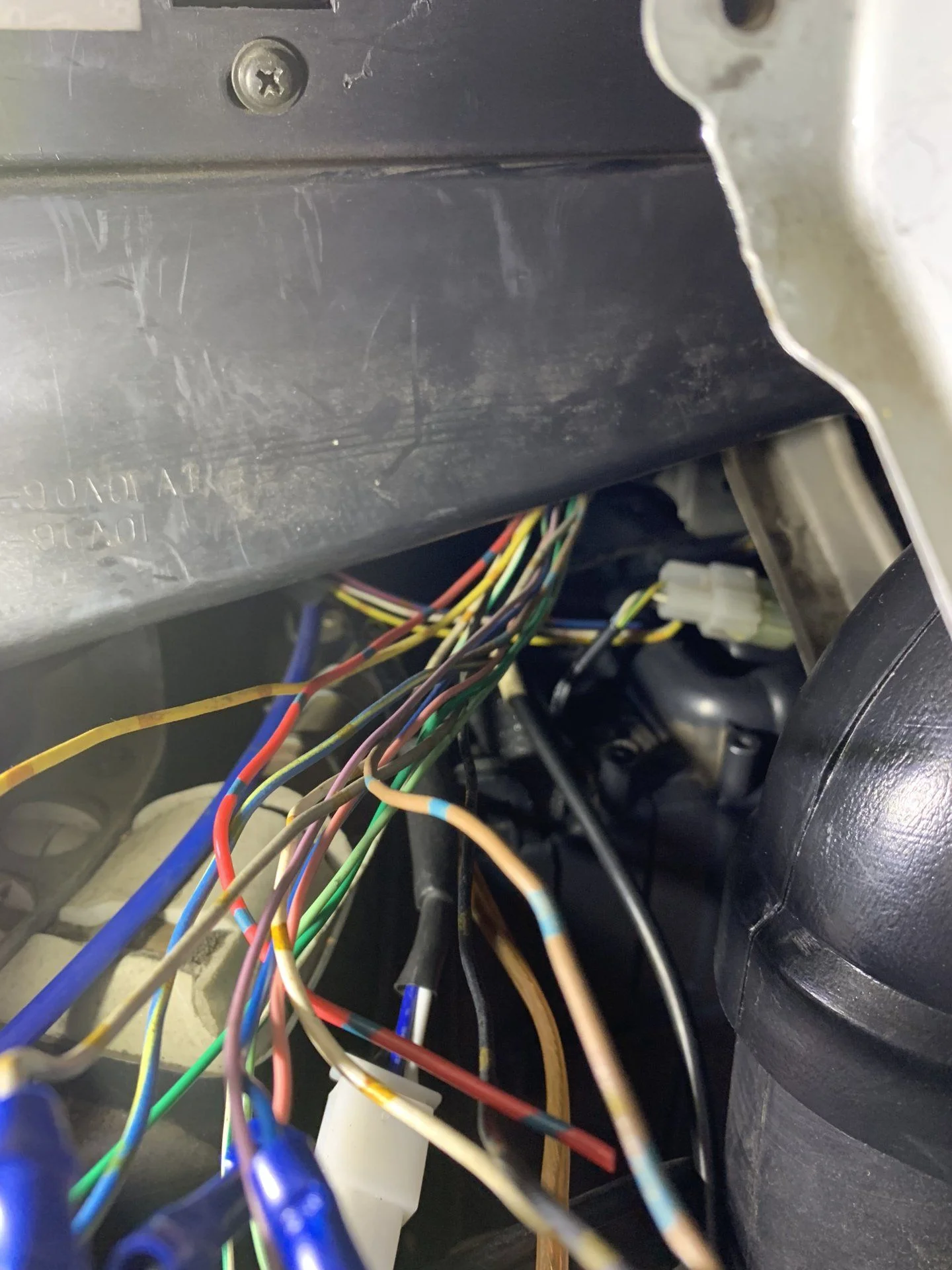

The PO just cut the harness and left bare wires. Nice...



[ToyotaMatt]

Do u need the connectors & terminals for the factory radio ?



[grayfj62turd]

Sure - if the connectors have enough wire to connect/splice to my wires? Life saver!



[grayfj62turd]

I still don’t get why there isn’t a difinitive schematic out there to show what the wire colors/stripes connect to?



[ToyotaMatt]

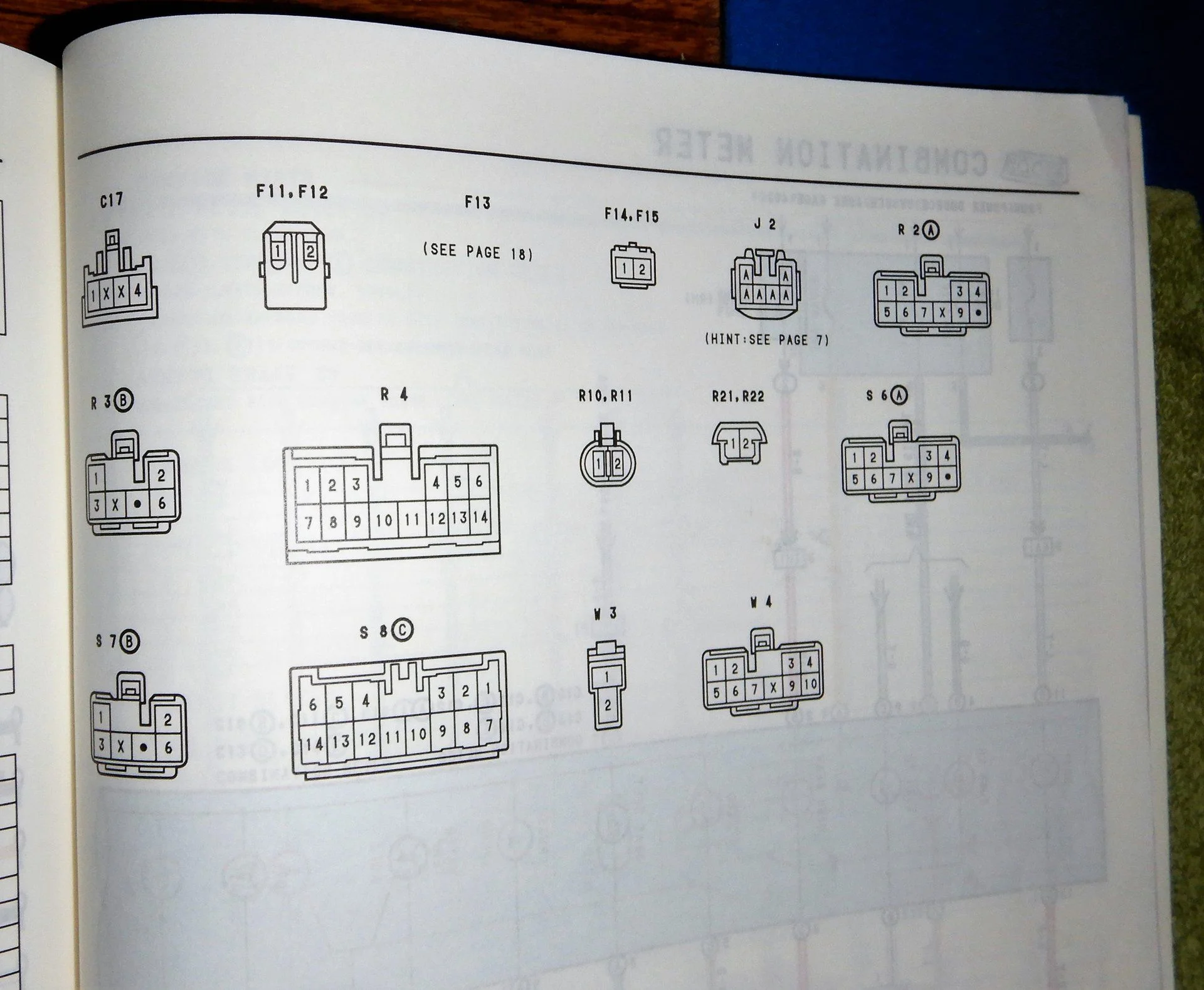

can u post photos of the back side of your factory radio so i can see the connector configuration



[ToyotaMatt]

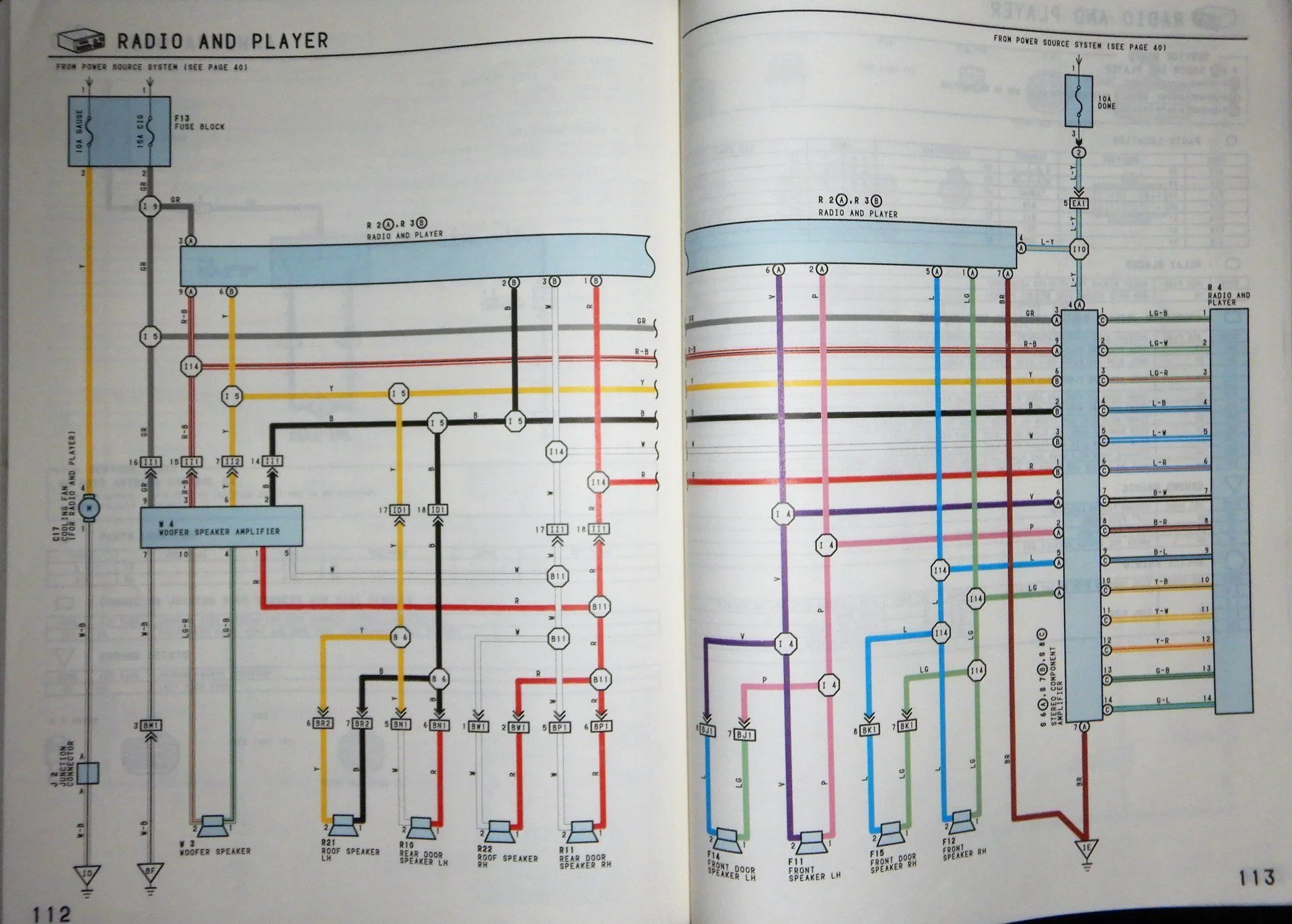

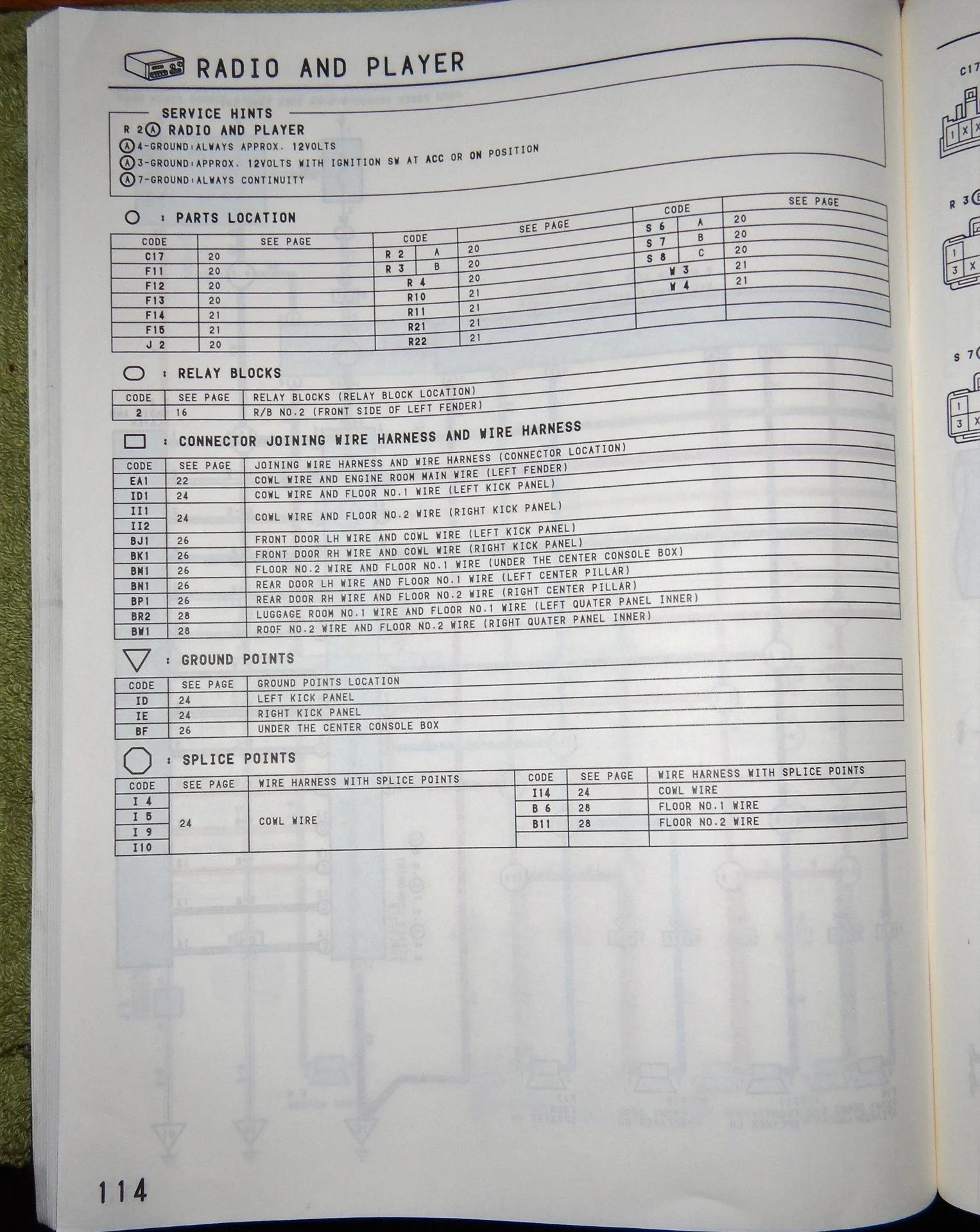

there is .......................



[grayfj62turd]

can u post photos of the back side of your factory radio so i can see the connector configuration

I'm not using a factory radio. I have a Sony double din. I'd rather reinstall the factory harness and use a Metra harness to install the Sony. Having individual wires with no harness makes life a bit harder but...



[ToyotaMatt]

I have factory connectors

i have factory terminals

I have factory color coded tracer stripe wire , ALL colors

i could make u repair pigtails



[grayfj62turd]

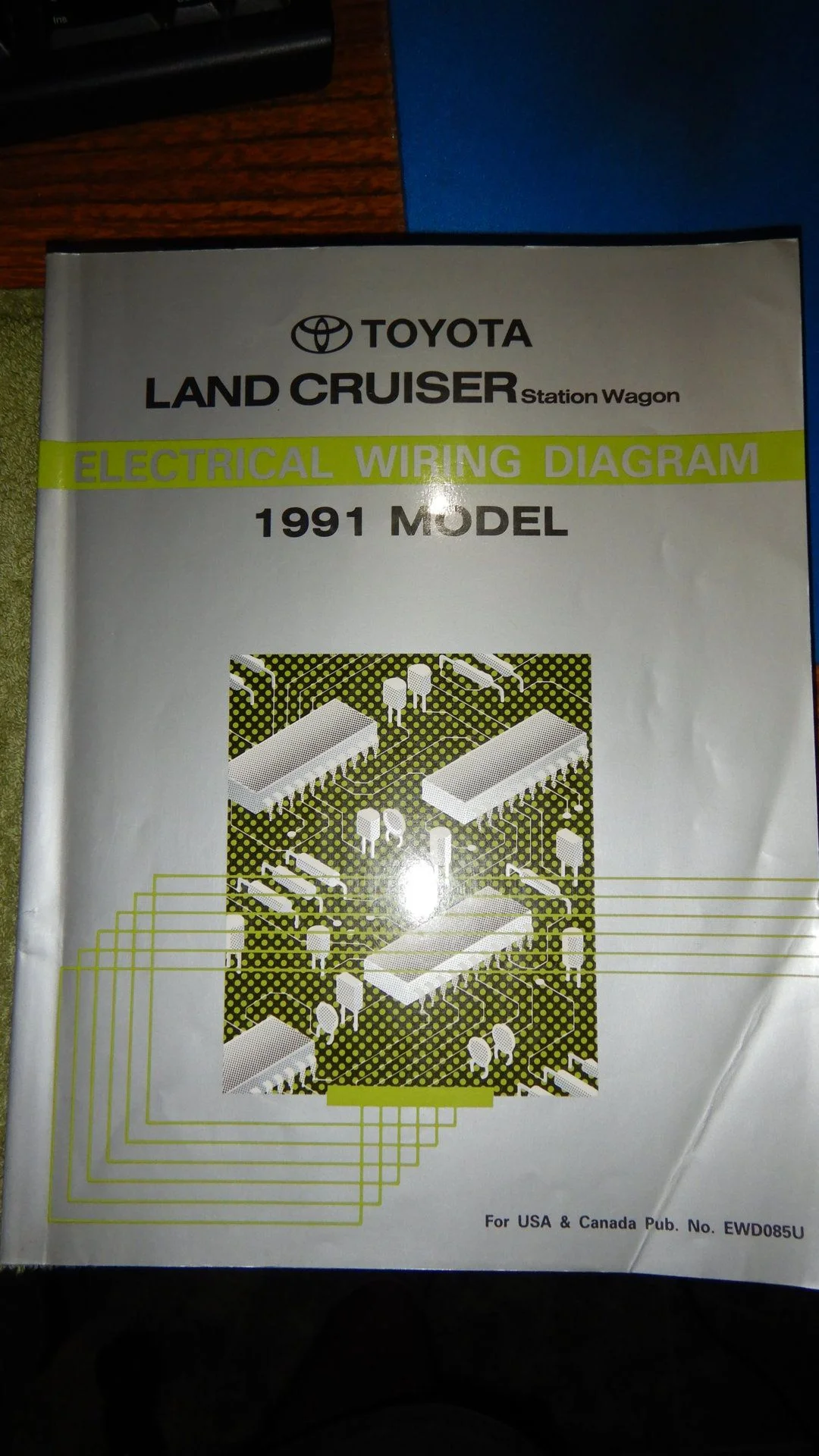

OMG!! He is DA MAN! Is a 1991 wiring diagram good for 1988?



[ToyotaMatt]

Good enough to get to the finish line

i have access to a 1988 to verify



[grayfj62turd]

I have factory connectors

i have factory terminals

I have factory color coded tracer stripe wire , ALL colors

i could make u repair pigtails

If you could make a new harness so I can connect this Sony the right way (with a harness and not crimping connectors) I would be very interested! Let me know ASAP.



[grayfj62turd]

Good enough to get to the finish line

i have access to a 1988 to verify

There is no factory subwoofer for the 88 FJ62. If you could verify the 91 schematic will work with the 88, it would be great!



[ToyotaMatt]

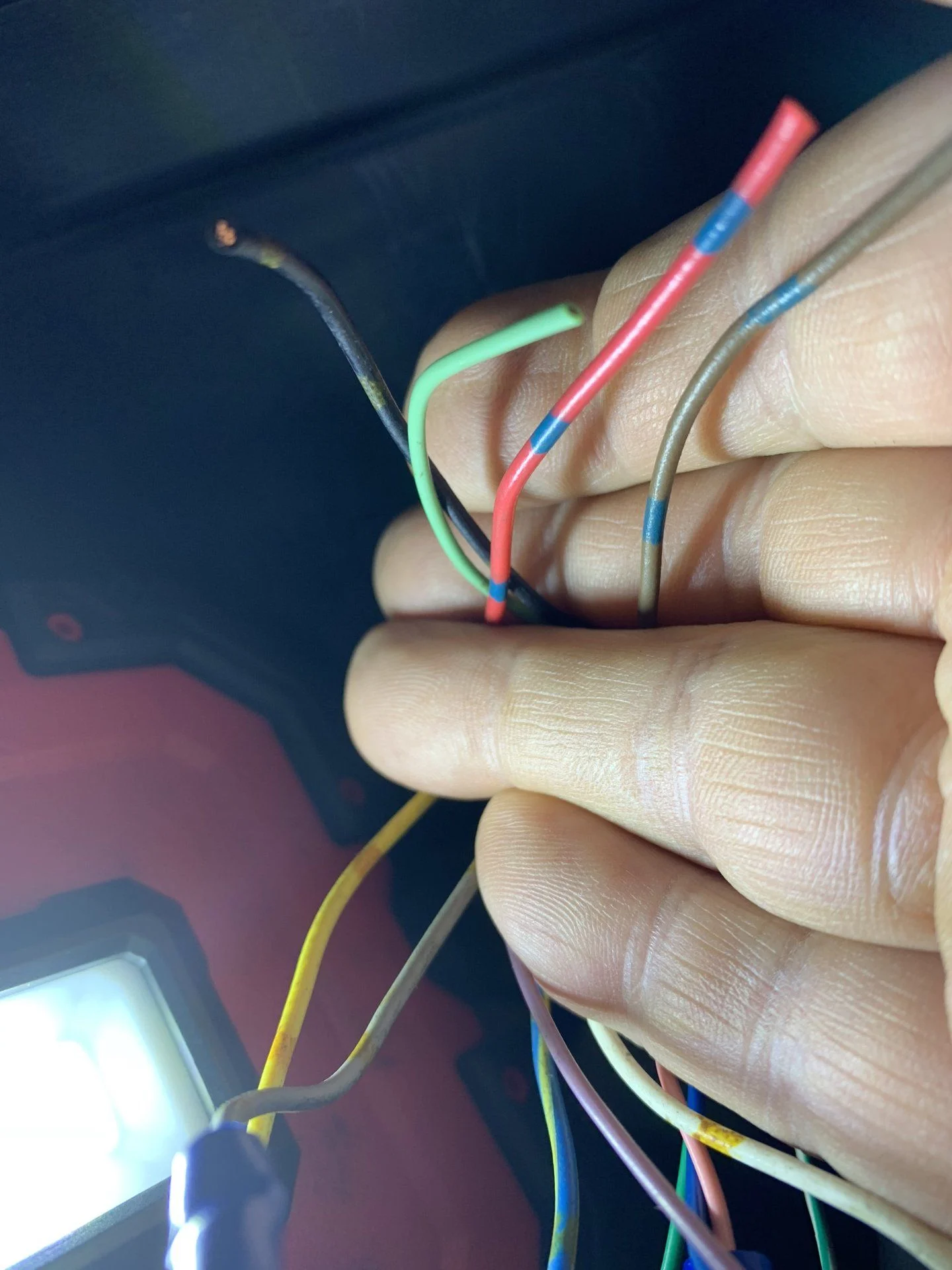

how many total cut wires do u have



[grayfj62turd]

lucky 13



[ToyotaMatt]

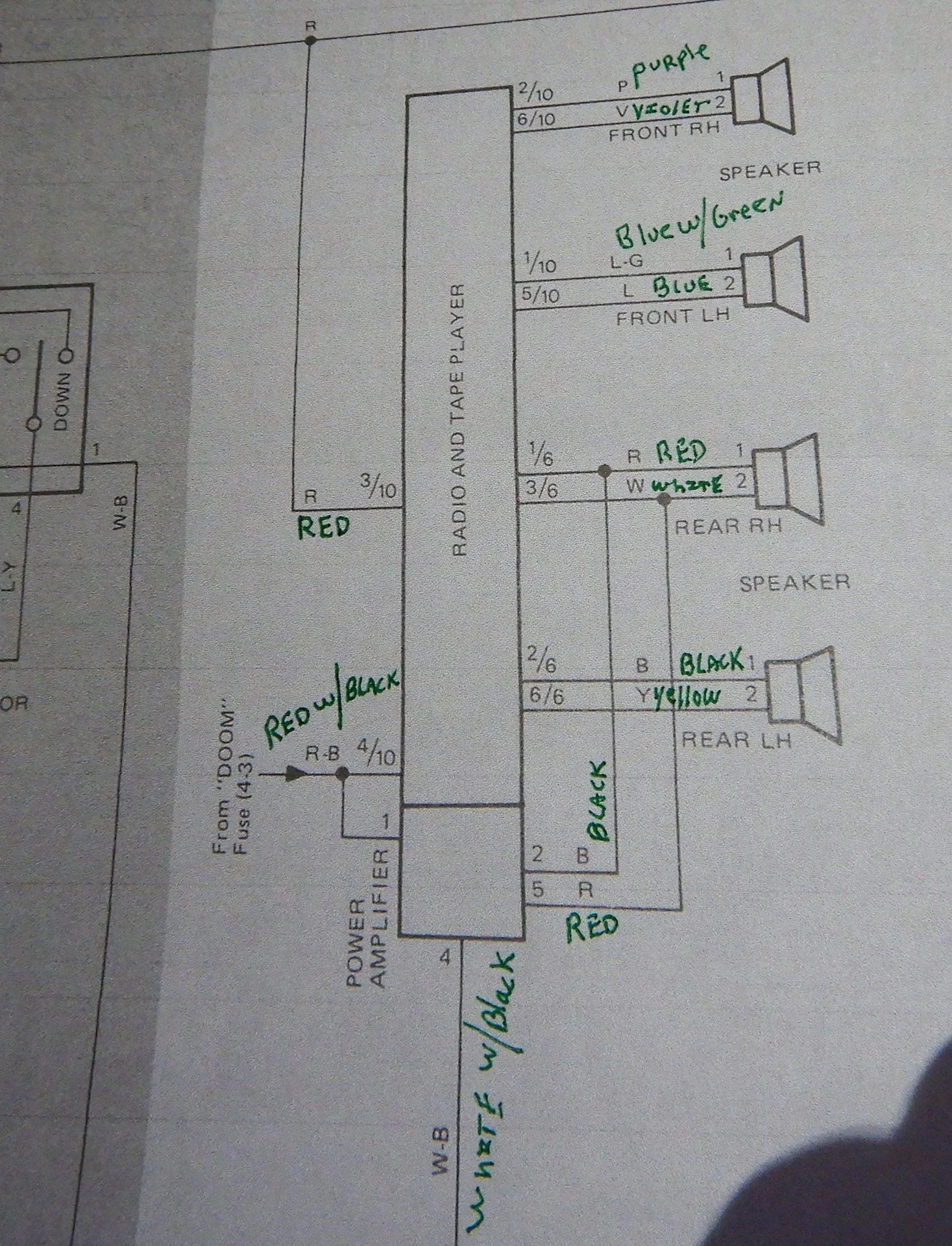

1988 FJ62 FSM Chassis Body EWD
