Ok here's my contribution to the myriad of FJ40 rear bumper designs. To be used by the brethren for ridicule or inspiration. You can see the beginnings of the design here https://forum.ih8mud.com/showthread.php?t=34436 where I received much enlightenment and input from the local brain trust. I'll give the blow by blow build up with pics here.

(the narrator chimes in) "stay tuned as Cliffy struggles to meet the build deadline and tempers flare over stupid mistakes. Will he get it done in time for the SEMA show?" :confused:

Yeah right :rolleyes:


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com

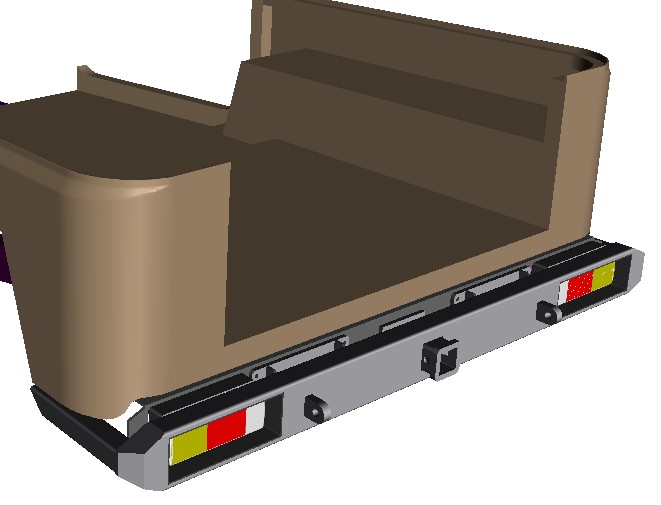

Here's the picture of what it's supposed to look like when I'm done.


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com

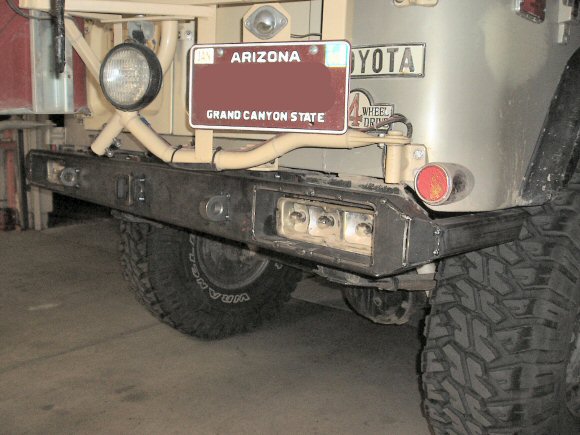

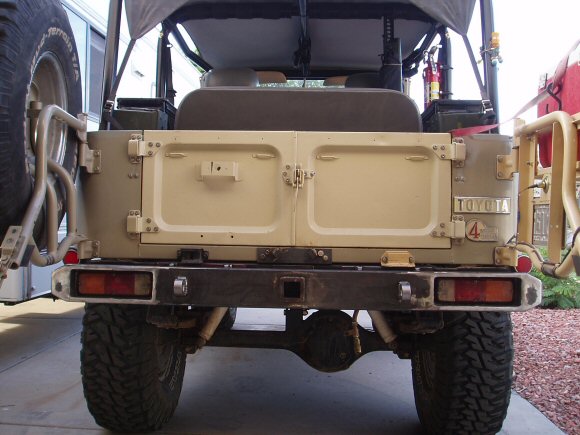

Here's the old bumper from the previous owner. Stout but in the way, and getting very abused from years of use. Not much for anchor points either.

It has served nobly protecting my tailights though.

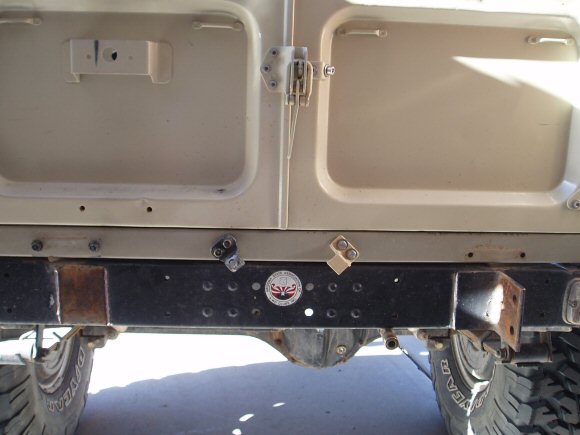

Old brackets welded to the frame being removed.

Last edited:

Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com

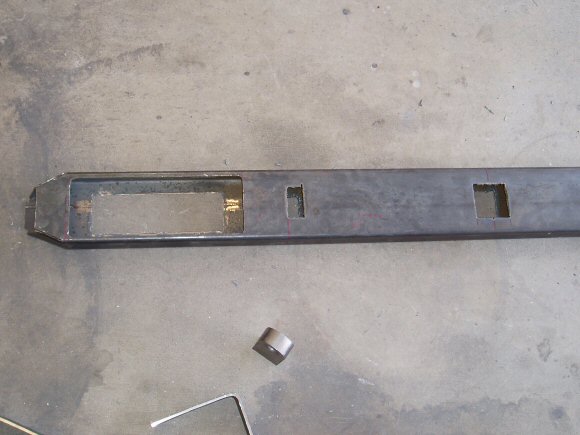

Cutting the windows for lights and such. I did the two big ones with the jig saw. Man what a slow pain in the ass. Finally my neighbor came home, the one with a plasma cutter! :cheers:
Man that tool kicks ass! Instant butter knife for steel, I finished the rest of the holes in 15 minutes :D



Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com

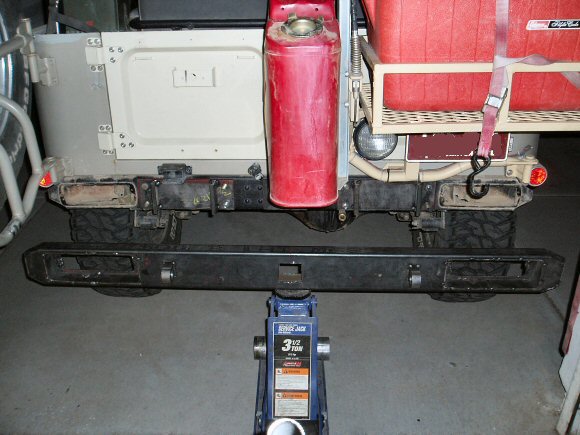

Bringing the bumper to the brackets for the 1st time. Oh yeah, brackets are 3/8 plate with standoffs made from 1/4x1 1/4 channel. Bolts to the stock bumper holes and pintle mount drilled out for 1/2 hardware.

Lesson #1
Leaving enough space between the bracket and the bumper to get a welder tip into might be a good idea. :doh:

"Cliffy may have to have a talk with Blueboob about this later. But right now the impossible schedule is more important"

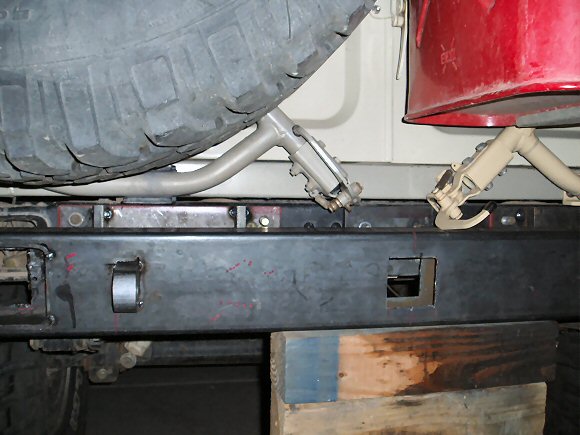

"Yet another problem for the build team. It seems someone forgot to take tire and cooler carrier latches into account. Cliffy pulls an all nighter to correct another Blueboob mistake."


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com

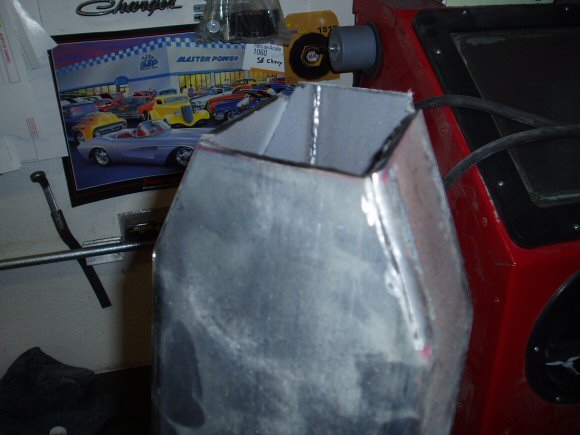

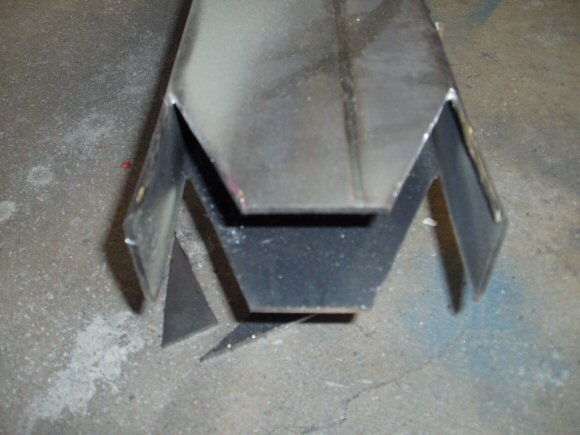

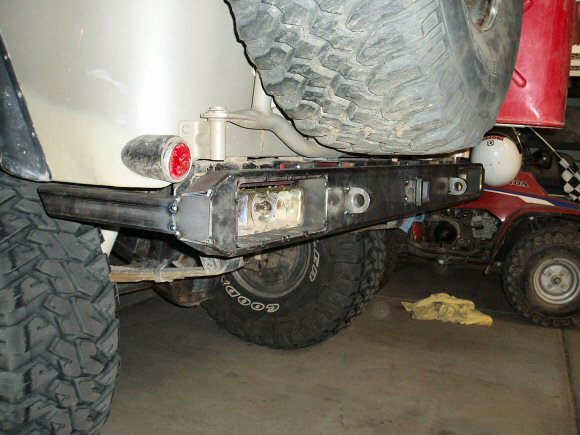

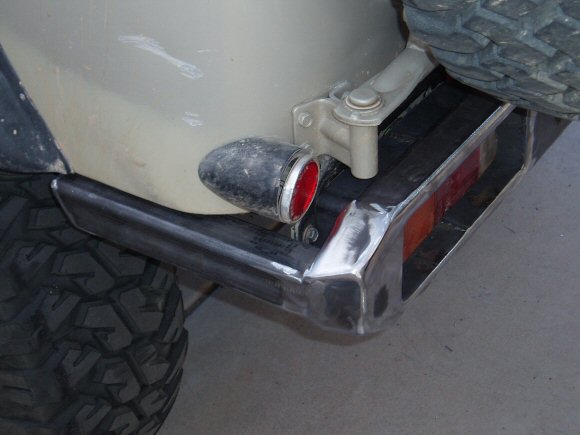

Corner protection in place, test fit for tail light housings, receiver fitted.
Another word to the wise, generous clearance for tail light housings seems to remove material required to mount them. :censor:

Adding material back sucks :crybaby:




Still got to figure out those latches. :eek:

Joined
Feb 8, 2002
Messages
190
Looks like she is going to come out clean and metal is a good medium to add/remove material from the important part was getting your turn signal cut-outs even with each other...


brian

SILVER Star
Joined
Feb 7, 2003
Messages
11,792
Location
lebanon,pa
Website
www.facebook.com
Cdaniel said:
Here's the pile of raw steel that may look like a bumper some day
About $120 worth

and i thought the cost of steel was high on the right coast.
that might have been 40bucks from my place of employment.

looks good so far, don't screw it up :grinpimp:

mine is "designed" very simuliar to your's. in fact i might have to think about "sinking" my lights as well.


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com
brian said:
and i thought the cost of steel was high on the right coast.
that might have been 40bucks from my place of employment.
.............

Yep it seems there is no end in site for steel prices. Plus I had to pay for a few cuts because I didn't buy all 20ft of it.


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com
IanB said:
Looks great man! :beer: :beer: :beer:

What are those recovery points made out of?

Steel barstock 1x2. I got them pre made from crawltech

Crawltech link

Last edited:
Joined
Mar 9, 2004
Messages
1,264
Location
Diamond Valley, Nevada
Ditto on the drawing -

Pretty fancy, nice corner protection too -


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com
GetsUThere said:
That looks really good!

What did you use to do the 3d drawing you showed up near the top?

Thanks!

The drawing is from the student version of the software I use at work everyday, Pro Engineer.


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com
Update: Long weekend progress

So after much study and contemplation :confused: I decided to just relocate the stock latches instead of trying to find replacements. Fab work would have been required in either case, and this way I didn't have spend money on new ones.

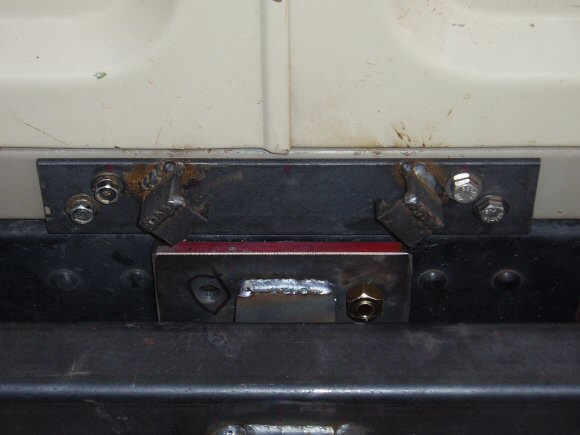

Newly created catch plate bolted to the original holes

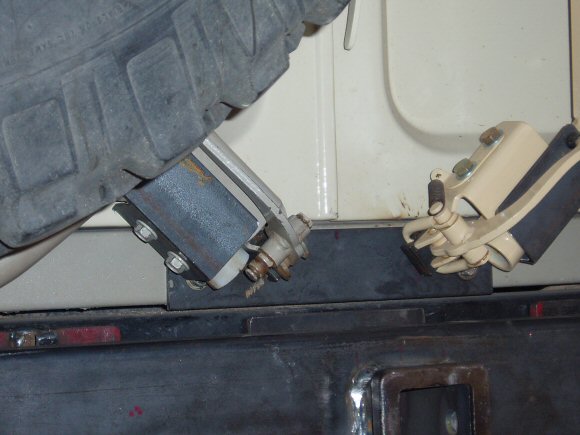

Latches moved to the top of the tube and supported with an angle bracket



Trail testing will tell?


Cdaniel

Undocumented Mechanic-I Am Not CDAN
SILVER Star
Joined
Sep 29, 2004
Messages
2,657
Location
AZ
Website
zot-art.com
More updates

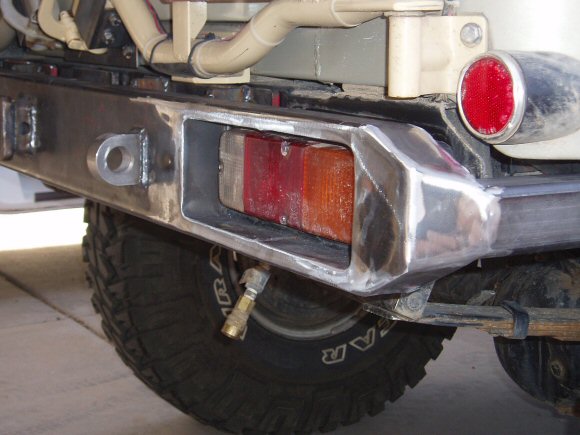

Final fit up, all smoothed off with lights attached

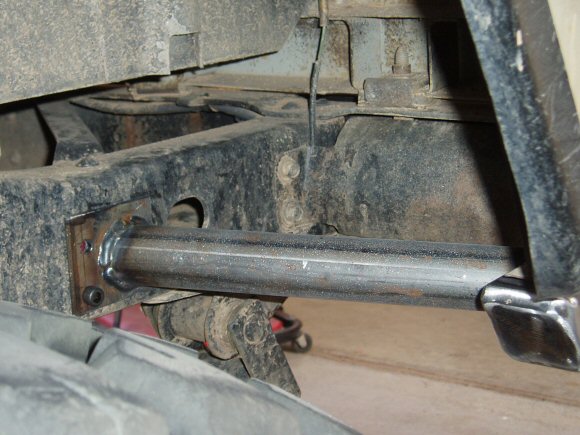

Inside corner brace


A few final welds to go, and a little clearance on a couple of mounting holes (I swear it fit once before I welded it all up :confused:) I wonder if heating it to solar temperatures had anything to to with it? :grinpimp:

Next up, powdercoat.


LC_Hamma

The Anti-Leafer
Joined
Nov 11, 2002
Messages
2,656
Location
Dallas, Georgia
You did your homework & executed it to perfection. It looks well designed & beefy enough to take hits from rocks. I know that bumper took allota time to fab up. You could put some LC bumper suppliers outta work with that work of art. Nice craftsmanship dude!
