Wiring harness wrap

Devils Paw 80

SILVER Star
Joined
Oct 22, 2003
Messages
4,462
Location
Juneau, AK

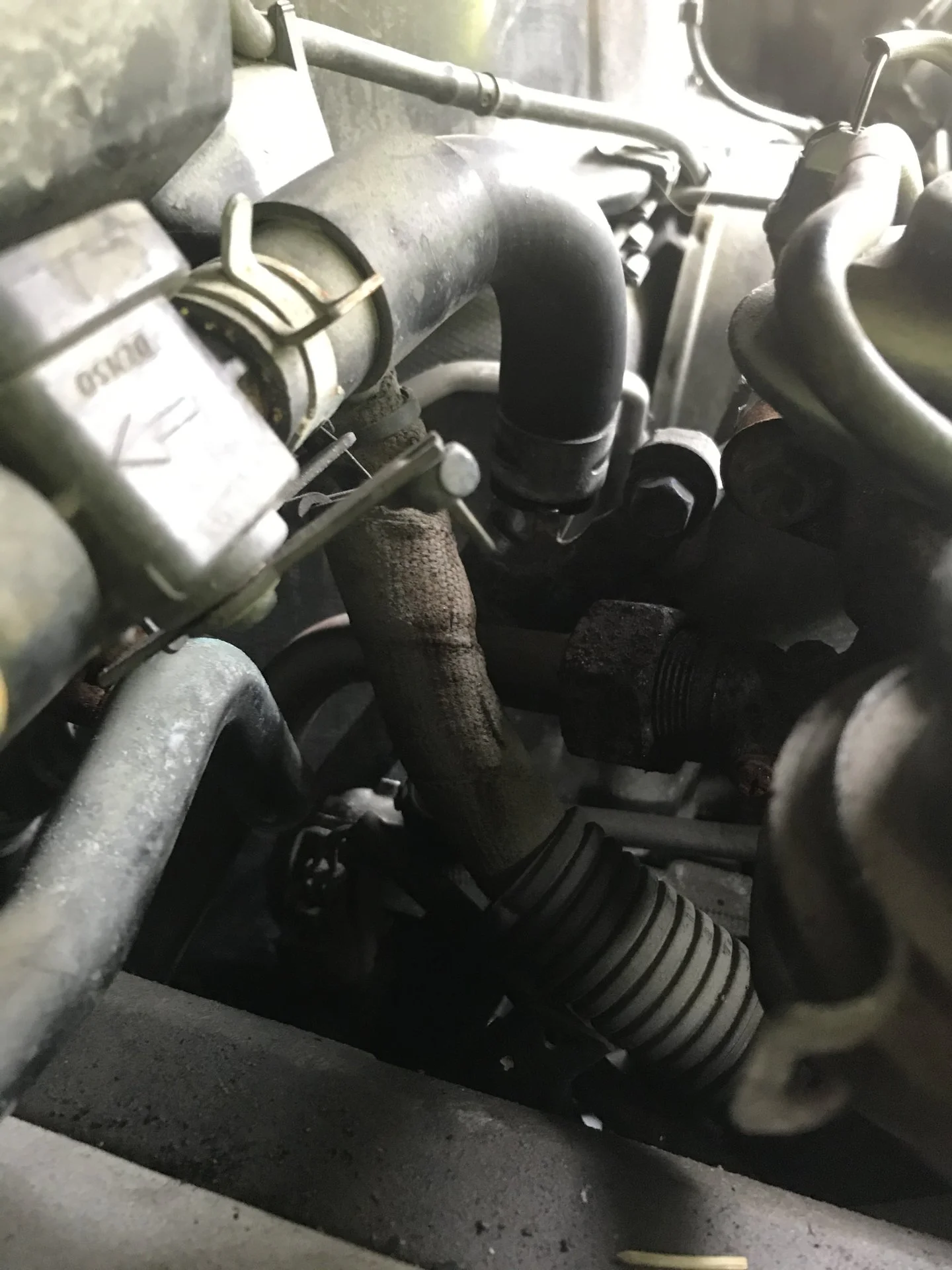

Can anyone tell me if this is this factory standard or added on? Thanks

Joined
Dec 10, 2007
Messages
8,652
That's the original factory wrap, which was inadequate. A new replacement Toyota main engine harness comes with a reflective heat insulation wrap.

You can buy insulation tape or split sleeves to put over what you have now.
Be careful however, best to not be too aggressive with the harness when wrapping it.

IME a split sleeve is easiest/quickest. IIRC you'll want something in the range of ~ 1-3/4" ID.

Wait for others to chime in on what they used, lots of ways to go about it:


Last edited:

GT3510

SILVER Star
Joined
Aug 28, 2019
Messages
29
Location
Oklahoma
fwiw, when doing my head gasket, I add some header wrap to my harness for extra protection. wrapped it a bit loose and zip tied it to keep it in place.


Bambusiero

SILVER Star
Joined
Apr 11, 2005
Messages
836
Location
Chandler, AZ

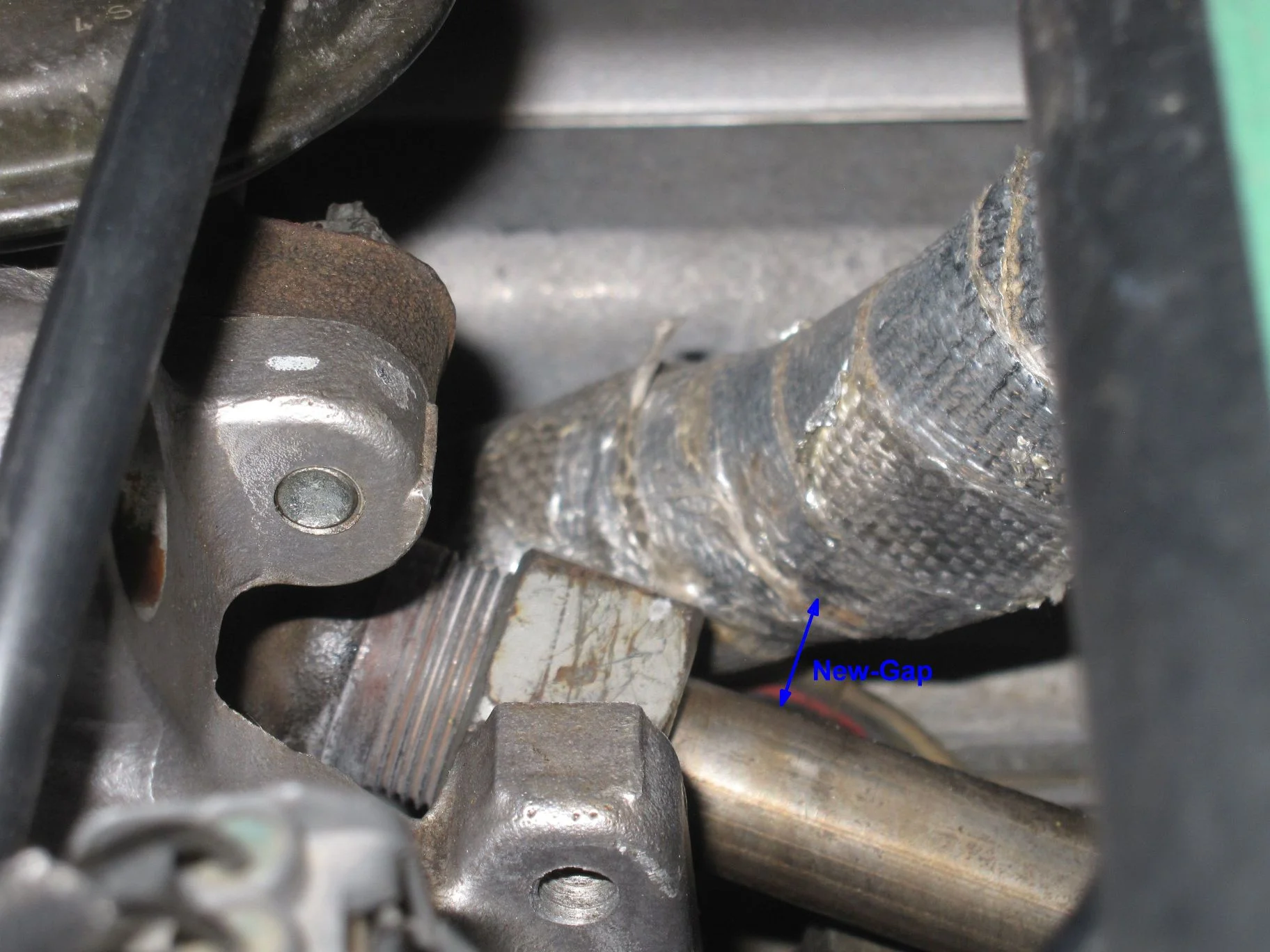

Mine looks like this now, with a 1" Body Lift in place - the gap between EGR pipe and wrapped wire harness is much better - nowhere near touching.


Joined
Dec 10, 2007
Messages
8,652
I put a heat insulating/reflective sleeve over both the EGR pipe and the engine harness. Key is to also ensure the engine harness is properly attached to the firewall and not drooping down.

Joined
Sep 17, 2003
Messages
4,279
Location
Sunnyvale, CA
Website
www.george4wd.taskled.com
There's also a plastic 'clip' that invariably hardens and then breaks with age. That allows the harness to move closer to the EGR junk and increases the chance of the harness wires melting through. A few well placed metal 'zipties' can be used to help keep the re-wrapped harness further from the EGR devil.

cheers,
george.


clx16

SILVER Star
Joined
Oct 26, 2017
Messages
1,945
Location
Alpharetta GA
There's also a plastic 'clip' that invariably hardens and then breaks with age. That allows the harness to move closer to the EGR junk and increases the chance of the harness wires melting through. A few well placed metal 'zipties' can be used to help keep the re-wrapped harness further from the EGR devil.

cheers,
george.
This is what i did. Removed the busted plastic clip and metal zip tied to the previous metal tab that was used for the plastic clip
