Which Transmission line goes where? (1 Viewer)

[450LX]

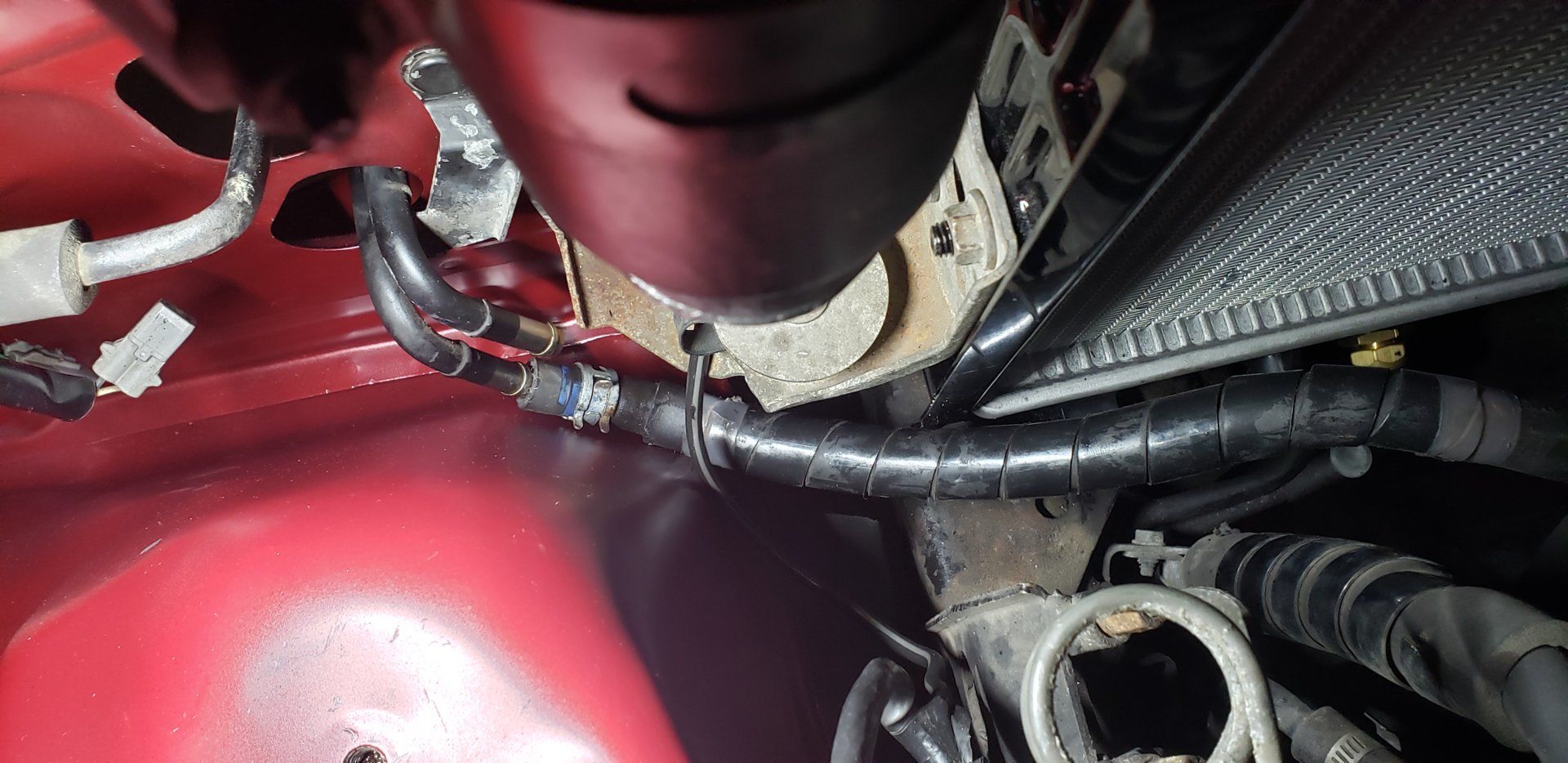

My truck has been apart for awhile and I forgot which transmission line goes where. One comes from the radiator and one comes from the transmission, so which one goes on top and which goes on the bottom? Hopefully this makes sense. Thanks for the help!



[450LX]

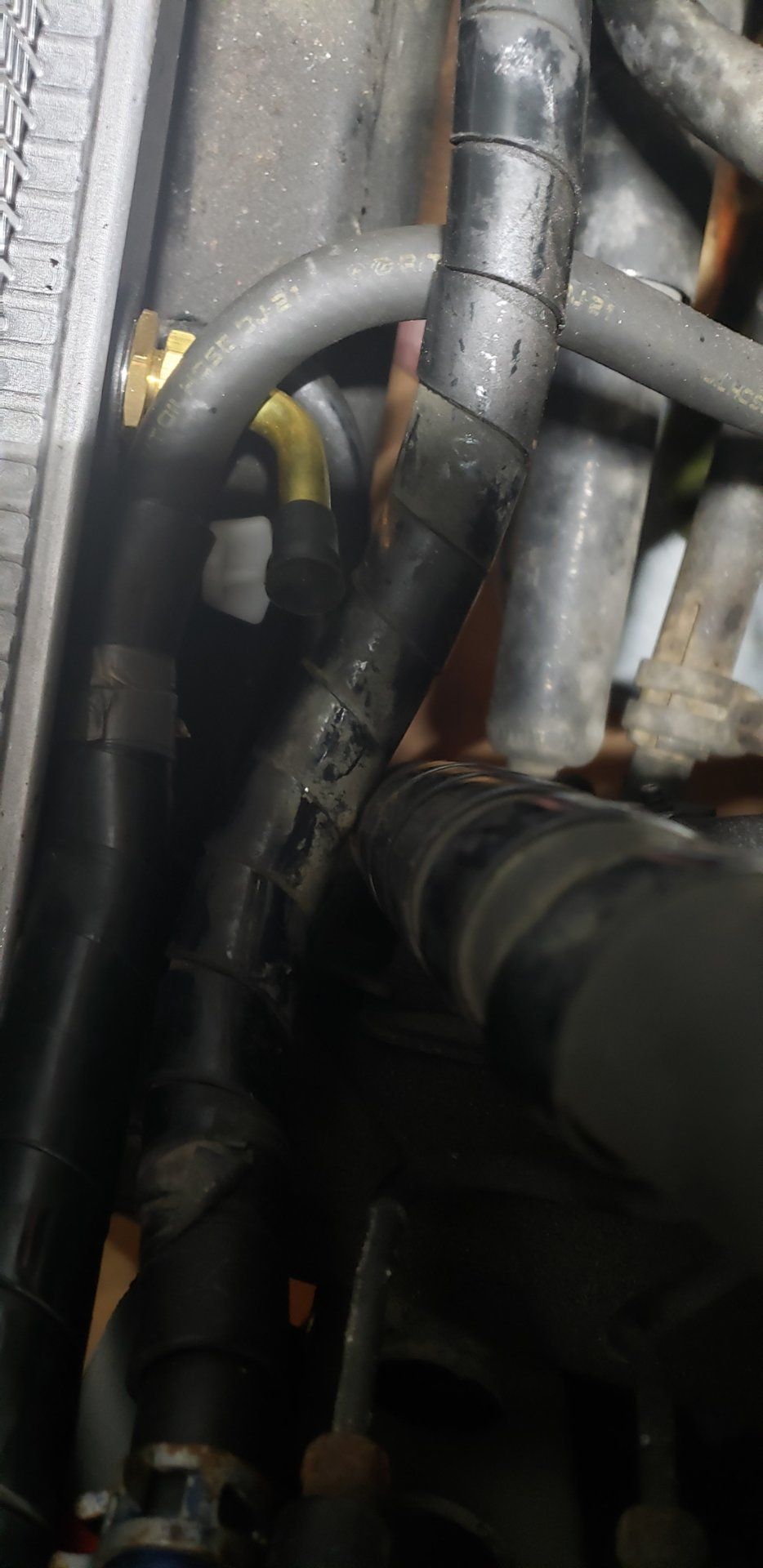

Does anybody know which line goes to the nipple on the driver side bottom of the radiator. I would hate to hook them up wrong and mess the transmission up. Thank you!



[leucadiacruiser]

Played with the same puzzle this weekend. Used many threads but this one was one of the most concise. This one has a clean diagram to use. Big thanks to @baldilocks as he appears with answers on numerous threads. Good luck!



[Desert Dino]



[450LX]

Thanks for the help guys! The top hose from the transmission cooler goes to the top pass through nipple to the transmission and the bottom hose from the transmission cooler goes to the bottom pass through nipple into the bottom of the radiator.

Thank you guys for the help. My world can turn again.



[Desert Dino]

Can we tell which of the metal pipes that come and go back to the trans is the hot oil that pipe that comes from the trans and which is the cooled oil going back?



[450LX]

The way @baldilocks explains it the cooling goes: Hot oil from the transmission to the passenger side bottom radiator. Out from the driver side bottom radiator. Into the bottom of the transmission cooler. Cooled oil out from the top line of the transmission cooler back to the transmission.



[baldilocks]

Can we tell which of the metal pipes that come and go back to the trans is the hot oil that pipe that comes from the trans and which is the cooled oil going back?

The hot line out from the transmission. Is the upper steel line beside the engine block.
