What size bulb goes where on the back of the Combination Meter? (1 Viewer)

[Wayne]

I've got the Combination Meter out and want to replace the bulbs, but can't find a diagram that shows what size bulb goes where. I'm not installing LEDs and the only numbers I can find is 194 and 74. I have the FSM and it was no help (surprisingly) and the online Toyota parts listing gives a number of sizes and wattages. Help!



[flintknapper]

I've got the Combination Meter out and want to replace the bulbs, but can't find a diagram that shows what size bulb goes where. I'm not installing LEDs and the only numbers I can find is 194 and 74. I have the FSM and it was no help (surprisingly) and the online Toyota parts listing gives a number of sizes and wattages. Help!

The dash cluster (back lit) takes (4) #194 bulbs, the smaller warning lights (ABS, etc....) take #74 bulbs



[Desert Dino]

List of all instrument cluster, Heater Control and Dashboard OEM Bulb list. LC 1994

Could not find this list anywhere, so I made it 3100B - BULB, COMBINATION METER, NO.1 90981-11018 ( 11 ) 12V 1.2W W/O SOCKET(08/1992 - 01/1995) 99132-12034 ( 7 ) 12V 3.4W(08/1992 - 01/1995) 83119-36060 ( X ) 12V 3.0W GREEN CAP(08/1992 - 01/1995) 83119-36080...

forum.ih8mud.com

Definitive led thread for 80s

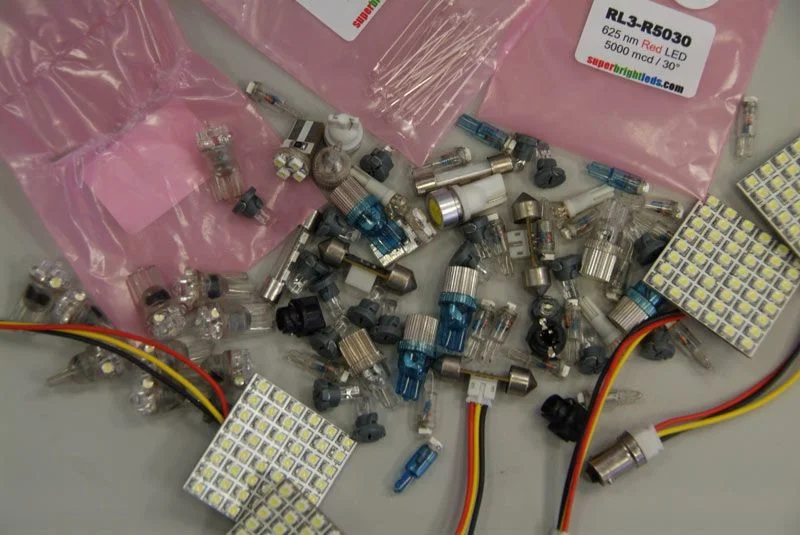

I may have gone a little overboard with the LEDs but some like their 80 to look like a 7-11 in Reno. :grinpimp:

forum.ih8mud.com
