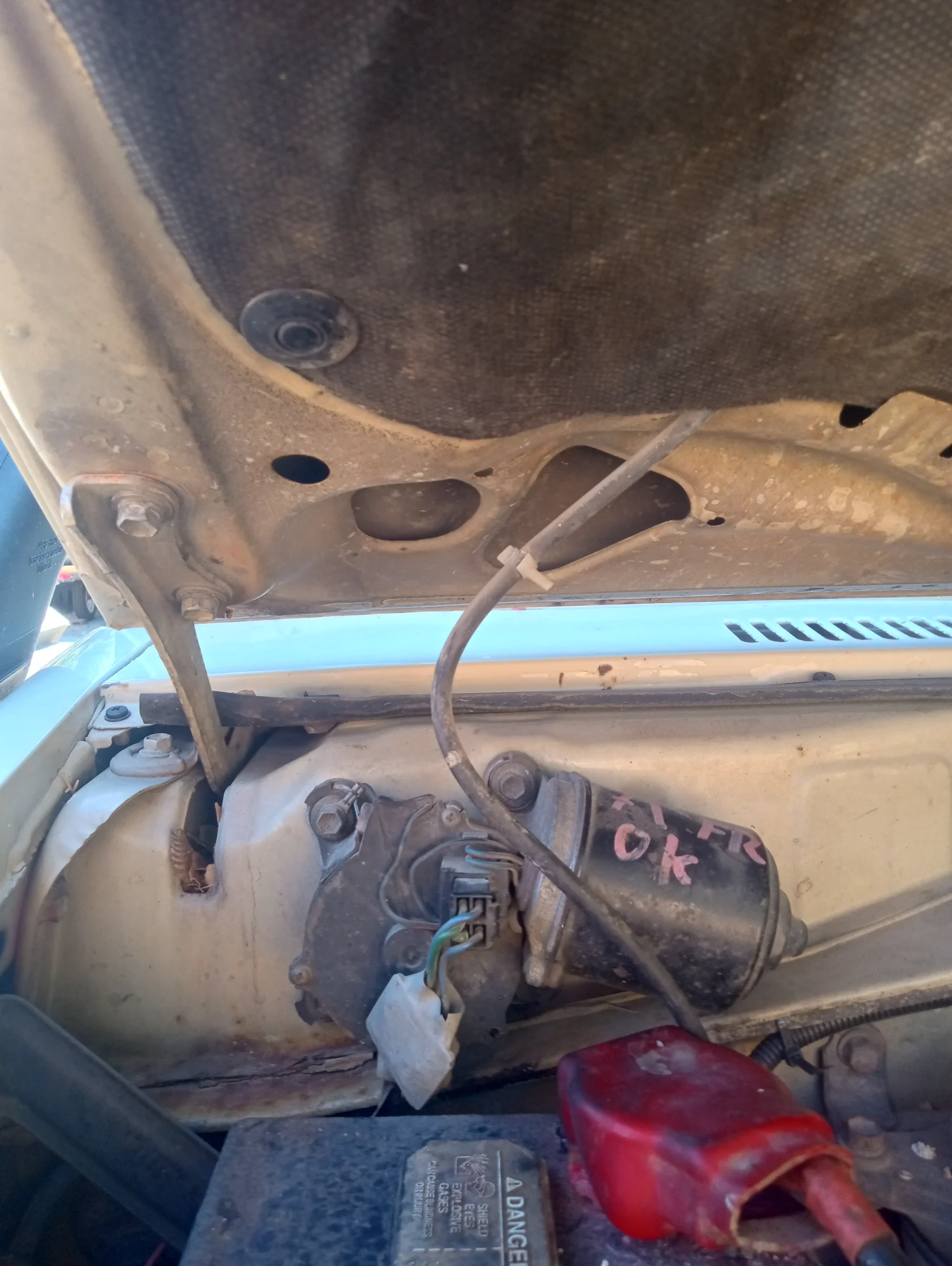

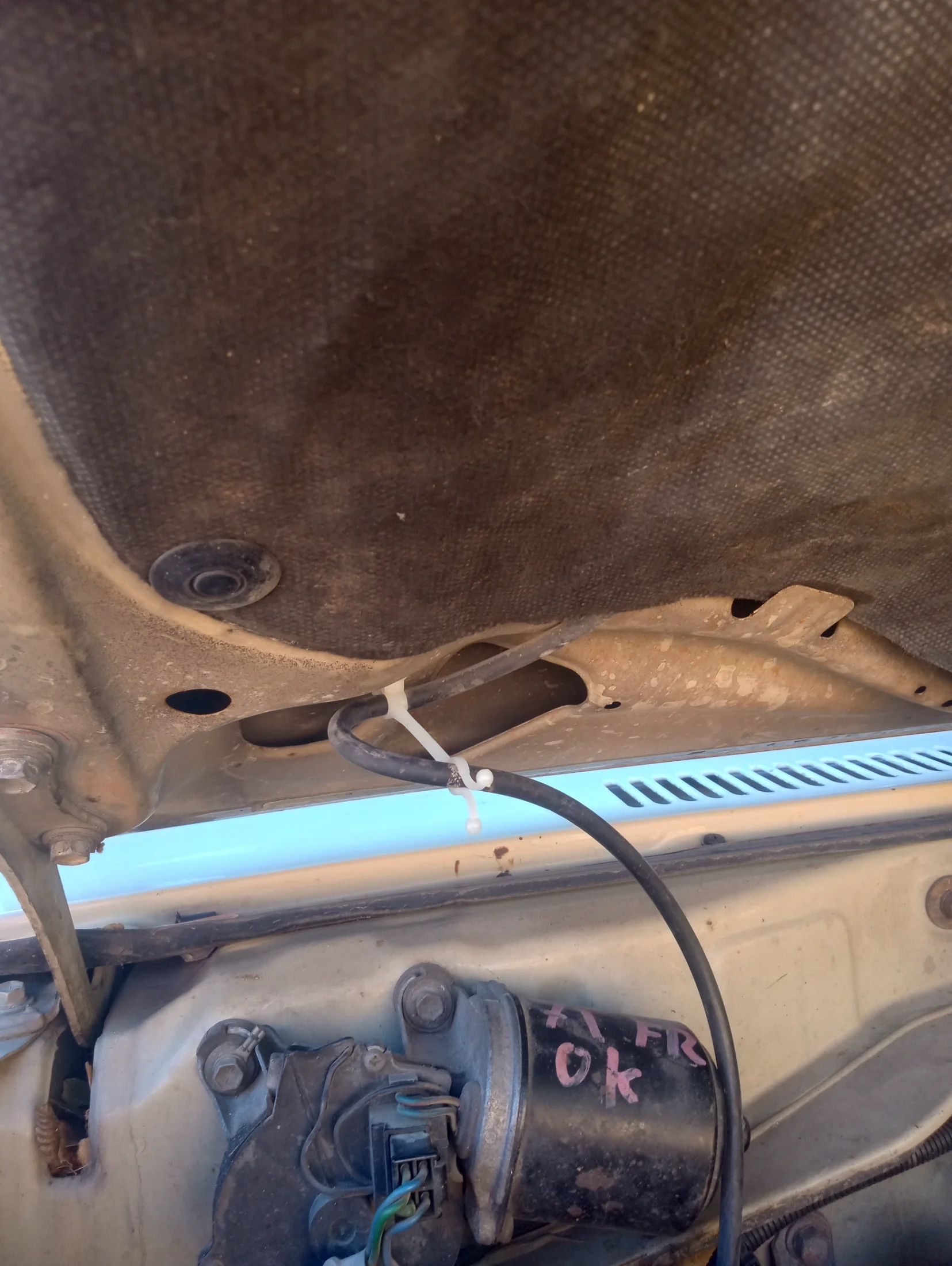

Trying to determine the correct orientation of this clip.


Looks like it should face forward, but just wanted to ask before I sunk it home and have to break it to remove...


Parts diagram.

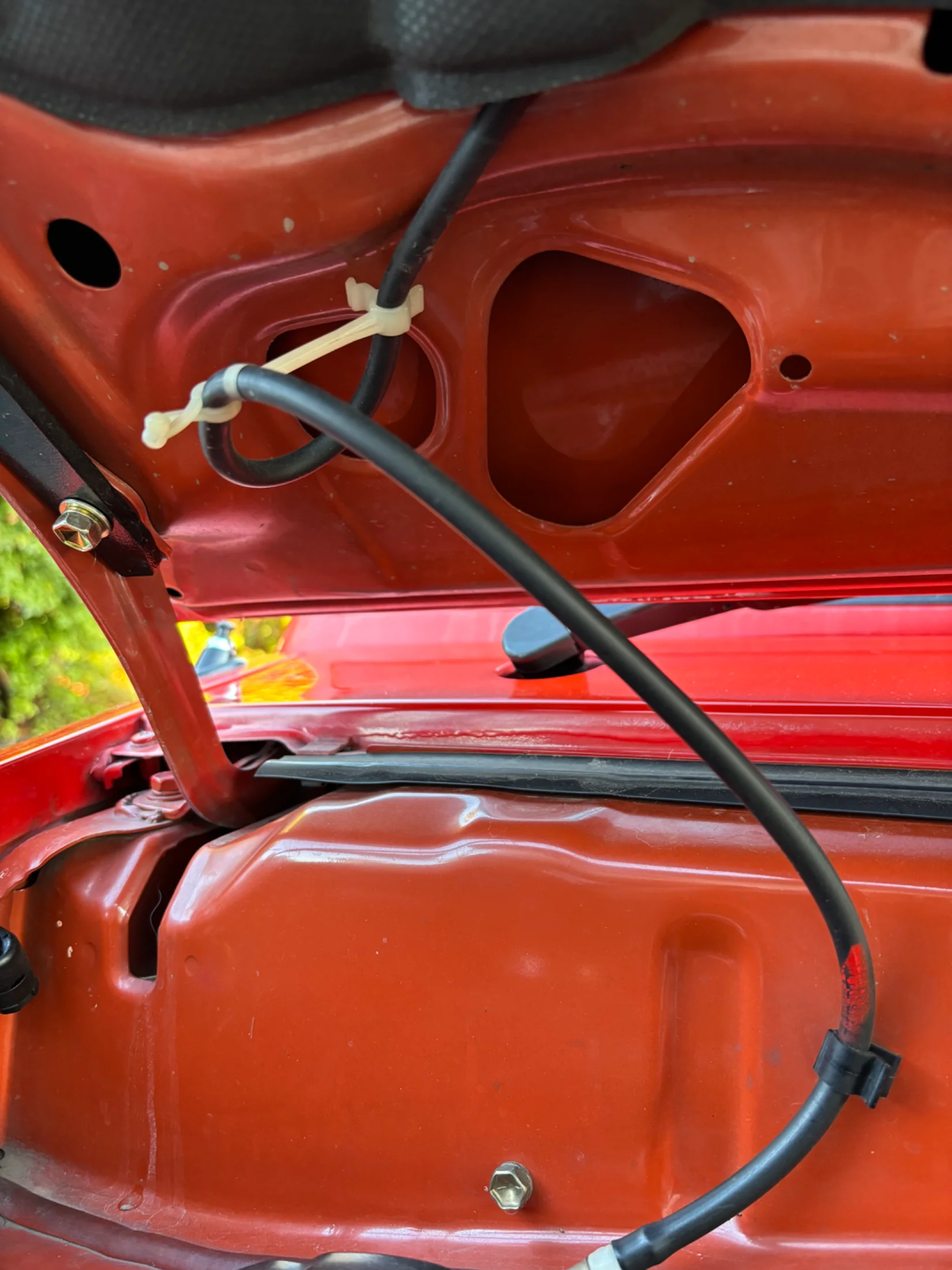

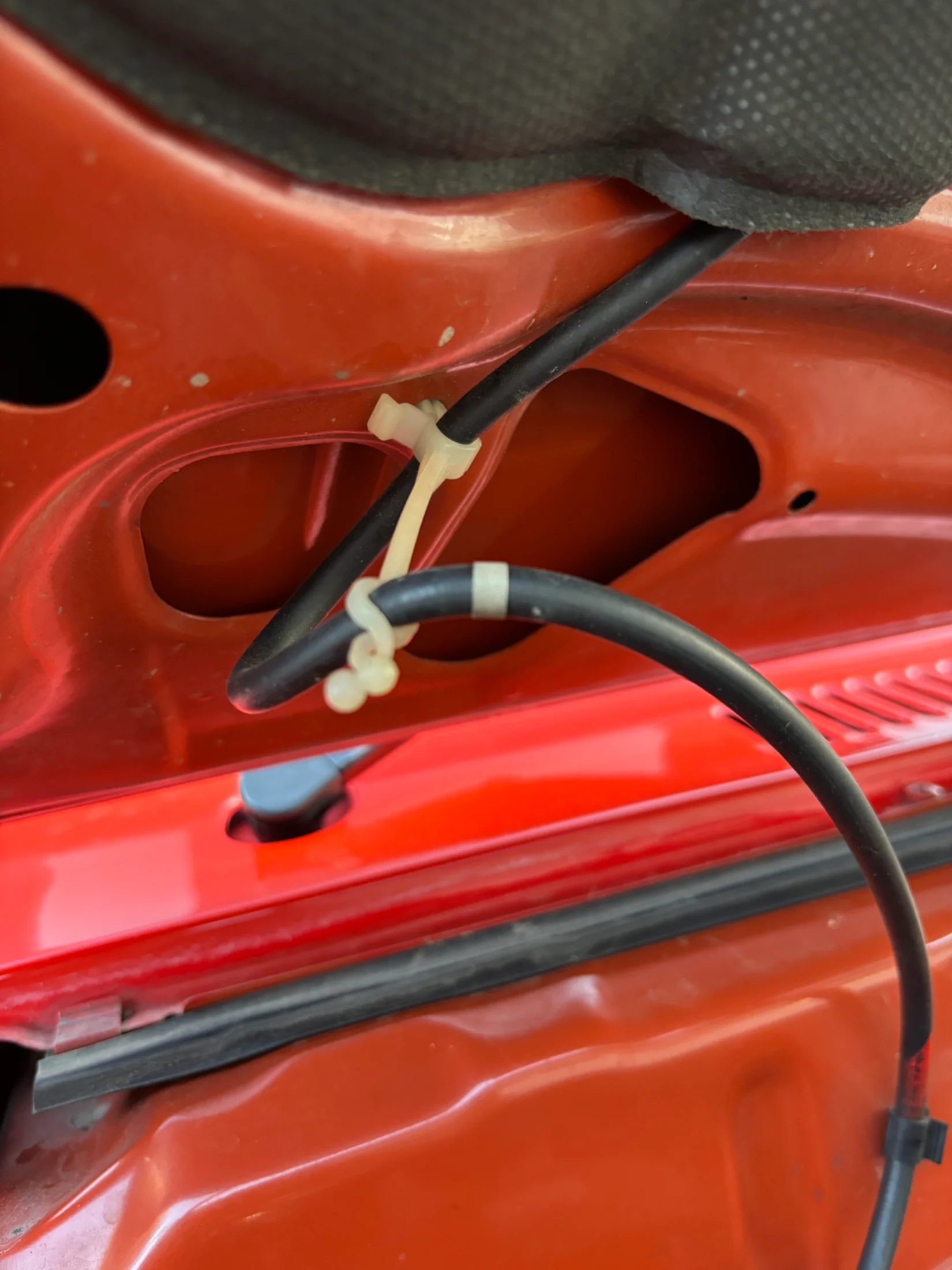

Here’s how my 1997 HZJ75 snaps in. Hope this helps. Should attach same.


My RHD may make a difference.
