Vintage TOYOTA MOTOR Hand Tools and "TEQ" Accessories

Discussion in '40- & 55-Series Tech' started by dmamj, Oct 28, 2018.

  1. dmamj

    dmamj SILVER Star

    Messages:
    81
    Likes Received:
    74
    Joined:
    Nov 12, 2017
    Location:
    Gilbert, AZ
    Thought I’d start this as a supplement to wscbill’s “Tools, Tool Kits, Options, and Accessories” thread, which, incidentally is one of the most informative of any threads on MUD. Bill, I (we) owe you a big-time thanks for doing the research and sharing your findings. A dolt like myself couldn’t have completed a correct tool bag without it. TreerootCO, I understand you had a hand in it also – thanks to you too – don’t want to demean your contributions, or anyone else’s for that matter. Those looking to build a tool kit/bag with period-correct tools who haven’t seen that thread, have a look – you won’t be disappointed.

    Tools, Tool Kits, Options and Accessories

    The intentions of this supplemental thread are simple:

    · Muster up conversation about other vintage Toyota Motor tools and accessories which never made it into Land Cruiser tool kits, but would be cool in them nonetheless.

    · Share pictures of your Toyota Motor tools and accessories

    · Encourage MUDDERs to keep educating MUDDERs

    · Be a launching pad for some buying, selling, and trading (definitely not trying to create another classified section, but don’t think it would be too terrible if a few deals were made as a result of this thread).

    We all know the basic tools that came in Land Cruiser tool kits from the 50’s – 80’s: open-end wrenches/spanners, 250mm adjustable wrenches, 200 mm pliers, screwdrivers with wood, yellow, or black handles, lug wrenches, those impossible to find OH and Maruki hammers, the grease pumps which I firmly believe only exist in legend, engine adjust kits, etc. But Toyota also stamped their name on a myriad of other “Standard” and “Recommended” tools. Thanks again to wscbill, (and full credit to him also) pictures of those tools can be found in a couple of old catalogs. The seven links below are pages 1 – 7 of a 1972 (or so) Toyota Motor tool catalog. Have a gander at each.

    https://forum.ih8mud.com/media/pg-1.65822/full

    https://forum.ih8mud.com/media/pg-2.65821/full

    https://forum.ih8mud.com/media/pg-3.65820/full

    https://forum.ih8mud.com/media/pg-4.65819/full

    https://forum.ih8mud.com/media/pg-5.65818/full

    https://forum.ih8mud.com/media/pg-6.65817/full

    https://forum.ih8mud.com/media/pg-7.65816/full

    Then a link to a 1982 catalog is here. It’s a nice color version written in Japanese.

    We see some very cool stuff - a pipe wrench, ratchets, sockets, colorful plastic-handled screwdrivers, honing stones, box wrenches, files, etc. Note the vast majority of the tools in both catalogs are marked TOYOTA MOTOR without the old Toyota “TEQ” logo (side bar: “T backwards E Q” are actually three Japanese Katakan characters which translate to “TO YO TA”). This absence of “TEQ” on the tools in the 1972 catalog may be relevant, as many of the early Land Cruiser tools and other Toyota models had that stamp. We can almost surmise the practice of stamping of the “TEQ” logo on Toyota tools was discontinued in the very late 60’s or very early 70’s. That’s speculation of course – if anyone can substantiate, please chime in.

    If seems then the words "TOYOTA MOTOR" were used on tools well into the 80’s, as evidenced in the 1982 catalog. So when did TOYOTA MOTOR tools just become TOYOTA tools? It appears that TOYOTA MOTOR evolved into TOYOTA in the 60 series and 80 series, based on some of the tools in the bags during those production years. Speculation again, but TOYOTA MOTOR likely all but disappeared from Toyota tools in the mid-80s. Here's a pic of TOYOTA MOTOR tool #09130-00120, needle nose pliers, from the 1982 catalog, in living color:

    Vintage Toyota Motor Needlenose Pliers.jpg


    The time frame of the TOYOTA MOTOR to TOYOTA evolution is important when considering the possibility of obtaining/collecting TOYOTA MOTOR tools from the 1972 and 1982 catalogs. Think about the period we are talking about. Toyota’s first import into the United States was the Toyopet Crown in 1957, and obviously as cars were imported and driven, cars fell down, went boom, and had to be repaired. How many auto shops fixed Japanese imports back then? We all know – not a ton. And for the tech who had a Toyopet Crown roll into their shop, where would he get replacement parts? Order from Autozone.com? No, he would probably have to pick up their rotary phone and call a parts importer, order, and wait. And wait. Fast forward 37 weeks to when the part arrived and it is install time. He needs a flathead screwdriver, a crescent wrench, and a 14mm wrench. Hmm. 14mm. Might not be in his bag. Think he is going to whip out his Toyota “Recommended” tool catalog and place an order for a Toyota socket set? Unless he wants to keep his customer waiting for another 37 weeks, he’s making a trip to Sears and buying a Craftsman.

    If that theory is correct, it is very possible few TOYOTA MOTOR “Standard” or “Recommended” tools from the 1972 and 1982 catalogs ever made their way to the United States. That is somewhat substantiated by the absence of those types of tools on US auction websites, making them just as scarce, or even more scarce, than those legendary grease guns.

    Here tools 09130-00140, 09018-38180, & 09018-12250 (vise grips, 9.5mm ratchet, & 12.7mm ratchet).

    Toyota Motor Vise Grips.jpg Toyota Motor Ratchets.jpg

    Page 12 of wscbill’s TTKOA thread has some great pictures of the screwdrivers from those catalogs:

    Tools, Tool Kits, Options and Accessories

    With regard to accessories, who knows how many hundreds or thousands of vintage items were manufactured for the different Toyota models that had TOYOTA MOTOR or the old "TEQ" logo imprinted or stamped? I’ve recently come across a few TOYOTA MOTOR or TEQ items I never dreamed existed. Here’s one that would look very cool in the glove box of a vintage Land Cruiser:

    TEQ Toyota Motor Flashlight.jpg

    And another:

    [​IMG][​IMG]
    TEQ Toyota Motor Speedy Wax.jpg

    Speedy 101 AutoWax? Yeah, pretty sweet.

    Your turn. Do TOYOTA MOTOR tools fill any space in your bags, boxes or chests? Have any old, vintage TOYOTA MOTOR or TEQ accessories collecting dust in the back of the garage cabinet? Share a few pics if you do. Would love to see them in living color.

    Poster's Editorial: Guess this thread could have been a continuation of the TTKOA thread, but figured it could be separated out and focus on tools/accessories that weren't found in Land Cruisers as they rolled off the lines.

  2. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

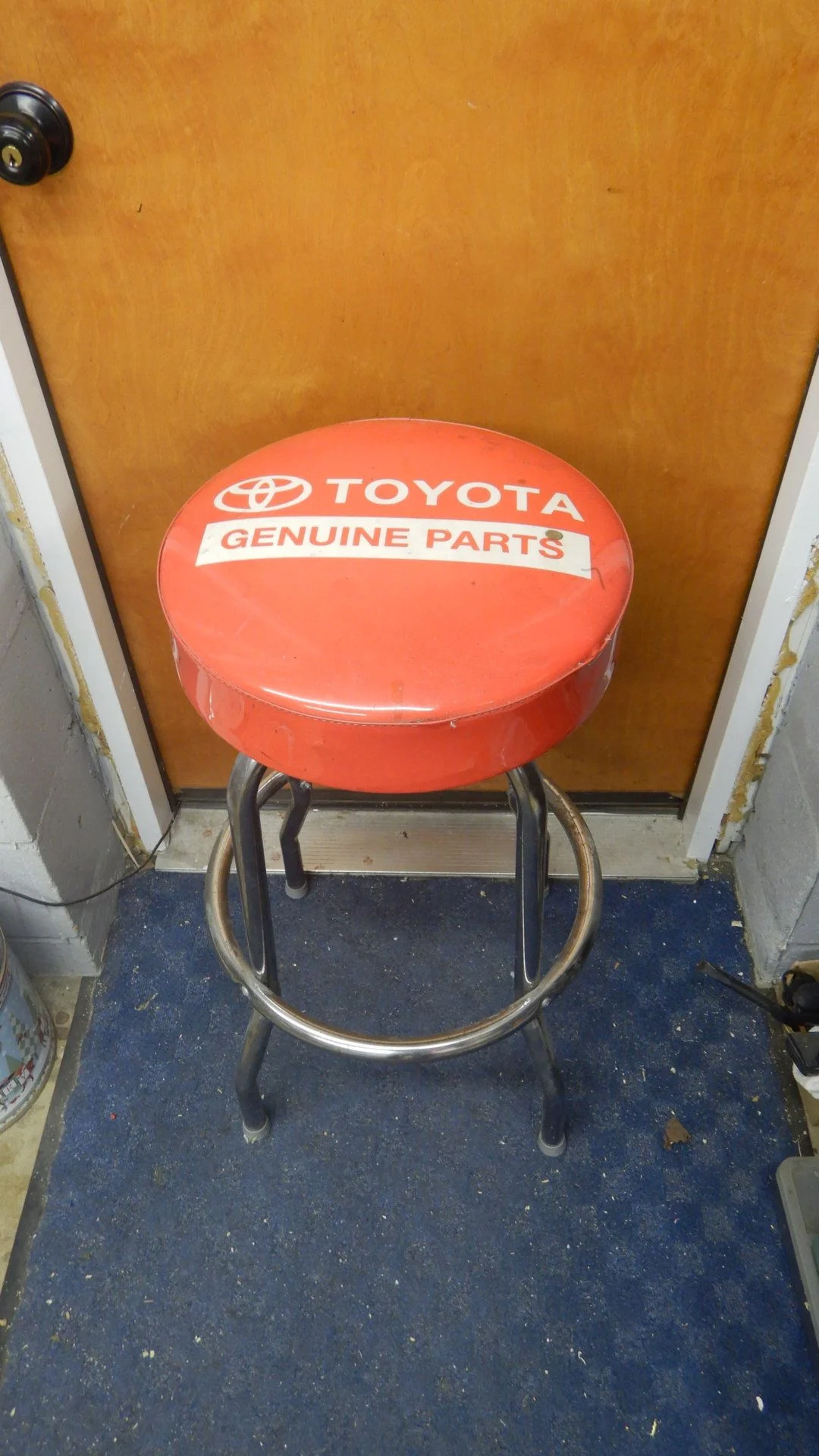

    Dealership Stool

    I bought this Stool while working as a Lube tech my first summer internship at Toyota Dealer Via the T-Ten Program Circa 1996

    there was down time between Jiffy-Jock time and i needed to take it easy the Collage Level T-Ten Program way

    the stool came in a toyota Parts Box




  3. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast
    Toyota T-Ten Master Tech. Program first generation LOGO




    S.CarolinaFZJ80 likes this.
  4. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

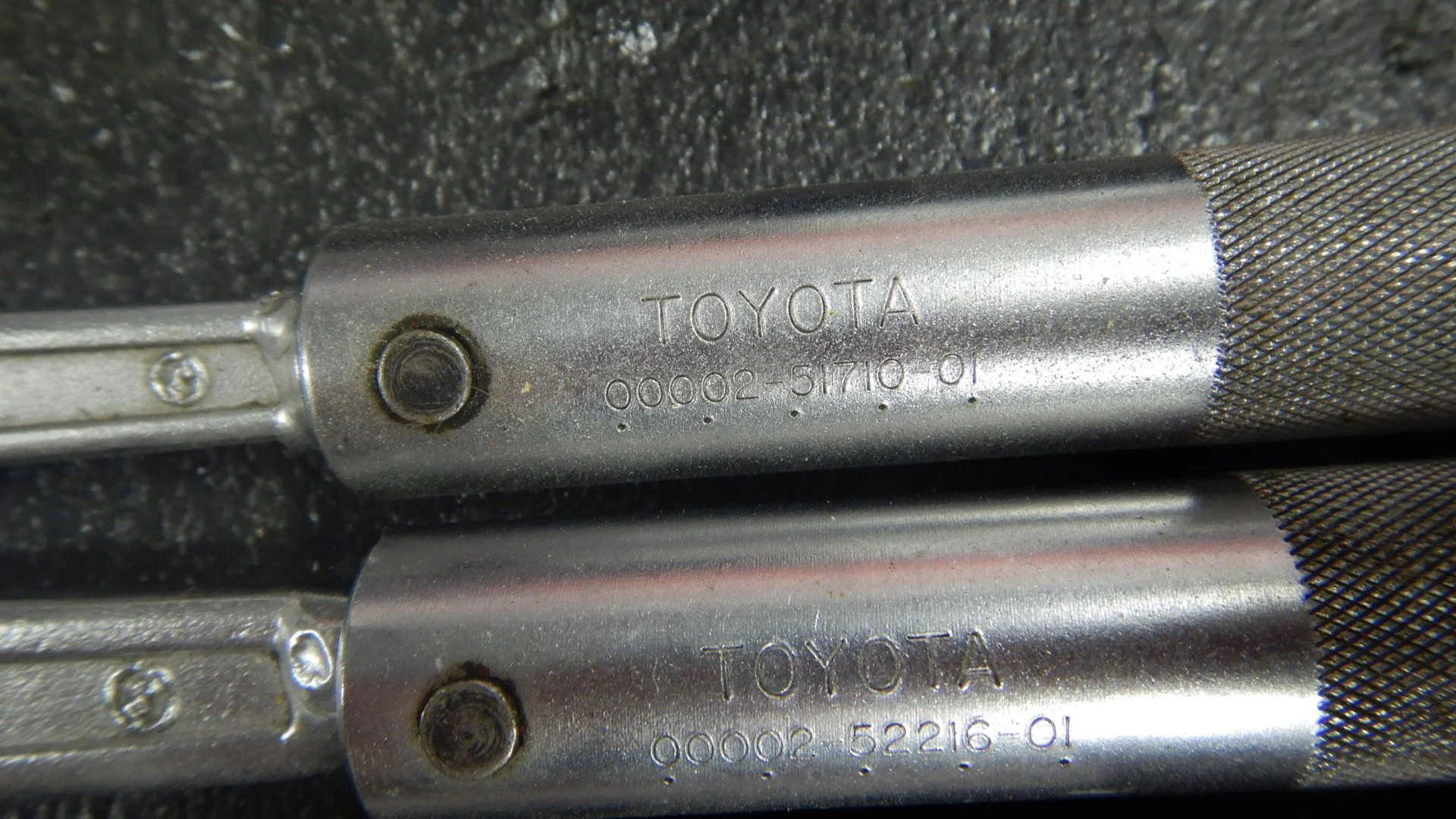

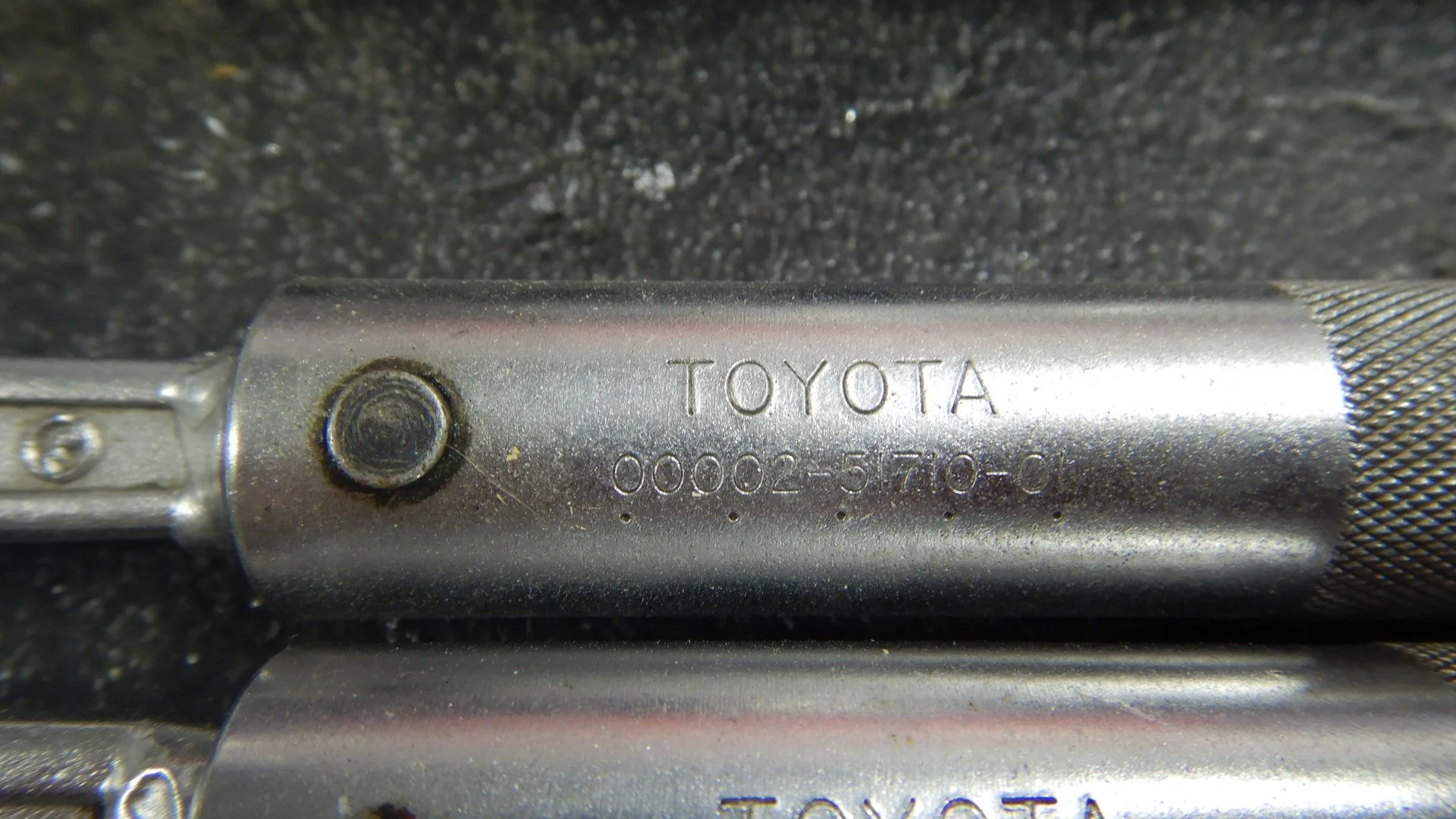

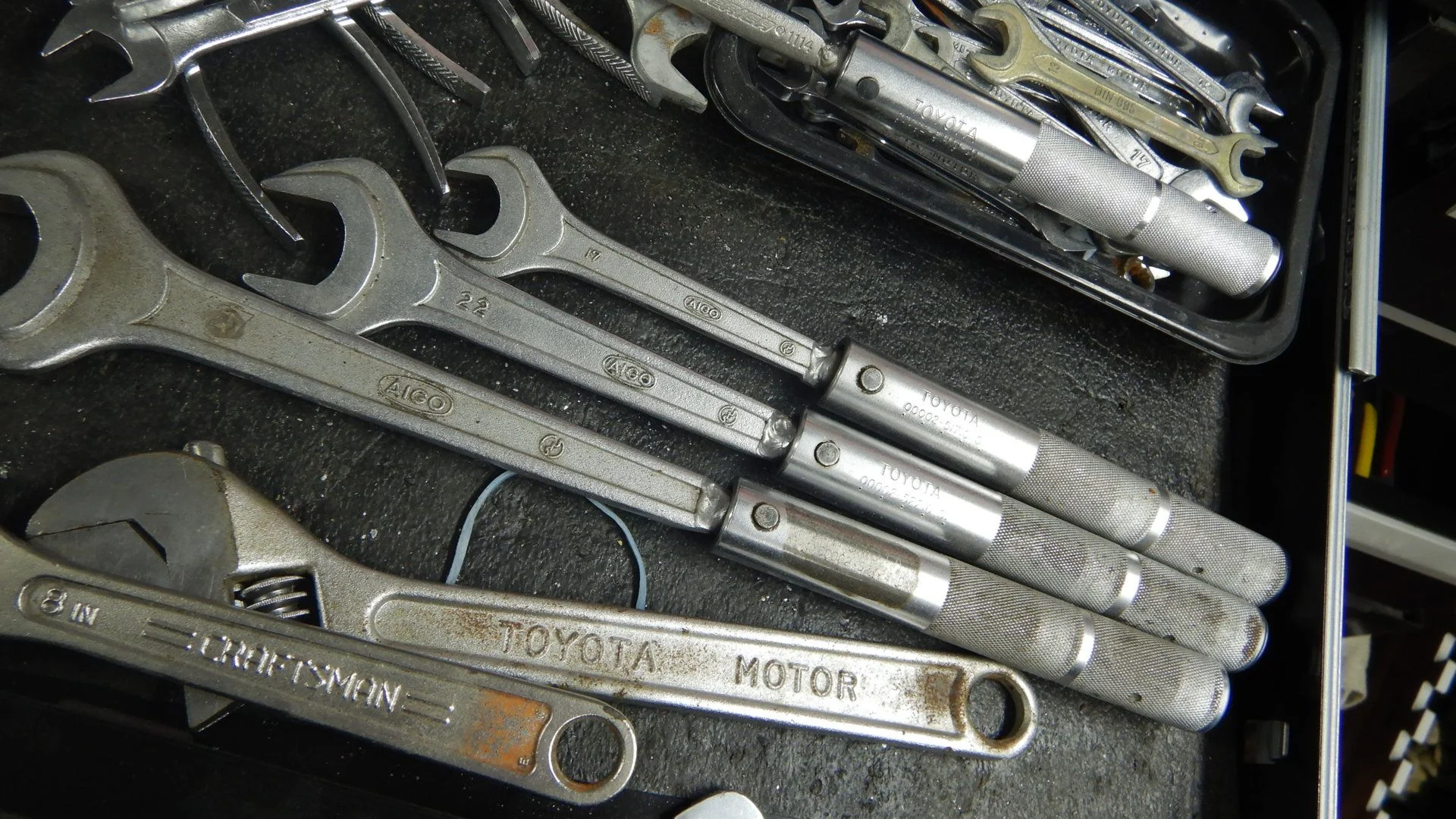

    Toyota SST A/C Lines & fittings Torque Wrench set


    DSCN9410.JPG DSCN9412.JPG DSCN9413.JPG

    65swb45, John McVicker, 1911 and 2 others like this.
  5. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

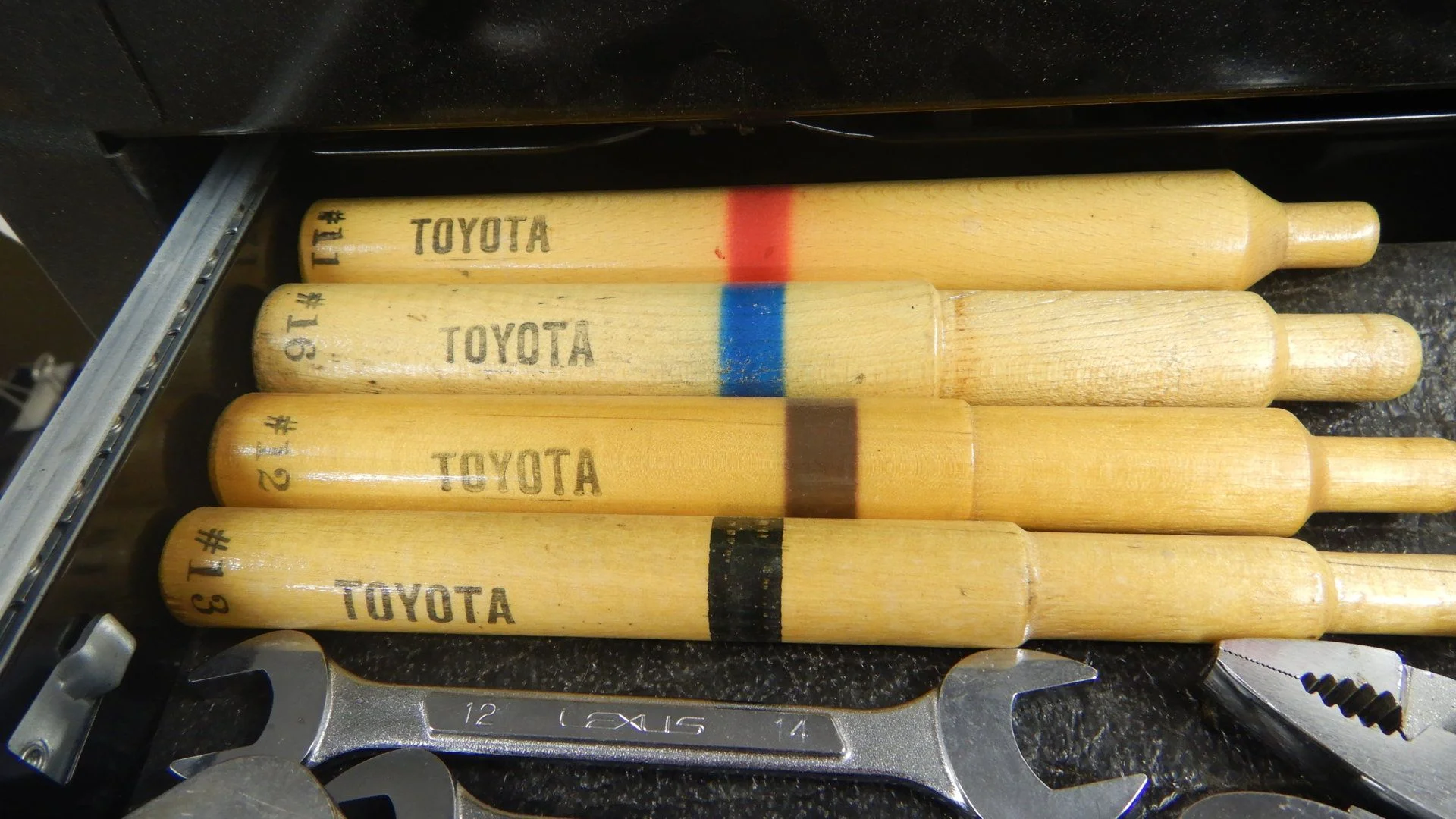

    Toyota SST Clutch Alighnment Tool set ( Note : Wooden Dowel Construction )


    The Land Cruiser is the big one with red stripe #11




    Bad Mojo, 1911 and Rigger like this.
  6. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

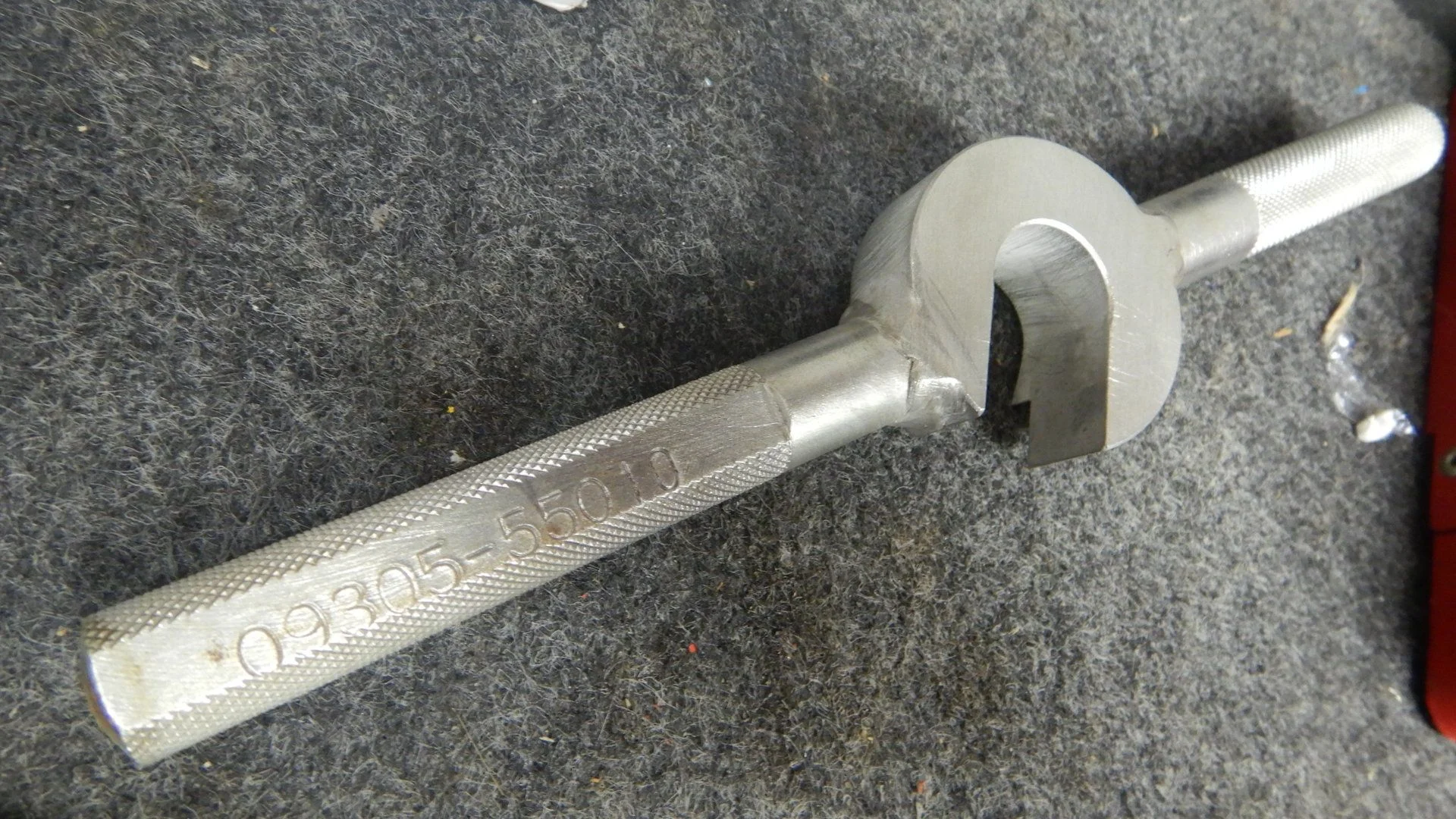

    Toyota SST Gear Shift remover ( Land Cruiser ) 09305-55010

    Note: this was issued to me in 1998 upon completion of the 1st 1/2 of the T-Ten Program & has never been used



  7. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast
    This Banner was issued to a USA Toyota Dealership Part's Dept's retail center display in 1997 ,

    Lets just say it never made it on the wall :smokin:



  8. LandCruiserPhil

    LandCruiserPhil Peter Pan Syndrome Supporting Vendor

    Messages:
    22,811
    Media:
    55
    Albums:
    3
    Likes Received:
    14,525
    Joined:
    Mar 10, 2004
    Location:
    Scottsdale Arizona
    Very cool!
    Thanks for sharing

    RAGINGMATT likes this.
  9. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

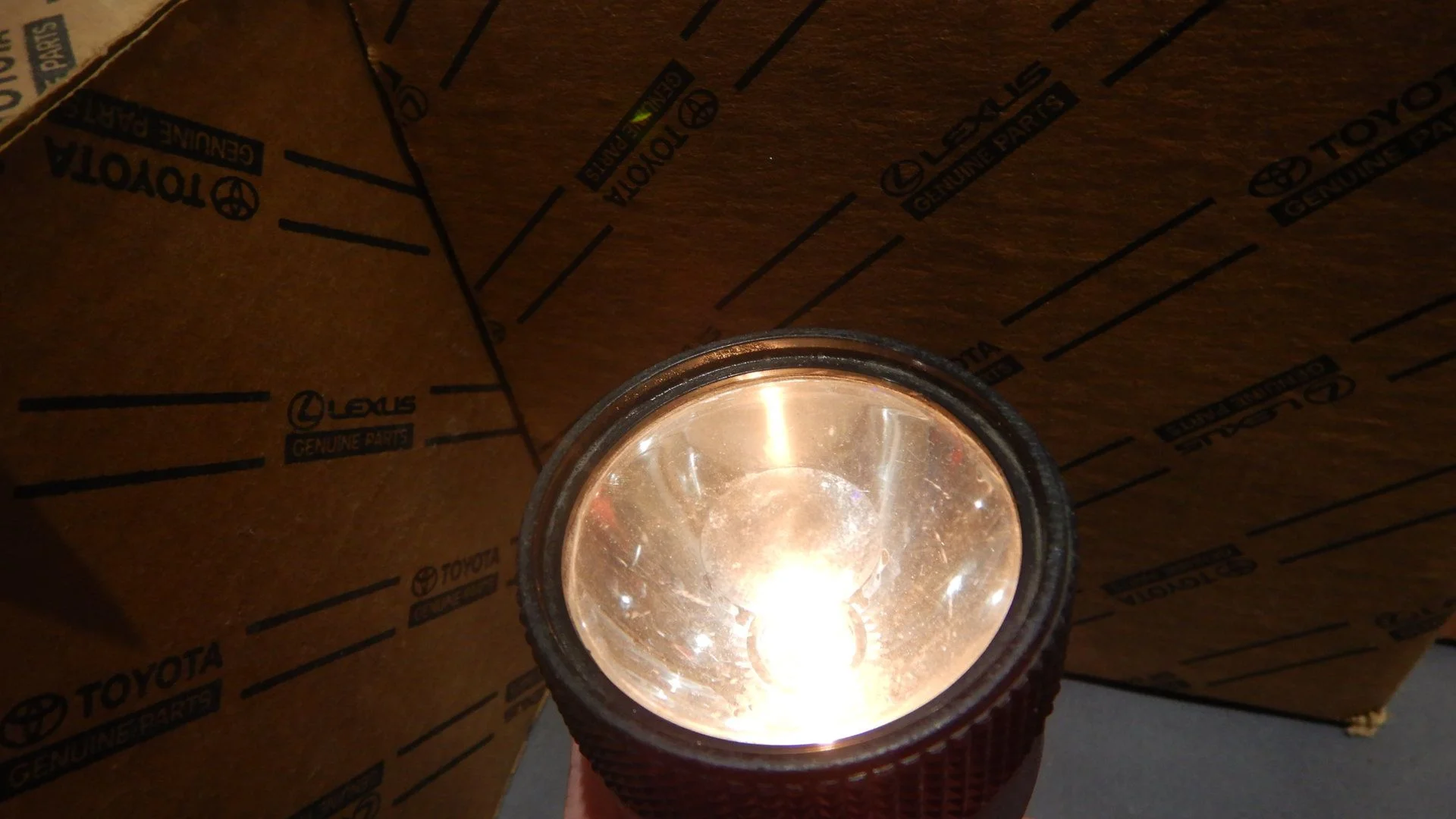

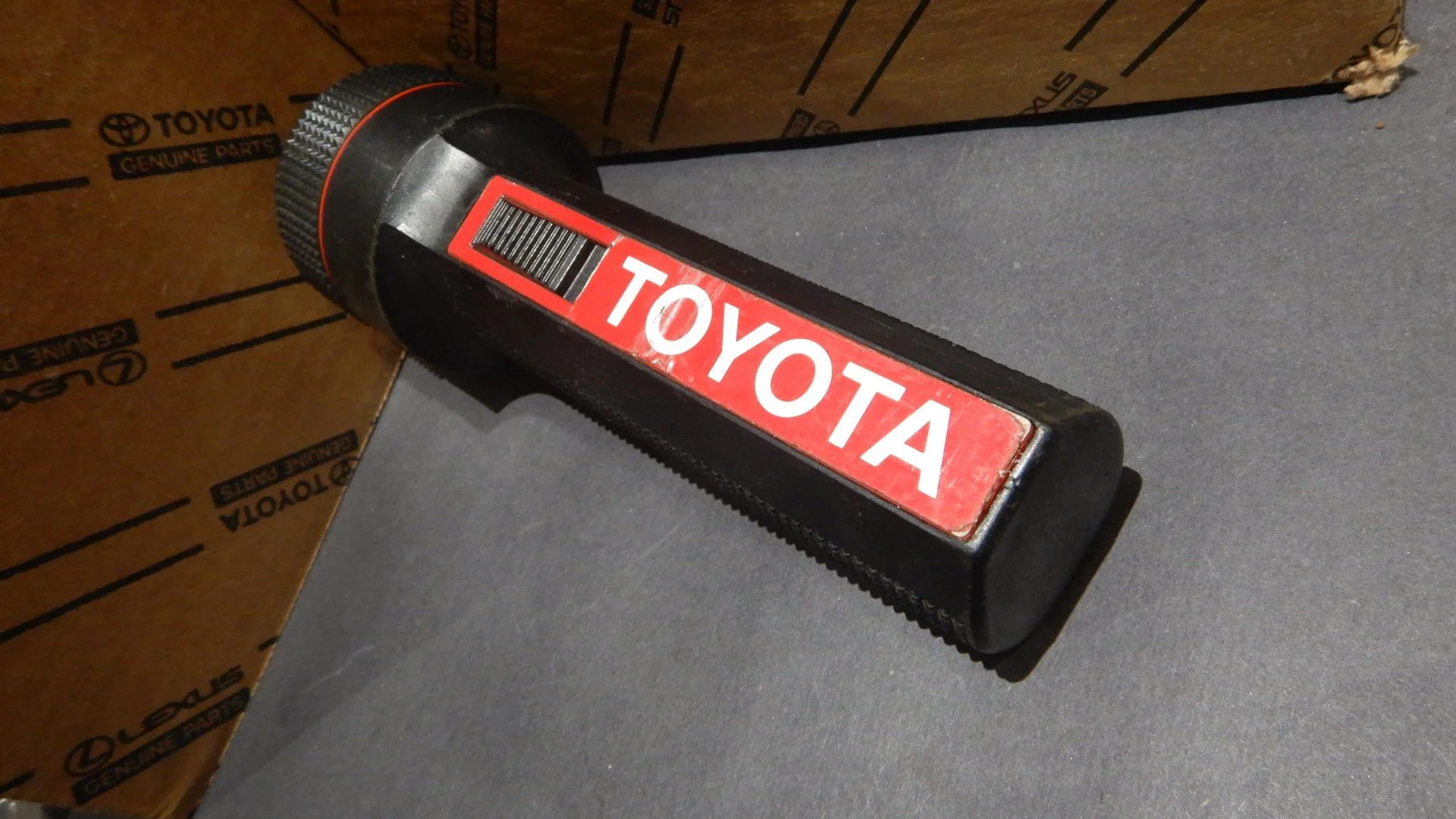

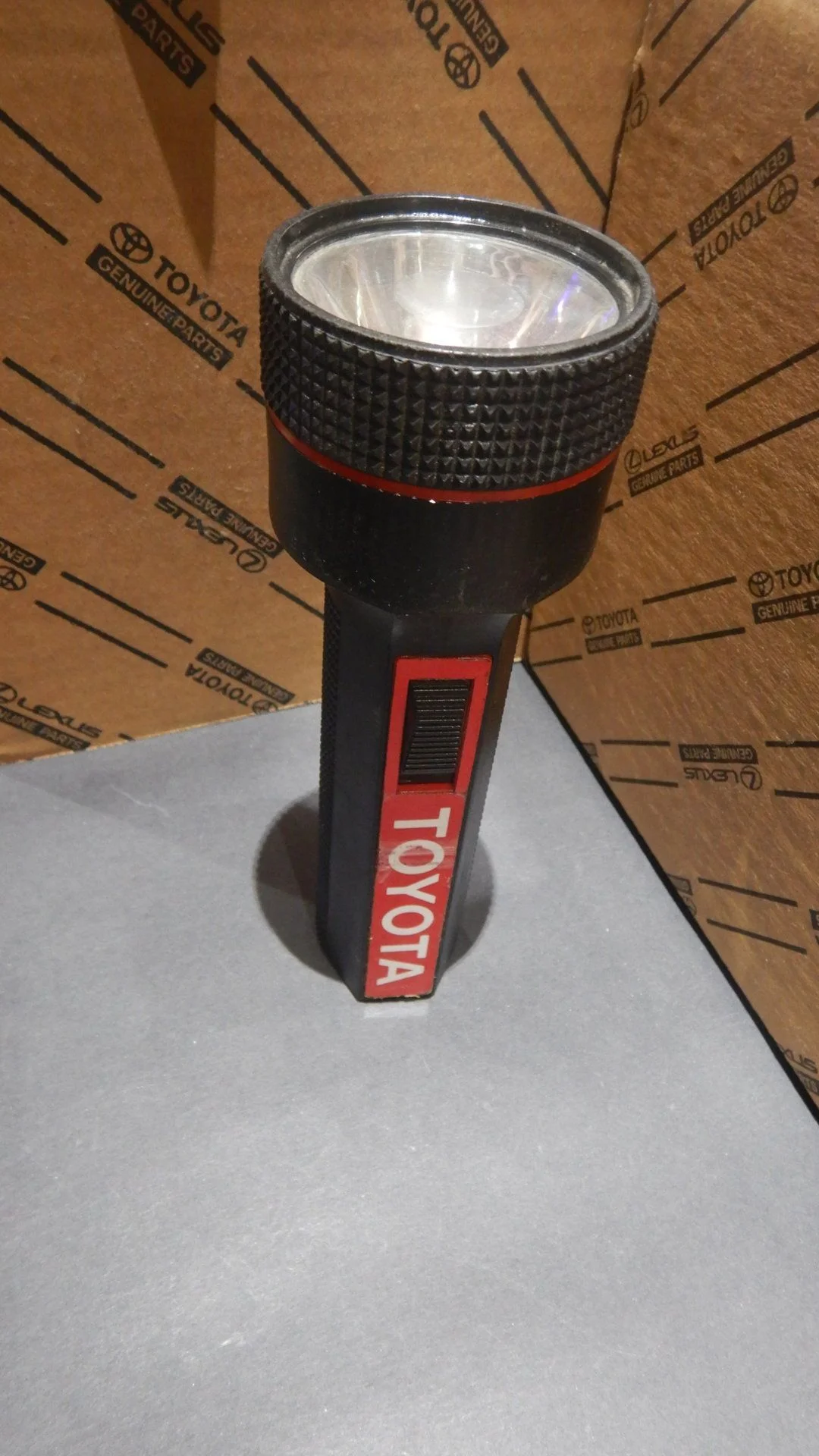

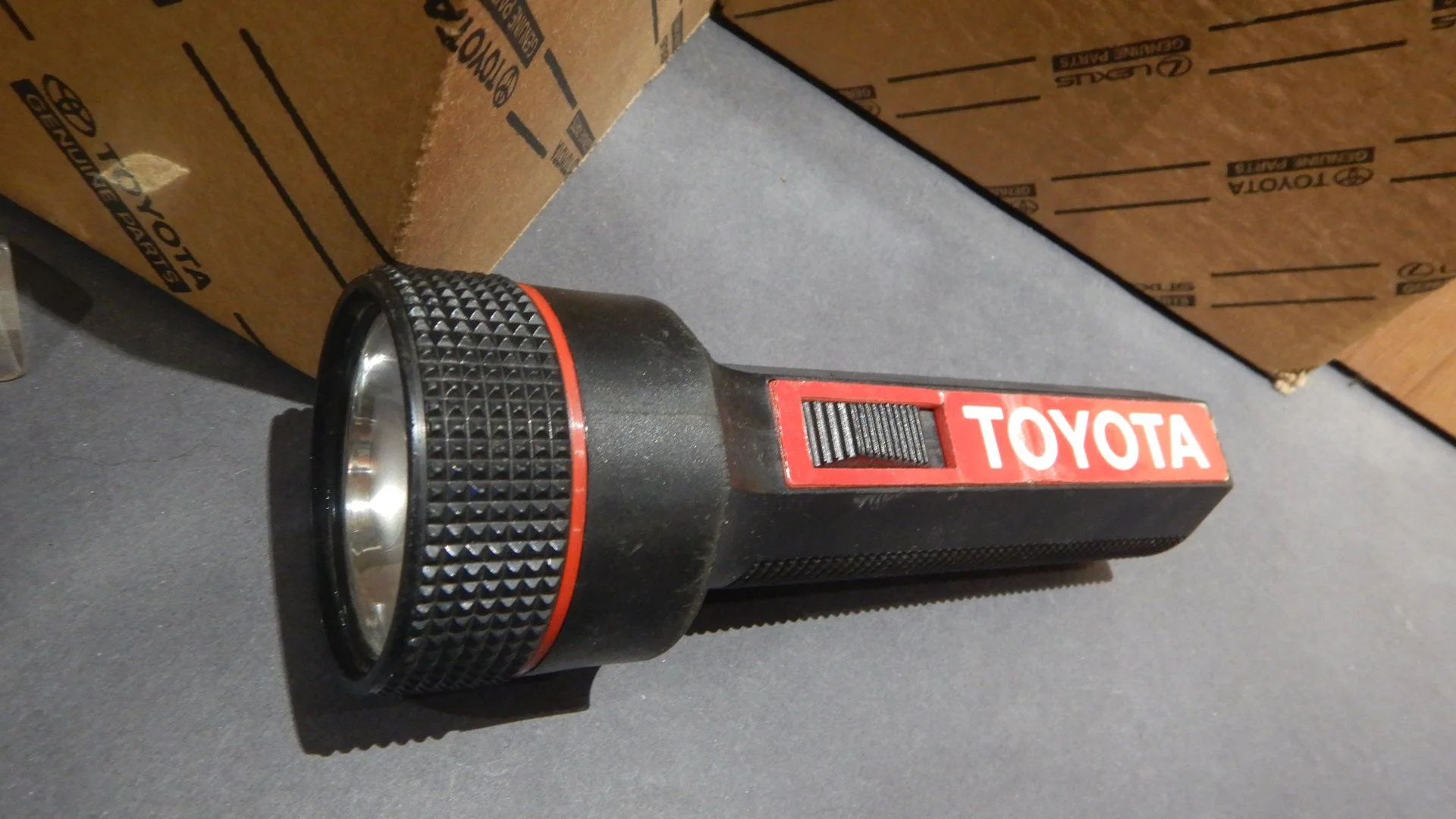

    T-Ten program graduation gift from Mr. T Circa 1998

    Unknown part # , in good working order


    DSCN9436.JPG DSCN9437.JPG DSCN9438.JPG DSCN9439.JPG

  10. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

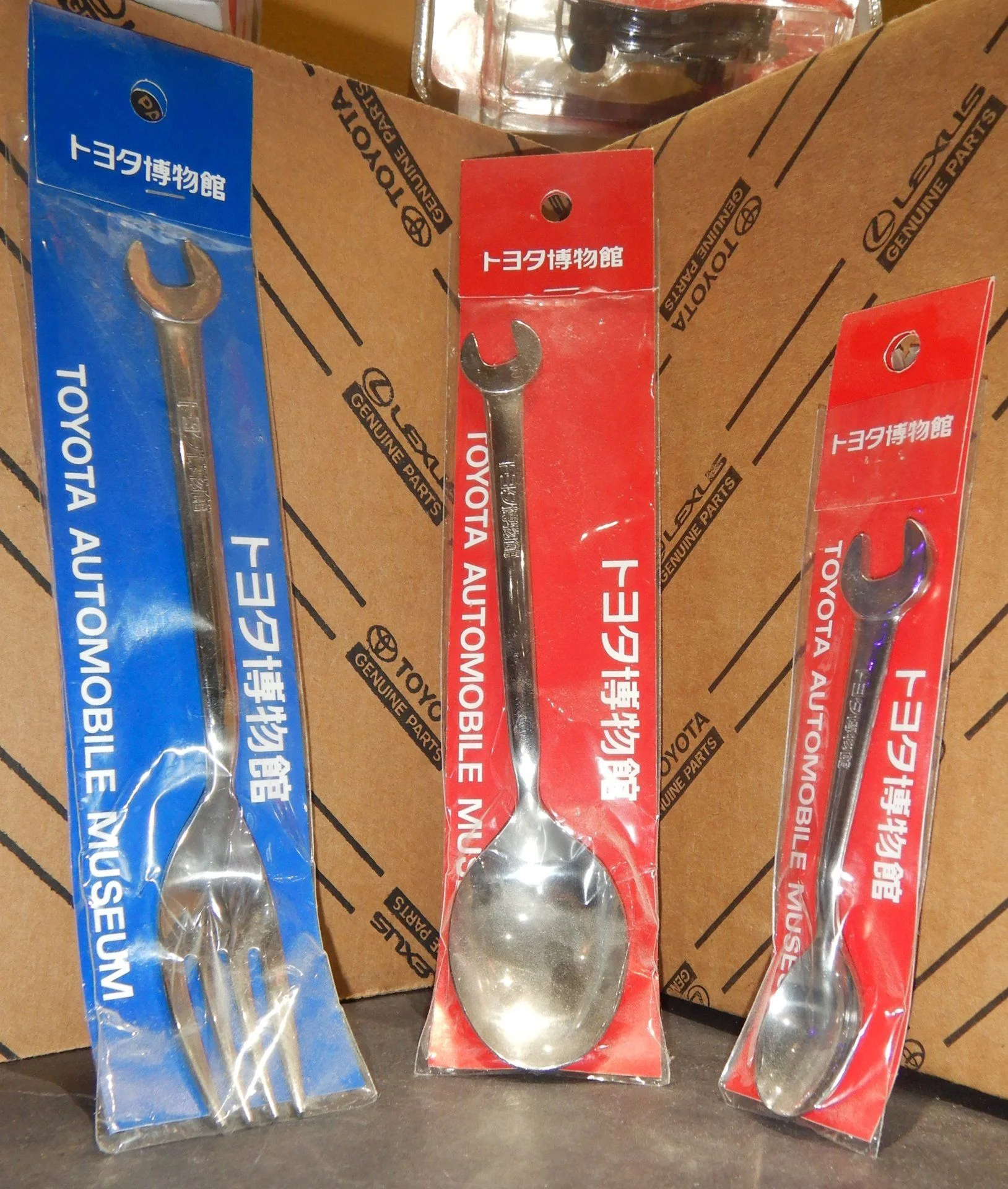

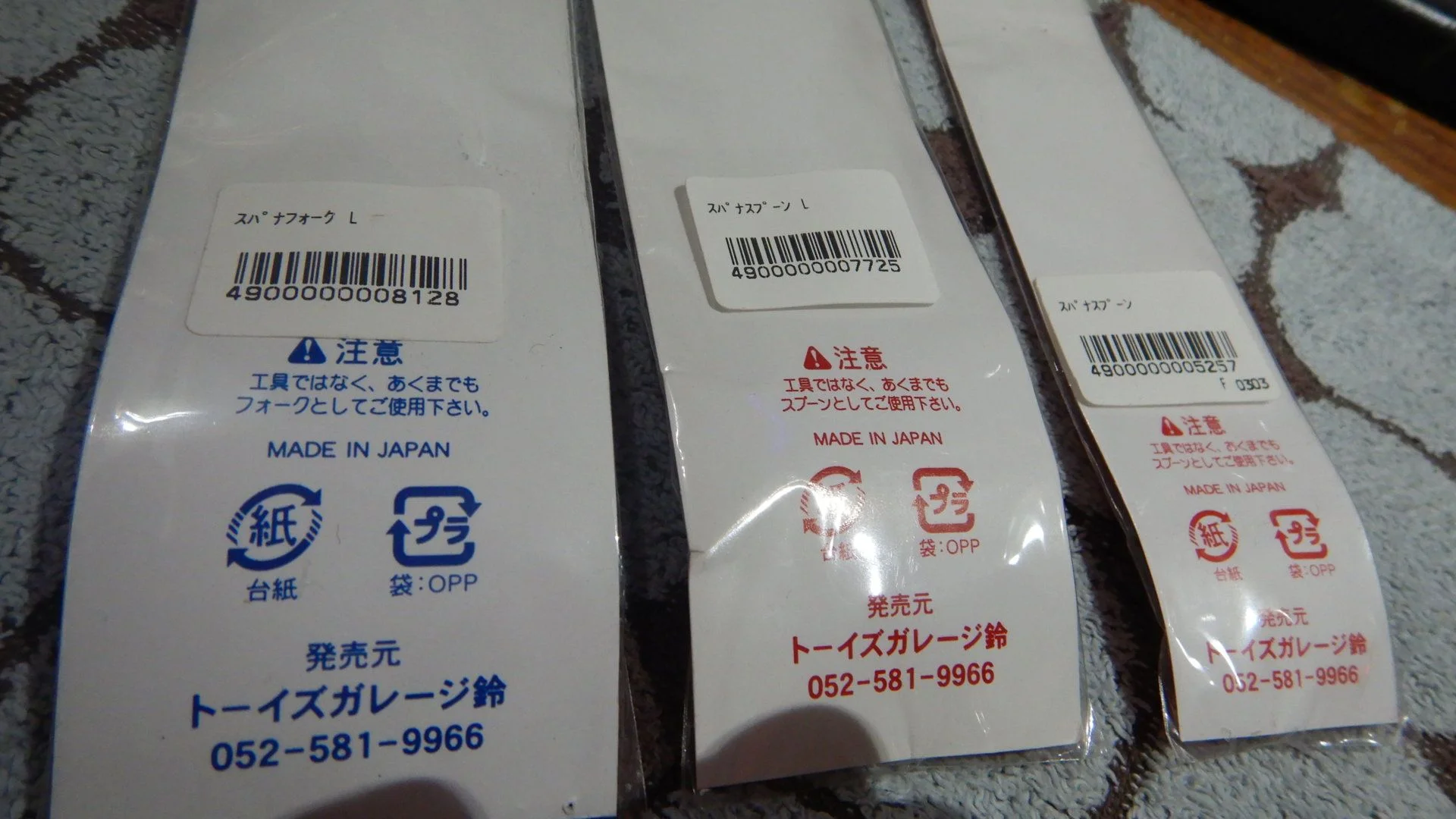

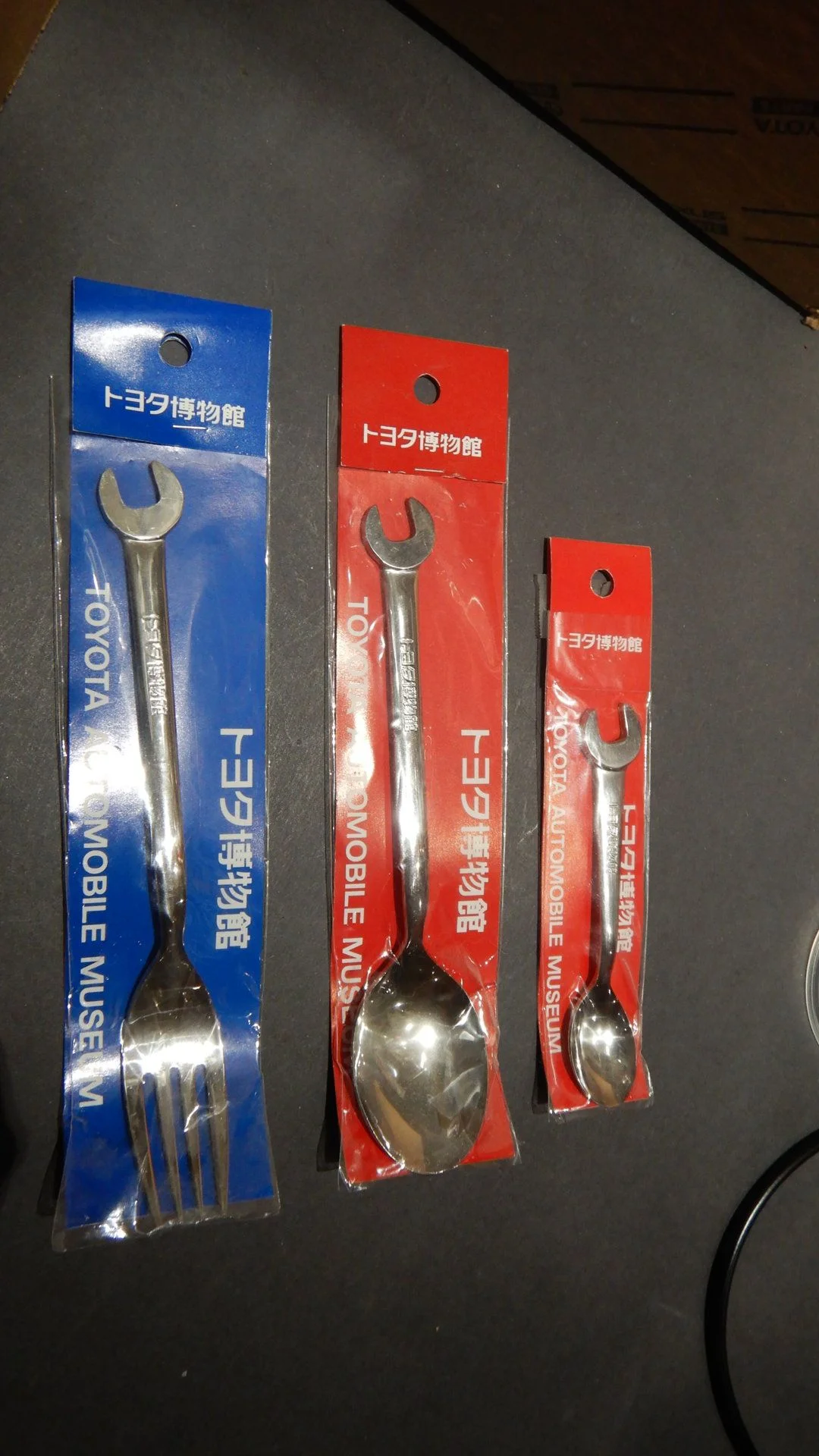

    Toyota OEM Human-Being SST's

    JDM Stainless steel

    made in Japan

    I purchased these at the Toyota City , Japan on premises Gift Shop during T-Ten class trip spring break circa. 1997

    They Indeed have a factory OEM part # :eek:

    - 052-581-9966



    DSCN9441.JPG DSCN9443.JPG DSCN9444.JPG

    Last edited: Oct 29, 2018
  11. Spike Strip

    Spike Strip Torque Ain't Cheap SILVER Star

    Messages:
    12,923
    Likes Received:
    3,185
    Joined:
    Nov 22, 2005
    Location:
    A Sh!thole
    Those Wfork, Wspoon things are the KOOList funkiest Toyota shizzle I've ever seen !!

    RAGINGMATT likes this.
  12. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

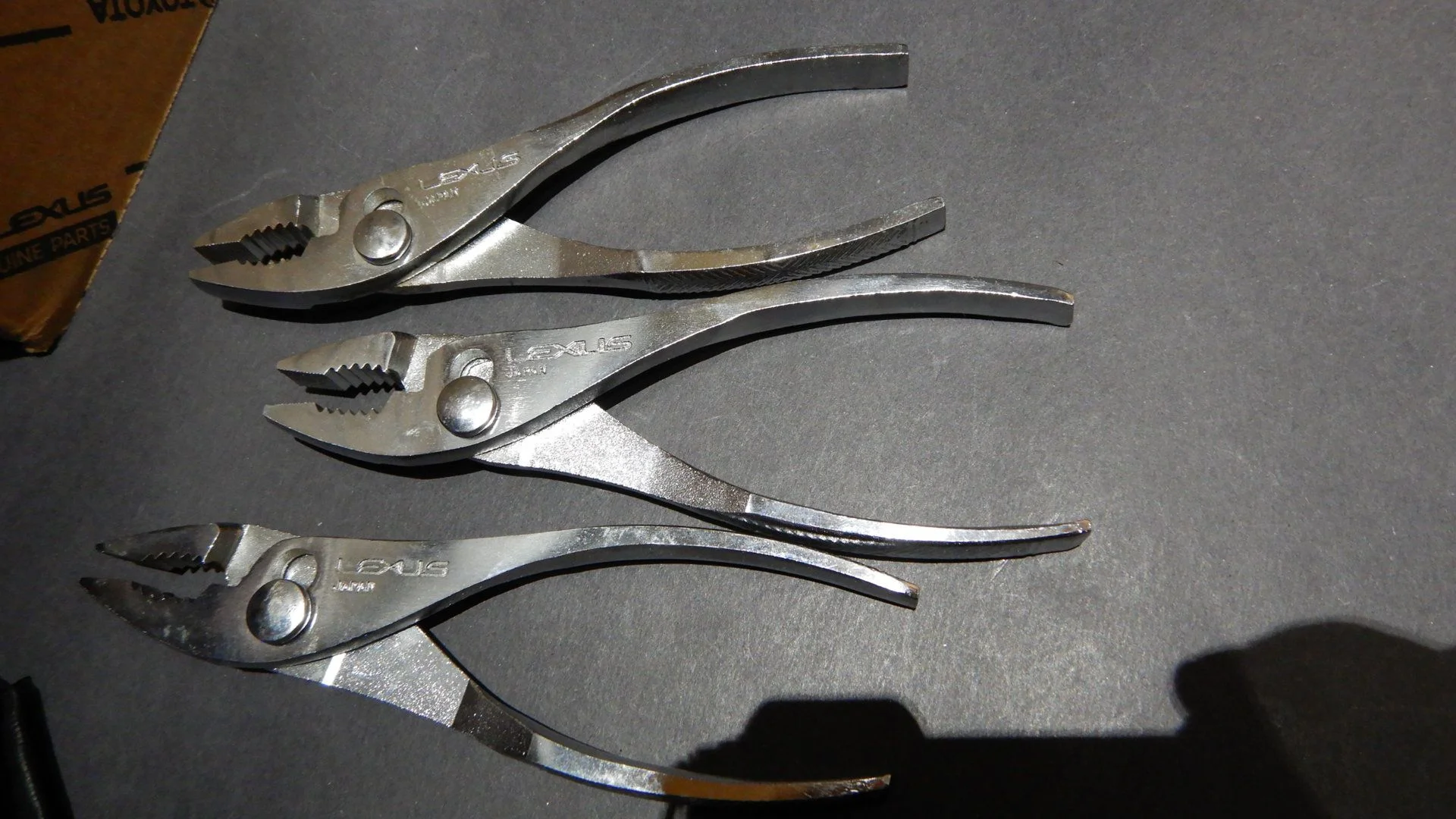

    OEM LEXUS Slip-joint Pliers

    Made in Japan

    " Bristling UN-Circulated " Condition o_O




    Last edited: Oct 29, 2018
    yotadude520 likes this.
  13. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

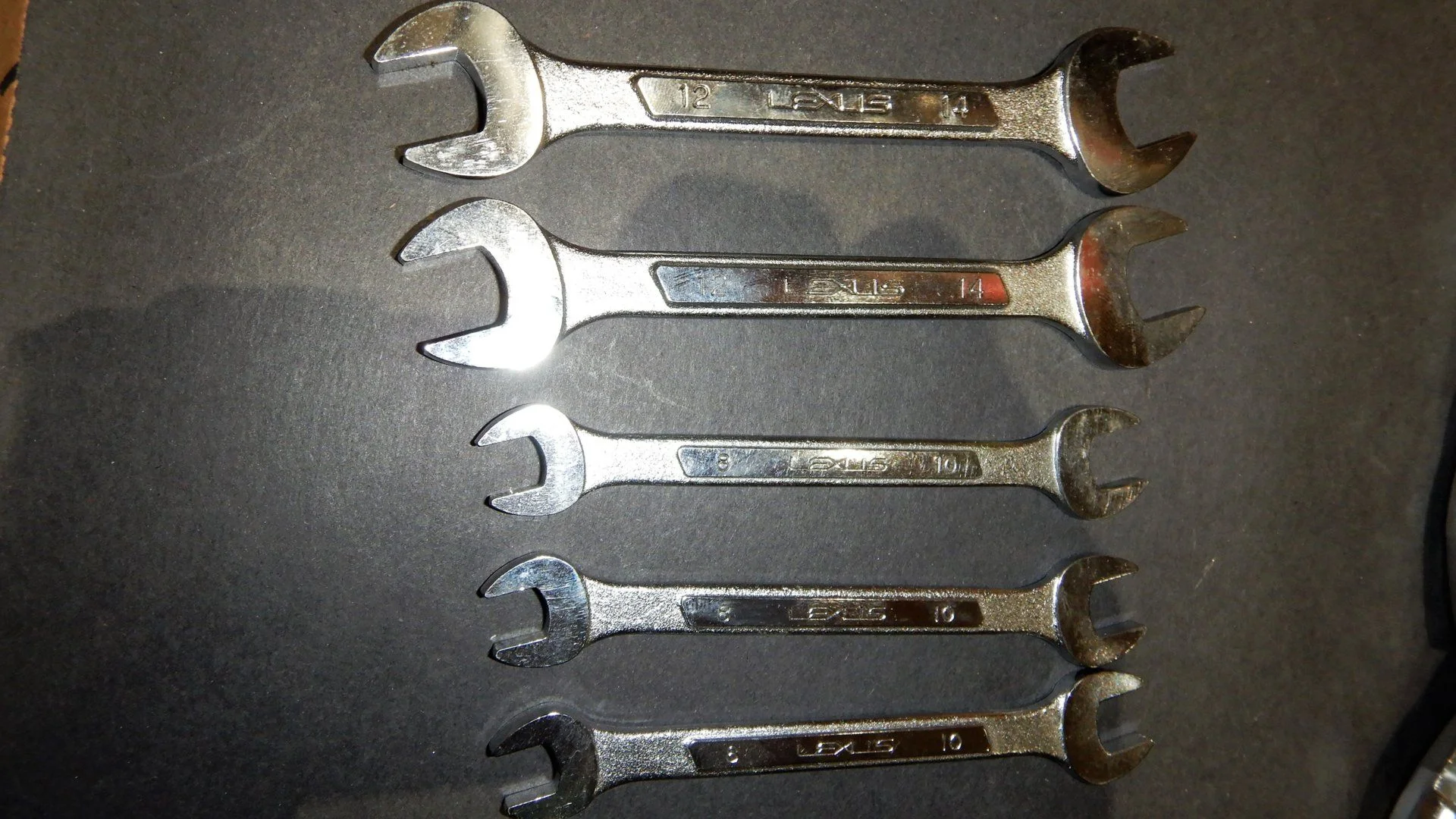

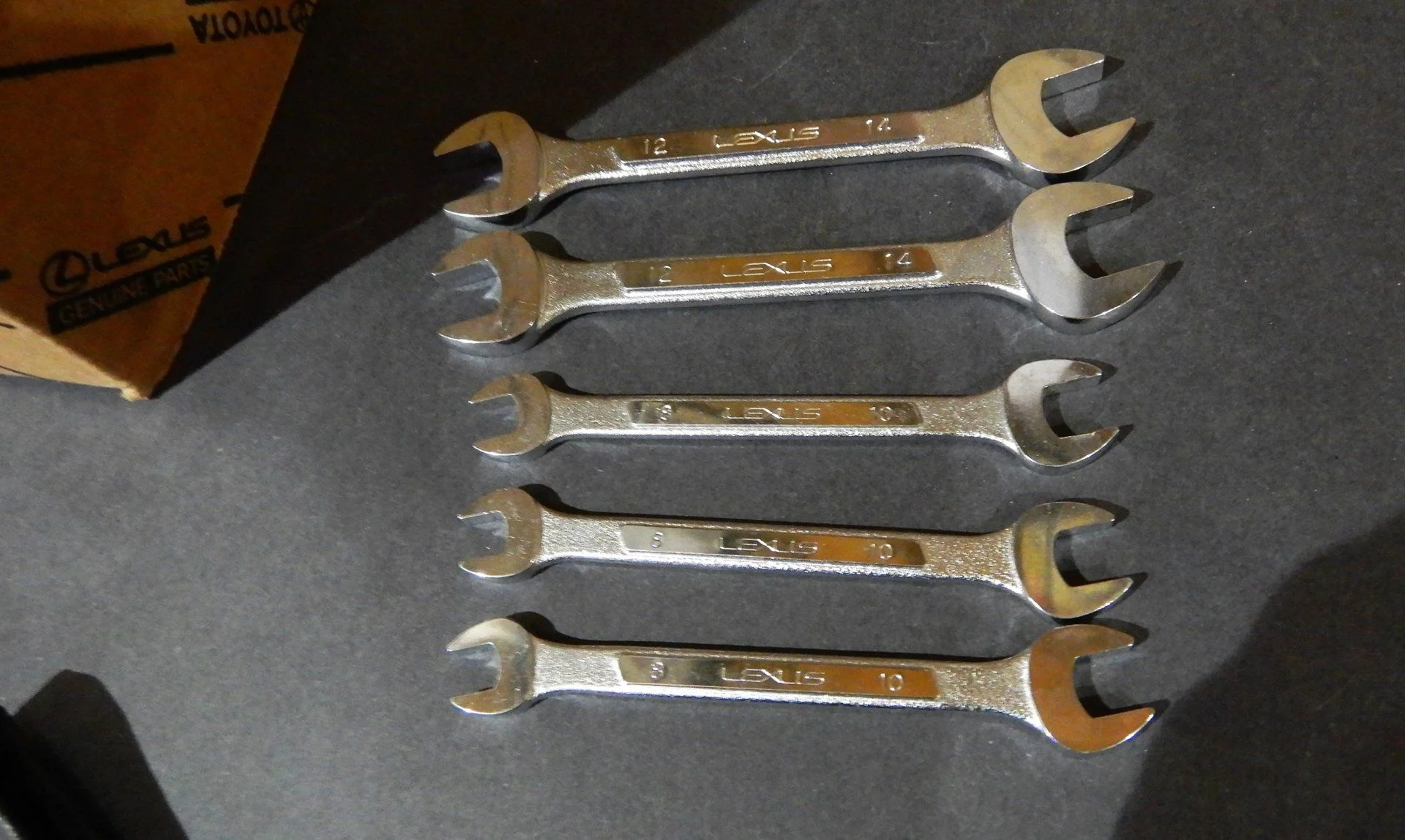

    OEM LEXUS open end Wrench's

    Made in Japan

    " Bristling UN-Circulated " Condition o_O


    DSCN9450.JPG DSCN9454.JPG

  14. lazylfarm

    lazylfarm

    Messages:
    197
    Media:
    6
    Albums:
    1
    Likes Received:
    192
    Joined:
    Jun 29, 2018
    Location:
    West
    Fender Cover, I've had this for over 10 years. Came with a cruiser I bought.

    [​IMG]

    RAGINGMATT and S.CarolinaFZJ80 like this.
  15. dmamj

    dmamj SILVER Star

    Messages:
    81
    Likes Received:
    74
    Joined:
    Nov 12, 2017
    Location:
    Gilbert, AZ

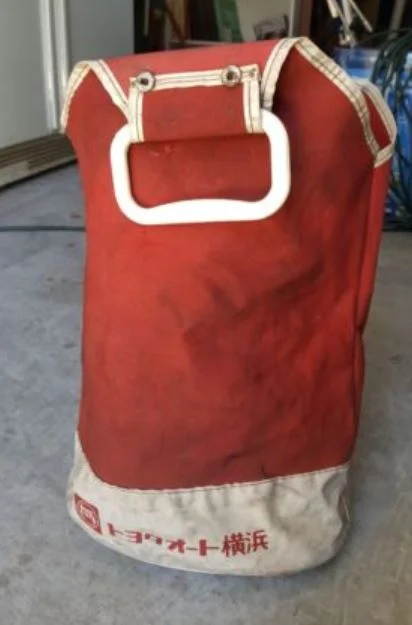

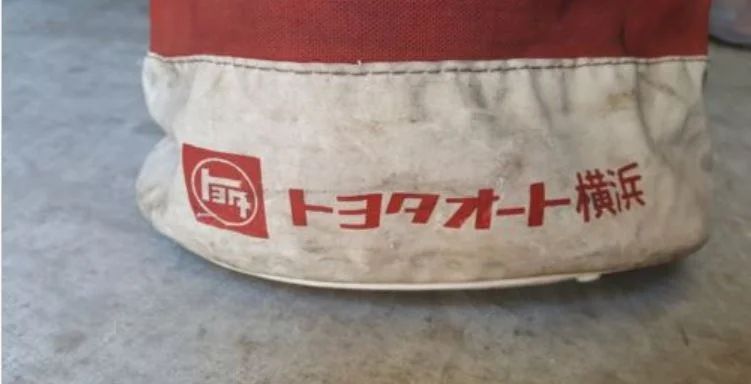

    Very nice stuff. I'm more of a vintage guy. Here's a pic of a pretty cool "TEQ" tire chain bag, probably from the late 60's. Any more 60's, 70's, or early 80's Toyota Motor or "TEQ" tools or accessories out there?

    TEQ Tire Chain Bag.JPG TEQ Tire Chain Bag II.JPG

    eman375, karp68, JackA and 3 others like this.
  16. POTATO LAUNCHER

    POTATO LAUNCHER TLCA #6928

    Messages:
    1,061
    Likes Received:
    2,433
    Joined:
    Nov 30, 2009
    Location:
    Amarillo Tx.
    I have the grease gun and tool roll from the 69 FJ55 my dad bought new. Tools have been AWOL for years but I use the grease gun regularly.

    RAGINGMATT likes this.
  17. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

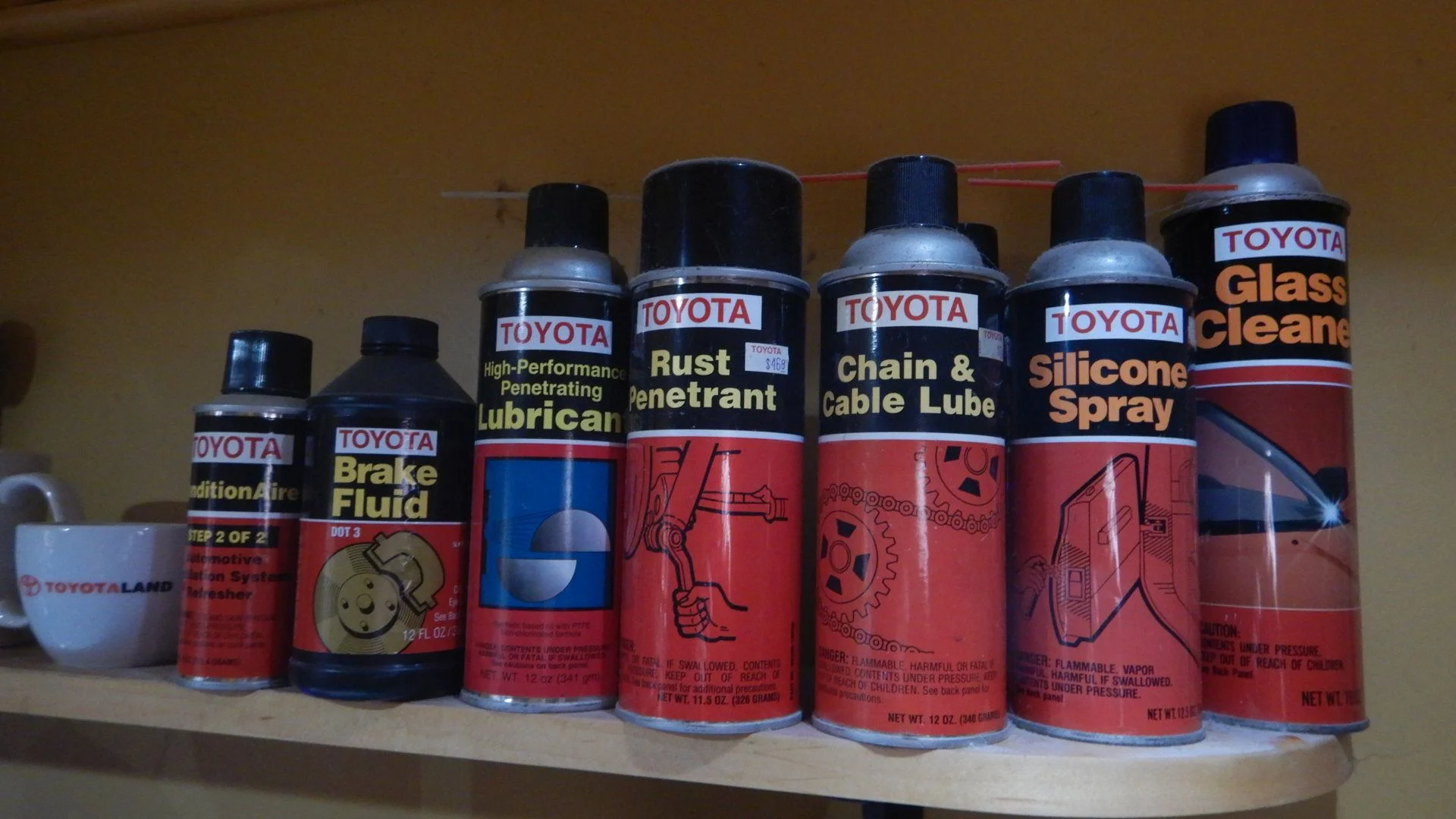

    My collection of Vintage Toyota Aerosols

    these cans date from late 1970's to Mid 1980's , A/C Fridge fresh 1990's

    most are Full and unused




  18. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

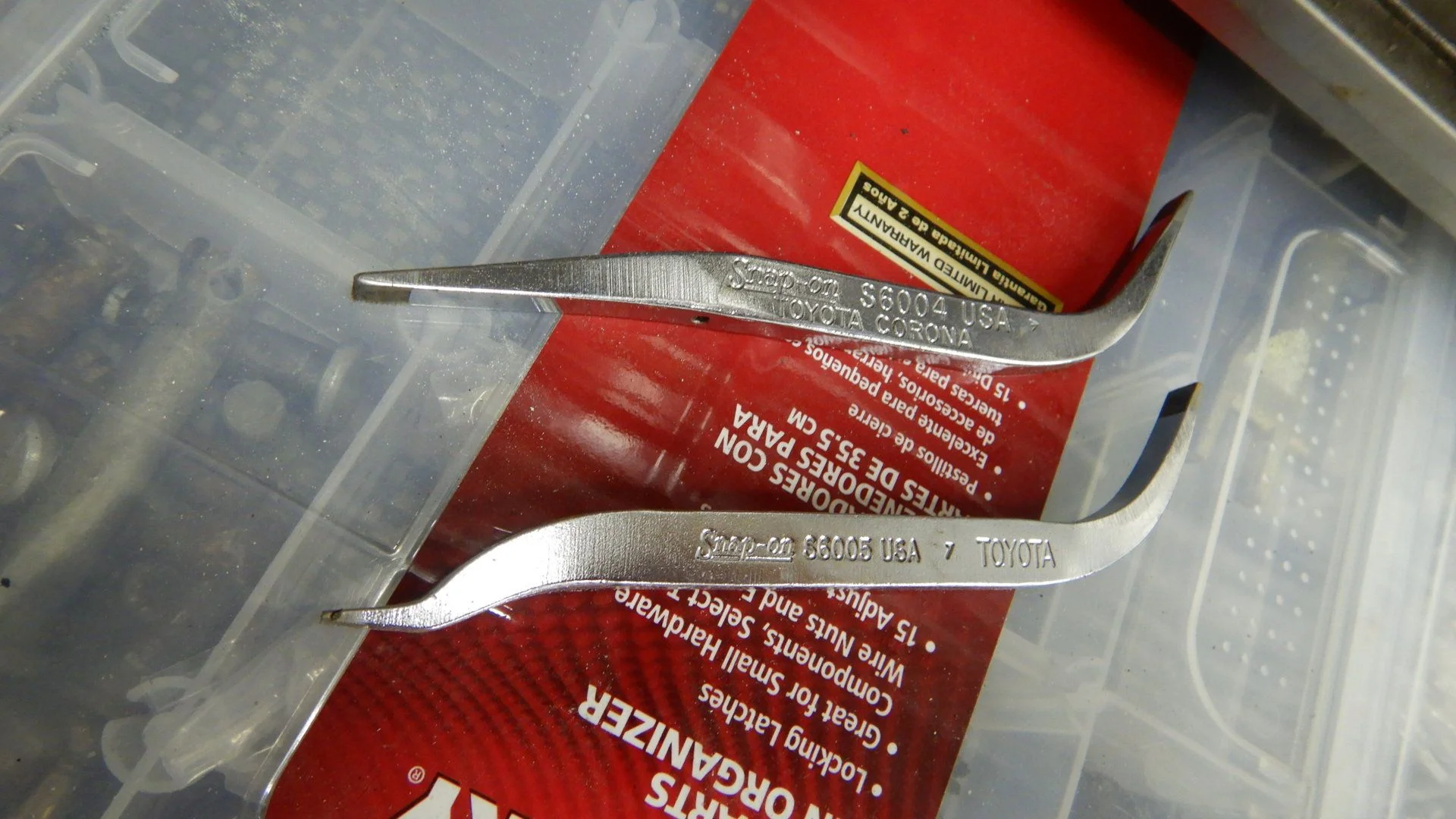

    I found these at a estate sale , fellow was a Retired Toyota Master Tech. from 1960's - 70's

    Corona one appears Un-Used ,o_O

    I have never used it just because off that ................



    John McVicker and Spike Strip like this.
  19. RAGINGMATT

    RAGINGMATT Factory Focus-Point Mind-Set Approch..... Supporting Vendor

    Messages:
    4,182
    Media:
    21
    Likes Received:
    2,678
    Joined:
    Aug 12, 2007
    Location:
    East Coast

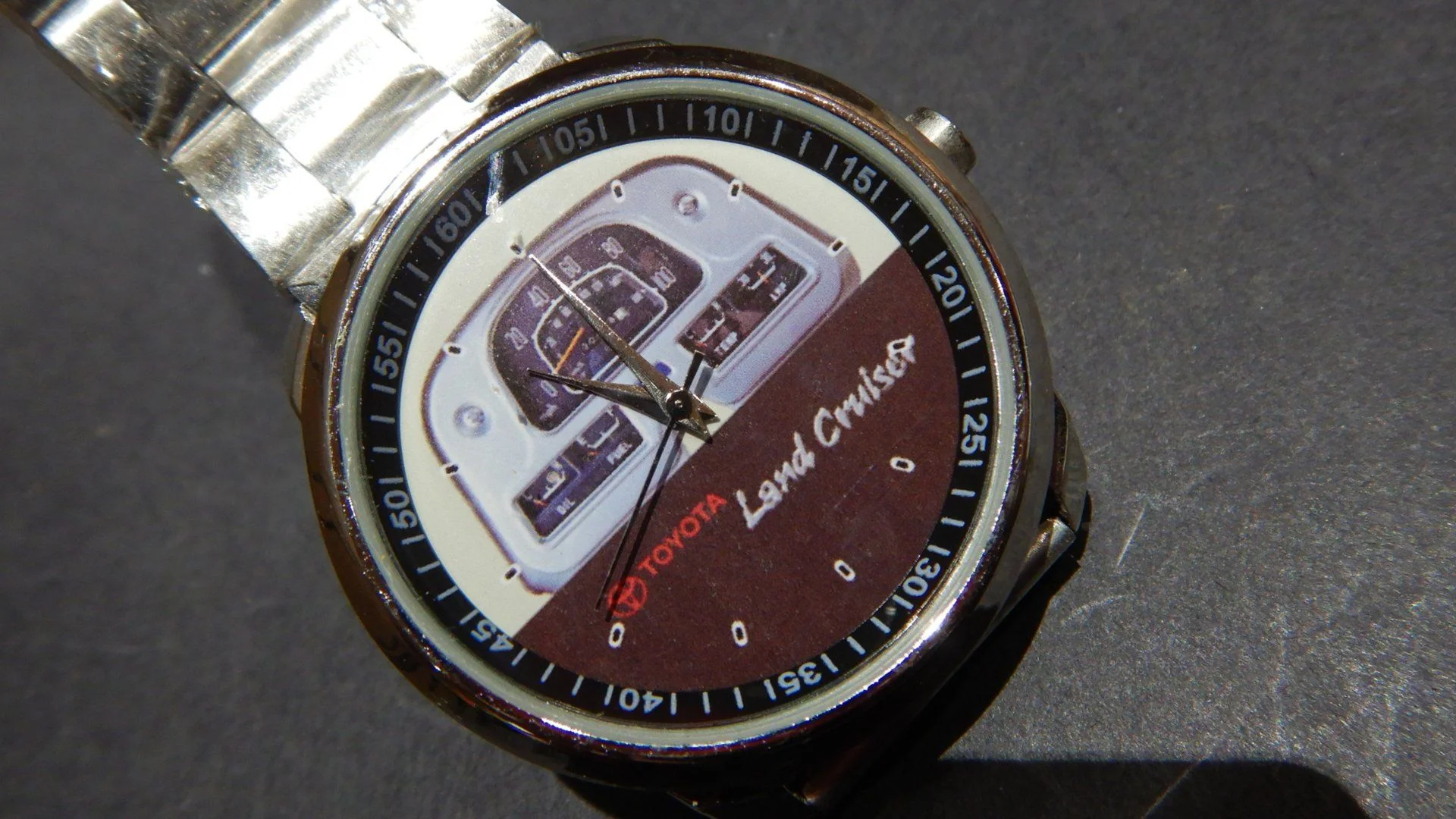

    My NOS wrist watch o_O

    ( still in original plastic packaging )


    DSCN9490.JPG DSCN9491.JPG DSCN9492.JPG

    mrboatman, eman375, OR tojo and 3 others like this.
  20. Shark56

    Shark56 SILVER Star

    Messages:
    769
    Media:
    20
    Albums:
    1
    Likes Received:
    261
    Joined:
    May 12, 2005
    Location:
    Dover, DE
    Cool thread!
