Vacuum ports on intake manifold?

Discussion in '40- & 55-Series Tech' started by roverpilot, Aug 15, 2005.

  1. roverpilot

    roverpilot

    Messages:
    110
    Likes Received:
    0
    Joined:
    Aug 11, 2005
    Location:
    Gig Harbor, WA
    78 CA FJ40...there are 2 vacuum ports on manifold just below the carb. They are on the drivers side, one large port and one smaller, side by side. Where does the SMALL port connect to? It is the size of a standard vacuum hose. Doesnt show on my 78 CA emissions diagram.. Thanks for any ideas. Rob

  2. HawkDriver

    HawkDriver

    Messages:
    3,286
    Media:
    64
    Albums:
    5
    Likes Received:
    57
    Joined:
    Feb 1, 2002
    Location:
    No. Ogden, Utah
    I had a few ports just plugged off. Don't think they went to anything.

  3. Robert LaDuke

    Robert LaDuke

    Messages:
    685
    Media:
    7
    Albums:
    1
    Likes Received:
    17
    Joined:
    Mar 6, 2004

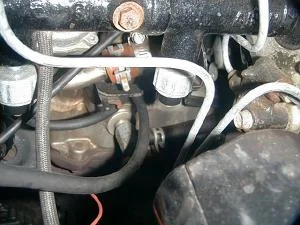

    This is what the stock configuration looks like. Two vaccuum lines on the carb pedastal. One large line on the manifold goess to the PCV

  4. Robert LaDuke

    Robert LaDuke

    Messages:
    685
    Media:
    7
    Albums:
    1
    Likes Received:
    17
    Joined:
    Mar 6, 2004

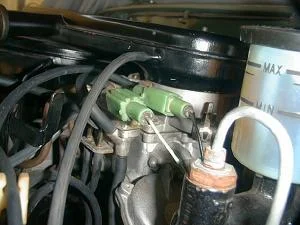

    The left vac. line on the carb block goes to the carb.
    lft vac.jpg

  5. dmaddox

    dmaddox

    Messages:
    1,791
    Media:
    3
    Albums:
    2
    Likes Received:
    162
    Joined:
    Nov 7, 2003
    Location:
    NY, NY
    that port actually went to an electronically actuated valve that bolted to the fender. There were two of them. If you don't have these two electronic vacuum switches - you might as well just plug it.

    cheers,

    ragman

  6. Robert LaDuke

    Robert LaDuke

    Messages:
    685
    Media:
    7
    Albums:
    1
    Likes Received:
    17
    Joined:
    Mar 6, 2004
    The one on the right goes to the VCV.
    If you're desmogged you probably don't need any of these lines( except the PCV).

  7. Landpimp

    Landpimp GOLD Star

    Messages:
    15,997
    Media:
    1
    Likes Received:
    2,014
    Joined:
    Mar 14, 2003
    Location:
    Gig Harbor WA
    Hey, Rob Welcome :)

    give me(John H, in GH) a ring, I want to check out your 40 and your 109(if ya still have it)

    Sorry not much help on the CA emission stuff....thankfully ;)

  8. LandCruiserSteve

    LandCruiserSteve

    Messages:
    1,197
    Likes Received:
    3
    Joined:
    Apr 20, 2005
    Location:
    Prescott Valley, AZ
    Okay, so I'm going senile. :frown:

    Someone just posted a real nice scan of an emissions diagram (for a '78 I think) either yesterday or the day before.

    Which thread was that in??

  9. LandCruiserSteve

    LandCruiserSteve

    Messages:
    1,197
    Likes Received:
    3
    Joined:
    Apr 20, 2005
    Location:
    Prescott Valley, AZ
    Never mind . . . I found it. It was over in the 60 Series forum. :eek:
