LMAO i can image the dropped pressure with the added length of the piping...
Could just use liquid/air. Run 3/4” lines to it, pretty easy and would work. I saw one off a turbo’d sand rail. 42”x4x4”. Coulda been used for oil cooling too, which is what i thought it originally was, until corrected.

Joined
Jul 4, 2016
Messages
76
Location
JAX FL
Sweet project, looks good!

Good job replacing the paperweight (err... turbo). Never liked the CX intercooler position, but if you're not poking any holes in your truck, it's about the best you can do I guess. I'd think about louvers and a fan to direct more air through it. @Cruzilla just did something like this with his A/W intercooler (puller fan on top):



Not sure 10psi with the stock computer/fuel setup will yield safe afr's (mine was spot on at 6psi), but only one way to find out I guess!
I had a Syclone and the mod back then was to put a 6-8" puller fan on the lower heat exchanger. Of course it needed al the help it could get. This setup is more than enough cooling as is I believe

Joined
Sep 4, 2017
Messages
725
Location
Arizona
I had a Syclone and the mod back then was to put a 6-8" puller fan on the lower heat exchanger. Of course it needed al the help it could get. This setup is more than enough cooling as is I believe
Holy s***, i own a syclone. Thats where i have my turbo knowledge (whatever small amount that is).


Cruzilla




Joined
Mar 25, 2002
Messages
644
Location
Boise ID
So the heat exchanger Im using is a dural 11x12 40 row fluid cooler with a Spal 11 inch puller fan on top with 844 CFM.
I have found the WAIC to be cold to the touch when you pop the hood after sustained boost.



RFB

97 FZJ80 LIFTED SC DUAL BATTERIES,37s
GOLD Star
Joined
Mar 7, 2017
Messages
2,965
Location
Nahant Ma.
So the heat exchanger Im using is a dural 11x12 40 row fluid cooler with a Spal 11 inch puller fan on top with 844 CFM.
I have found the WAIC to be cold to the touch when you pop the hood after sustained boost.

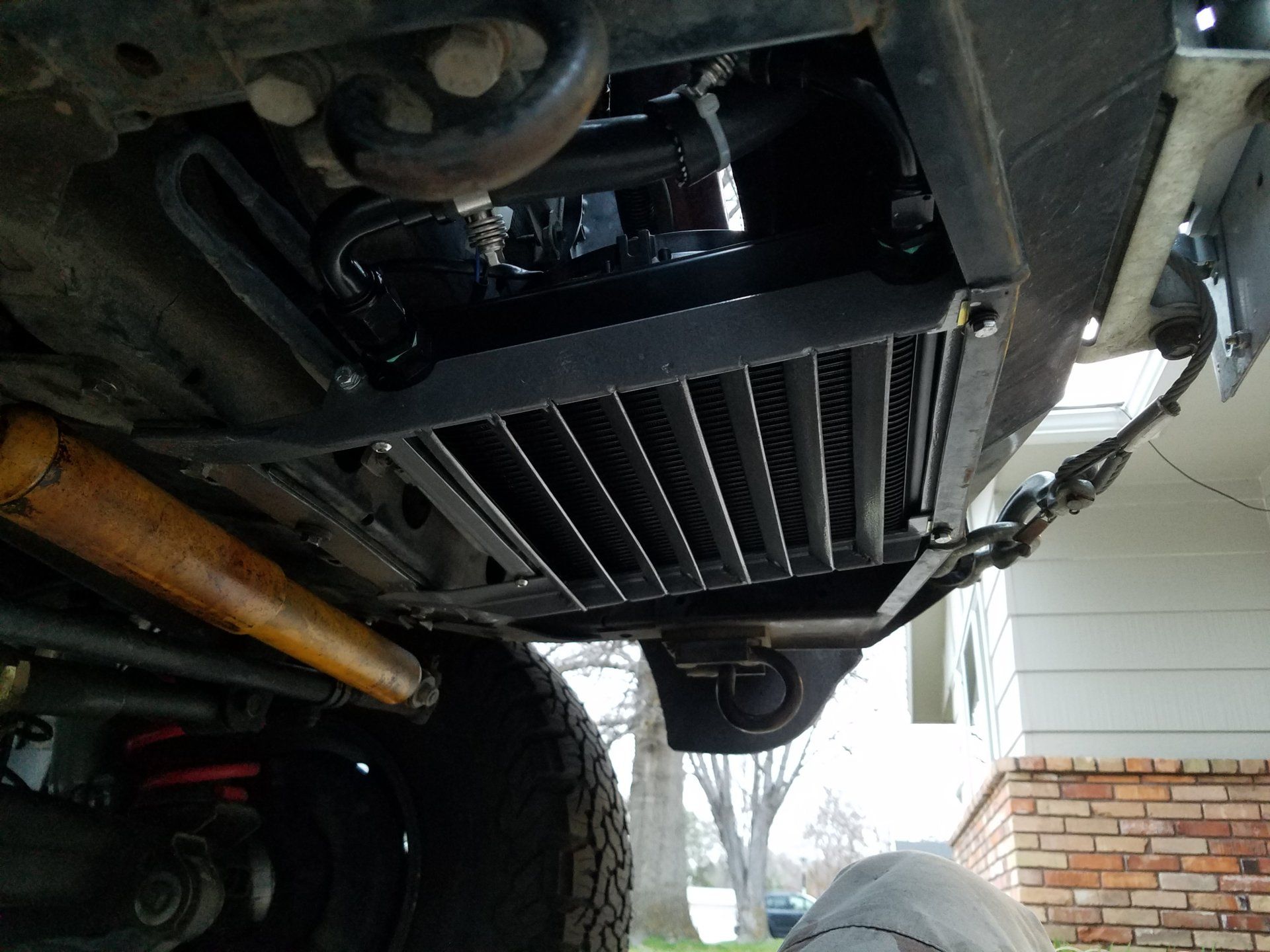

View attachment 1944650
arent you s=concerned about aeting a rock with that tho? I ask because well you know Im going to copy it


Cruzilla




Joined
Mar 25, 2002
Messages
644
Location
Boise ID
Its made of steel, super high up 1/4 below frame rails and no because I wont be rock crawling with my 40K+ Expo rig! I have a fully set up FJ40 for that!!

  • Like
Reactions: RFB

Cruzilla




Joined
Mar 25, 2002
Messages
644
Location
Boise ID
if you have the room I would mount it behind the grill in front of your AC condenser, I happen to have a AC fan there that I like so it went down below the winch...

  • Like
Reactions: RFB
Joined
Aug 22, 2017
Messages
768
Location
Los Angeles
AI/Water injection is an option for cooler intake temp. if demand more boost and IC is functioning less than ideal.


RFB

97 FZJ80 LIFTED SC DUAL BATTERIES,37s
GOLD Star
Joined
Mar 7, 2017
Messages
2,965
Location
Nahant Ma.
Its made of steel, super high up 1/4 below frame rails and no because I wont be rock crawling with my 40K+ Expo rig! I have a fully set up FJ40 for that!!
40plus that cheap add up recipts again lol


inkpot

SILVER Star


Joined
Jan 30, 2003
Messages
13,290
Location
All over Arizona
Yes it’s 10 psi through a 5858. It probably doesn’t even need an intercooler.
I meant there will be little to no outdoor air moving across the outside of the cooling elements. You need some kind of scoop underneath the to force any air thru.


scottryana



Joined
Feb 2, 2004
Messages
10,272
Location
Salt Lake City, UT
There are several. The 2 most popular are more than most want to pay though. There is one very cheap alternative but it is no good in my opinion and the one mid-level option looks pretty good but I haven't seen it in person.

Nice setup.

These trucks need a forward facing intake manifold

Joined
Sep 4, 2017
Messages
725
Location
Arizona
There are several. The 2 most popular are more than most want to pay though. There is one very cheap alternative but it is no good in my opinion and the one mid-level option looks pretty good but I haven't seen it in person.
Got links???
