Turbo compressor side outlet fitting? (1 Viewer)

Joined
Oct 6, 2011
Messages
207
Location
Castle Rock, CO

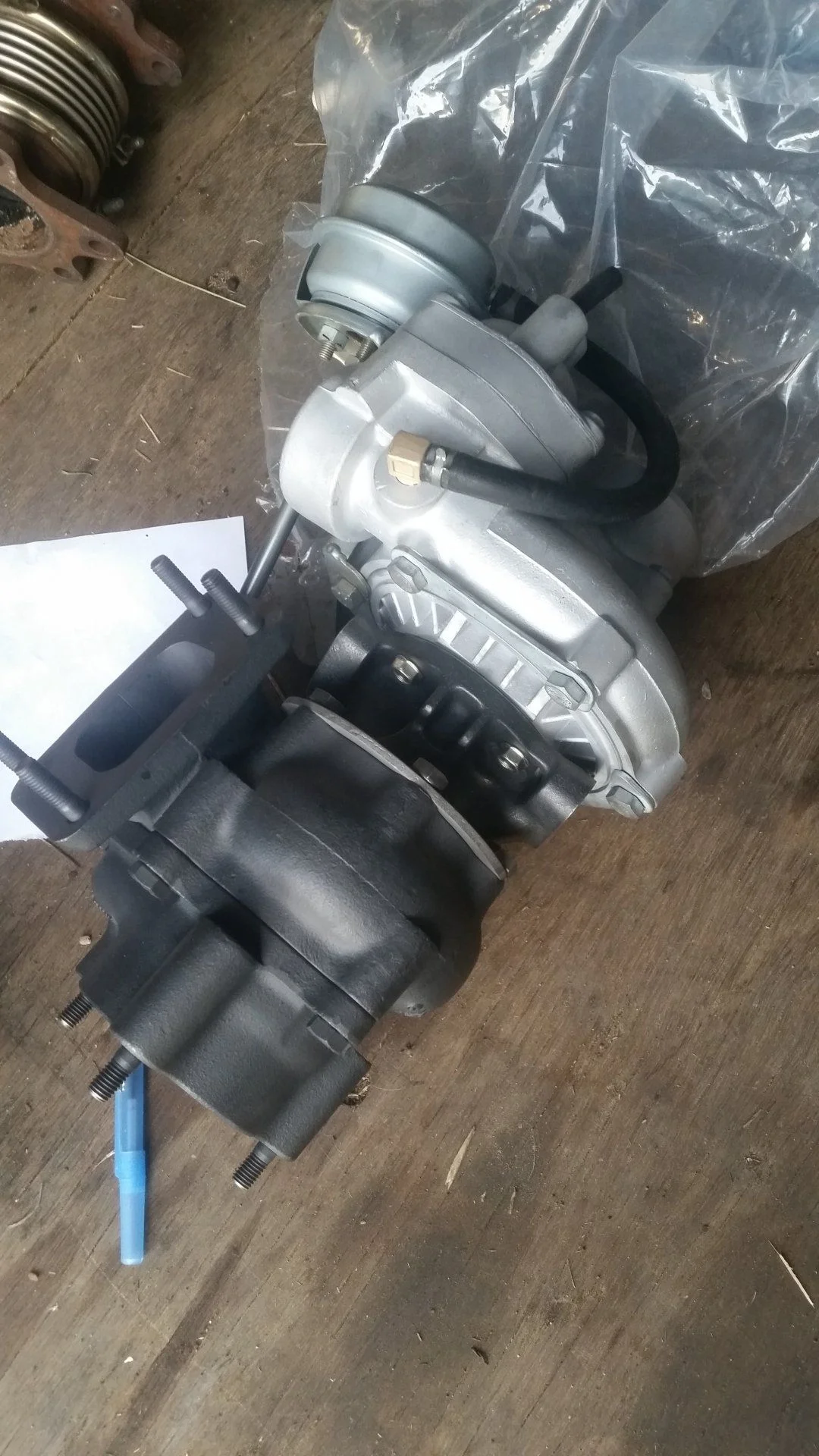

I'm gathering components to install a turbo onto my 2H and I'm having trouble visualizating how I would connect the piping from the turbo compressor outlet to the engine intake.

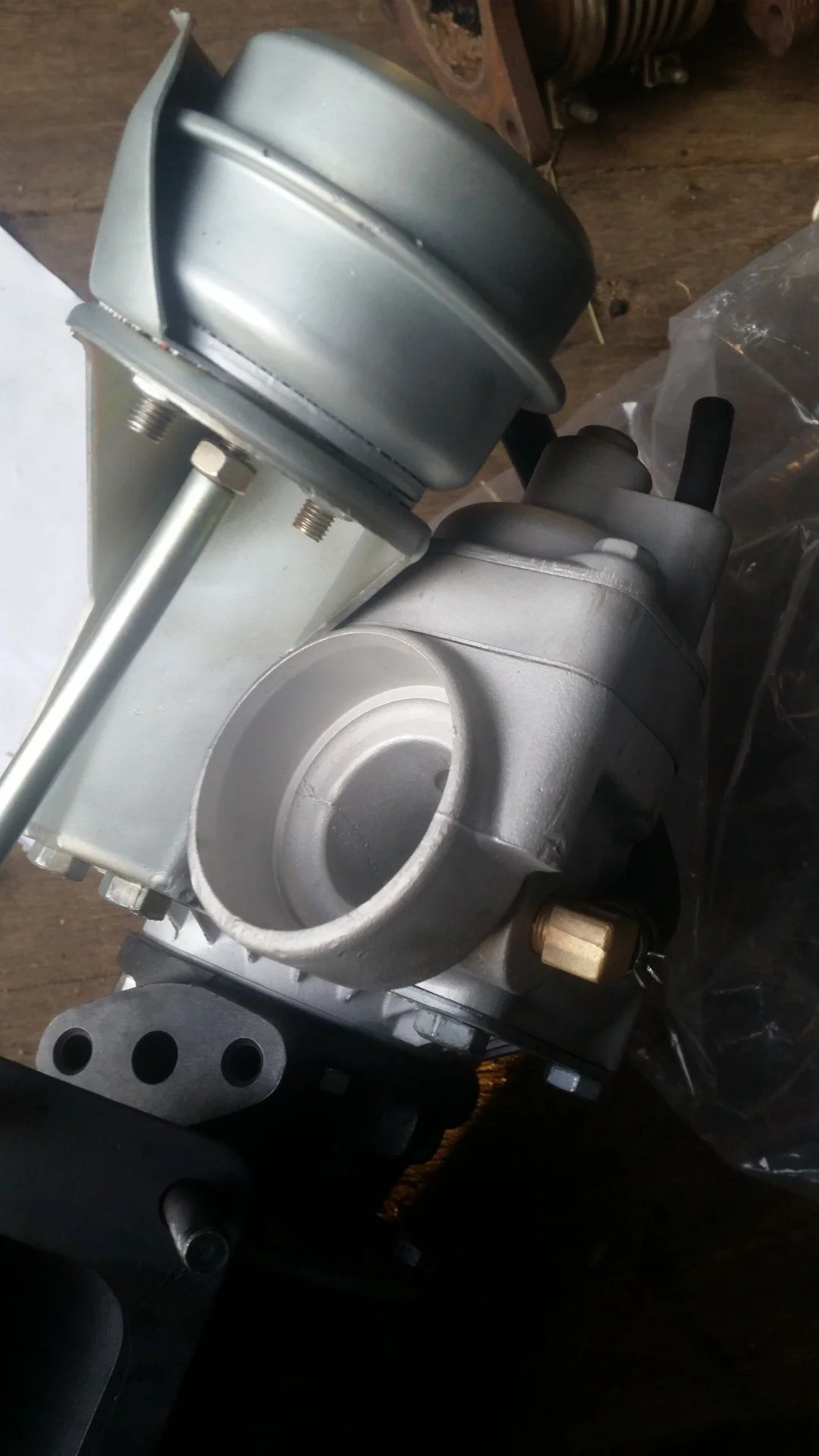

I've seen turbos where the pipes I.D. fits around the housing O.D., but this turbo doesn't have the room for that. Am I missing a part? To me it dosent seem like there would be a way to secure the piping. The turbo is a garrett T3 .52/.48 from what I can tell.


Joined
Jun 13, 2005
Messages
3,517
Location
Centre of the universe
That looks frustrating. If it were me I'd take it apart and get an aluminum sleeve and have it welded in but I wonder if epoxy would do it if the slieve were sized to fit tight? Not too many options.

Joined
May 15, 2005
Messages
8,967
Location
Ladysmith
Turbo inlet isn’t that hot. I’d measure the ID of that inlet. Would consider a tube stub
of aluminum that sticks out about 1.5” and then plan a silicone fitting over the stub.
Turbo won’t move once it’s installed, so if you make the inlet piping firm shouldn’t
be a problem.

Joined
Oct 6, 2011
Messages
207
Location
Castle Rock, CO
Thanks for the responses. I like the ideas. I'll get a section of pipe and add it on. Kind of strange this is the way it came.


jblueridge

SILVER Star
Joined
Aug 12, 2014
Messages
2,182
Location
Near Charlottesville, VA
In theory, machining or forming a smooth transition from the inside of that housing (small diameter) to the ID of the new pipe would help with flow.
I do not know if it would make a difference in real life.
Let us see the results when you get the outlet done up.
