Transfer case won’t shift high to low - stuck in low (1 Viewer)

sloanstavern

SILVER Star
Joined
May 6, 2009
Messages
898
Location
Arizona - PHX area
Hey guys I discovered an issue with my transfer case. It appears to be stuck i in low gear. Whether it is in four-wheel-drive or 2 Wheel Dr.

‘82, Non US FJ45, 4 speed

Up on the jackstands with the transmission in neutral and the T case in two wheel high I could rotate the rear tires at the rate of 1.75 driveshaft rotations per tire rotation. When I move the shift lever into low gear the ratio did not change. There is no resistance moving the shift lever left to right to go from four wheel high to four wheel low.

2 Wheel Dr. versus four-wheel-drive does exchange properly with the shift lever. The little bit of driving I’ve done on the vehicle the revs are insanely high indicating it’s stuck in low gear as well.

Full disclosure the last time I drove this 2 1/2 years ago I only put a few miles on it and I remember the revs were quite high but maybe not this bad. It appears something is not connected on the high low gear lever internally. I’m not optimistic I can access that without dropping it out of the vehicle but welcome any thoughts.


Last edited:

middlecalf

SILVER Star
Joined
Jul 20, 2004
Messages
4,533
Location
Sweet, Idaho
I probably should take my afternoon nap before I ask this question cuz I could be really tired and not in a full state of mind, but why do you think the drive shaft rotation rate would change when nothing downstream of it changed when shifting from high to low in the transfer case?

Joined
Dec 13, 2012
Messages
2,033
Location
KY
You need to have someone shift the transfer case lever and someone watch the linkage from underneath to make sure everything is tight and moving as it should.


sloanstavern

SILVER Star
Joined
May 6, 2009
Messages
898
Location
Arizona - PHX area
I probably should take my afternoon nap before I ask this question cuz I could be really tired and not in a full state of mind, but why do you think the drive shaft rotation rate would change when nothing downstream of it changed when shifting from high to low in the transfer case?
That was a very polite way of saying I am a knucklehead😜

Just because it’s data doesn’t mean it’s good data……..👍


sloanstavern

SILVER Star
Joined
May 6, 2009
Messages
898
Location
Arizona - PHX area
You need to have someone shift the transfer case lever and someone watch the linkage from underneath to make sure everything is tight and moving as it should.
Thanks, I am able to move that by hand and while it rotates the shaft nothings happening internally


sloanstavern

SILVER Star
Joined
May 6, 2009
Messages
898
Location
Arizona - PHX area
First thing take the inspection cover off and verify the high, neutral, low lever is moving.

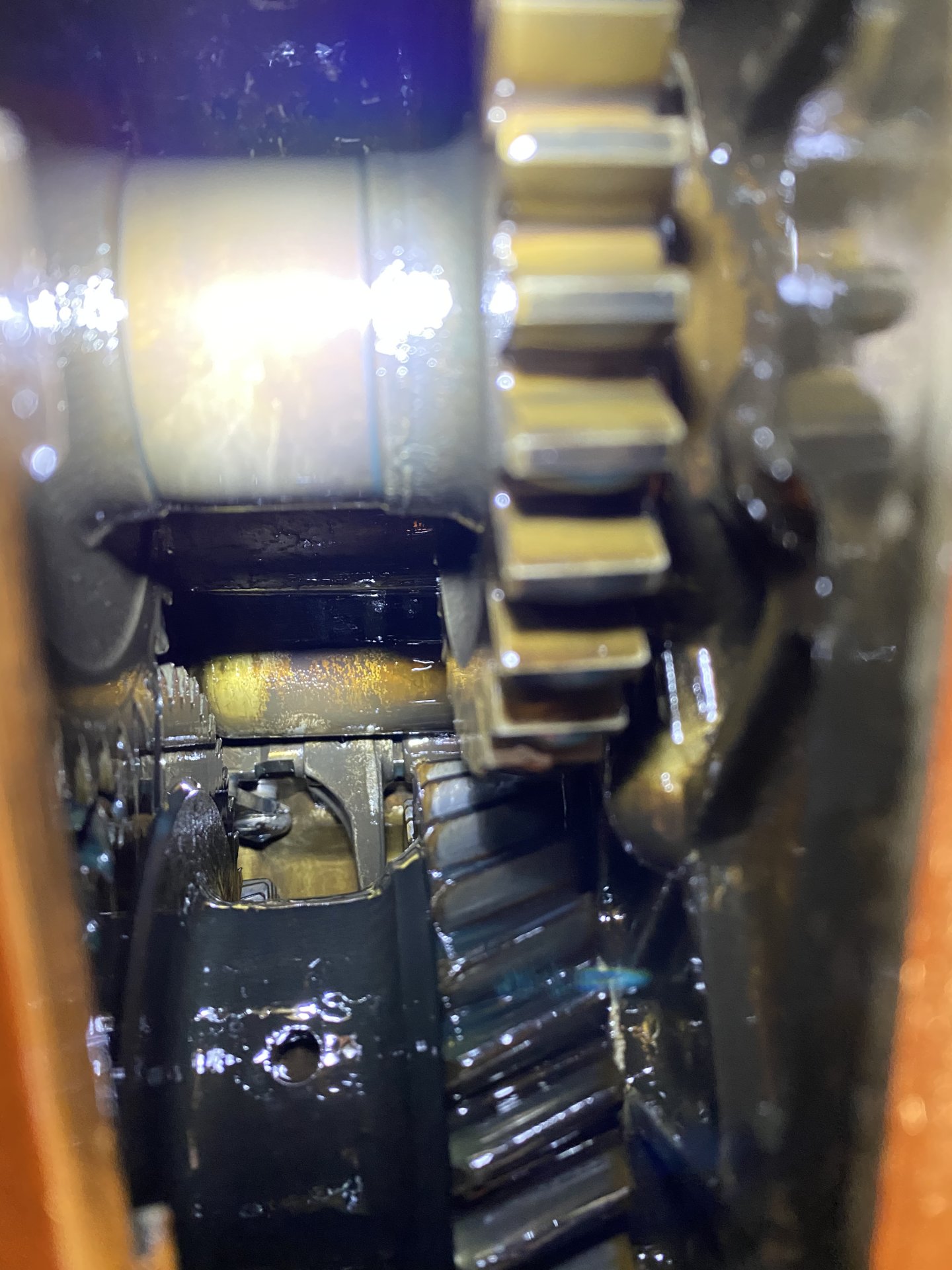

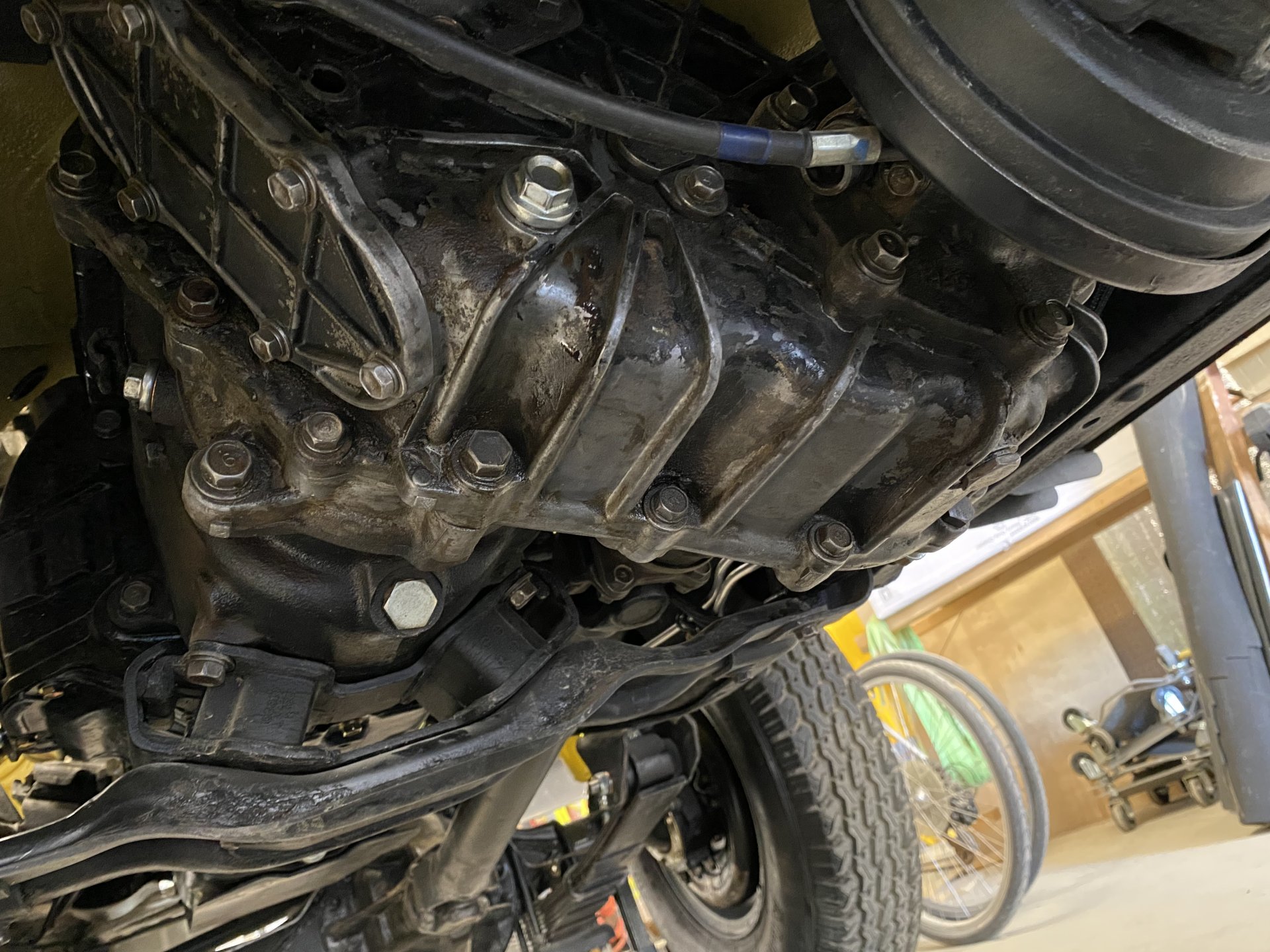

I pulled off the inspection cover after I drained the fluid in the biz visibility is limited not really sure what I’m looking for here’s the best shot I could get of the far end of the transfer case.

The shift linkage is rotating the hi-lo neutral arm but it doesn’t appear that anything is happening inside the transfer case.

The 4wd-2wd functions properly


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
6,209
Location
Alabama
I pulled off the inspection cover after I drained the fluid in the biz visibility is limited not really sure what I’m looking for here’s the best shot I could get of the far end of the transfer case.

The shift linkage is rotating the hi-lo neutral arm but it doesn’t appear that anything is happening inside the transfer case.

The 4wd-2wd functions properly View attachment 2947321

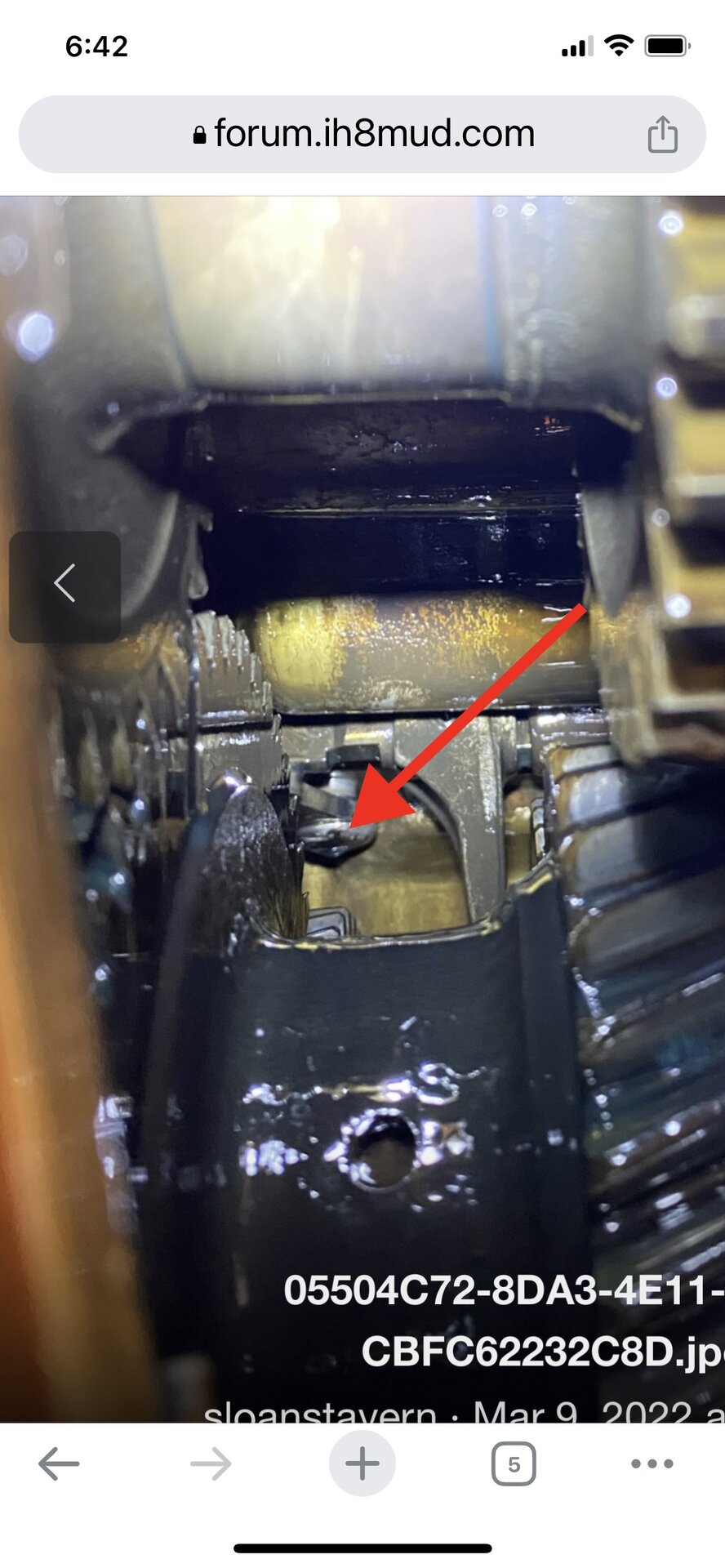

In your photo you can see the notch in the shift fork. The H-L shift linkage has dropped too low to engage this notch. You probably need a washer on the outside of the case to pull the shift linkage higher so that it will engage the shift fork. You may be able to accomplish this without splitting the t-case.


sloanstavern

SILVER Star
Joined
May 6, 2009
Messages
898
Location
Arizona - PHX area
In your photo you can see the notch in the shift fork. The H-L shift linkage has dropped too low to engage this notch. You probably need a washer on the outside of the case to pull the shift linkage higher so that it will engage the shift fork. You may be able to accomplish this without splitting the t-case.
Perfect timing, I just came in from playing around with it and discovered the same thing I wedged the control arm up so that the pin was engaged and was able to change gears, what a relief it looks like I only need a quarter inch or so of spacing and I can access the control arm reasonably well thank you so much for the confirmation I’ll give it a shot .

BTW- that access window was not designed for a near sighted guy with a size 8 melon that’s a tight fit…….😜

Joined
Apr 21, 2005
Messages
22,078
I pulled off the inspection cover after I drained the fluid in the biz visibility is limited not really sure what I’m looking for here’s the best shot I could get of the far end of the transfer case.

The shift linkage is rotating the hi-lo neutral arm but it doesn’t appear that anything is happening inside the transfer case.

The 4wd-2wd functions properly View attachment 2947321


I was talking about the inspection cover in the transmission hump. The one on the side of the transfer case is to install a PTO. I have never torn a split transfer case down even though I have a few. The fork for the collar to shift between high and low appears to be harder to install. One piece transfer case there is a plate on the top of transfer case. If the fork is off on a split case may require a tear down to install it right.


sloanstavern

SILVER Star
Joined
May 6, 2009
Messages
898
Location
Arizona - PHX area
I was talking about the inspection cover in the transmission hump. The one on the side of the transfer case is to install a PTO. I have never torn a split transfer case down even though I have a few. The fork for the collar to shift between high and low appears to be harder to install. One piece transfer case there is a plate on the top of transfer case. If the fork is off on a split case may require a tear down to install it right.

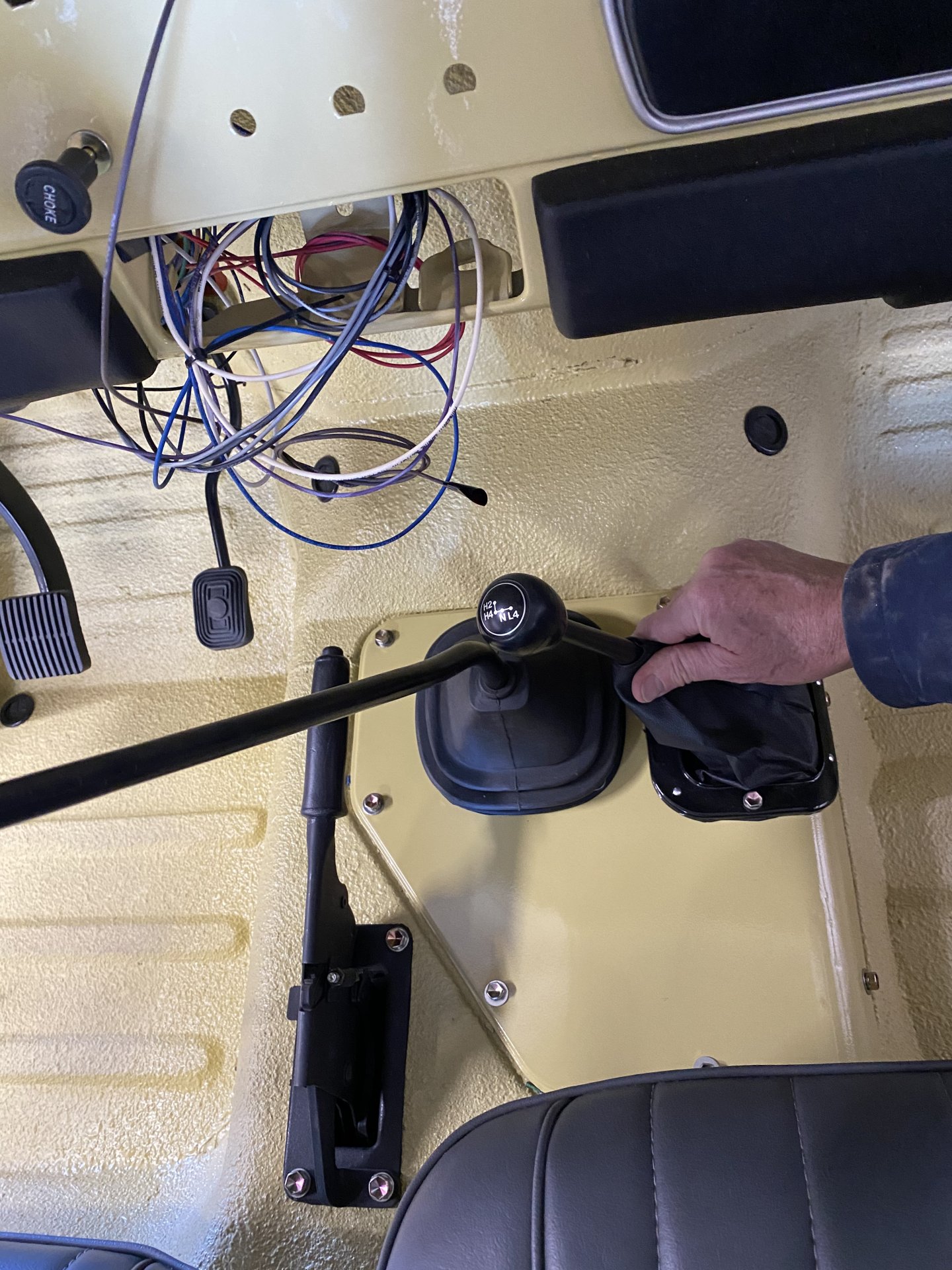

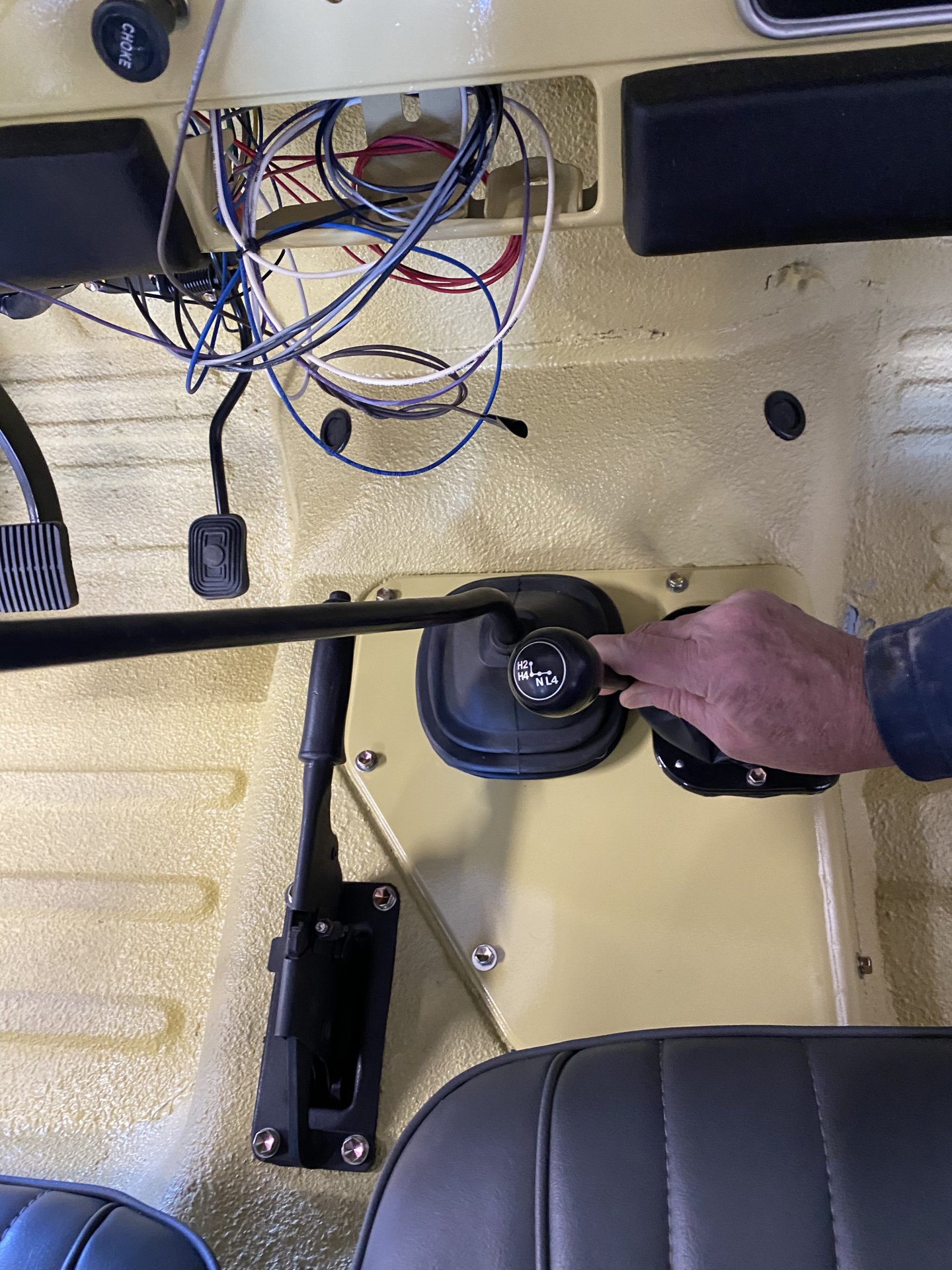

Got it thank you, this tub does not have a full transmission hump cover it’s the small access panel I didn’t take that apart yet that might make things simpler.

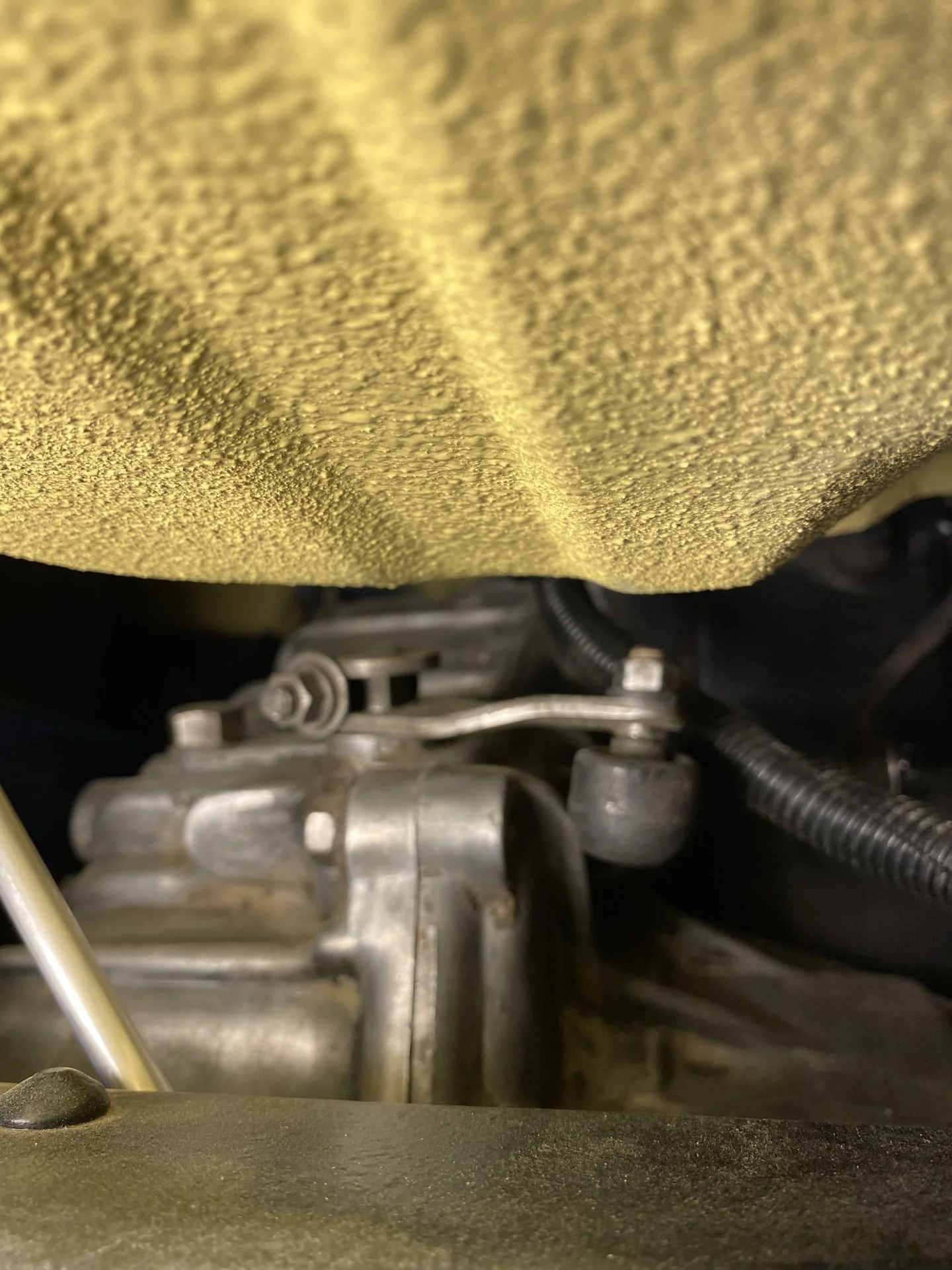

I can access the external pivot arm and slip some washers underneath it what should solve the problem however if I see this correctly it looks like that internal arm could drop into the transfer once I disconnect the pivot arm. Is that correct?

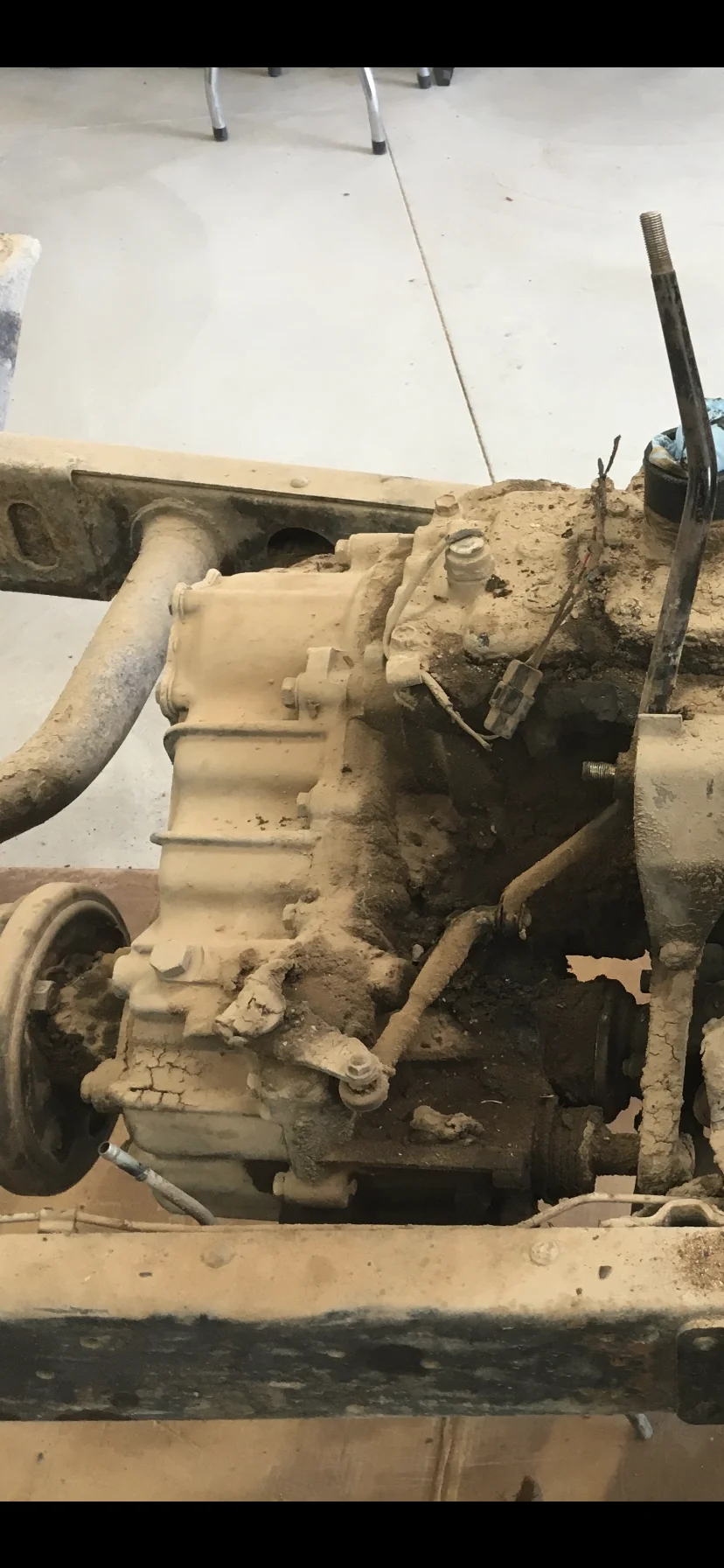

From this photo I know I couldn’t access the top through the transmission hump port and they’re also it’s not a inspection panel from that side


Godwin

Resident Herpetologist
SILVER Star
Joined
Dec 4, 2004
Messages
6,209
Location
Alabama
I can access the external pivot arm and slip some washers underneath it what should solve the problem however if I see this correctly it looks like that internal arm could drop into the transfer once I disconnect the pivot arm. Is that correct?

This is correct that once you disconnect the linkage that the internal shift arm could drop into the case. If that happens you may be able to lift it out with a magnet, add a washer, and reconnect. Otherwise the rear the t-case needs to come off.

Joined
Dec 2, 2002
Messages
16,649
Location
Helena MT
as preventative from the arm dropping into the case, use a long bar or similar and wedge underneath the arm thru the pto cover, where you took the pic above.

Joined
Apr 21, 2005
Messages
22,078
Show a washer above the seal which puts it on the outside. Part number 94612-11300. Should be easy enough to do. Just be sure the lever is in the collar when you install it. Think you will find the tunnel inspection cover off will make it easier to get at. If you have rebuilt the transfer case would install a new seal while your it.


Ernboto

My garage is my happy place
SILVER Star
Joined
Mar 18, 2021
Messages
127
Location
California
My High/Low lever has dropped into the transfer case. I have tried pulling it back out with a strong magnet without success. I have tried poking around through the inspection cover without success. How screwed am I? Has anyone had success using a lever to push it back up?
Edit: I should mention I'm working on an '86 FJ60

Last edited:
