Slow oil leak and pooling on ground when parked from T case.

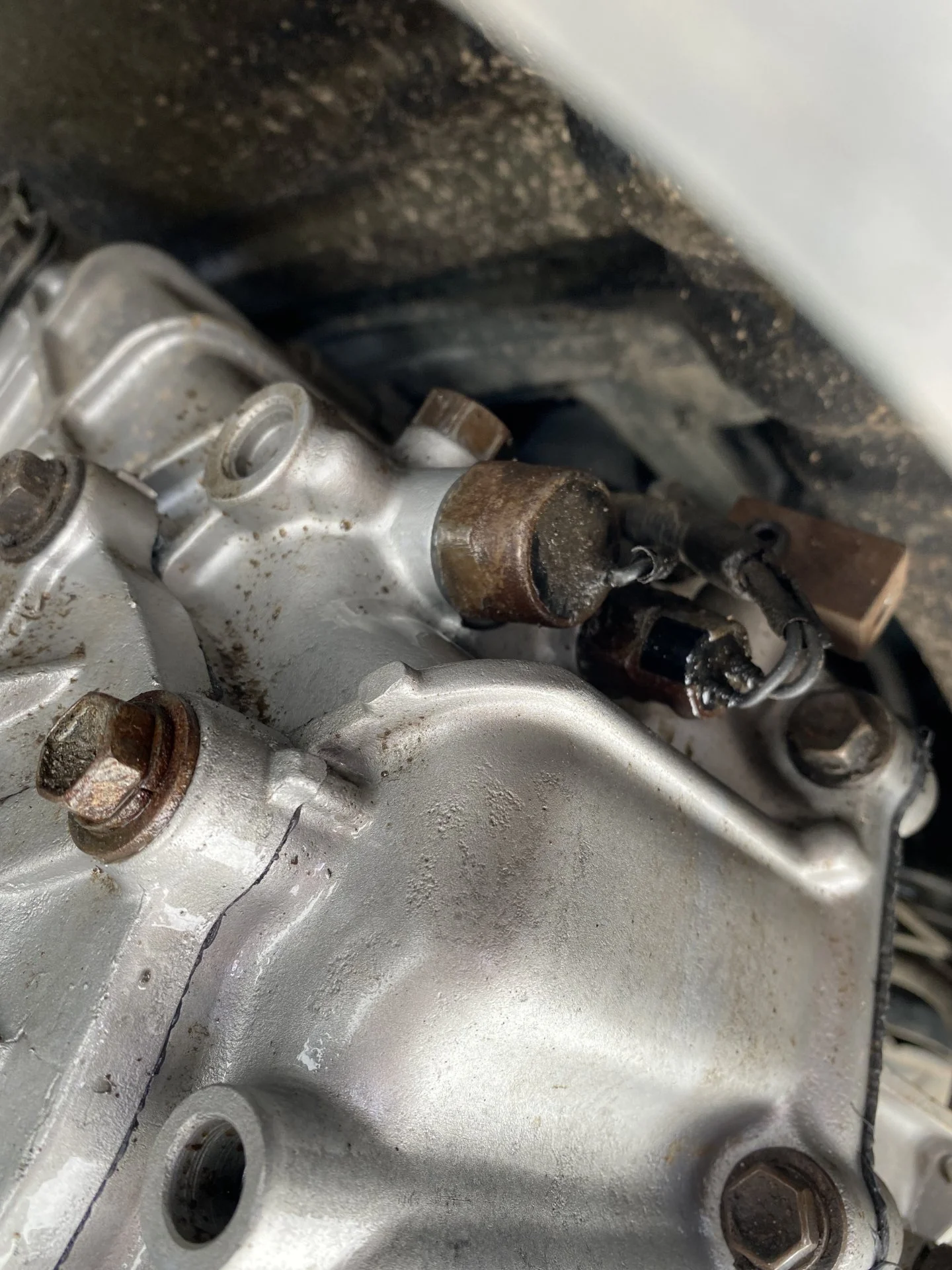

It looks like it's coming from this wiring harness on top of the T case (see picture - zoom in close and you'll see a drop of oil starting to pool)

1) What does this wire lead to?
2) Is this a common leak point? Is it a bad washer or o-ring? Or something else?


Appreciate any help.





cruisermatt

Un-manufacturable
Supporting Vendor
SILVER Star
Joined
Jul 22, 2012
Messages
11,959
Location
Winter Park, Florida
Website
www.facebook.com
Those are range position sensors found on a lot of 88-newer cases (All USDM FJ62's and many 70 series). Are they actually plugged into anything on your 60? I see what looks like a twin stick shifter, someone must have replaced your transfer case's rear half at some point.

Joined
Nov 5, 2018
Messages
7
Location
Bozeman

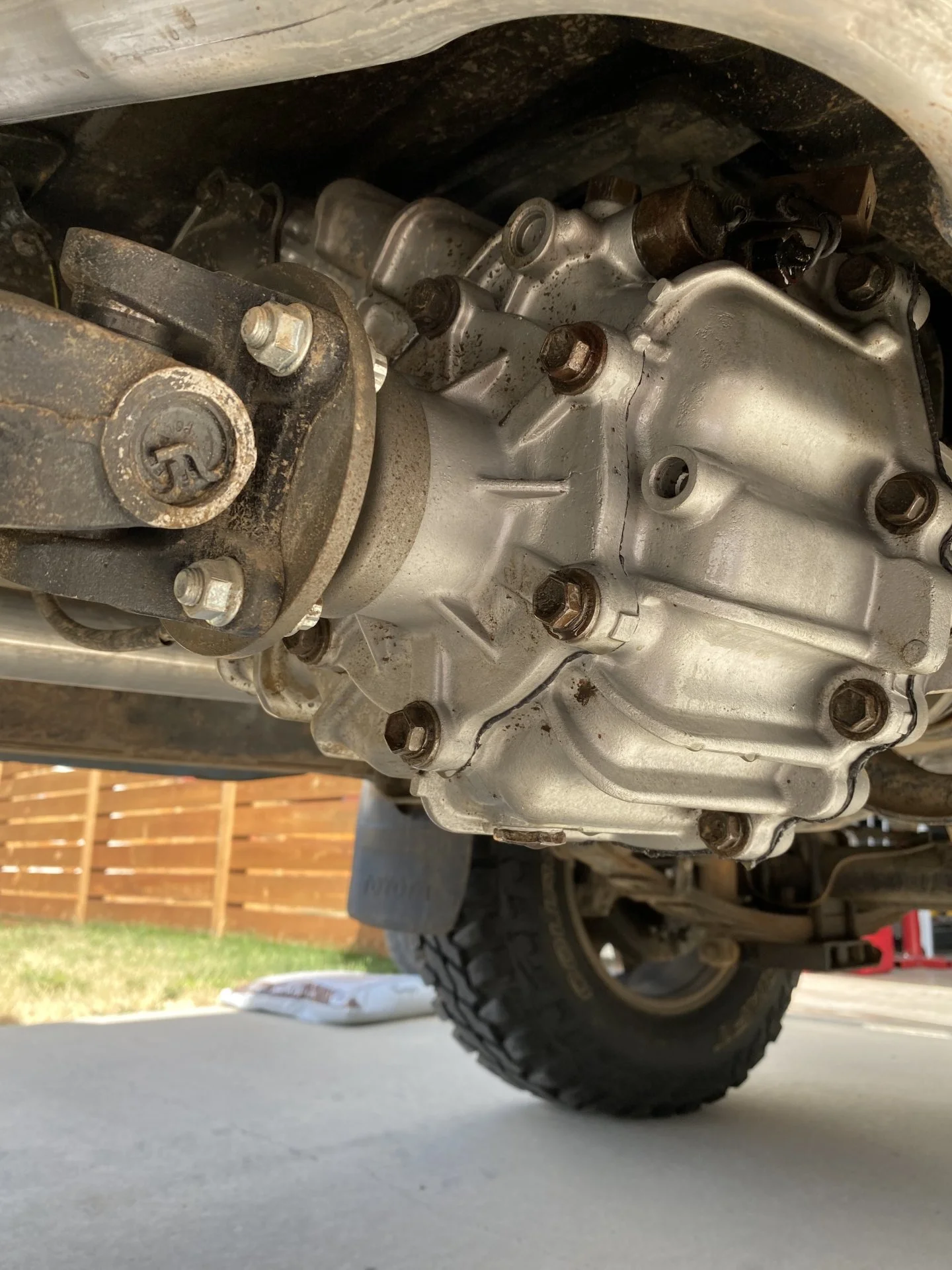

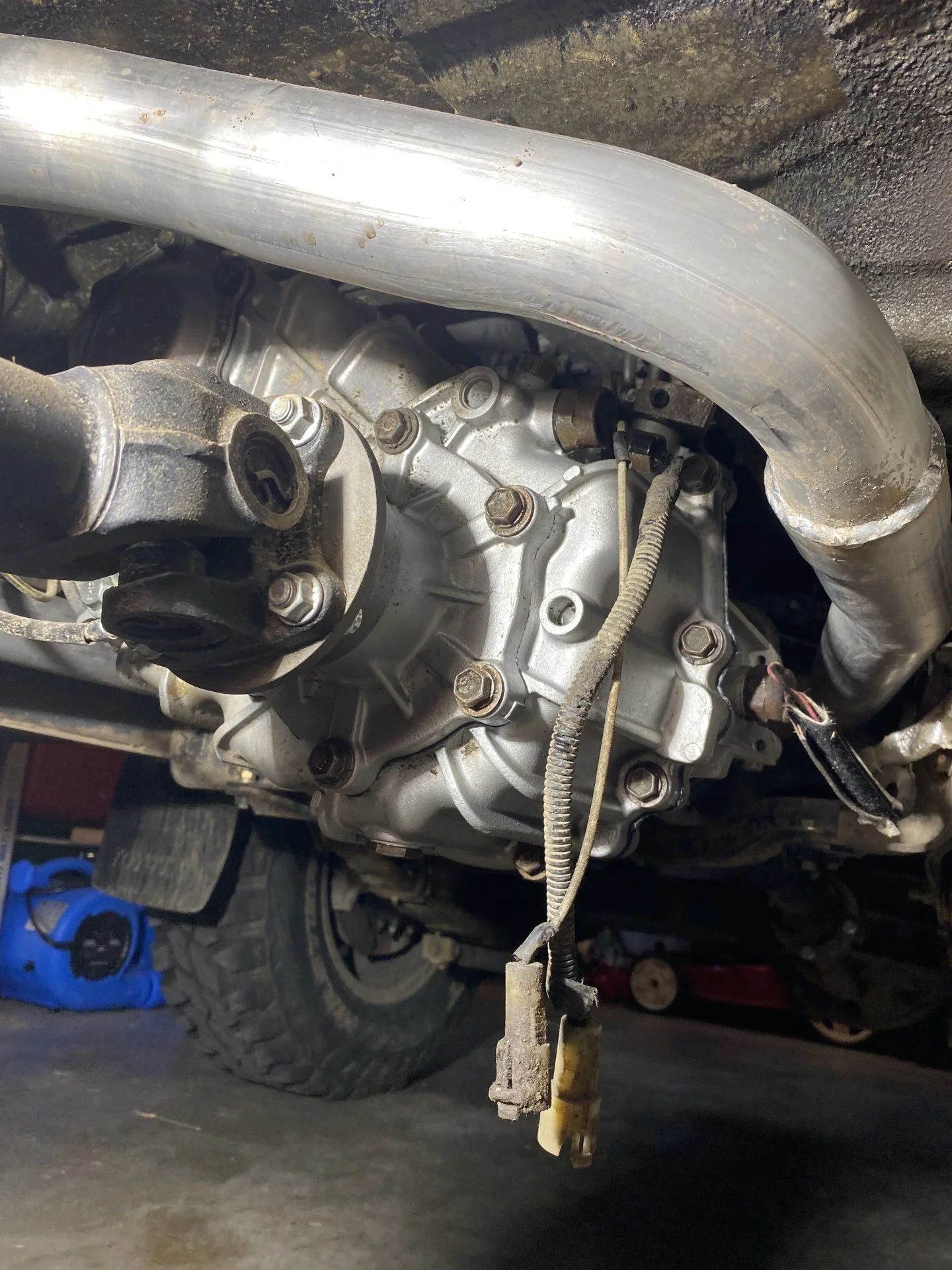

haha welp. @cruisermatt thanks for the confidence to pull the wire a bit and interesting to hear what that would be used for. Those indeed go nowhere on my setup (see 1st pic). And yes I've got a twin stick now (see 2nd pic)

I thought the same thing about being high up @FJ Silver 🤔 But I was able to get a small rotation with the vice grips (tough position). I'm hoping that does it 🤞

@PanhandleFJ i knowww. Fresh carwash but I promise she's seen some mud here in southern MT ;)




Joined
Dec 2, 2002
Messages
16,649
Location
Helena MT

2mbb

SILVER Star
Joined
Sep 1, 2003
Messages
5,654
Location
WC, CA
Did you check the oil level in the transfer case? If it is too high it might cause a leak like that. An over full transfer case could indicate a low transmission and a leak between the two
