Toyota light switch for off-road lights (1 Viewer)

[Layonnn]

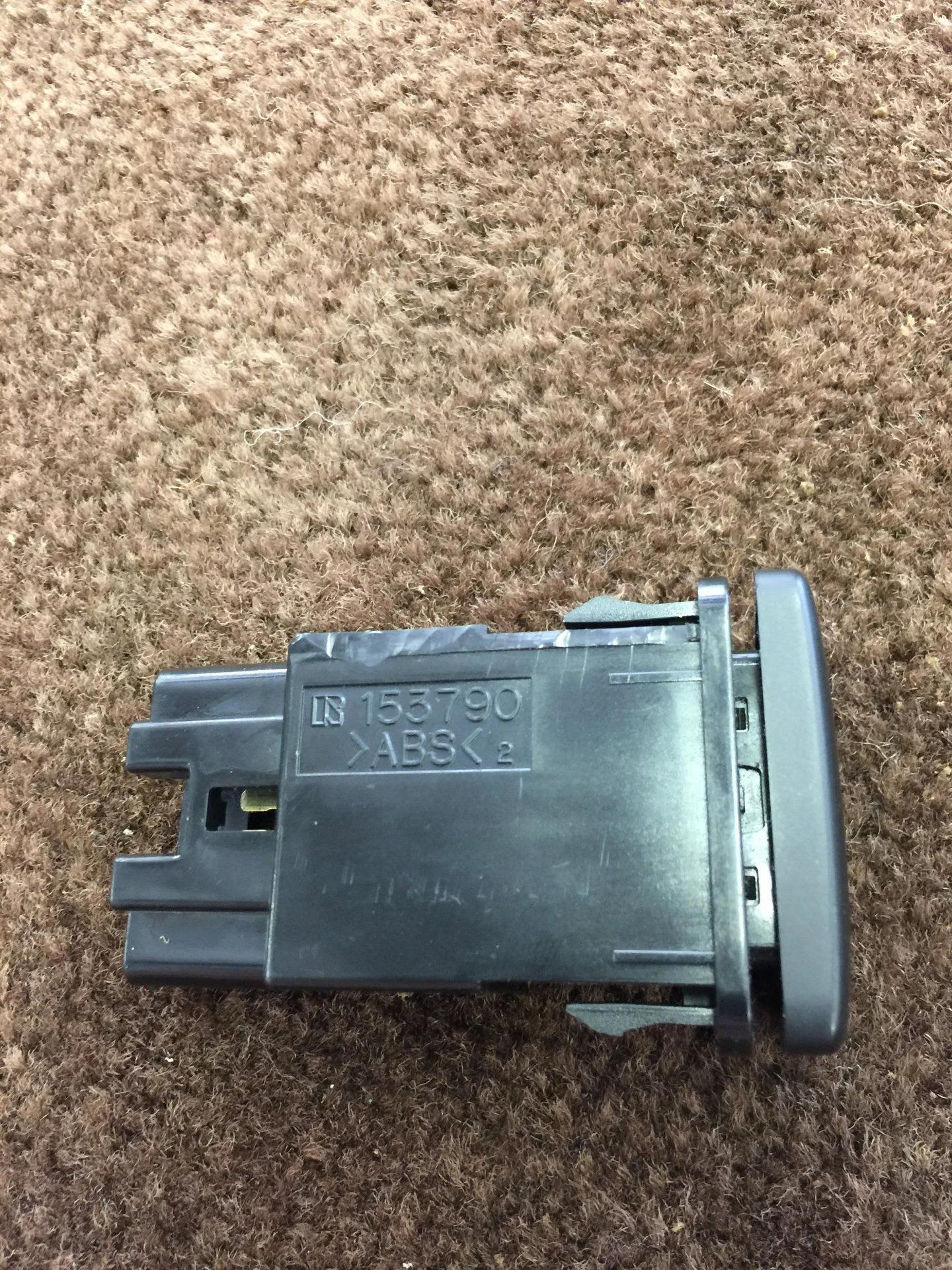

I have an OEM light switch I'd like to use to switch on my off-road lights. I'd like to get a plug for the back of it but don't know how to find one. Also I don't know how to find a wiring diagram of what the pins on the back correspond to. The lights on it are also amber, I'd like to make them green to match the interior lights.

Any ideas?



[Trunk Monkey]

You can order the connector from Toyota and I'm sure somewhere in Google someone's pinned out that switch.

EDIT - yep, found pin outs on Tacomaworld and Clublexus.



[jbuswim]

Slee has those light bulbs, or did. Also easy for Toyota to look em up in parts dept. Same with harness.



[RobRed]

here reference this: TLC FAQ • View topic - OE Toyota Switches that Fit the 100 Series



[Layonnn]

here reference this: TLC FAQ • View topic - OE Toyota Switches that Fit the 100 Series

Tried the part number for the wire harness and only results I got were some posts on FJ cruiser forums and you post that you linked, and a Russian site.

Edit: found a switch harness for $25. I just need the plug... if that's available separate from the whole harness.



[Layonnn]

Slee has those light bulbs, or did. Also easy for Toyota to look em up in parts dept. Same with harness.

i barely trust my local Toyota parts department to order the correct part when I give them the part number. I'd have better luck to order this online.



[RobRed]

Tried the part number for the wire harness and only results I got were some posts on FJ cruiser forums and you post that you linked, and a Russian site.

Edit: found a switch harness for $25. I just need the plug... if that's available separate from the whole harness.

When I bought the switch it came as a kit with pigtail harness. EDIT I was thinking of another switch. The two part numbers referenced on TLCFAQ are correct (I verified my invoice). It may be available as a plug as its standard for a variety of switches. Look in the FJ cruiser FSM there will be a section on plugs.

reference image: TLC FAQ • View topic - RobRed's 2000 UZJ 100 Land Cruiser (Uber LC)



[RobRed]

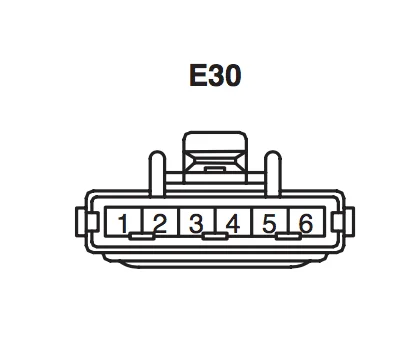

OK - Because I'm a hell of a guy I did all the work for you



[Layonnn]

OK - Because I'm a hell of a guy I did all the work for you

View attachment 1507370 View attachment 1507371

Thank you RobRed!

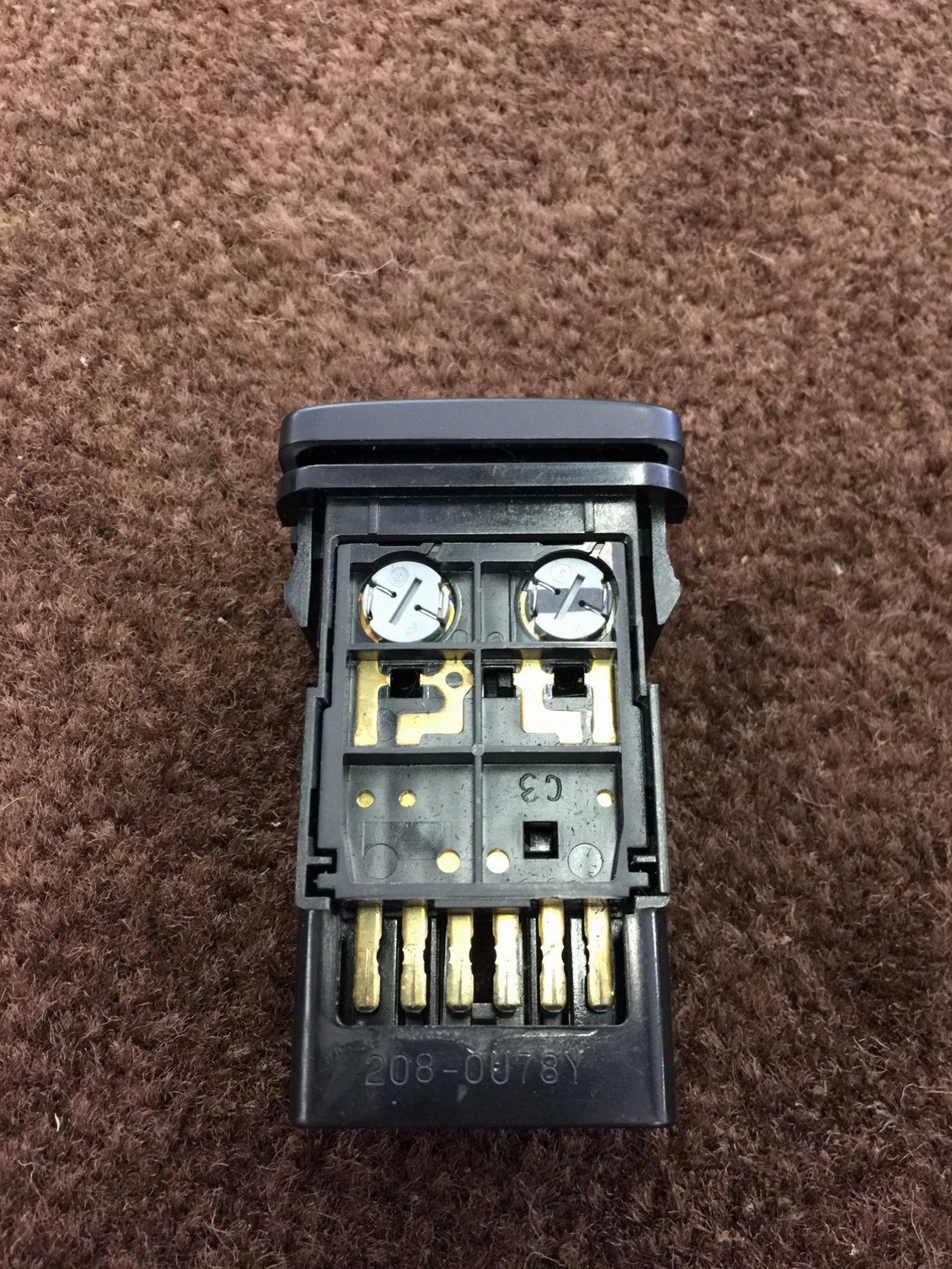

Also for those looking at this in the future, the switch works great in the spots near the rear mirror controls, but you do need to trim a little off the switch. You can see where i trimmed mine in the pics above.
