Toyota Front Leaf Spring Housing!

Discussion in 'Drivetrain - Suspension' started by Dan Fredrickson, Oct 15, 2016.

  1. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    We have made these custom for years but it's time to make them a production Housing. They have the same dimensions as your stock housing so you can plug and play!

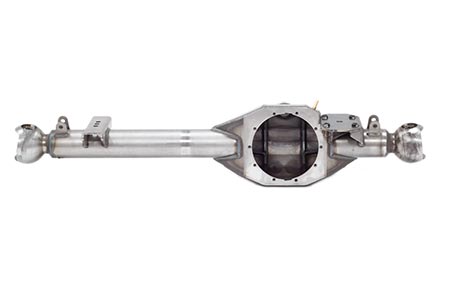

    Here it is! Ruffstuff Toyota 8" front axle housing that fits years 79-85. This set up uses your factory axle shafts from your stock axle. The price includes everything in the photo except the knuckle balls, all you need to do is ship us yours and we will weld them on. (Please read info below before you cut your old knuckle balls off and send them to us.) We also include the U-bolts, spring plates, and 4 5/8" grade 8 bolts for the diff side. This housing is Grade A beef! If you choose not to have the shock brackets installed in the stock location give us a yell and we can change that.

    [​IMG]

    Notes:
    •If you have Toyota front IFS hubs it will add 1 1/2" per side (3" total) on your wheel mount surface and you can still use your stock axle shafts.

    •This housing has a larger tube diameter than factory and our 1/4" thick spring perch adds height to the spring mounting height. Using this axle it will add a 1/2" of lift over your factory axle.

    •Toyota E-locker 3rd members will not work with this housing due to the limited space on the faceplate. It will interfer with the passenger side leaf spring.

    [​IMG]

    Like every axle housing we make, our Toyota 8” IFS Housing comes with the following features:


    •A 3/8” thick faceplate machined flat and drilled for third member hardware AFTER welding to ensure a perfectly flat mounting surface and exact mounting hole location.

    •An almost round ¼” bend plate outer shell. We say “almost” round because each of the shell pieces is made of 14 individual bends rather than being stamped round (which is the cheap and easy way.) We could do it the other cheap and easy way by only using a few bends but we don’t do that either! Instead, we do it the best way: the bends reinforce each other and add rigidity that you do not get from a round housing while the large number of bends hugs the ring gear as tight as possible making our center sections some of the lowest profile in the industry

    •3.5” x 3/8” wall structural DOM tubes which offer the perfect balance between strength, toughness, weight, and ground clearance. You won’t be denting or wearing through these axle tubes! The tube keys in to the faceplate and has gusseting within the center section so it is completely supported on all sides.

    •¼” thick internal gusseting tying every housing component together for maximum strength and EVERY piece of the housing is welded to at least three other components!

    •Oversized 1.25” fill/inspection plug so you can check oil level and the condition of your ring gear without dropping the third member. The plug has a knurled finish for quick and tool-less removal as well as an o-ring seal to prevent oil from leaking out or dust and water from leaking.

    •Top-notch USA craftsmanship by our team of highly-skilled professional fabricators. Every housing is completely hand built, welded, and machined in-house. No robots, no imports, no gimmicks!!

    Toyota 8" Front Axle (79-85) - RuffStuff Specialties

    We have made many FJ40/45/55/60 housings like these also but we are still working on the plan to produce them so you Cruiser guys keep watching ;)

  2. Cruiserdrew

    Cruiserdrew On the way there SILVER Star

    Messages:
    15,519
    Likes Received:
    4,488
    Joined:
    Mar 15, 2003
    Location:
    Sacramento, CA
    Very nice looking work. Subscribing.

  3. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    You've been asking for years, and here it is...

  4. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    Ready for your 3rd member, axles, and knuckles!

  5. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    Plug, play, Party.

    woody likes this.
  6. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    A housing you won't be able to bend.... at last!

  7. Clutchee

    Clutchee I'm fun sized! SILVER Star

    Messages:
    3,835
    Media:
    16
    Albums:
    4
    Likes Received:
    860
    Joined:
    Apr 19, 2004
    Location:
    Hotel M-F, home weekends!
    Dan do you have these in stock?

    And possibly a rear pre 85 width?

  8. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    We carry the parts to make them in stock, but we generally do not pre-make the housings until they are ordered, don't want to give them a chance to rust waiting for their new owner to adopt them ;)

  9. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    Who's ready for one? The last housing you'll ever need!

  10. Clutchee

    Clutchee I'm fun sized! SILVER Star

    Messages:
    3,835
    Media:
    16
    Albums:
    4
    Likes Received:
    860
    Joined:
    Apr 19, 2004
    Location:
    Hotel M-F, home weekends!
    Dan are these back in production?

    When I called a while back whomever I talked to said at that time you all weren’t taking orders and didn’t know if you would continue these.

    Let me know.

  11. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    Hey my apologies for the delay, but we are now accepting orders for these bad-Oscars!

    As always we have you cut out and send in your knuckle-balls (more specific directions on the website Toyota 8" Front Axle (1979-1985)), and once we receive them it's about a 4 week turn-around. I know it takes a while, in order to assure top quality on everything we fabricate, we don't rush jobs to avoid mistakes.

    [​IMG]

  12. Dan Fredrickson

    Dan Fredrickson Supporting Vendor

    Messages:
    847
    Likes Received:
    105
    Joined:
    Sep 13, 2005
    Location:
    Sacramento
    Its a sexy slice of the axle pie... If I do say so myself...

  13. DWDTOY

    DWDTOY

    Messages:
    53
    Likes Received:
    7
    Joined:
    Feb 15, 2006
    Location:
    Texas
    I have a 72 FJ40 with Chevy disk set up. What can you do and how much?
