Torque pro custom pids for transmission temps (1 Viewer)

[e25price]

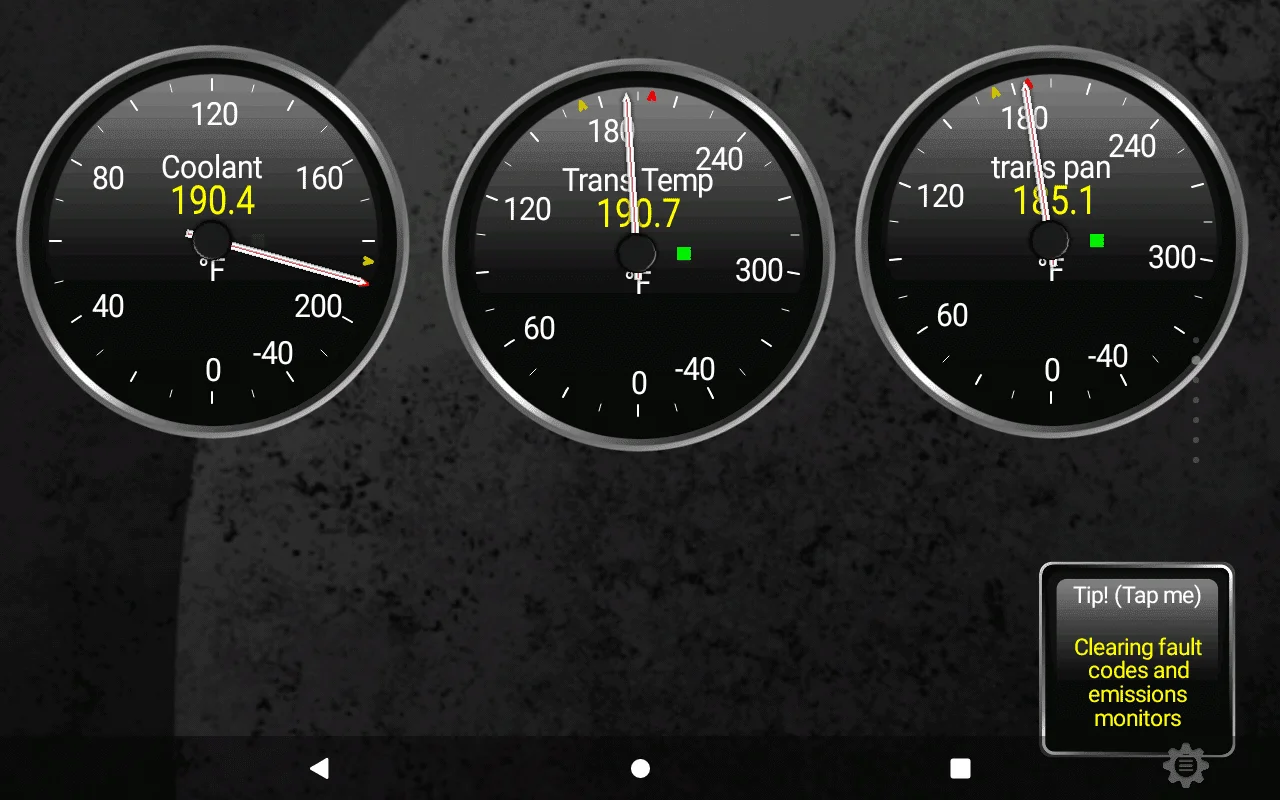

I'm new to the forum and have gotten tons of info and asked more than a few stupid questions. I was searching the forum for answers on how to make a custom pid in the torque app to monitor trans temps. I only got it to work on my 2008 LX570 by using some pids I found on a tundra forum. I figured I'd post some screenshots for the next guy.



[e25price]

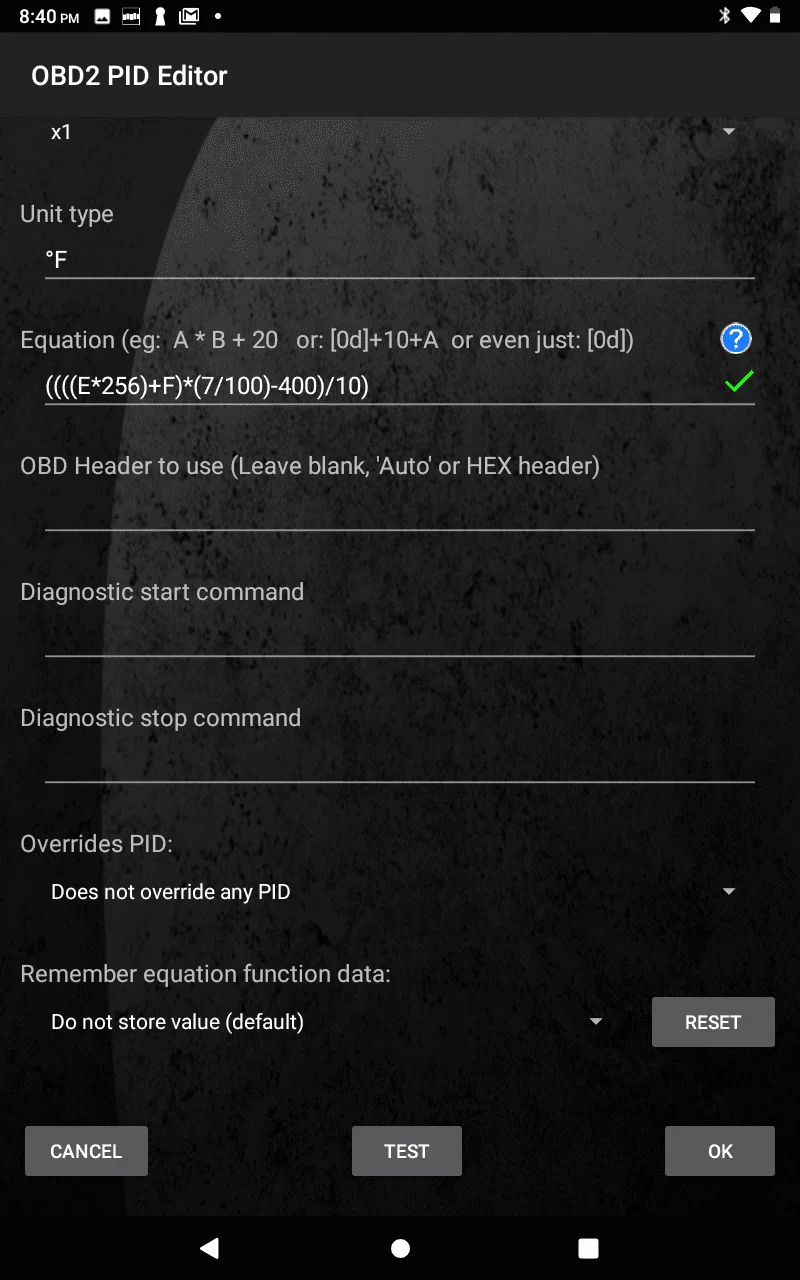

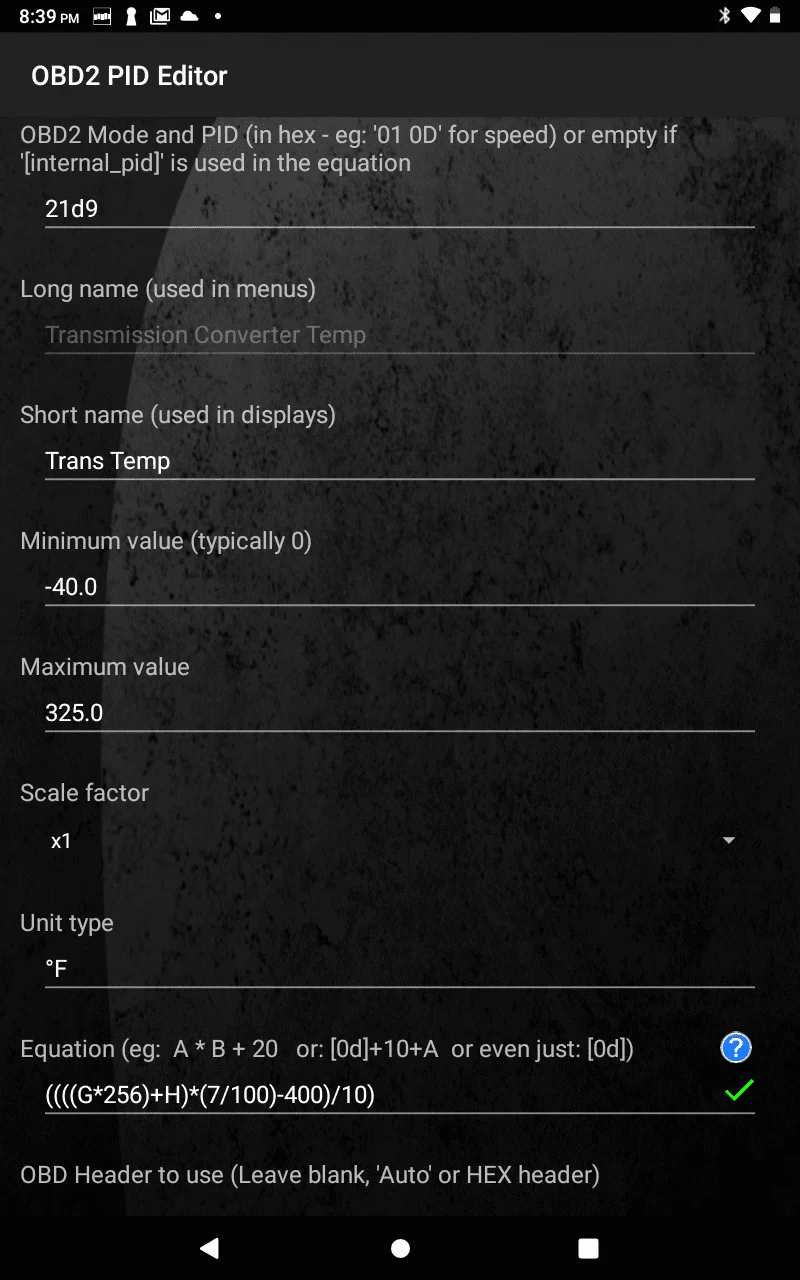

Custom pid screenshots



[e25price]

Continued



[e25price]

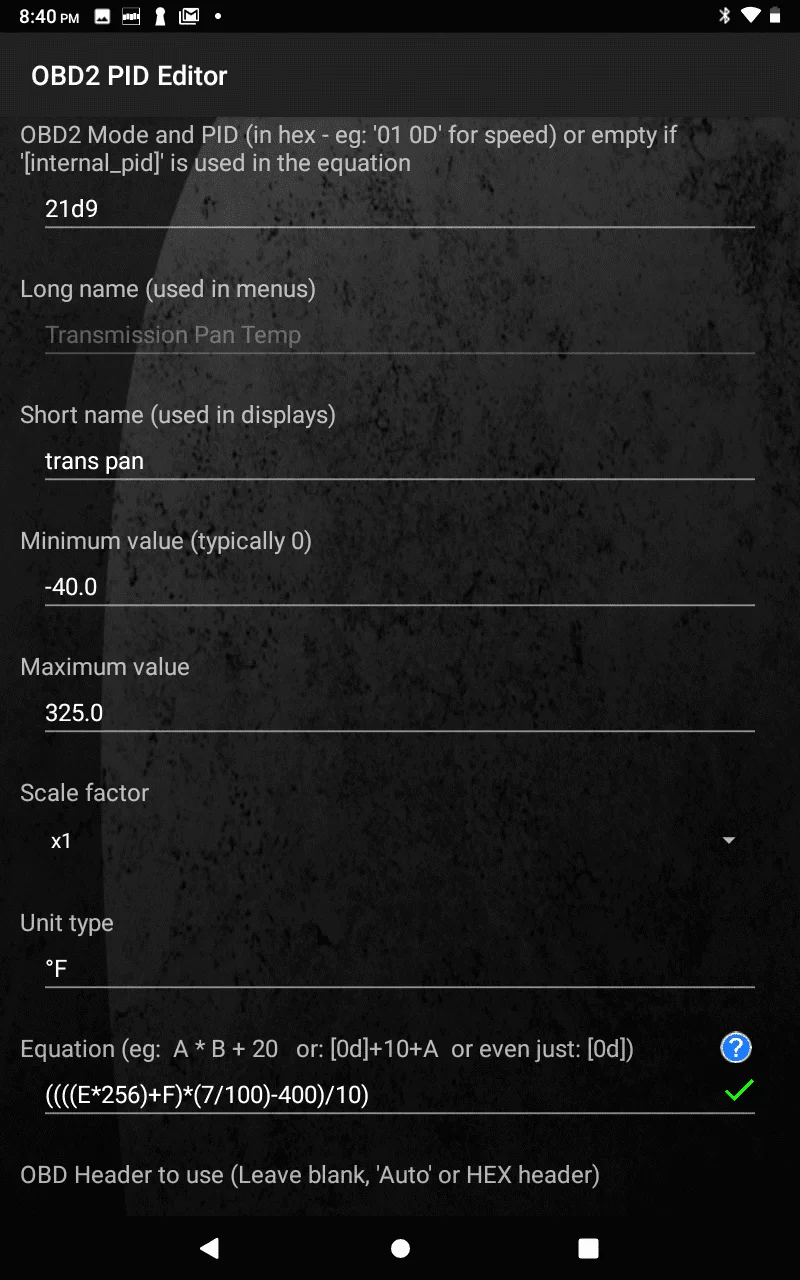

2nd pid



[e25price]

Continued



[HROD79]

Anyone have different PID for 2016+? I am not getting accurate values with these and am curious if the code would be different for 8sp trans....
