Thoughts on these 60 interior Panels??

WSOPgold2012

SILVER Star
Joined
Dec 28, 2012
Messages
1,906
Location
Front Range
www.orikawa.net


4 doors: $749
  • PRODUCT INFORMATION​

    • All Aluminum Construction
    • Speaker Ready
    • PALS Standard Attachment Points
    • Inner Window Felt Replacement Included
    • OEM Color Matched Powder Coat
  • TECHNICAL SPECIFICATIONS​

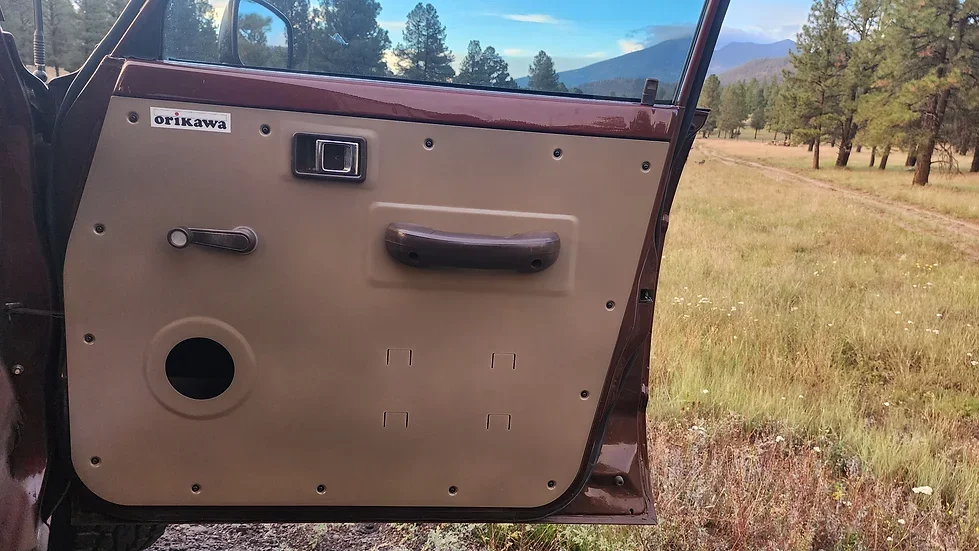

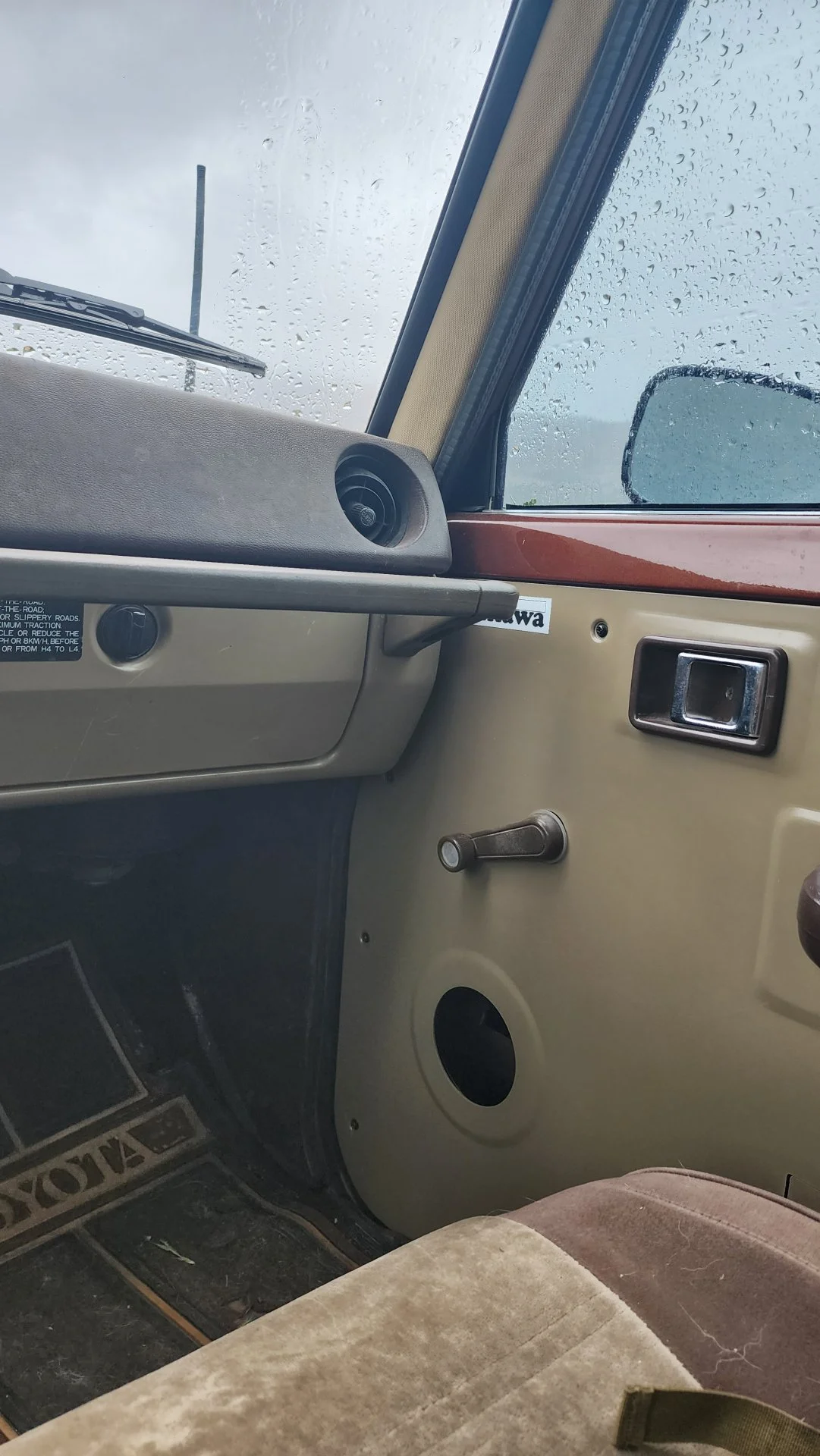

    Front Door Panel
    • 4" Speaker Ready via 3.75" Cutout
      • 2" Maximum Recommended Speaker Top Mount Depth
    • Die Pressed Reinforcement Features
    • 5x5 PALS Standard Mounts for most large MOLLE pouches
    • 2mm 5052 Aluminum for Low Weight and Corrosion Resistance
    • Window Felt / Belt Weatherstrip replaces Toyota 68170-90A01
      Rear Door Panel
    • 6.5" Speaker Ready via 5.75" Cutout
      • 2.25" Maximum Recommended Speaker Top Mount Depth
    • 2x2 PALS Standard Mounts for most small MOLLE pouches
    • Window Felt / Belt Weatherstrip replaces Toyota 68190-90A01

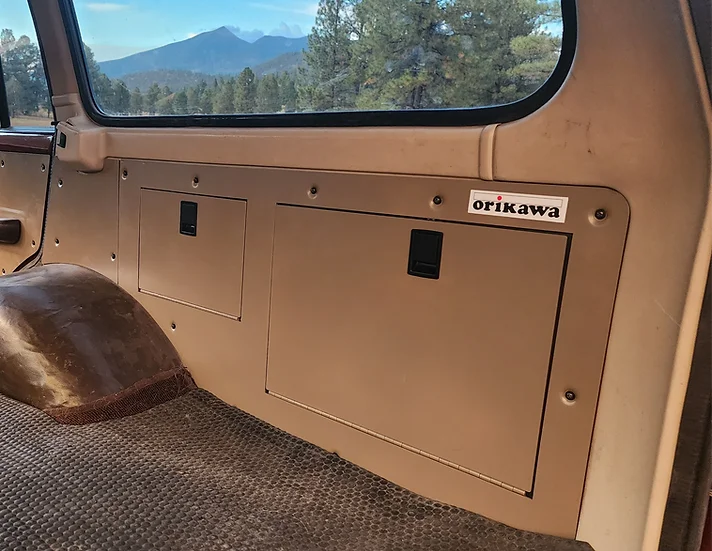

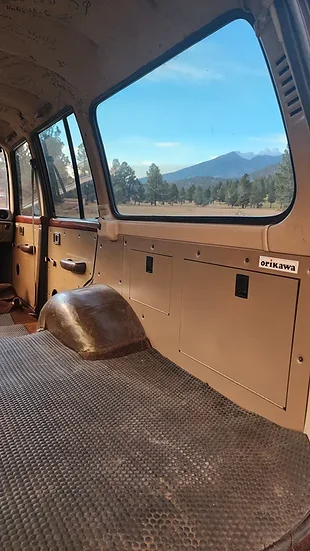

Rear Panel" $699

  • PRODUCT INFORMATION​

    All Aluminum Construction
    OEM Color Matched Powder Coat
    Two Latching Hinged Access Doors
    Fully Sealed SBR Weatherstripping
    Two Piece Design: Quarter Storage and Front Trim Cover
    • FJ62 install re-uses factory rear seatbelt trim cover

  • TECHNICAL SPECIFICATIONS​

    3mm 5052 Aluminum for Durability
    Hinged Access Doors for Storage and Maintenance
    Takigen Push-to-Close Aluminum Latches
    Sunco Mounting Hardware Made in Japan
    OEM Color Matched Powder Coat by Cardinal
    SBR Rubber Seals for Door and Panel
    Rubber Well-Nuts for OEM mounting - no modification required

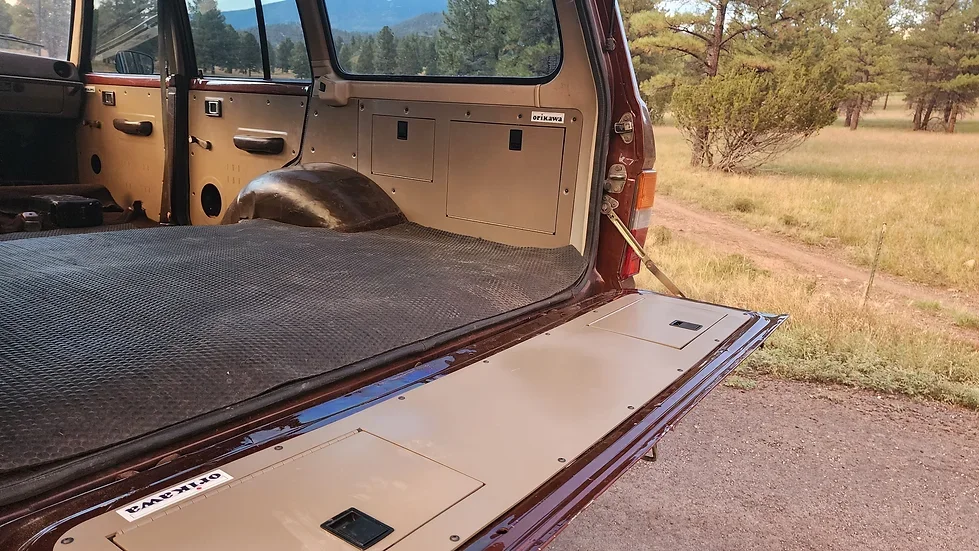

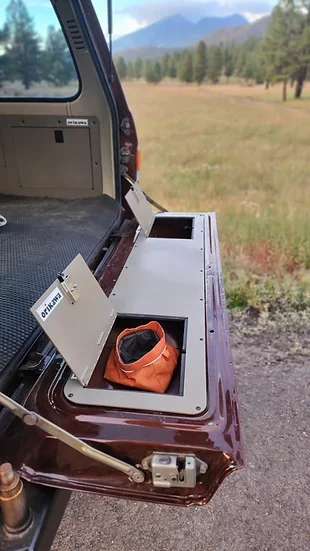

Tailgate: $549

  • PRODUCT INFORMATION​

    Replaces OEM Tailgate Trim with Access Panel
    * product cannot be installed on OEM tailgate without permanent modification to tailgate. Instructions provided for necessary alteration.
    • All Aluminum Construction
    • OEM Color Matched Powder Coat
    • Two Latching Hinged Access Doors
    • Fully Sealed SBR Weatherstripping
  • TECHNICAL SPECIFICATIONS​

    • 3mm 5052 Aluminum for Durability
    • Hinged Access Doors for Storage and Maintenance
    • Takigen Push-to-Close Aluminum Latches
    • Sunco Mounting Hardware Made in Japan
    • OEM Color Matched Powder Coat by Cardinal
    • SBR Rubber Seals for Door and Frame
    • Machined Door Flange for 270* Support







Last edited:
Joined
Feb 16, 2019
Messages
483
Location
Raleigh, NC

WSOPgold2012

SILVER Star
Joined
Dec 28, 2012
Messages
1,906
Location
Front Range
Joined
Dec 15, 2008
Messages
1,161
Location
Ruston, LA
Those look pretty nice. Wish they came in a dark brown, although I guess you could get them painted/coated in whatever color you want. Wonder if you can buy them in bare aluminum?


CenTXFJ60

SILVER Star
Joined
Apr 1, 2014
Messages
3,668
Location
Spring Branch TX (Hill Country)

CenTXFJ60

SILVER Star
Joined
Apr 1, 2014
Messages
3,668
Location
Spring Branch TX (Hill Country)
I wonder if you could ID the coating on that rear seat carpet rail and use that as the FJ62 brown?
That seat back rail is not a good match to the Toyota color. I just used a brown rattle can I had on the shelf. Glad to post a pic of the color if you’d like it


orikawa

orikawa
Supporting Vendor
Joined
Mar 24, 2007
Messages
135
Location
Flagstaff, AZ
Website
www.orikawa.net
Hey what's up everyone!

Send me a message if you have any questions for sure. I will be modifying the door cards to fit 62 ASAP. 80 tailgate, and some 1st gen truck panels too.

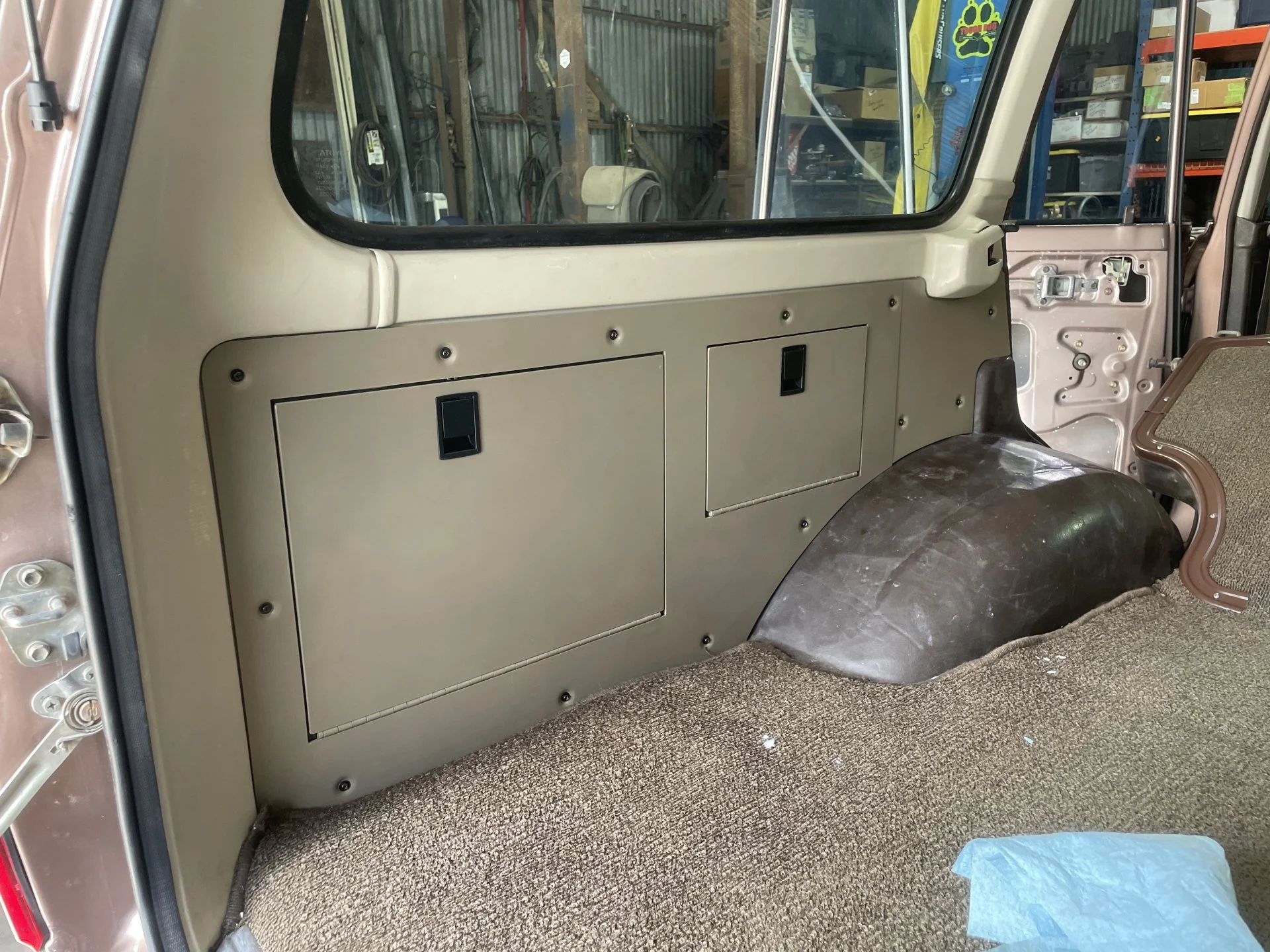

The quarters fit the 62 currently since they're 2-piece the front section doesn't need to be installed and drops right in with the 62 seat belt retractor trim in place.

One of the early customers stripped his tan door set and is doing the dark brown... im skeptical but we will see when they're done.

The point of the colors is to match the lower dash metal and it looks very factory that way.

Speaker cut outs are to accommodate common 3 way speaker sets... 90% of those fit depth wise and are tweeter, 3.5" and 6.5". Tweeter can be put anywhere without corrosion issues on the panels.



orikawa

orikawa
Supporting Vendor
Joined
Mar 24, 2007
Messages
135
Location
Flagstaff, AZ
Website
www.orikawa.net
Those look pretty nice. Wish they came in a dark brown, although I guess you could get them painted/coated in whatever color you want. Wonder if you can buy them in bare aluminum?
Just send me a message and we can figure out if it's something you'd like to do. Cost and time add up though you know with powder coaters these days
