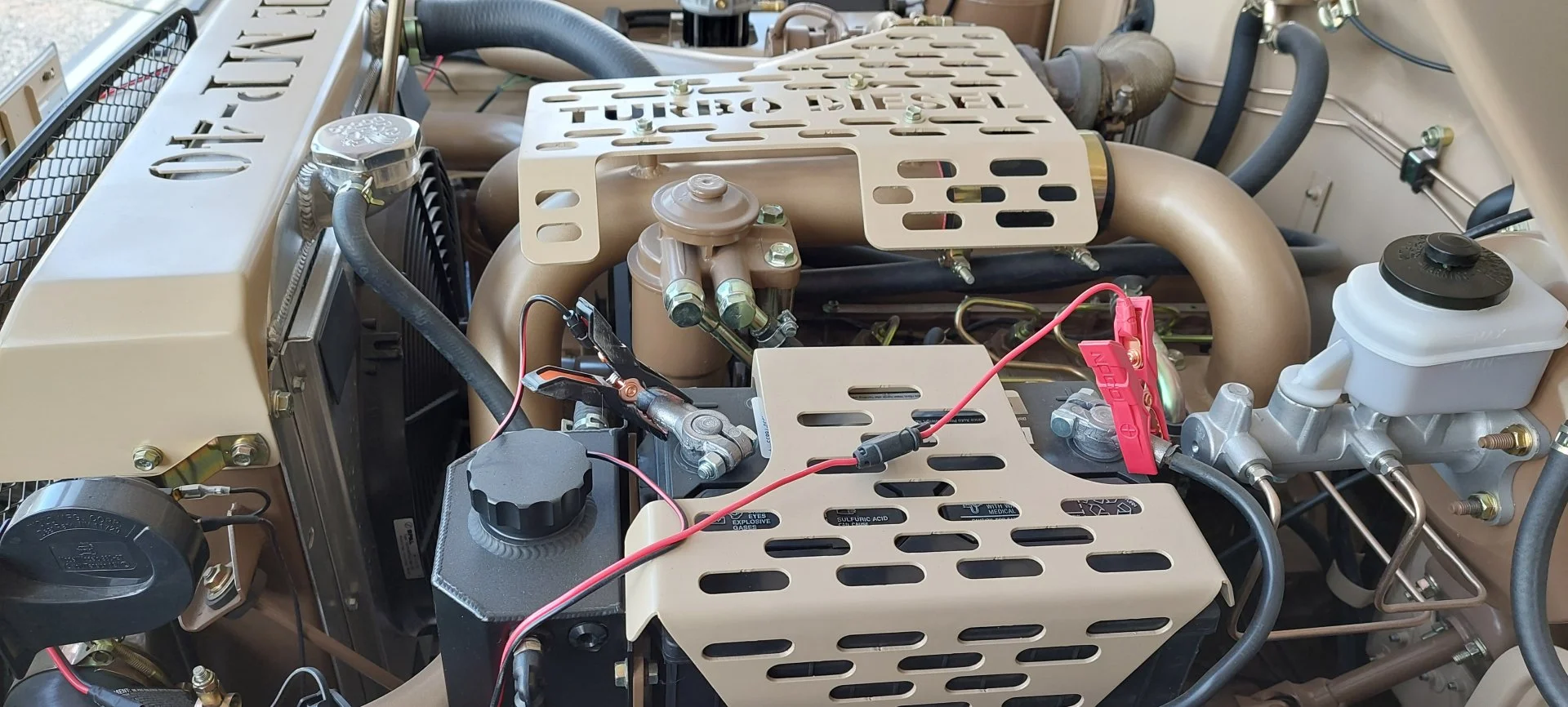

It's based on the EMP cover, which I really like the style of.



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
Oeuverlaunding approved! Engine cover looks like you could pop it off and place over a campfire to cook steaks.

Hey, I've cooked a fair share of stuff on my engine, usually unintentionally, though.


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
Glad money is going to school😁😁😁😁

Really curious bro see how it turns out. Engine that is. 😁😁😁😁

Everything I seemingly do is expensive, and school doesn't help :rofl:


bluehawk

Appalachia Cruisers
Joined
Apr 27, 2012
Messages
2,710
Location
Knoxville,TN
The hoops ended up around 90° as well.

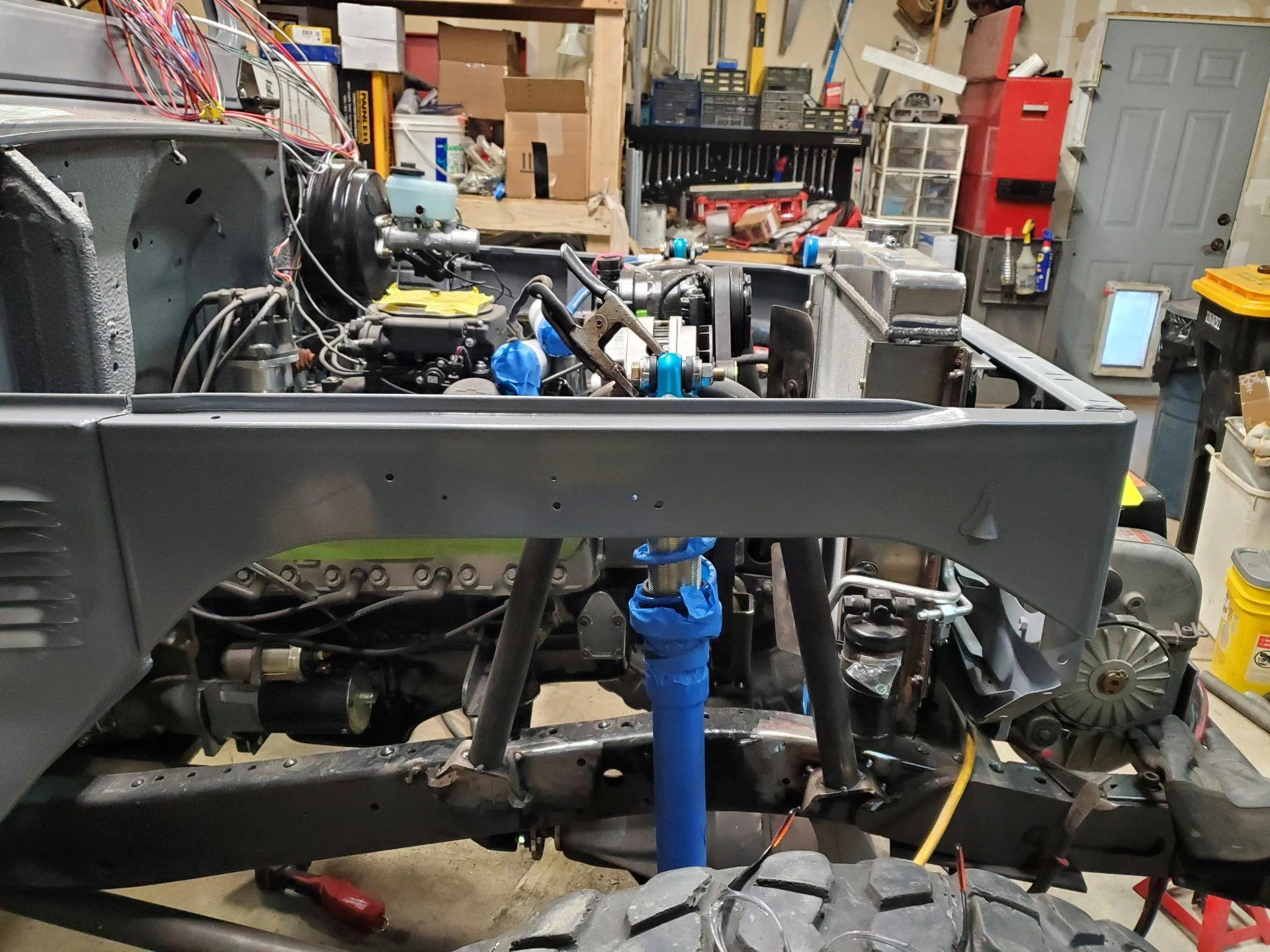

View attachment 2582935

Readjusted angles.

View attachment 2582934

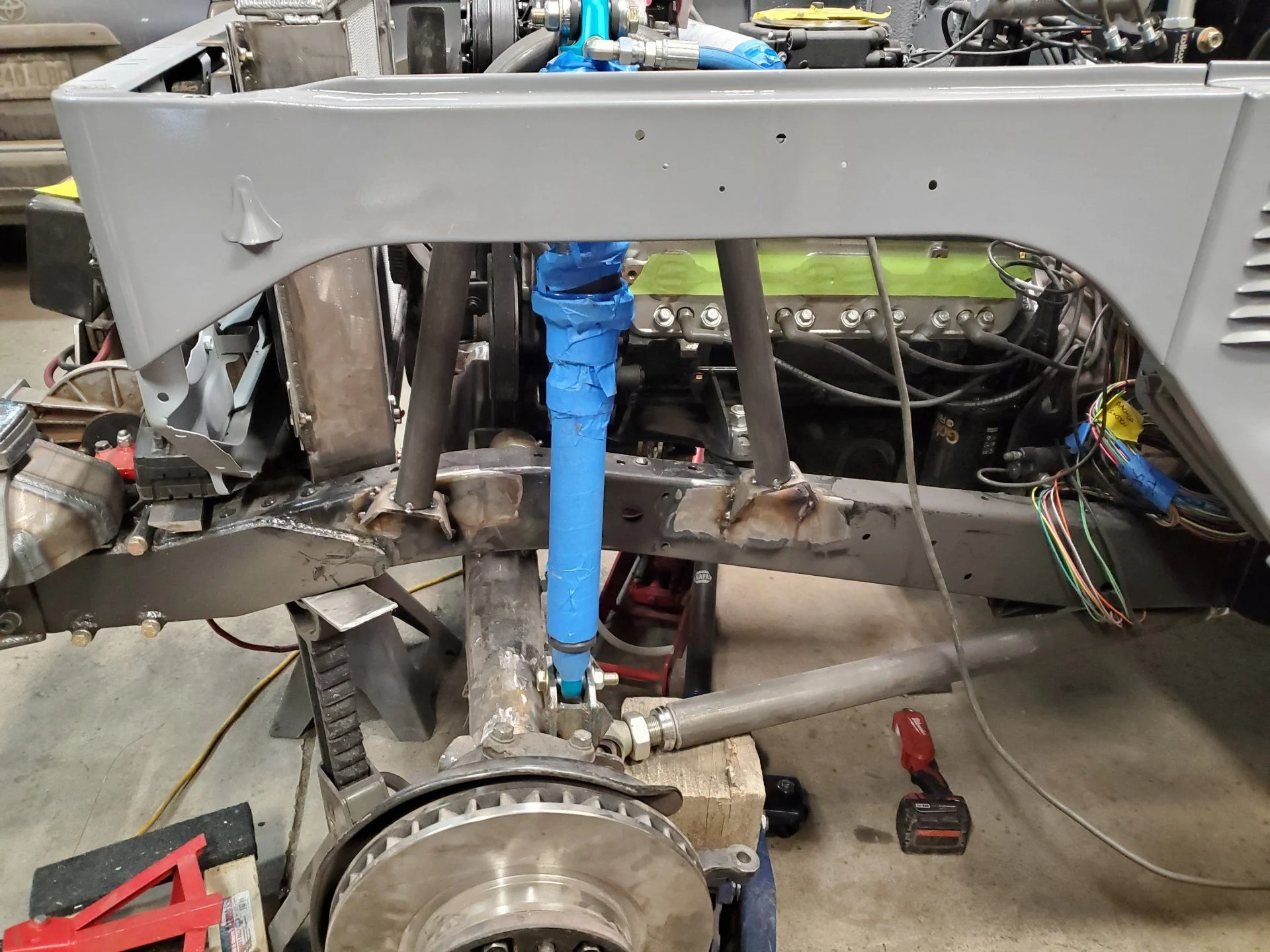

View attachment 2582933

Anyways, I'm much happier with those angles overall. The panhard and steering is up next, once I get the hellfire knuckles.

I'm hoping to fully dive into wiring while waiting for those knuckles.

Hello Sir, could you get me a measurement from the top of the frame to the top center of your coil over hoop on your front suspension ?


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
Hello Sir, could you get me a measurement from the top of the frame to the top center of your coil over hoop on your front suspension ?

Sure, I'll grab one tomorrow.


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
Hello Sir, could you get me a measurement from the top of the frame to the top center of your coil over hoop on your front suspension ?



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
Last year's Solid Axle Summit video.



DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
Lots of fab done today.

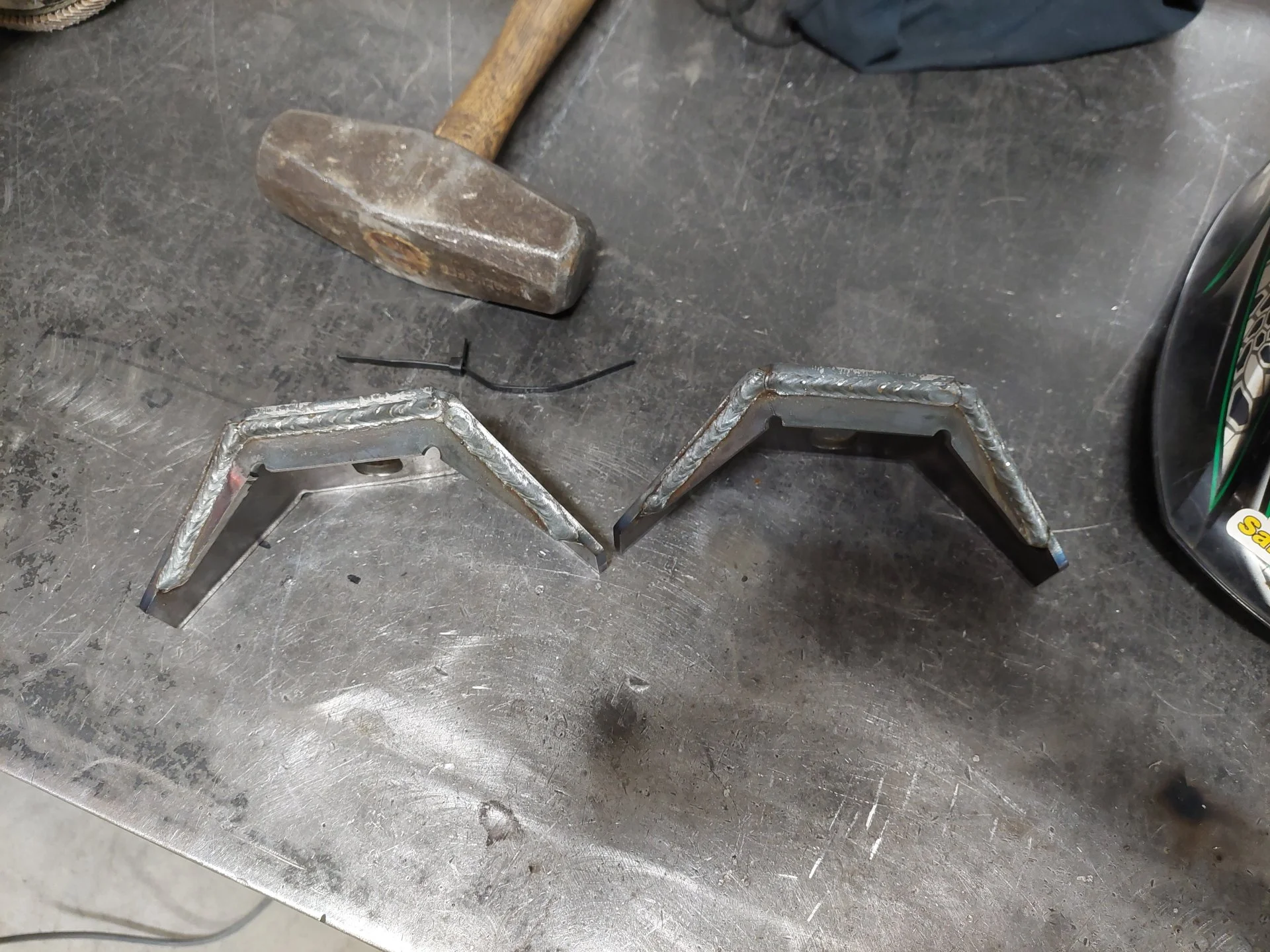

Motor mounts plas'd out on the table.





All welded.

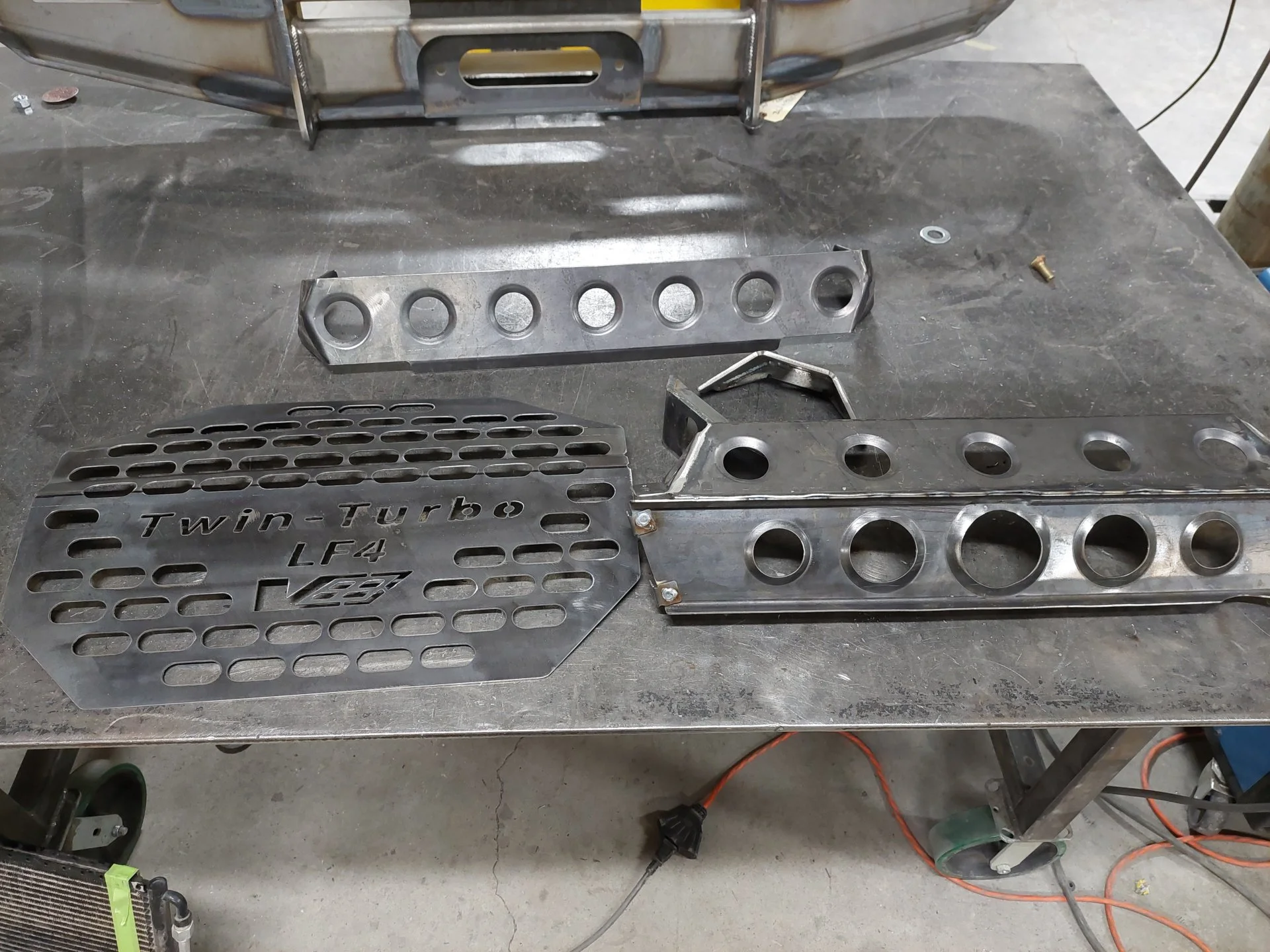

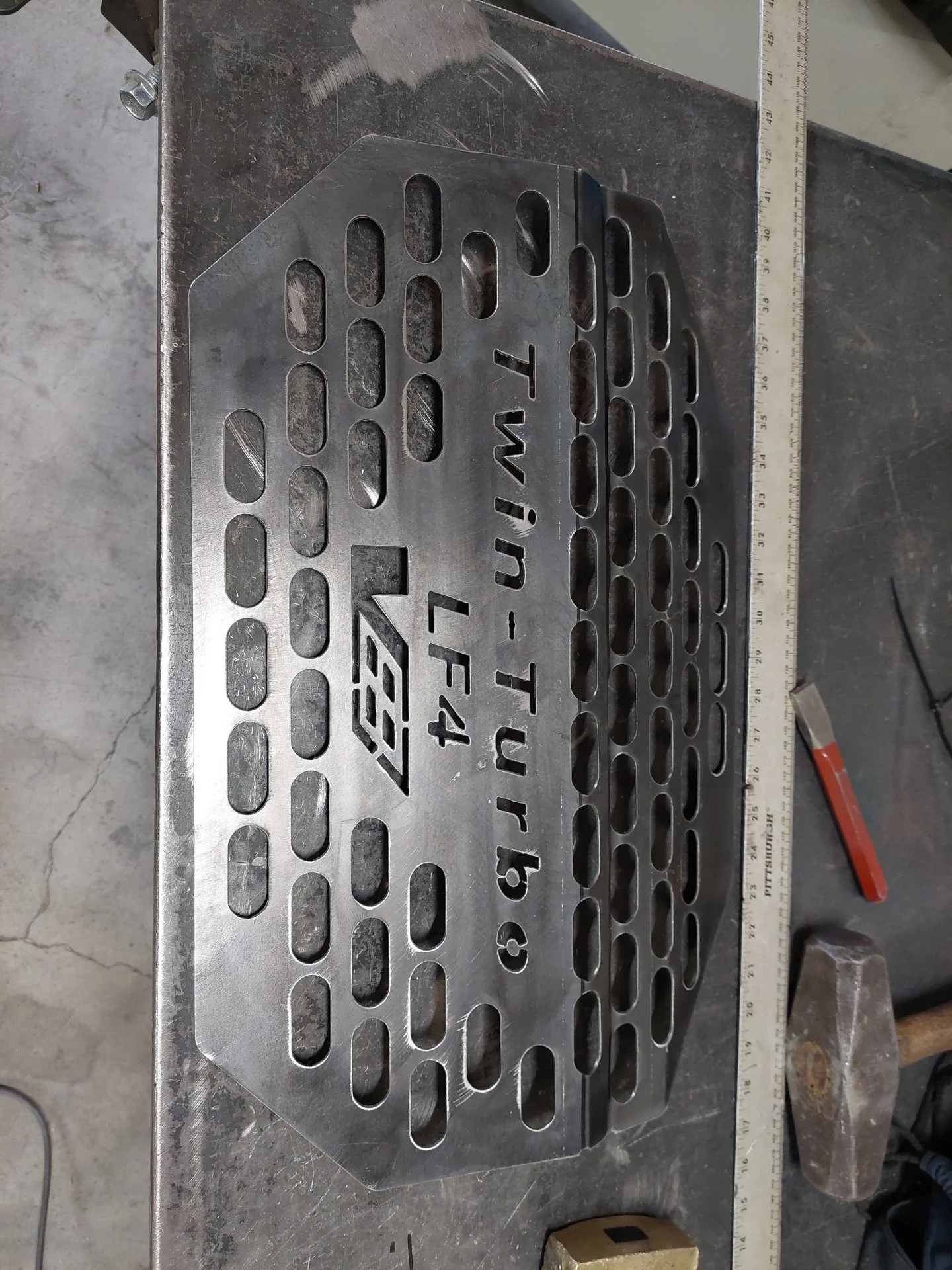

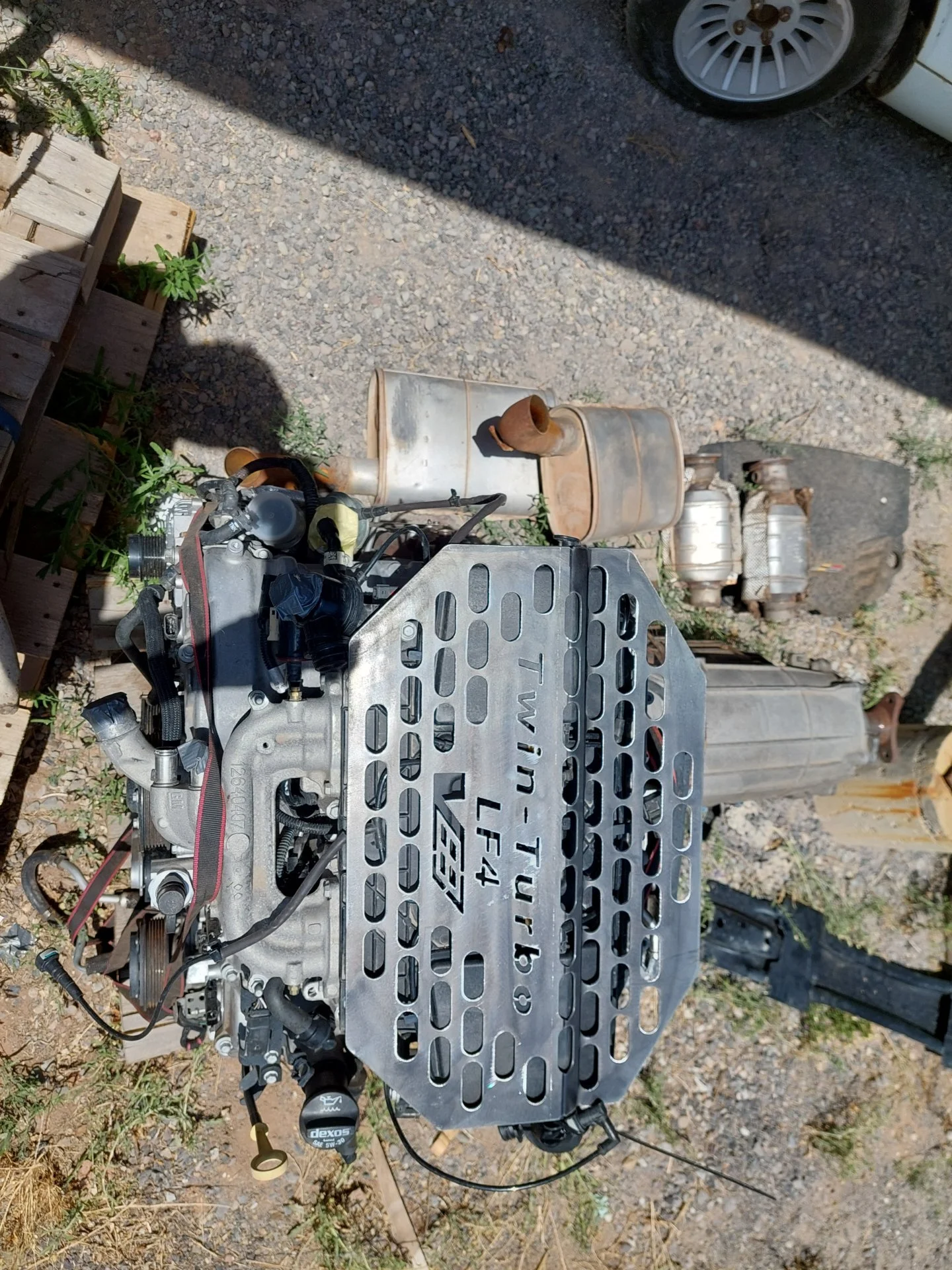

Engine vanity cover.

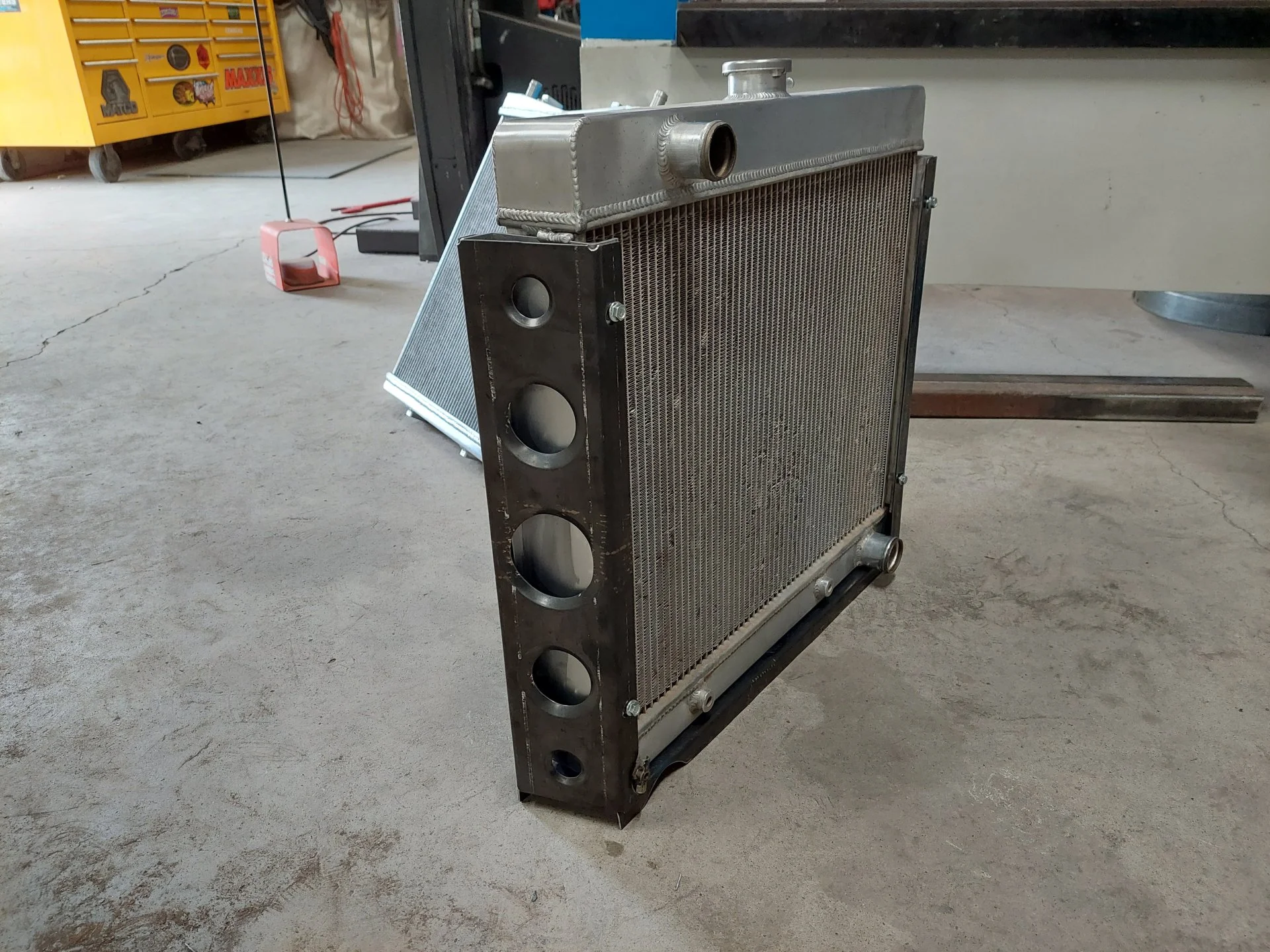

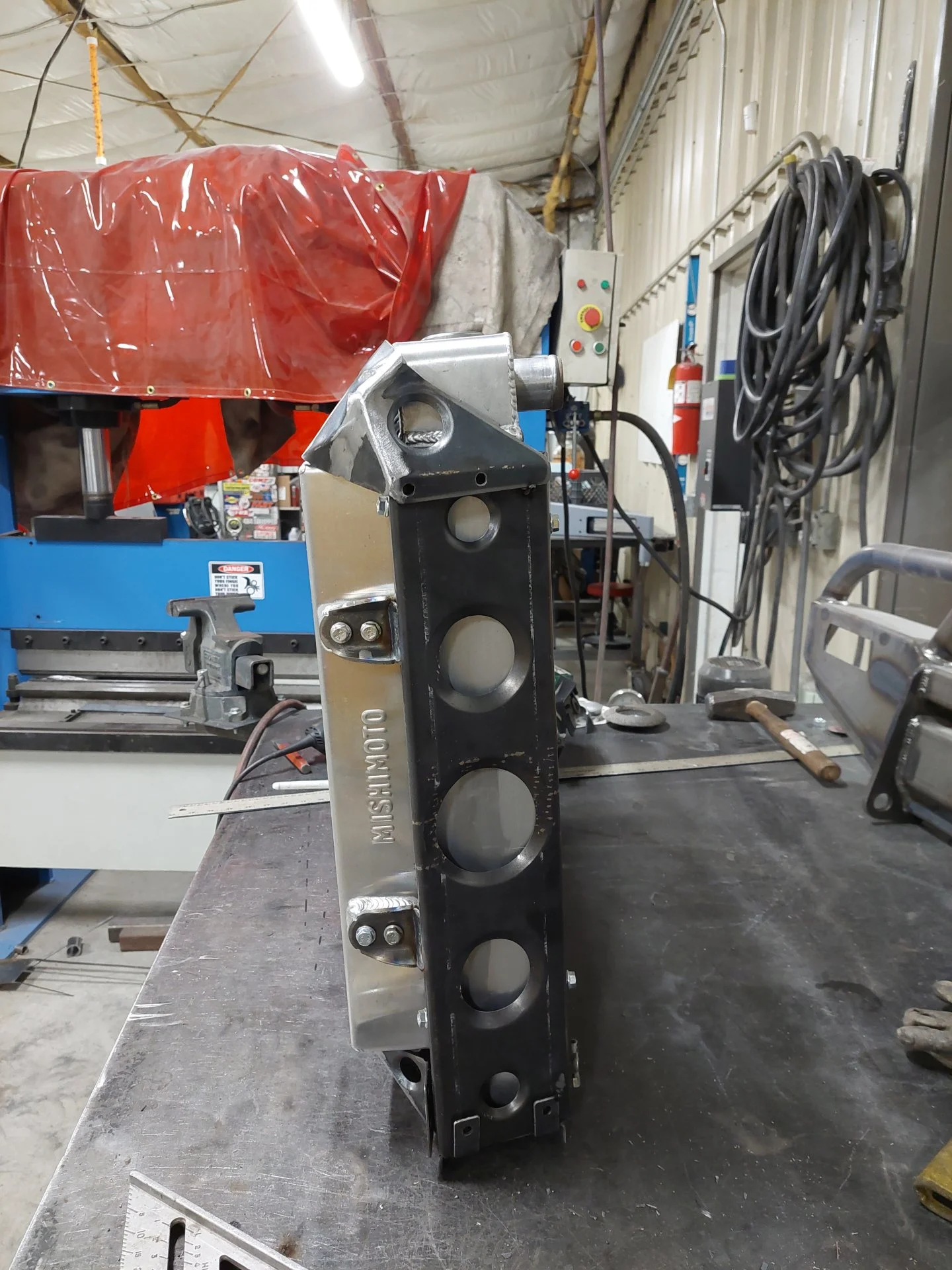

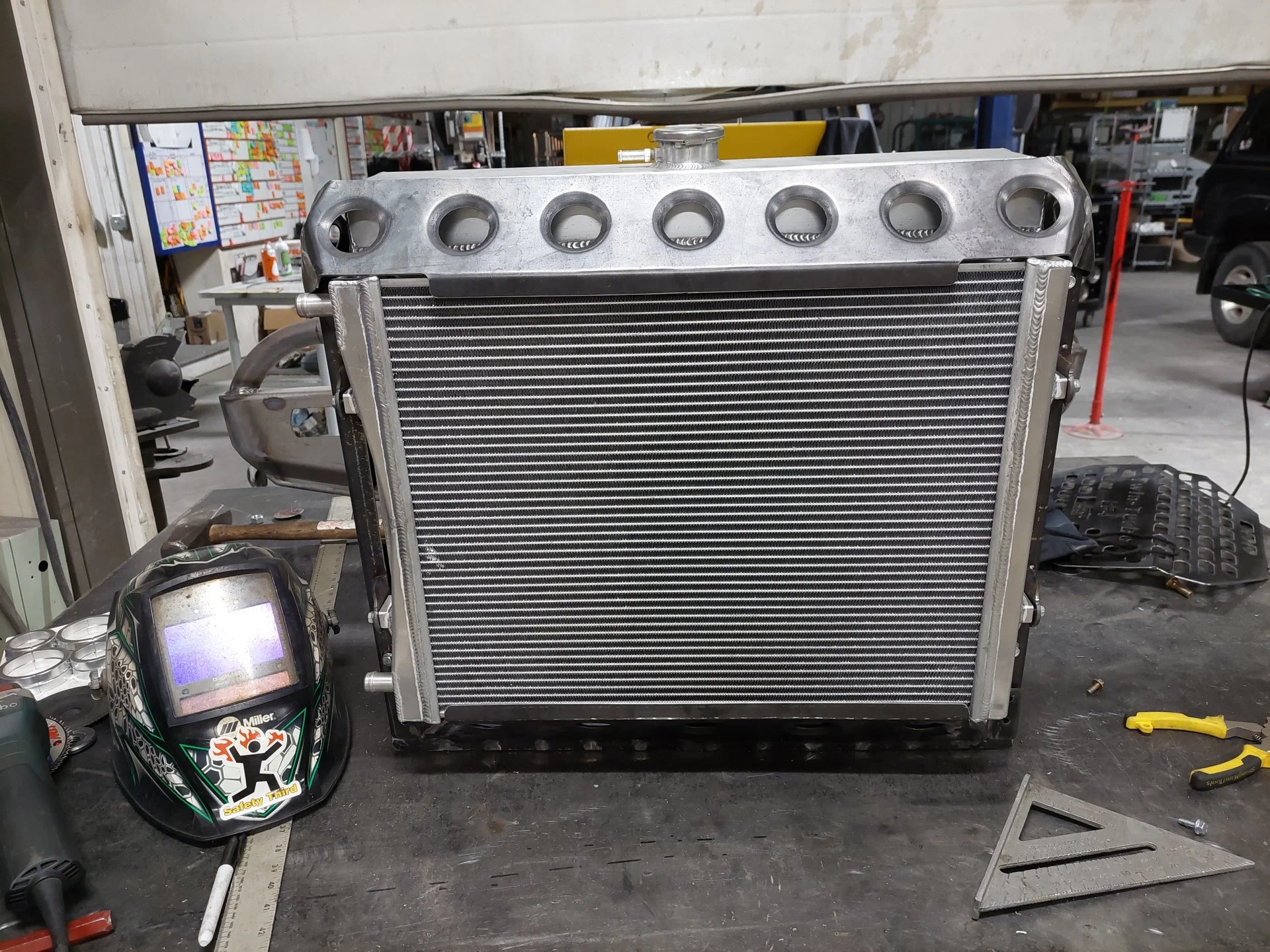

Cooler stack.

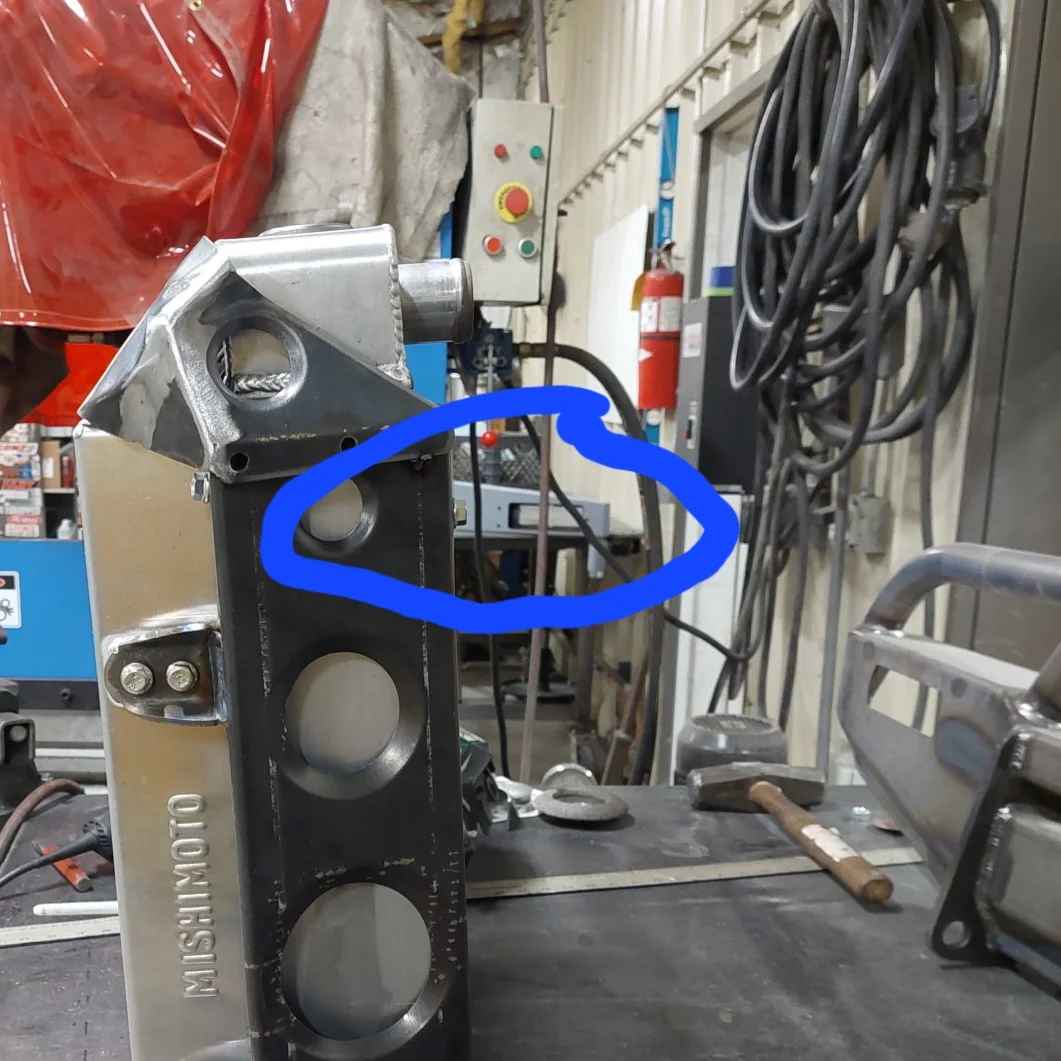

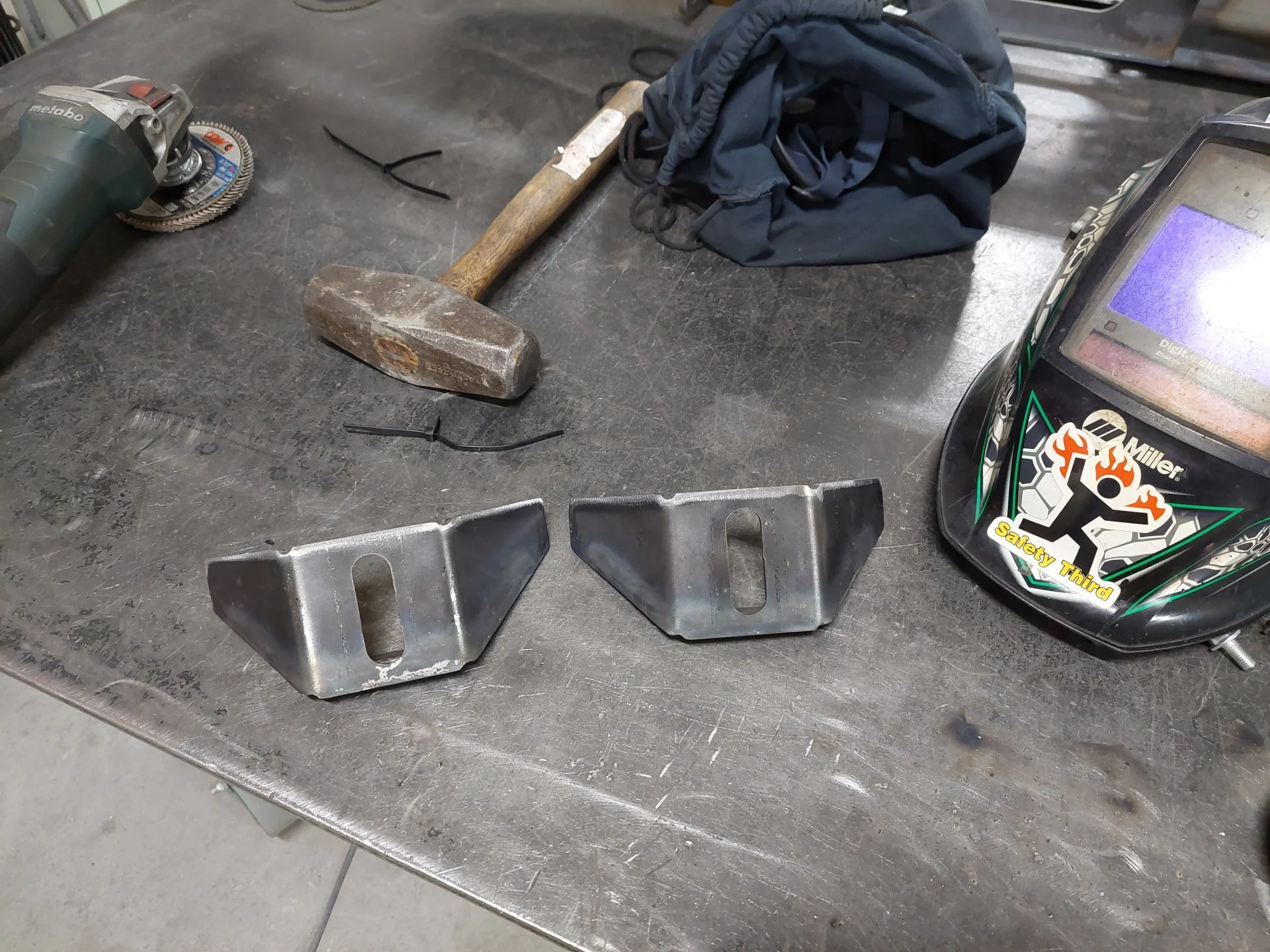

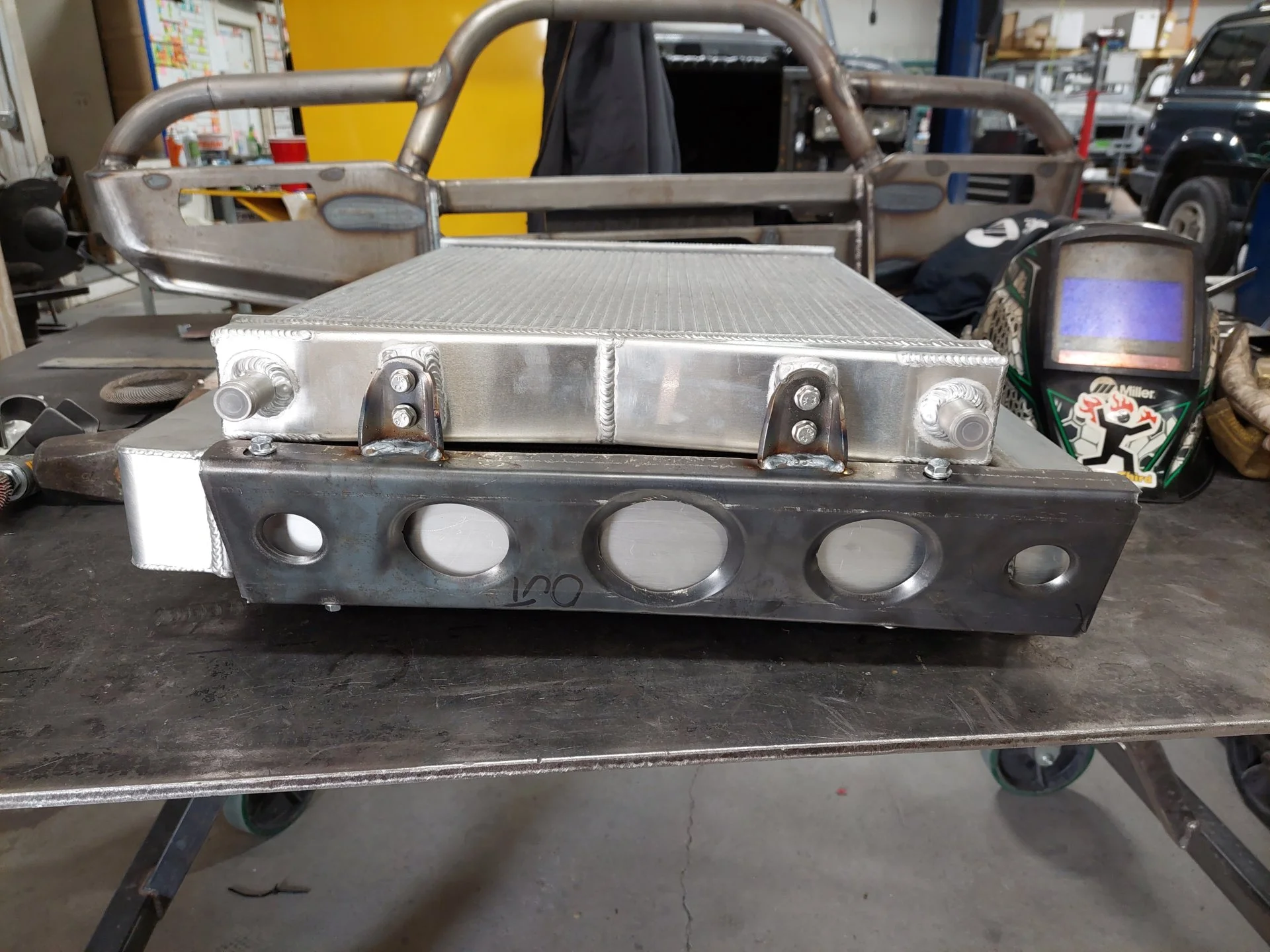

Intercooler tabs.

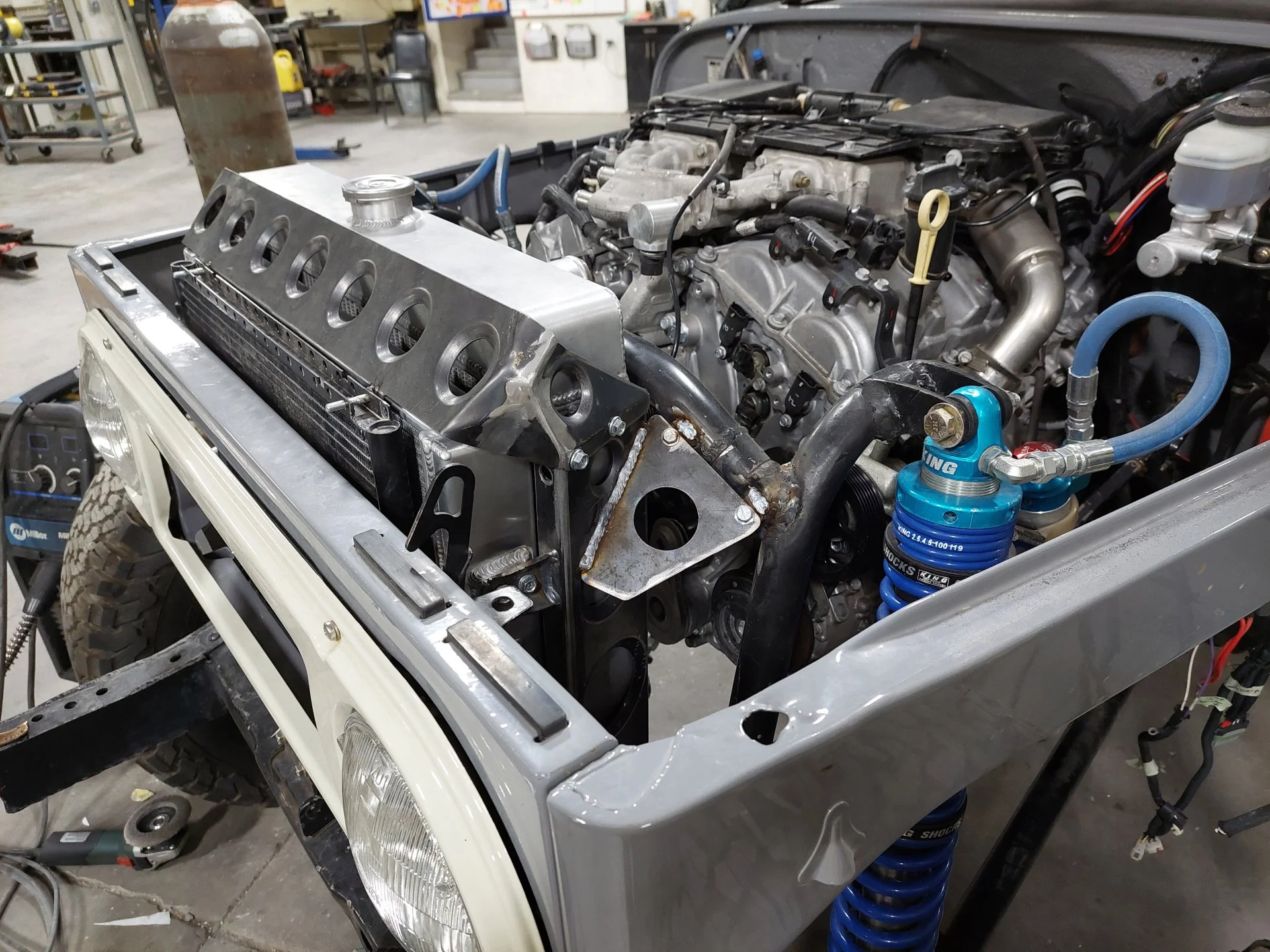

Done! It all bolts together, just need to figure out location and mount it once the engine is in.



My condenser will bolt up to the tabs on the upper and lower covers.



Pretty good day today.



I still haven't gotten my harness back yet, but the atlas should be here next week (according to my original ship estimate). I'm keeping my fingers crossed.

-Noodle

Joined
Nov 10, 2011
Messages
611
Location
Minnesota
I see your intercooler is Mishimoto. Is that who your radiator is from as well? And is it a stock fj40 size?


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
I see your intercooler is Mishimoto. Is that who your radiator is from as well? And is it a stock fj40 size?

My radiator is a Frostbite, oversized quite a bit from stock 40 size.

Mounting the LF4

DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com
*excited monkey noises*

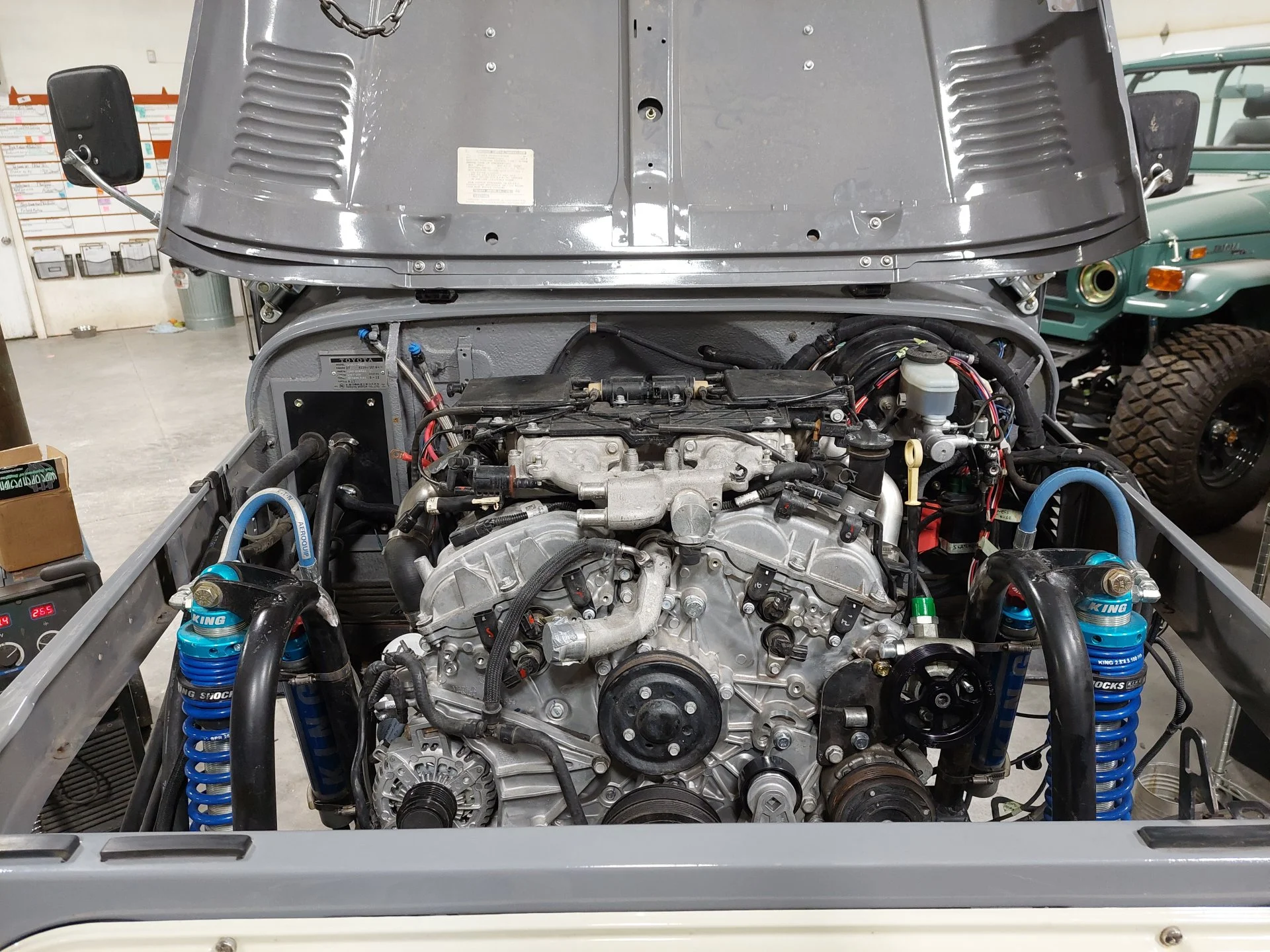

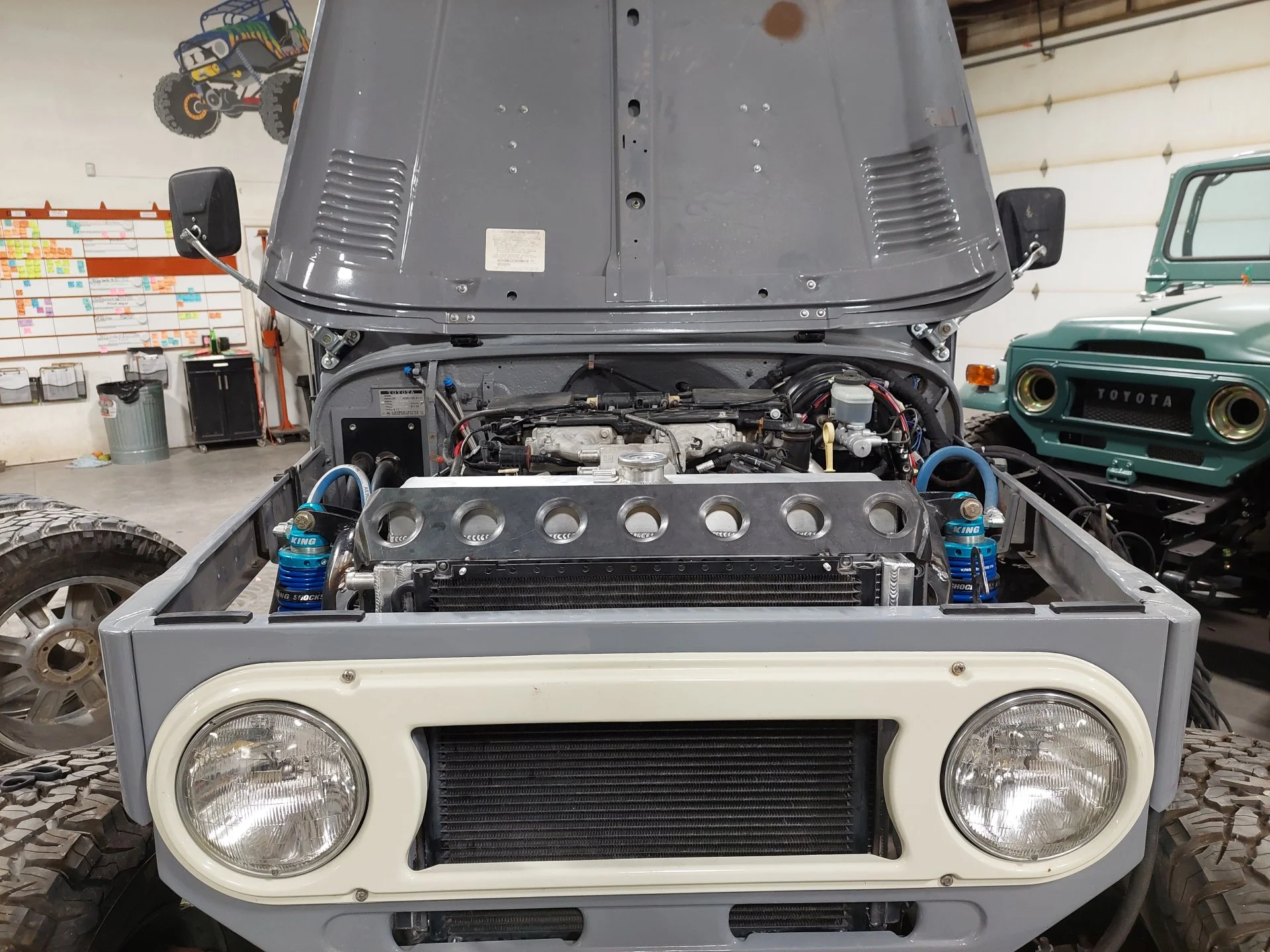

It fits like it was meant to be.

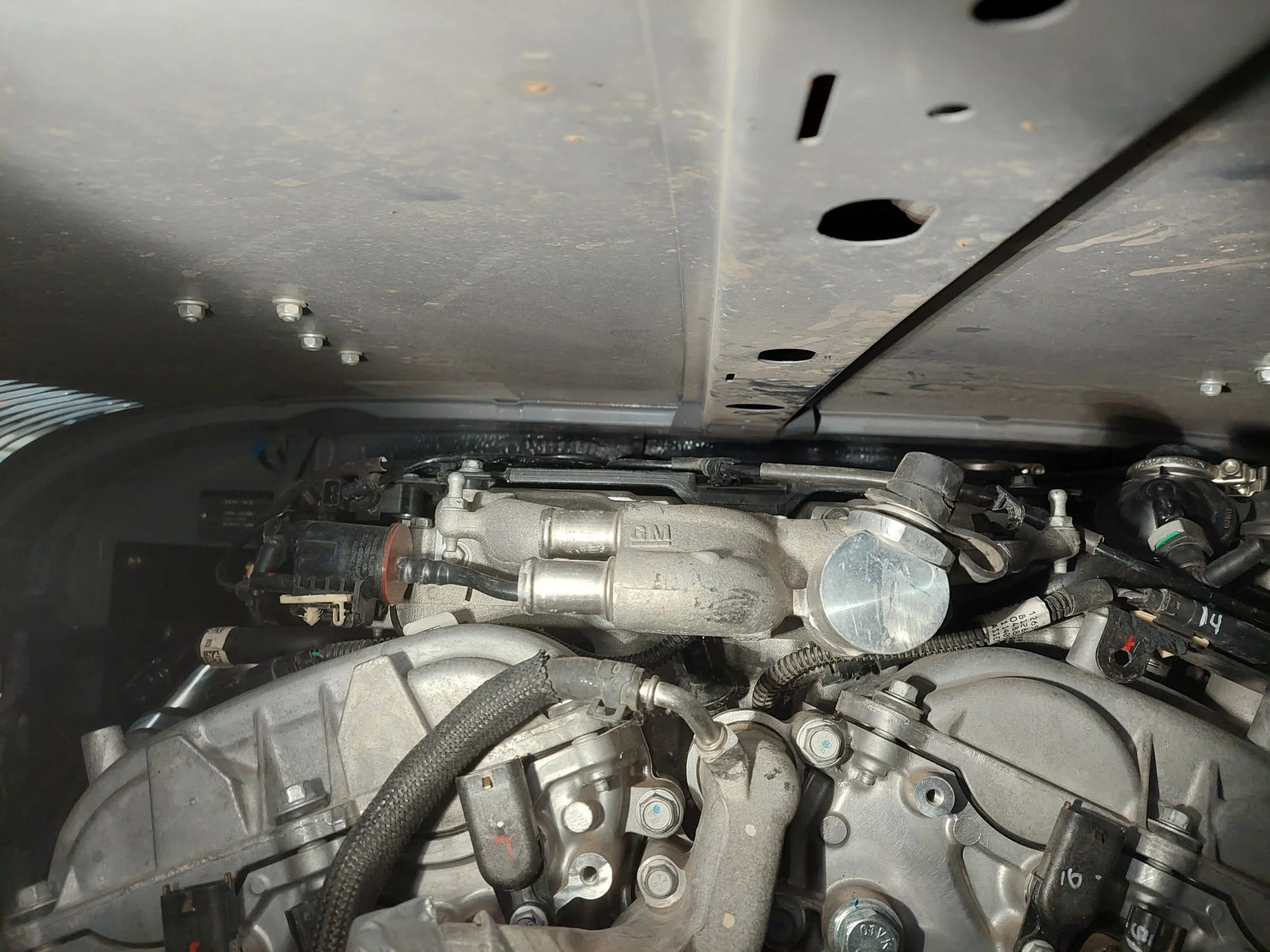

Full access to run the exhaust, which is a massive win, cause I wasn't sure if that was going to be possible.



I'll build the power steering pump brackets tomorrow.



Remote reservoir is just about perfect, I'll get that mounted as well.





I goofed on the rad mount a bit and ended up a bit wide, so that will get a trimming to fit.



I'm also getting bullied too 😂. Apparently I'm susposed to put those on now.



cbmontgo

SILVER Star
Joined
Feb 28, 2004
Messages
5,000
Location
Divide, Colorado

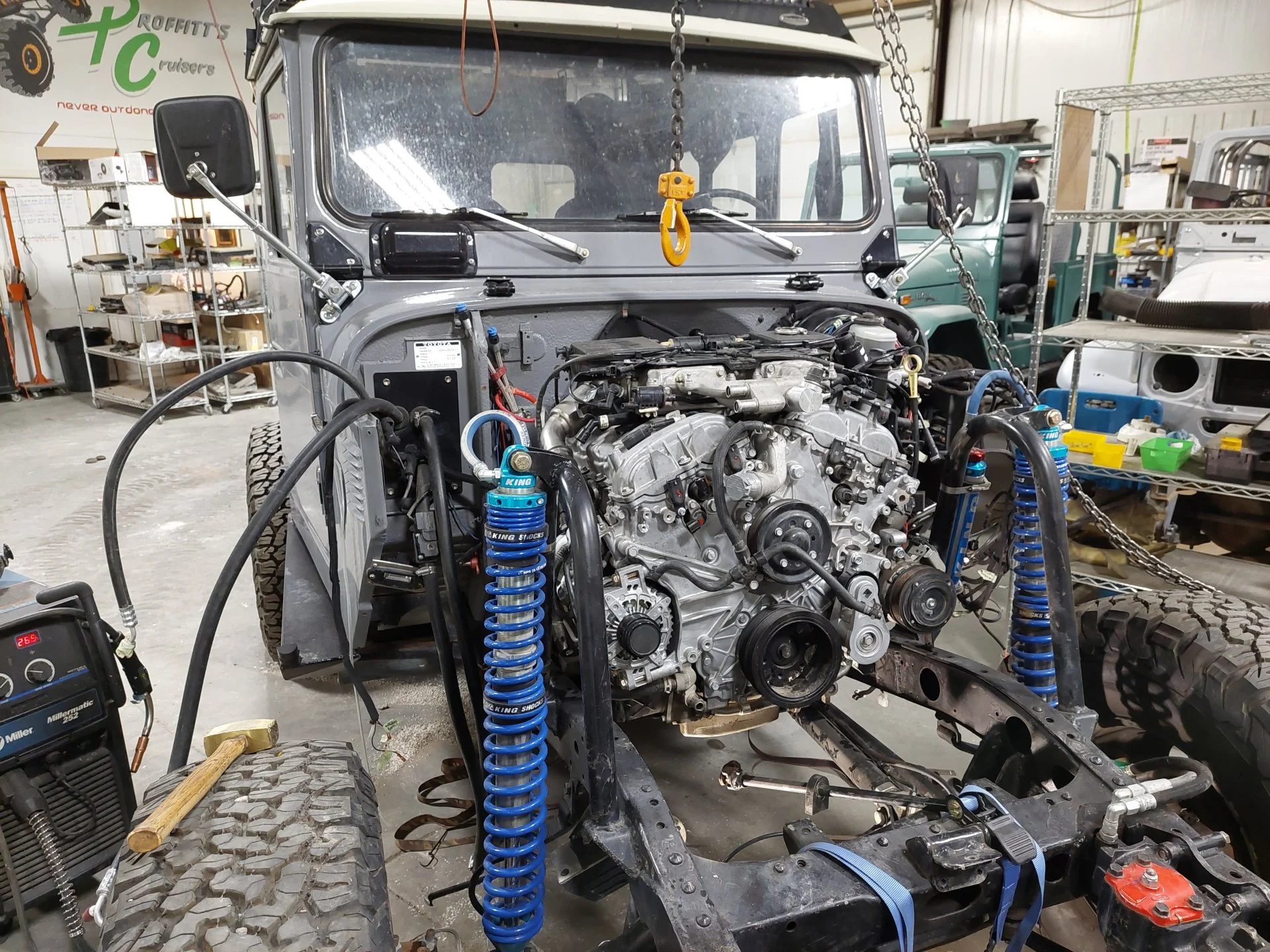

*excited monkey noises*

View attachment 3054077

View attachment 3054078

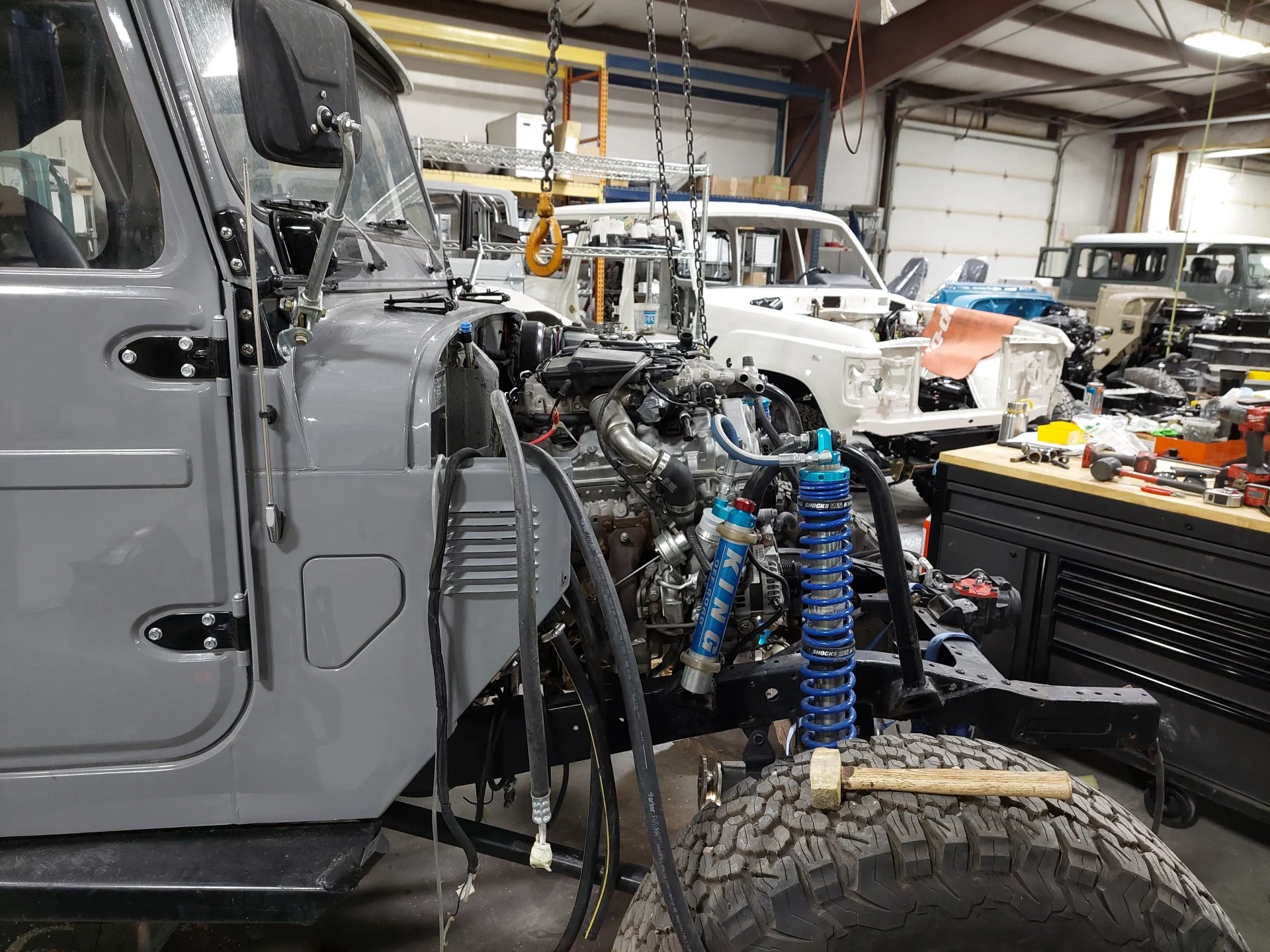

It fits like it was meant to be.

View attachment 3054079

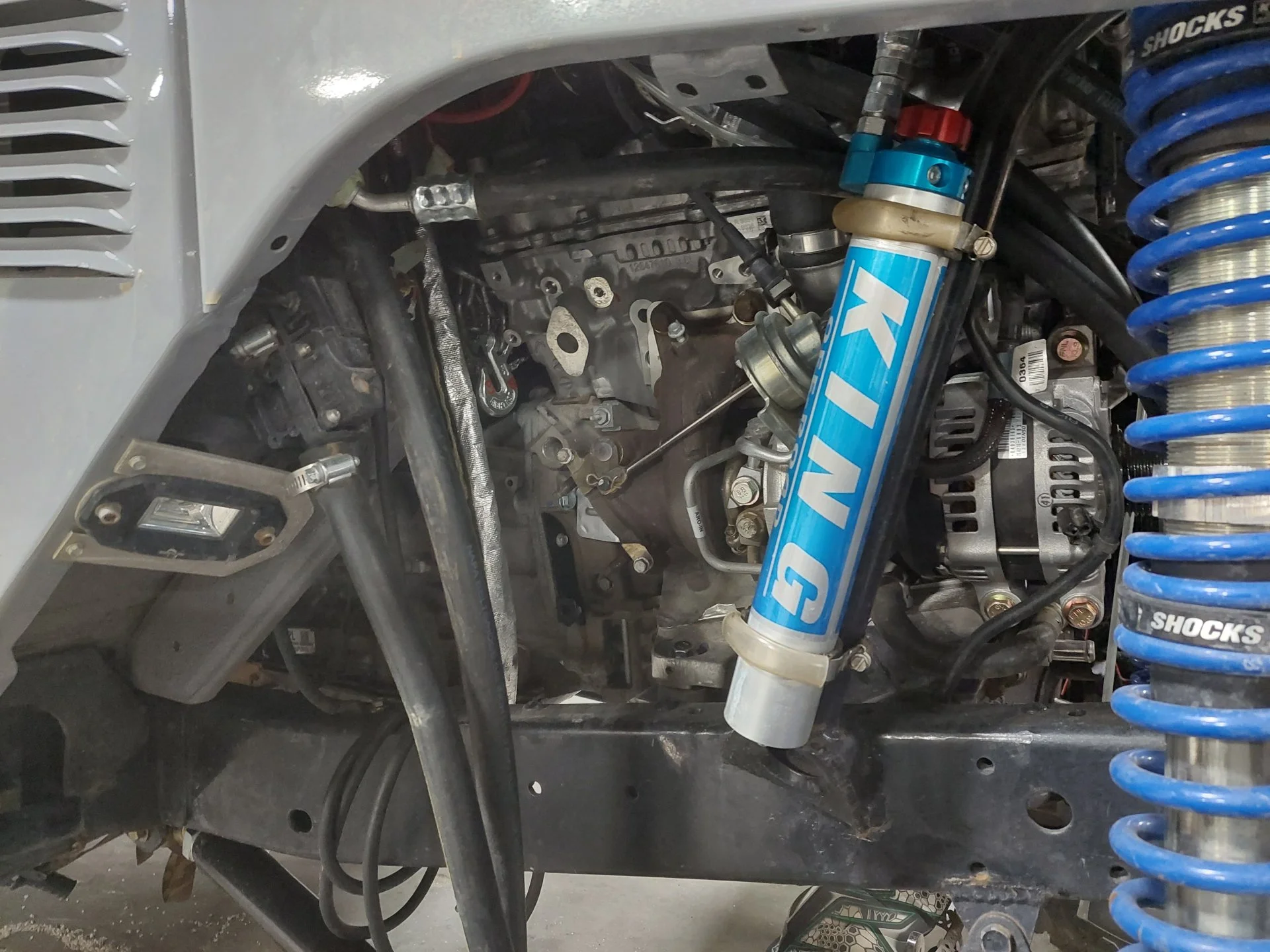

Full access to run the exhaust, which is a massive win, cause I wasn't sure if that was going to be possible.

View attachment 3054080

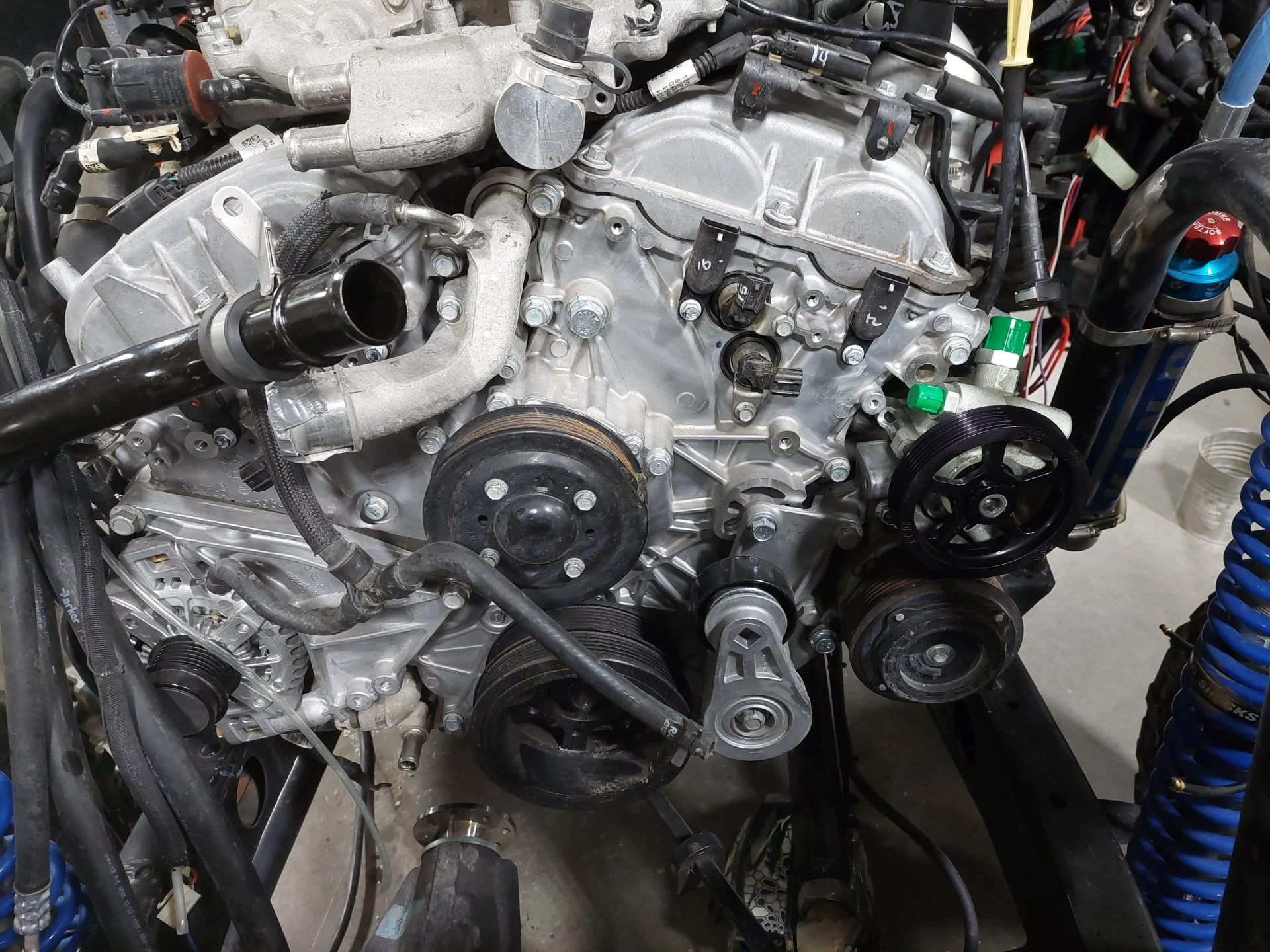

I'll build the power steering pump brackets tomorrow.

View attachment 3054081

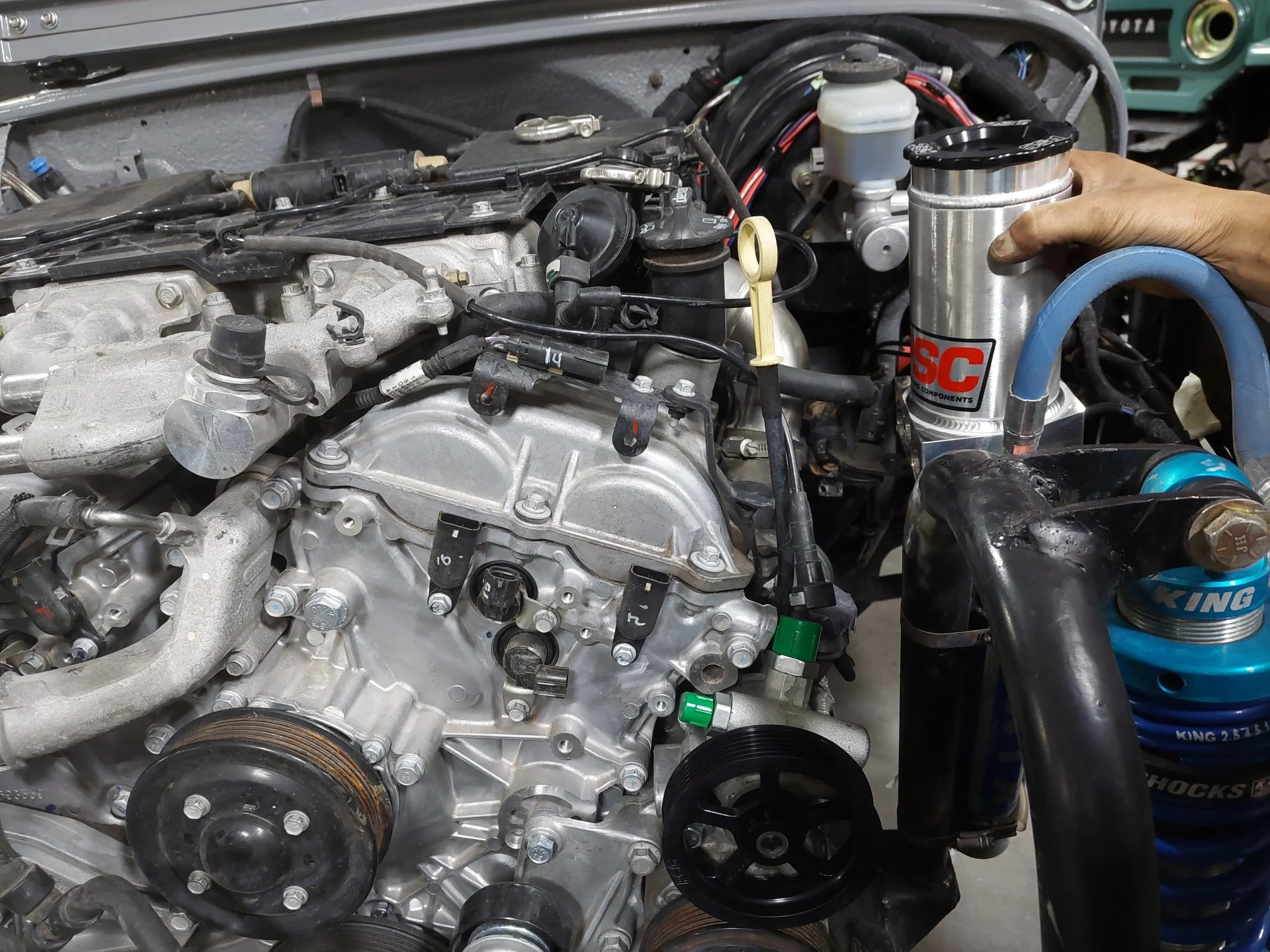

Remote reservoir is just about perfect, I'll get that mounted as well.

View attachment 3054082

View attachment 3054093

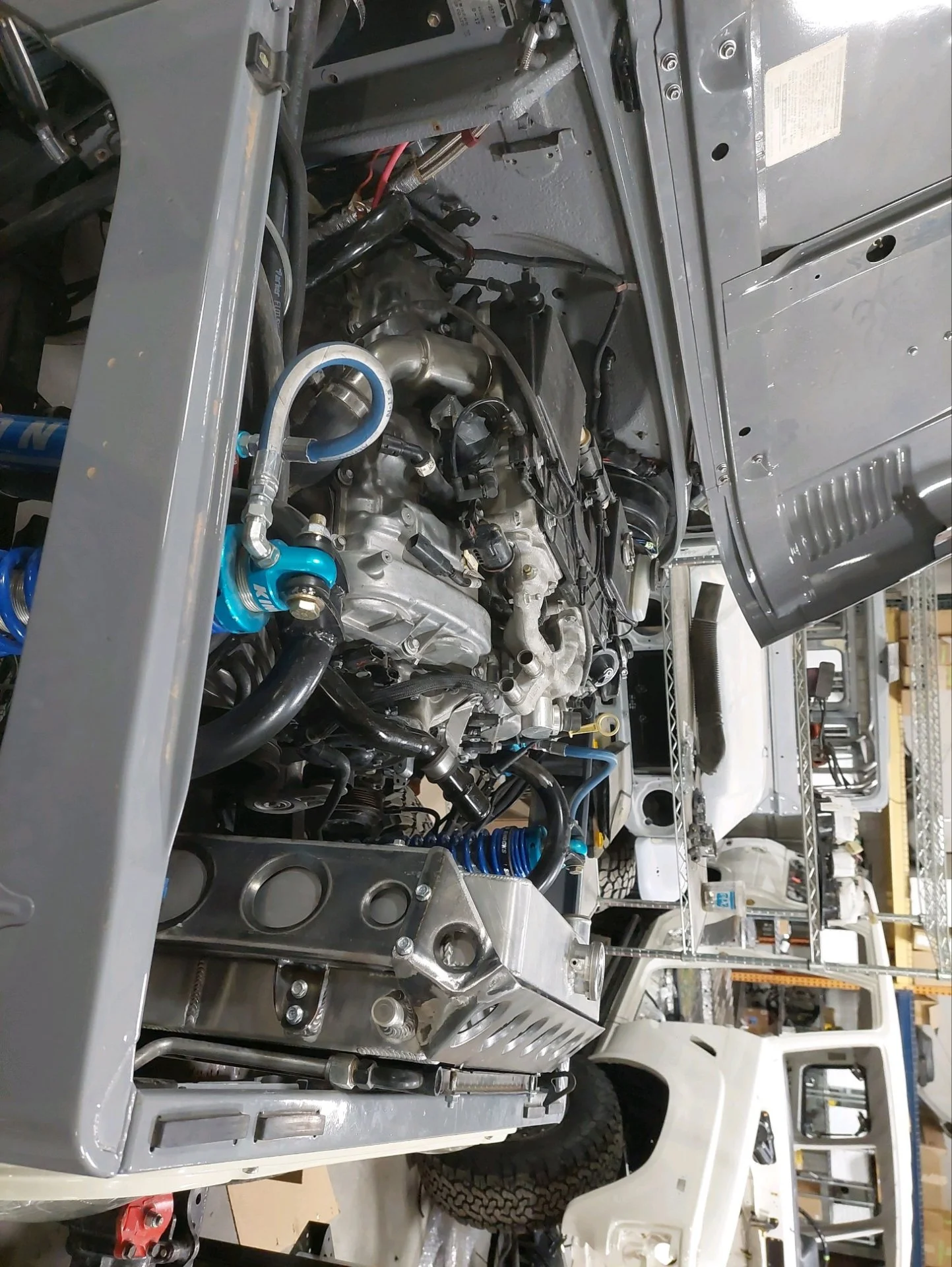

I goofed on the rad mount a bit and ended up a bit wide, so that will get a trimming to fit.

View attachment 3054095

I'm also getting bullied too 😂. Apparently I'm susposed to put those on now.

View attachment 3054094
Very impressive!


DangerNoodle

Essentially a fire wielding monkey.
SILVER Star
Joined
Oct 25, 2019
Messages
2,146
Location
Divide, Colorado
Website
www.instagram.com

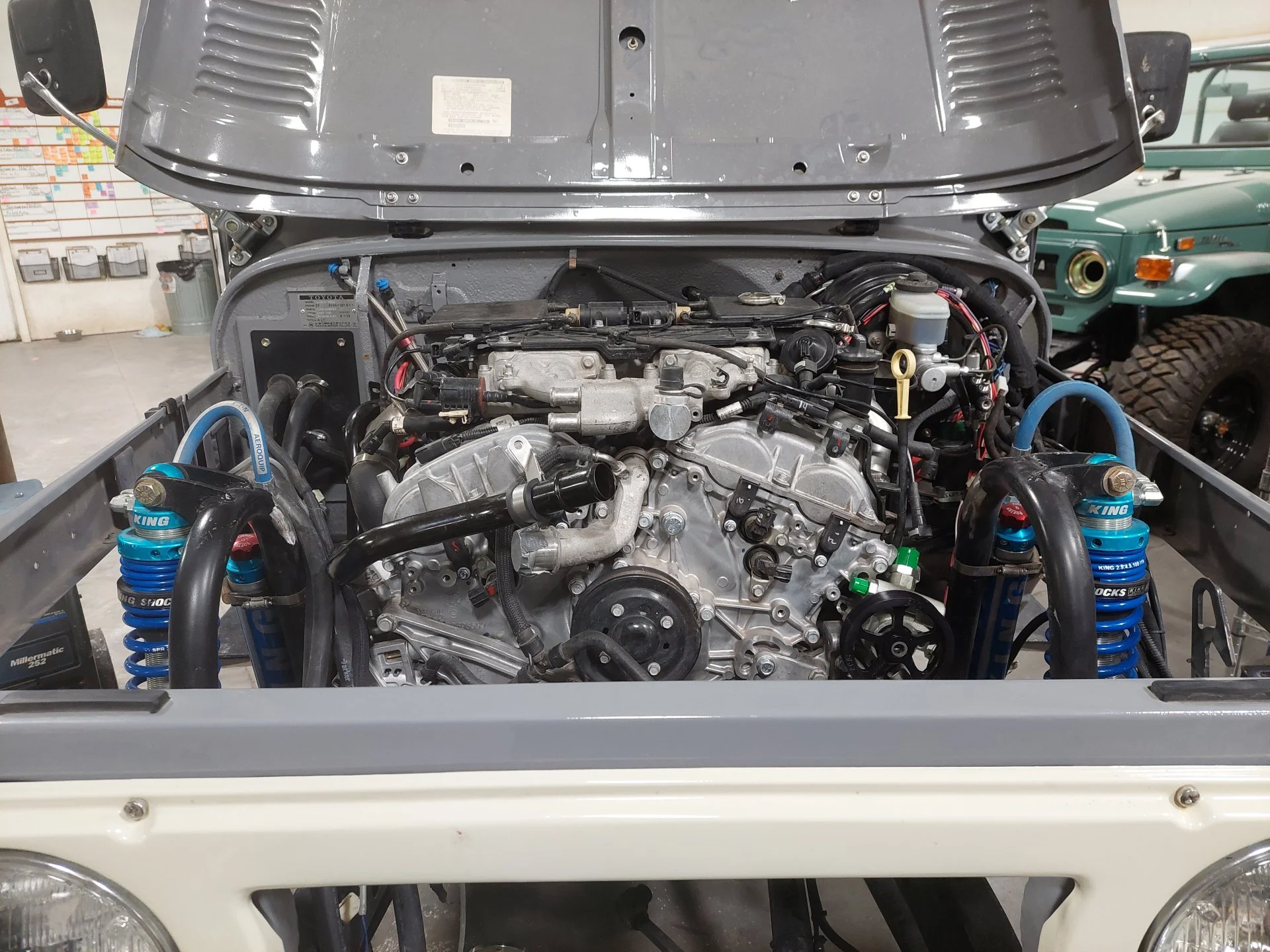

More stuff done.

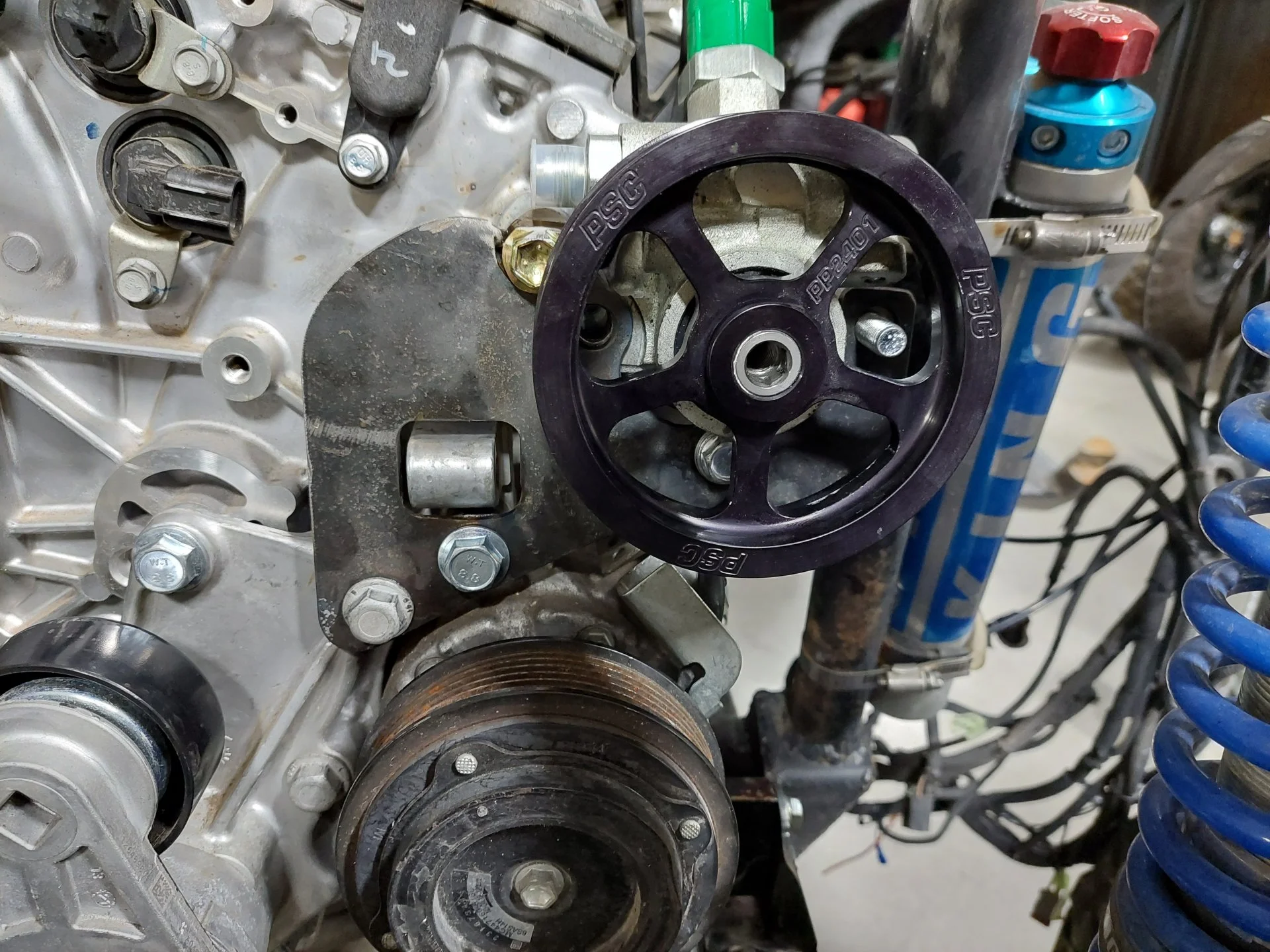

P/S pump bracket done.



It's a wide accessory package.



Cross brace back in.

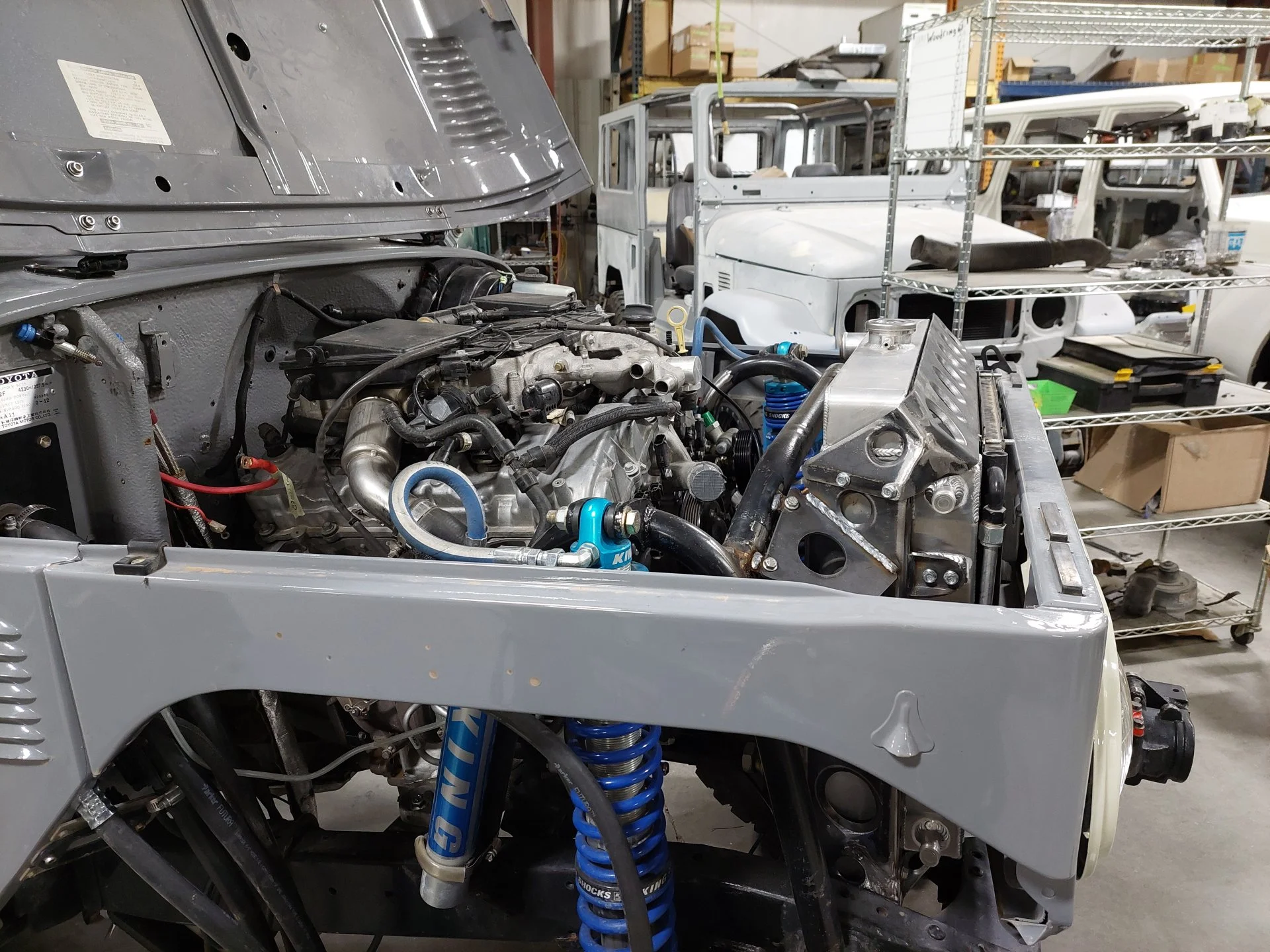

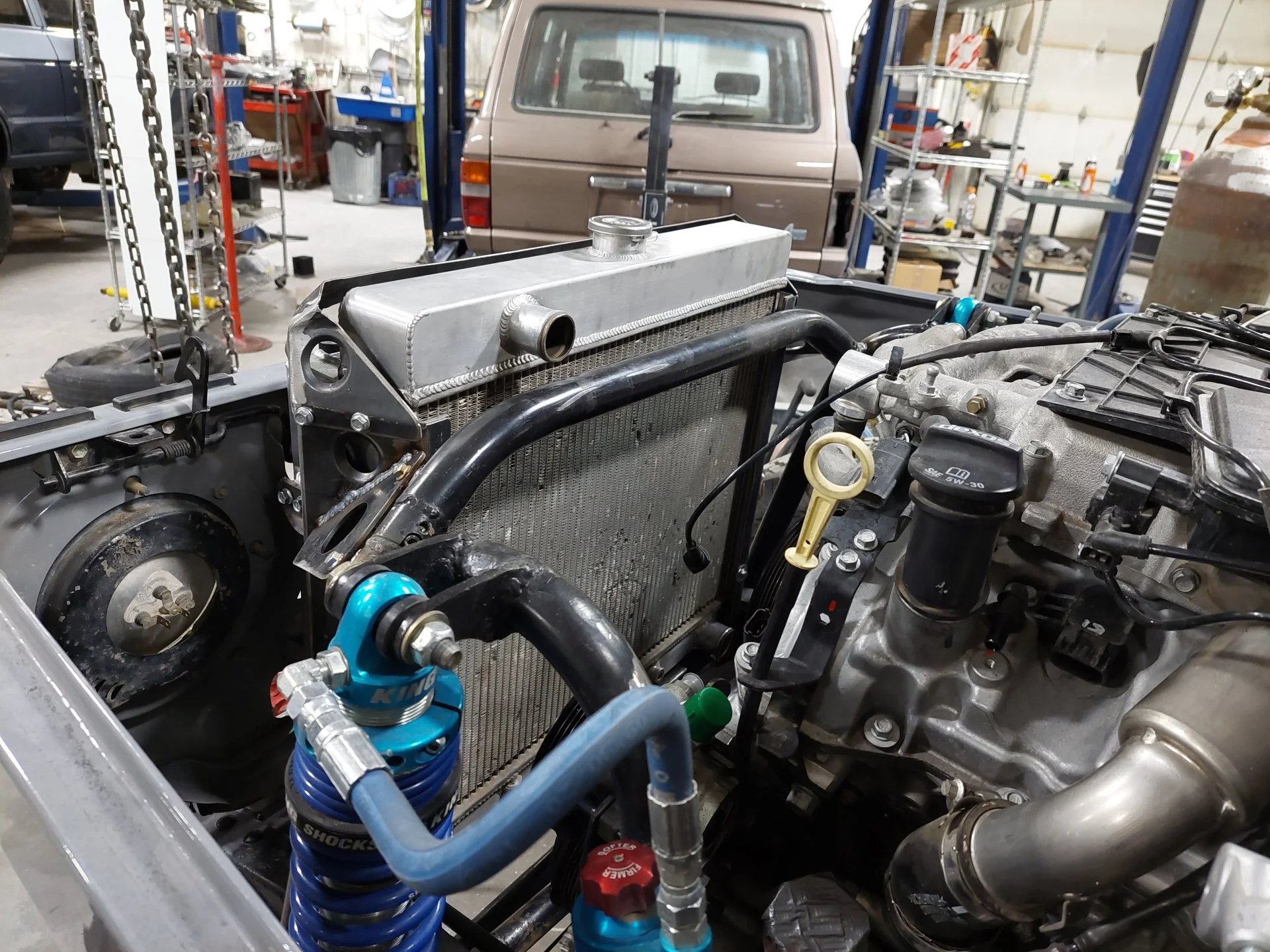

Radiator in.
